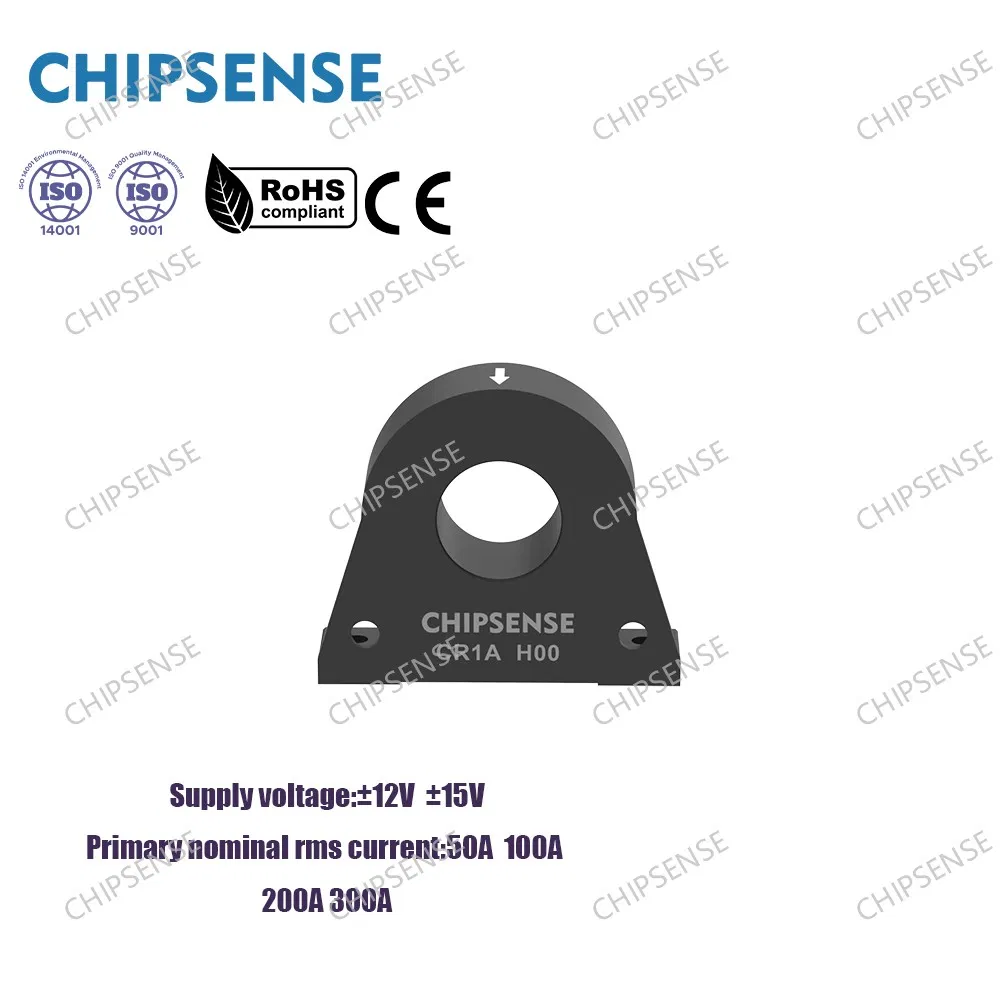

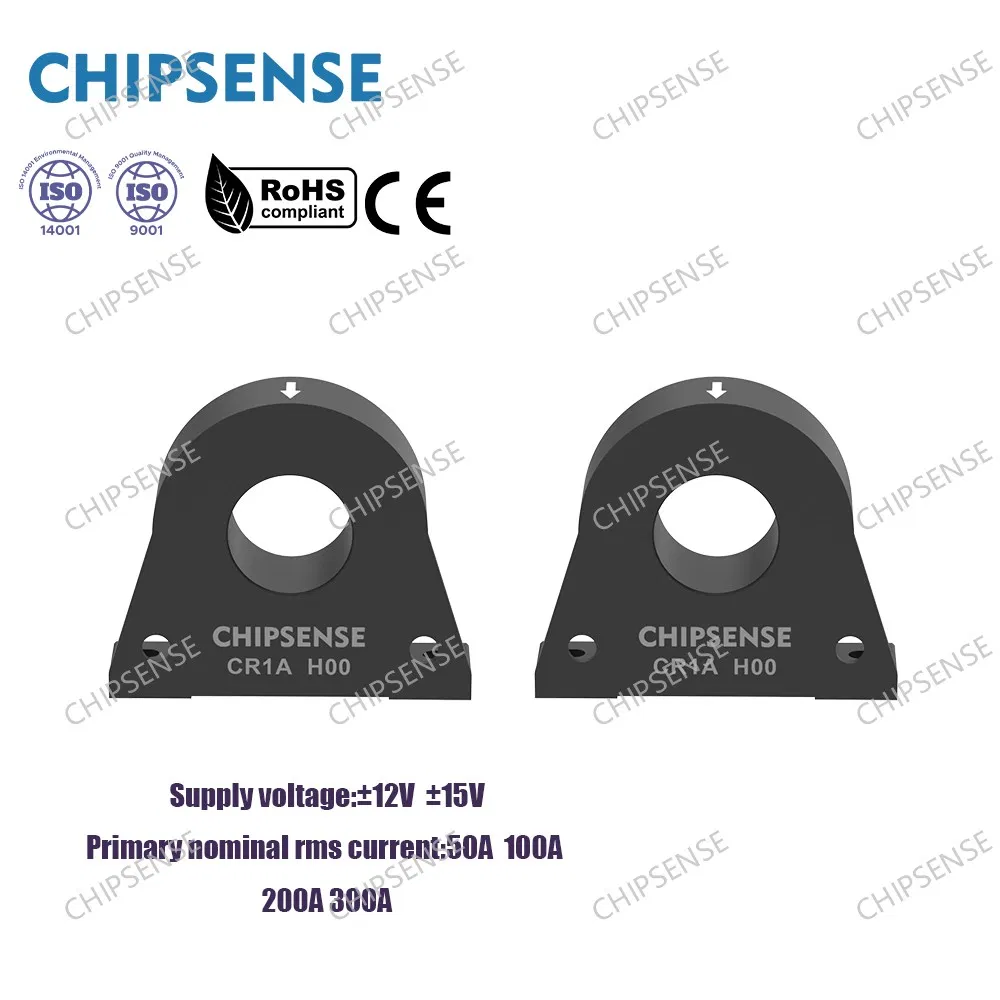

CR1A H00 Series high precision safety closed Loop 300A Current Transducer current transformer Toroidal φ20 for AC Variable Speed and Servo Motor Drives
CR1A H00 Series high precision safety closed Loop 300A Current Transducer current transformer Toroidal φ20 for AC Variable Speed and Servo Motor Drives
CR1A H00 Series high precision safety closed Loop 300A Current Transducer current transformer Toroidal φ20 for AC Variable Speed and Servo Motor Drives
CR1A H00 Series high precision safety closed Loop 300A Current Transducer current transformer Toroidal φ20 for AC Variable Speed and Servo Motor Drives
CR1A H00 Series high precision safety closed Loop 300A Current Transducer current transformer Toroidal φ20 for AC Variable Speed and Servo Motor Drives
1 / 5
CR1A H00 Series high precision safety closed Loop 300A Current Transducer current transformer Toroidal φ20 for AC Variable Speed and Servo Motor Drives
CR1A H00 Series high precision safety closed Loop 300A Current Transducer current transformer Toroidal φ20 for AC Variable Speed and Servo Motor Drives
CR1A H00 Series high precision safety closed Loop 300A Current Transducer current transformer Toroidal φ20 for AC Variable Speed and Servo Motor Drives
CR1A H00 Series high precision safety closed Loop 300A Current Transducer current transformer Toroidal φ20 for AC Variable Speed and Servo Motor Drives
CR1A H00 Series high precision safety closed Loop 300A Current Transducer current transformer Toroidal φ20 for AC Variable Speed and Servo Motor Drives

CR1A H00 Series high precision safety closed Loop 300A Current Transducer current transformer Toroidal φ20 for AC Variable Speed and Servo Motor Drives

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
CR1A 300 H00
Process
Integration
Material
Plastic
Accuracy
0.5% of Ipn
Application
Uninterruptible Power Supplies (UPS)
Certification
CE
Supply Voltage
±12 to ±15
Product
Current Sensor
Product Parameters
Electrical Characteristics
Parameter Model Number CR1A 100 H00 CR1A 200 H00 CR1A 300 H00 Unit Condition
IPN Nominal RMS Current 0~±100 0~±200 0~±300 A -
IPM Measuring Range 0~±200 0~±400 0~±500 A -
VC Supply Voltage ±12 - ±15 V @
IC Current Consumption - 20+IS - mA -
εL Linearity Error -0.1 - 0.1 % Excl. VOE
X Accuracy @IPN -0.5 - 0.5 % Excl. VOE
tr Response Time - 0.5 1 µs @90% IPN
BW Bandwidth - 150 - kHz -3dB

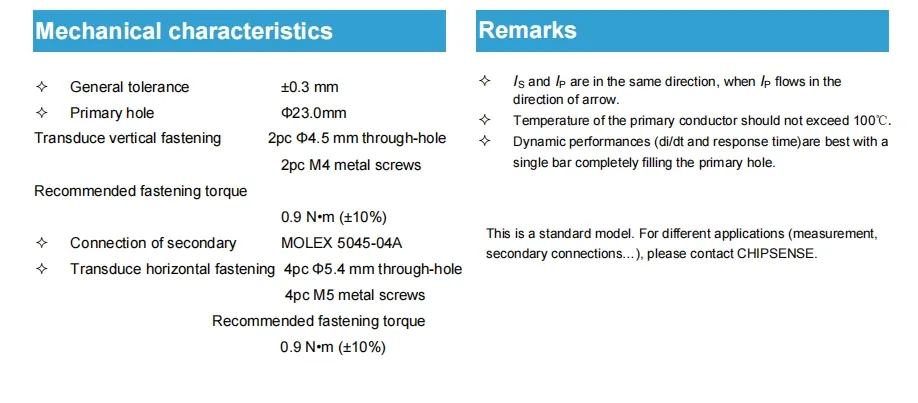

Current Transducer Series
Certifications

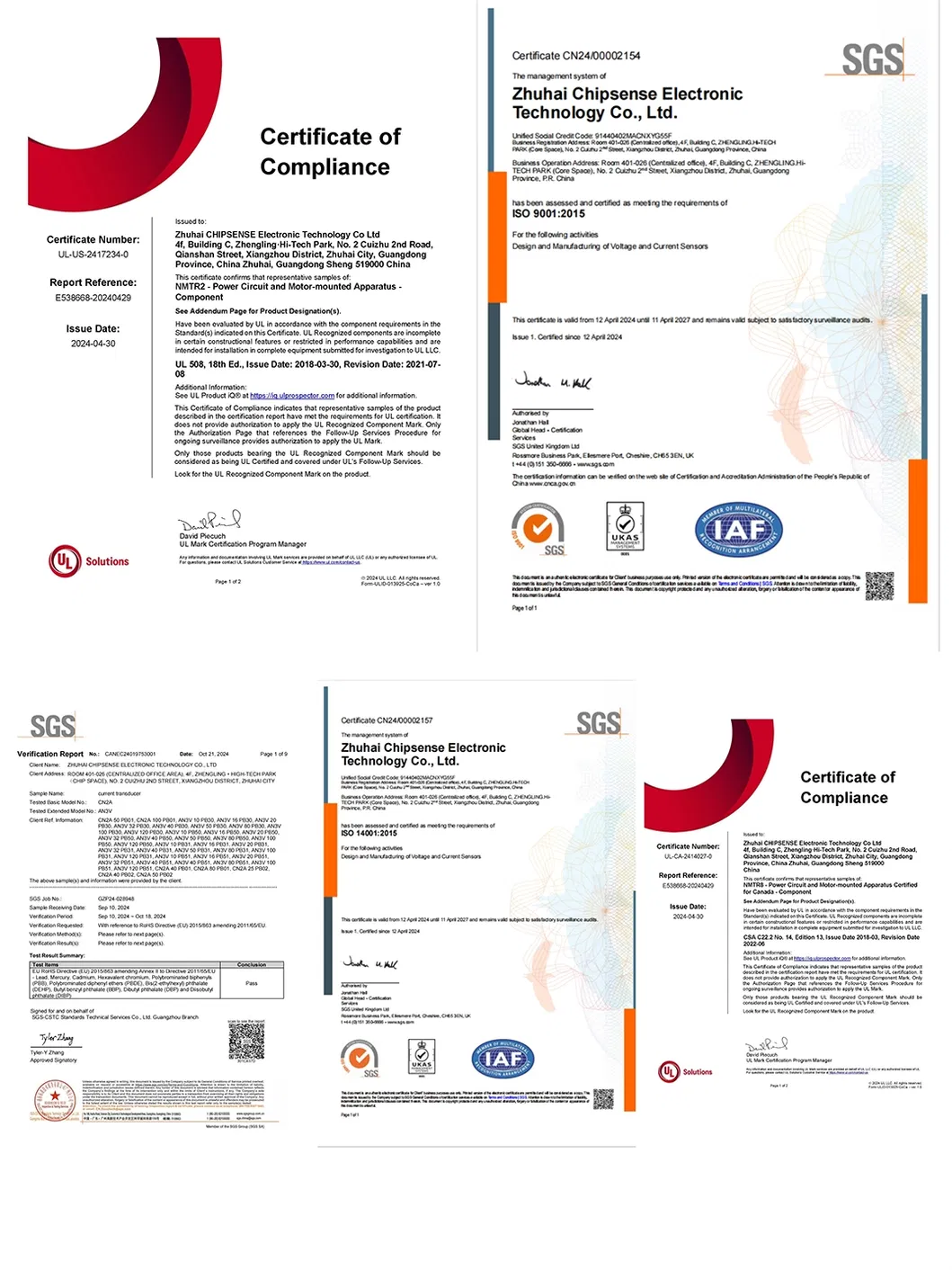

Certification Quality
Production & Capabilities

We are a high-tech enterprise focusing on research, development, production, and application of high-end current and voltage sensors. Our focus extends to forward research on sensor chips and cutting-edge sensor technologies, providing independently developed sensors along with diversified customized solutions.

Facility 1

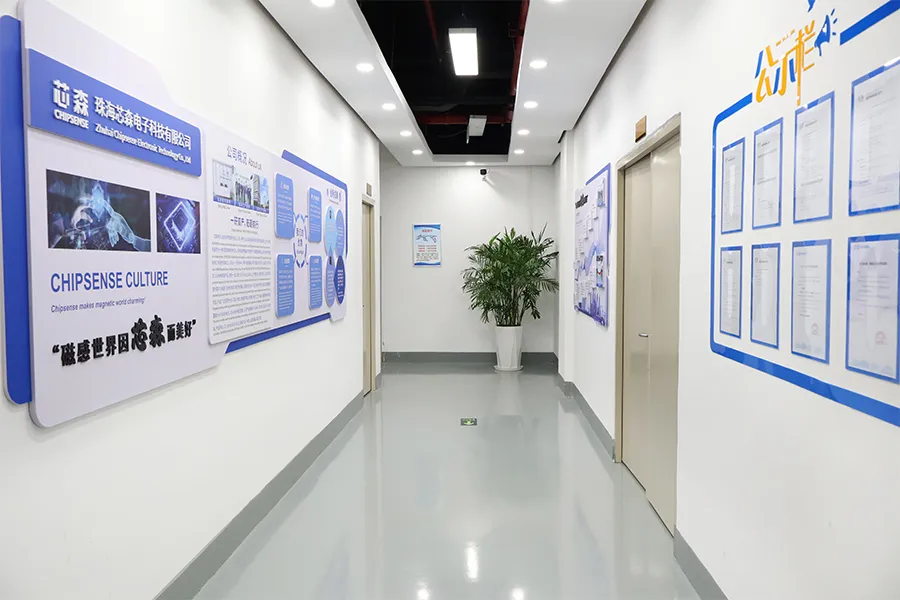

Facility 2

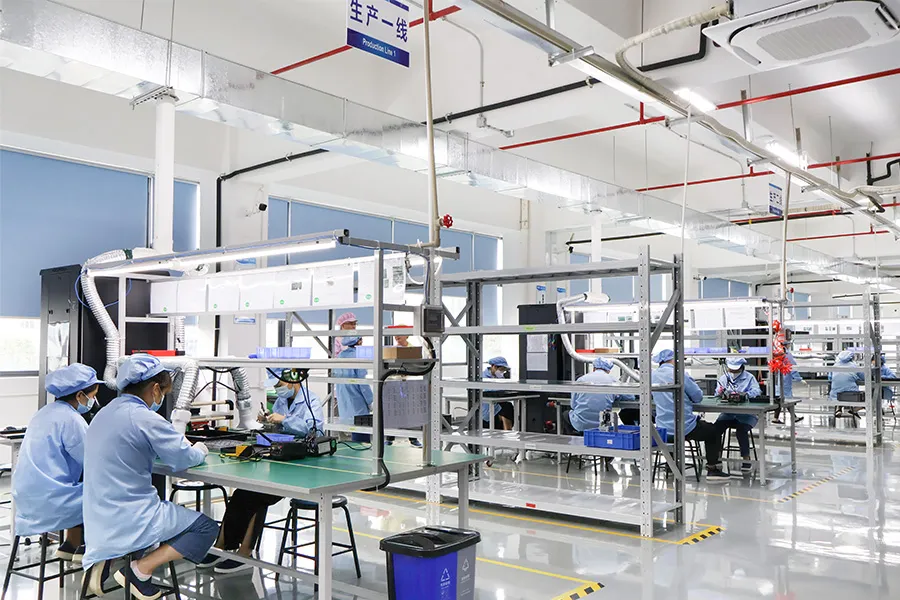

Facility 3

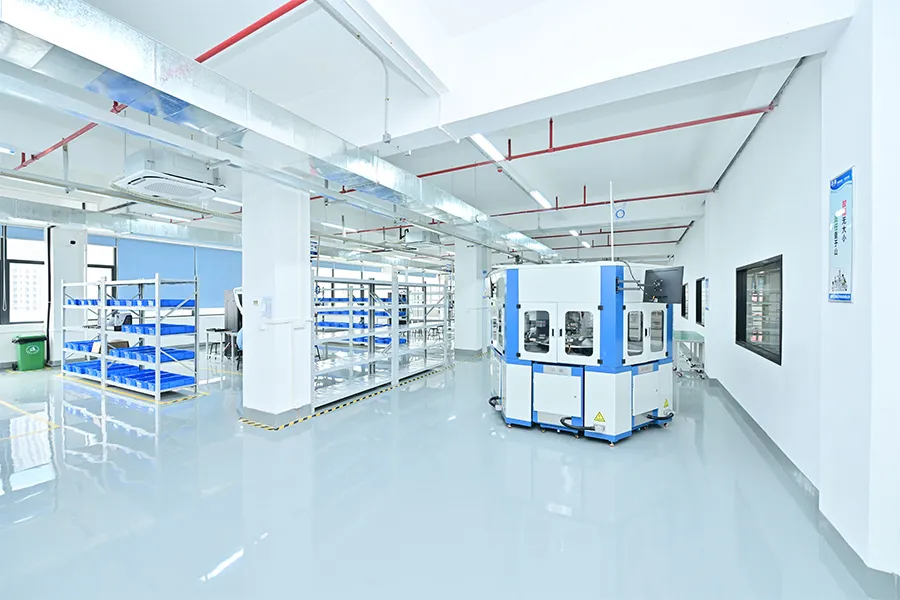

Advanced Equipment

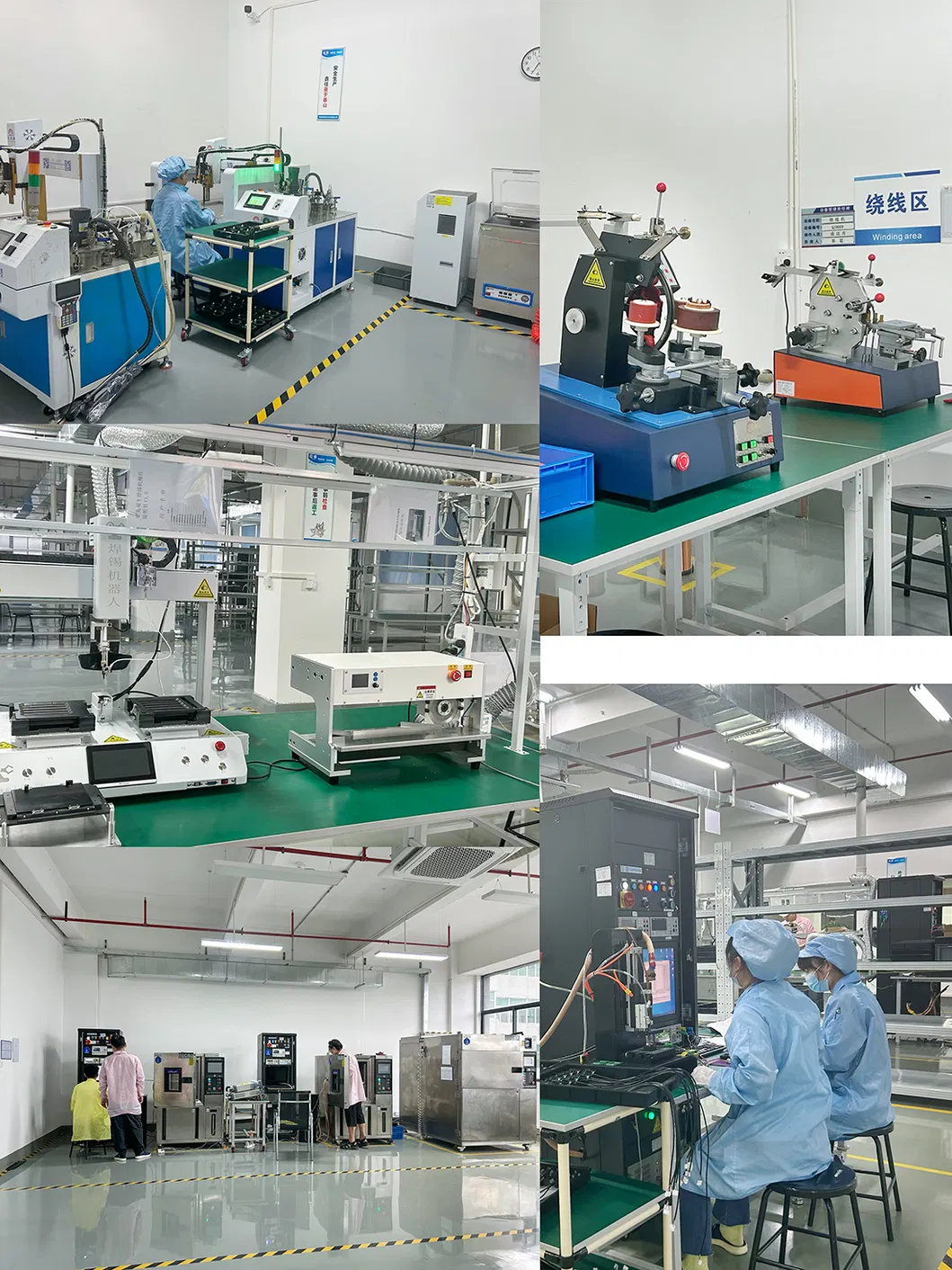

Manufacturing Process
Our Advantages

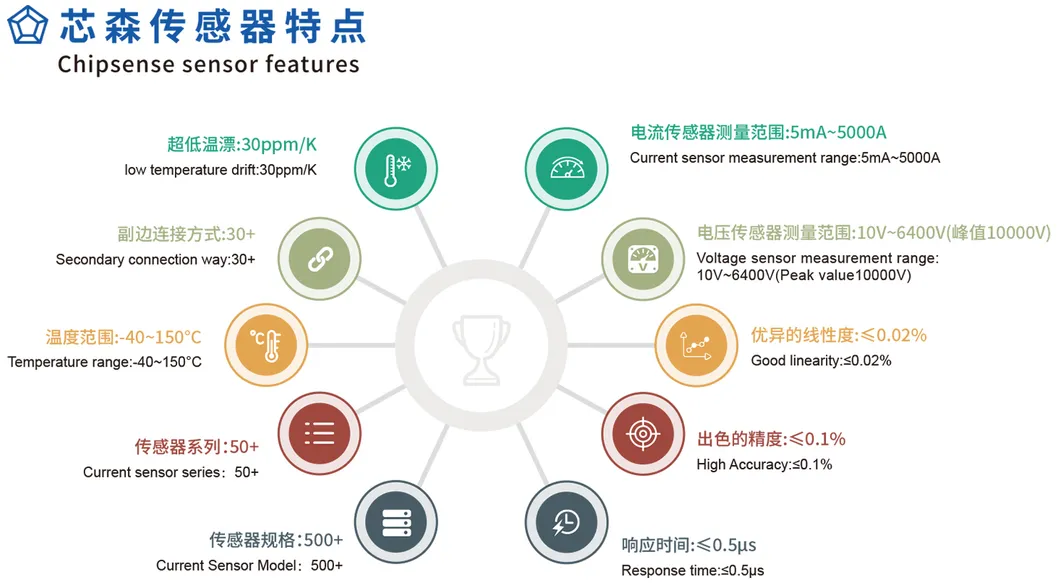

Product Advantages
Packaging & Delivery
Package Size
34.00cm * 13.20cm * 30.50cm
Gross Weight
4.500kg
Shipping Package
Frequently Asked Questions
1. What is your standard product range?
We specialize in sensor manufacturing, including current and voltage sensors. Our current sensor range covers 10A to 3000A (extending from 5mA to 5000A), and voltage sensors from 10V up to 6400V.
2. What are the key advantages of your sensors?
Our sensors offer high speed, high precision, low temperature drift, and excellent linearity. They feature superior zero drift performance combined with intelligent sensing technology.

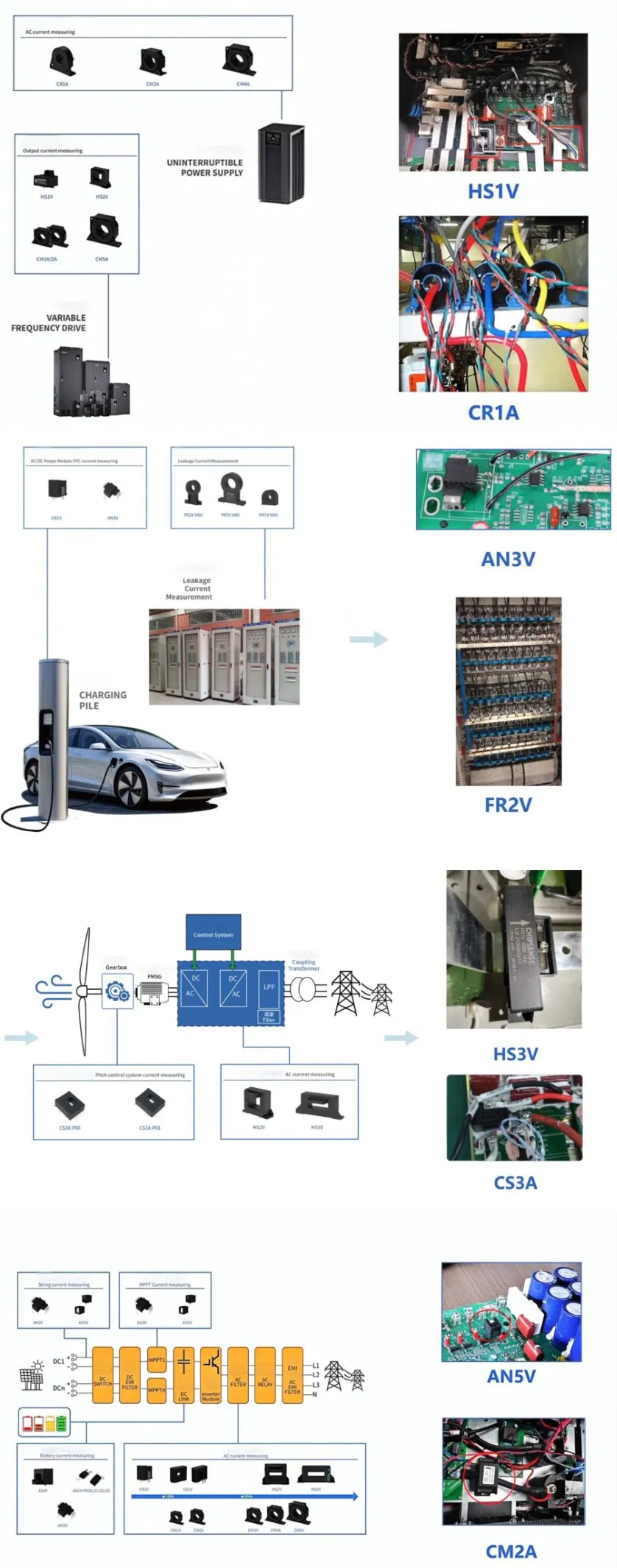

3. Which industries use these sensors?
Applications include AC variable speed drives, UPS systems, SMPS, solar inverters, electric vehicle battery management (BMS), charging stations, and various energy storage systems.
4. Do you support customized solutions?
Yes, we provide both OEM and ODM services. Our high-level R&D team can design and customize products based on your specific technical requirements.
5. What is the warranty period for your products?
We provide a comprehensive 1-year warranty on our sensors to ensure reliable performance and customer satisfaction.
6. Can you provide technical support during installation?
Absolutely. We provide full technical instructions and support at any time during your installation and integration process.
