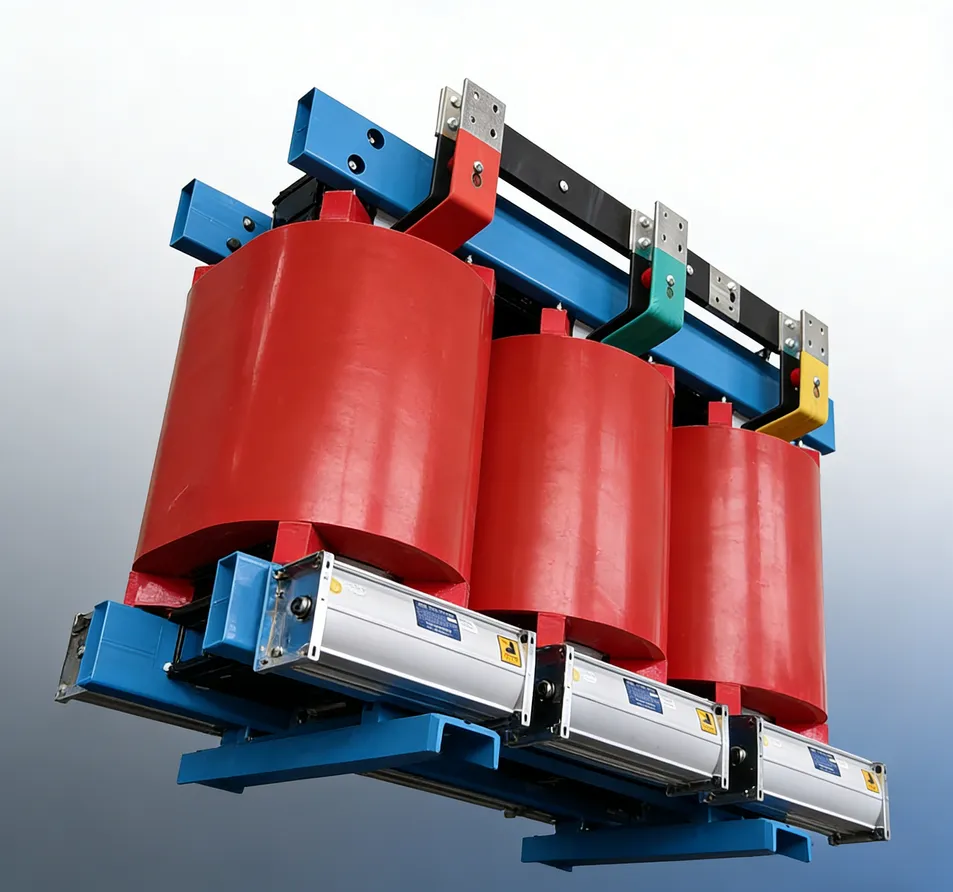

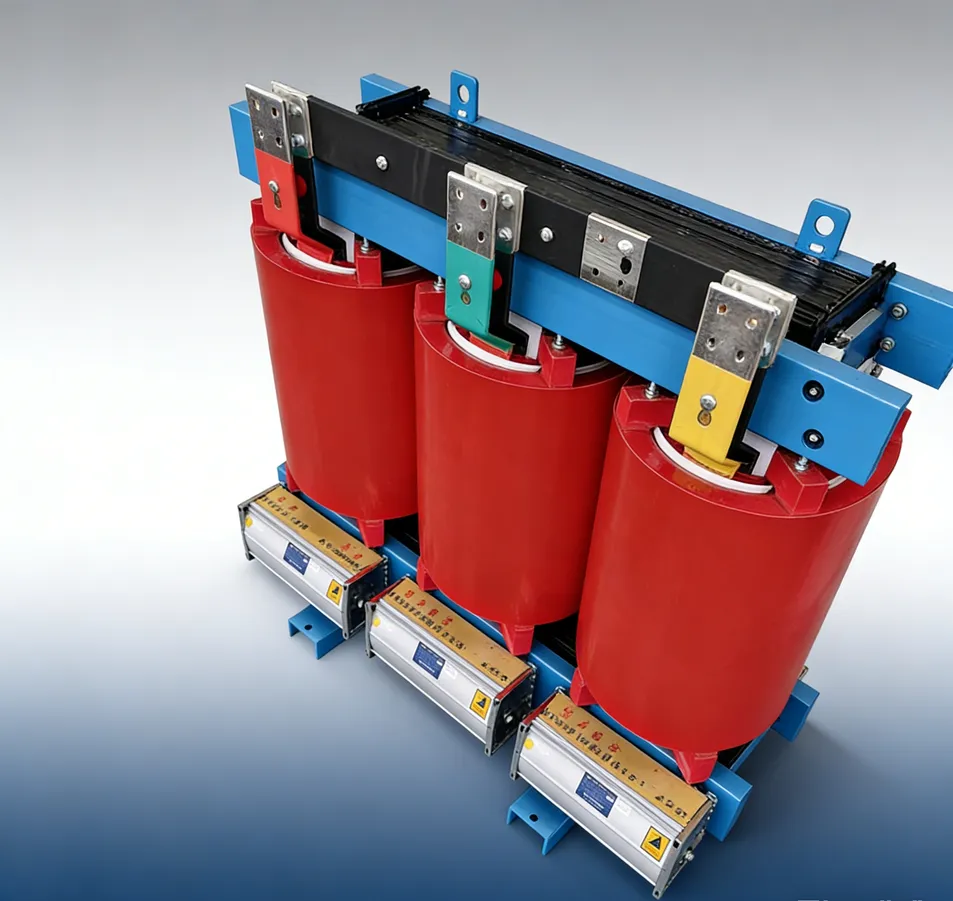

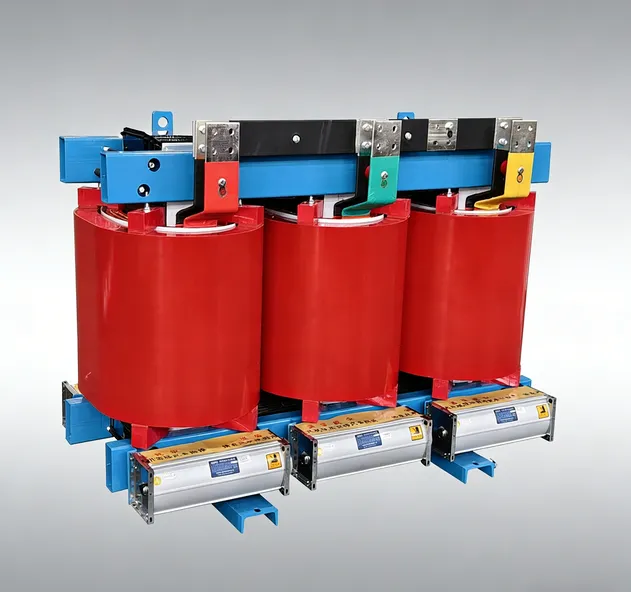

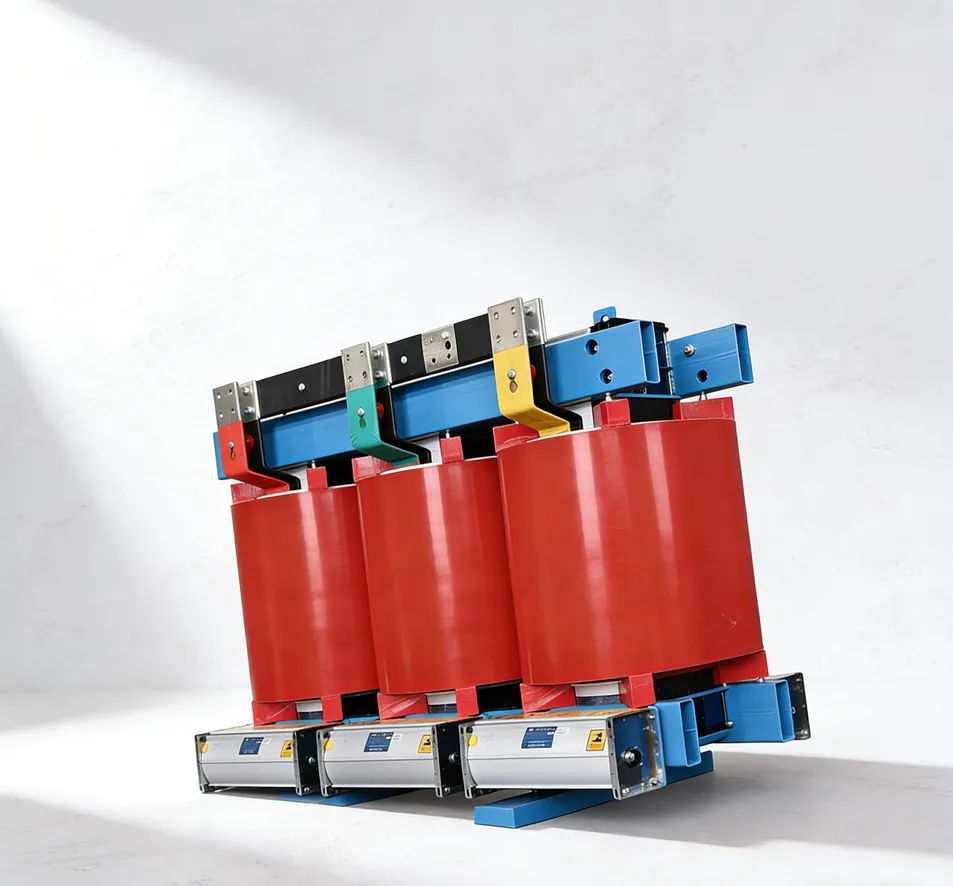

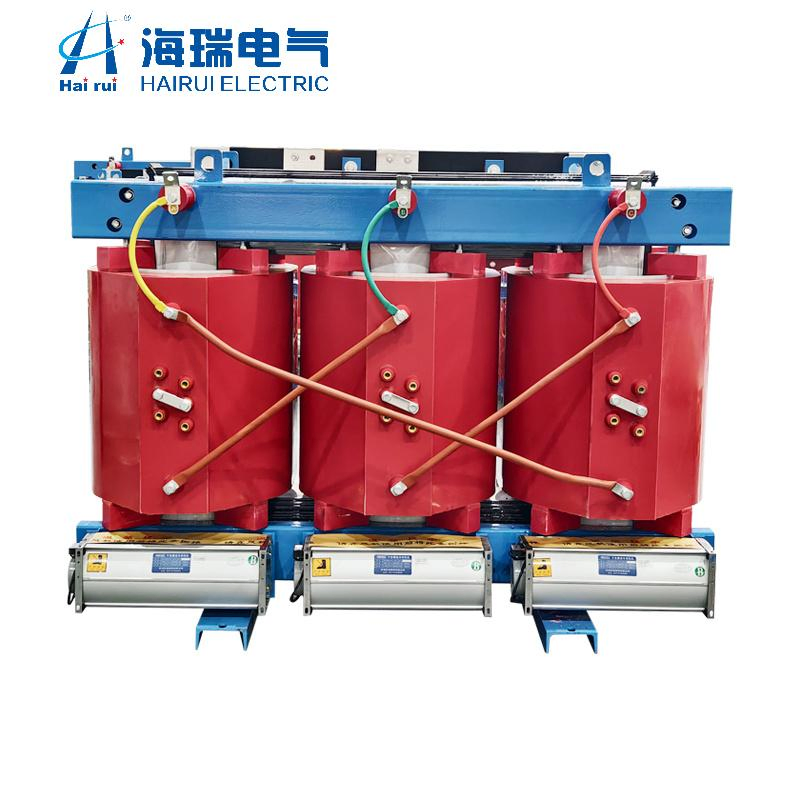

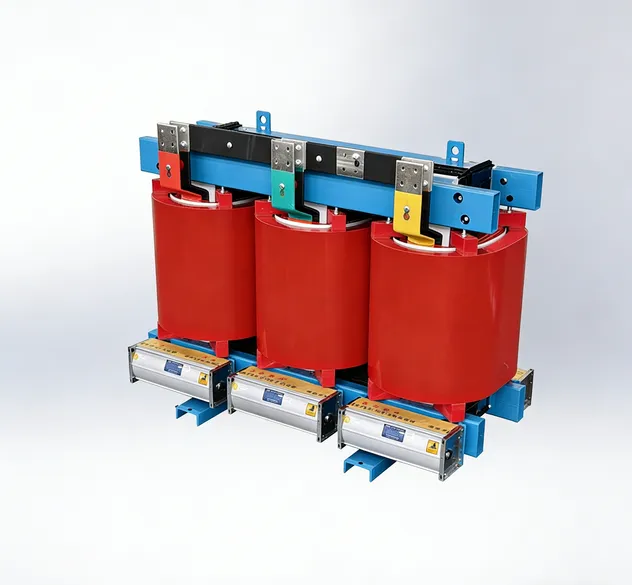

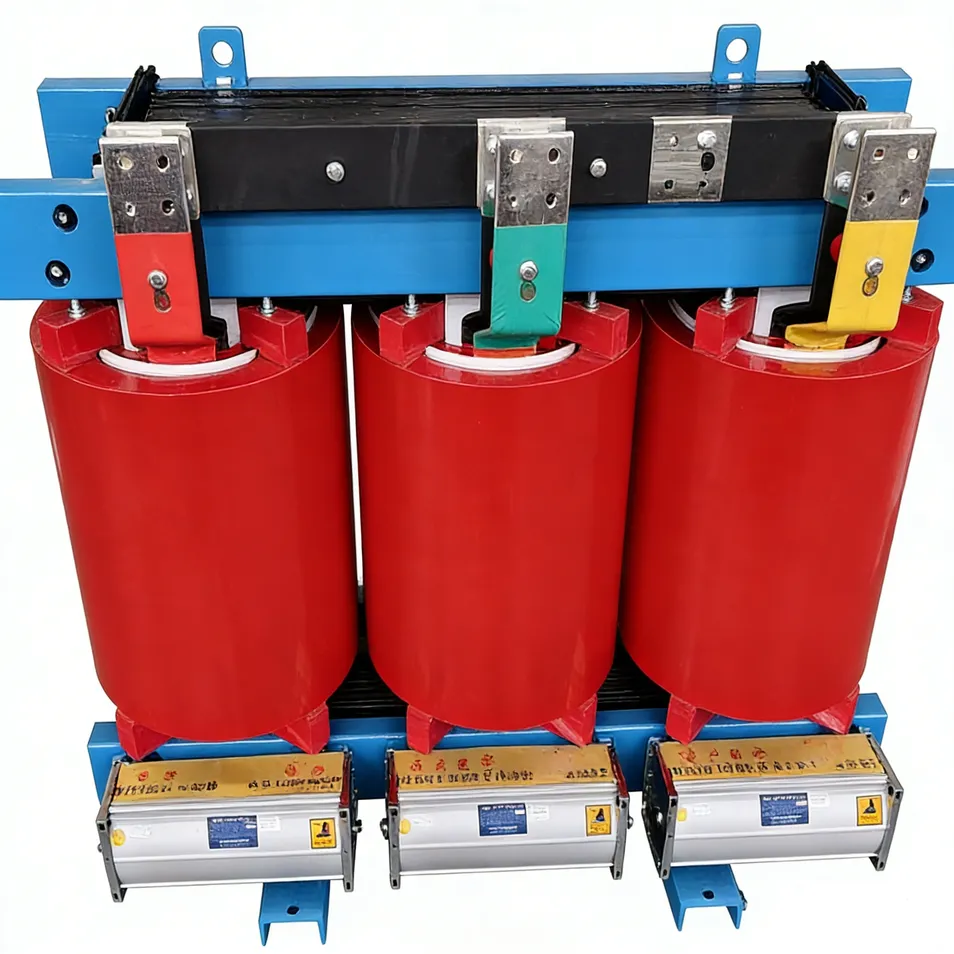

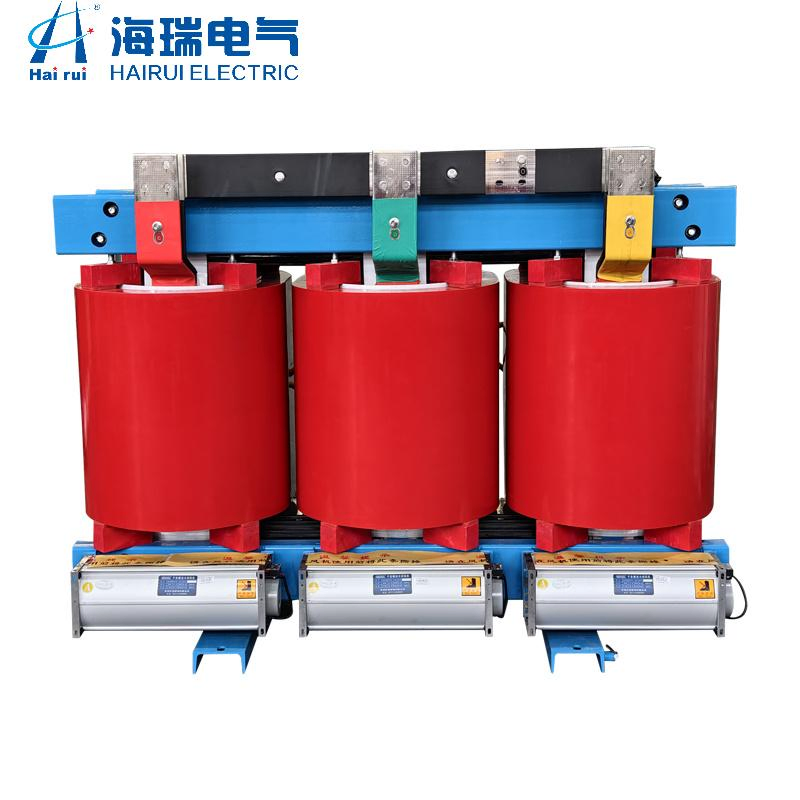

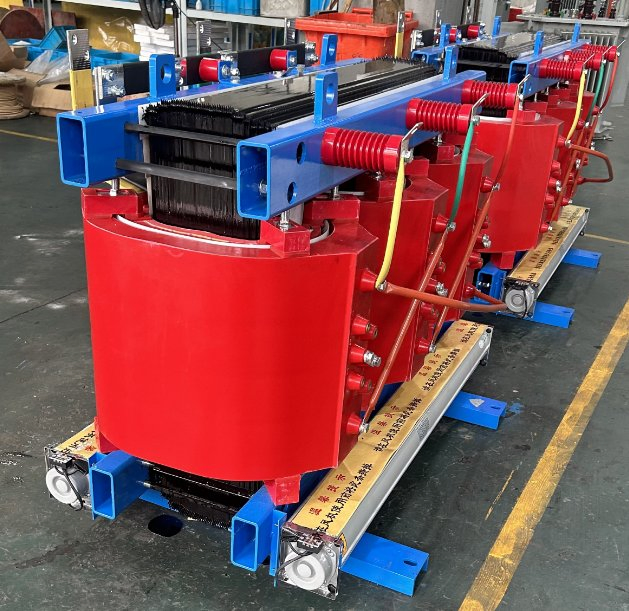

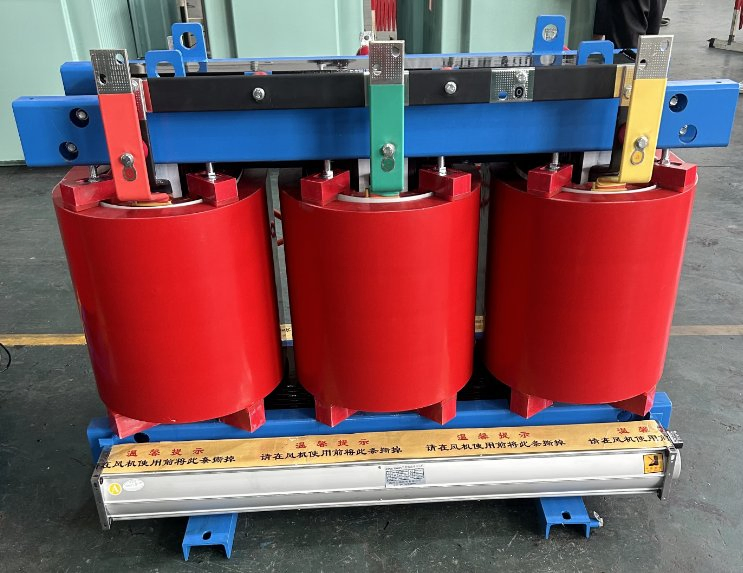

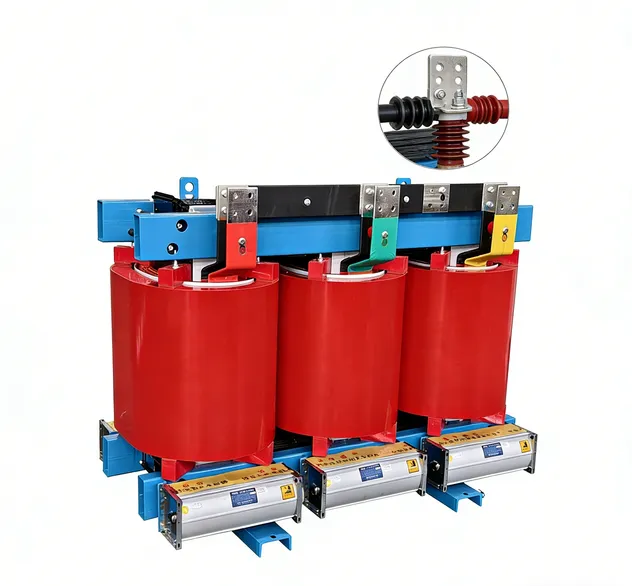

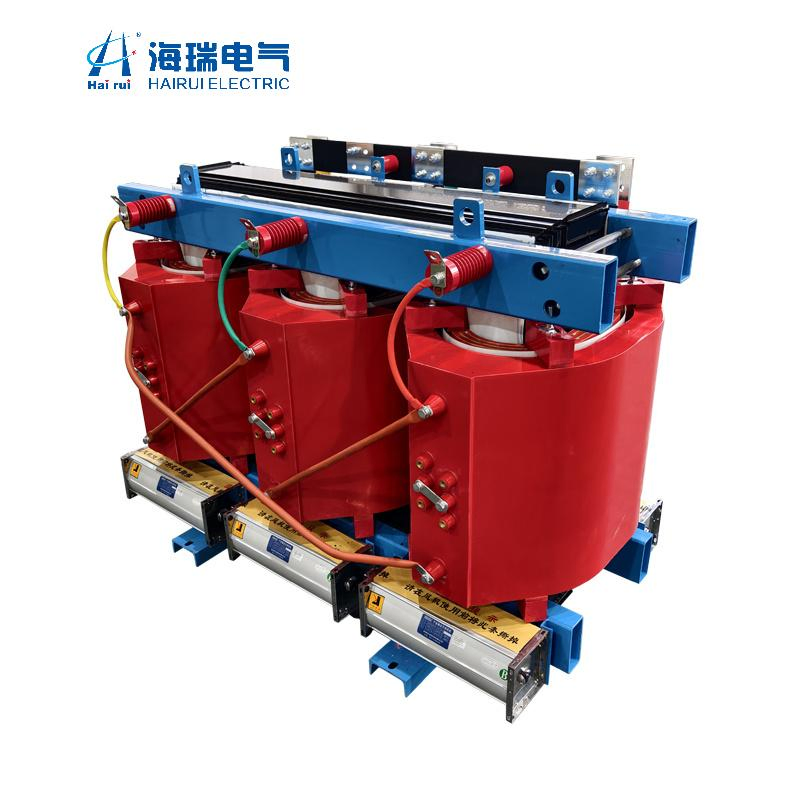

| Model NO. | SCB11 |
| Core Type | Core-type Transformer |
| Cooling Method | Anaf (Air Natural Air Forced) |
| Winding Type | Separated Winding Transformer |
| Certification | ISO9001 |
| Usage | Power Transformer, Distribution Transformer |
| Frequency | 50 Hz / 60 Hz |
| Rated Capacity | 0 - 10000kVA |
| Service Voltage | 0 - 35kVA |
| Transport Package | Standard Wooden Crate Packaging for Export |

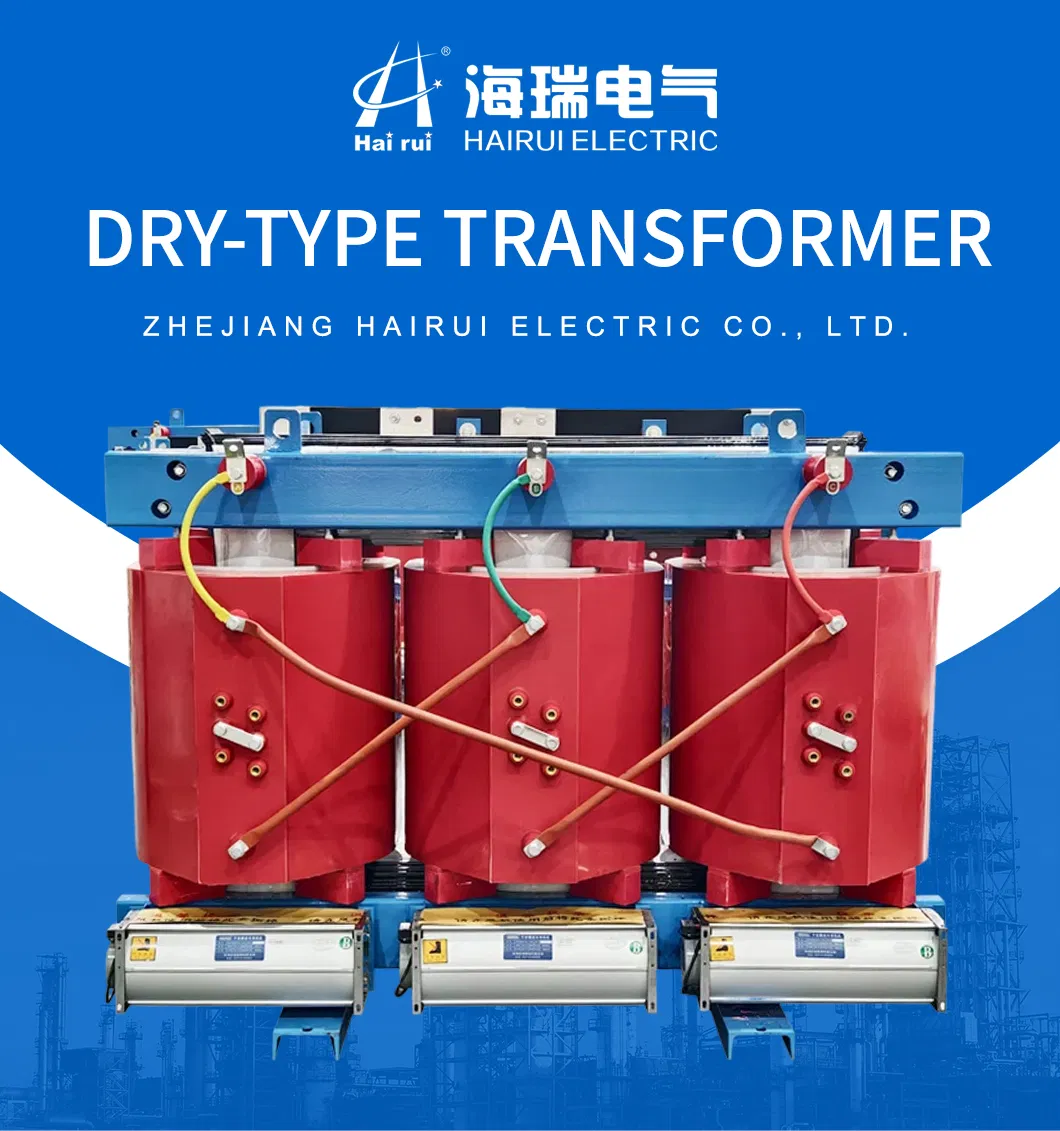

Fireproof and Flame-Retardant: Vacuum-cast with epoxy resin, possessing self-extinguishing properties, eliminating fire and explosion risks.
Environmental Adaptability: Excellent moisture resistance allows operation in 100% humidity environments without pre-drying.
Robust and Durable: Strong mechanical resistance with an expected lifespan of up to 30 years.
Low Loss and Low Noise: Utilizing high-quality cold-rolled grain-oriented silicon steel sheets and advanced foil winding technology.
Strong Overload Capacity: In forced air cooling (AF) mode, the transformer's capacity can be increased by up to 50%.
| Rated High Voltage | 10(11, 10.5, 6.6, 6, 3)kV |
| Rated Low Voltage | 0.4kV |
| Connection Group | Dyn11 or Yyn0 |
| High-voltage Tap Range | ±5% or ±2×2.5% |
| Insulation Level | L175AC35L/L10AC5 |
| Rated Frequency | 50Hz |
| Number of Phases | Three-phase |
Commercial & Public: High-rise buildings, CBDs, hospitals, airports, and subways.
Industrial & Infrastructure: Industrial enterprises, oil platforms, tunnels, and power plants.
Special Emerging Needs: Data centers, rail transit, offshore platforms, and remote energy storage systems.
