Customization: Available
Application: Power, Electronic, Instrument, Lighting, Rectifier
Phase: Three
Send Inquiry

Product Description

Basic Information
Model NO.
SCB11
Core
Core-type Transformer
Cooling Method
Dry-type Transformer
Winding Type
Two-winding Transformer
Certification
ISO9001-2000, ISO9001, CCC
Usage
Distribution Transformer
Frequency
High Frequency
Insulation Grade
F
Voltage Class
10kv 35kv
Capacity Range
30~Any kVA
Product Overview
Dry Type Transformer Overview

The series of dry-type power transformers with coils cast in epoxy resin are fire-resistant indoor-type products. According to different use environments, they can be equipped with various protection level shells. Ideal for space-limited installations close to load centers with special fire protection requirements. Suitable for power stations, factories, hospitals, high-rise buildings, airports, and nuclear power plants.

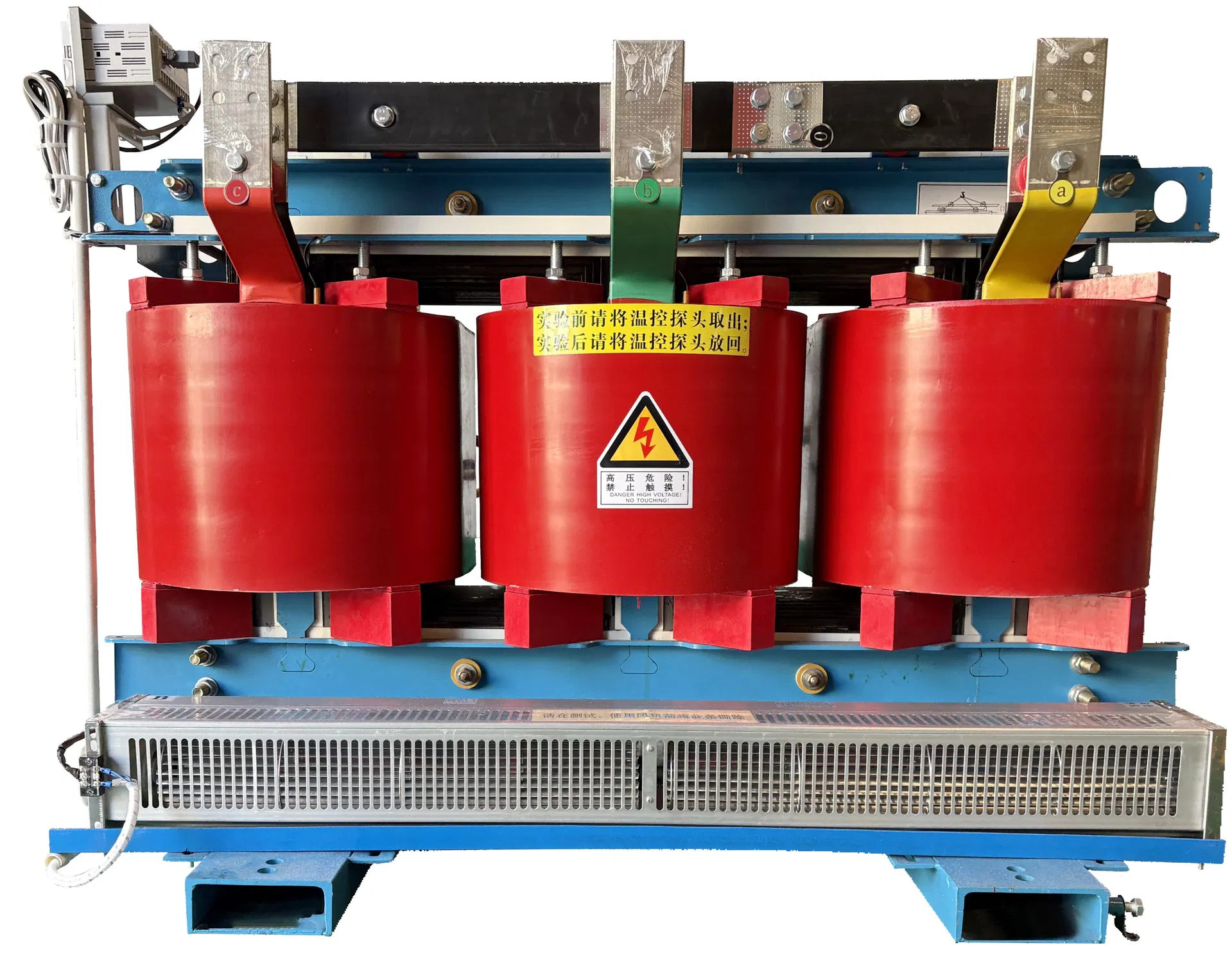

Transformer Details

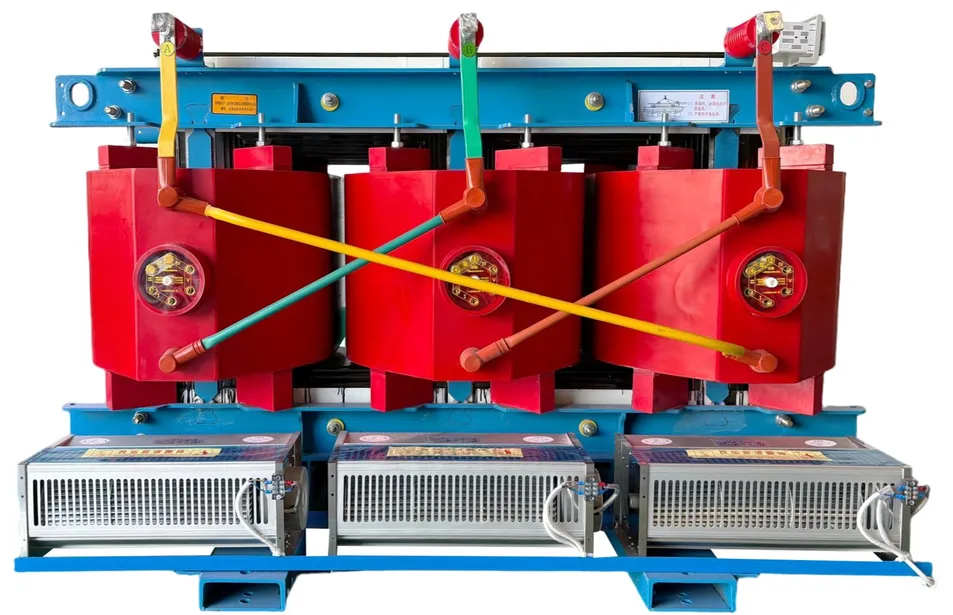

Transformer Features
Core Features & Advantages
●
Low Noise and Low Loss: Reasonable circuit design and high-quality grain-oriented cold-rolled silicon steel significantly reduce noise levels.
●
Low Partial Discharge: Ensures safe, long-term operation under working electric tension.
●
Short-Circuit Resistance: Coils use epoxy glass fiber mesh structure with vacuum casting for high mechanical strength.
●
High Insulating Property: Excellent fire resistance and impact resistance for demanding environments.

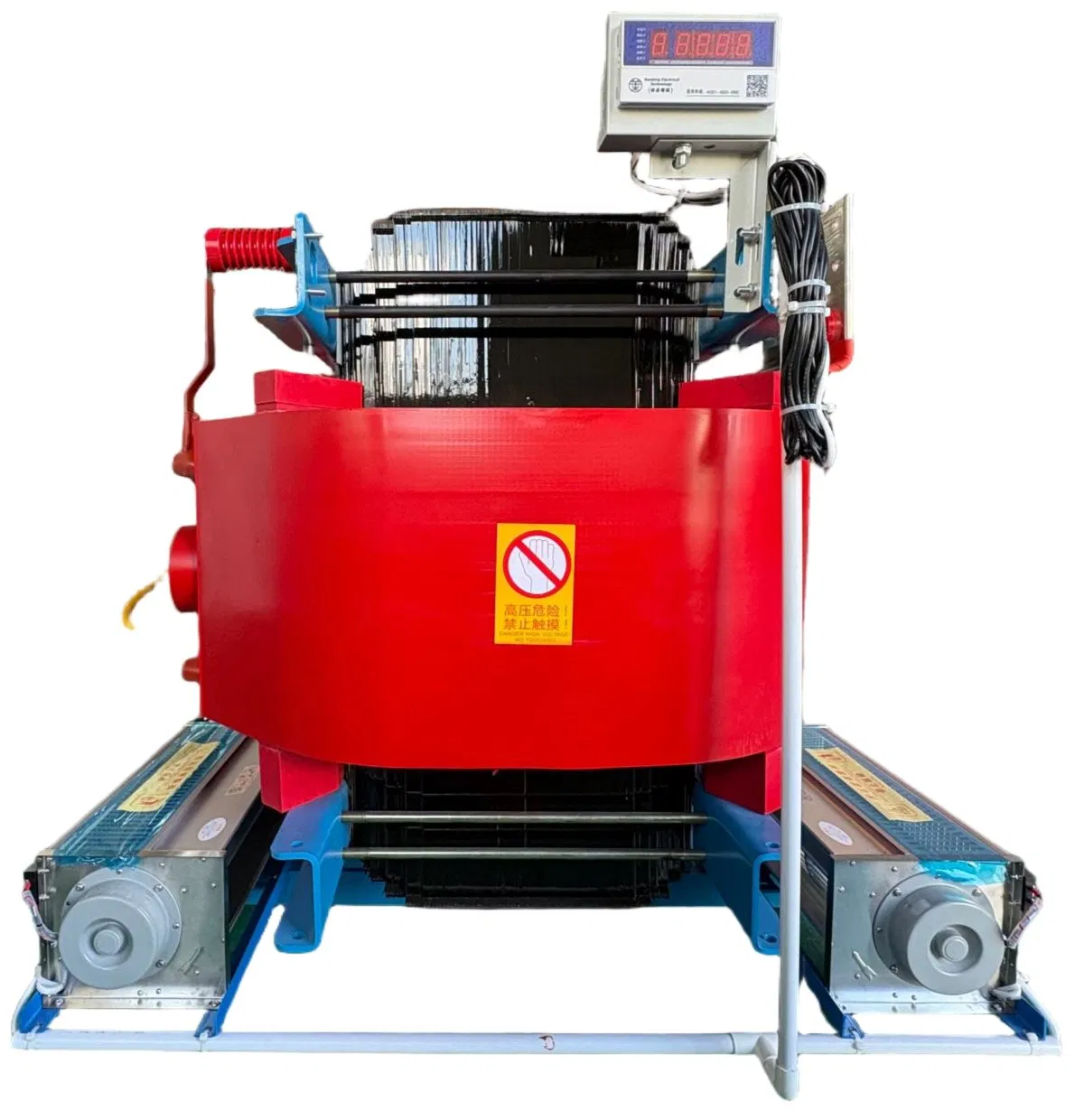

Technical Structure
Technical Specifications
Standards IEC60726, GB/T10228 Insulation Level LI75 AC35/AC5
Capacity Range 30~10,000kVA Partial Discharge ≤10PC
Voltage Class 10KV, 35KV Insulation Grade F
Connection Dyn11 / Yyn0 Cooling AN / AF
Protection IP00 (No cover), IP20 (Indoor), IP23 (Outdoor)
Production Capabilities

Our production base features an annual capacity of 5 million KVA. We specialize in dry-type transformers, oil-immersed transformers, rectifier transformers, and prefabricated substations. Our products serve major national infrastructure projects, airports, and high-tech industrial parks.

Product Range
Factory Overview

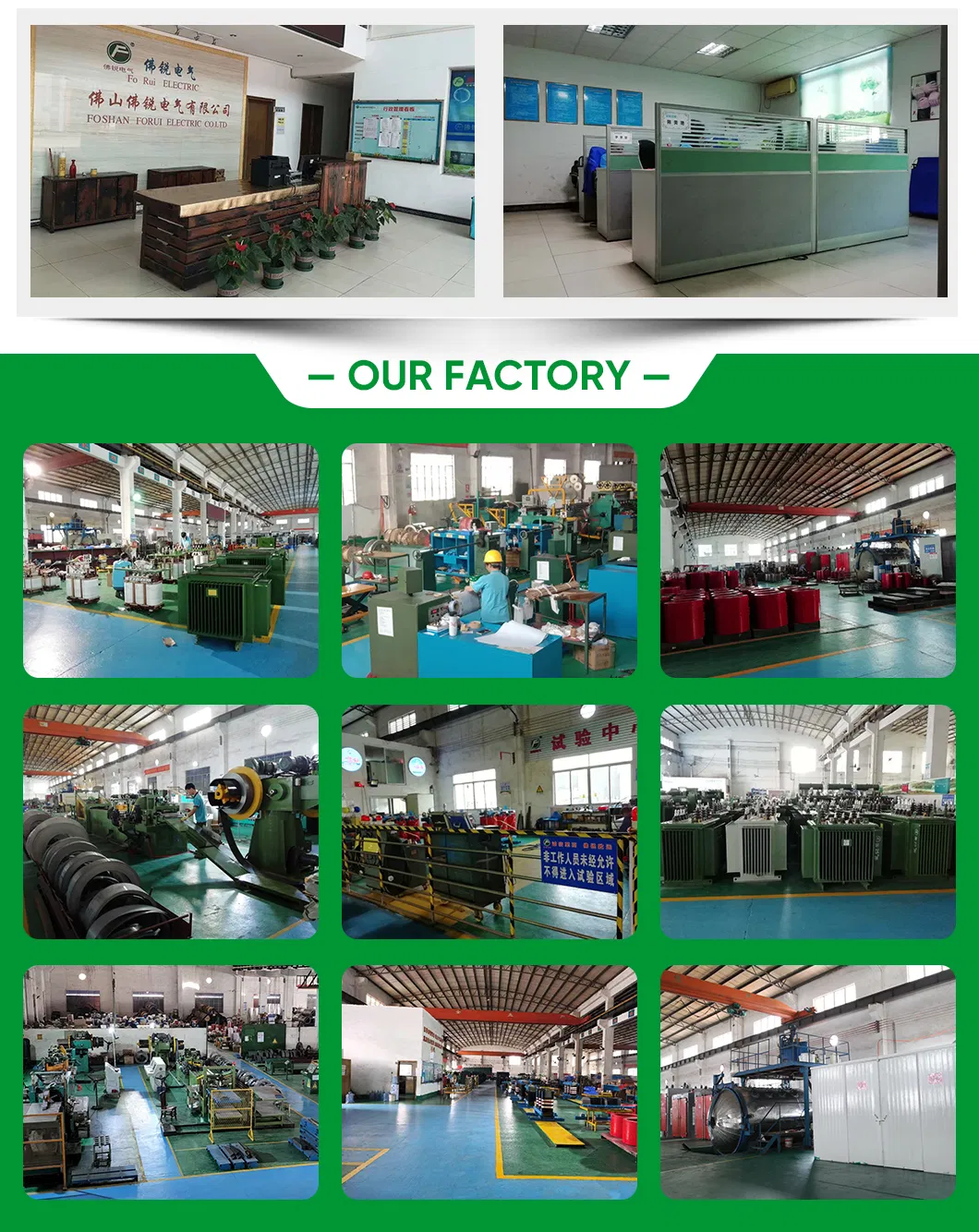

Production Line
Quality Control
Certifications
Packaging & Delivery

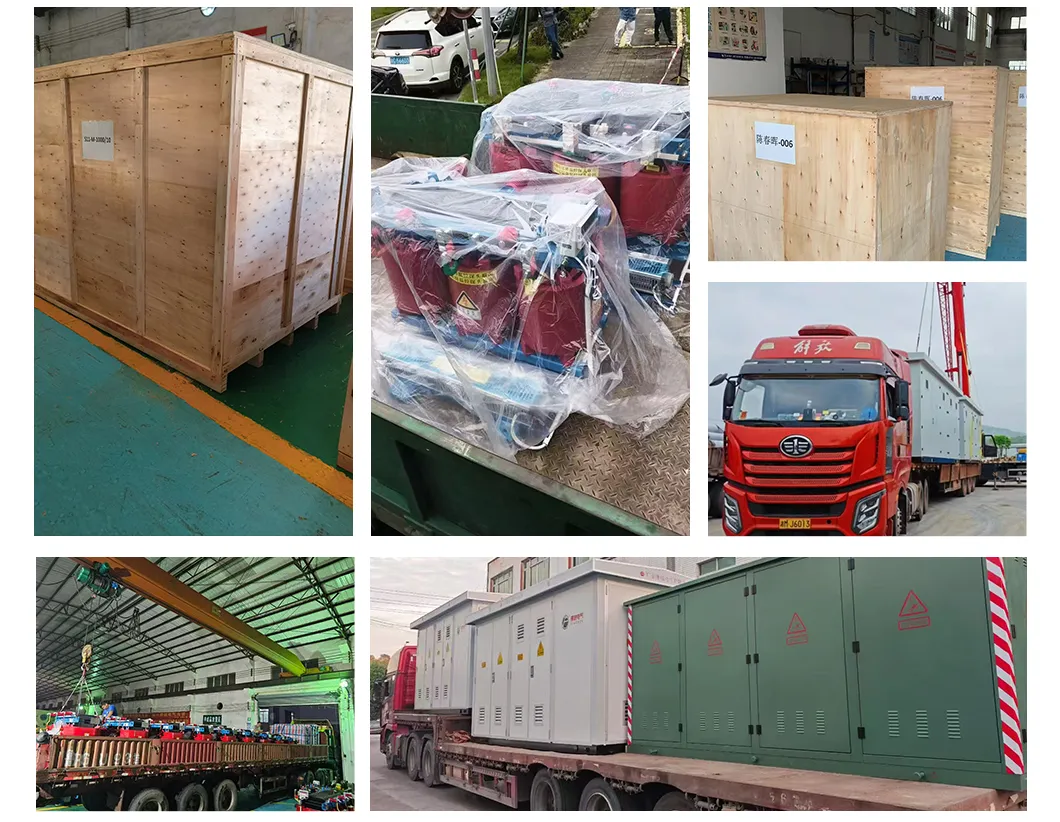

Shipping Packaging
Package
Seaworthy Wooden Case
Lead Time
20-45 days depending on quantity
Frequently Asked Questions
Q: Are you a professional transformer manufacturer?
A: Yes, we have been specialized in the research, development, and production of power transformers for over 10 years with a 10,000 square meter plant.
Q: What is the typical production lead time?
A: Production usually takes 30 to 45 days depending on the specific order requirements and technical complexity.
Q: Do you provide a quality guarantee for your products?
A: Yes, we provide a 1-year quality warranty on every product under correct usage conditions.
Q: Can you manufacture custom transformers?
A: Absolutely. Please provide your technical drawings or detailed specifications such as voltage class, capacity, and tapping range for a custom quotation.
Q: What certifications do your products carry?
A: Our factory and products are certified under ISO9001, ISO14001, OHSAS18001, and CCC standards.
Q: What are the primary applications for dry-type transformers?
A: They are widely used in indoor environments where fire safety is critical, such as high-rise buildings, commercial centers, hospitals, and underground tunnels.
