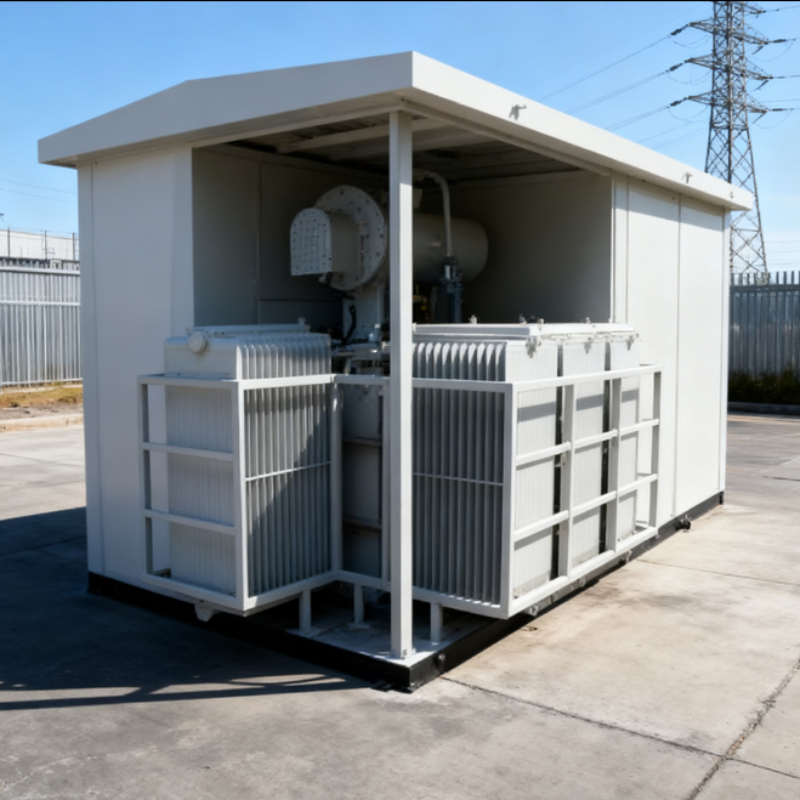

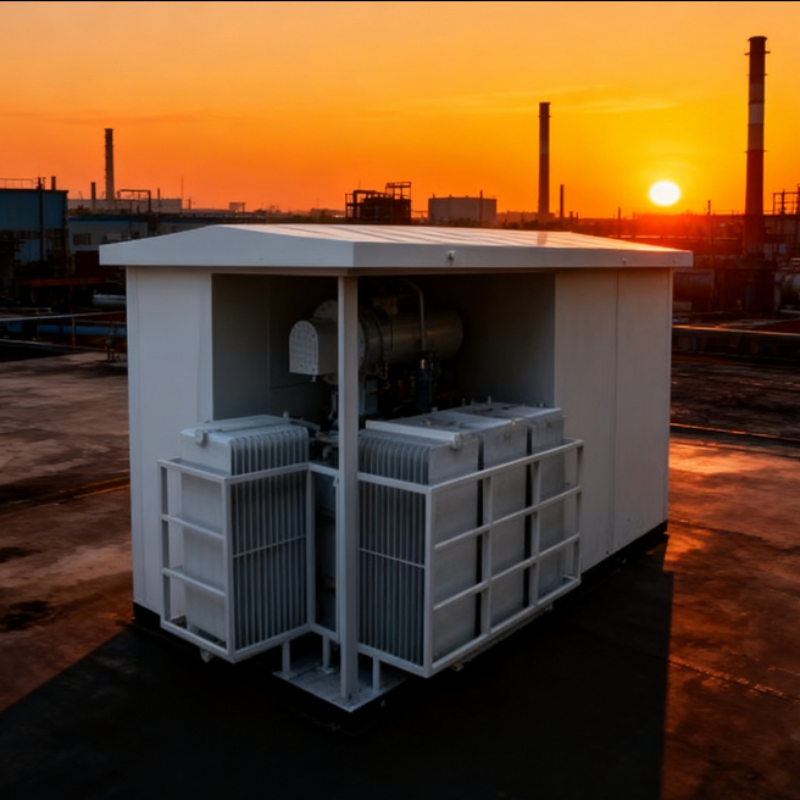

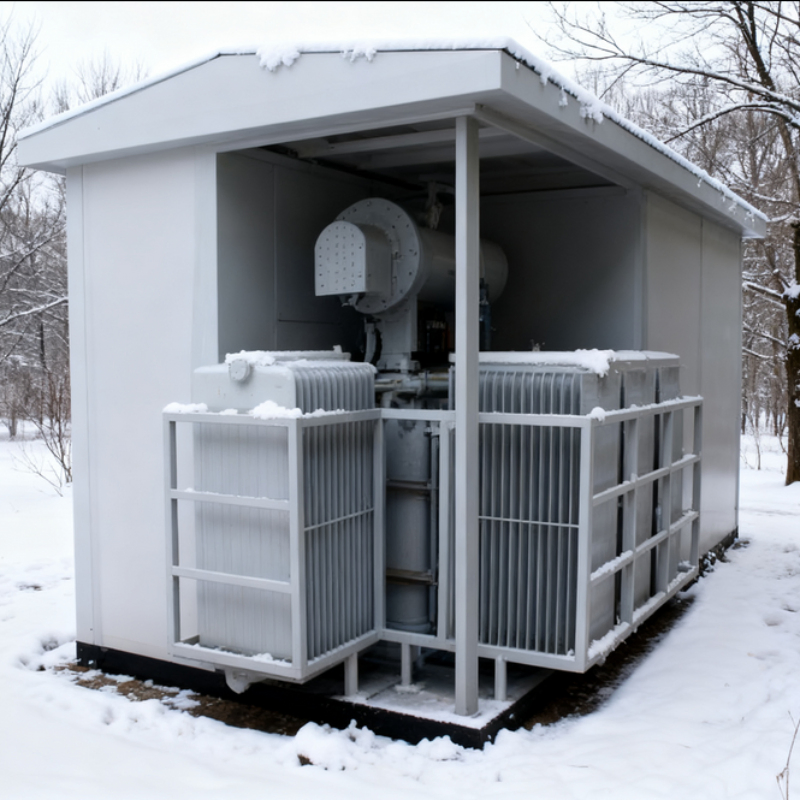

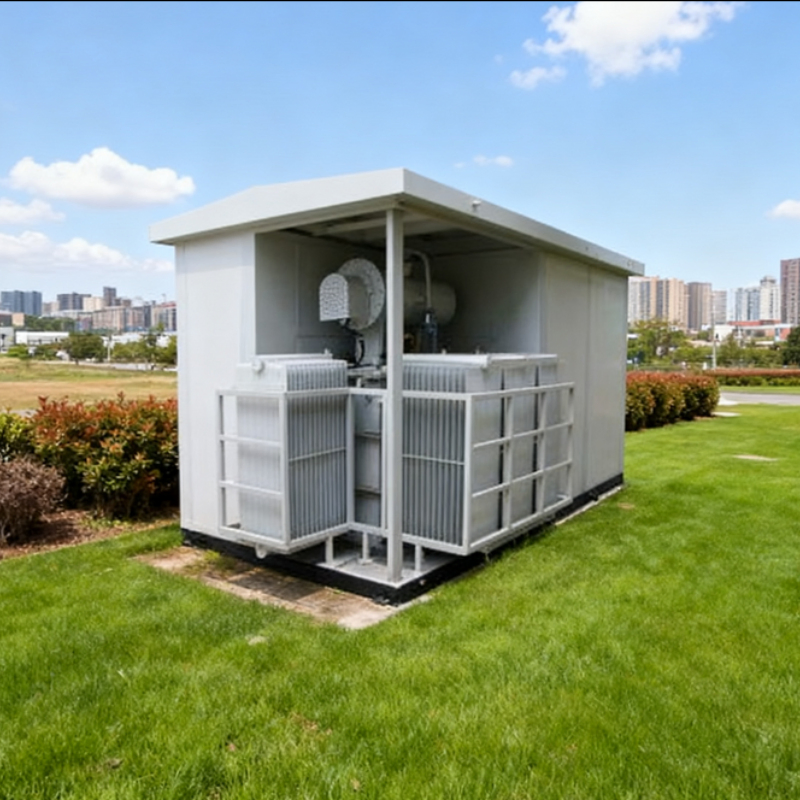

Compact 10mva Box-Type Transformer Prefabricated Substation with 40.5kv for Wind Farms

Box-type transformer prefabricated substation

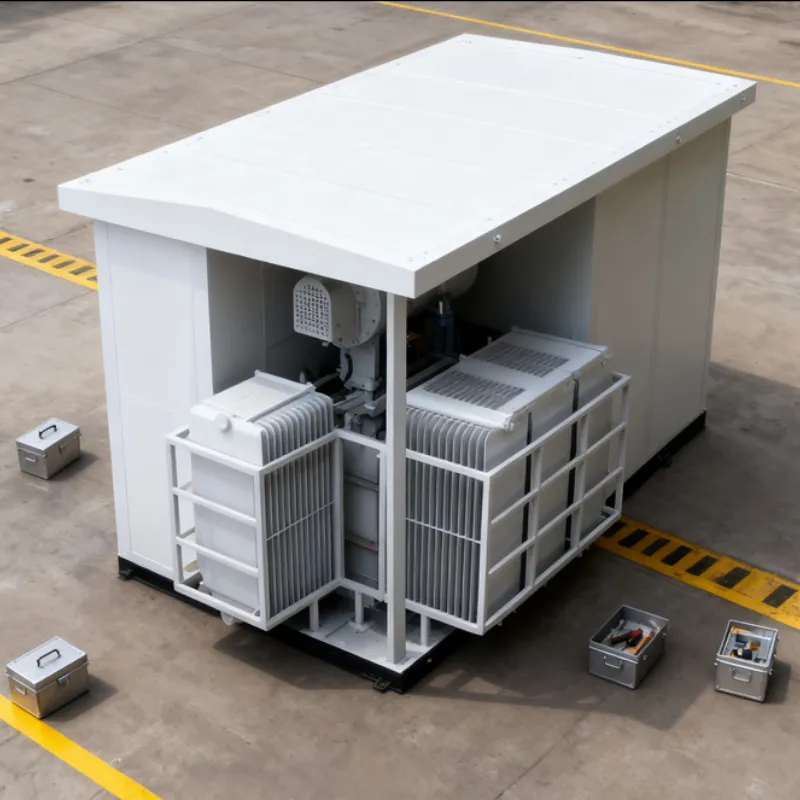

The YBW-40.5/1.14-5500 Prefabricated Substation is an integrated power distribution solution that combines transformer, medium-voltage switchgear, and low-voltage distribution systems within a single compact enclosure. Operating on the fundamental principle of electromagnetic induction, this substation efficiently steps down the 37kV distribution voltage to 1.14kV utilization voltage through its advanced core and winding design.

The unit employs a completely sealed tank structure with nitrogen-filled insulation that prevents moisture ingress and maintains dielectric strength in challenging environments. As part of a comprehensive product series covering American, Chinese, and European styles with capacities up to 10 MVA, this prefabricated substation features exceptional environmental adaptability for sandstorm, extreme cold, high humidity, and salt fog conditions. Its factory-tested modular design ensures rapid deployment and reliable operation for wind farm applications covering 2MW-10MW units.

The manufacturer has been engaged in the research, development, and manufacturing of motors and transformers for over six decades. Evolving from a specialized workshop established in 1961, it has now emerged as a leading supplier, achieving extensive cooperation with international companies across the globe.

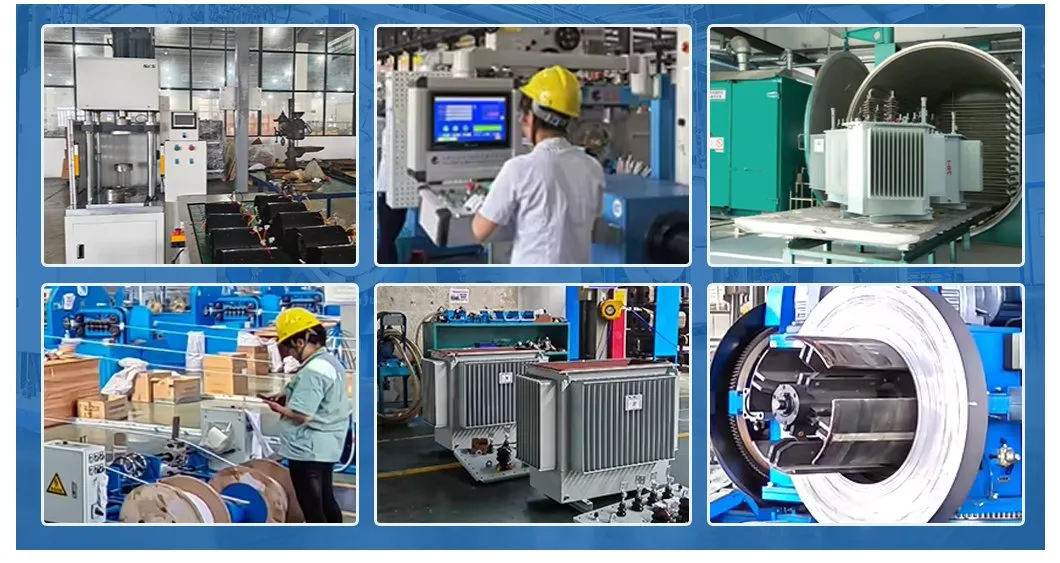

Currently employing more than 3,000 people, the facility spans over 1 million square meters, housing over 3,500 sets of advanced equipment. This enables an annual production capacity of 20,000 sets of motors and 2,000 sets of transformers. The products have been successfully deployed in 40 countries and regions, including Australia, Spain, Singapore, Malaysia, and South Africa.
