Tanaka Electric
Tanaka Electric

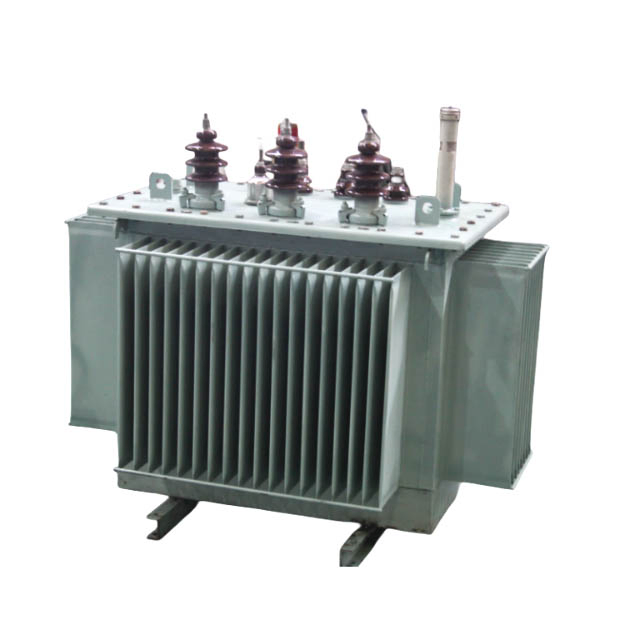

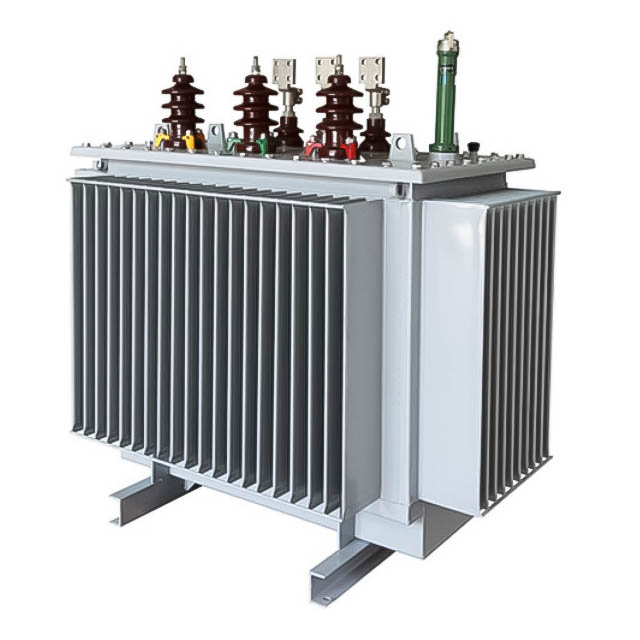

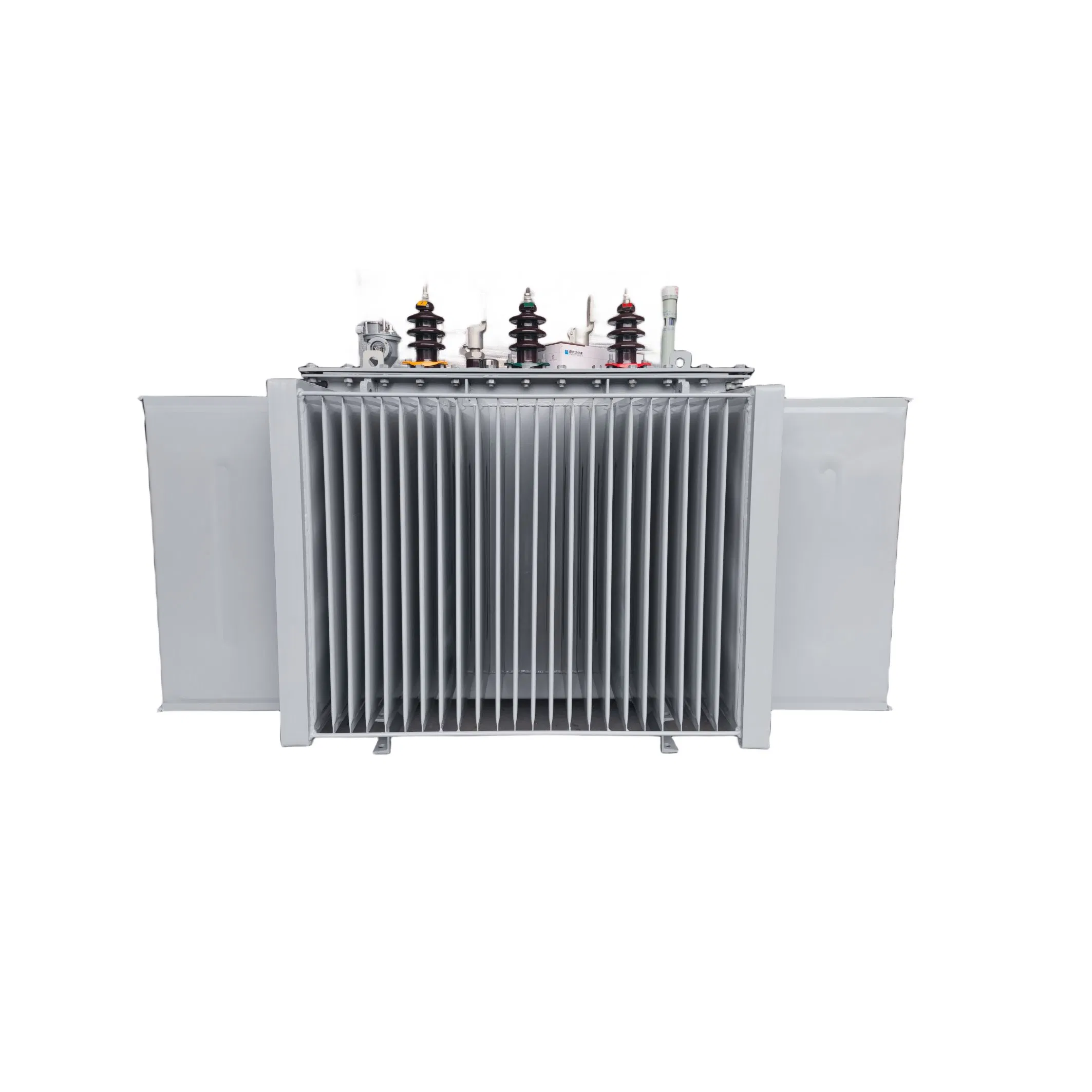

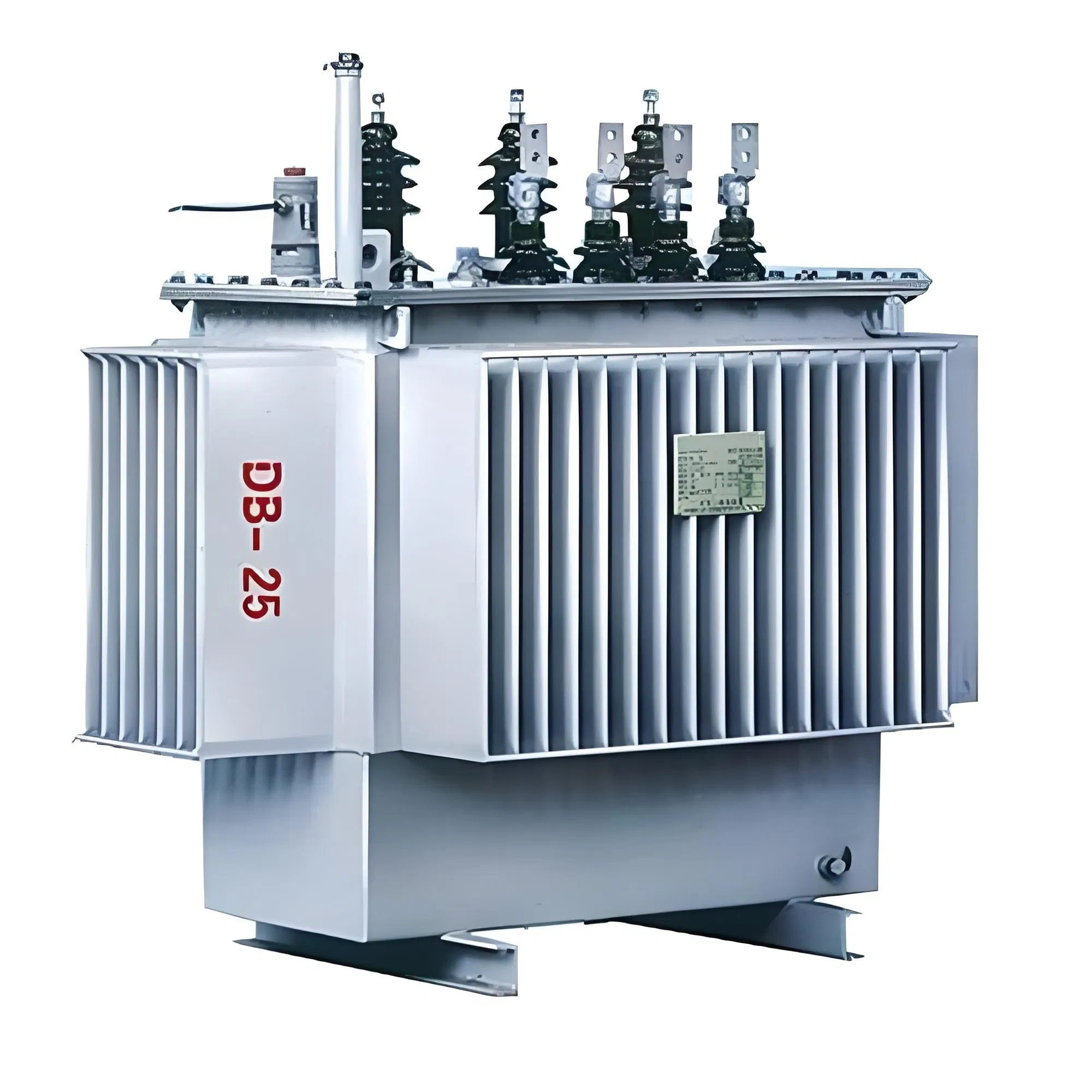

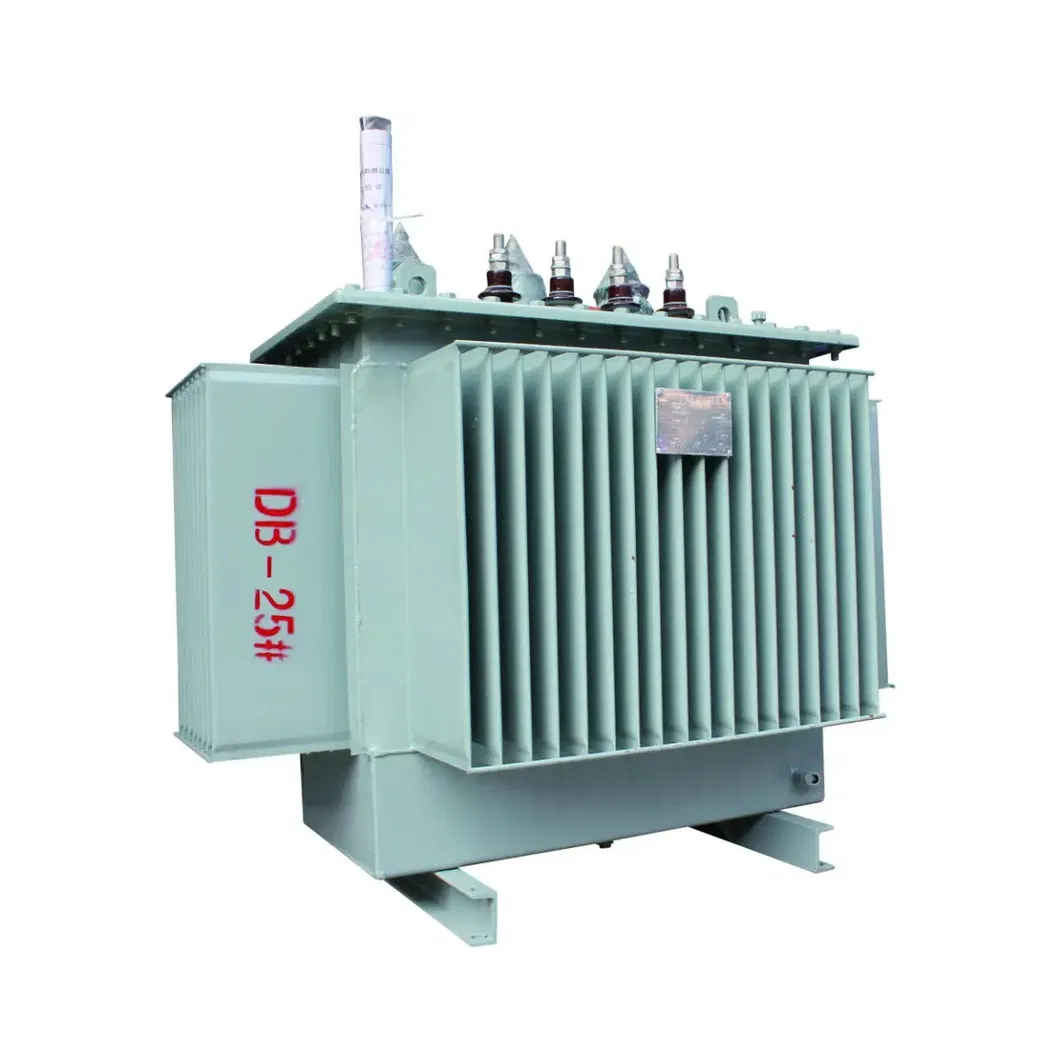

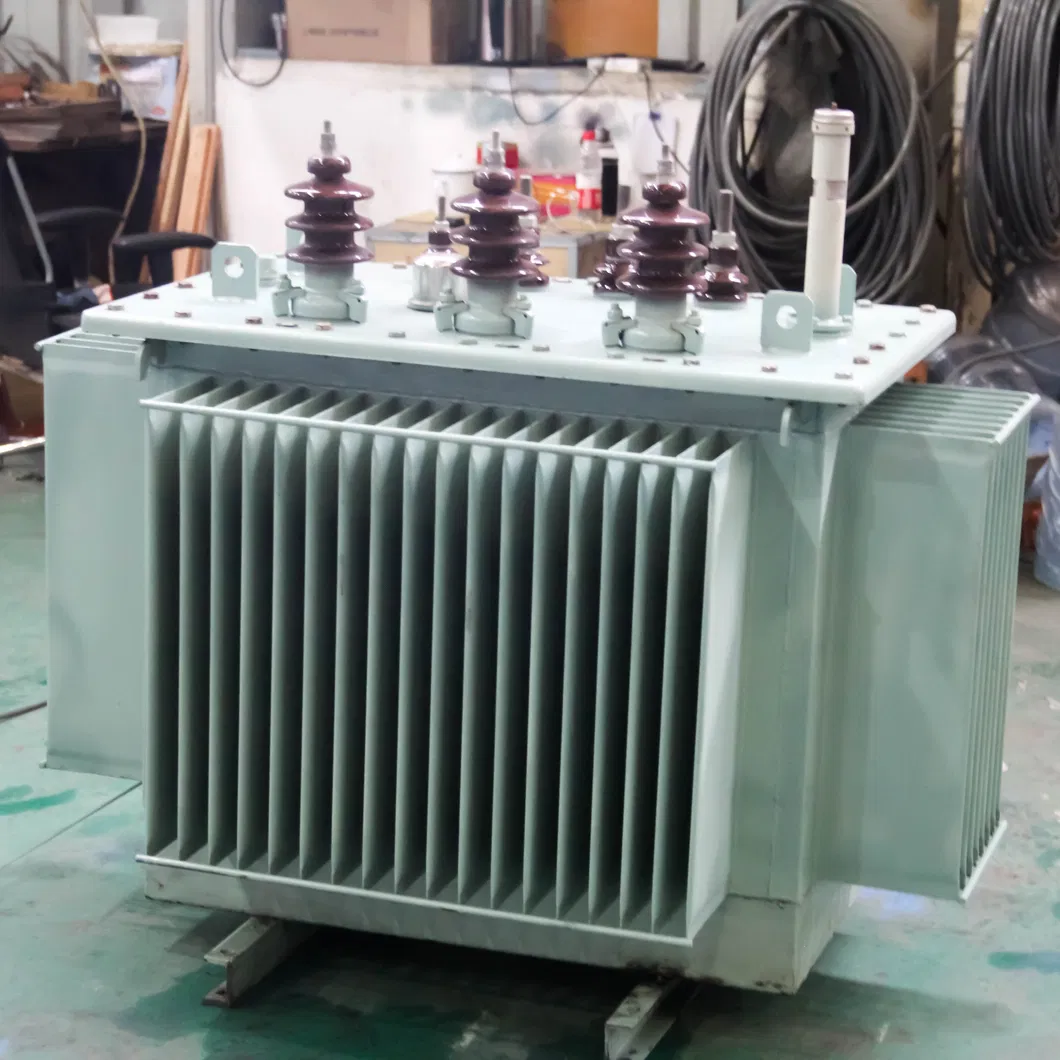

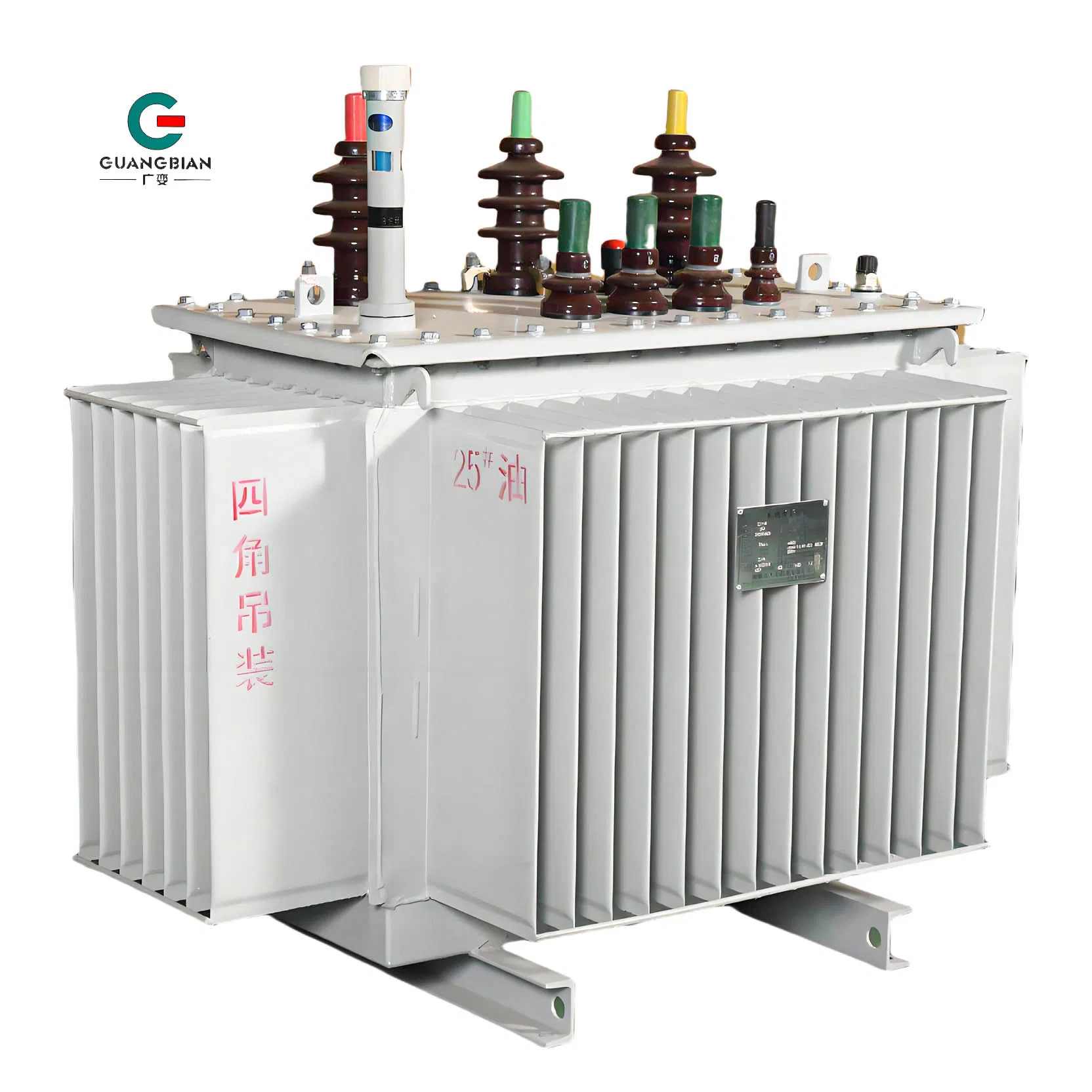

The rated capacity of this oil immersed power transformer is 10kVA-3500kVA(Customization). It can be used outdoors or installed inside substations. Models available include S9, S11, S13, S15, and more.
High-voltage options: 6KV, 6.3KV, 10KV, 10.5KV, 11KV, 20KV, 25KV, 33KV, 35KV. Low voltage options: 400V, 415V, 0.4KV, configured to local requirements.
*The picture is a general representation of the product, subject to the actual configuration.
| Rated Power (kVA) | High Voltage (kv) | Low Voltage (kv) | Connection Symbol | No-load loss (W) | On-load loss (W) | No load current (%) |
|---|---|---|---|---|---|---|
| 30 | 6KV / 10KV / 11KV / 20KV / 35KV (Customizable) | 0.4KV (Customizable) | Ydn11 / Yyn0 | 100 | 600/630 | 2.1 |
| 50 | 130 | 870/910 | 2.0 | |||
| 100 | 200 | 1500/1580 | 1.6 | |||
| 315 | 480 | 3650/3830 | 1.1 | |||
| 630 | 810 | 6200 | 0.9 | |||
| 1000 | 1150 | 10300 | 0.7 | |||
| 2500 | Custom | 0.4KV | Custom | 2380 | 20700 | - |

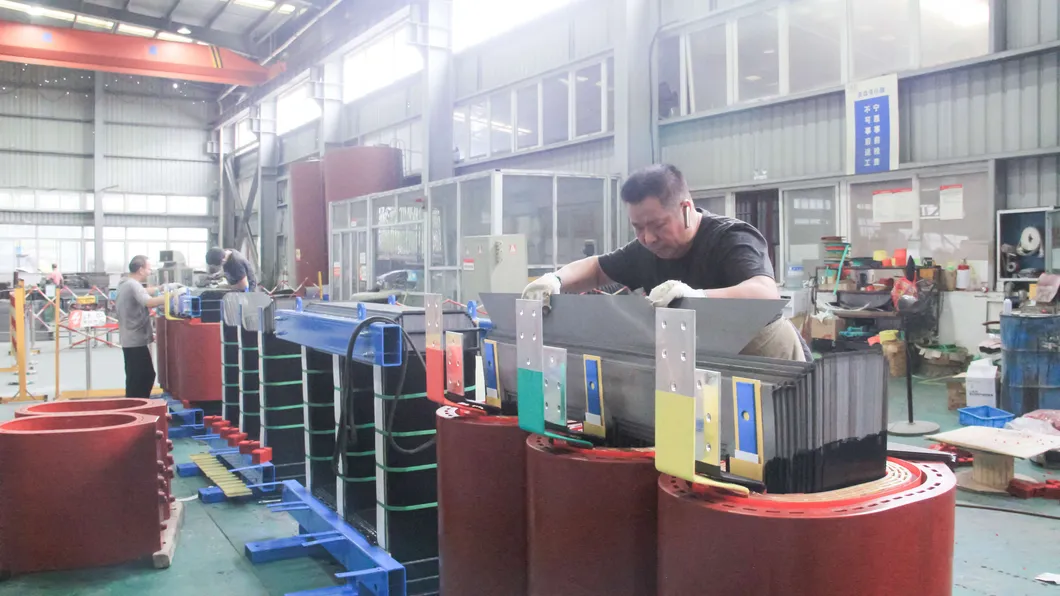

Made of brand new and excellent silicon steel sheets. Ensures low wear and tear, low noise during operation, and high energy efficiency.

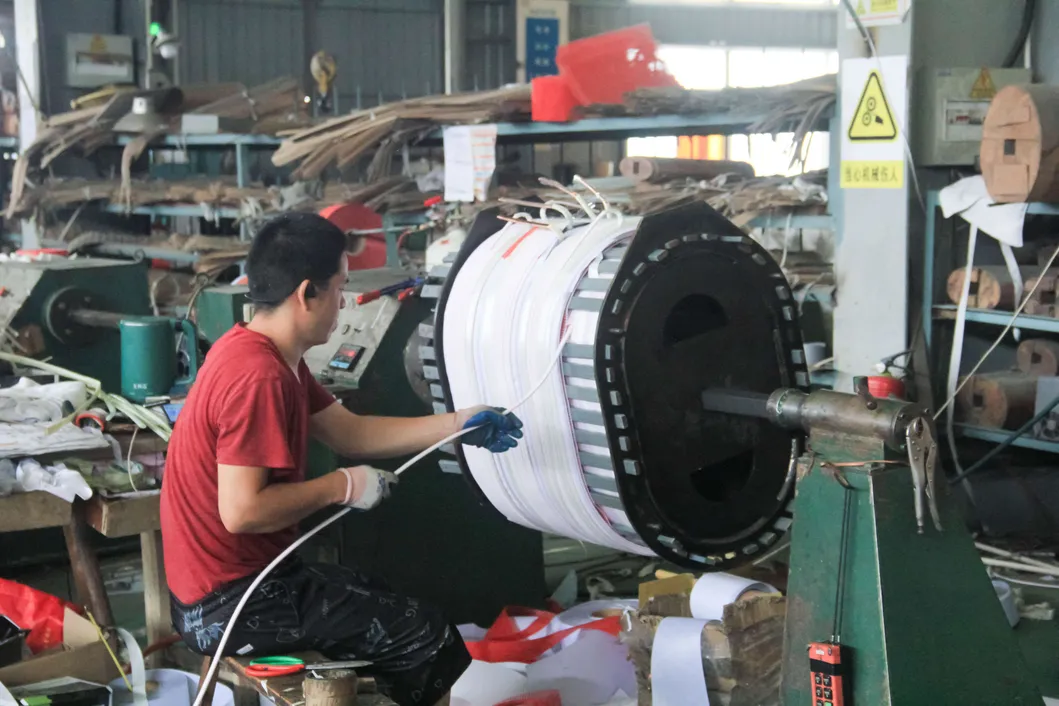

Uses heat-resistant enameled wire. Ensures good conductivity, stable operation, enhanced overload capacity, and resistance to oxidation for a longer lifespan.

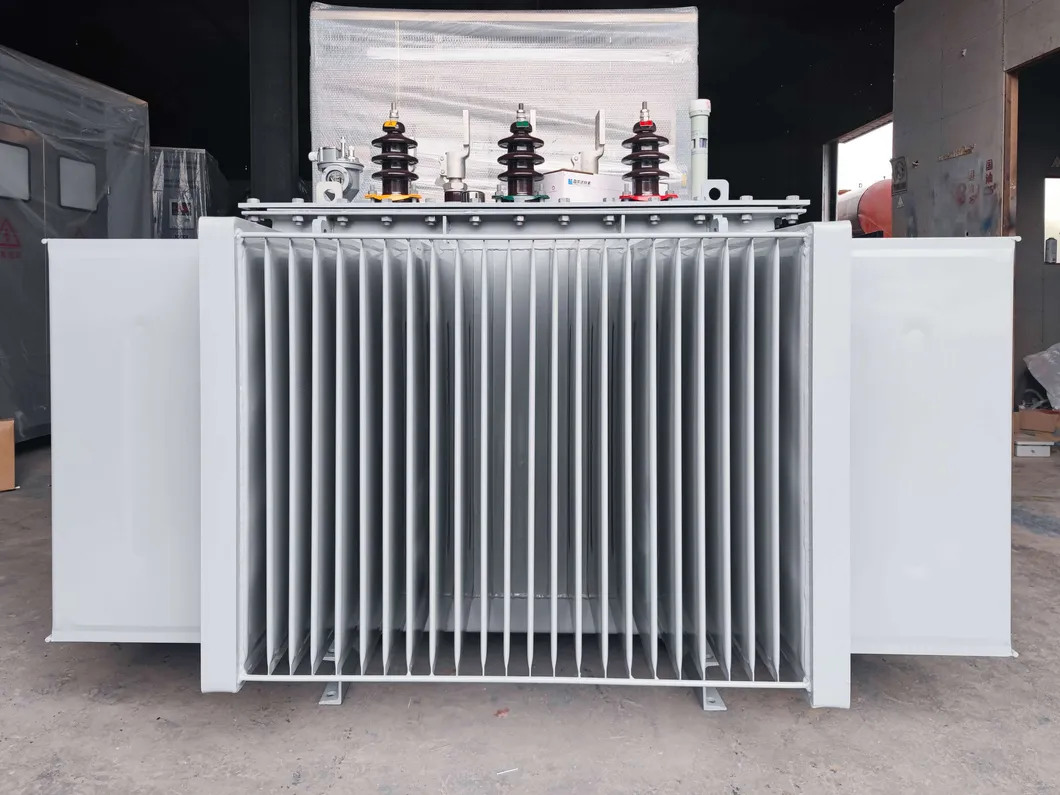

Composed of breathable corrugated walls that compensate for volume changes due to temperature variations. This space-saving design reduces overall height and cost.

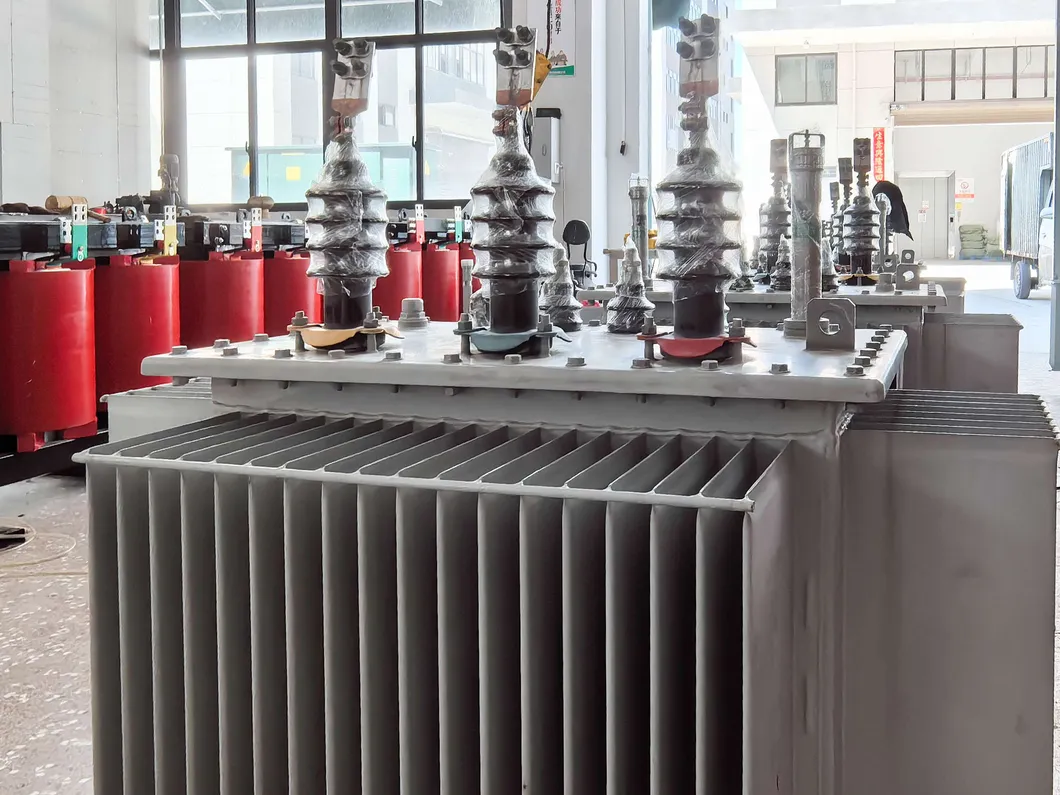

Equipped with sensitive relief valves and precise thermometer sockets. Options for alarm trip terminals and gas relays are available for maximum safety.

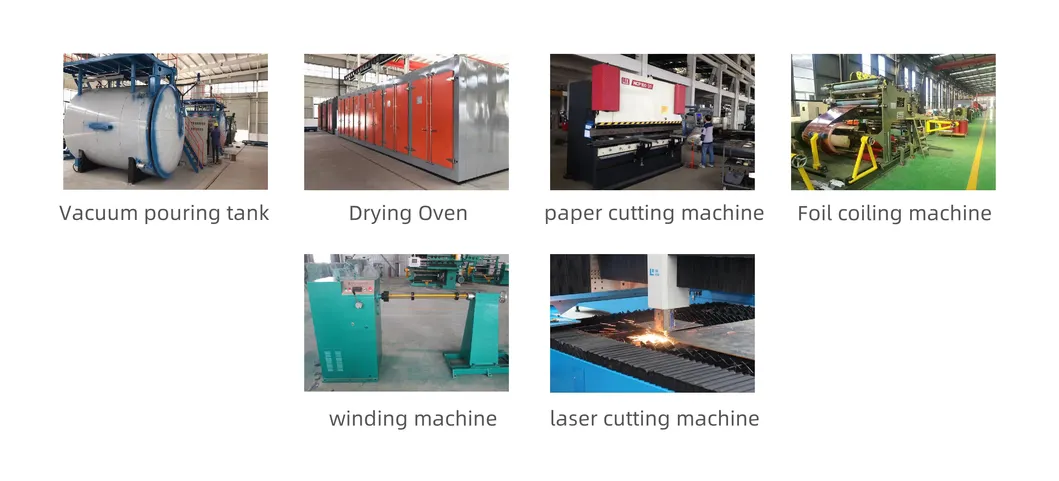

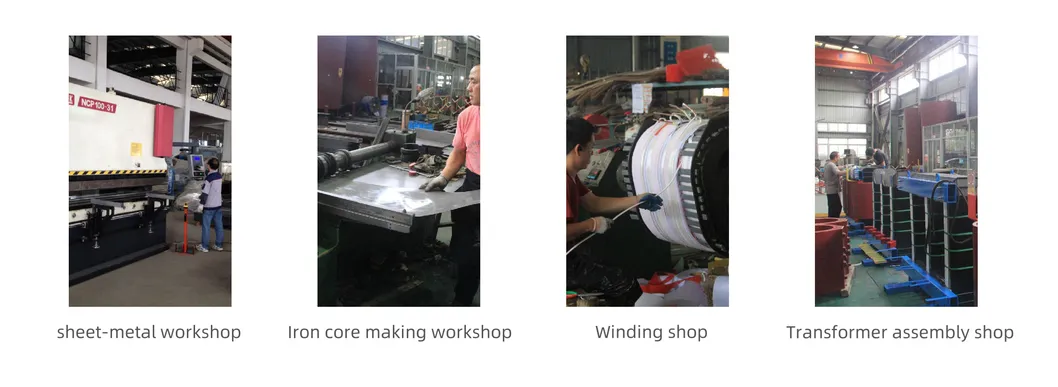

Four Specialized Production Workshops
Our workshops achieve high-fit assembly and rigorous testing to ensure efficiency. Independent control of the process allows for high-quality products at competitive prices.
Industry Standard Equipment & Certificates
Standard export packaging including wooden pallets or cases according to customer requirements.
