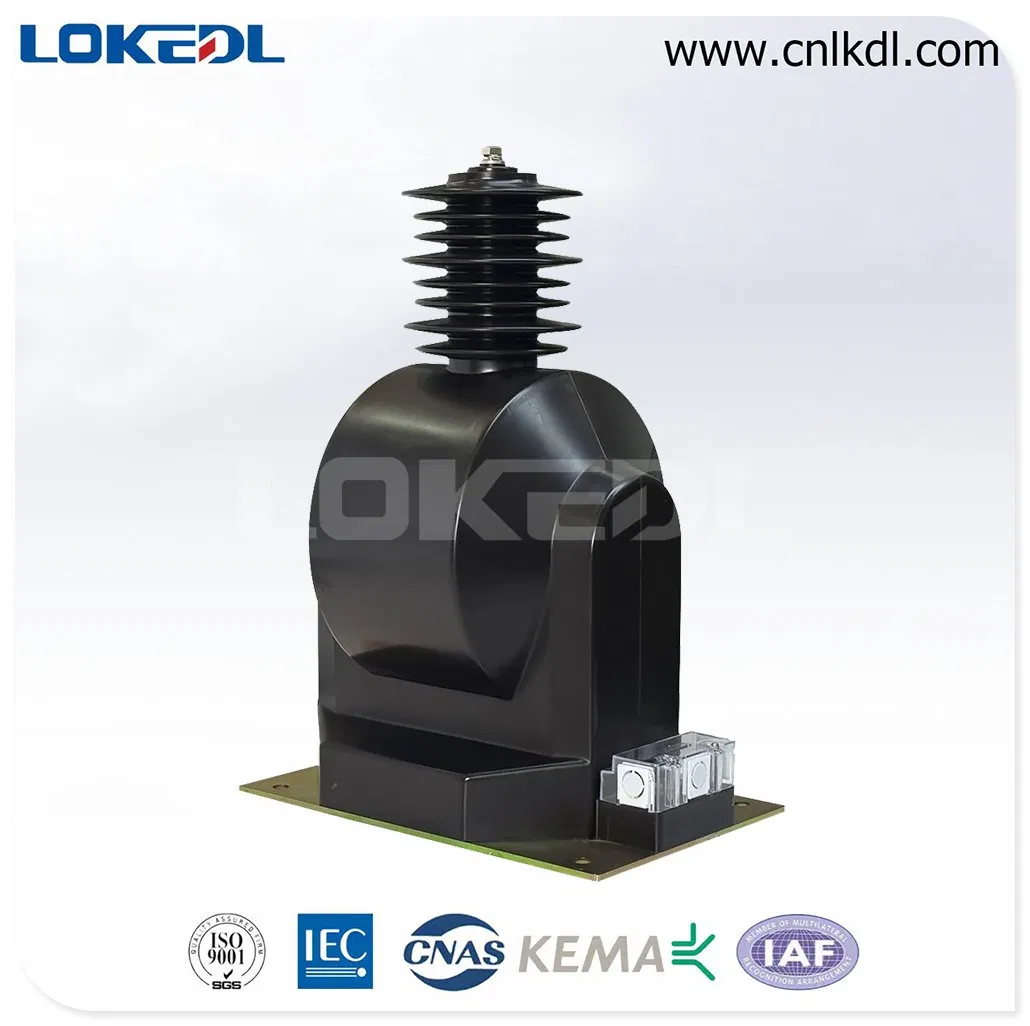

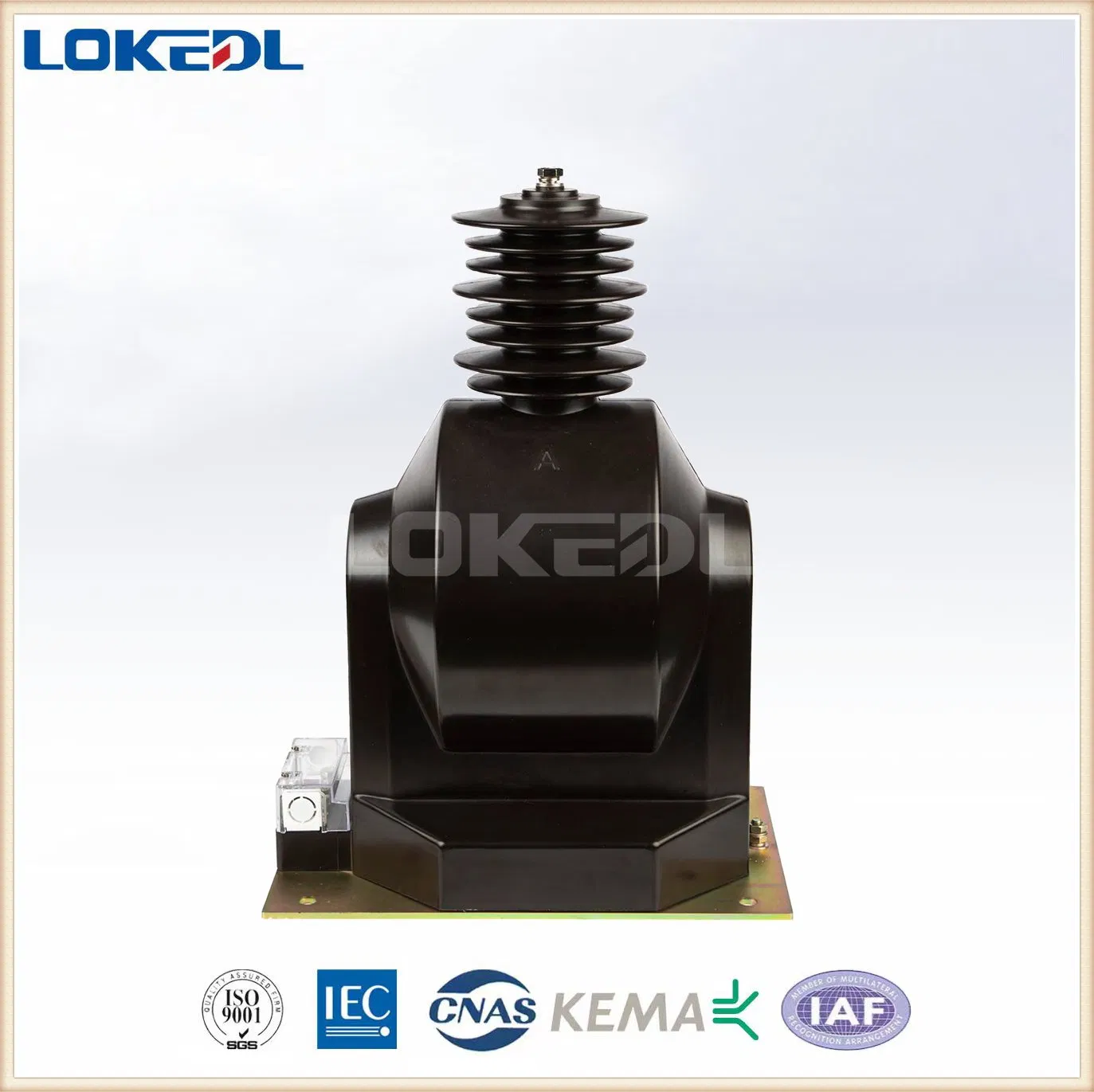

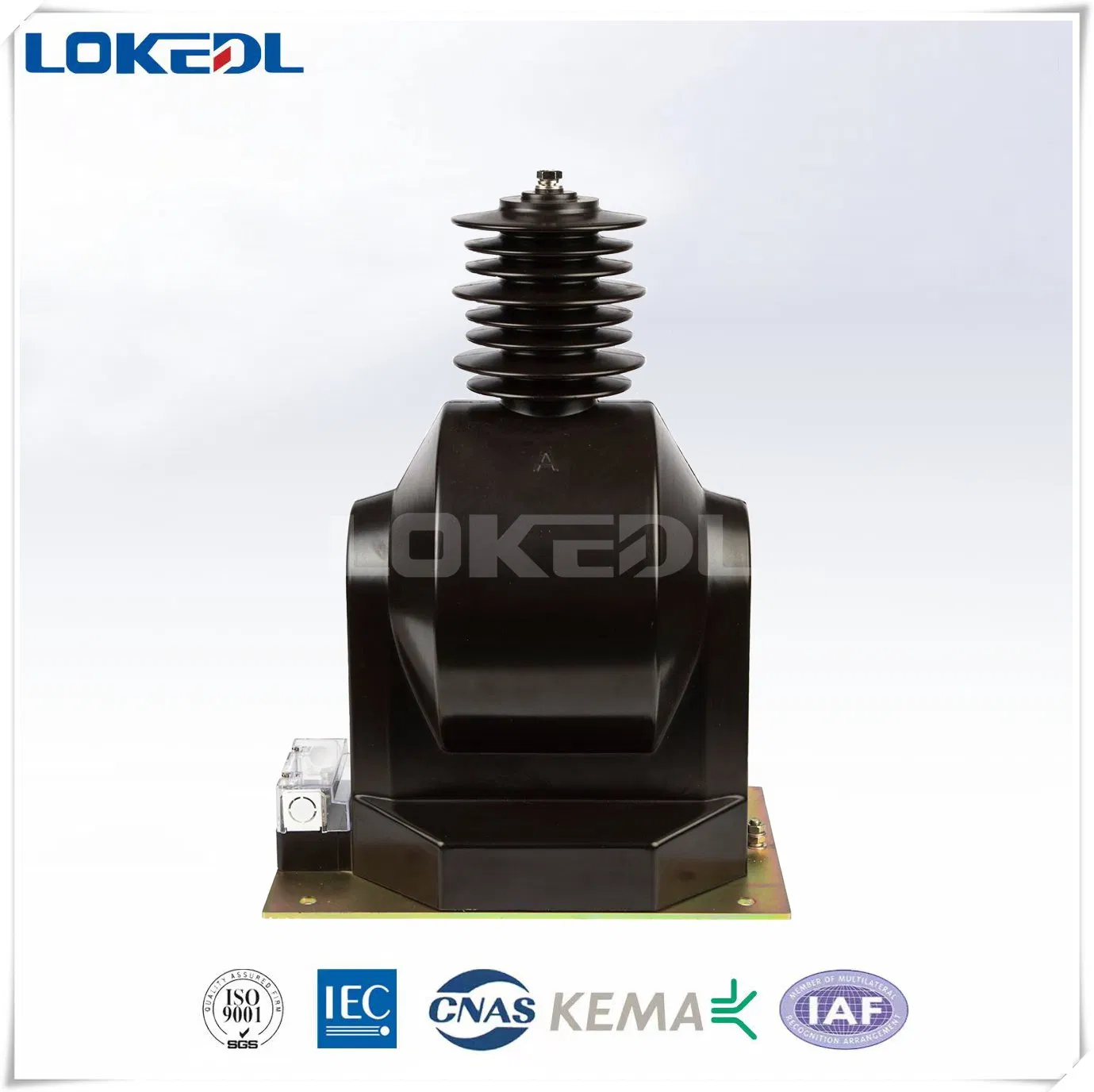

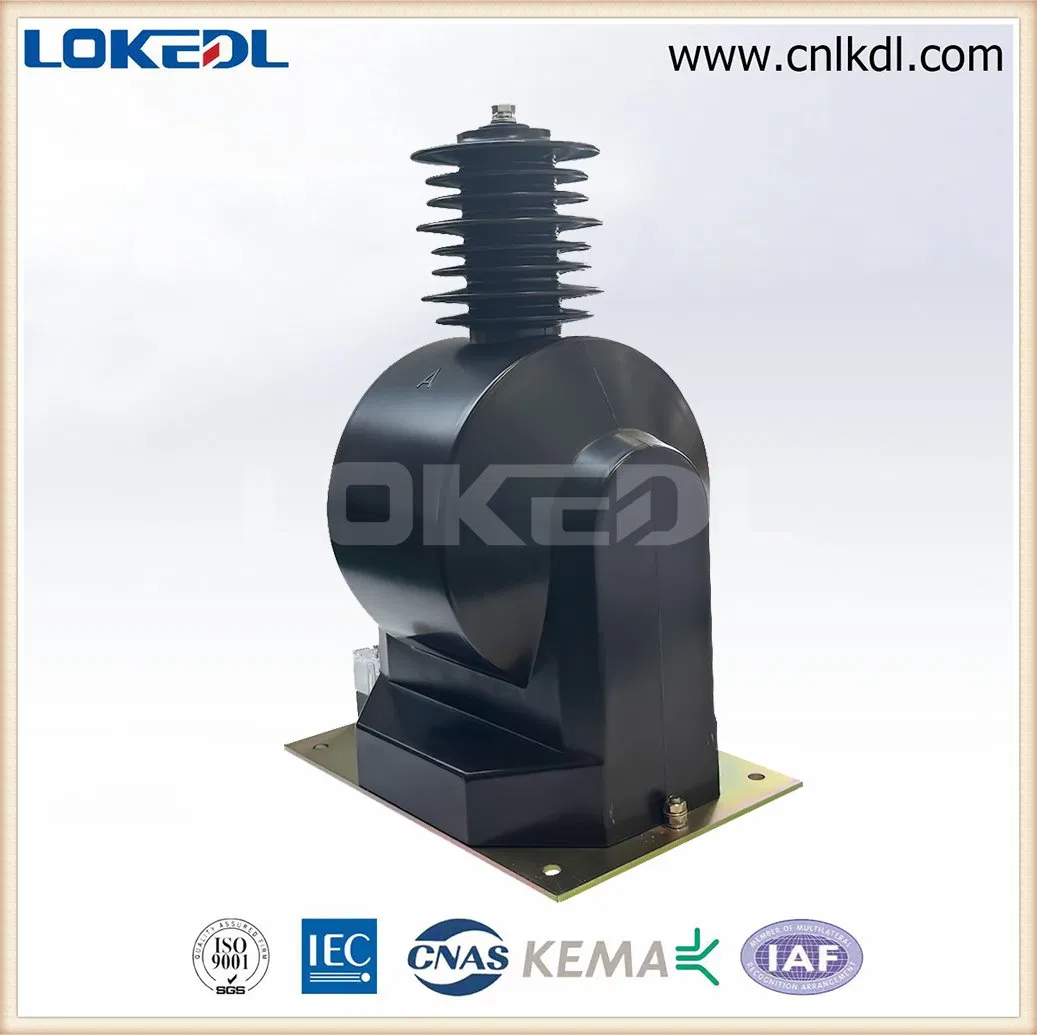

This indoor epoxy resin type voltage transformer is engineered for 33kV, 35kV, 36kV, and 40.5kV power systems, serving both measuring and protection purposes. It is widely utilized in cubicle switchgear or bay-installed switching stations.
| Type | Rated Voltage Ratio (kV) | Accuracy Classes | Accuracy Class and Relative Output (VA) | Secondary Heat Limit Output (VA) | |||
|---|---|---|---|---|---|---|---|
| 0.2 | 0.5 | 3 | 3(6)P | ||||
| JDZX9-6 | 6/√3 0.1/√3 0.1/3 | 0.2/3(6)P | 15 | - | - | 100 | 400 |
| JDZX9-10 | 10/√3 0.1/√3 0.1/3 | 0.2/3(6)P | 20 | - | - | 100 | 500 |
| JDZX9-35 | 35/√3 0.1/√3 0.1/3 | 0.2/3(6)P | 25 | - | - | 100 | 400 |

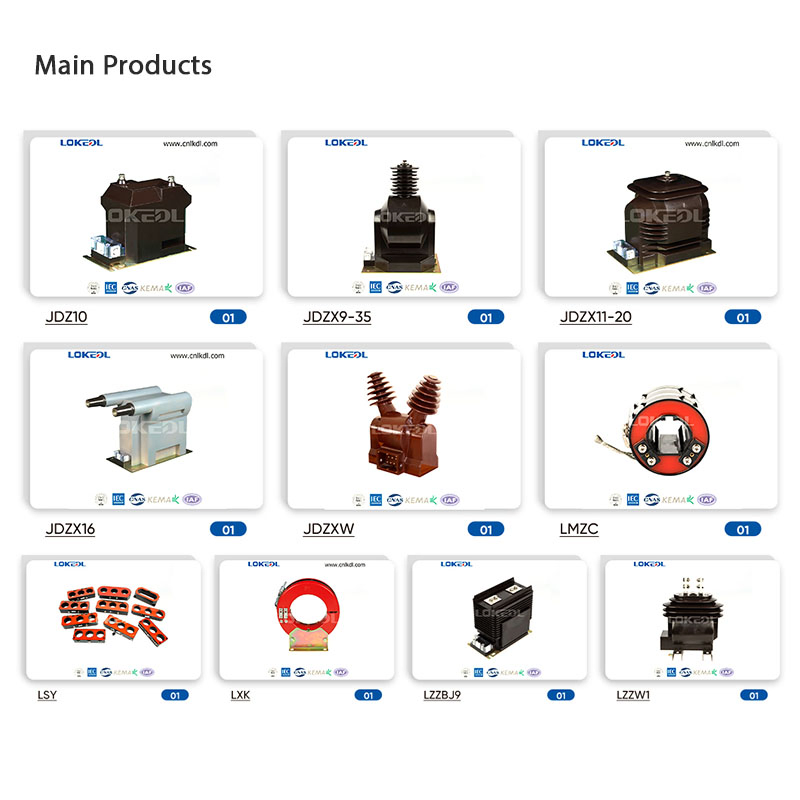

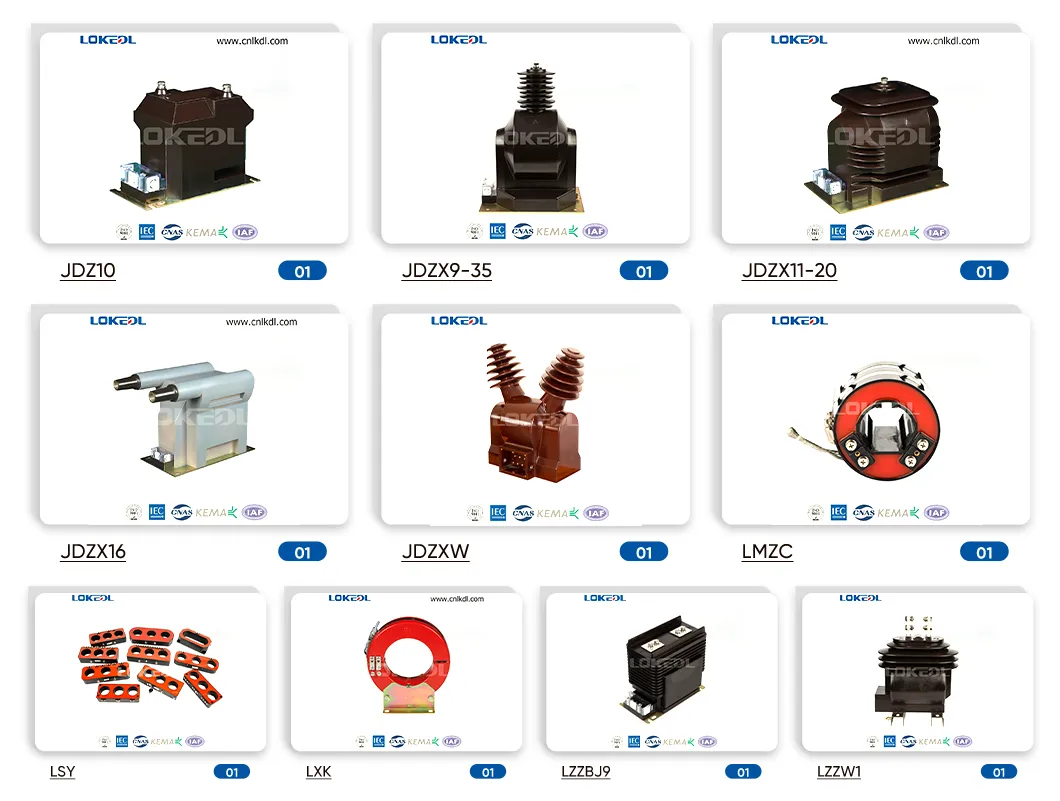

Established in 2010, the company has evolved into a leading entity focused on distribution network automation. We specialize in the design, R&D, and production of power system products, including 10-35kV medium voltage inflatable cabinet transformers, primary and secondary fusion column switches, and zero-sequence transformers.
Equipped with a high-end R&D team and first-class production facilities, we hold ISO9001, ISO14001, and ISO45001 certifications. Our products have successfully passed national CCC and CQC certifications, along with type tests at authoritative laboratories such as the Wuhan High Voltage Research Institute.
