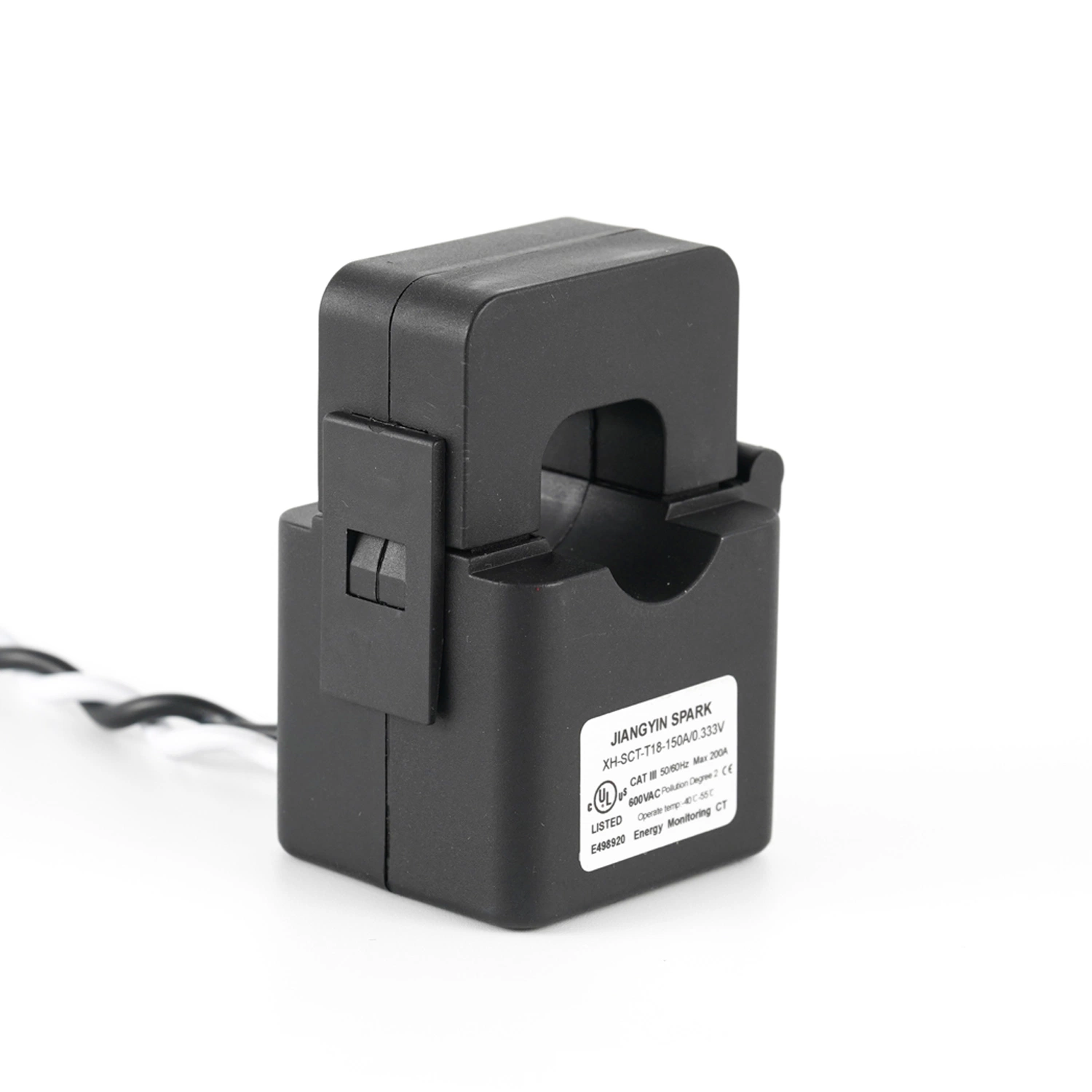

UL CT Manufacturer Xh-Sct-T10/T16/T24/T36/T50 0.333V Output 10A-5000A Instrument Transformer Split Core CT Current Transformer

1 / 5

UL CT Manufacturer Xh-Sct-T10/T16/T24/T36/T50 0.333V Output 10A-5000A Instrument Transformer Split Core CT Current Transformer

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

XH-SCT-T06/ T10/ T12/T18/T20/T24/T36

Phase

Single

Condition

Indoor

Insulation

Common Insulating Materials, Insulating Paper

Input

10A-1000A

Output

0.333V, 40mA, 33.3mA, 25mA or Customize

Withstand Voltage

3.5kv/1mA/1min

Internal Structure

Epoxy

Certificate

UL, CE

Origin

China

Capacity

90,000 PCS/Month

Product Description

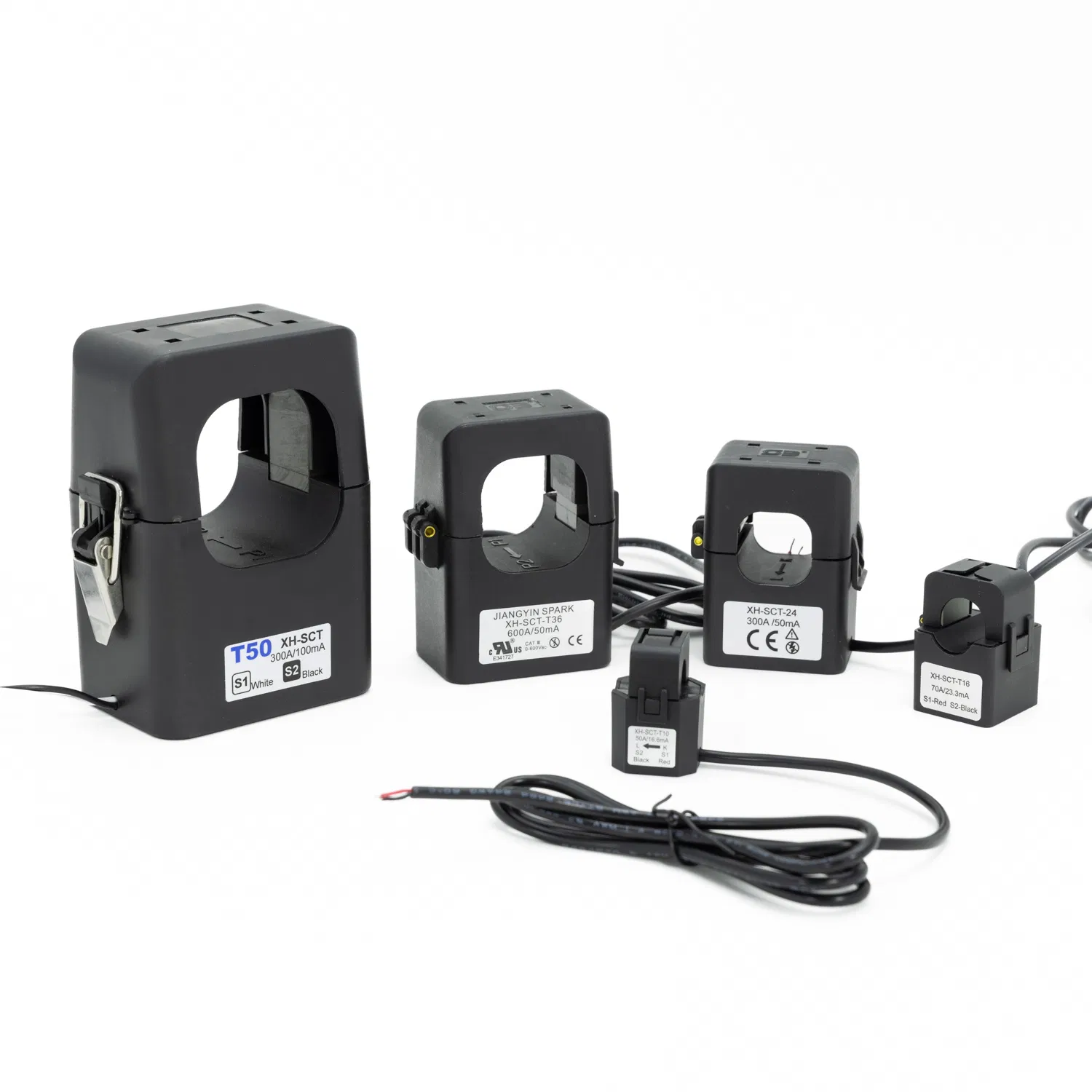

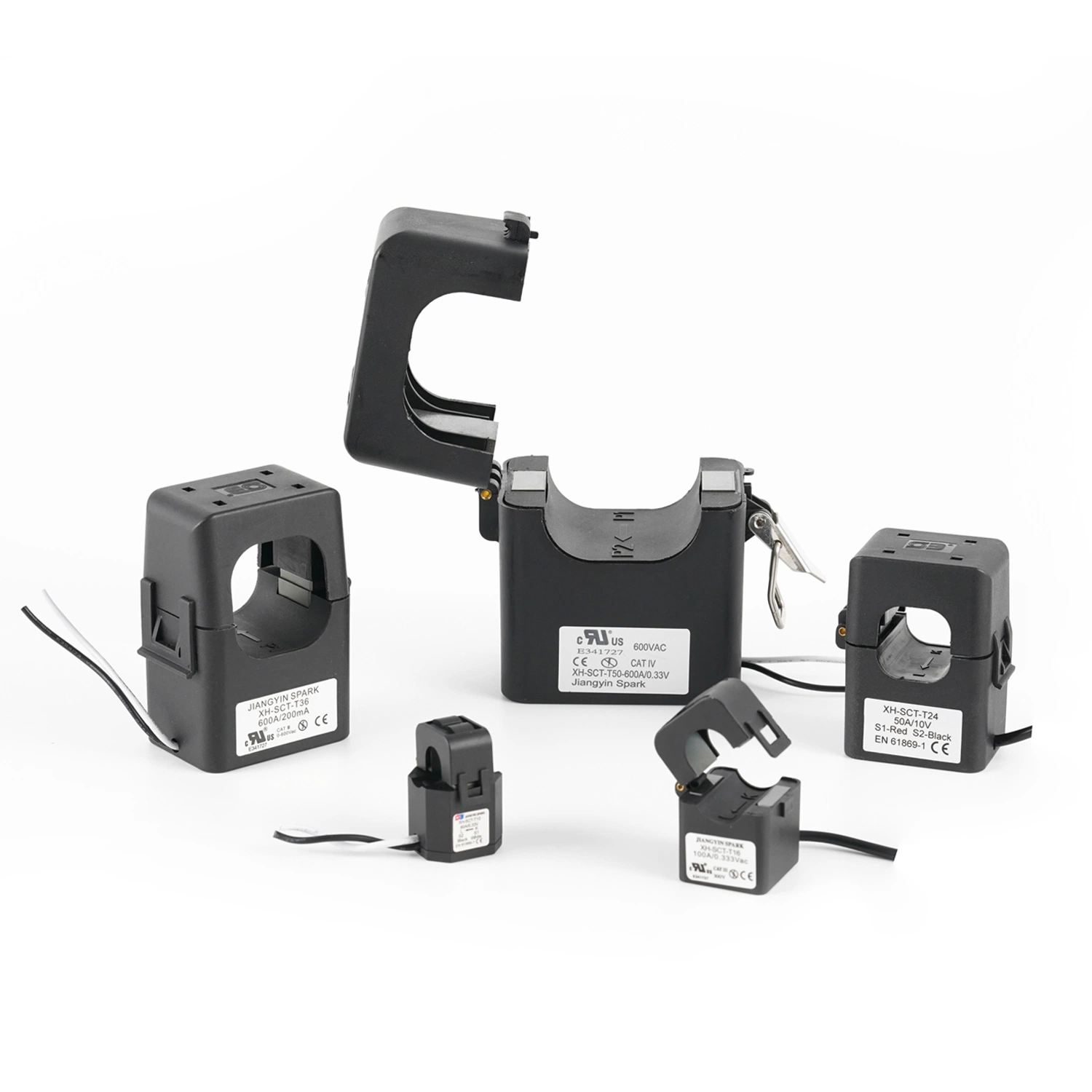

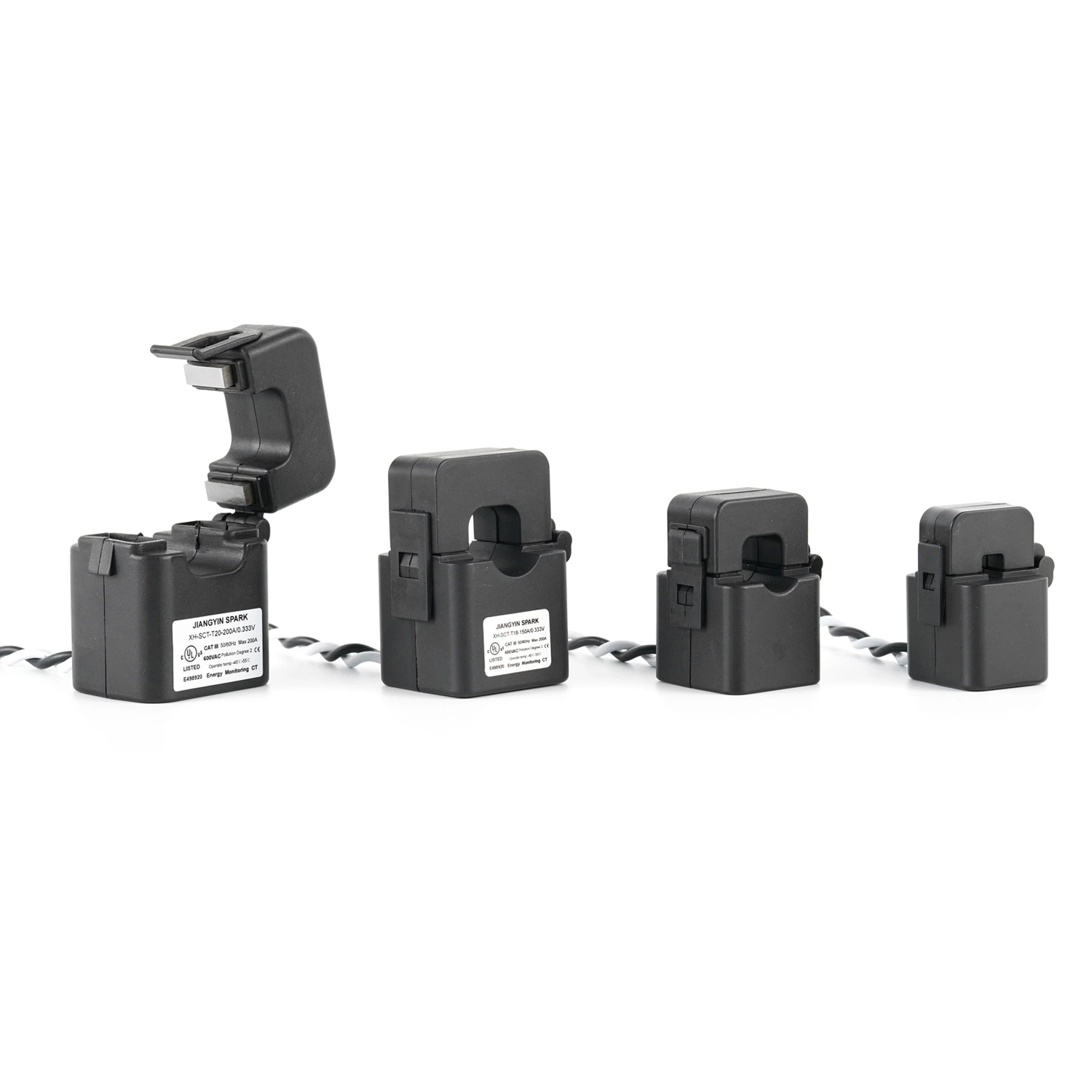

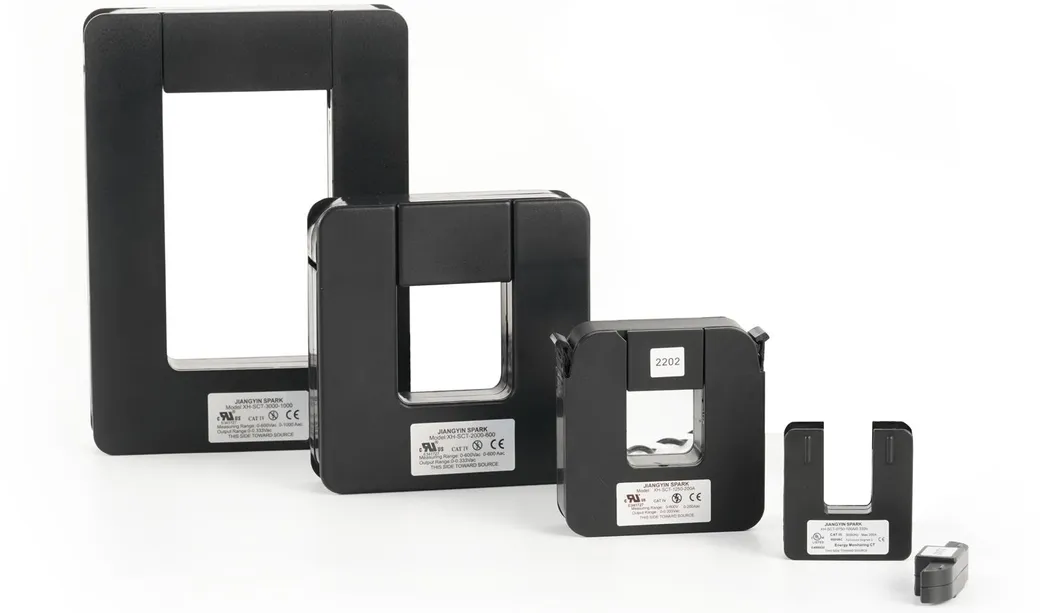

Split Core Current Transformer XH-SCT Series

The series of split core current transformers are designed for fast and easy installation. They are ideal for installation on existing electrical wiring by snapping around the conductor. This method permits a safer, easy and portable current measurement.

Technical Specifications:

Maximum continuous primary current: 5A to 5000AAC
Current Ratio: 500:1 to 3000:1
Output: 0.333V, mV or mA
Accuracy: ± 1% from 5% to 120% of rated current
Insulation Voltage: 600VAC
Maximum Primary Voltage: 5000VAC (Insulated Conductor)
Frequency Range: 50 Hz to 400 Hz
Operating Temperature: -25°C to 80°C
Leads: 4Foot (105cm), UL 1015, Twisted Pair, 22AWG
Compliance: UL2808, CE recognized, and RoHS compliant

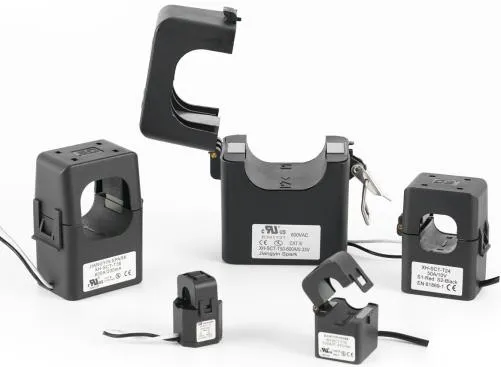

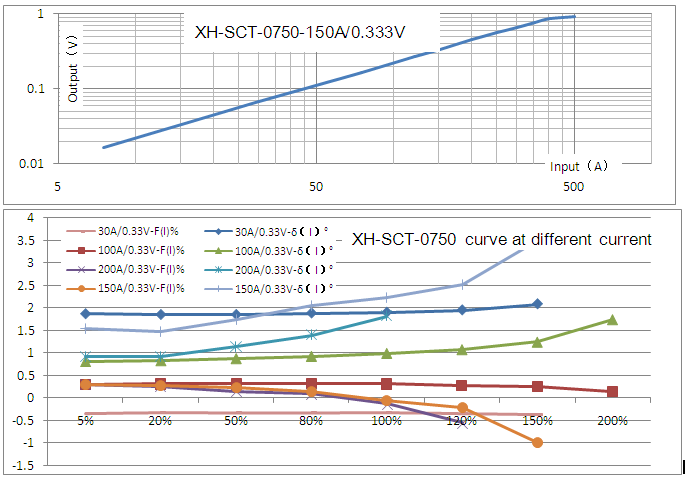

Model Data & Dimensions

Model	I.D.	Rated Amps	Output	Accuracy
XH-SCT-0750	0.75" (19.1mm)	5 - 200A	0.333V	1.0
XH-SCT-1250	1.25" (31.8mm)	70 - 600A	0.333V	1.0
XH-SCT-2000	2.00" (50.8mm)	400 - 1200A	0.333V	1.0
XH-SCT-3000	3.00" x 5.00"	1000 - 3000A	0.333V	1.0

Model	I.D.	Ratio	Rated Amps	Accuracy
XH-SCT-T06	6mm	1000:1	1, 5, 10, 15, 20	0.5, 1.0
XH-SCT-T10	10mm	3000:1	5, 15, 30, 50, 75, 80	0.5, 1.0

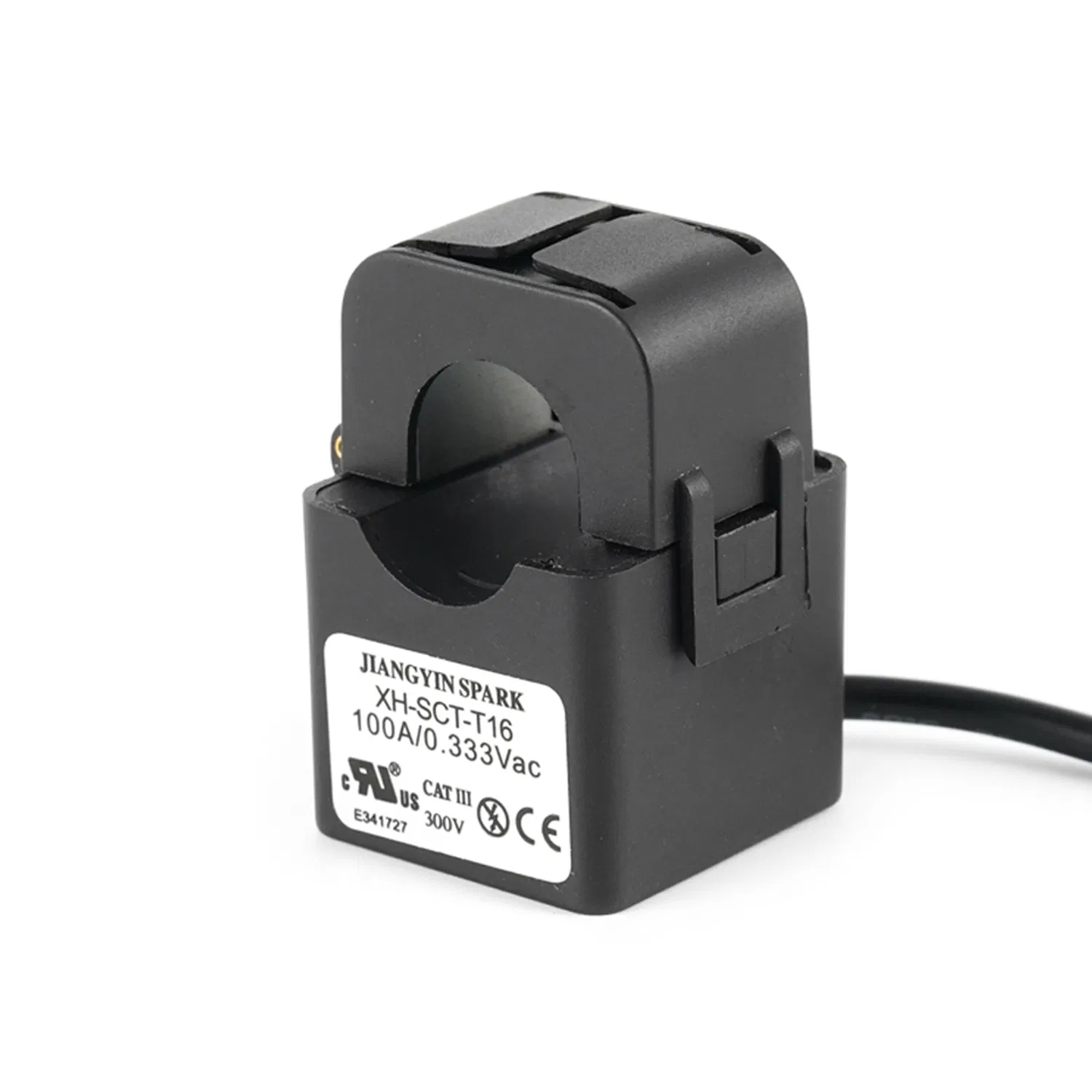

XH-SCT-T16	16mm	3000:1	50, 70, 100, 120	0.5, 1.0
XH-SCT-T24	24mm	3000:1	100, 150, 200, 300	0.5, 1.0

Packaging & Shipping

Package Details: All CTs are well packed with bubble wrap and white boxes within a sturdy outer carton. Neutral packing and OEM label design are supported.

Shipping: Products are shipped via UPS, DHL, FedEx, TNT (door to door), or air/sea shipment for larger quantities. Standard lead time is 3-7 days for orders under 1000PCS.

Our Commitment

Factory Direct: Competitive pricing through direct manufacturing.
Quality Assurance: Over 20 years of experience in current transformer production.
Fast Delivery: Efficient processing for quick turnaround.
Professional Support: Technical responses within 24 hours.
Warranty: 1-year product warranty provided.

Frequently Asked Questions

Q1: What is the primary advantage of a split-core design? A1: The split-core design allows for easy installation on existing electrical lines without the need to disconnect the primary circuit, making it safer and more efficient for retrofitting.

Q2: Can the output signal be customized? A2: Yes, we offer standard outputs like 0.333V and mA, but we can also customize the output signal and lead wire lengths to meet your specific technical requirements.

Q3: What safety certifications do these transformers hold? A3: Our current transformers are UL listed, CE recognized, and RoHS compliant, ensuring they meet international safety and environmental standards.

Q4: What is the typical lead time for an order? A4: For quantities under 1000 units, the delivery time is usually 5-7 days for standard products. Large or customized orders may require additional time.

Q5: Is there a warranty for the products? A5: Yes, we provide a 1-year warranty. If any defects are found, please notify us within 3 days of receipt for a qualified exchange or refund.

Q6: Are free samples available for testing? A6: We provide samples for testing purposes to ensure the product meets your requirements before proceeding with a full purchase.
