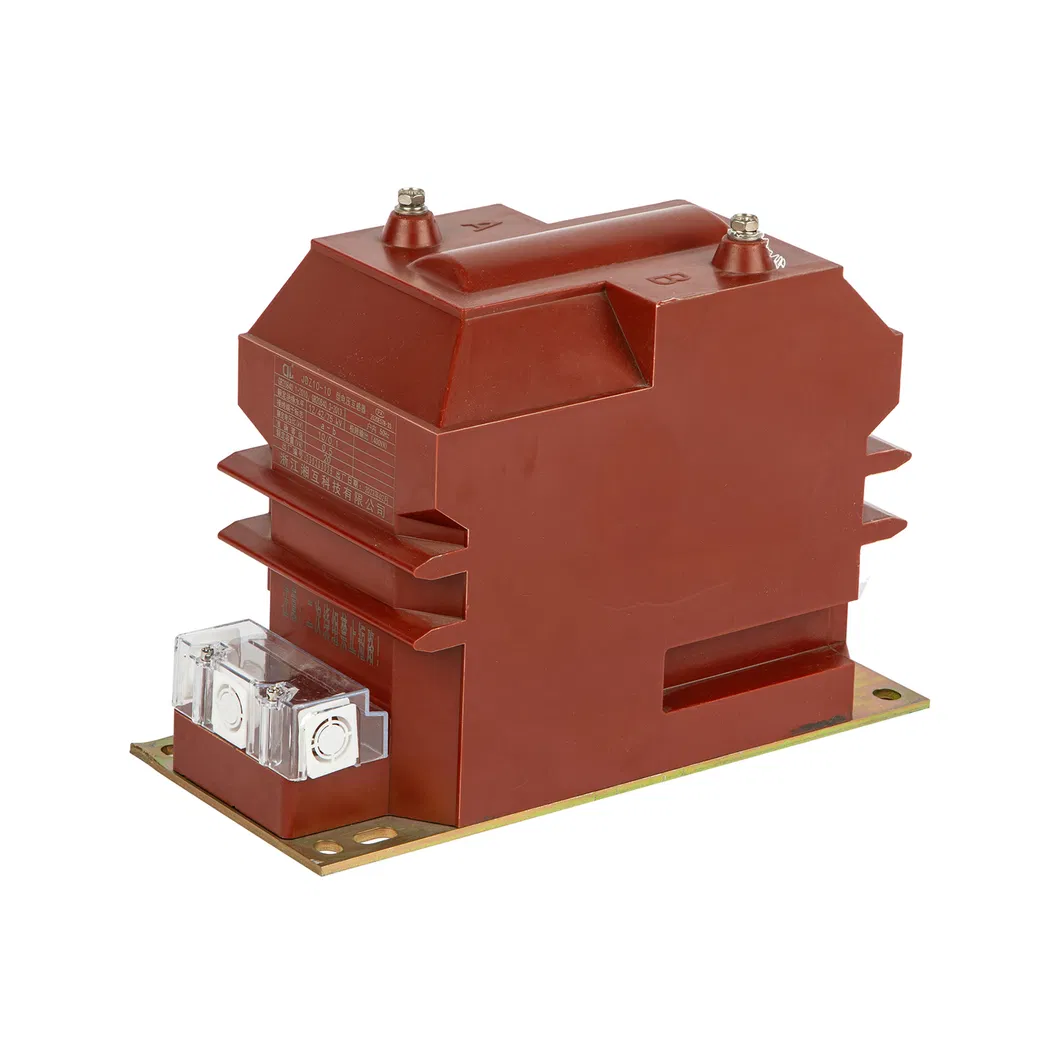

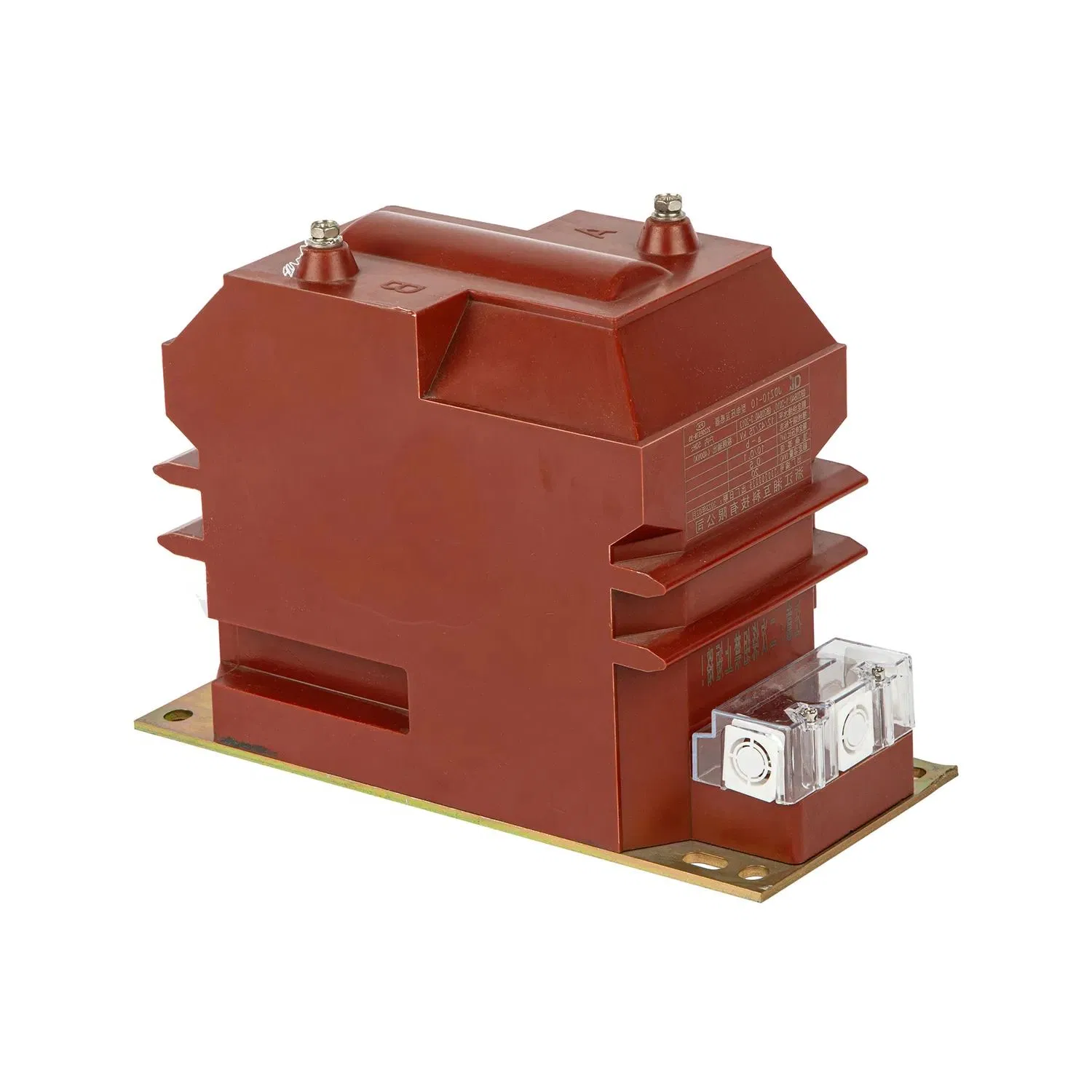

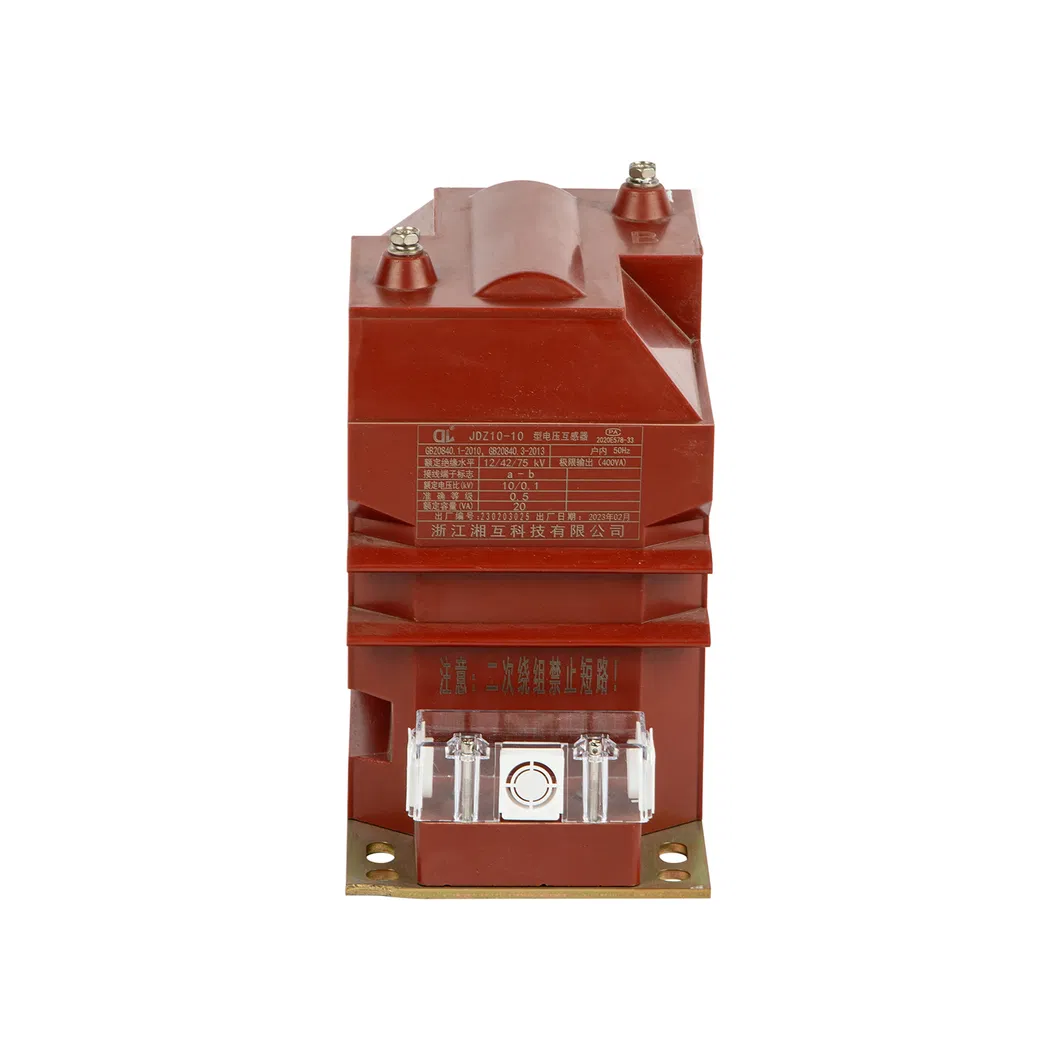

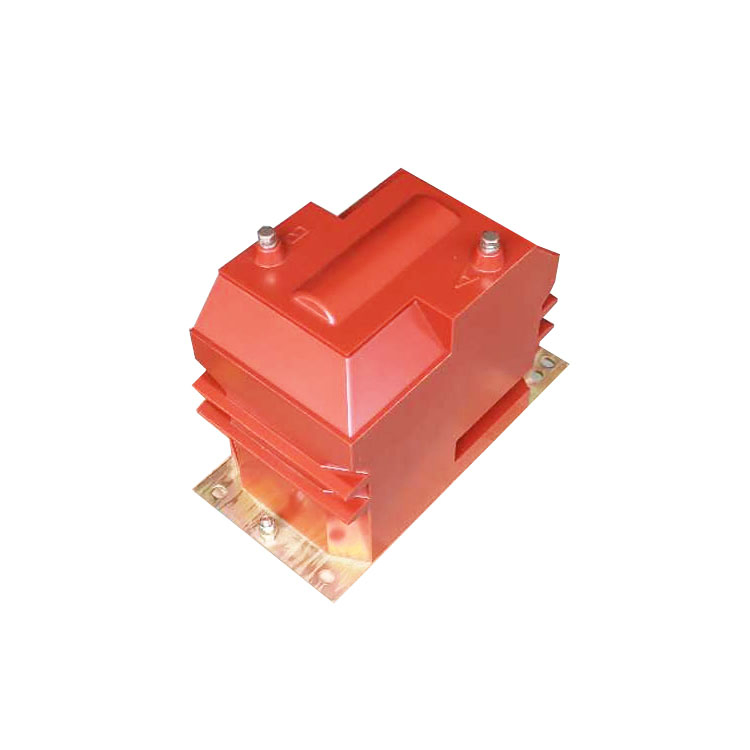

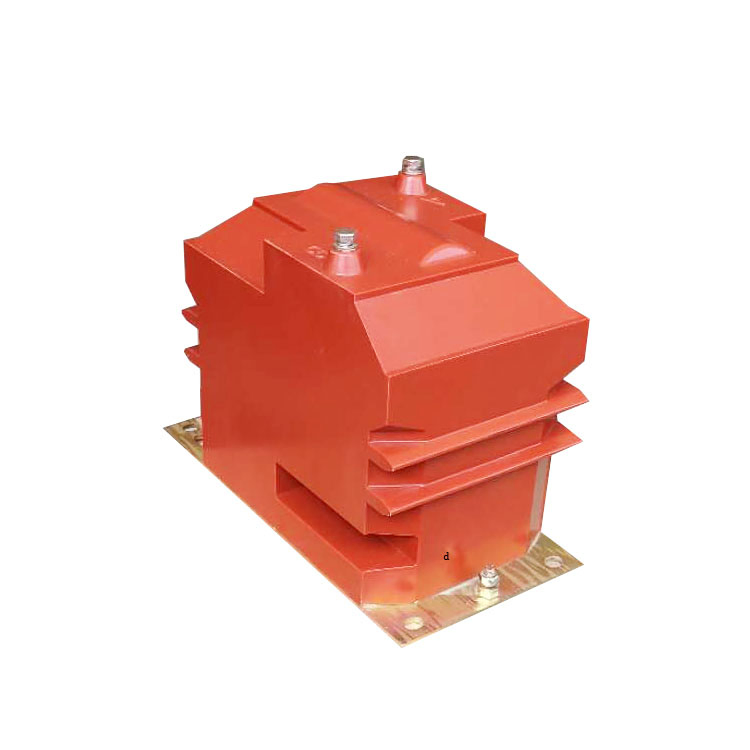

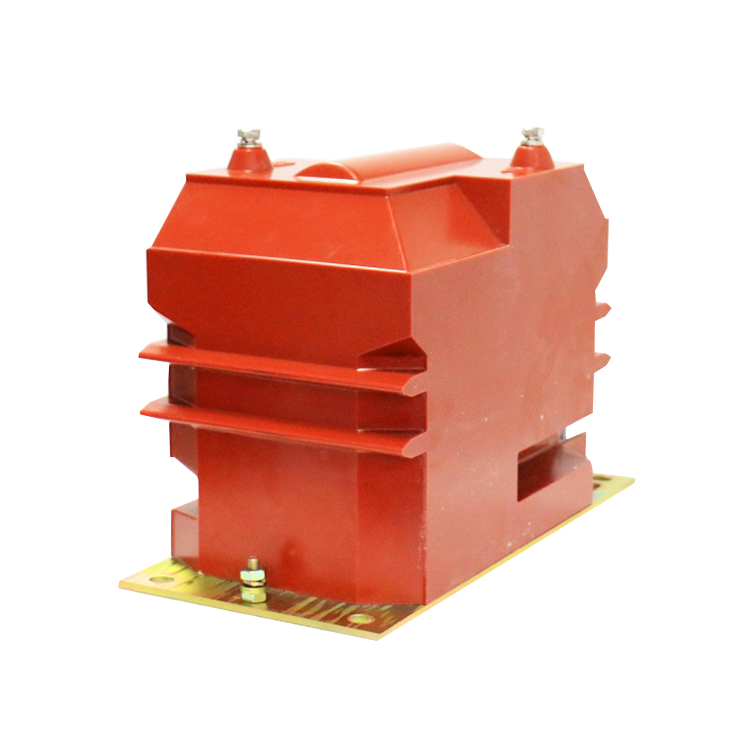

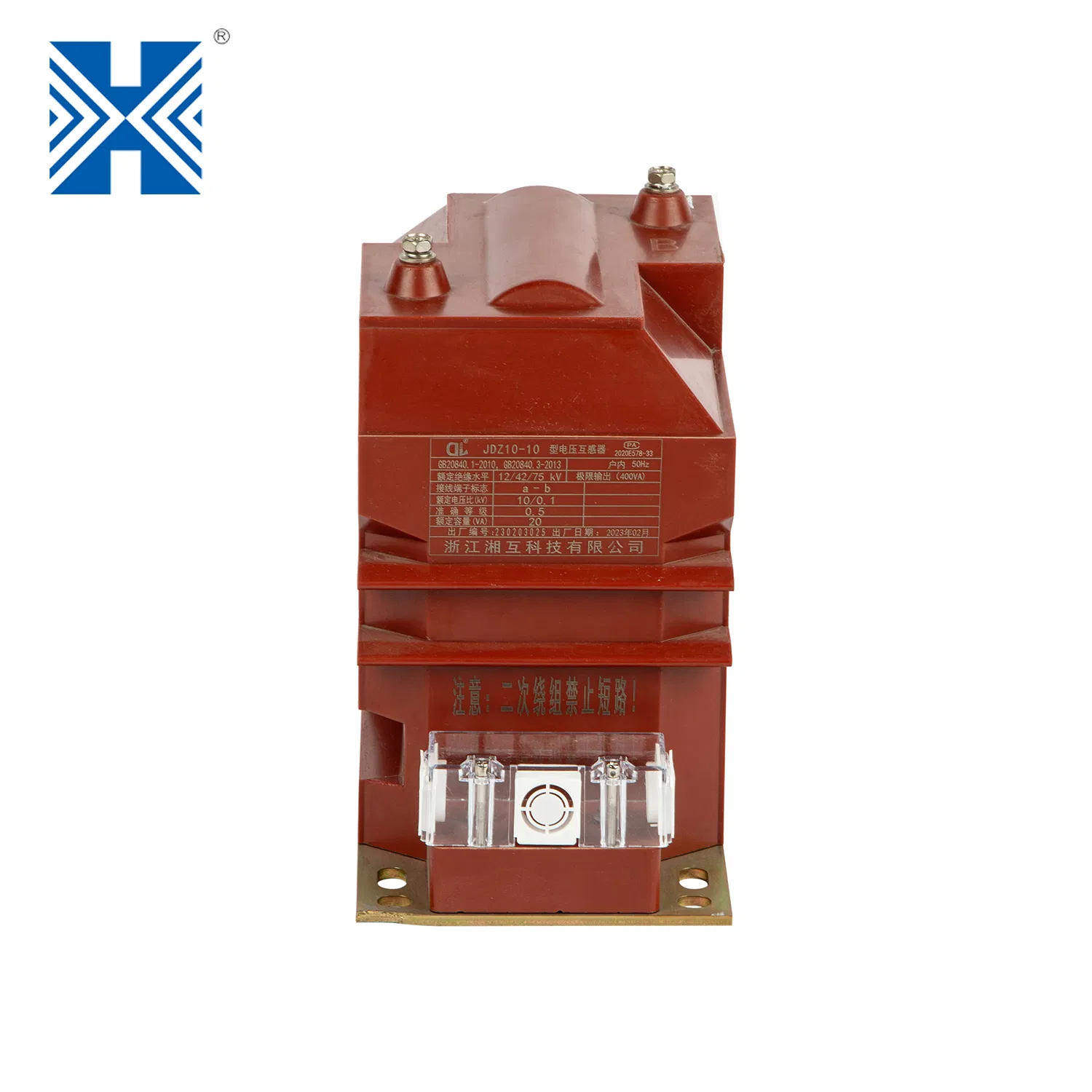

JDZ10-10 and JDZX10-10 voltage transformers are designed for rated frequencies of 50Hz or 60Hz. They are primarily used for energy metering, voltage monitoring, and relay protection within 10kV power systems.
| Model | Rated Voltage Ratio (kV) | Accuracy Class | Rated Output (VA) | Ultimate Output (VA) | Insulation Level (kV) |
|---|---|---|---|---|---|
| JDZ10-3 | 3/0.1 | 0.2 / 0.5 | 15 / 30 | 200 | 3.6/25/40 |
| JDZ10-6 | 6/0.1 | 0.2 / 0.5 | 15 / 30 | 200 | 7.2/32/60 |
| JDZ10-10 | 10/0.1 | 0.2 / 0.5 | 15 / 30 | 200 | 12/42/75 |
