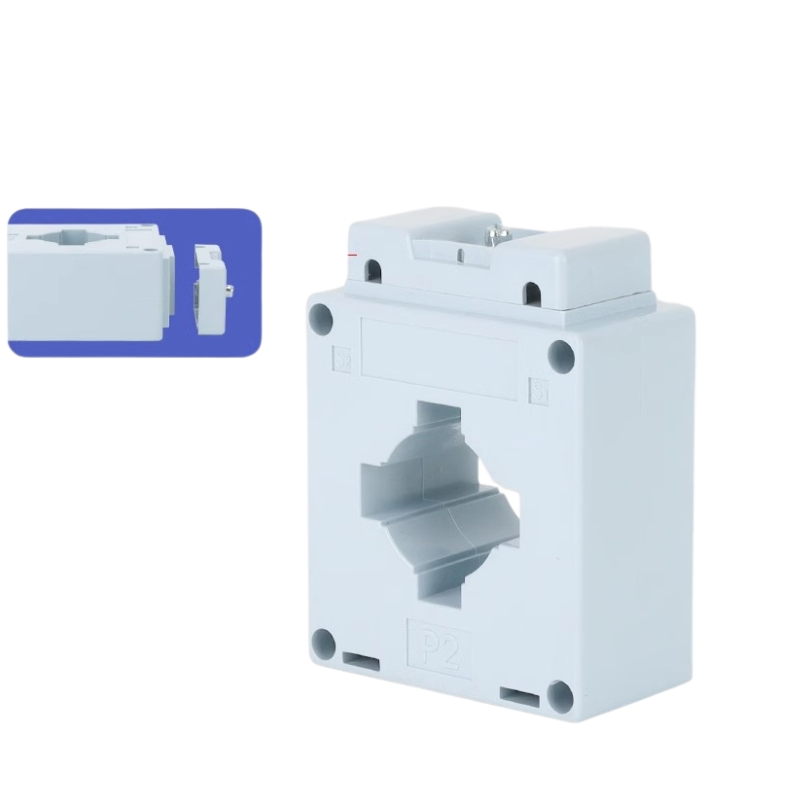

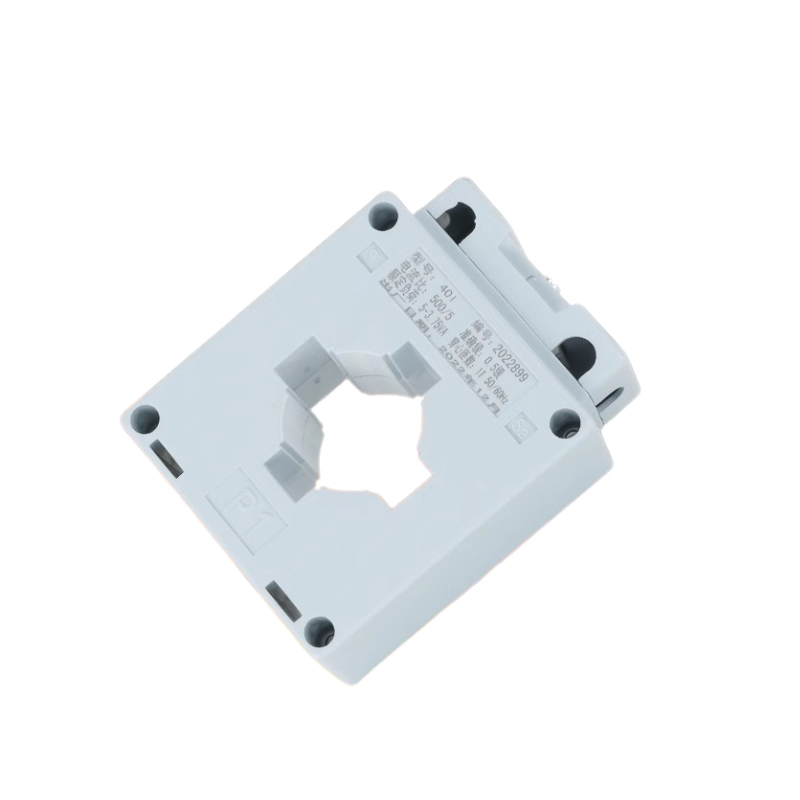

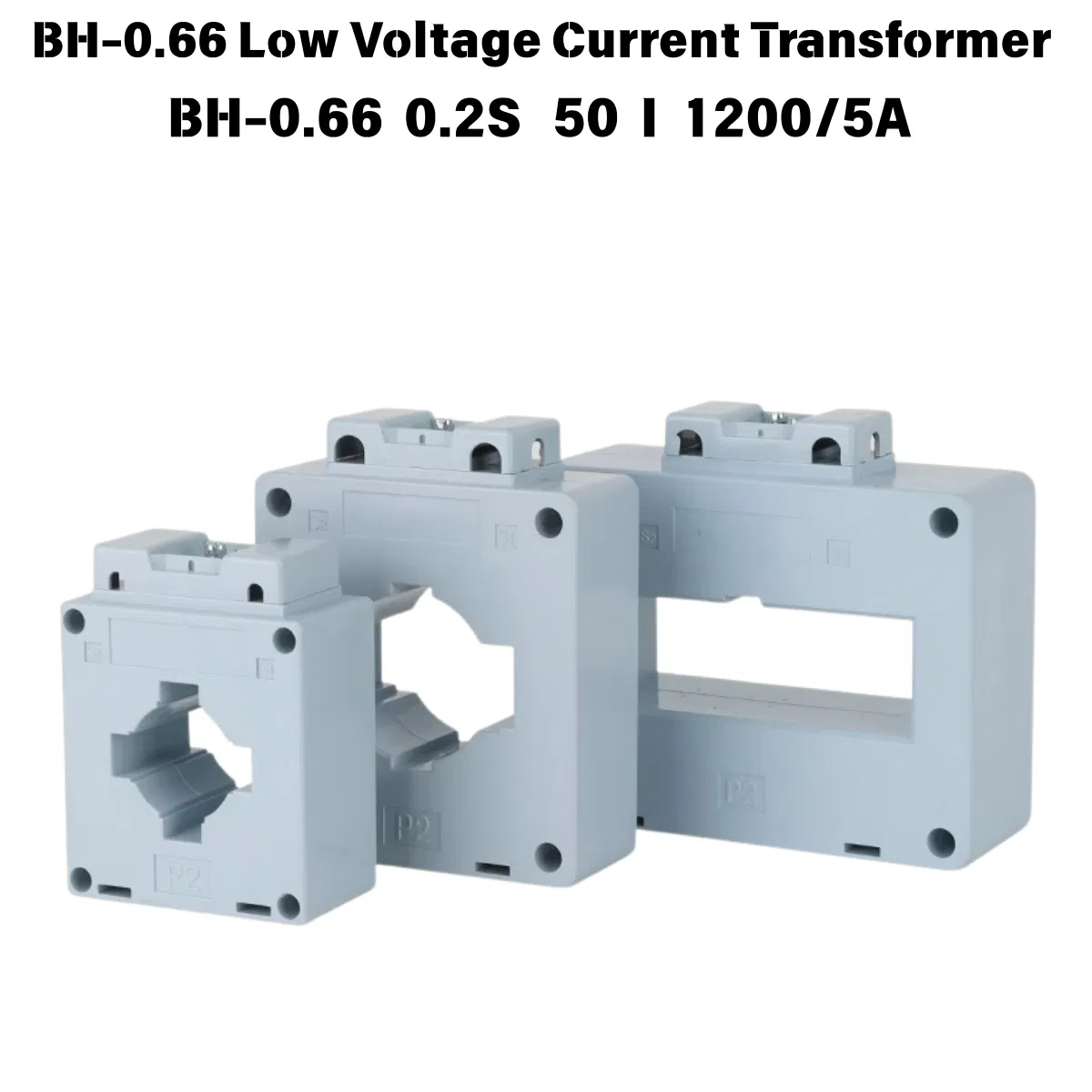

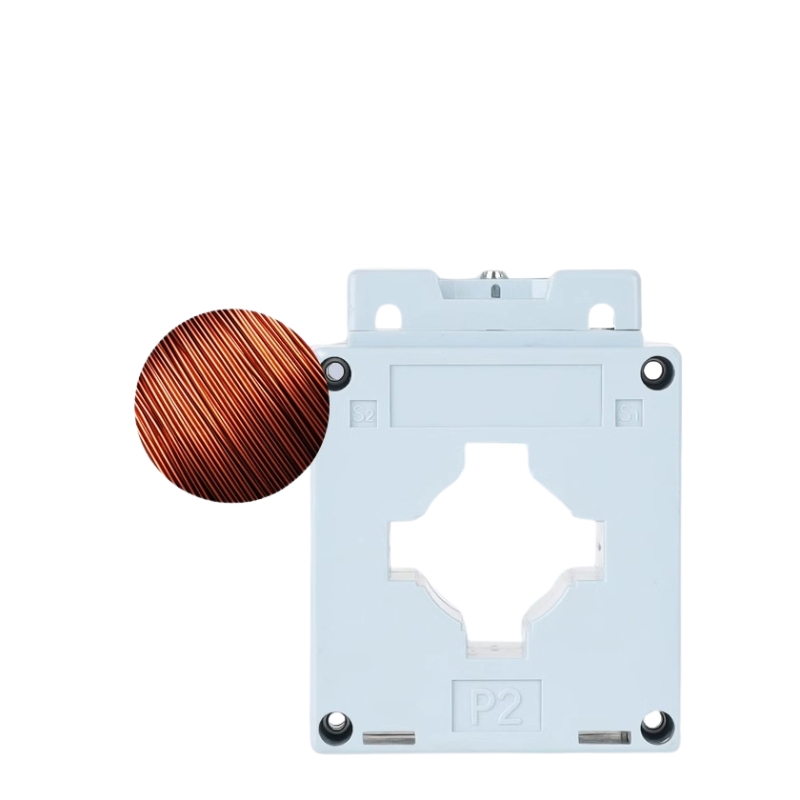

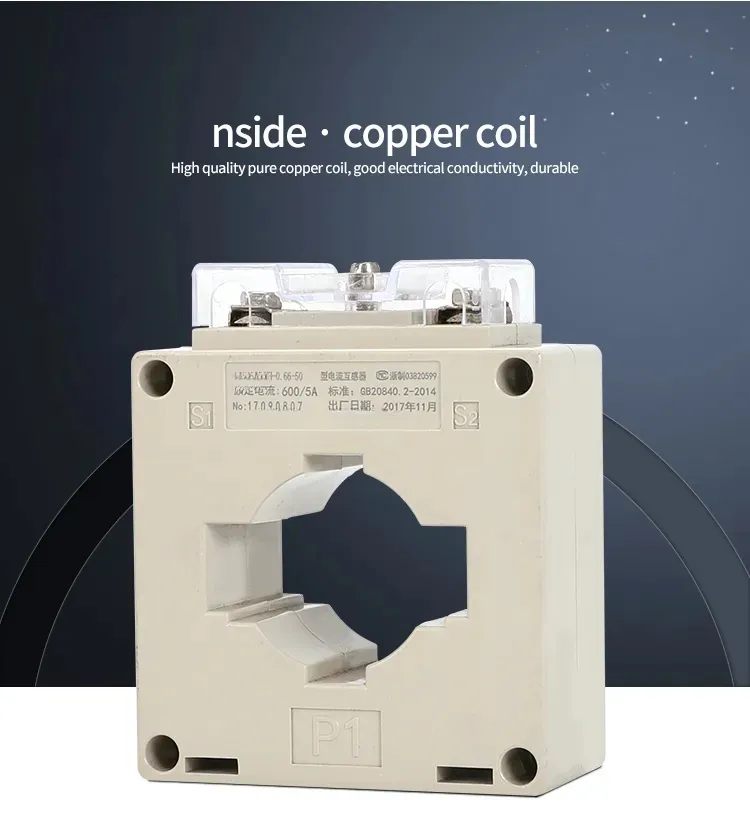

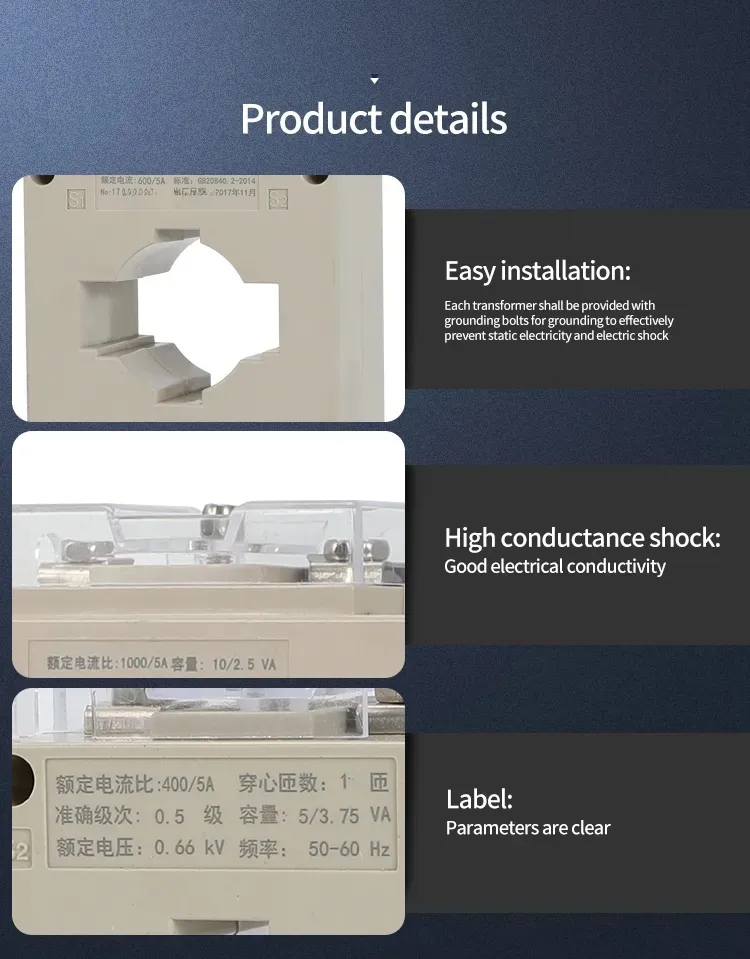

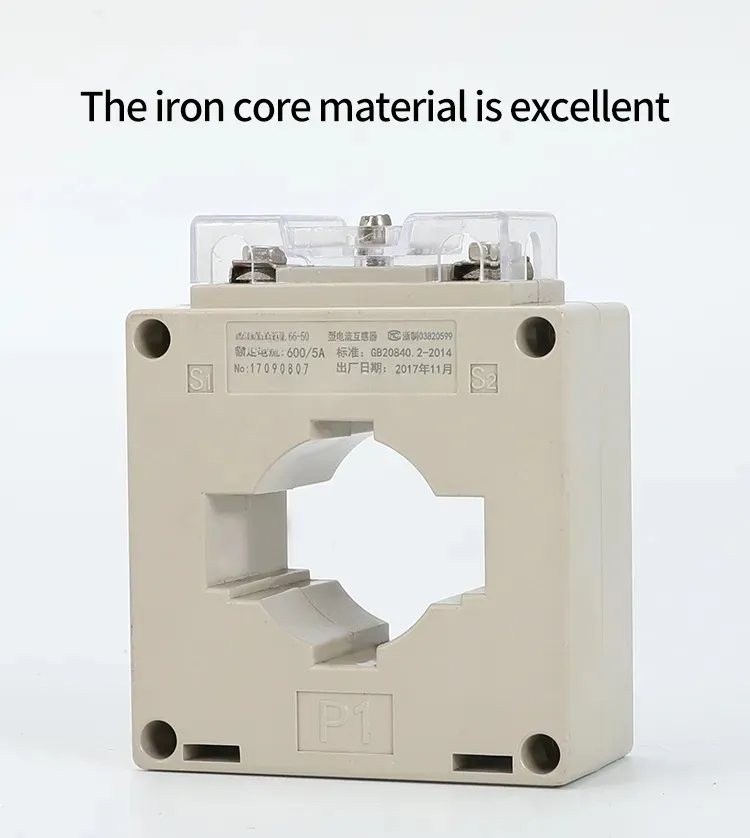

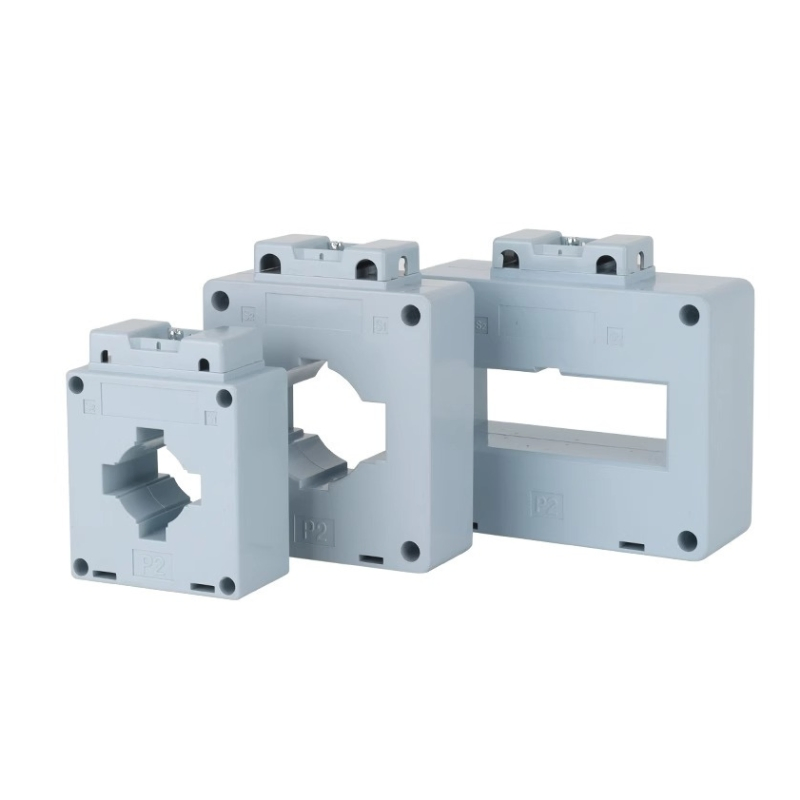

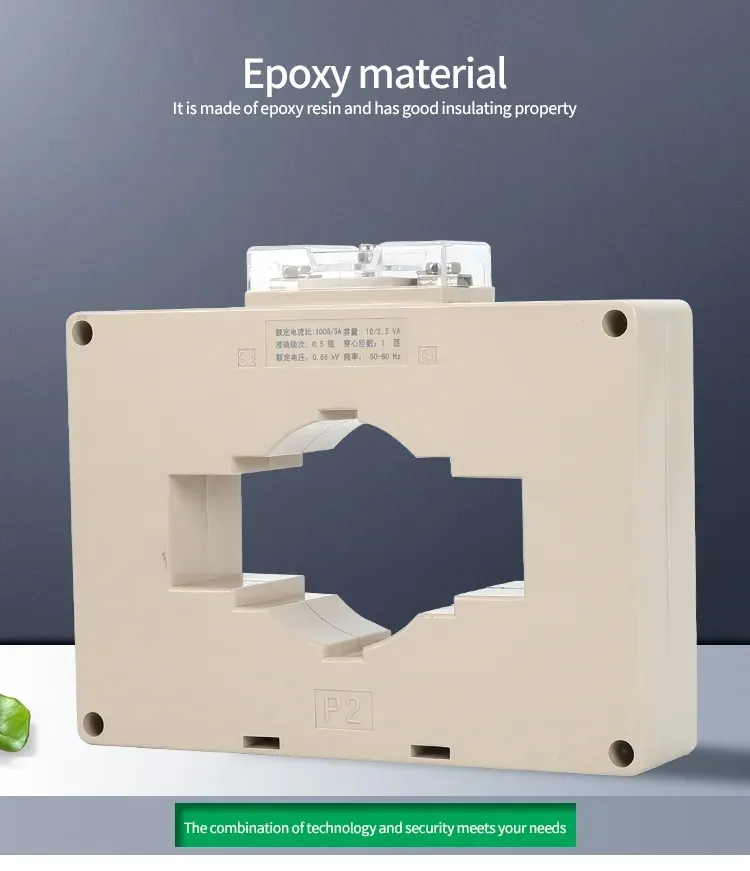

● The BH-0.66 Low Voltage Current Transformer is a professional device designed for measuring and monitoring current in low voltage power systems. It utilizes advanced transformer technology to accurately convert current signals and output a proportional signal to the input current.
● High-precision measurement: The device features robust measurement capabilities, ensuring data accuracy and reliability for power system management.
| Type | Rated Current | Accuracy Class and Rated Output (VA) | |||
|---|---|---|---|---|---|
| 0.2 | 0.5s | 1 | 3 | ||
| BH-0.66 / LMK-0.66 | 5-400/5 | 5 | 5 | 7.5 | - |
| 500-800/5 | 10 | 10 | 15 | 15 | |
| 1000-1500/5 | 15 | 15 | 20 | 25 | |
| 2000-4000/5 | 15 | 20 | 20 | 30 | |
The enterprise is an industry and trade integration comprehensive enterprise focusing on research, development, production, and sales. The company is committed to producing and developing frame circuit breakers (ACB), vacuum circuit breakers, plastic case circuit breakers (MCCB), leakage circuit breakers, and other high and low voltage electrical appliances. With a focus on quality assurance and competitive pricing, we adhere to a "quality-oriented" policy, implementing brand competition concepts with international standards. We aim for continuous innovation to provide better products and personalized service for our global customers.
