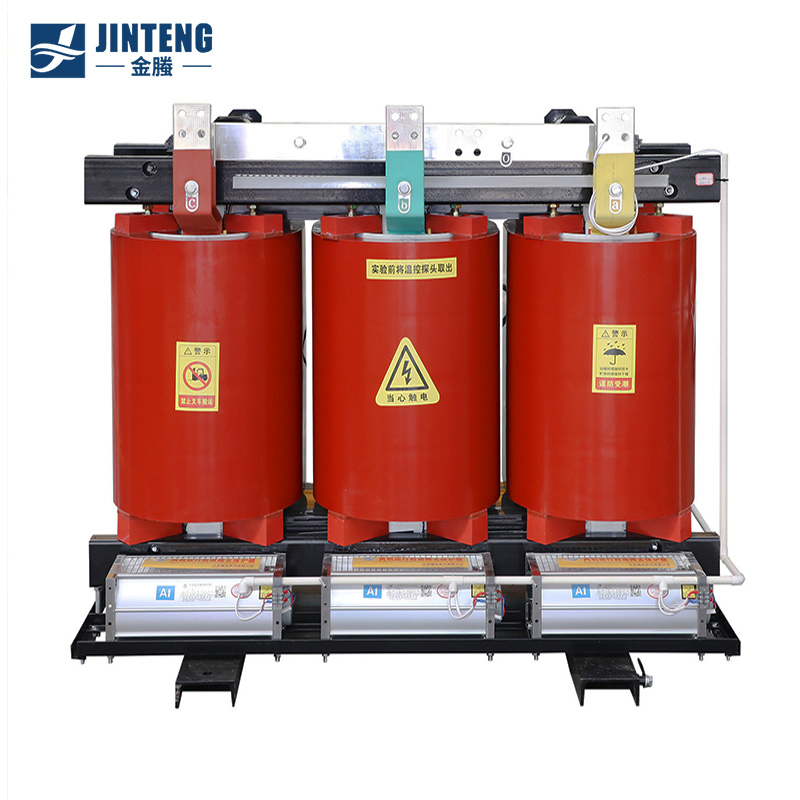

Dry-Type Transformer Technology
Our non-encapsulated coil three-phase dry-type power transformers utilize an approved Nomex insulation system. They offer industry-leading safety, reliability, and energy efficiency. Designed for fire resistance and explosion-proofing, these units require minimal maintenance and exhibit superior performance in partial discharge, no-load loss, and noise control.
Engineered for harsh environments, they operate effectively in high-humidity or polluted areas near coastal regions. Ideal for high-safety requirement zones like skyscrapers, airports, subways, hospitals, and nuclear plants. Featuring epoxy-sealed windings, the design is flame-retardant and pollution-free.
🔹 Ambient Conditions:
| Rated Capacity (KVA) | Voltage Combination | Vector Group | No-load Loss (KW) | Load Loss (KW) | No-load Current% | Weight (KG) | |||
|---|---|---|---|---|---|---|---|---|---|
| High Voltage (KV) | Tapping Range | Low Voltage (KV) | Core Weight | Gross Weight | |||||
| 30 | 10 / 10.5 / 11 | ±5% / ±2×2.5% | 0.4 | Yyn0/Dyn11 | 0.71 | 0.19 | 1.6 | 250 | 320 |
| 100 | 10 / 10.5 / 11 | ±5% / ±2×2.5% | 0.4 | Yyn0/Dyn11 | 1.85 | 0.47 | 1.0 | 570 | 680 |
| 500 | 10 / 10.5 / 11 | ±5% / ±2×2.5% | 0.4 | Yyn0/Dyn11 | 5.87 | 1.34 | 0.6 | 1680 | 1840 |
| 1000 | 10 / 10.5 / 11 | ±5% / ±2×2.5% | 0.4 | Yyn0/Dyn11 | 8.13 | 1.77 | 0.45 | 2520 | 2720 |
| 2500 | 10 / 10.5 / 11 | ±5% / ±2×2.5% | 0.4 | Yyn0/Dyn11 | 17.17 | 4.00 | 0.4 | 5310 | 5580 |

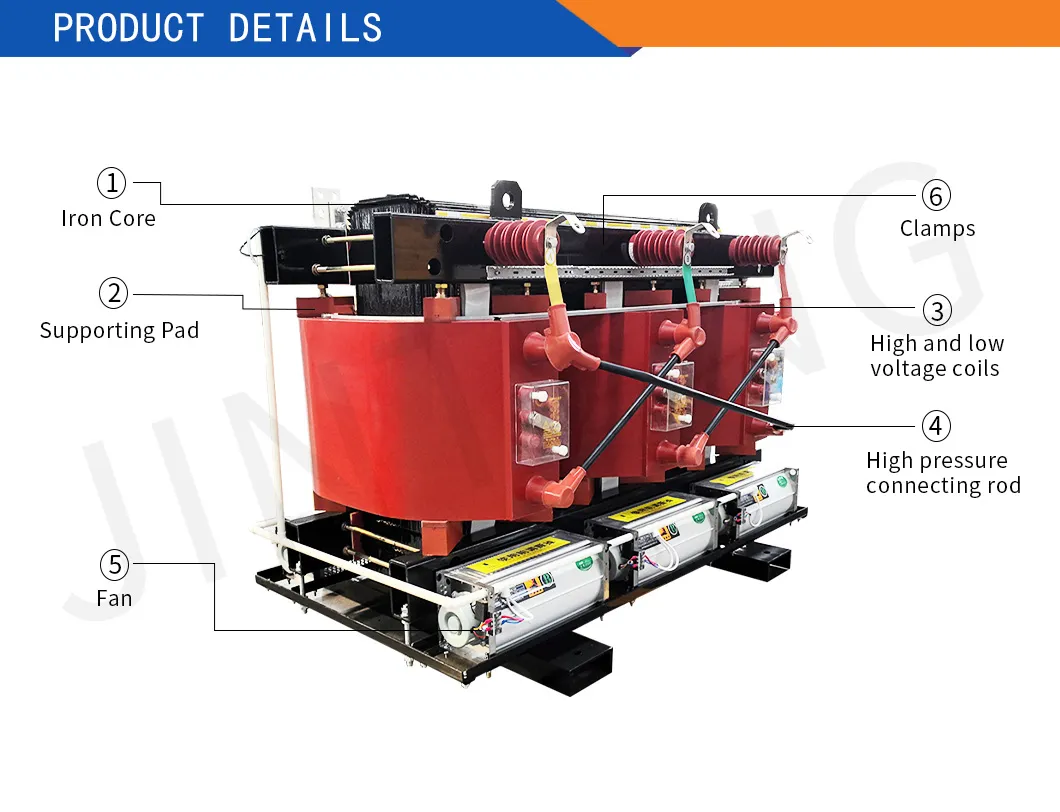

1. Iron Core | 2. Supporting Pad | 3. High/Low Voltage Coils | 4. Connecting Rod | 5. Fan | 6. Clamps
Our products comply with ISO9001, 14001, and CE standards. We provide comprehensive logistics schedules for domestic and international delivery.
Our company is a leading provider of power transmission and distribution solutions. We focus on the research, development, and production of transformers (oil-immersed and dry type), substations, and switchgear. By integrating cutting-edge technology with international standards such as IEC, IEEE, and ANSI, we deliver energy-efficient and reliable power equipment globally.
With experience in over 500 overseas projects across Asia, Africa, the Middle East, and South America, we ensure strict quality management and operational efficiency for our clients. Our professional R&D team and precision manufacturing technology allow us to meet diverse needs through standardized products or customized ODM/OEM cooperation.
