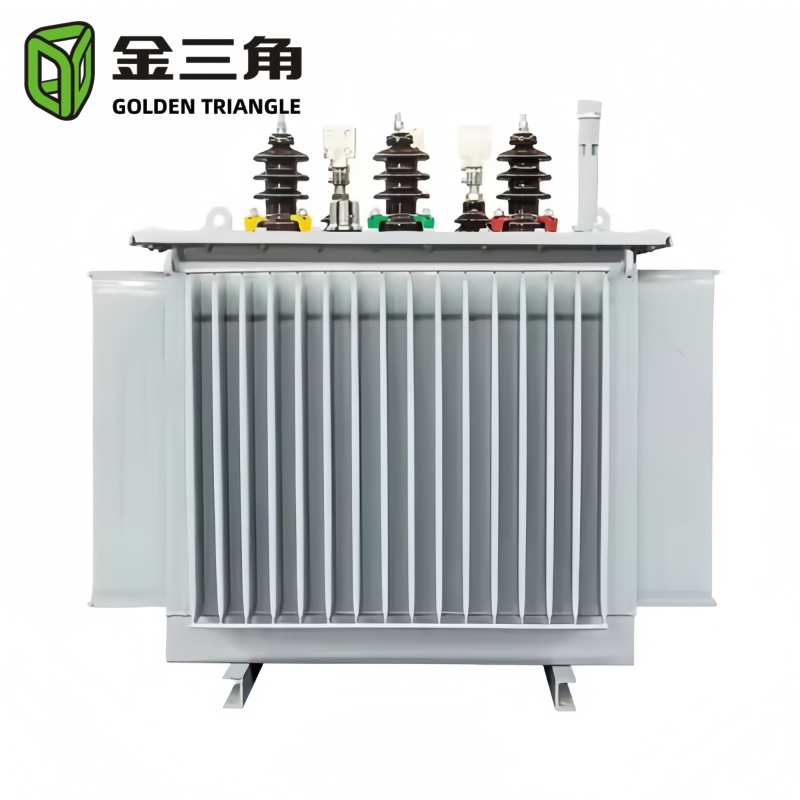

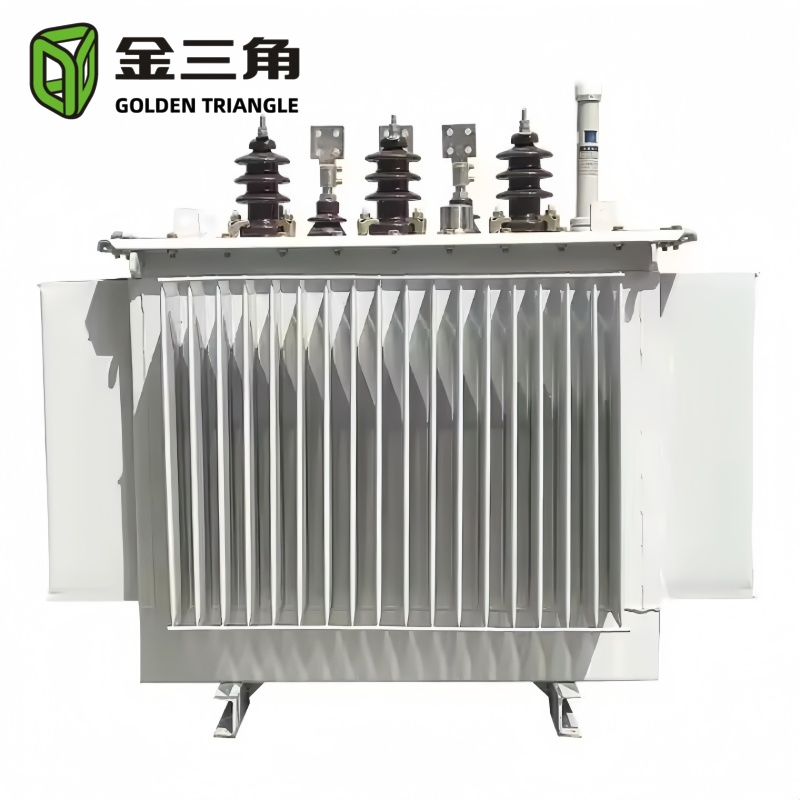

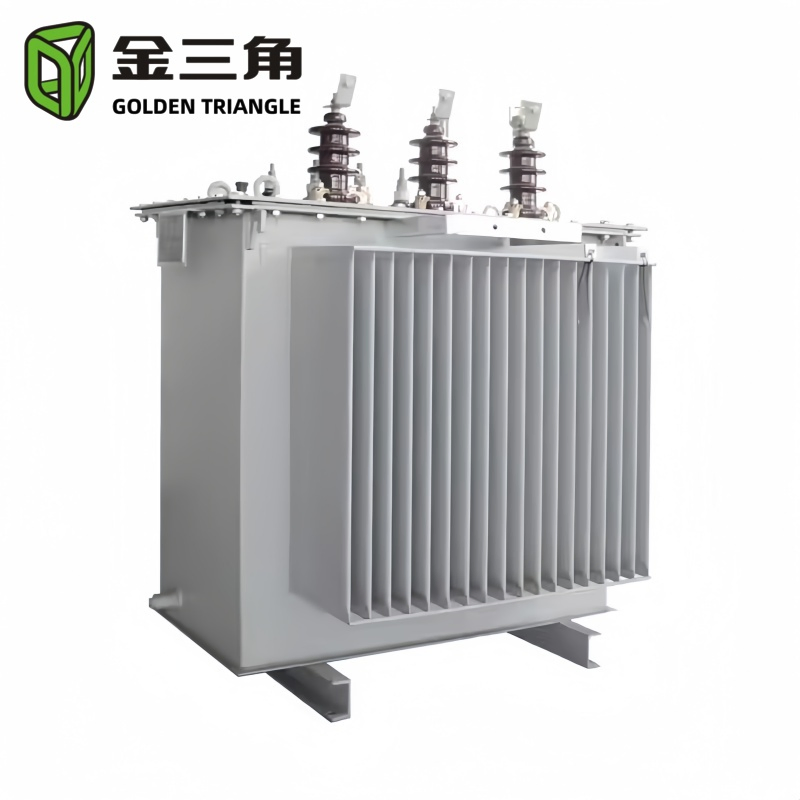

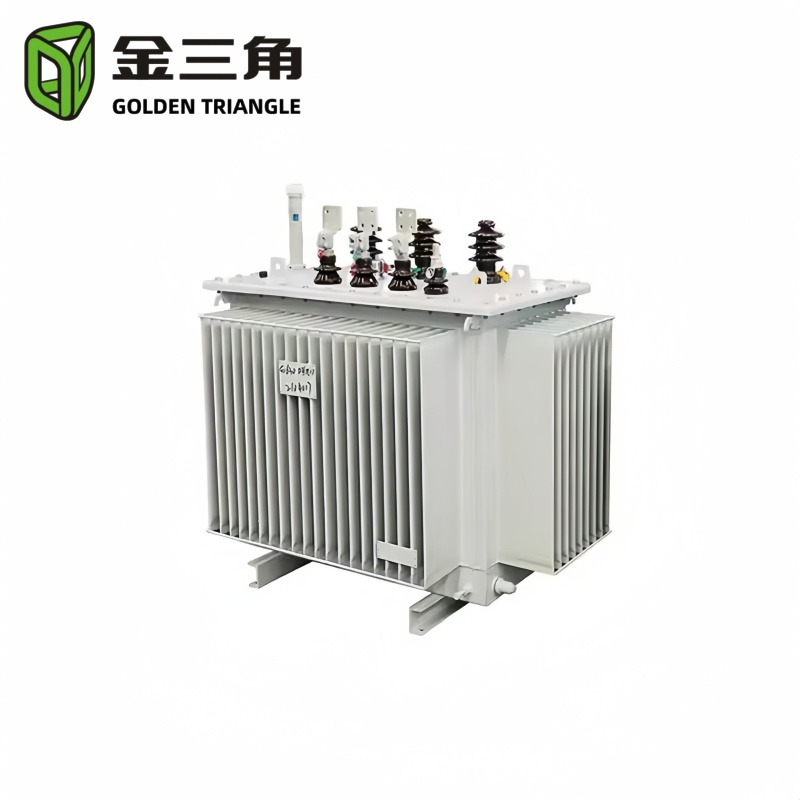

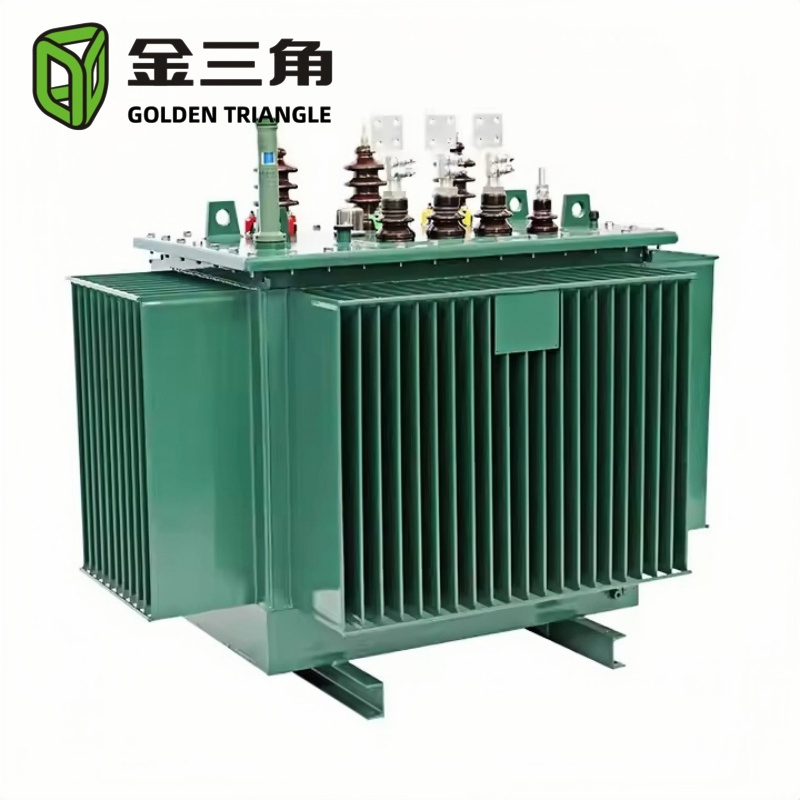

SBH16-M-(30-2500)/10 3 Phase Oil-immersed Amorphous Alloy Iron Core Distribution Transformer
| Rated Capacity (KVA) | Voltage Combination | No-load Loss (W) | Load Loss (75ºC)(W) | Impedance Voltage (%) | Overall Dimension (L×W×H) | Total Weight (kg) | ||
|---|---|---|---|---|---|---|---|---|
| HV (KV) | Tap Range | LV (KV) | ||||||
| 30 | 10/11 | ±2×2.5% | 0.4 | 33 | 565/540 | 4 | 850×600×825 | 320 |
| 100 | 75 | 1420/1350 | 4 | 1230×640×875 | 585 | |||
| 250 | 140 | 2880/2740 | 4 | 1470×940×920 | 1110 | |||
| 630 | 320 | 5580 | 4.5 | 1890×1200×1050 | 2140 | |||
| 1250 | 530 | 10800 | 4.5 | 2200×1270×1330 | 3585 | |||
| 2500 | 900 | 19100 | 5 | 2500×1490×1500 | 6095 | |||

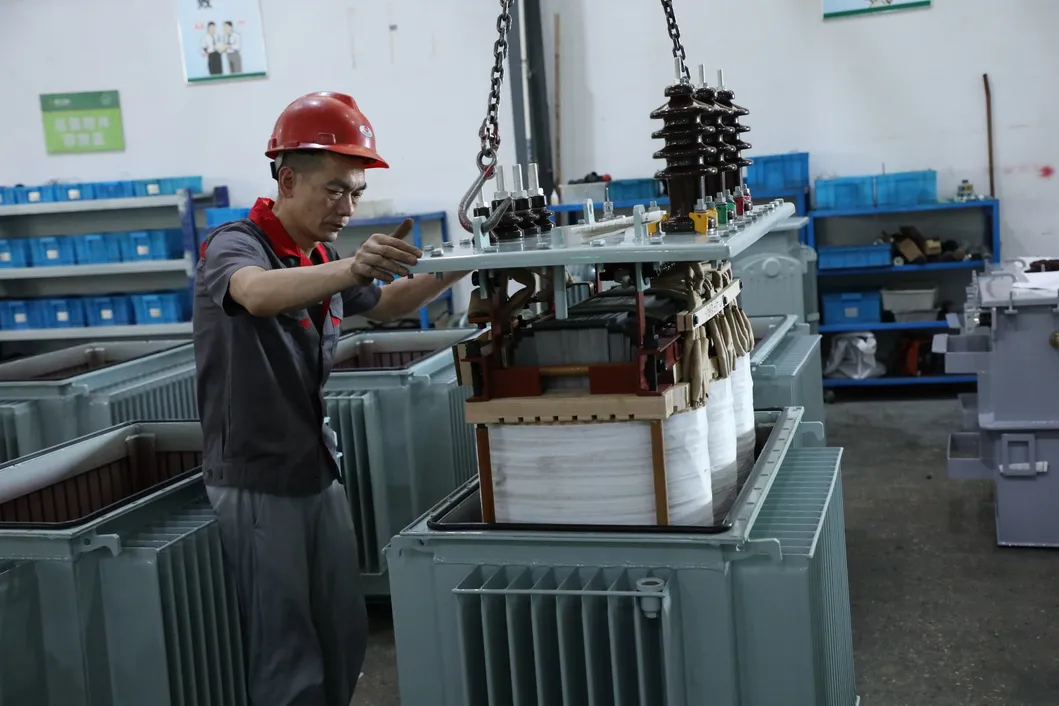

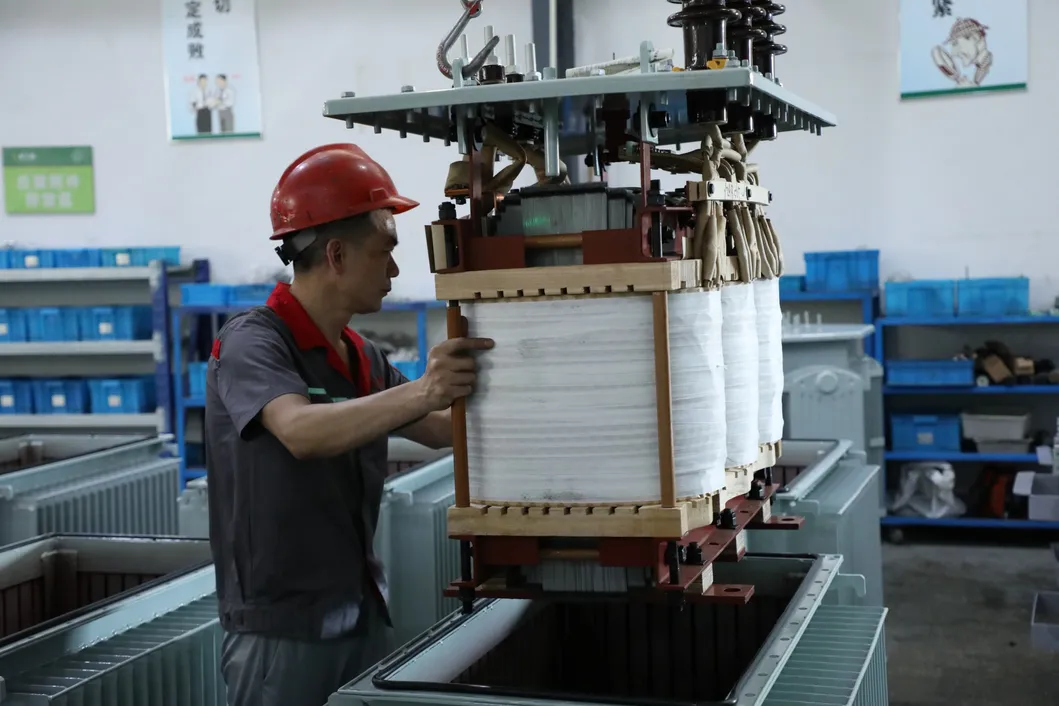

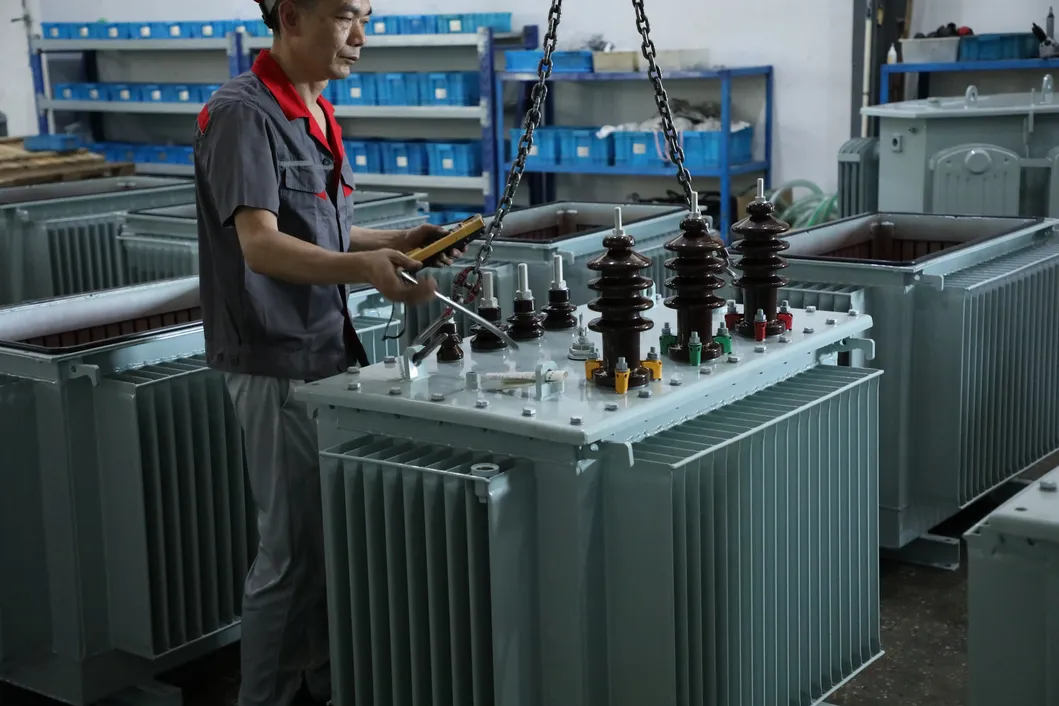

We specialize in the research and development, production, and technical services of advanced power products, including three-dimensional coil core transformers, amorphous alloy core transformers, photovoltaic substations, energy storage equipment, and high/low voltage switchgear. Our products are widely utilized in national power grids, railways, mining, infrastructure, and metallurgy.
Our operations are certified under ISO9001:2015 Quality Management, ISO14001:2015 Environmental Management, and ISO45001:2008 Occupational Health and Safety. We hold numerous energy-saving certifications and mandatory "CCC" product certifications. With a strong focus on innovation, we maintain an Academician Workstation and a Doctor Innovation Workstation, supported by dozens of invention and utility model patents.
We have led the drafting of multiple national standards for distribution transformers, contributing significantly to energy conservation and green energy technology development.
