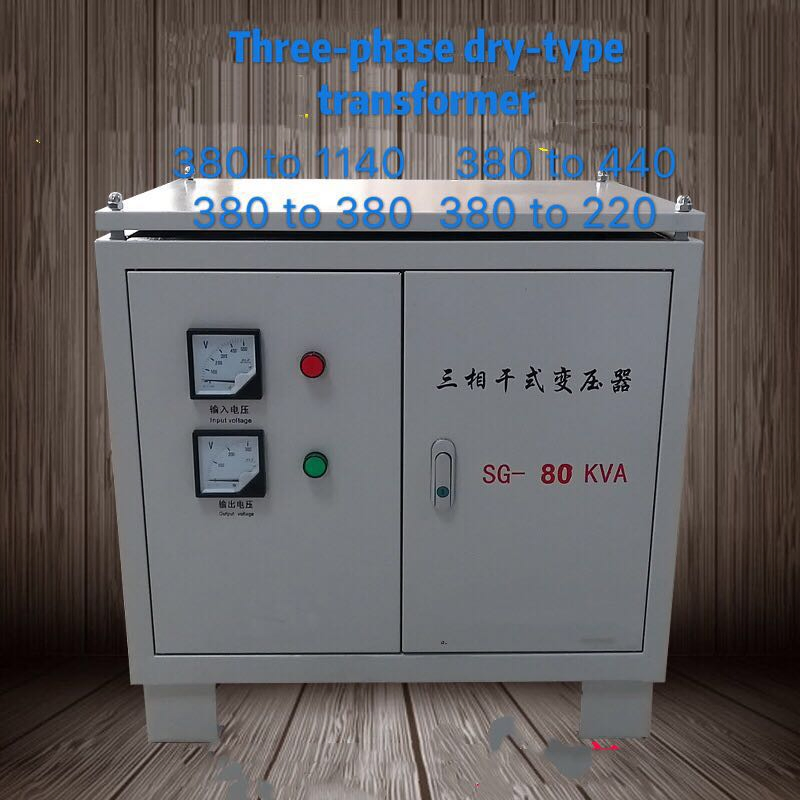

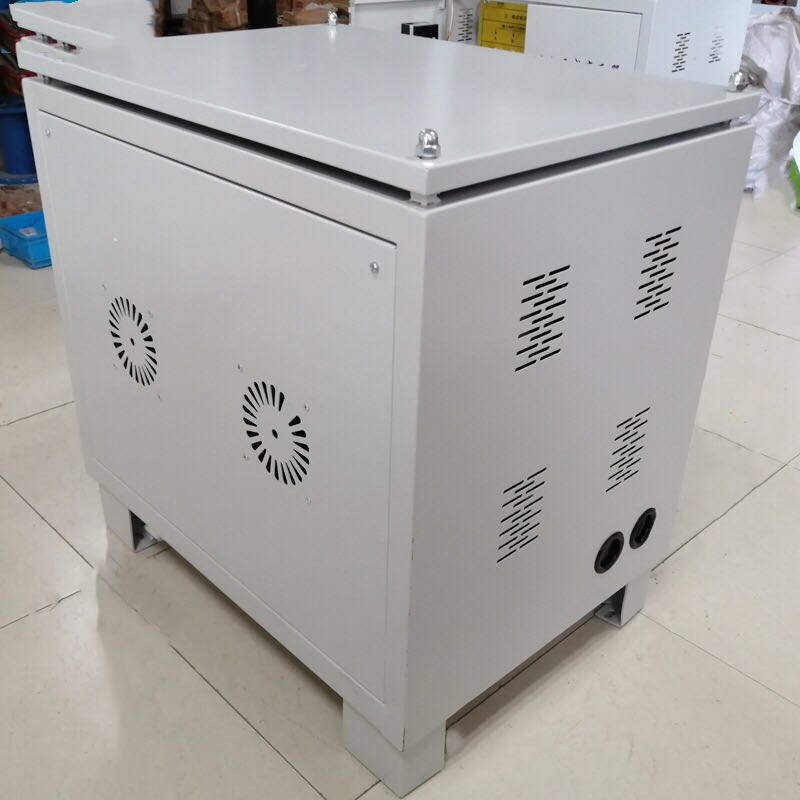

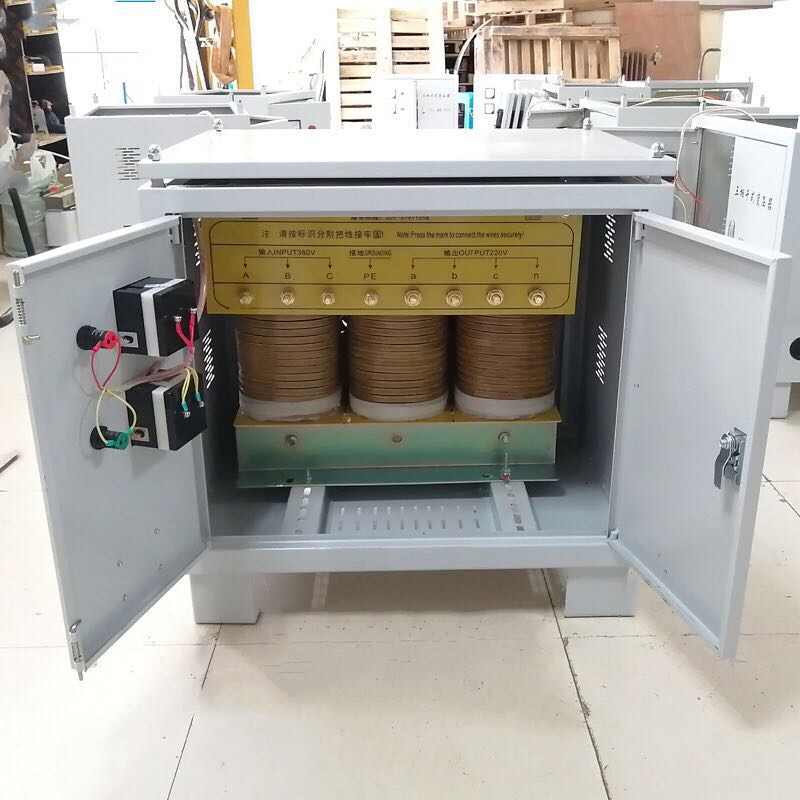

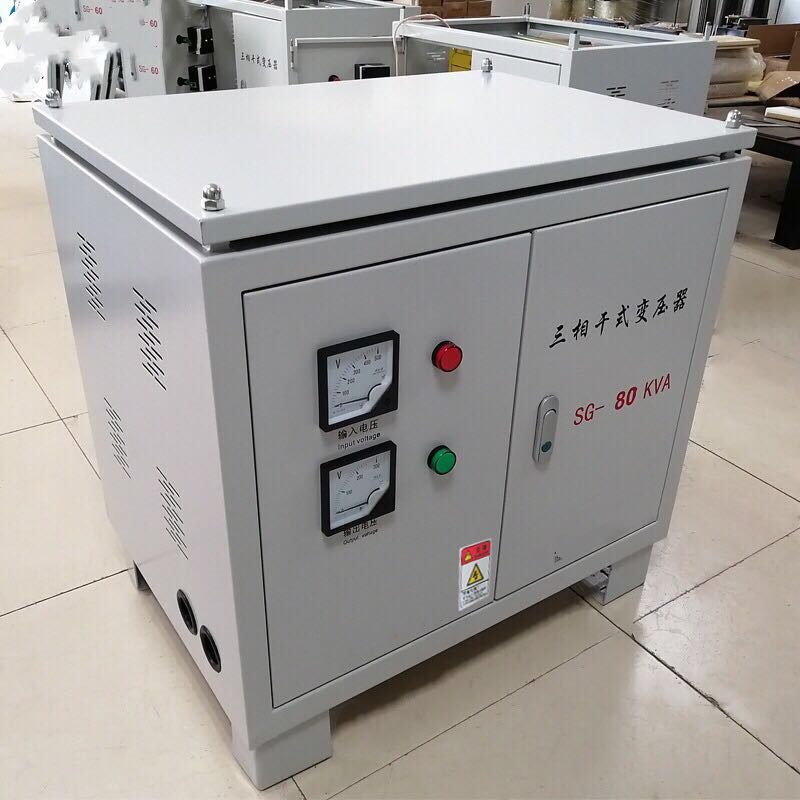

Sg-80kVA Three-Phase Dry-Type Transformer 380V to 380V220V440V690V60kVA100kVA Kilowatt Isolation
Sg-80kVA Three-Phase Dry-Type Transformer 380V to 380V220V440V690V60kVA100kVA Kilowatt Isolation
Sg-80kVA Three-Phase Dry-Type Transformer 380V to 380V220V440V690V60kVA100kVA Kilowatt Isolation
Sg-80kVA Three-Phase Dry-Type Transformer 380V to 380V220V440V690V60kVA100kVA Kilowatt Isolation
1 / 4
Sg-80kVA Three-Phase Dry-Type Transformer 380V to 380V220V440V690V60kVA100kVA Kilowatt Isolation
Sg-80kVA Three-Phase Dry-Type Transformer 380V to 380V220V440V690V60kVA100kVA Kilowatt Isolation
Sg-80kVA Three-Phase Dry-Type Transformer 380V to 380V220V440V690V60kVA100kVA Kilowatt Isolation
Sg-80kVA Three-Phase Dry-Type Transformer 380V to 380V220V440V690V60kVA100kVA Kilowatt Isolation

Sg-80kVA Three-Phase Dry-Type Transformer 380V to 380V220V440V690V60kVA100kVA Kilowatt Isolation

Customization: Available
Application: Power
Phase: Three
Send Inquiry

Product Description

Basic Information
Model NO. SG-60KVA, SG-80KVA, SG-100KVA
Core Core-type Transformer
Cooling Method Natural Air
Winding Type Two-winding Transformer
Certification ISO9001-2000
Usage Power Transformer
Frequency Low Frequency (50/60Hz)
Core Shape EI
Shell Material Steel Plate
Transport Package Wooden Box
Product Description
The three-phase isolation transformer is a critical component for various power supplies and electrical equipment. It is manufactured using high-quality materials and advanced technology to ensure complete electrical insulation between the primary and secondary sides. This design ensures that a short circuit on the primary side does not affect the secondary side, protecting sensitive downstream equipment.
Beyond voltage transformation, these transformers isolate the third harmonic of the power grid. With primary and secondary copper foil shielding, they effectively prevent grid harmonics from interfering with the equipment. It is particularly suitable for import and export equipment ranging from 0.1KVA to 1600KVA, operating under AC 50/60Hz with input/output voltages up to 1600V.
Three-Phase Dry-Type Transformer
Product Parameters
Phases Three phases Frequency 50 / 60Hz
Capacity 0.5KVA - 1600KVA Noise ≤35dB (within one meter)
Input Voltage 380V (Customizable) Temp. Rise ≤60 ºC
Output Voltage 220V (Customizable) Resistance ≥50MΩ
Accuracy ± 1% Design Life 20 years
Efficiency ≥98% Insulation Grade F
Our Technical Advantages
We utilize new cold-rolled oriented silicon steel sheets for stacking and H-class temperature-resistant 180° enameled wire. Our process includes vacuum dipping paint and oven drying, which significantly reduces vibration and noise during operation while increasing electrical strength.
Quality Assurance
Ensuring quality in every step to achieve the highest industry standards.
Energy Efficient
New processes and high-temperature insulation materials make products quieter and energy-saving.
Advanced Equipment
Over 500 sets of sophisticated production and testing equipment guarantee precision.
Transformer Production Facility
Transformer Manufacturing Detail
Performance & Service
1
Pre-sale Service: Technical solutions, quotations, data sheets, and comprehensive shipment planning.
2
In-sale Service: Schedule supervision, manufacturing process photos, and pre-testing notifications.
3
After-sale Service: Installation, commissioning, worker training, and 12-hour quick response support.
Frequently Asked Questions
1. What is the typical delivery time for these transformers? The delivery time depends specifically on the type and capacity of the transformer ordered.
2. What are the standard payment terms? Standard terms are 30% advance by T/T, and 70% before delivery via T/T or L/C.
3. Which international standards do your products follow? Our products comply with IEC, ANSI, CSA, and GB standards.
4. What documentation is provided with the equipment? We provide outline drawings, quality control plans, testing plans, and type test reports (such as KEMA or CESI).
5. What is the standard warranty period? The normal warranty period is 12 months after the transformer begins operation.
6. Can on-site installation be provided? Yes, specialized installation teams can be sent to the user's site for commissioning and service.
