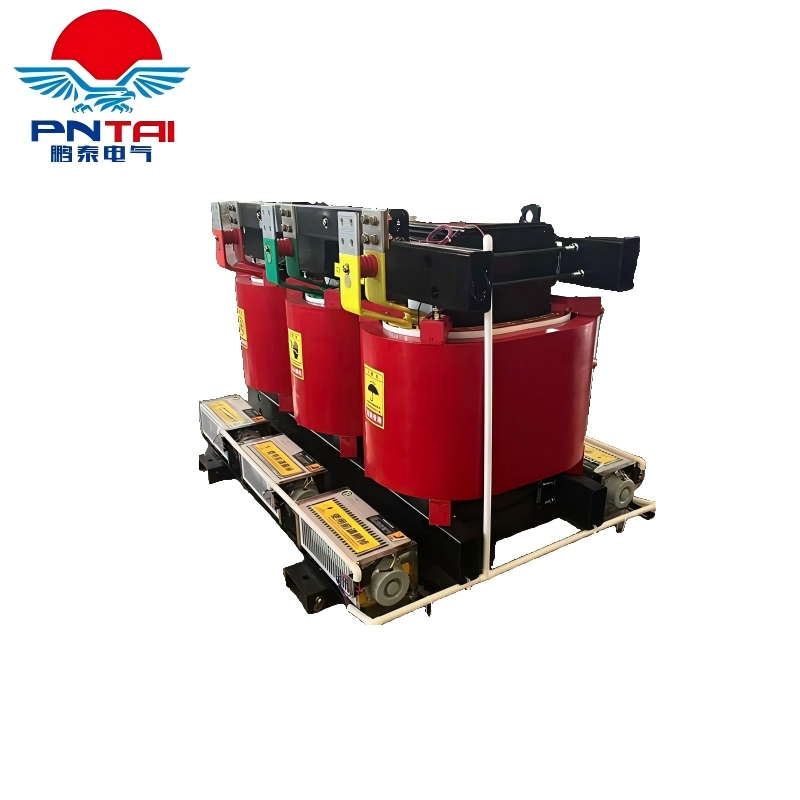

Our dry-type transformers adopt advanced manufacturing technology and stable processes. They meet various international standards and provide high-quality power solutions with clear technical documentation and complete measurement methods.
F-Grade Insulation: Reliable in ambient temperatures up to 180ºC; main parts sustain up to 220ºC.
Safety: Flame retardant and moisture-proof materials. Combustible material is only 10% of epoxy resin transformers.
Reliability: Special coil design prevents partial discharge. Moisture-proof, mould-proof, and flame-proof.
Over-load Ability: Sustains 120% rated capacity. Runs for long periods under IP23 without forcing air cooling.
| Model | Rated Capacity (KVA) | Link Group | High Voltage (KV) | Low Voltage (KV) | No-Load Loss (W) | Load Loss (W) | Short Circuit Impedance |
|---|---|---|---|---|---|---|---|
| SC18-30 | 30 | Yyn0/Dyn11 | 10 / 6.3 | 0.4 | 135 | 640 | 4% |
| SC18-100 | 100 | Yyn0/Dyn11 | 10 / 6.3 | 0.4 | 290 | 1415 | 4% |
| SC(B)18-250 | 250 | Yyn0/Dyn11 | 10 / 6.3 | 0.4 | 515 | 2485 | 4% |
| SC(B)18-500 | 500 | Yyn0/Dyn11 | 10 / 6.3 | 0.4 | 835 | 4390 | 4% |
| SC(B)18-800 | 800 | Yyn0/Dyn11 | 10 / 6.3 | 0.4 | 1095 | 6265 | 6% |
| SC(B)18-1250 | 1250 | Yyn0/Dyn11 | 10 / 6.3 | 0.4 | 1505 | 8720 | 6% |
| SC(B)18-2500 | 2500 | Yyn0/Dyn11 | 10 / 6.3 | 0.4 | 2590 | 15455 | 6% |

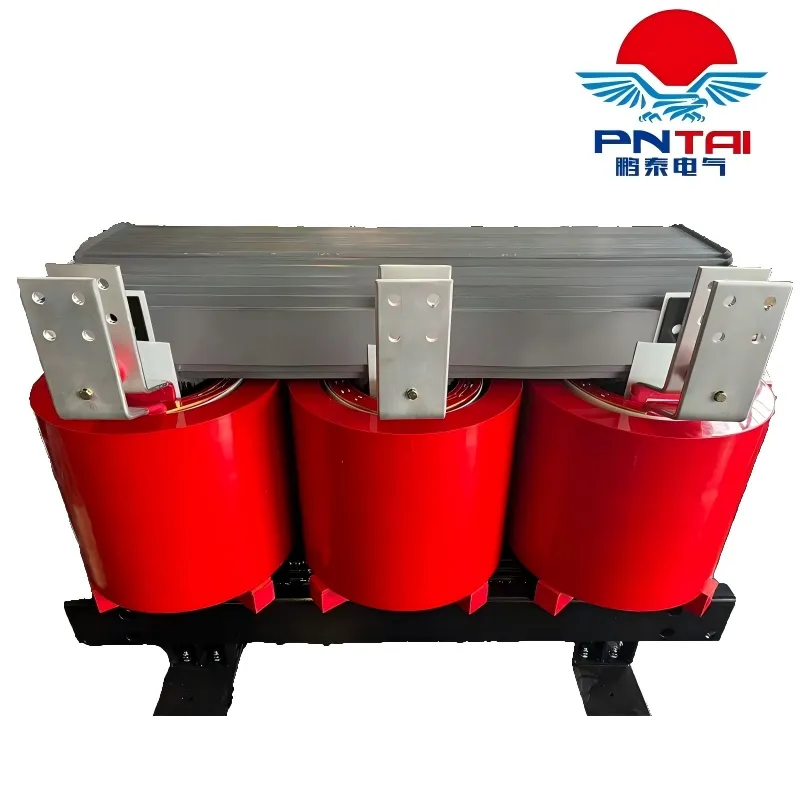

Offers high capacity for power distribution systems. Efficiency ensures reliable and consistent performance for industrial use.

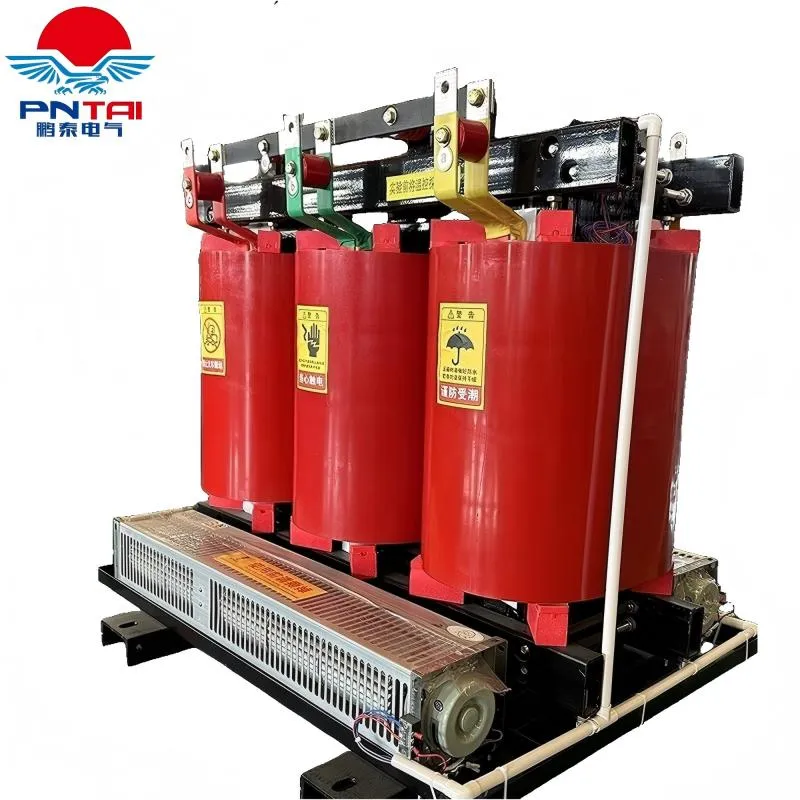

Made with 100% copper winding material, designed to meet the demands of high voltage applications with a long-lasting lifespan.
