In the tunnel boring machine (TBM), this device serves the functions of voltage stepping and isolation. It acts as the power hub, regulating electricity, ensuring stable power supply, and supporting underground operations.
The design of this device ensures efficient use of electricity. When stepping up voltage, it consumes less energy, making it suitable for long-duration operations. This helps reduce costs and enhances the overall value of the equipment.

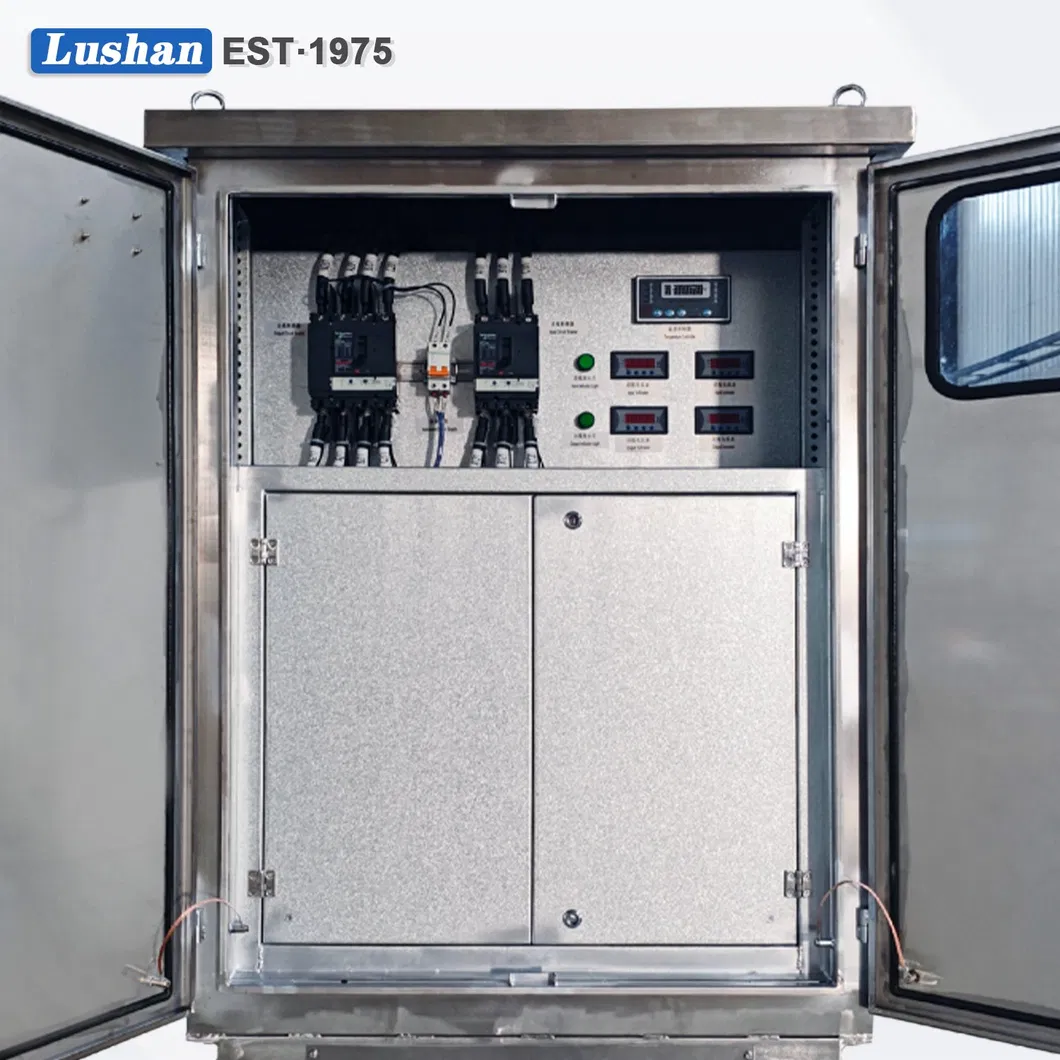

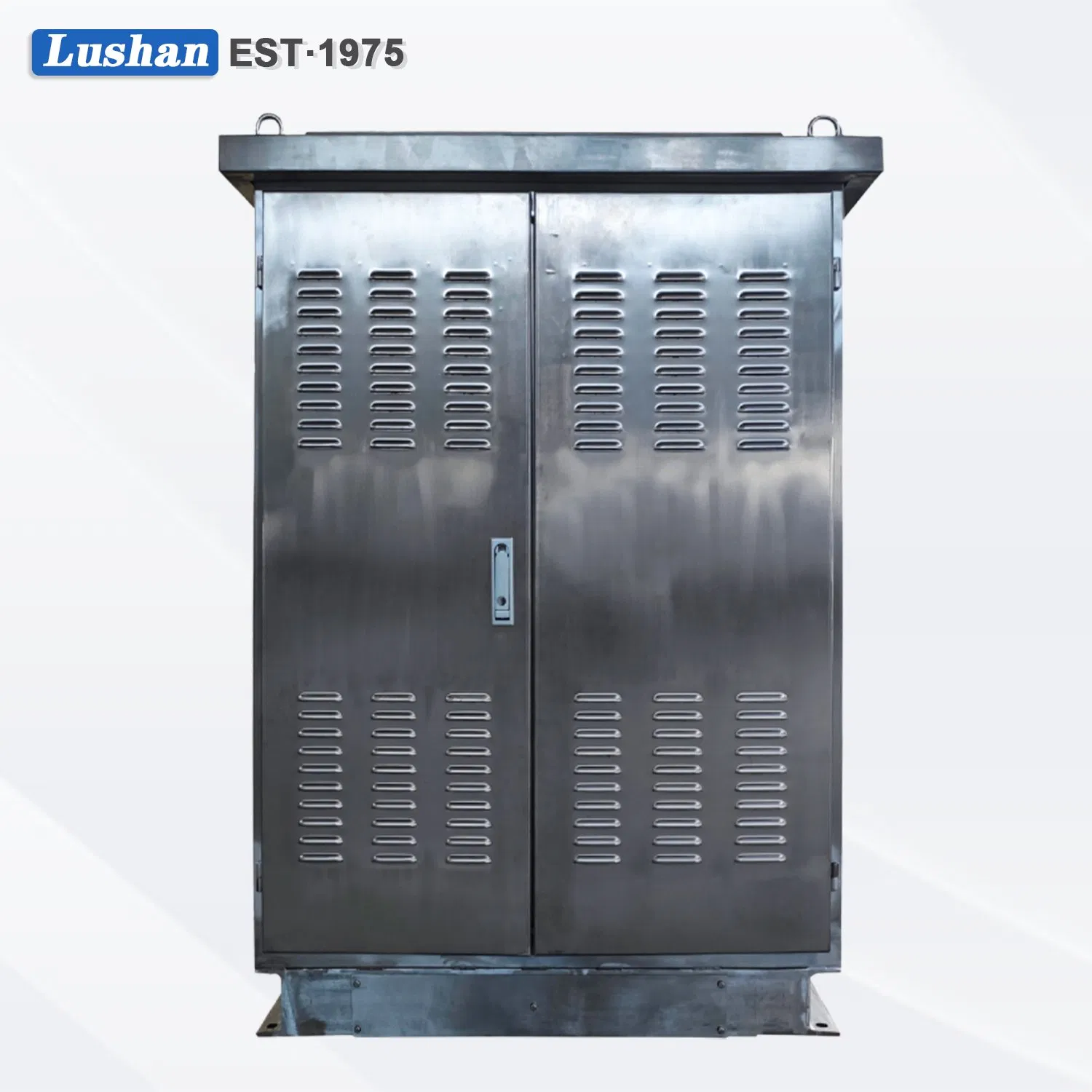

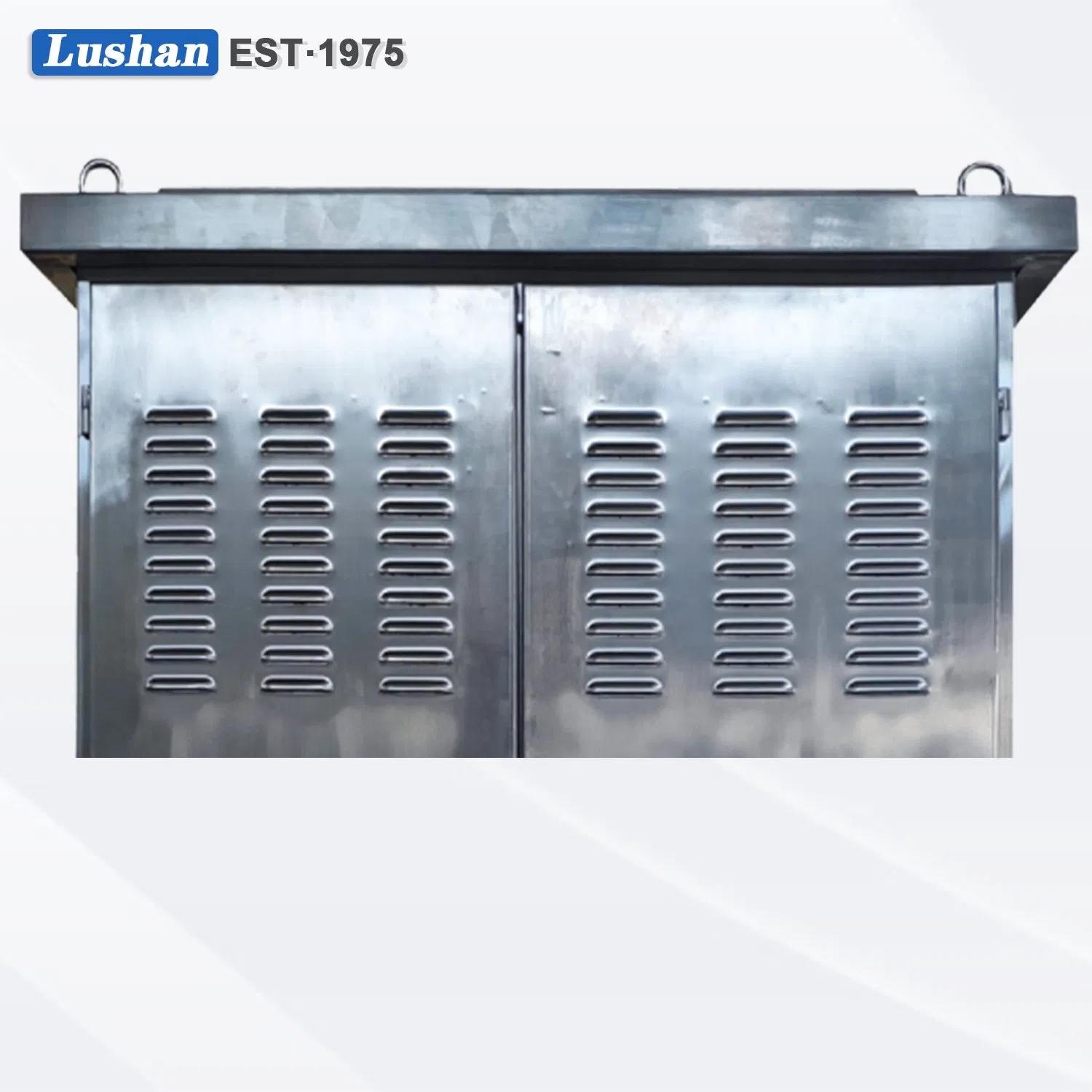

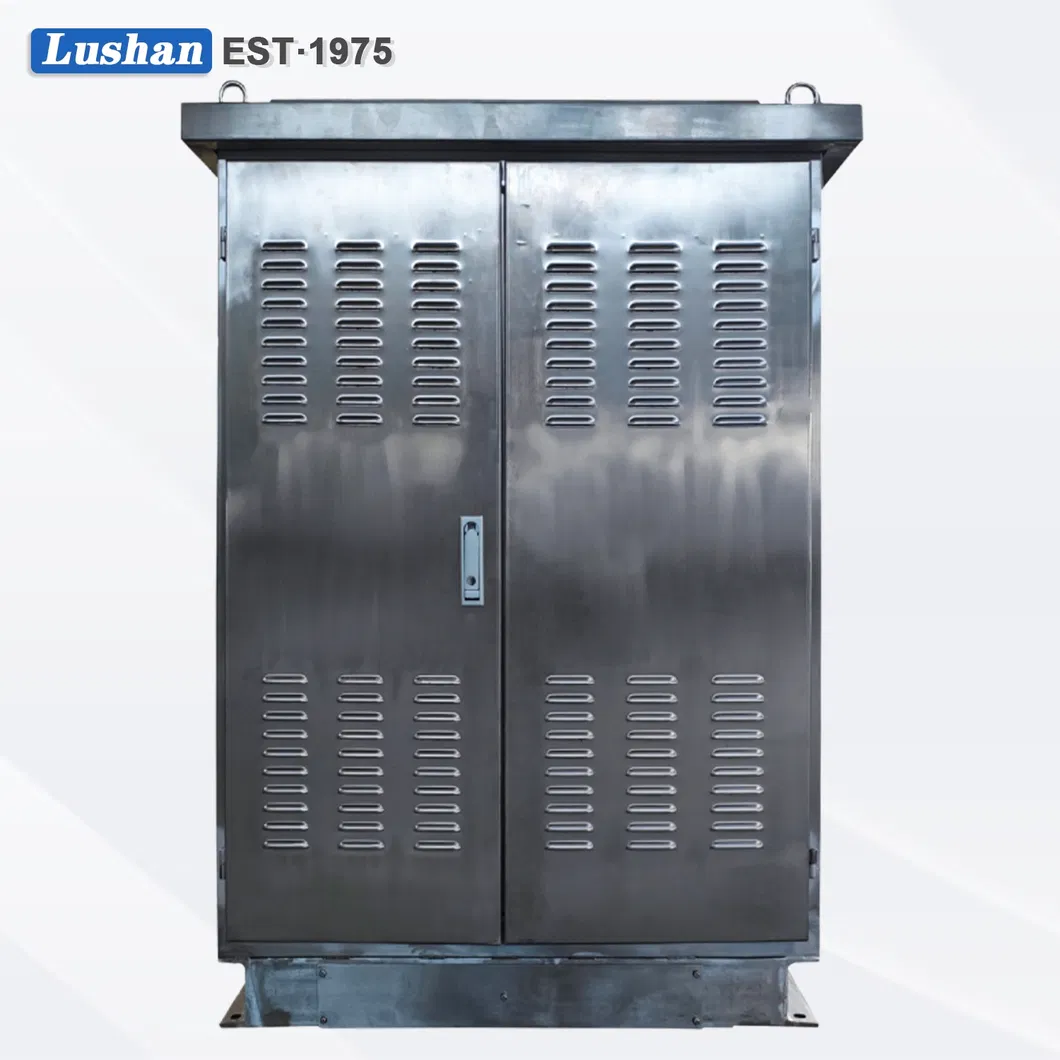

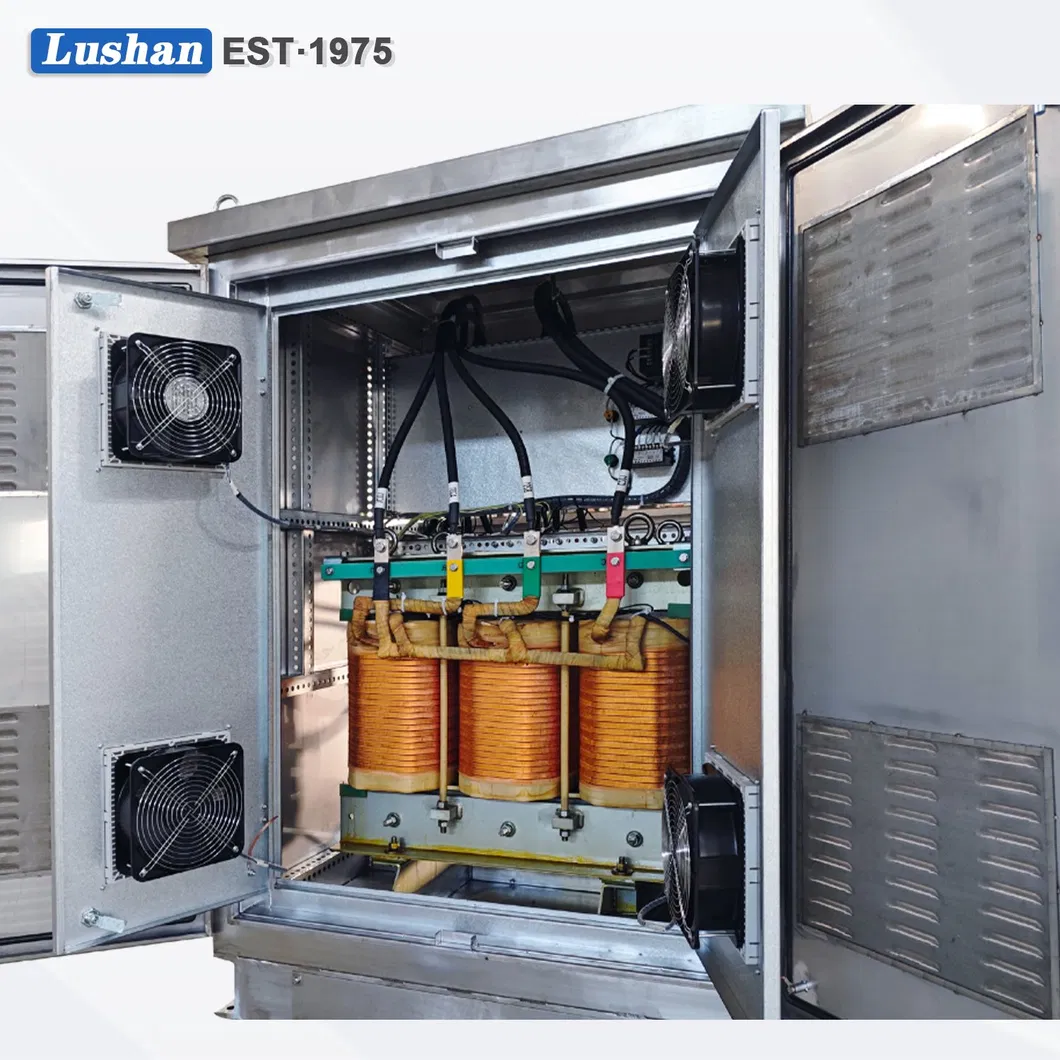

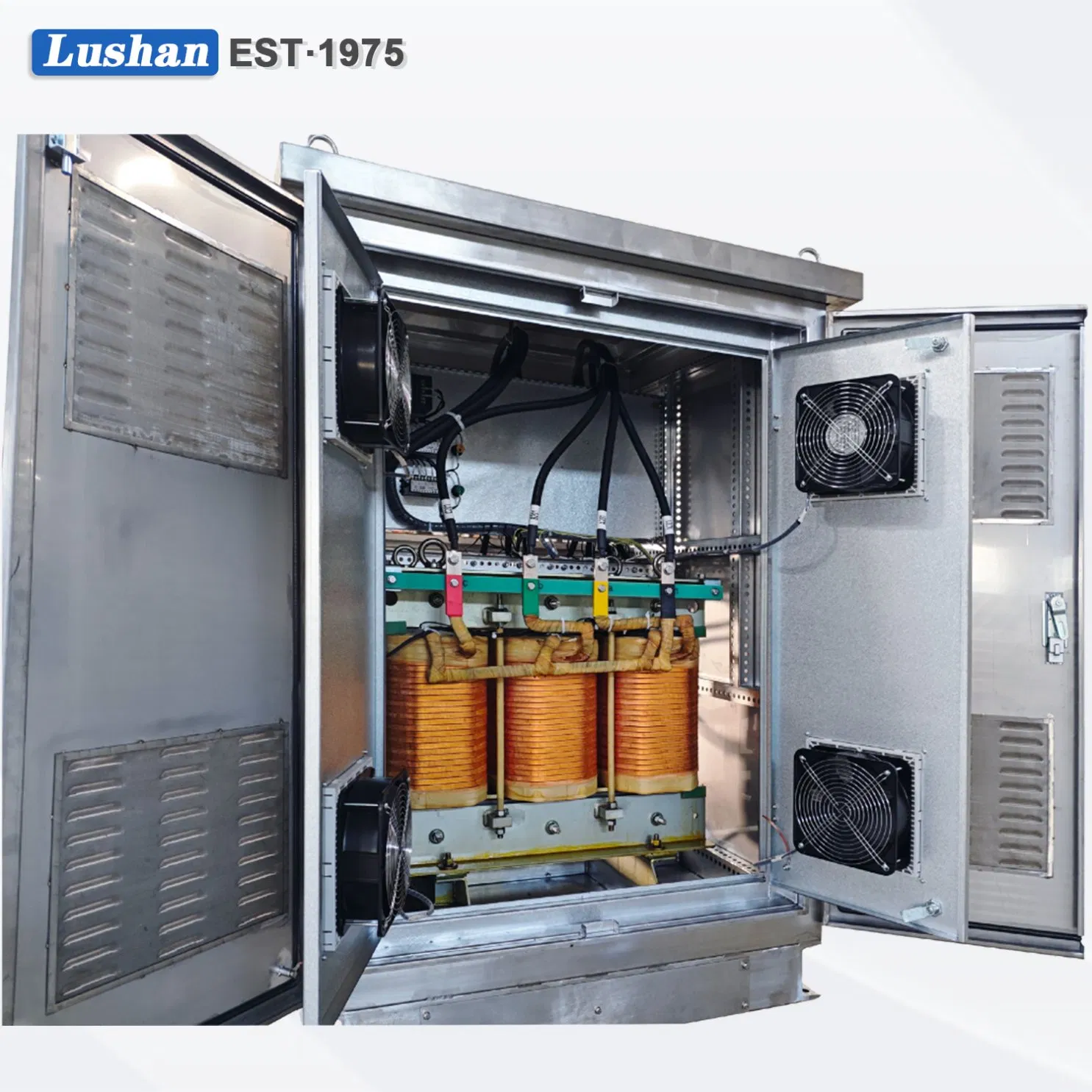

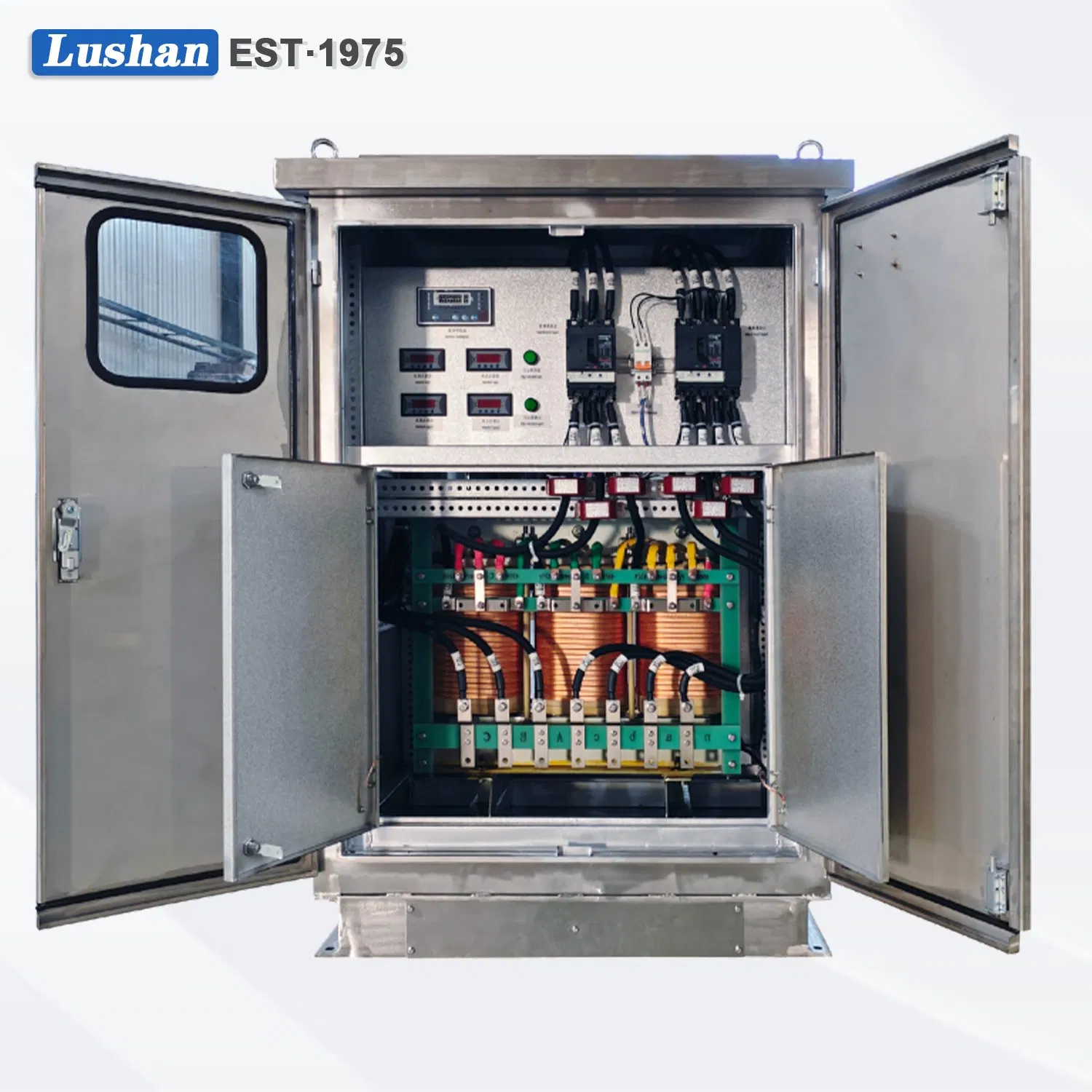

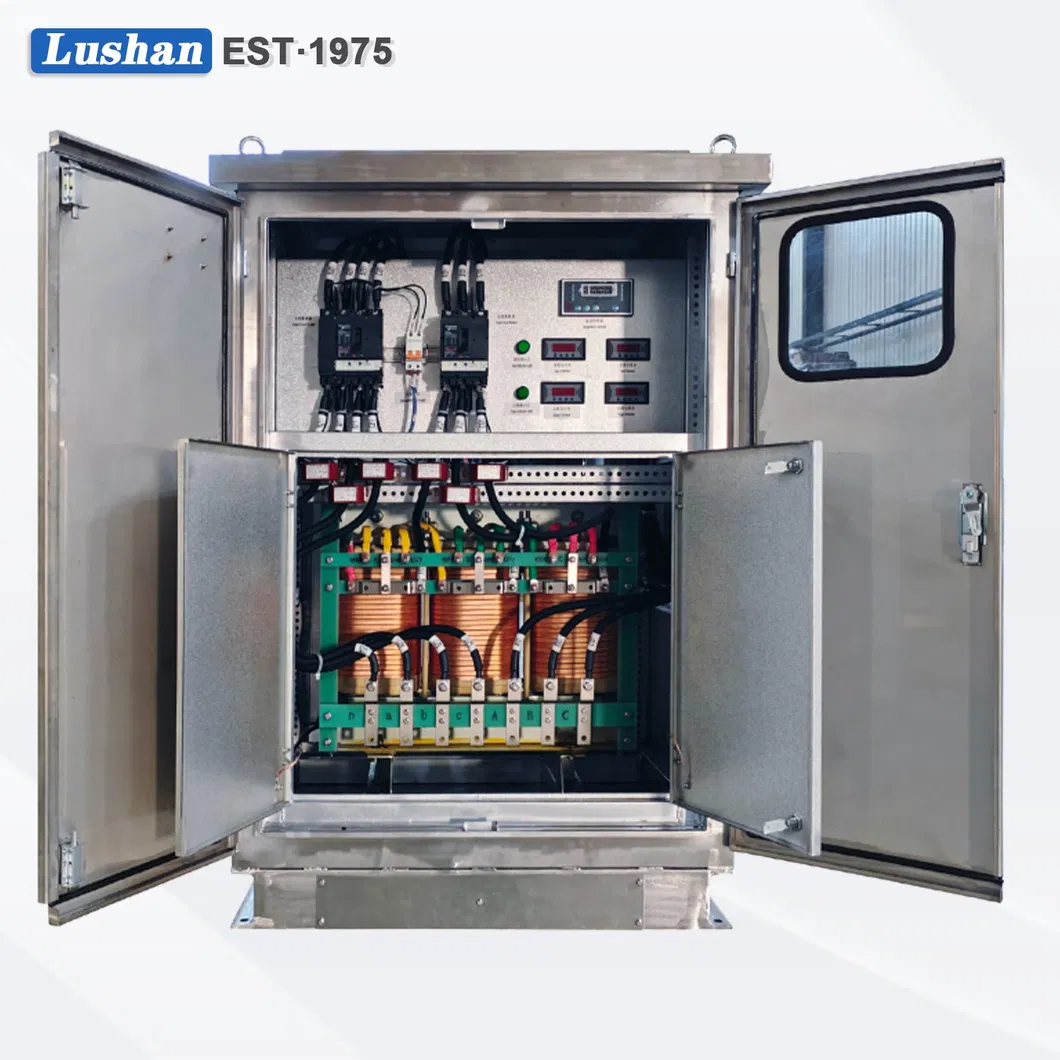

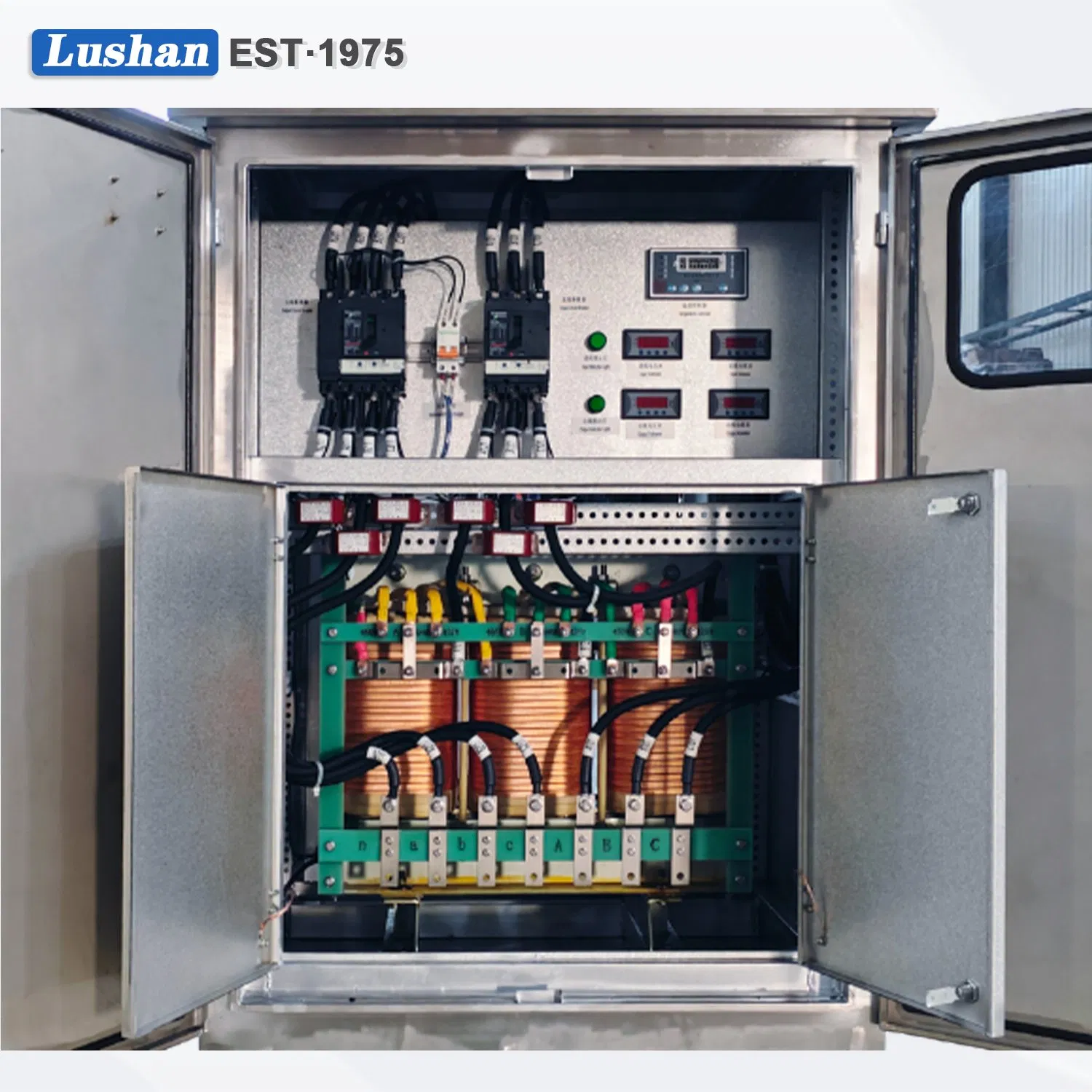

The device is equipped with a protective casing to prevent moisture and resist vibrations. It also features circuit breakers and current display instruments, ensuring that the transformer remains stable in tunnel environments.
• Altitude: Not exceeding 1000m (derating used if above 1000m).
• Ambient Temperature: -25ºC~55ºC.
• Relative Humidity: ≤95%.
• Installation Site: No chemical deposition, dust, or explosive medium.
• Supply Voltage: Approximates sinusoidal wave, balanced three-phase voltage.
| Capacity | 50VA~2500kVA | Efficiency | ≥95% |
| Rated Voltage | <10kV | Temp Rise | ≤125K(H) / <100K(F) |
| Frequency | 50~60Hz | Impedance | Upon request |
| Winding | Copper/Aluminum | Connection | Dyn11 or Customized |
| Sound Level | ≤75dB | Protection | Upon request |
Established in 1975, we are a manufacturer specializing in the production and development of transformers and reactors, integrating both domestic and international advanced technologies.

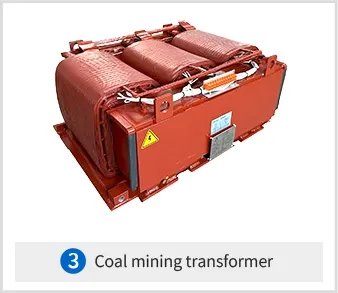

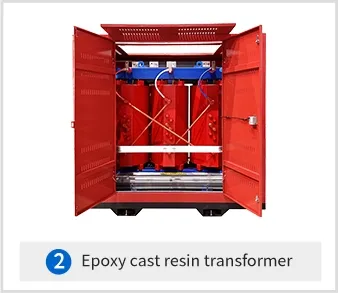

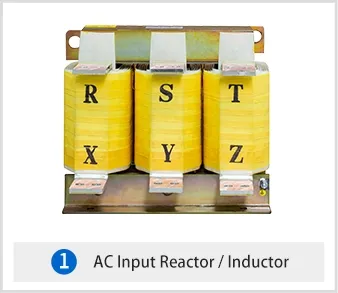

Our leading products include single-phase isolation transformers, three-phase isolation transformers, reactors, medium and high-frequency products, transformers for rail transit, wind power, and photovoltaic projects. With over fifty years of experience, we have accumulated rich technical expertise in various application fields.
