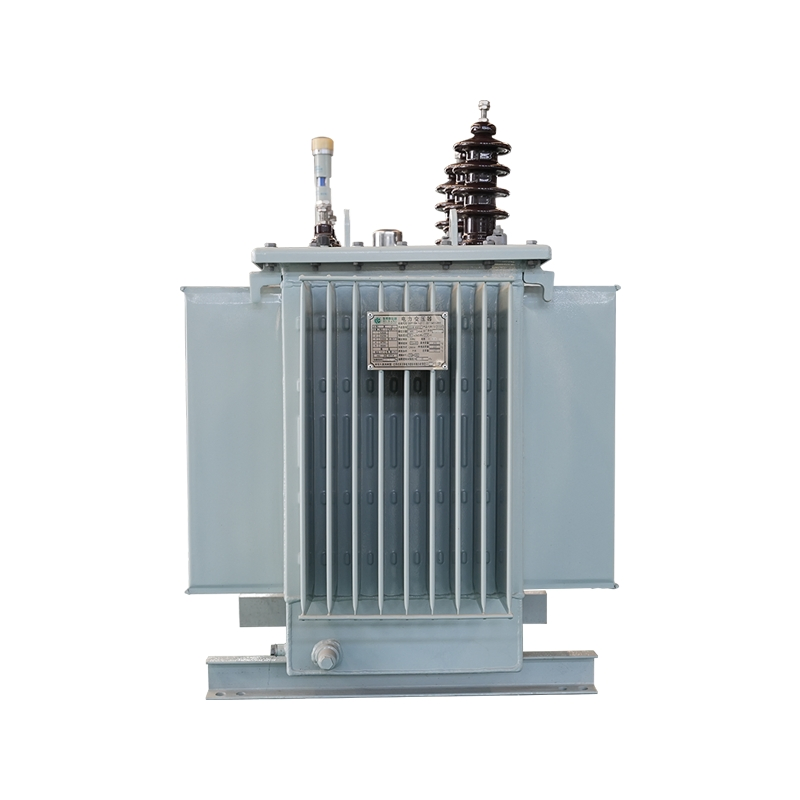

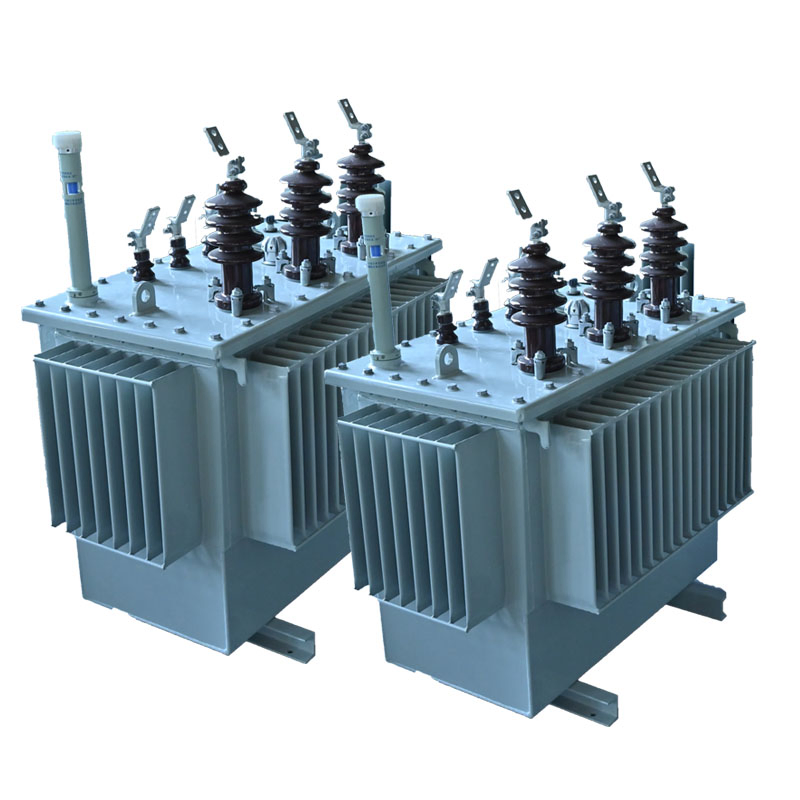

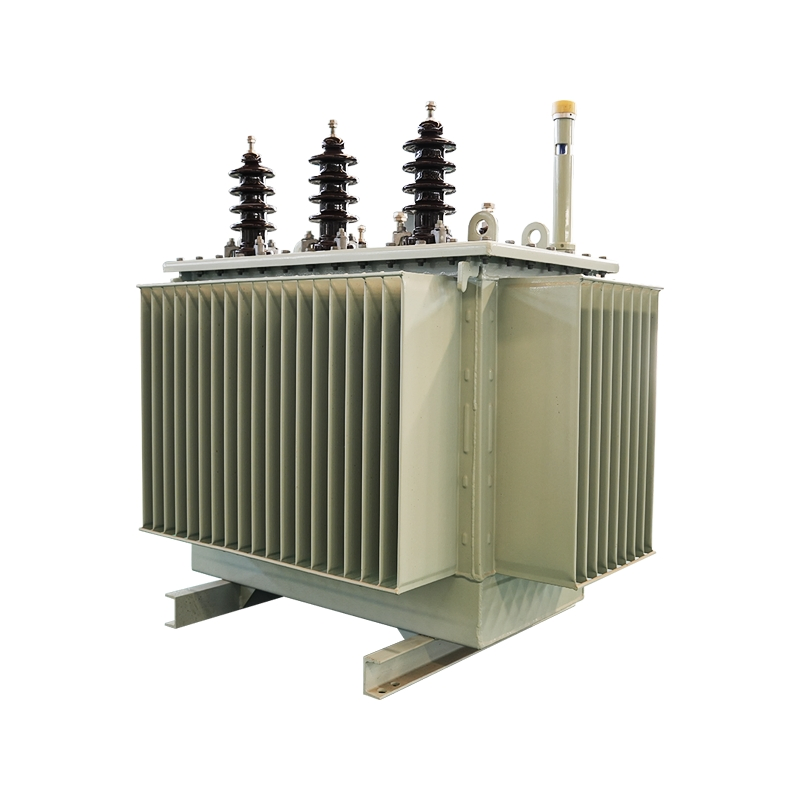

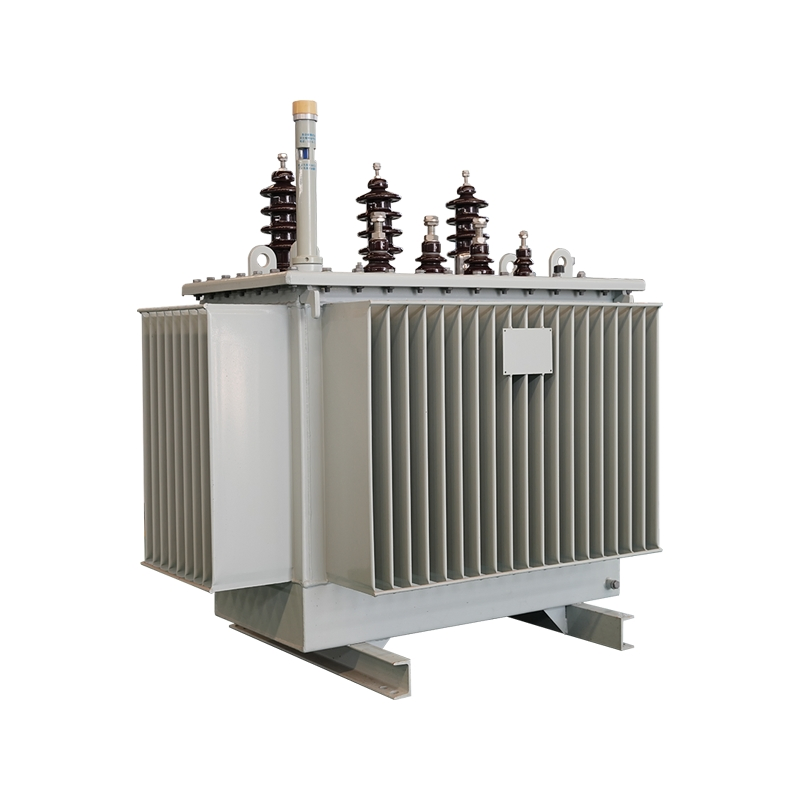

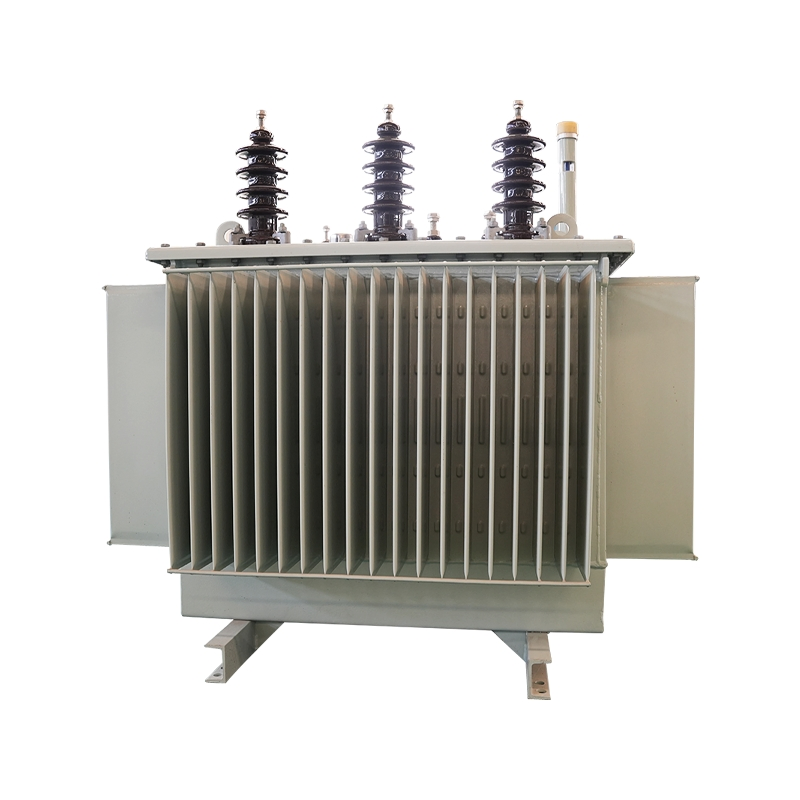

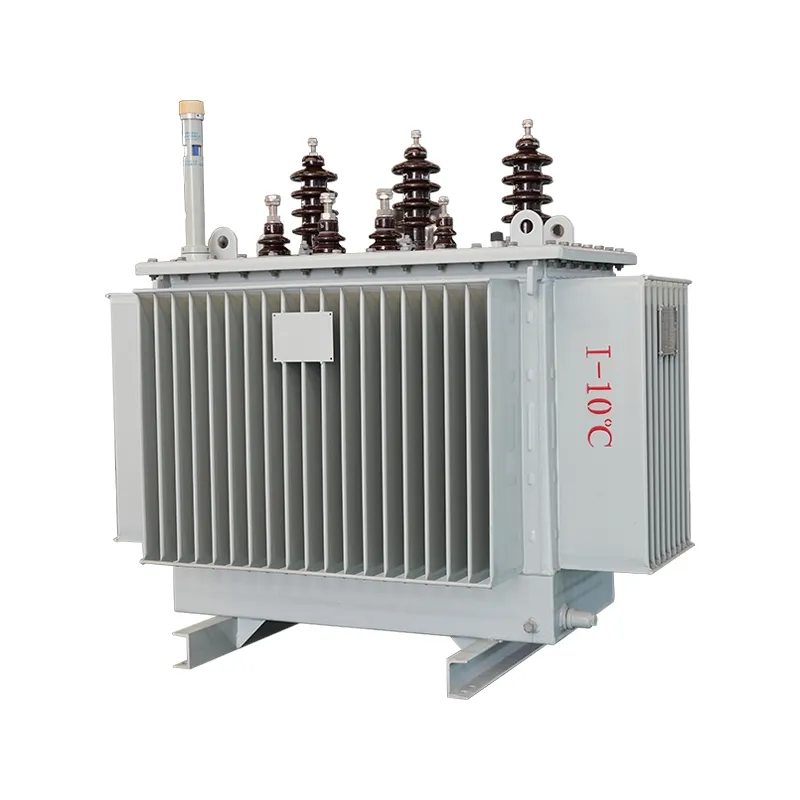

Meticulously crafted for unyielding performance and efficiency, this 500kVA 13.2kV three-phase oil-immersed transformer is a beacon of innovation and reliability. With its top-tier aluminum windings, it delivers a cost-effective yet robust solution tailored for medium voltage applications. Adhering to the stringent IEC or ANSI standards, it ensures superior thermal performance, minimizing losses and extending the service life, even under the most demanding load conditions.

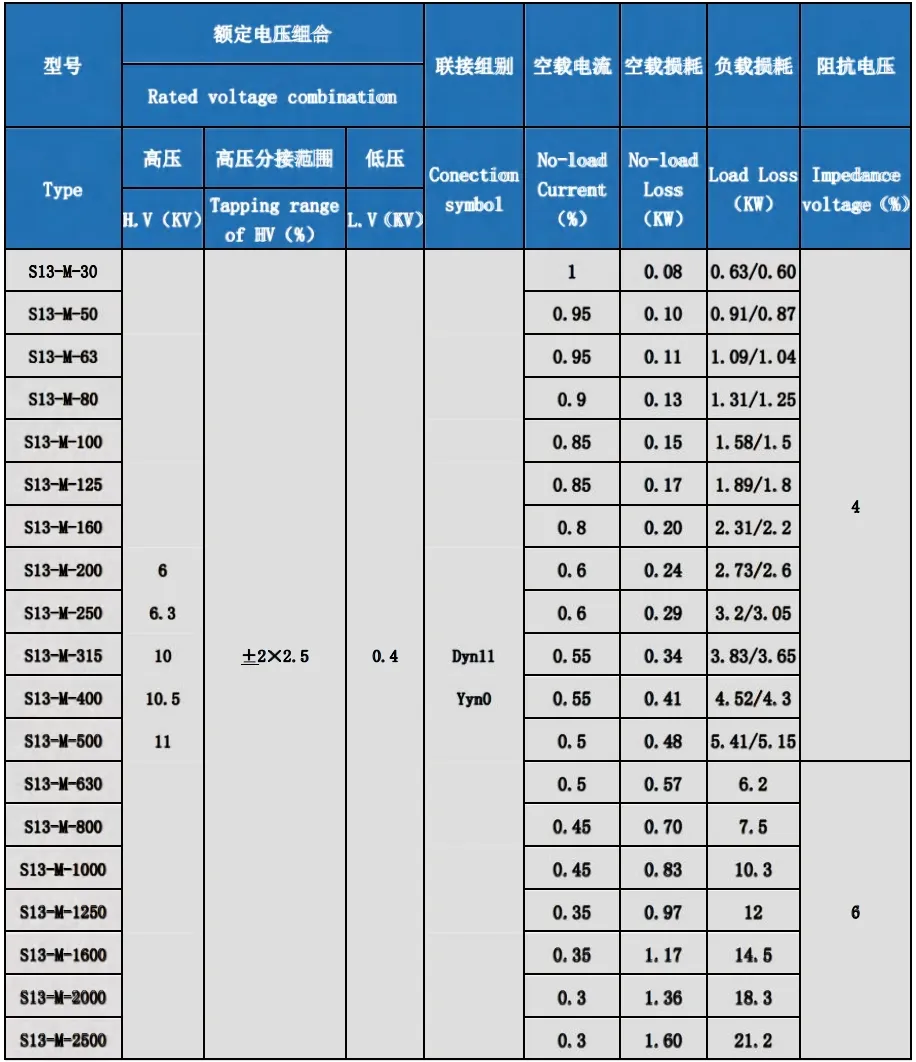

| Model | HV (KV) | Tapping Range | LV (KV) | Vector Group | No-load loss (KW) | Load Loss (KW) | Impedance (%) |
|---|---|---|---|---|---|---|---|
| S13-M-400 | 6 / 10 / 11 / 13.2 | ±2*2.5 | 0.4 | Dyn11 / Yyn0 | 0.41 | 4.52/4.3 | 4 |
| S13-M-500 | 0.48 | 5.41/5.15 | 4 | ||||
| S13-M-630 | 0.57 | 6.2 | 6 | ||||
| S13-M-800 | 0.7 | 7.5 | 6 |
Standard Warranty: Enjoy peace of mind with our 12-month or 2,000 operating hour warranty.
Global Support: Benefit from our 24/7 technical assistance and comprehensive spare parts supply.
Training: Avail on-site or remote training for operation and maintenance.
As a leading manufacturer with 17 years of expertise, we deliver high-quality power transformers. We are dedicated to offering reliable, efficient power solutions to customers globally.
