| Model NO. | NB | Core | Core-type Transformer |
| Cooling Method | Oil-immersed Type Transformer | Winding Type | Two-winding Transformer |
| Certification | ISO9001-2000, ISO9001 | Usage | Single-phase Pole Transformer |
| Frequency | 60Hz | Shape of Core | U |
| Rated H.V. | 34.5/13.2/13.8/12.47/14.4/15/7.62/7.2kv | Low Voltage | 0.4kVA |
| Winding Material | Copper/Aluminum | Enclosure | IP20/IP23 |
| Transport Package | Wooden Box | Production Capacity | 5000PCS/Year |
| Rated Power (KVA) | High Voltage (KV) | Low Voltage (V) | Loss (W) | |
|---|---|---|---|---|
| No-load Loss | On-load Loss | |||
| 10KVA | 24.94/14.4kV 12.47/7.2kV 34.5KV/13.8KV or others |
120/240V 480Y/277V 600Y/347V |
36 | 120 |
| 15KVA | 50 | 195 | ||
| 25KVA | 80 | 290 | ||
| 37.5KVA | 105 | 360 | ||
| 50KVA | 135 | 500 | ||
| 75KVA | 190 | 650 | ||
| 100KVA | 210 | 850 | ||

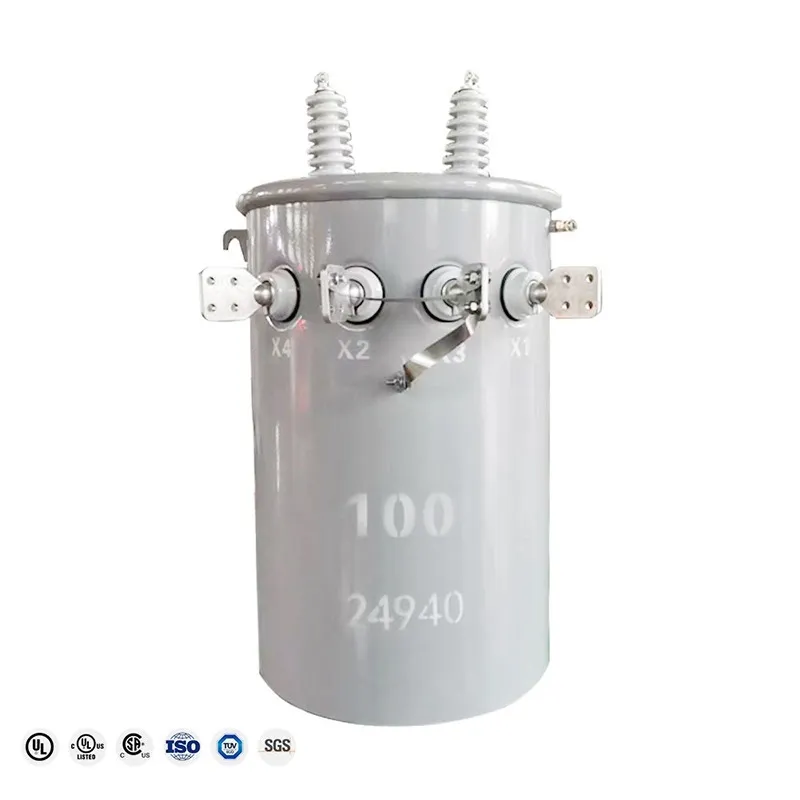

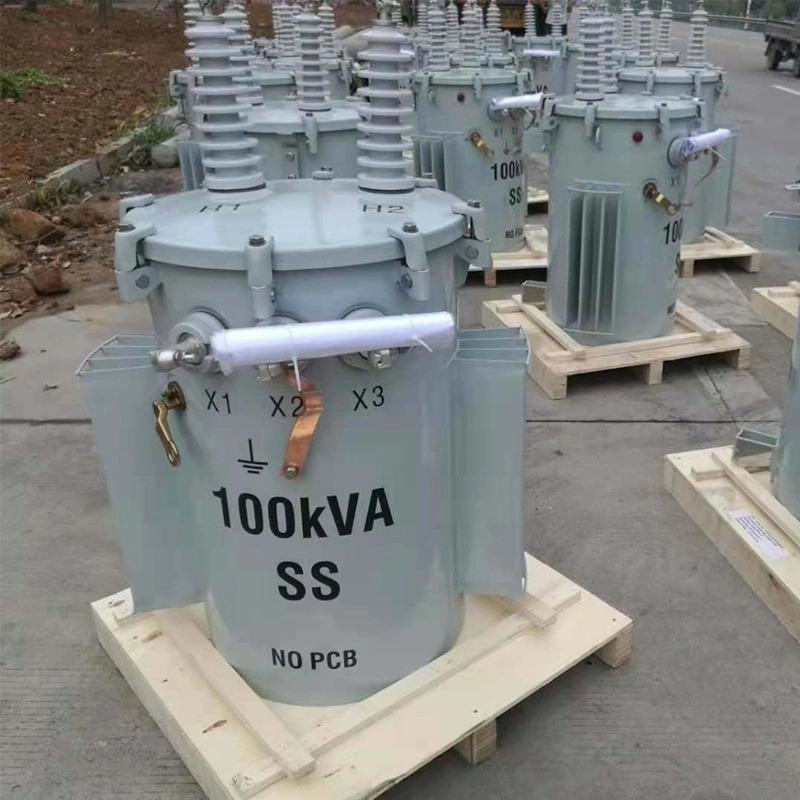

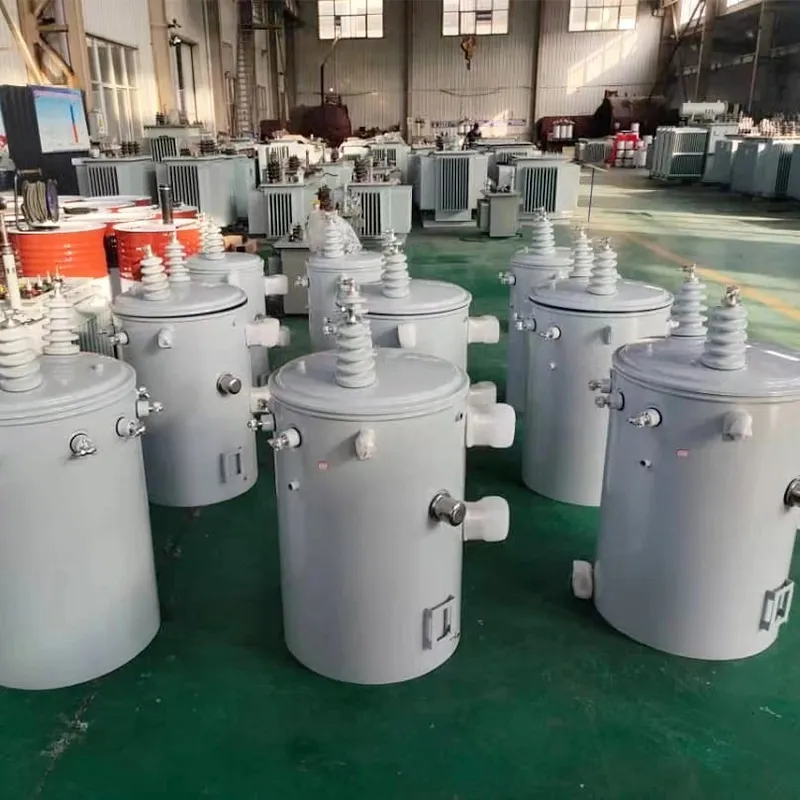

Single phase pole-mounted transformers are made in power ratings up to 333 kVA. High voltage up to 34.5 kV. Designed and tested in accordance with standards including ANSI/CSA, IEEE c.57, and IEC60076 as applicable.

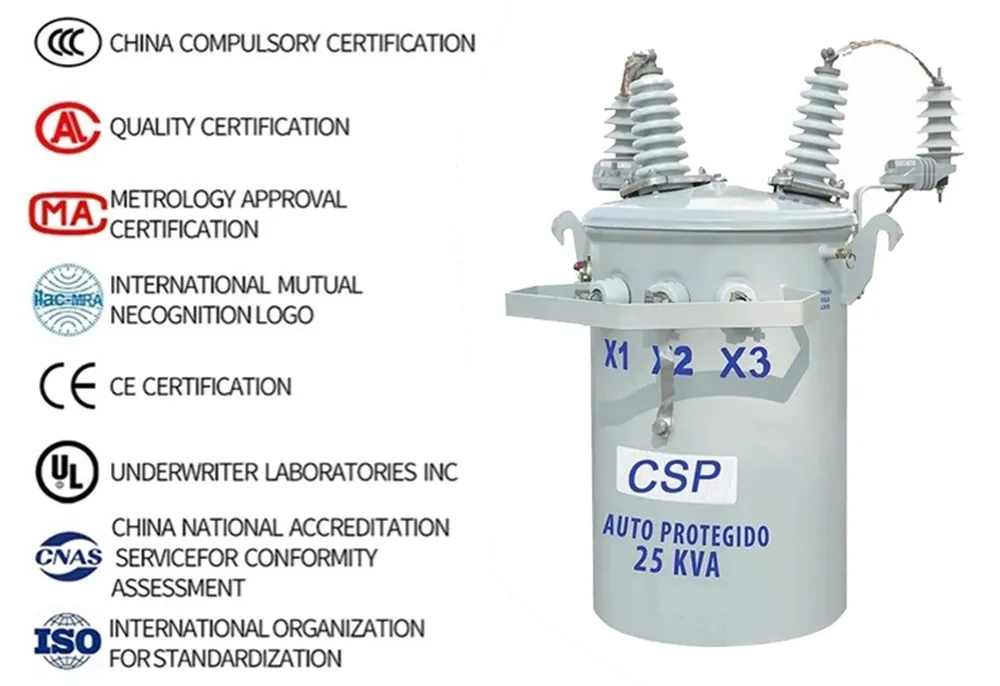

These units are usually mounted directly on wooden or concrete poles for multi-scenario applications such as residential overhead distribution loads and light commercial loads, divided into conventional and CSP types.

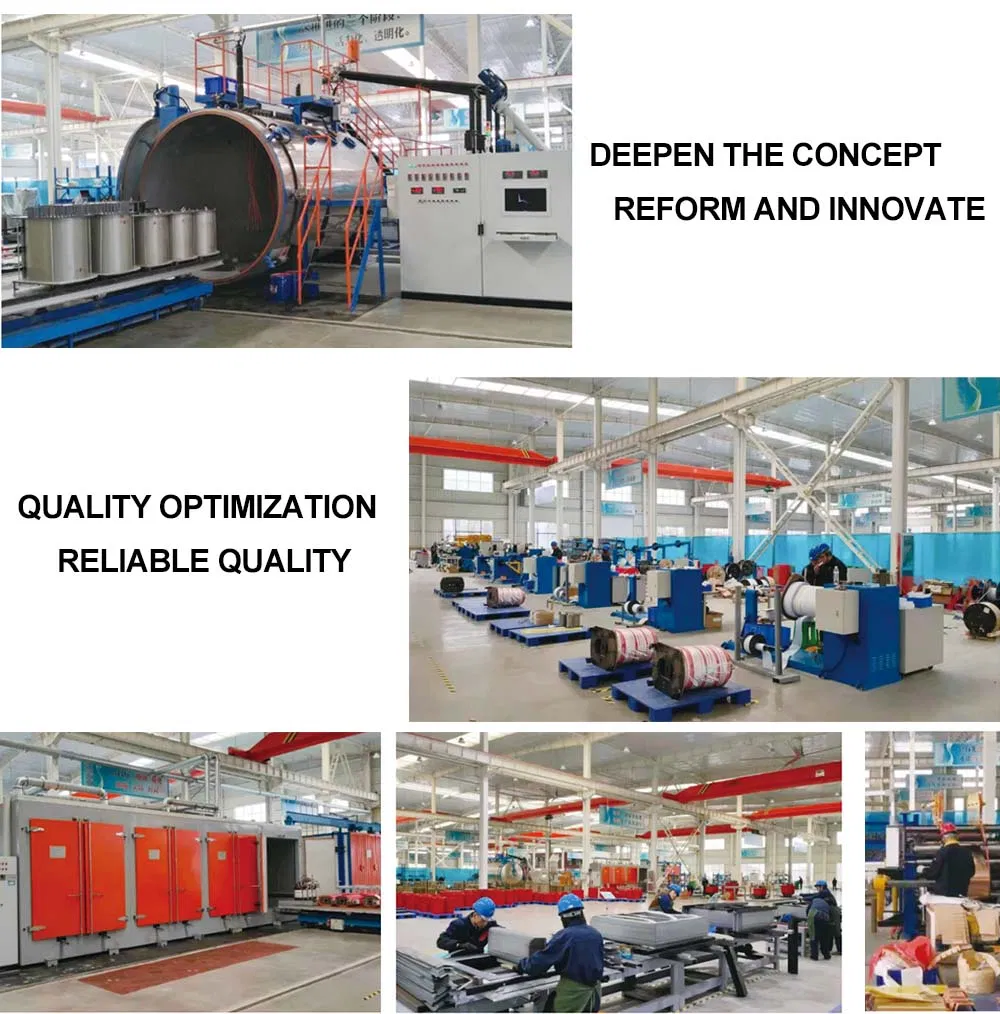

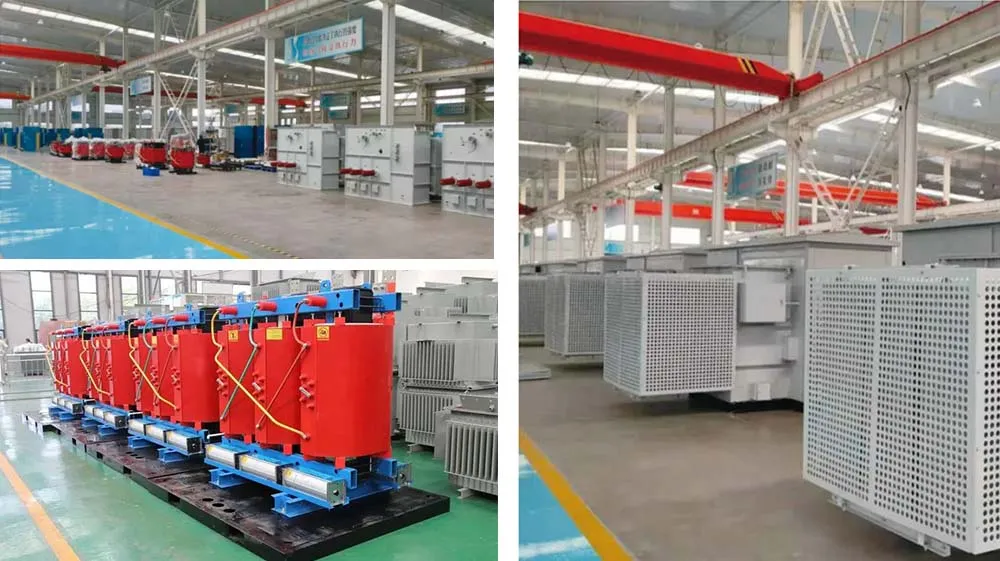

The facility utilizes domestic advanced technology and testing equipment. Operating under ISO9000 quality certification standards and using computer-aided design, the production focuses on environmentally friendly, energy-saving, and high-quality equipment tailored to regional requirements.
