400V 800kVA Isolation Transformer for EV Charging Station
400V 800kVA Isolation Transformer for EV Charging Station
400V 800kVA Isolation Transformer for EV Charging Station
400V 800kVA Isolation Transformer for EV Charging Station
400V 800kVA Isolation Transformer for EV Charging Station
1 / 5
400V 800kVA Isolation Transformer for EV Charging Station
400V 800kVA Isolation Transformer for EV Charging Station
400V 800kVA Isolation Transformer for EV Charging Station
400V 800kVA Isolation Transformer for EV Charging Station
400V 800kVA Isolation Transformer for EV Charging Station

400V 800kVA Isolation Transformer for EV Charging Station

Customization: Available
Type: Distribution Metering Box
Structure: Fixed Board
Send Inquiry

Product Description

Basic Information
Model NO.
SG10
Certification
ISO9001:2000, VDE, CCC
Form
Partly-welded Type
Operation Voltage
High Voltage
Size
3 Uint
Application Range
High-rise Buildings
Shell Material
Stainless Steel
Shell Protection
IP56
Rated Voltage
33kv
Rated Current
630A
Frequency
50Hz
Rated Capacity
50-2500kVA
Crust Protection
IP 23
HS Code
8504231100
Origin
China
Capacity
Under 2500kVA
Product Showcase

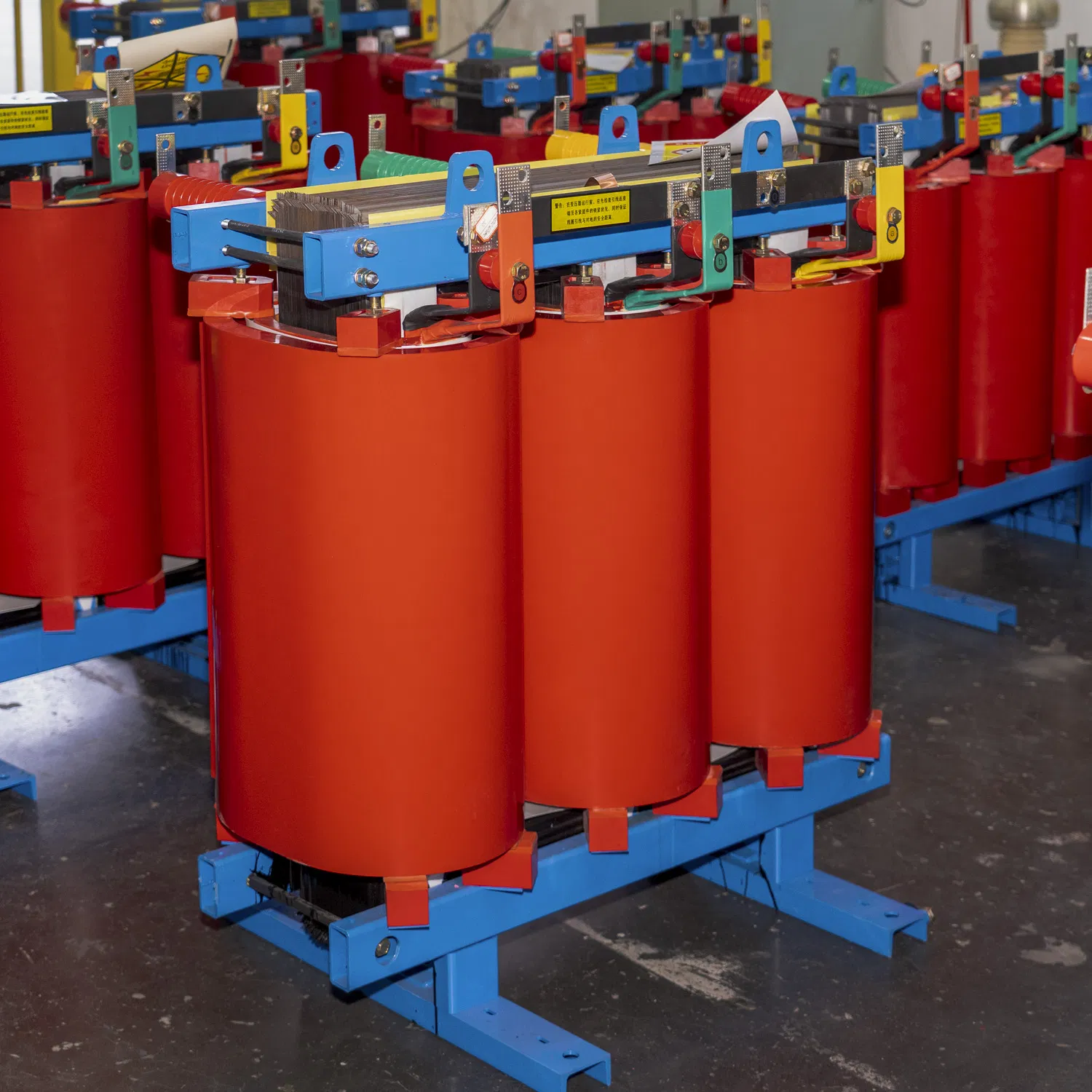

Isolation Transformer

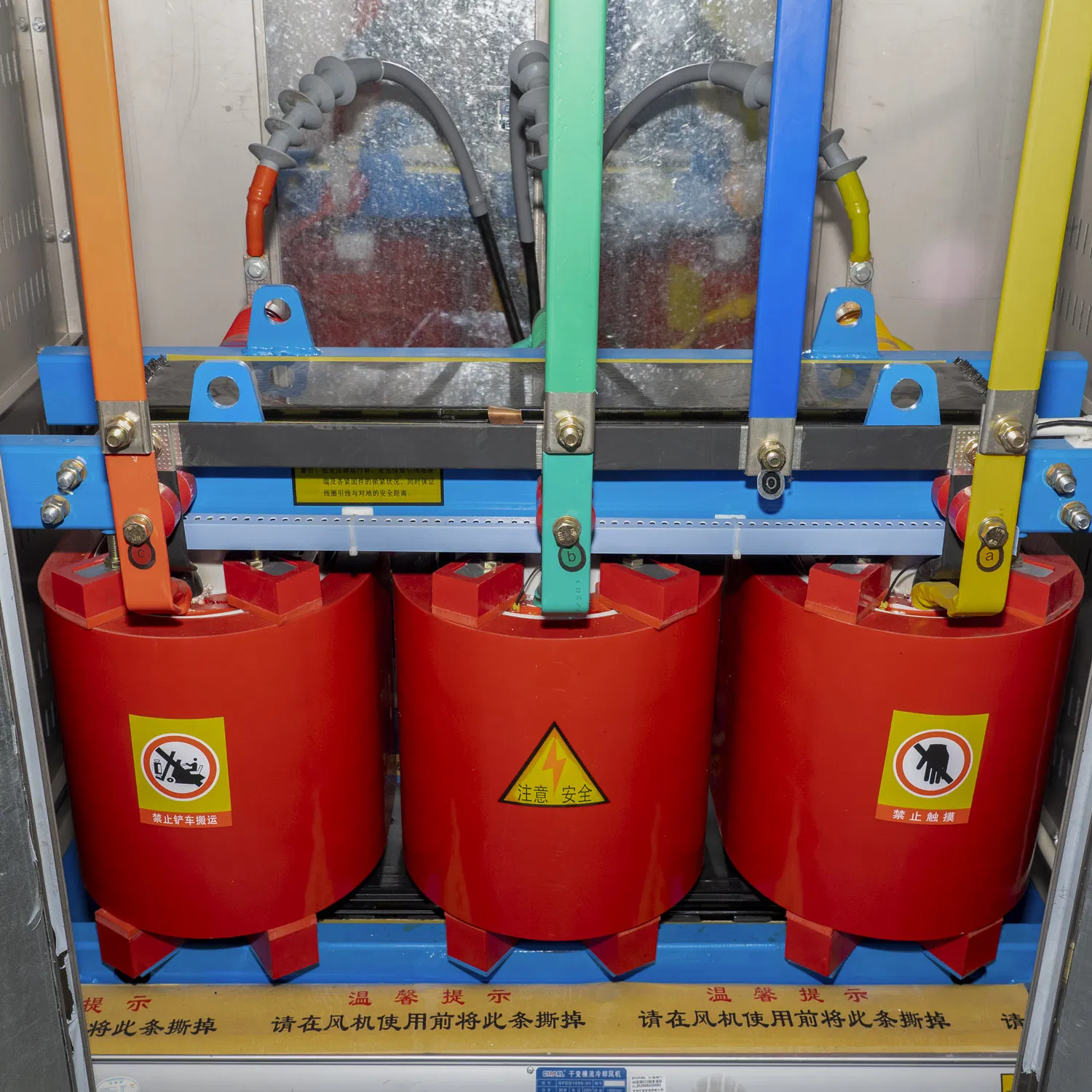

Isolation Transformer View 2

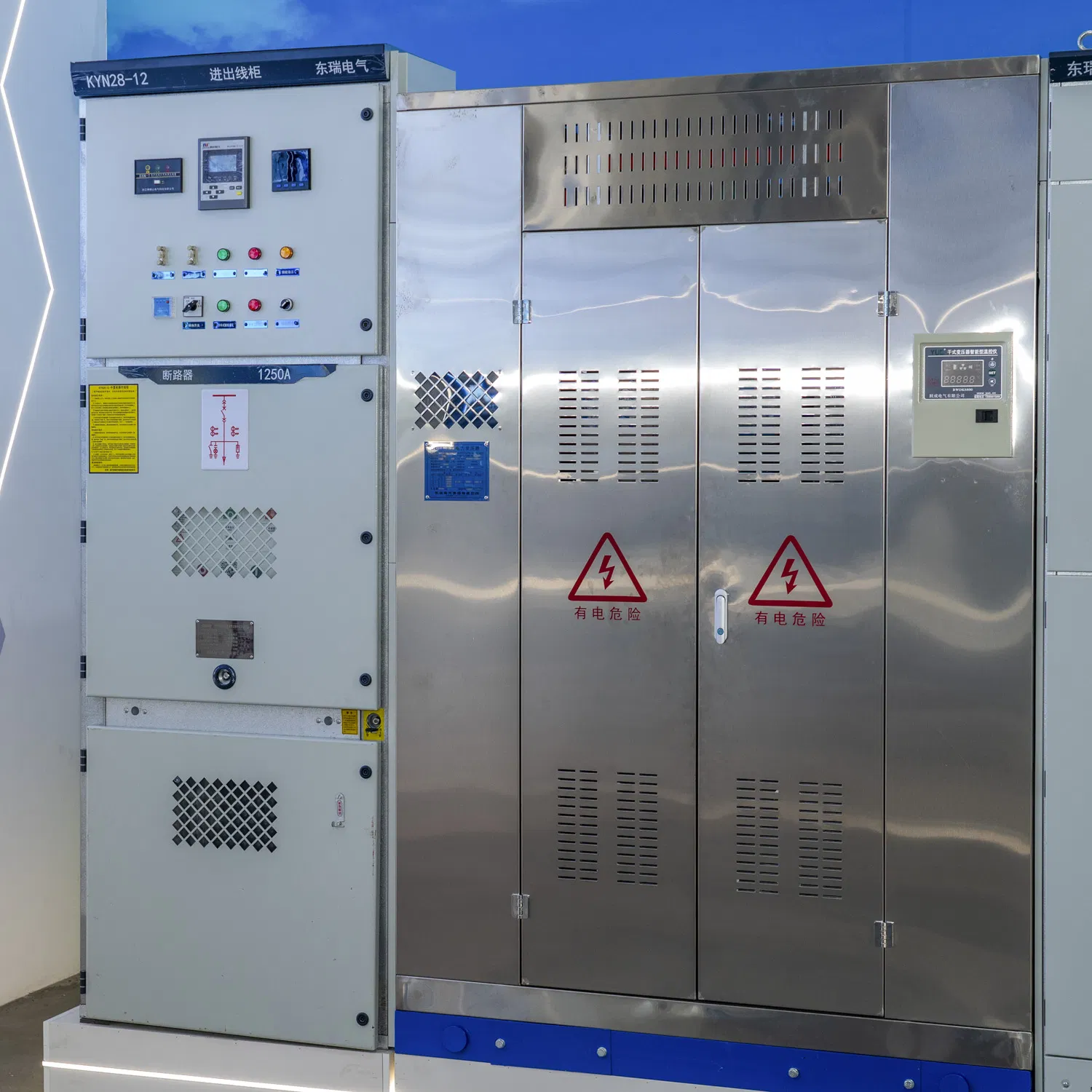

Isolation Transformer Details

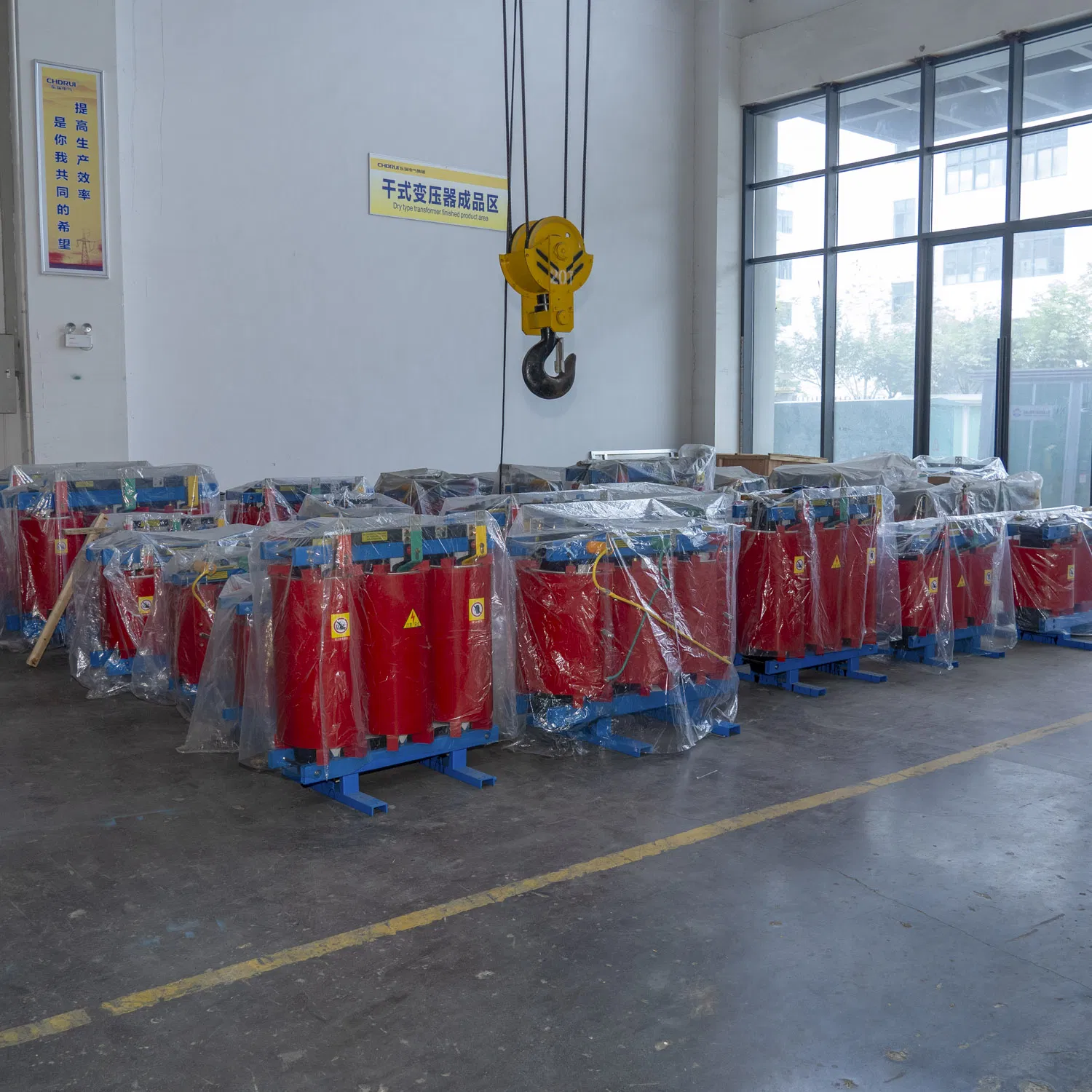

Dry Type Transformer

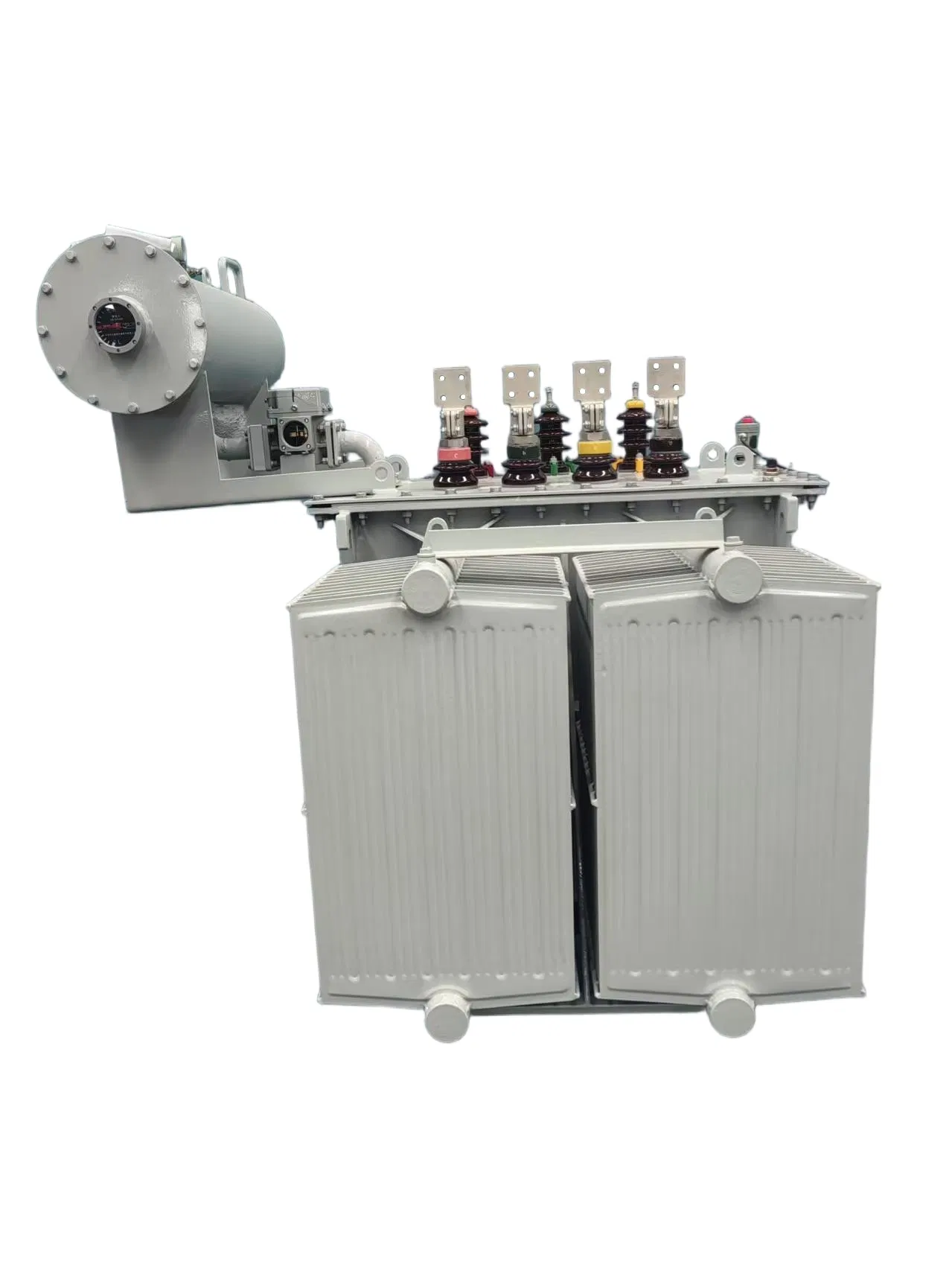

Transformer Engineering
Switchgear Components
Technical Specification
Standards Compliance IEC 61439-1/2, GB7251.1
Rated Operational Voltage 690V AC
Rated Insulation Voltage 1000V AC
Degree of Protection IP54 (Indoor), IP65 (Optional)
Short-time Withstand Current (Icw) 50kA for 1 second

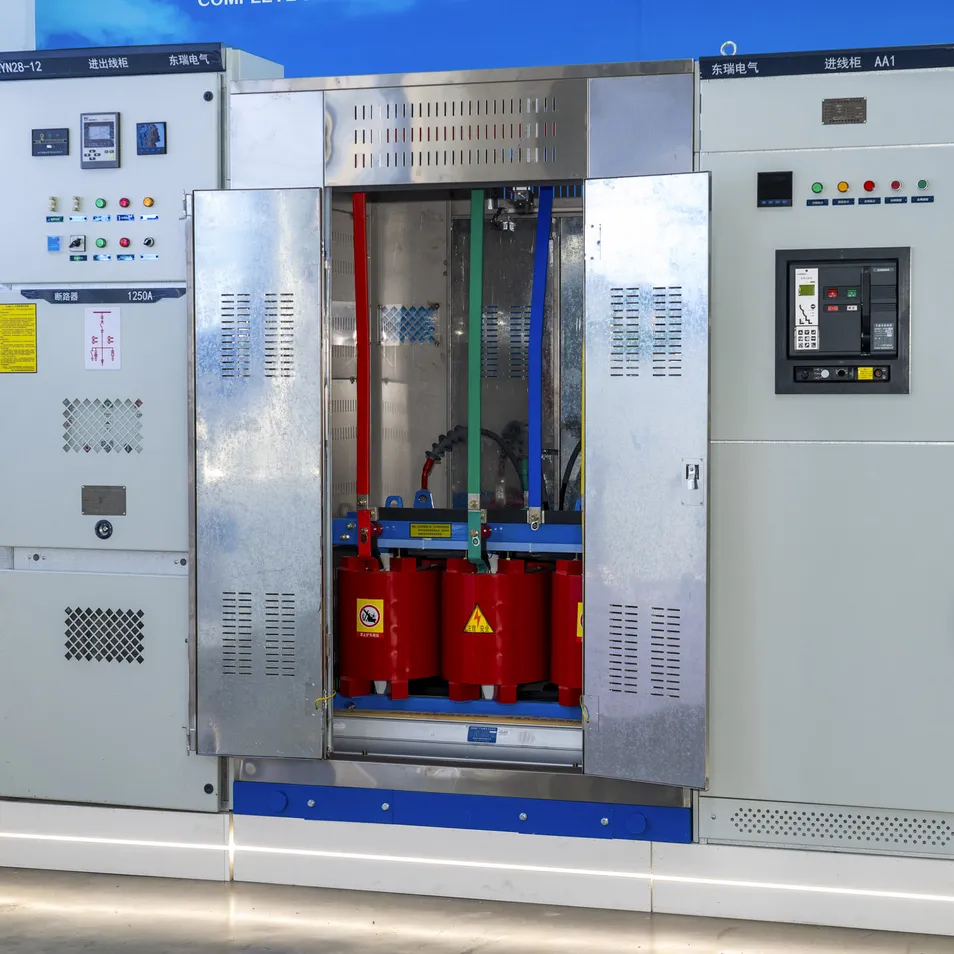

Transformer Structure
Transformer Interior
Product Description & Features

Our cast resin dry-type transformers (10kV, 50kVA-3150kVA) are engineered for indoor, low-maintenance power distribution. These units are ideal for data centers, hospitals, high-rise buildings, and industrial plants requiring oil-free, fire-safe equipment.

  • Insulation Class: Class F (155℃) high-temperature resistance.
  • Protection Grade: IP20 protection with built-in PT100 temperature sensors.
  • High Efficiency: Copper winding for low loss and optimal performance.
  • Safety Standards: Flame-retardant epoxy resin encapsulation (IEC 60076-11 compliant).
  • Low Noise: Advanced design ensures noise levels ≤55dB.
Production Capacity & Expertise

We specialize in dry-type transformer manufacturing with 30+ years of industry experience. Our products meet IEC, UL, and CE standards, and are supplied to over 35 global markets including North America, Europe, and Oceania.

  • 15,000 m² modern production base.
  • Annual output of 6,000+ units.
  • 20-person dedicated R&D team.
  • Custom designs for voltage, kVA, and impedance.
  • Factory Acceptance Testing (FAT) provided.

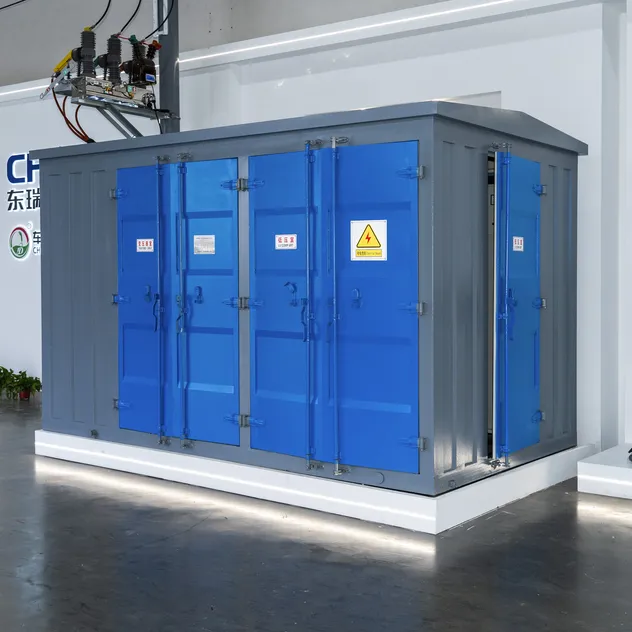

Facility 1

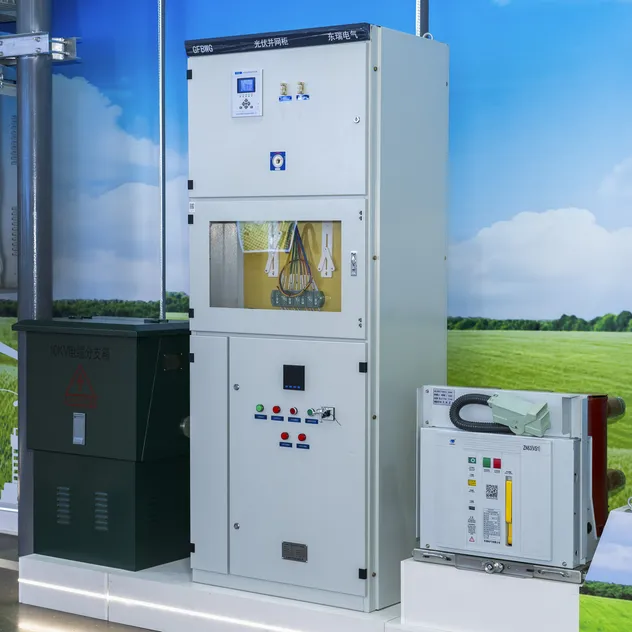

Facility 2

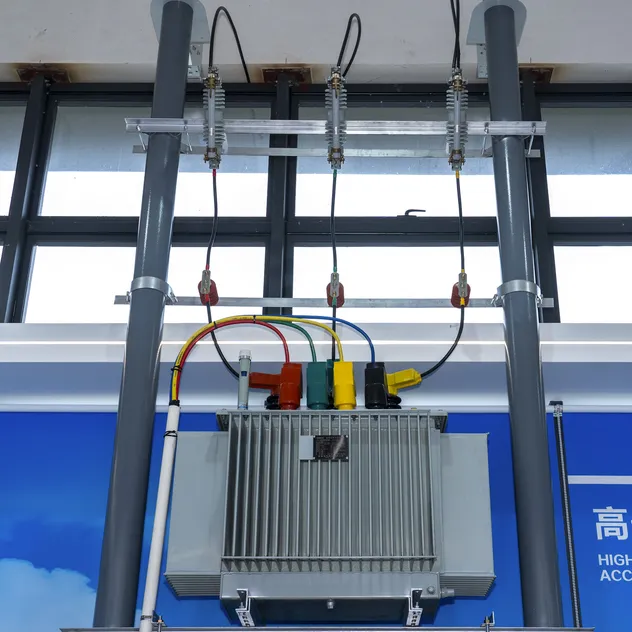

Facility 3
Frequently Asked Questions
Q1: What standards does your low voltage switchgear comply with?
A: Our switchgear is designed and manufactured in full compliance with the international IEC 61439 series of standards (specifically IEC 61439-1 & -2). We also hold complete Type Test Certification (TTA) and meet relevant national standards such as GB7251.1.
Q2: What is the meaning of "Form 4B" separation?
A: Form 4B is a classification per IEC 61439 that specifies the highest degree of internal separation. It ensures complete isolation between the busbars, functional units, and outgoing terminal compartments, enhancing safety and allowing for safer maintenance.
Q3: What is the advantage of a withdrawable circuit breaker design?
A: A withdrawable design allows for the circuit breaker to be easily disconnected and isolated without de-energizing the entire panel. This enables safe and rapid maintenance or replacement, minimizing downtime for critical power systems.
Q4: What is the short-circuit withstand rating (Icw) of your panels?
A: Our standard panels are rated for a short-time withstand current (Icw) of 50kA for 1 second. This ensures the assembly can withstand thermal and electromagnetic stresses during a fault. Higher ratings can be engineered for specific projects.
Q5: What is the typical delivery lead time for a custom switchgear project?
A: For standard configurations, the lead time is typically 4-6 weeks. For fully customized projects involving complex engineering, the lead time can range from 8 to 12 weeks depending on technical specifications.
Q6: What maintenance is required for cast resin dry-type transformers?
A: These transformers are virtually maintenance-free. Periodic visual inspections and checking of temperature monitoring systems are recommended to ensure optimal performance in indoor environments.
