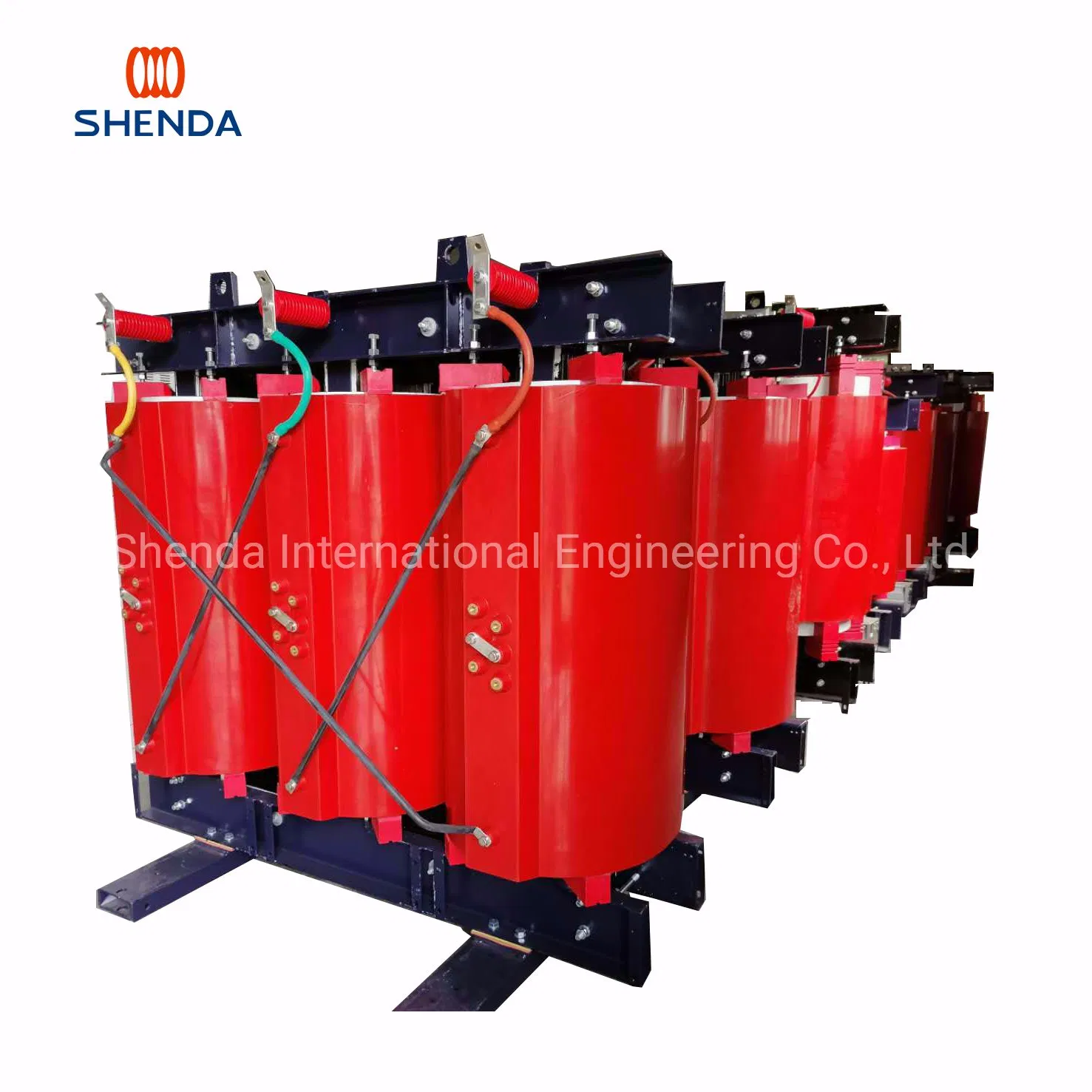

500kVA 35kv Dry Isolation Transformer for Low-Loss Low-Noise Transformer
500kVA 35kv Dry Isolation Transformer for Low-Loss Low-Noise Transformer
500kVA 35kv Dry Isolation Transformer for Low-Loss Low-Noise Transformer
500kVA 35kv Dry Isolation Transformer for Low-Loss Low-Noise Transformer
1 / 4
500kVA 35kv Dry Isolation Transformer for Low-Loss Low-Noise Transformer
500kVA 35kv Dry Isolation Transformer for Low-Loss Low-Noise Transformer
500kVA 35kv Dry Isolation Transformer for Low-Loss Low-Noise Transformer
500kVA 35kv Dry Isolation Transformer for Low-Loss Low-Noise Transformer

500kVA 35kv Dry Isolation Transformer for Low-Loss Low-Noise Transformer

Customization: Available
Application: Power, Electronic, Instrument, Lighting, Rectifier, Audio
Phase: Three
Send Inquiry

Product Description

Technical Specifications
Model NO.
SG(B)10, SG(B)11
Core
Core-type Transformer
Cooling Method
Dry-type Transformer
Winding Type
Separated Winding
Certification
ISO9001-2000, ISO9001, CE
Frequency
50 or 60Hz
Shape of Core
U
Coil Structure
Toroidal
Insulation Level
F or H Class
Material of Winding
Aluminum or Copper
Product Description
Dry Isolation Transformer

Our dry type transformers are designed to meet international standards including IEC, CE, and ISO certifications. Rated for IP20 and above, these units provide high insulation and are virtually maintenance-free. Suitable for 6kv, 10kv, 11kv, 33kv, and 35kv applications with low-loss performance.

✓
Safe, reliable, and pollution-free operation.
✓
High mechanical strength and short-circuit resistance.
✓
Low no-load loss and high energy efficiency.
✓
Excellent moisture resistance for harsh environments.
✓
Flame retardant and explosion-proof features.
✓
Compact design with light weight.
Rated Power (kVA) High Voltage (kV) H.V. Tap Range Low Voltage (kV) Connection Symbol No-Load Loss (W) On-Load Loss (W) Noise (dB)
5020/22/24±5%0.4Yyn0 Dyn1134012402.4
10020/22/24±5%0.4Yyn0 Dyn1154020002.2
25020/22/24±5%0.4Yyn0 Dyn1185034201.6
50020/22/24±5%0.4Yyn0 Dyn11135058001.4
100020/22/24±5%0.4Yyn0 Dyn11207097901.0
200020/22/24±5%0.4Yyn0 Dyn113240163900.8
Product Details & Characteristics

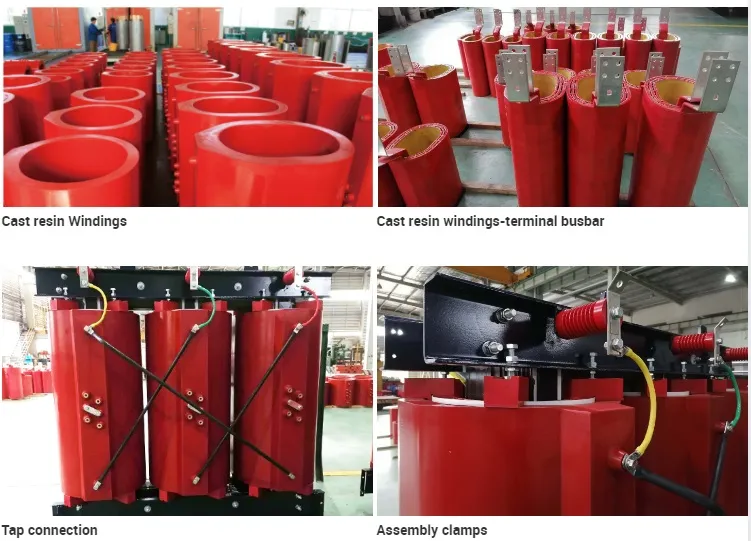

Detail display

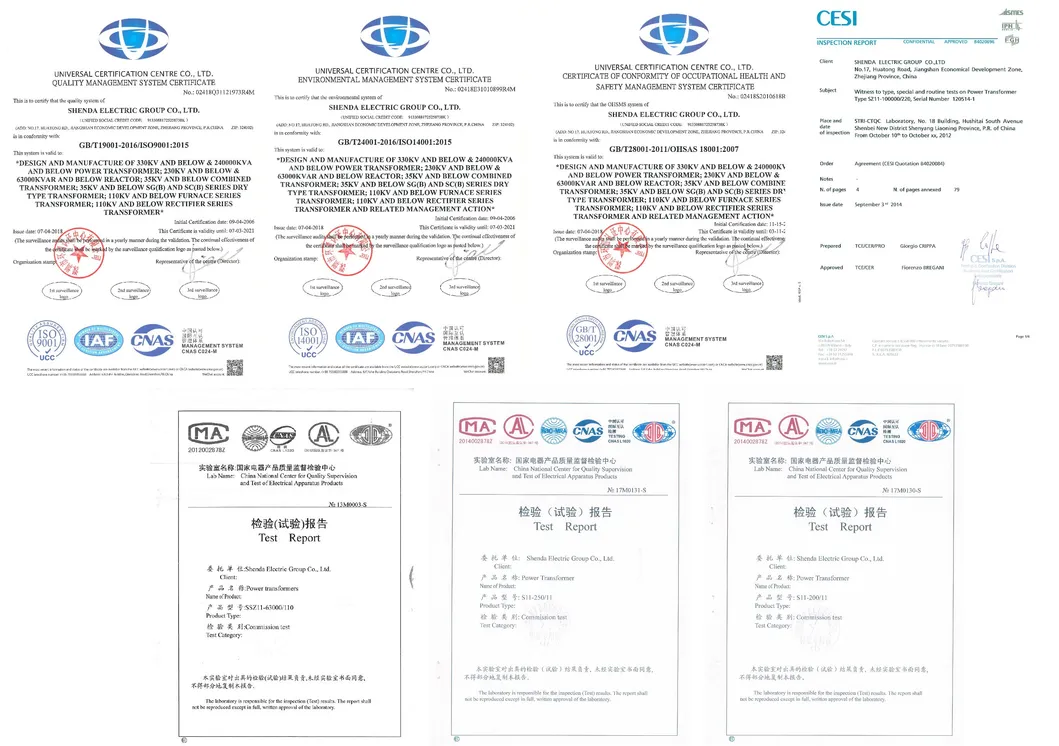

Certifications
Winding System

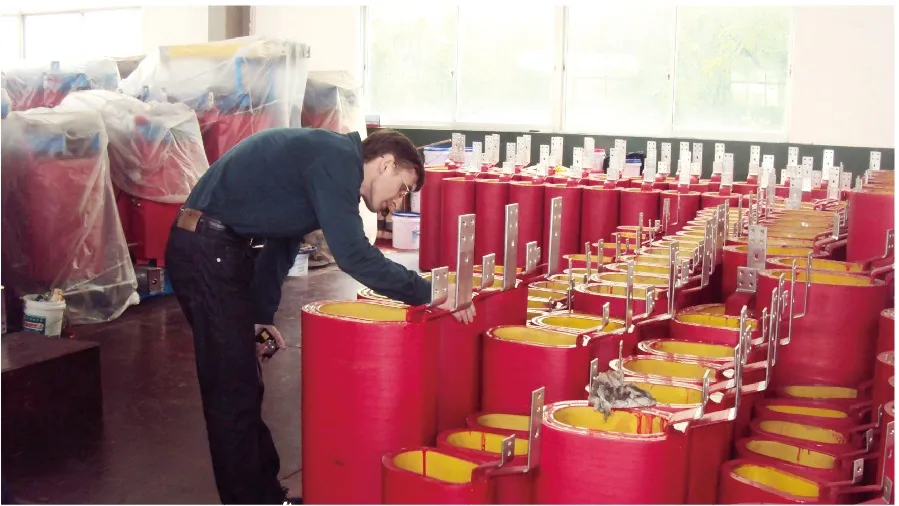

Made of high-quality copper or aluminum. High-voltage windings use round or profile wire, protected against high electrical stress and mechanical overloads via short circuits.

Winding
Magnetic Core Lamination

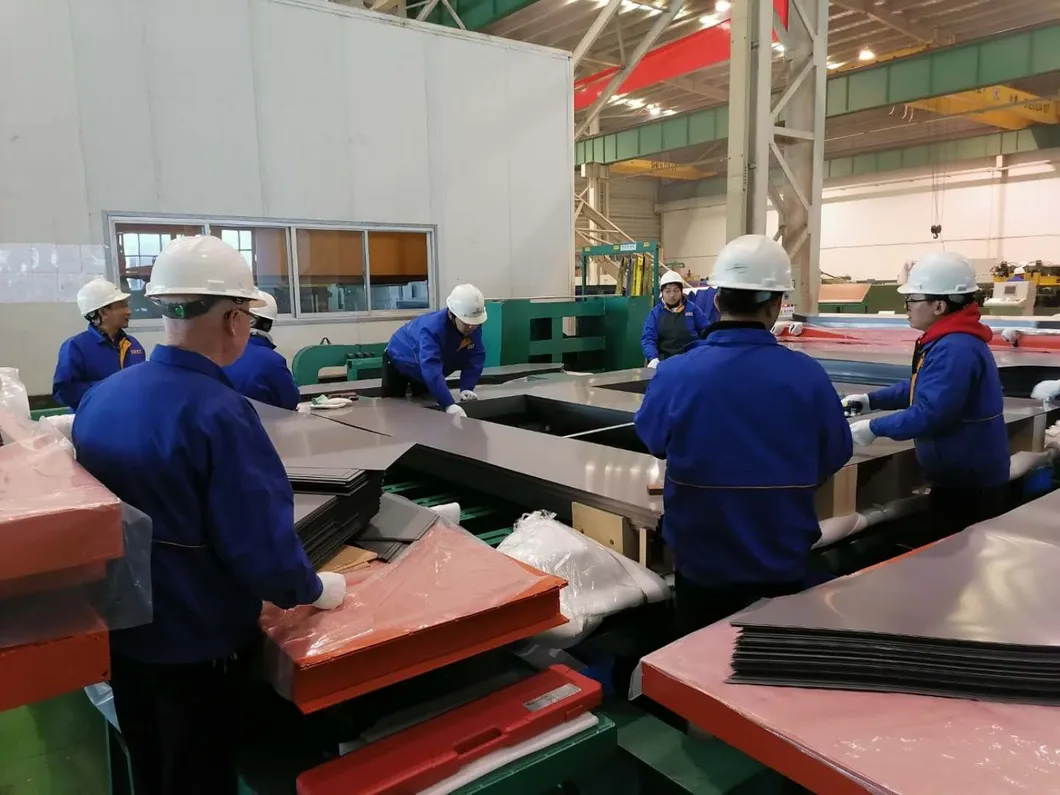

Three-limb iron core made of oblique cut Grain-oriented silicon steel. Features seven-step lamination insulated on both sides to guarantee low noise and minimal losses.

Magnetic Core

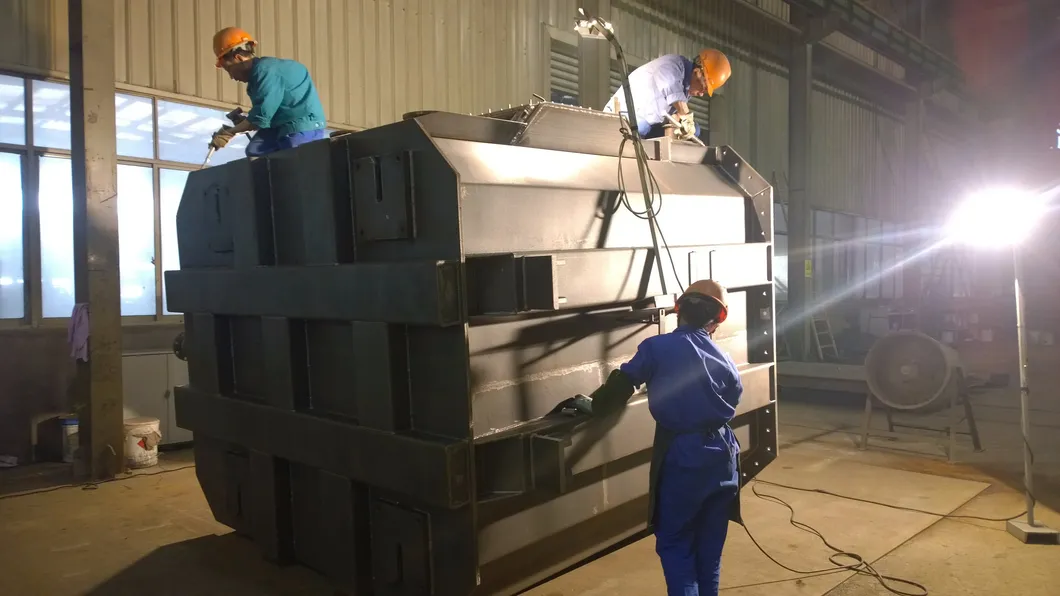

Oil Tank & Protection

Tanks are built to be absolutely tight under mechanical stress. Surface treatment includes phosphating pickling and multi-coating for superior corrosion protection.

Oil Tank
Testing & Quality Control

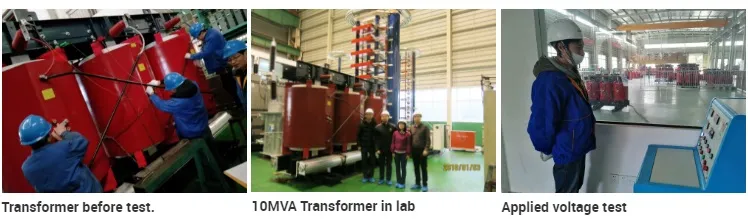

Test Lab

Routine Tests: Measurement of winding resistance, voltage ratio, short circuit impedance, load losses, and dielectric routine tests.

Type & Special Tests: Temperature rise tests, lightning impulse tests, and noise level determination according to IEC 60551.

Packaging & Logistics
Packaging
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a professional manufacturer of electric transformers with extensive production facilities.
What is your standard delivery time?
The delivery time depends on the specific type and capacity of the transformer required.
What are your payment terms?
Standard terms are 30% advance via T/T, and 70% before delivery via T/T or L/C. Other options can be discussed.
Do you support product customization?
Yes, we design and produce transformers according to the specific technical requirements and parameters provided by our customers.
What is the warranty period for your transformers?
We offer at least a one-year guarantee on all our transformers, though specific terms may vary by model.
Do you accept Factory Acceptance Testing (FAT)?
Yes, Factory Acceptance Testing is available and we are responsible for the testing of each transformer unit.
