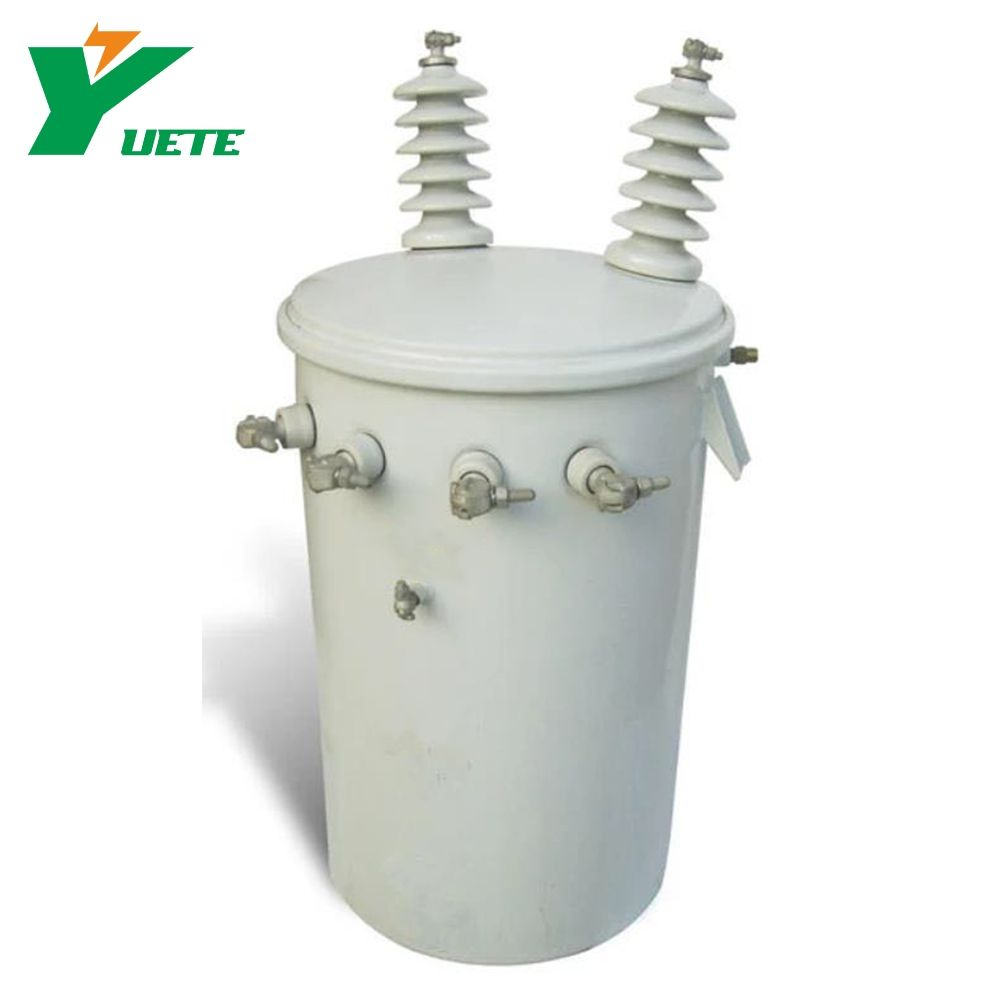

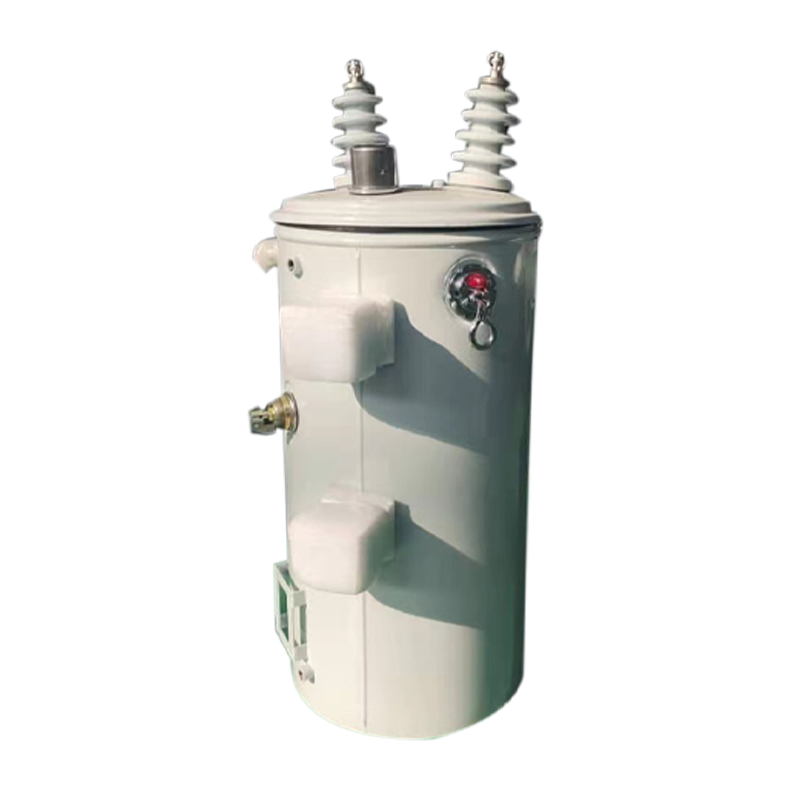

DOE CSA IEEE ANSI OEM Single Phase Overhead Pole Mounted Transformer
DOE CSA IEEE ANSI OEM Single Phase Overhead Pole Mounted Transformer
DOE CSA IEEE ANSI OEM Single Phase Overhead Pole Mounted Transformer
DOE CSA IEEE ANSI OEM Single Phase Overhead Pole Mounted Transformer
DOE CSA IEEE ANSI OEM Single Phase Overhead Pole Mounted Transformer
1 / 5
DOE CSA IEEE ANSI OEM Single Phase Overhead Pole Mounted Transformer
DOE CSA IEEE ANSI OEM Single Phase Overhead Pole Mounted Transformer
DOE CSA IEEE ANSI OEM Single Phase Overhead Pole Mounted Transformer
DOE CSA IEEE ANSI OEM Single Phase Overhead Pole Mounted Transformer
DOE CSA IEEE ANSI OEM Single Phase Overhead Pole Mounted Transformer

DOE CSA IEEE ANSI OEM Single Phase Overhead Pole Mounted Transformer

Customization: Available
Application: Power
Phase: Single
Send Inquiry

Product Description

Basic Specifications
Model NO.
D11
Core
Core-type Transformer
Cooling Method
Oil-immersed Type
Winding Type
Two-winding
Certification
ISO9001, CCC, ISO14001, ISO45001
Usage
Single-phase, Power, Distribution Transformer
Frequency
60Hz / Power Frequency
Shape of Core
EI
Rated H.V.
34.5/13.2/13.8/12.47/14.4/15/7.62/7.2kv
Rated L.V.
120/240/480/347/600V
Winding Material
Copper/Aluminium
Applied Standard
IEC60076/IEEE/ANSI/DOE
Packaging & Delivery
Package Size
30.00cm * 30.00cm * 80.00cm
Gross Weight
200.000kg
Transport Package
Wooden Box
Capacity
10000 Units/Year
Single Phase Overhead Pole Mounted Transformer

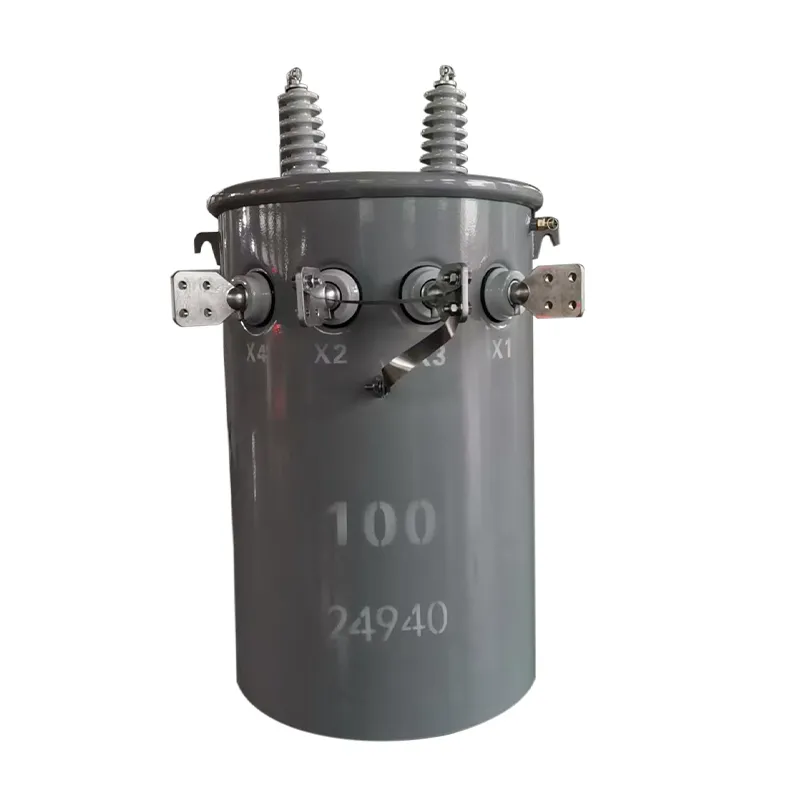

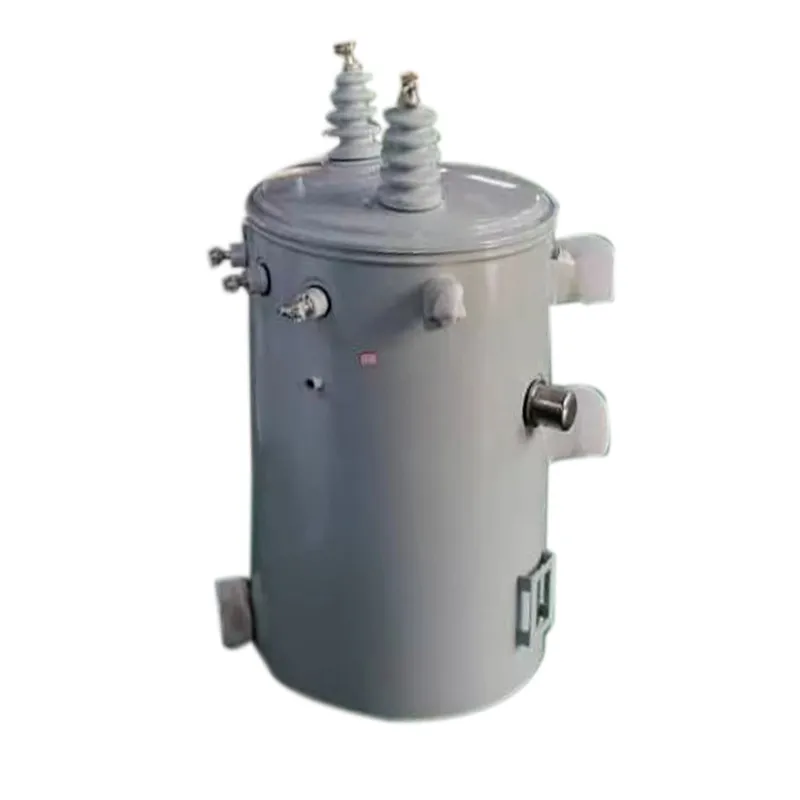

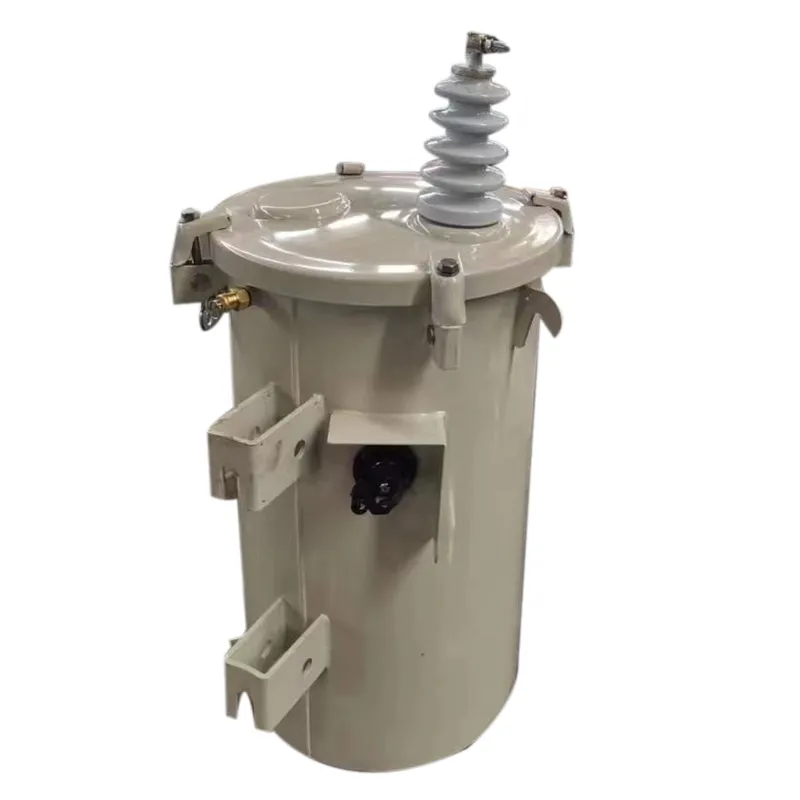

Overhead Pole Mounted Transformer 1 Overhead Pole Mounted Transformer 2 Overhead Pole Mounted Transformer 3

Product Features:

  • Quality System ISO 9001 certified
  • Meet ANSI/IEEE or DOE standard
  • Fully sealed and insulated; safe and reliable
  • Low loss, low noise, strong overload capacity
  • Can be equipped with load switch, bayonet fuse, current limiting fuse, oil level gauge, pressure gauge, pressure relief valve, drain valve, surge arrestors, etc.
  • Cold rolled plate, stainless steel or other materials can be selected for the enclosure
  • Mineral oil or FR3 oil can be used

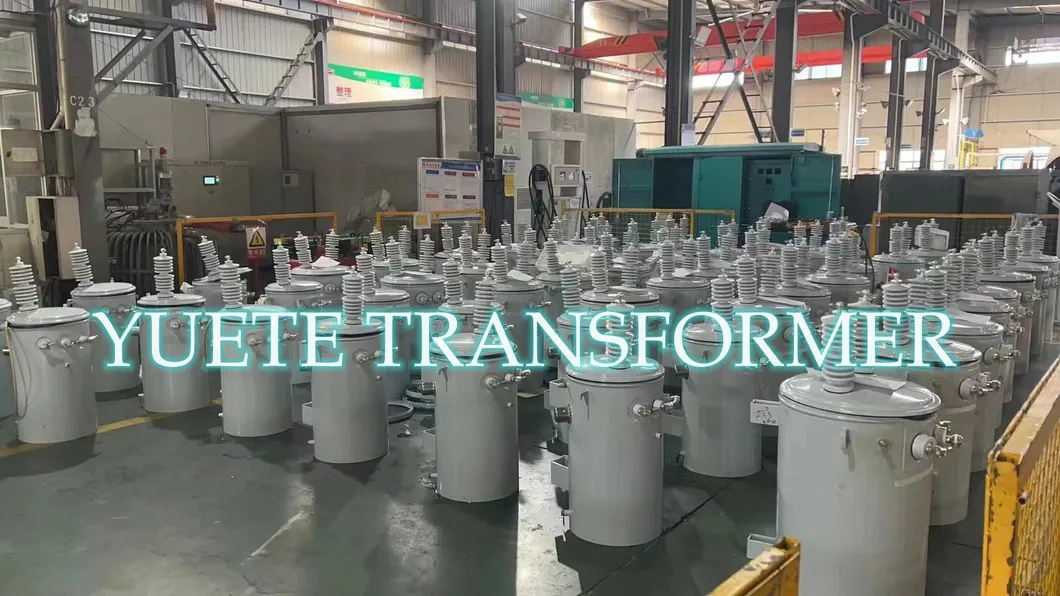

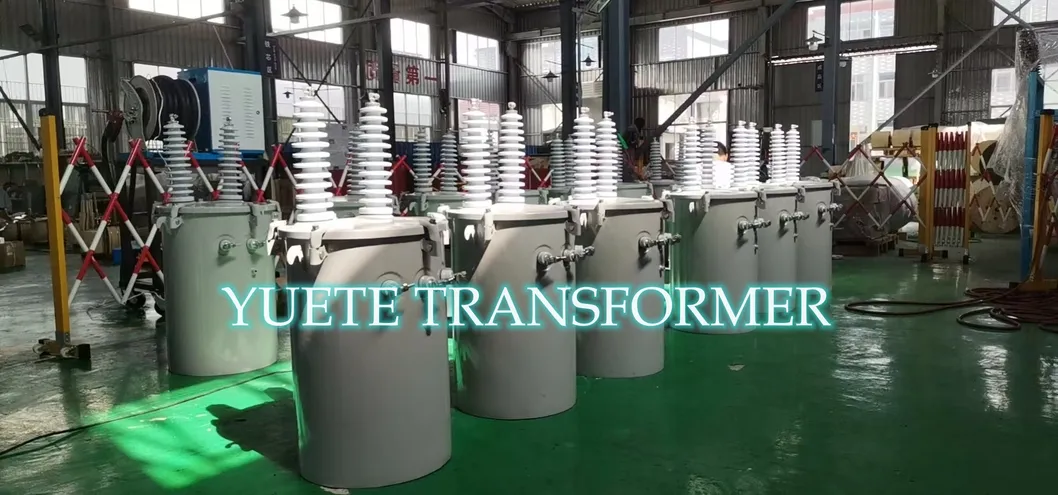

Technical Drawing 1 Technical Drawing 2
Technical Specifications
Rated Power (kVA) HV (V) LV (V) No load Loss (W) Load Loss (W)
1534500, 19920, 13800, 13200, 12470, 14400 or others120-240, 240-480, 347, 60050195
2580290
37.5106360
50135500
75190650
1002801010
1674351530
2505502230
Production & Testing Equipment

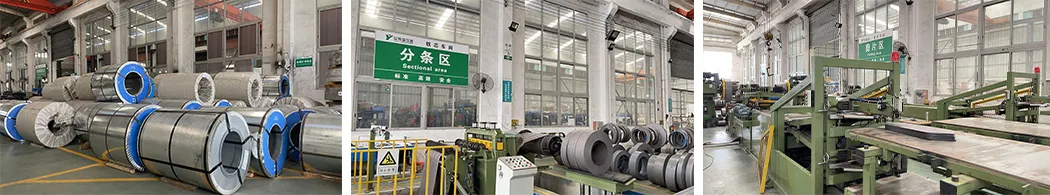

Production 1

Raw materials | Core slitting | Core cutting

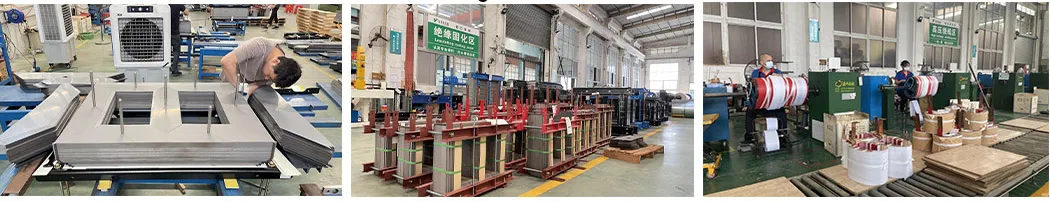

Production 2

Core stacking | Insulating curing | HV winding

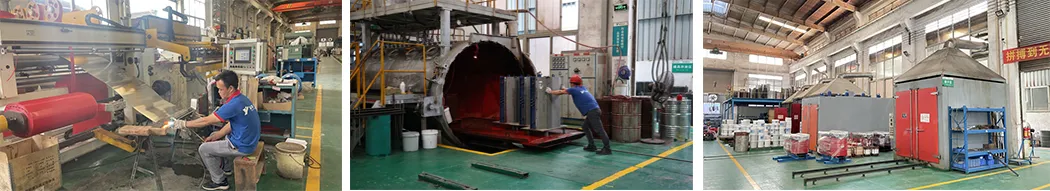

Production 3

LV winding | Pouring | Drying

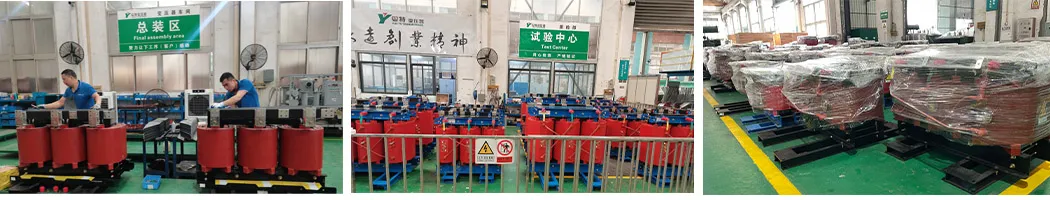

Production 4

Assembly | Testing | Warehouse

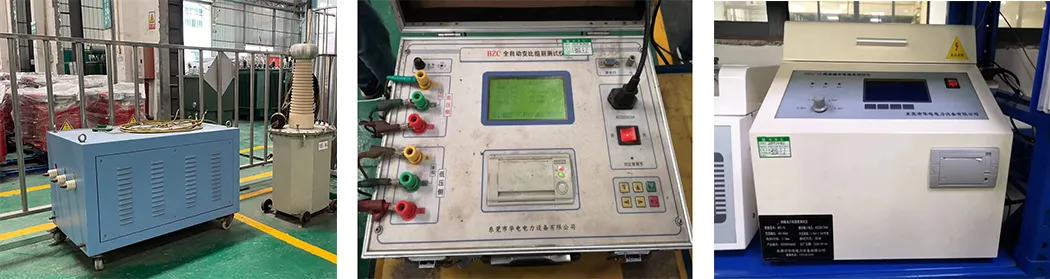

Test 1

Test transformer | Voltage ratio tester | Oil dielectric strength tester

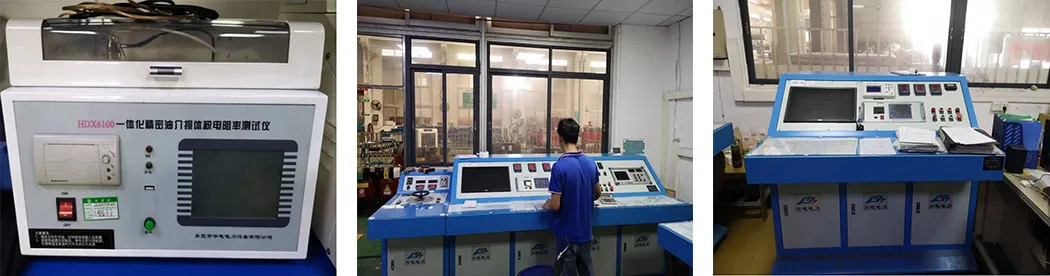

Test 2

Oil dielectric resistivity tester | Temperature test bench | Integrated test bench

Professional Enterprise Profile

Established in 2009, we are a professional high-tech enterprise of manufacturing, researching, and sales. Our facilities are equipped to handle large-scale production for global distribution.

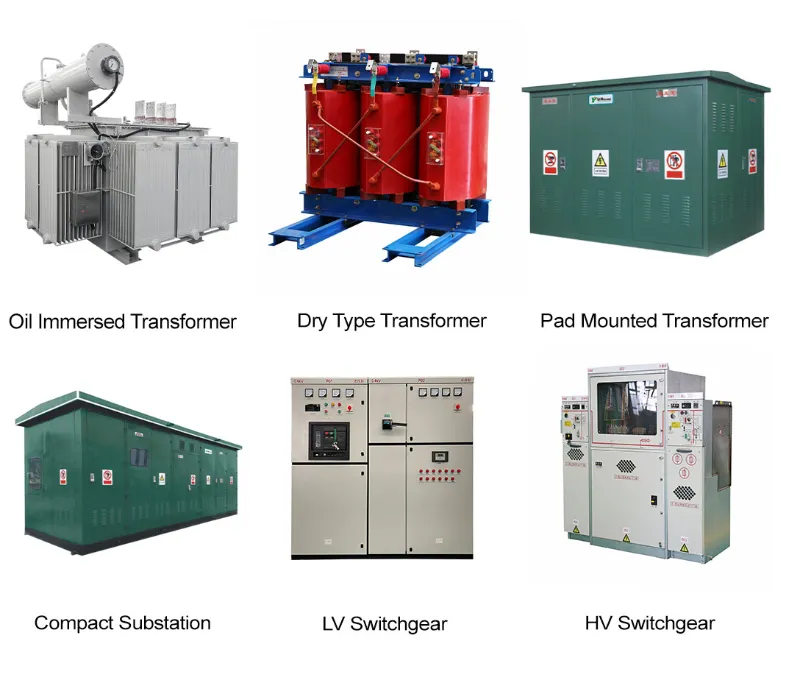

Main products include:

  • Power transformers: Oil immersed, Dry type, Rectifier, Furnace, Isolation transformers, etc.
  • Box type substation: Pad mounted, Compact transformer substation, PV substation, etc.
  • Switchgear: High voltage and Low voltage switchgear.

Our products are widely used in Southeast Asia, Africa, North America, South America, Middle East, and Middle Asia. We maintain a complete quality control system strictly based on IEC, IEEE, and ANSI standards.

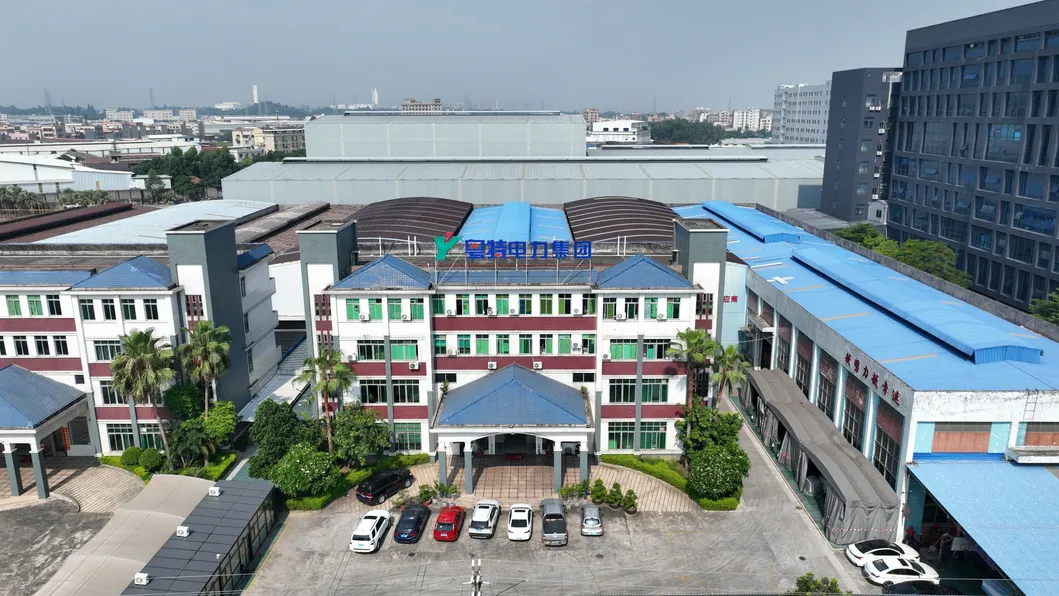

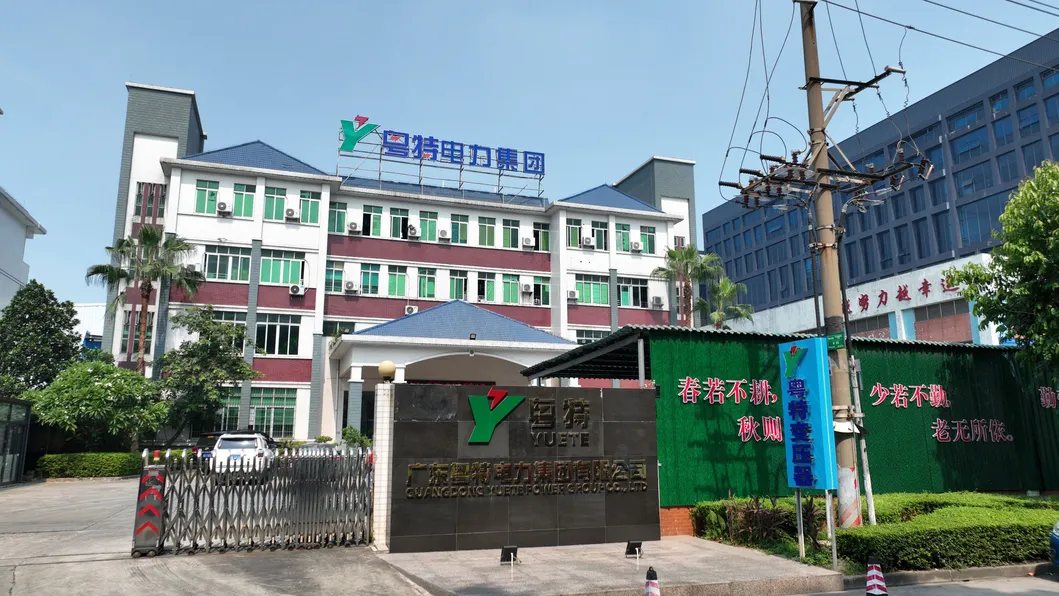

Factory View 1 Factory View 2
Certificates
Frequently Asked Questions
1. Q: Are you a manufacturer? A: Yes, we are a professional manufacturer specializing in Oil immersed transformers, Dry type transformers, Pad mounted transformers, and Switchgears for over 14 years.
2. Q: What is the MOQ? A: We accept OEM/ODM projects. The MOQ is 1 unit. Providing technical drawings and specifications helps expedite the process.
3. Q: What is the production time? A: It typically takes about 25-30 days depending on the specific order requirements.
4. Q: What are the payment terms? A: We accept T/T, L/C, or Cash.
5. Q: How long is the guarantee? A: We offer a 12-month (1 year) guarantee on our products.
6. Q: How can I trust the quality? A: We operate with a complete and effective quality control and test system, strictly following IEC, IEEE, and ANSI standards. We hold ISO, CE, and Type test reports.
