High Accuracy IP67 Outdoor Waterproof Split Core Current Measurement Transformer
High Accuracy IP67 Outdoor Waterproof Split Core Current Measurement Transformer
High Accuracy IP67 Outdoor Waterproof Split Core Current Measurement Transformer
High Accuracy IP67 Outdoor Waterproof Split Core Current Measurement Transformer
High Accuracy IP67 Outdoor Waterproof Split Core Current Measurement Transformer
1 / 5
High Accuracy IP67 Outdoor Waterproof Split Core Current Measurement Transformer
High Accuracy IP67 Outdoor Waterproof Split Core Current Measurement Transformer
High Accuracy IP67 Outdoor Waterproof Split Core Current Measurement Transformer
High Accuracy IP67 Outdoor Waterproof Split Core Current Measurement Transformer
High Accuracy IP67 Outdoor Waterproof Split Core Current Measurement Transformer

High Accuracy IP67 Outdoor Waterproof Split Core Current Measurement Transformer

Customization: Available
Type: Electromagnetic
Output Signal Type: Analog Output
Send Inquiry

Product Description

■ Basic Specifications
Model NO.
LZCK-80
Production Process
Injection
Material
ABS+ Resin Cast
Accuracy Grade
0.5G
Application
Power Meter
IP Rating
IP67
Certification
IEC60044-1, IEC 61869-2, NTC 2205
Class
0.2s, 0.5s, 0.5, 1
Color
Orange & Black
Weight
2kg
Diameter Window
80mm
Cable Length
2.5m, 5m, or 10m
Production Capacity
10000PCS/Month
■ Product Description
Outdoor Waterproof Split Core Current Measurement Transformer
The model LZCK-80 outdoor split core current measurement transformer is applicable for AC power systems 35kV and measurement of current of power supply equipment below 10KV. It is compatible with distribution transformer monitors and provides high-quality power parameter signals for monitoring, measuring, and controlling energy quality in grid systems. With an IP67 ingress protection rating, it is designed for outdoor electric power systems (50Hz or 60Hz). The transformer utilizes imported silicon steel with high permeability, ensuring low magnetic circuit loss. Its semicircular core and secondary windings are vacuum-poured with high-quality epoxy resin in a fire-proof, UV-proof, and explosion-proof plastic case (ABS or PC).

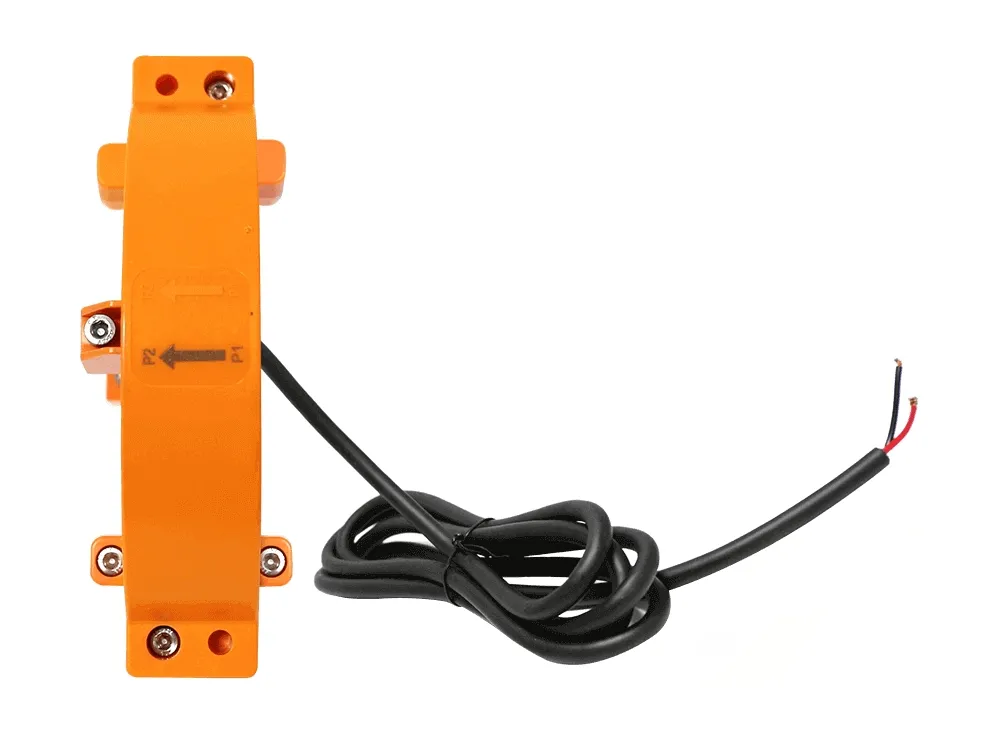

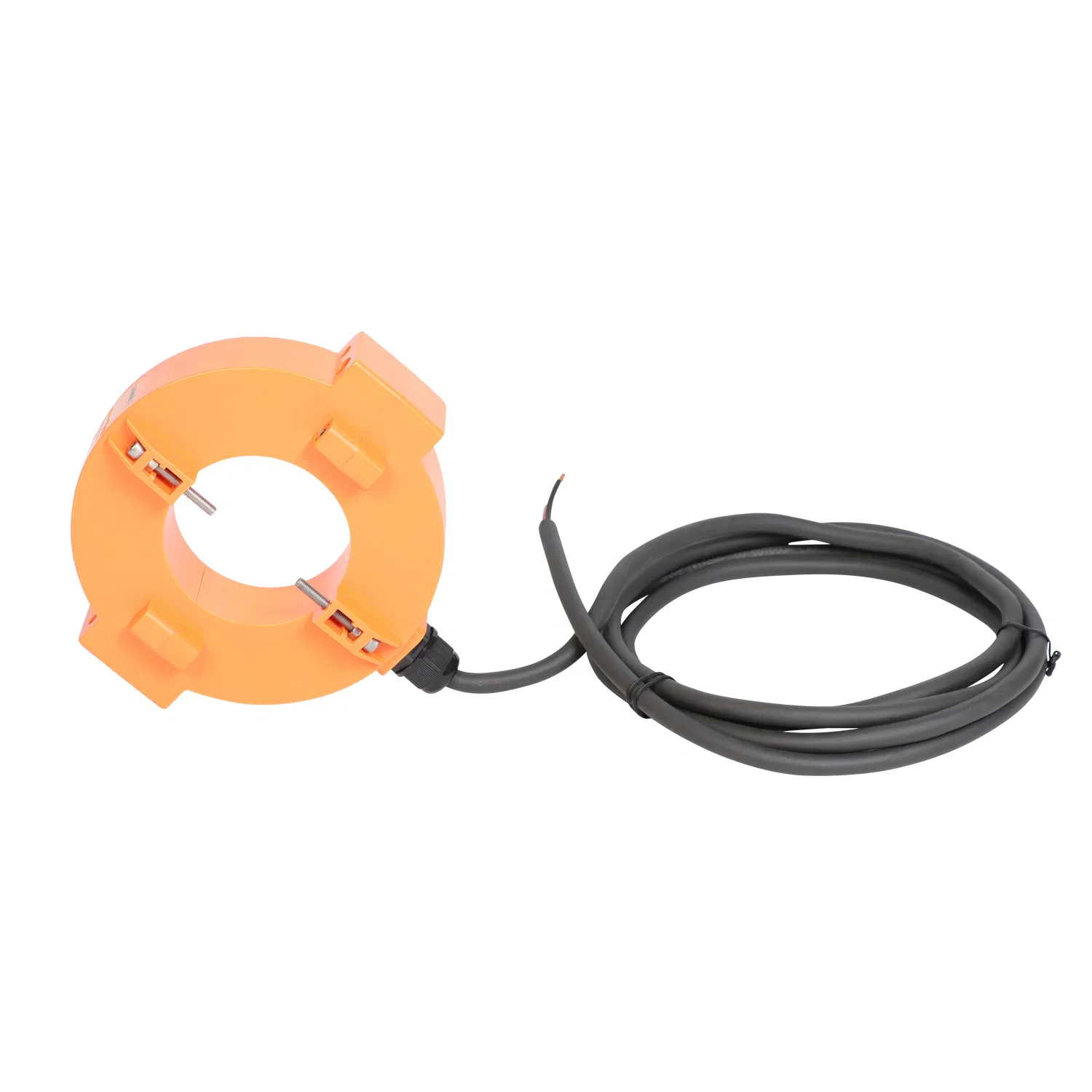

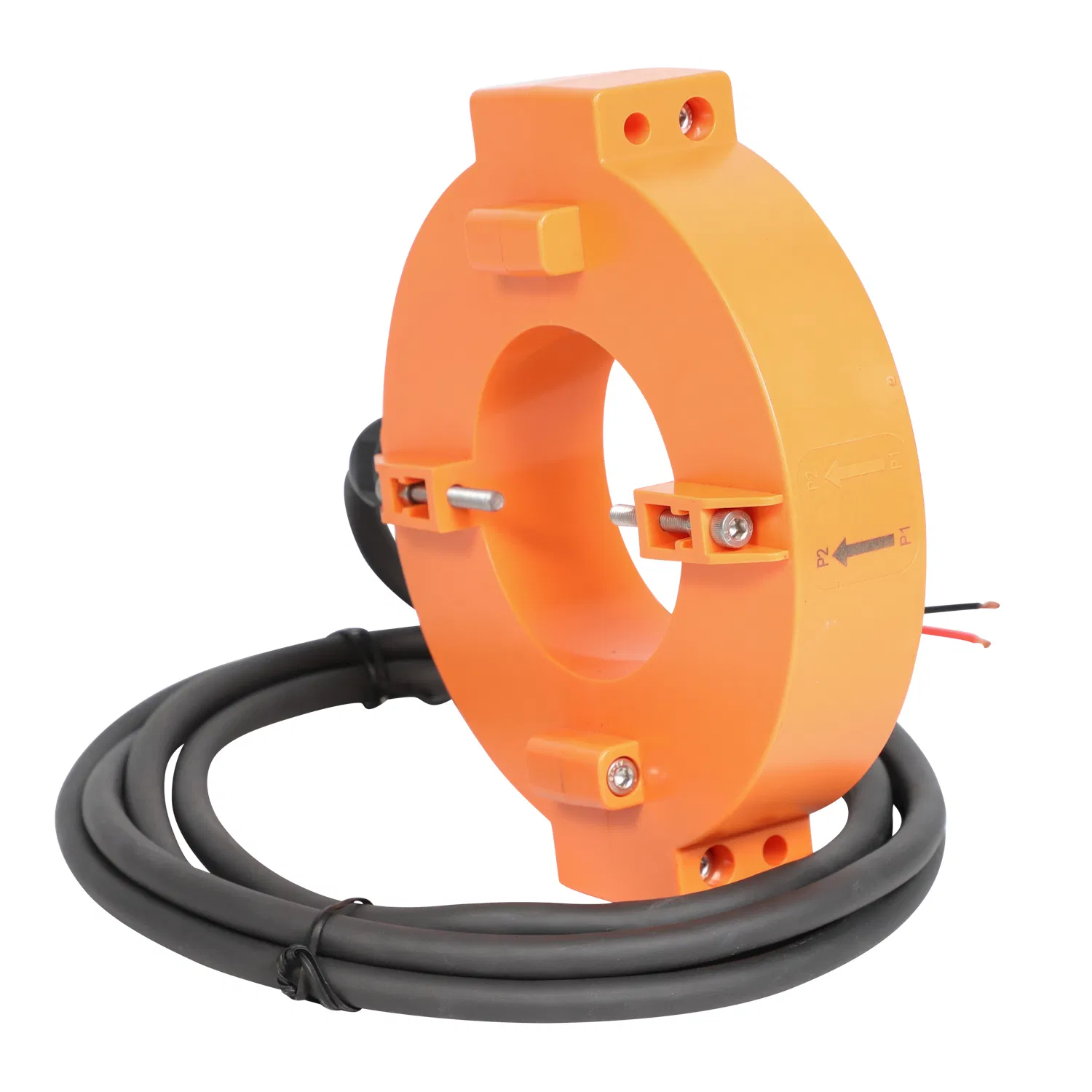

Split Core Transformer View 1

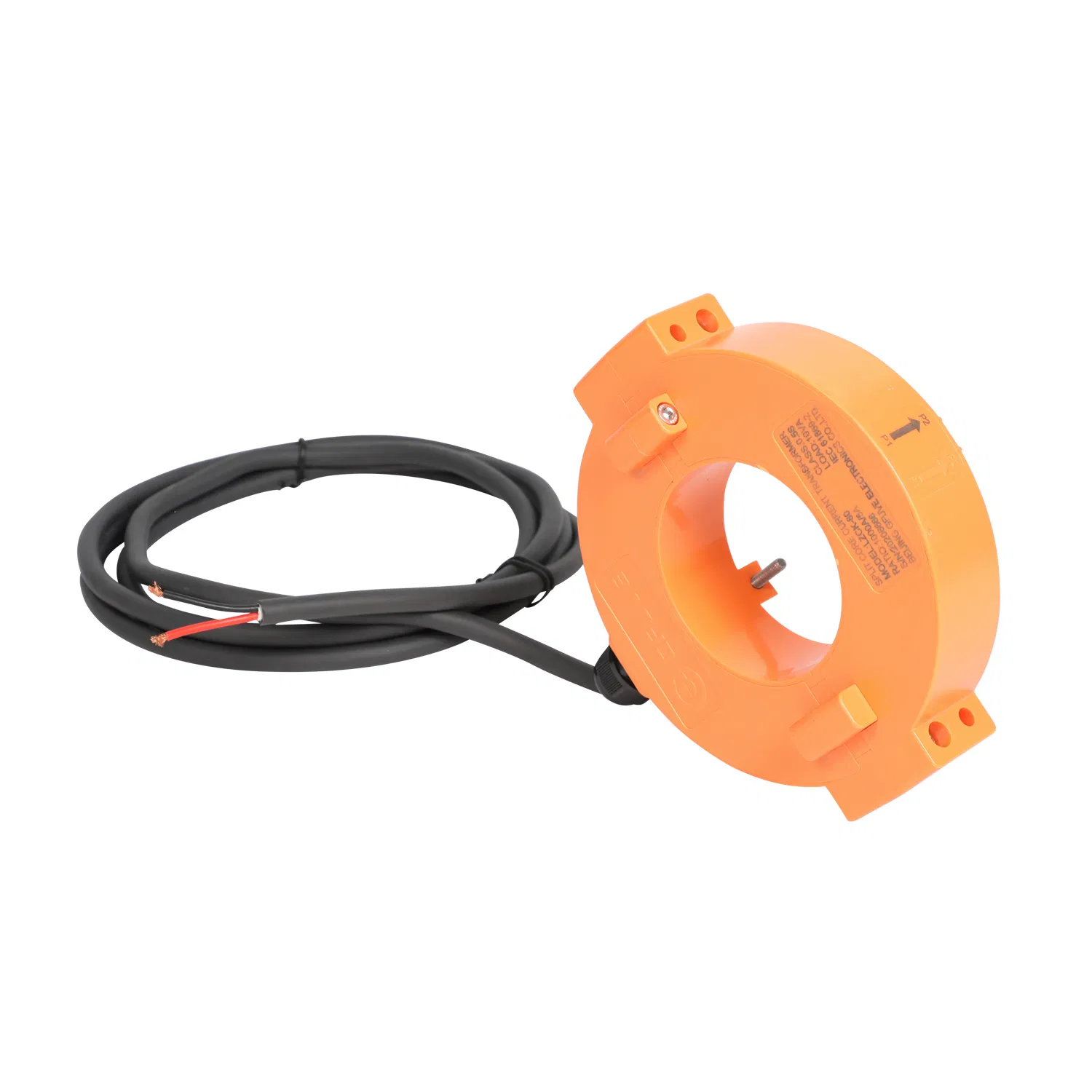

Split Core Transformer View 2

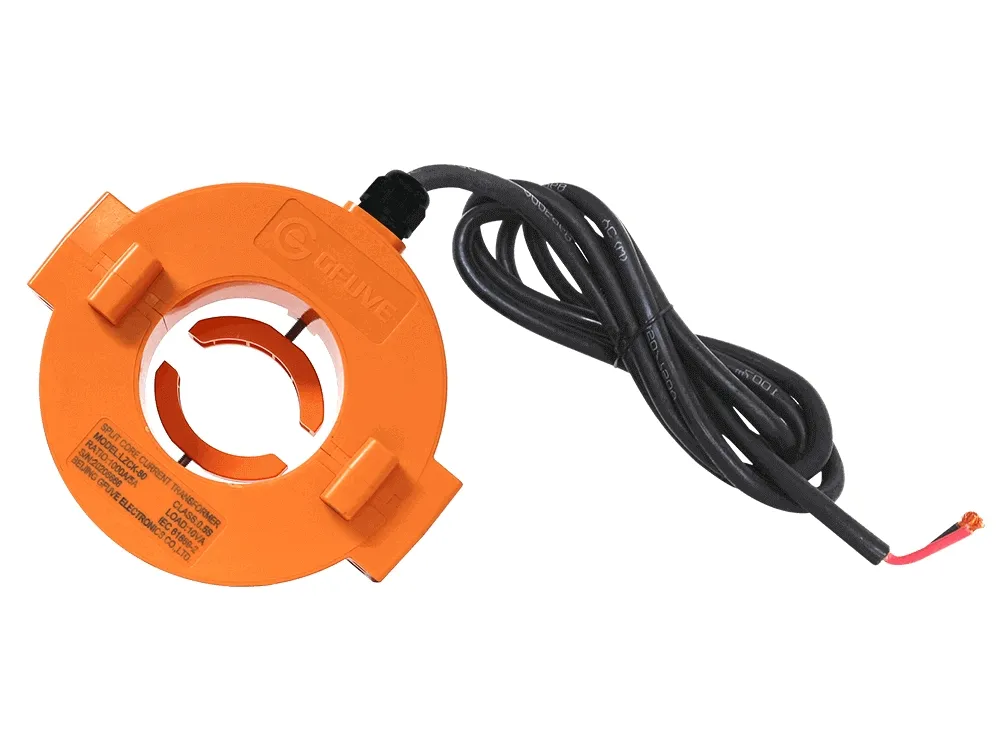

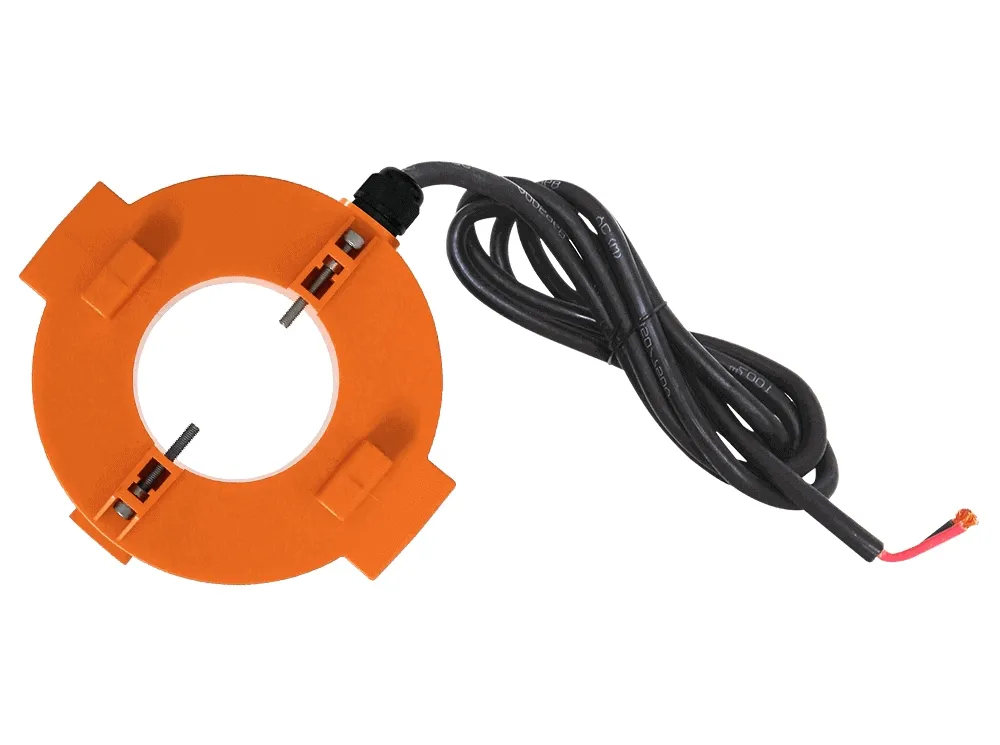

Split Core Transformer Detail 1

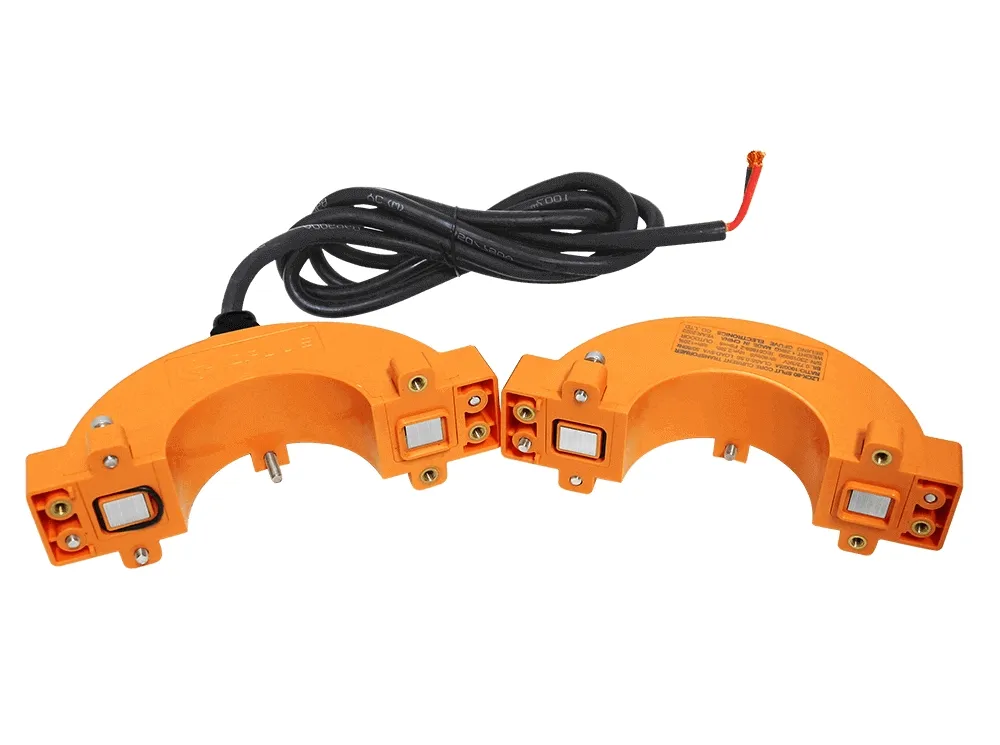

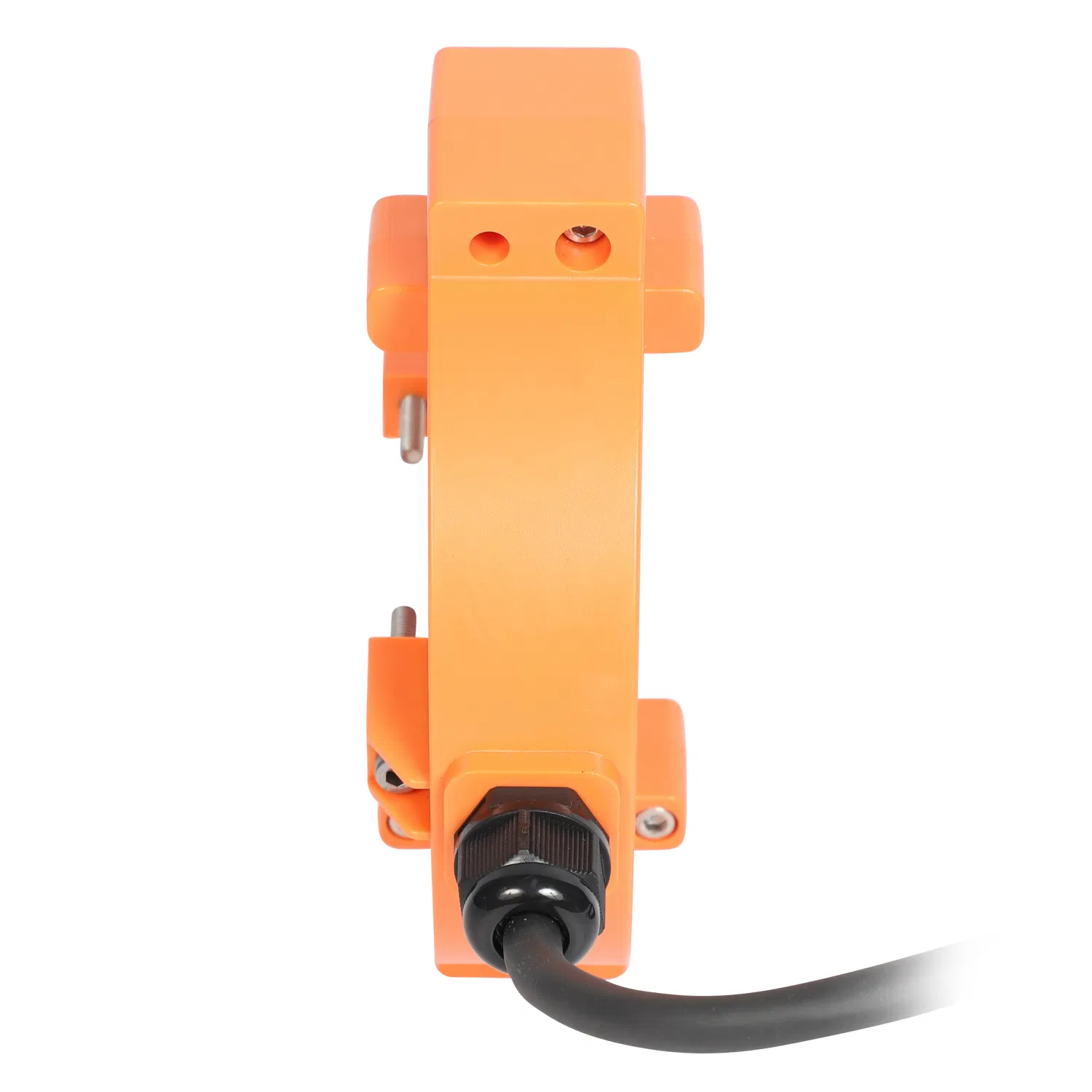

Split Core Transformer Detail 2

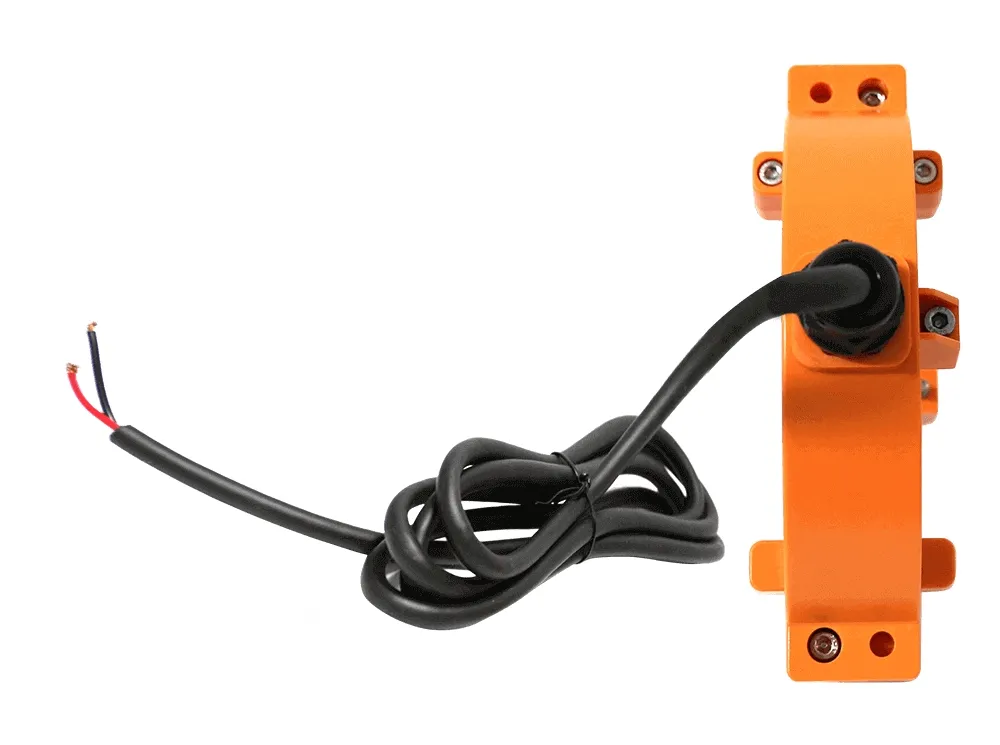

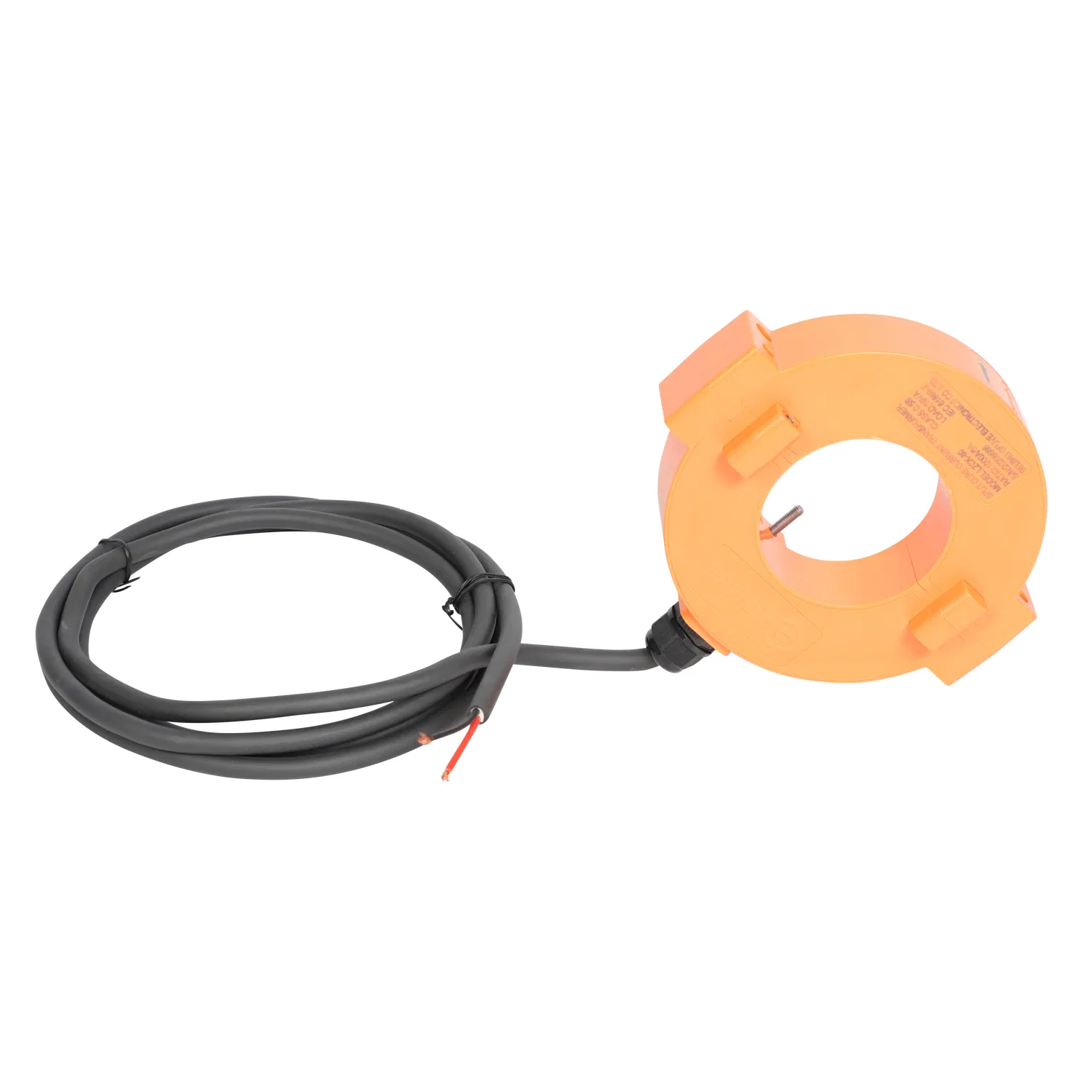

Split Core Transformer Detail 3
■ Key Features
✔ IP67 level outdoor waterproof rating
✔ High precision 0.5s measurement
✔ Holding wire diameter: φ80mm
✔ Measurement range 0-2000A AC
✔ Easy installation without power interruption
✔ Vacuum poured secondary windings
✔ Support for dual ratios
✔ UV-proof and maintenance-free design
■ Applications
▶ Power and Energy Meters
▶ MV Switchgears
▶ Power Quality Analyzers
▶ Distribution Transformer Monitoring
▶ Load Monitoring Systems
▶ Low Voltage Metering
■ Technical Data
Ratio (I1/I2) 0.5S (VA) 0.5 (VA) 1 (VA) 3 (VA)
100/1-0.11.52.5
200/12.52.52.52.5
400/12.52.52.52.5
600/12.52.52.52.5
1000/12.52.52.55
2000/12.5555
100/5---2.5
400/55101010
1000/55101015
2000/55101520
Frequently Asked Questions
What is the ingress protection (IP) rating for the LZCK-80?
The LZCK-80 features an IP67 rating, making it completely dust-tight and capable of withstanding temporary immersion in water, ideal for outdoor use.
What is the maximum current measurement range?
It can measure AC current ranging from 0A up to 2000A, depending on the specific ratio selected.
Is the transformer UV resistant?
Yes, the outer casing is made of high-quality ABS or PC materials that are ultraviolet-proof, fire-proof, and explosion-proof.
Does it require power interruption for installation?
No, the split core design allows for easy installation on existing power lines without the need to disconnect the electricity.
What international standards does this transformer comply with?
It meets multiple international standards including IEC60044-1, IEC 61869-2, NTC 2205, and ANSI/IEEE C57.13.
What is the window diameter for the cable?
The LZCK-80 has a window diameter of 80mm, accommodating various large cable sizes.
