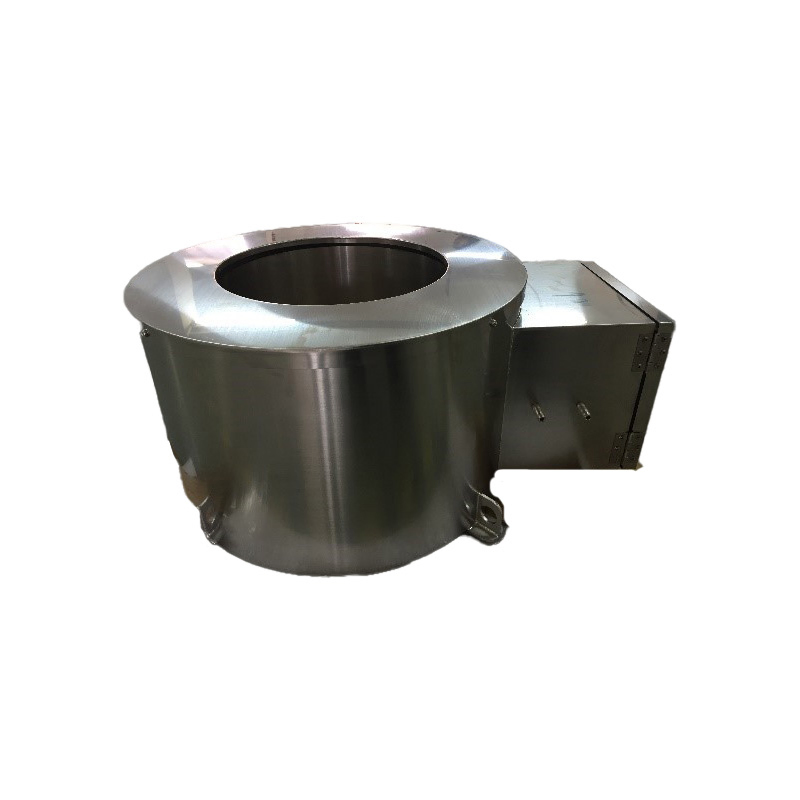

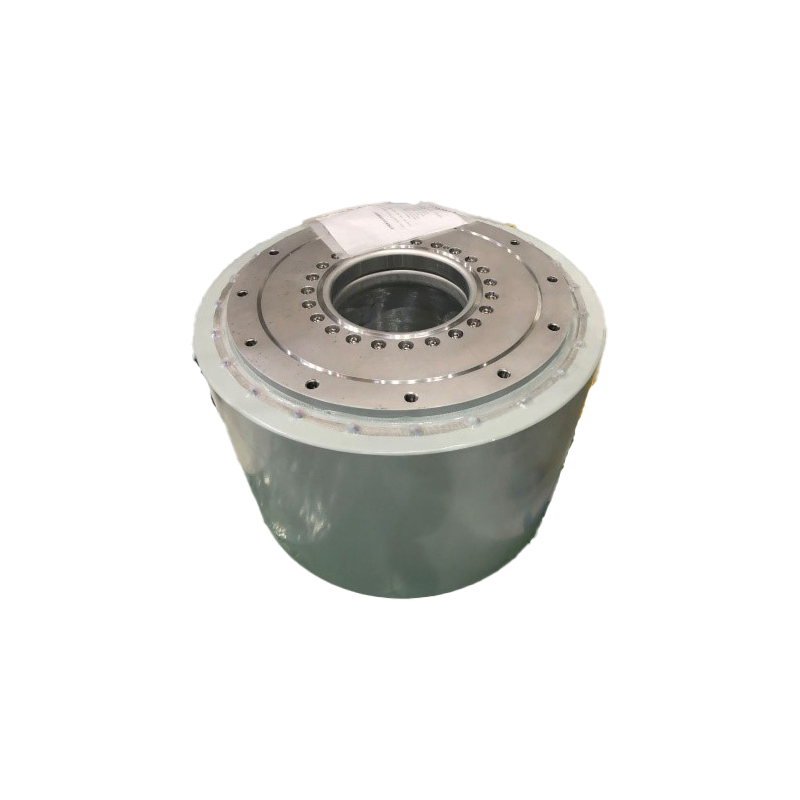

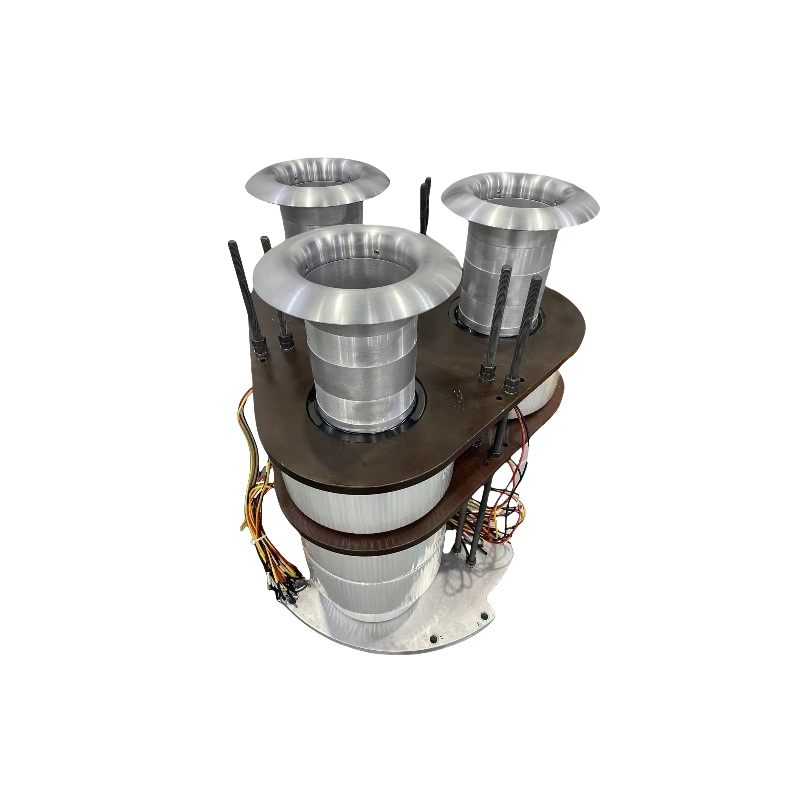

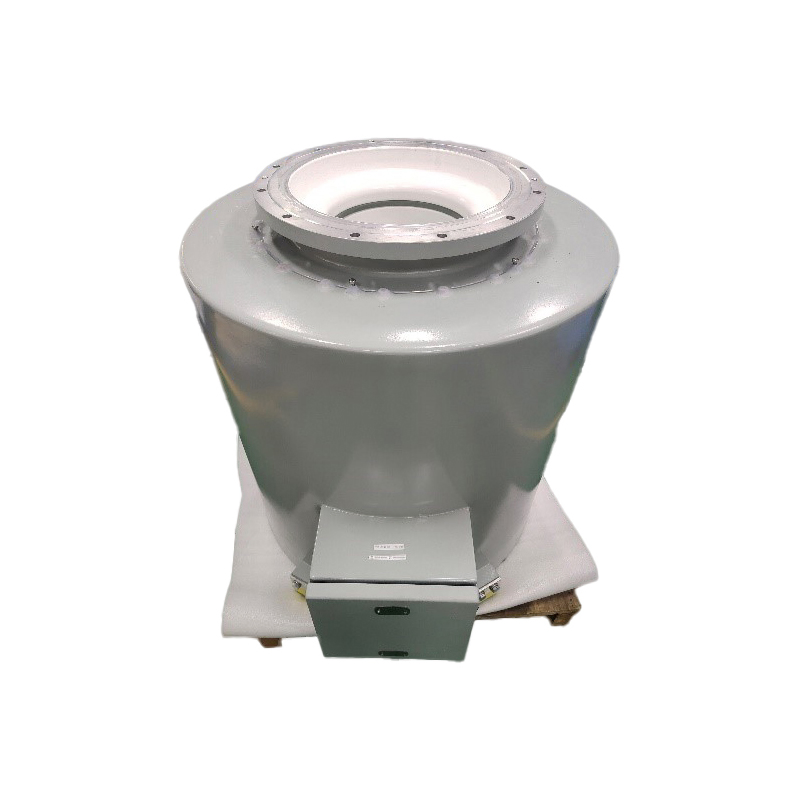

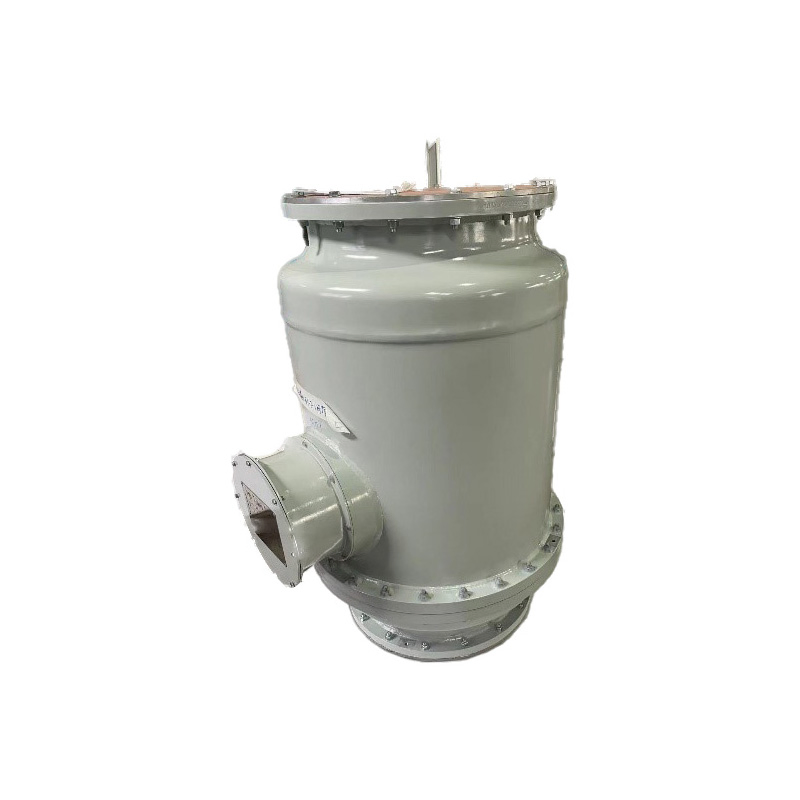

This series of current transformers is mainly for GIS fully enclosed combination of appliances, CT is an independent unit. CT unit mainly consists of a secondary coil, shell, insulating plate, and rain cover. After SF6 leakage detection and related electrical performance tests, GIS manufacturers do not need to assemble the CT in the factory; the unit can be mounted directly onto the GIS, ensuring easy installation and reliable performance.
| Voltage level (kV) | 363/420/550 |
| Rated frequency (Hz) | 50 or 60 |
| Accuracy level | 0.1, 0.2, 0.5, 1, 3, 0.2S, 0.5S, 5P, 10P, 5PR, 10PR, PX, PXR, X, PS, TPY, TPS, TPX, TPZ |
| Rated primary current (A) | 75 ~ 8000 |
| Rated secondary current (A) | 1, 2, 5 |
| Rated load (VA) | 1 ~ 200 |
| Sec. winding frequency withstand voltage (kV) | 3 |
| Sec. winding turn-to-turn withstand voltage (kV) | 4.5 |
