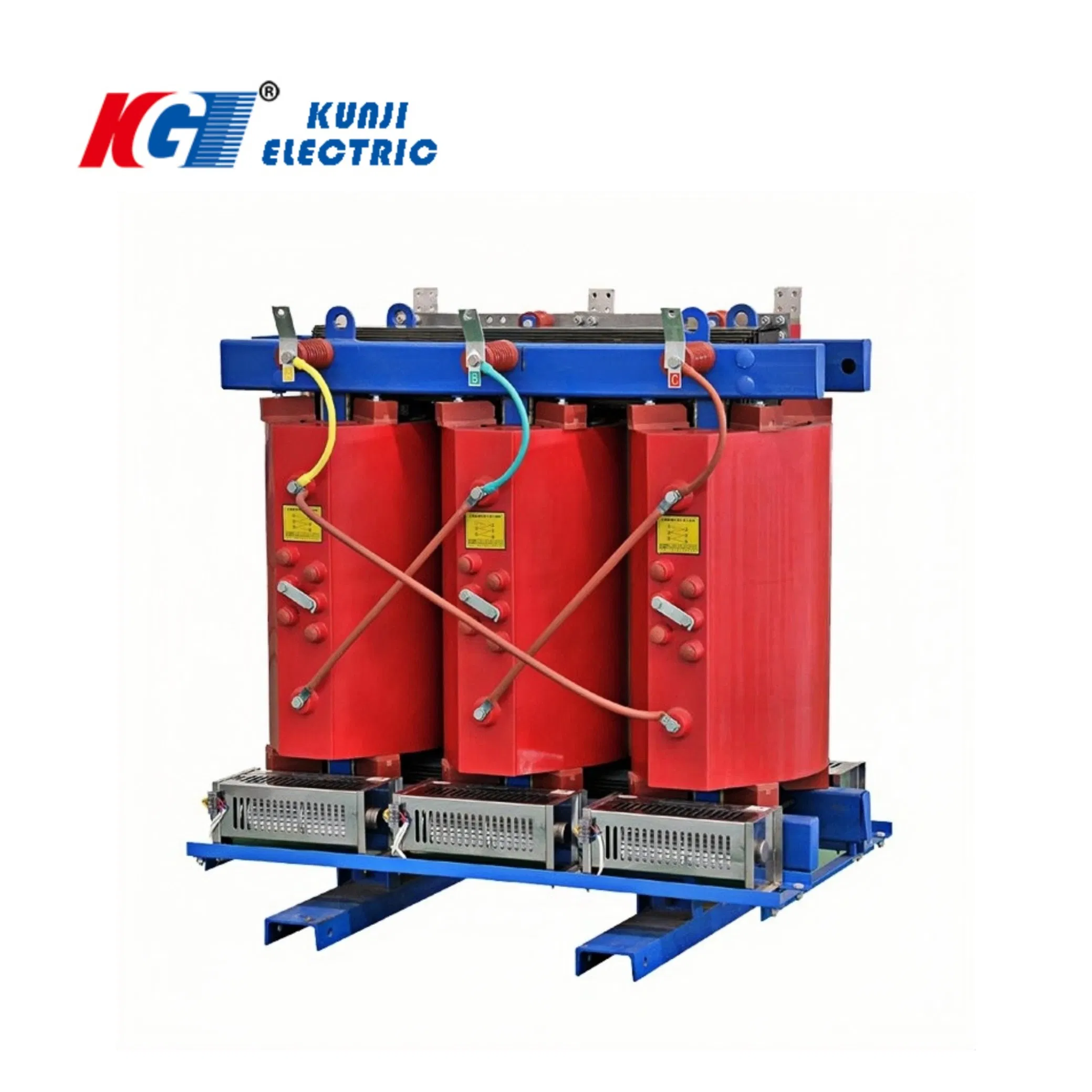

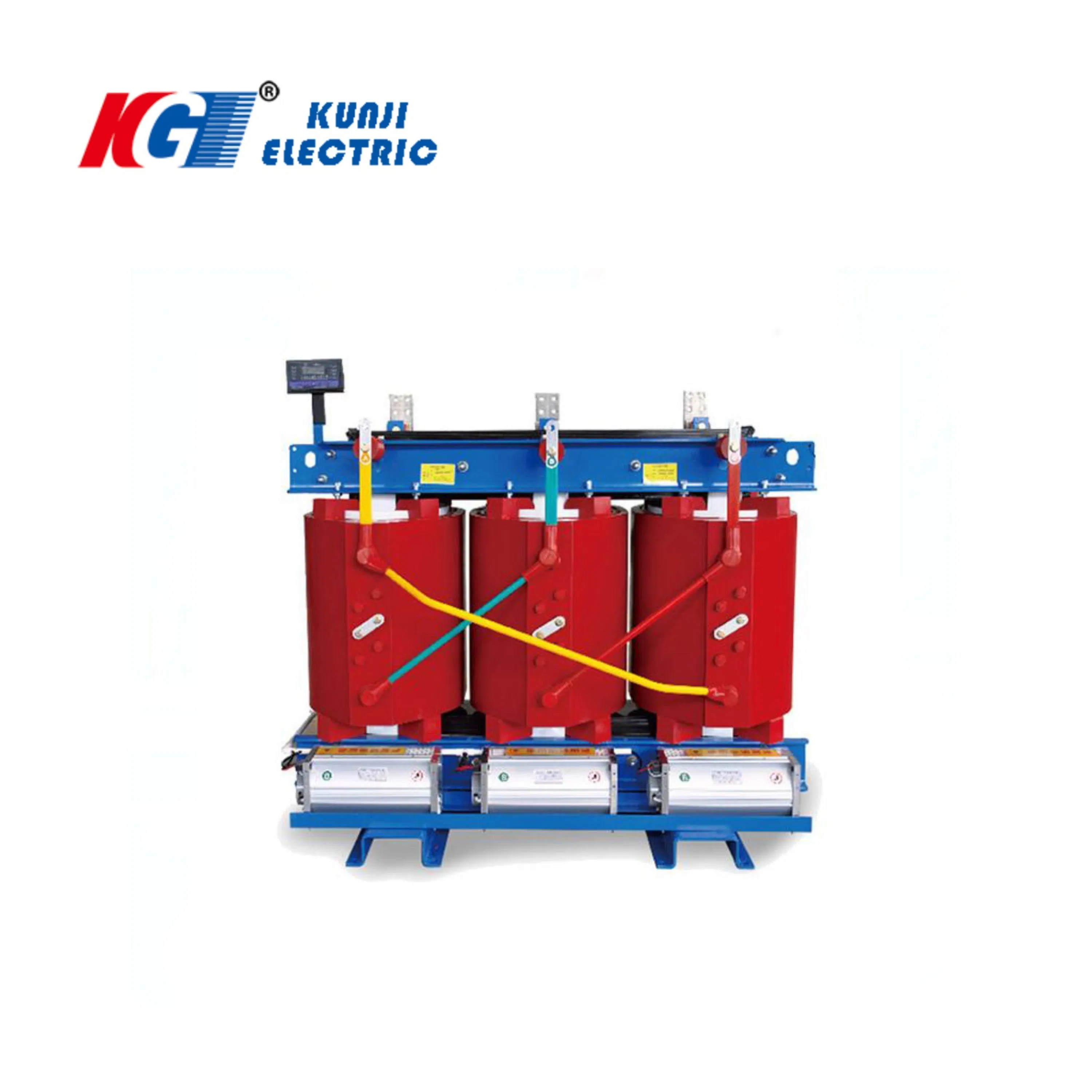

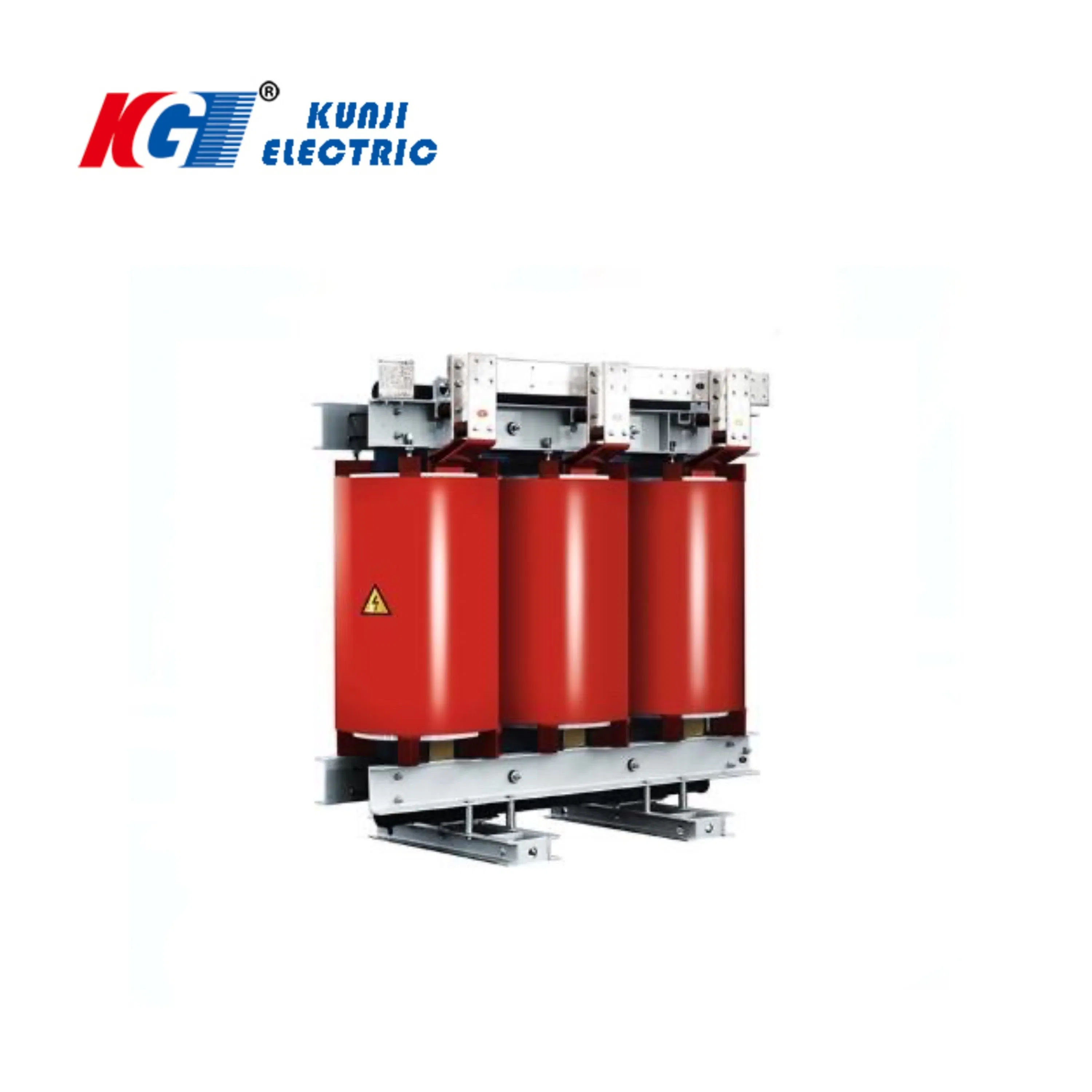

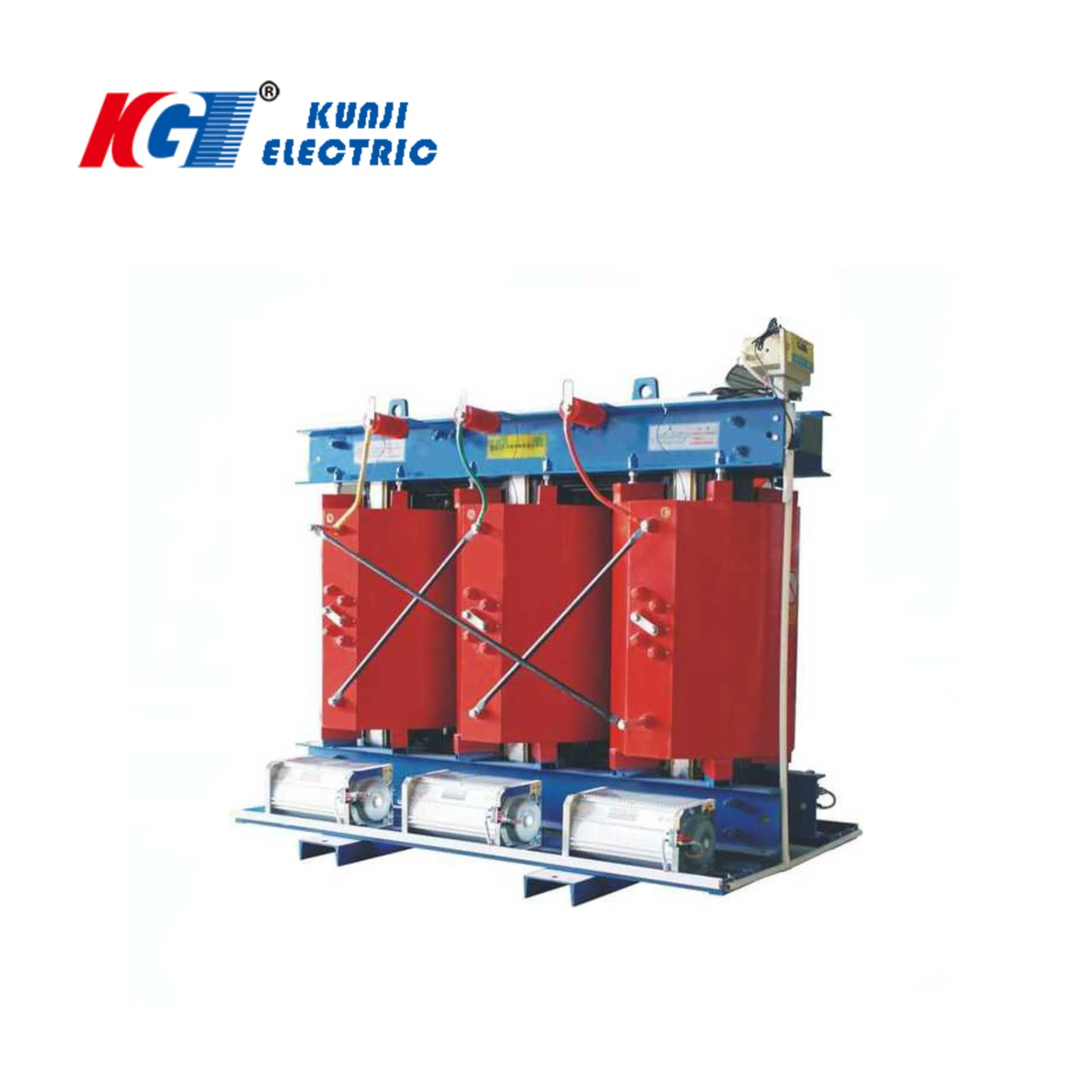

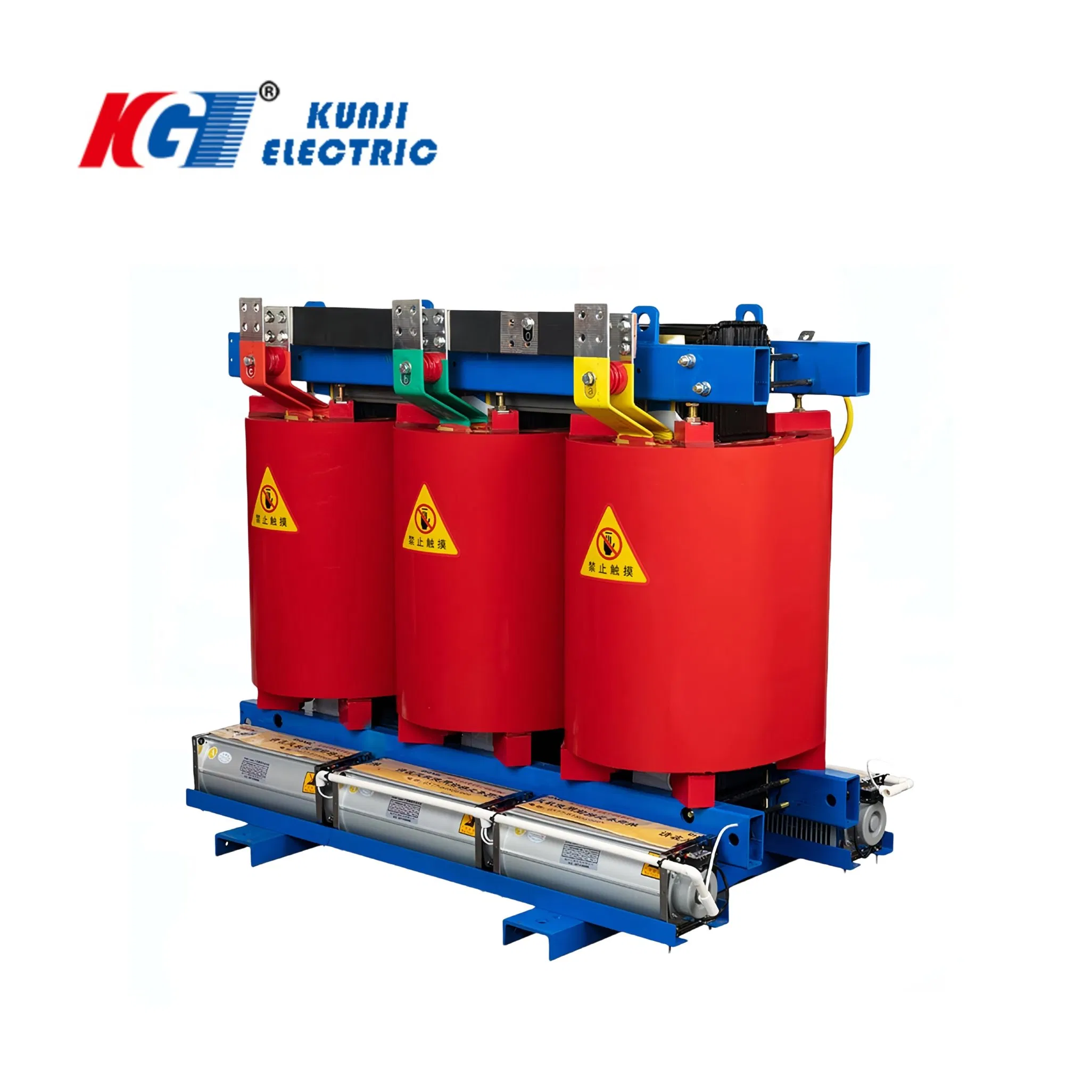

6kv-35kv Customizable High Voltage Power Distribution Dry Type Transformer Epoxy Cast Resin Amorphous Alloy Resin Insulated
6kv-35kv Customizable High Voltage Power Distribution Dry Type Transformer Epoxy Cast Resin Amorphous Alloy Resin Insulated
6kv-35kv Customizable High Voltage Power Distribution Dry Type Transformer Epoxy Cast Resin Amorphous Alloy Resin Insulated
6kv-35kv Customizable High Voltage Power Distribution Dry Type Transformer Epoxy Cast Resin Amorphous Alloy Resin Insulated
6kv-35kv Customizable High Voltage Power Distribution Dry Type Transformer Epoxy Cast Resin Amorphous Alloy Resin Insulated
1 / 5
6kv-35kv Customizable High Voltage Power Distribution Dry Type Transformer Epoxy Cast Resin Amorphous Alloy Resin Insulated
6kv-35kv Customizable High Voltage Power Distribution Dry Type Transformer Epoxy Cast Resin Amorphous Alloy Resin Insulated
6kv-35kv Customizable High Voltage Power Distribution Dry Type Transformer Epoxy Cast Resin Amorphous Alloy Resin Insulated
6kv-35kv Customizable High Voltage Power Distribution Dry Type Transformer Epoxy Cast Resin Amorphous Alloy Resin Insulated
6kv-35kv Customizable High Voltage Power Distribution Dry Type Transformer Epoxy Cast Resin Amorphous Alloy Resin Insulated

6kv-35kv Customizable High Voltage Power Distribution Dry Type Transformer Epoxy Cast Resin Amorphous Alloy Resin Insulated

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

⚙ Basic Specifications
Model NO.
SCB11-30/10
Core Type
Core-type Transformer
Cooling
Dry-type Transformer
Winding
Multi-winding
Certification
ISO9001, CCC, CE
Frequency
50-60Hz
Usage
Power Distribution, Electric Equipment
Medium
Epoxy Resin
Protection
IP20 and IP23
Material
Silicon Steel
📋 Product Description

6kV up to 35kV Dry Type Transformer with Cast Epoxy Resin

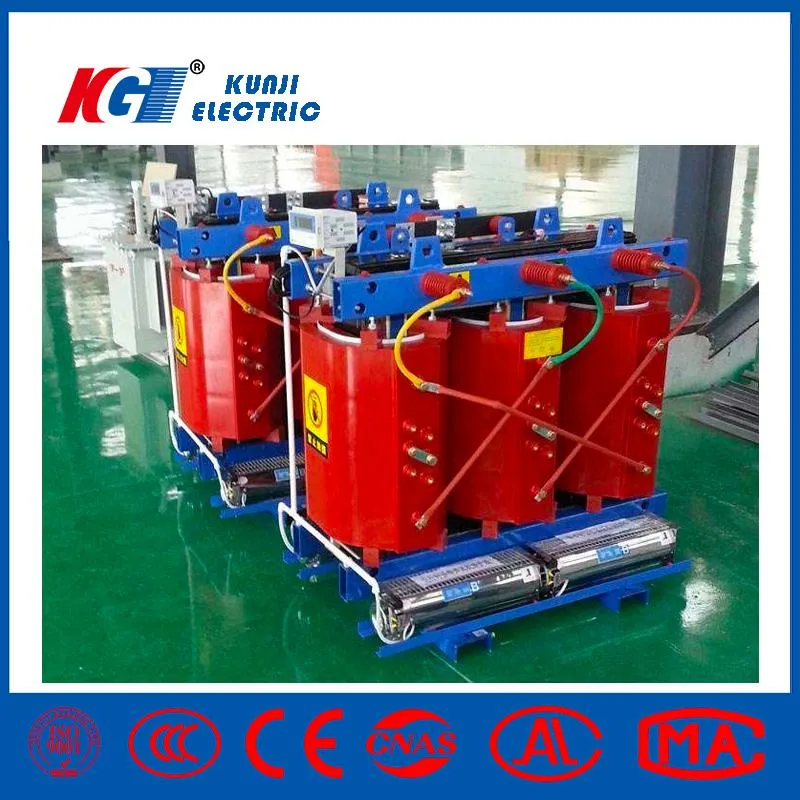

Dry Type Transformer
Rated VoltageHV coil: Up to 35kV; LV coil: 0.208--1.14 KV
Tap RangeStandard: ±2.5%, ±5% (Other ratings available)
Power CapacityThree phase: 30 - 3150 KVA; Impedance voltage: 4-8%
ConnectionsHV: Delta; LV: Wye with neutral point
TemperatureClass F; Ambient Min -25°C; Rise limit 40°C
  • Rated capacity: 30~6000kVA
  • Rated HV: 6kV to 35 kV
  • Cooling methods: ONAN/ONAF or AN/AF
  • Regulator way: Off-circuit or On-load tap-changing
  • Connection Symbol: Yyn0, Dyn11 or customizable
  • Suitable for high humidity or harsh environments
  • Insulation level: Up to 35KV (thunder impact 170KV)
  • Standards: IEC726, GB1094, GB/T10228
📊 Technical Parameters

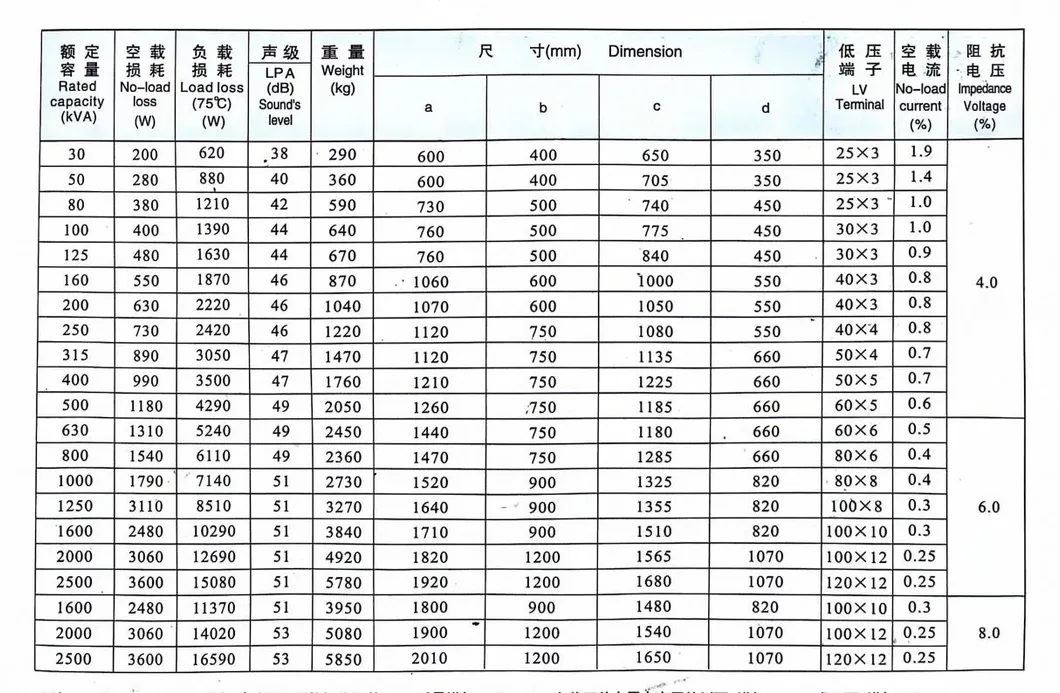

Technical Parameters Table
🏭 Manufacturing Facility

We specialize in producing, developing, and marketing power transmission and distribution products. Our core product range includes switchgear, ring main units, transformers, and substations, all holding ISO9001 and CE certifications.

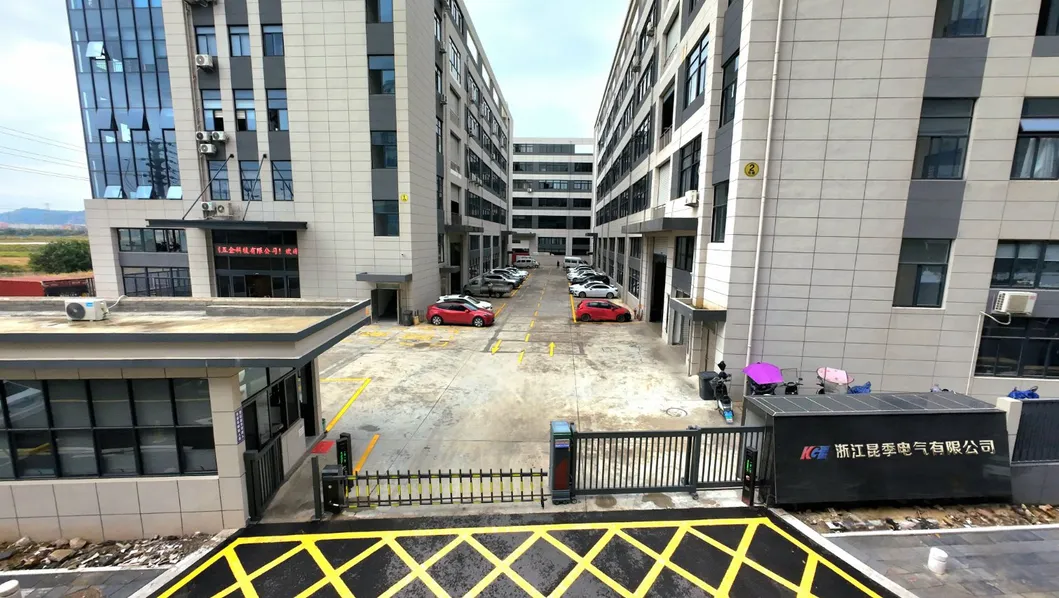

Facility Overview

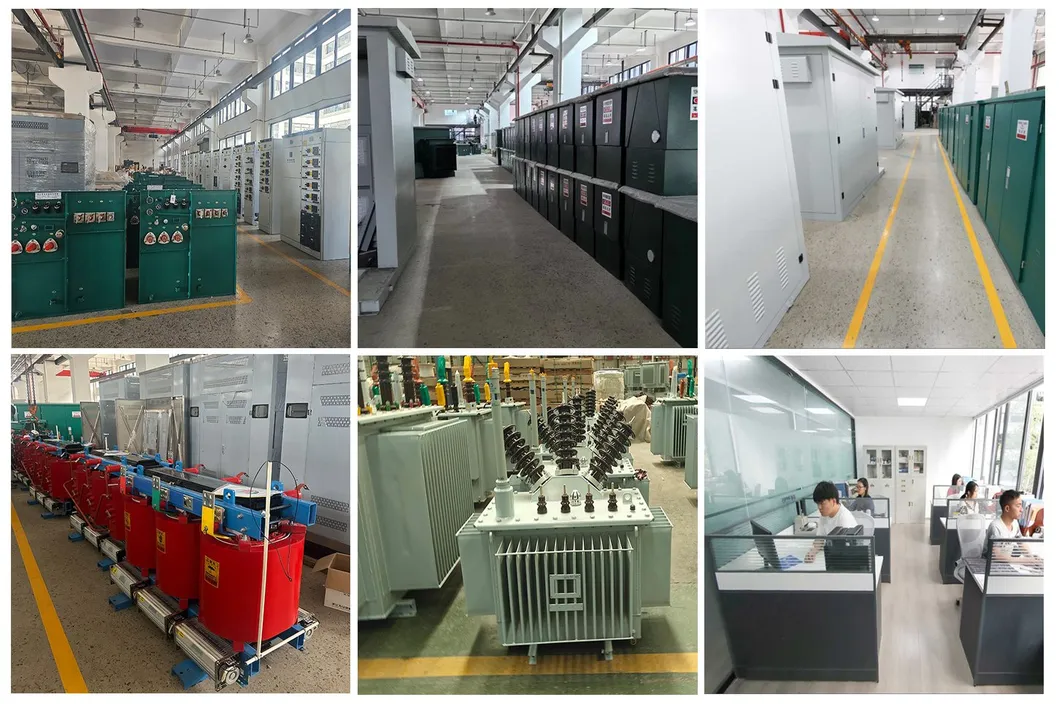

Workshop
📦 Certification & Packaging
Certificates

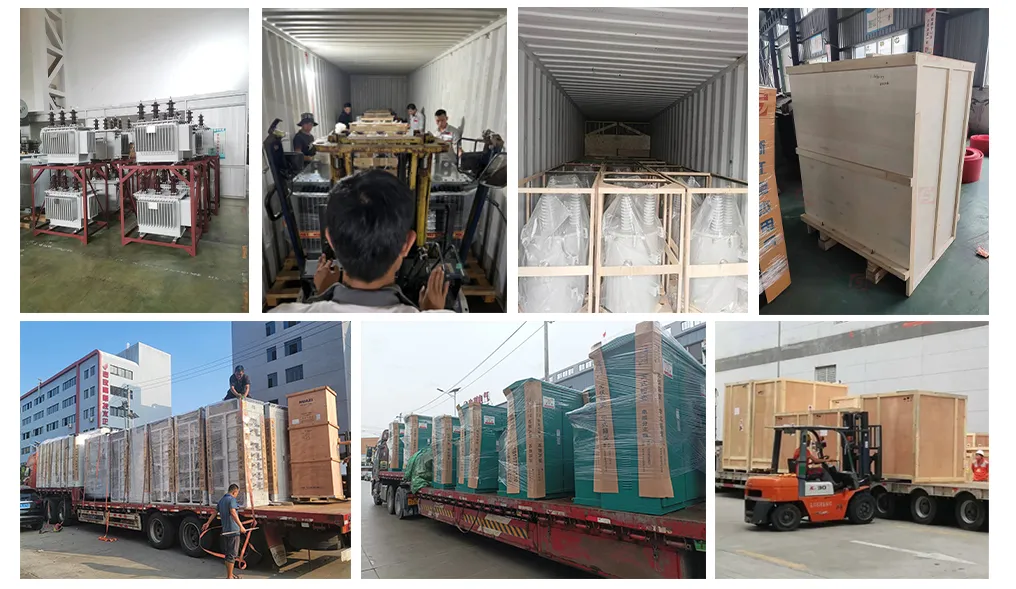

Packaging
Shipping
❓ Frequently Asked Questions
Are you a trading company or manufacturer?
We are a professional factory with 10 years of experience in high and low voltage switchgears, substations, transformers, and cable distribution equipment.
Do you accept customized services?
Yes, we offer OEM/ODM services. Our technical team can provide customized project designs based on your specific drawings and parameters.
What is your minimum order quantity (MOQ)?
Our MOQ is 1 piece, allowing for flexibility in project requirements.
How long is the delivery lead time?
Delivery depends on product specifications and quantity, but generally ranges between 5 to 10 working days.
How do you handle quality control?
Our technical and quality testing departments analyze any reported issues. We aim to provide a satisfactory solution within 2 working days.
What are your payment terms?
Standard terms are 30% T/T in advance and 70% before shipment. We also accept L/C and West Union.
