Customization: Available
Application: Power, Electronic, Instrument, Lighting, Rectifier, Audio
Phase: Three
Send Inquiry

Product Description

📋 Basic Information
Model NO.
S11
Core
Core-type Transformer
Cooling Method
Oil-immersed Type
Winding Type
Separated Winding
Certification
ISO9001, CCC
Frequency
Power Frequency
Core Shape
Ring
Insulated Grade
A
Capability
30kVA-20,000kVA
Connection
Dyn11 / Yyn0
🔍 Product Description

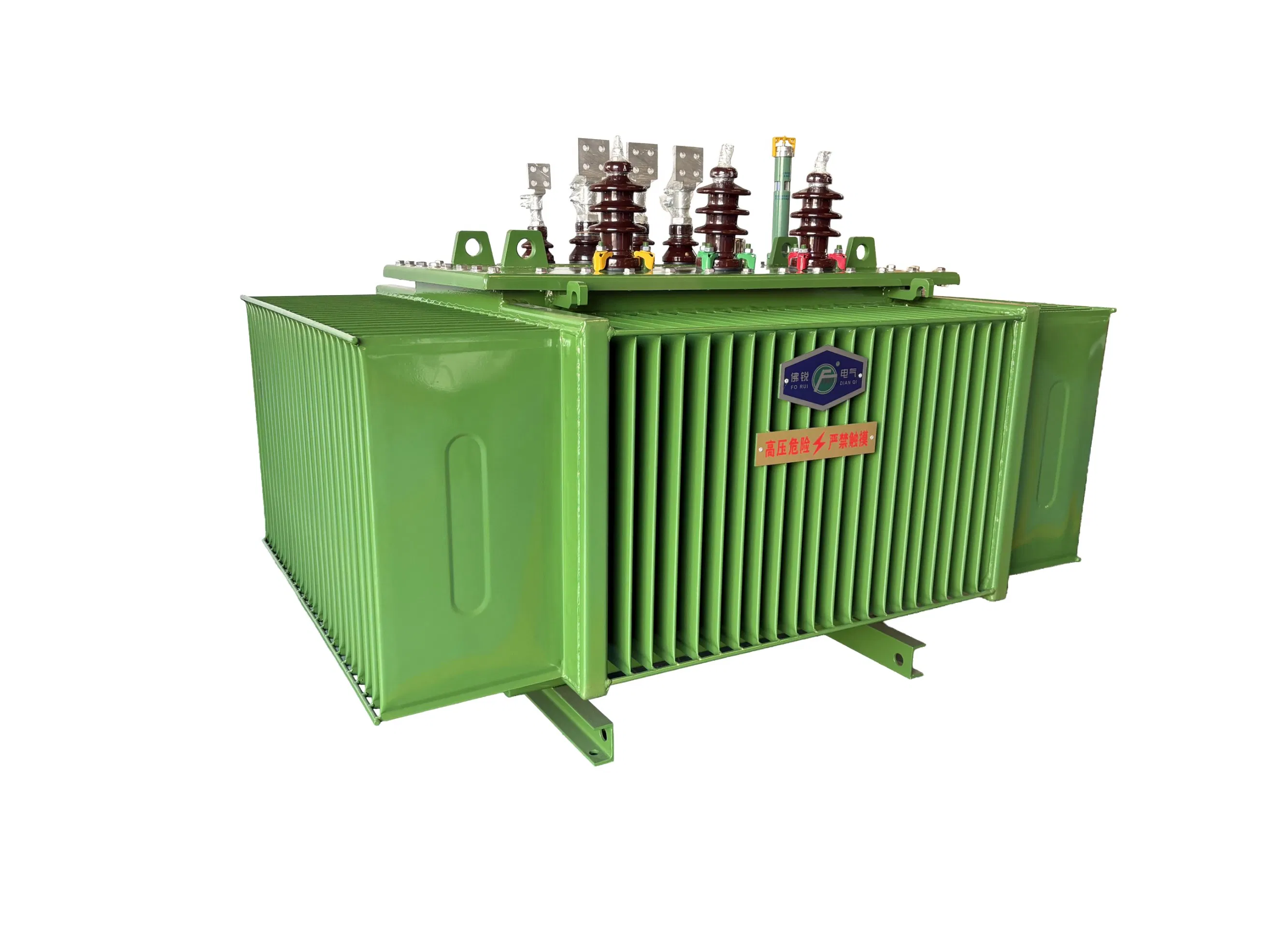

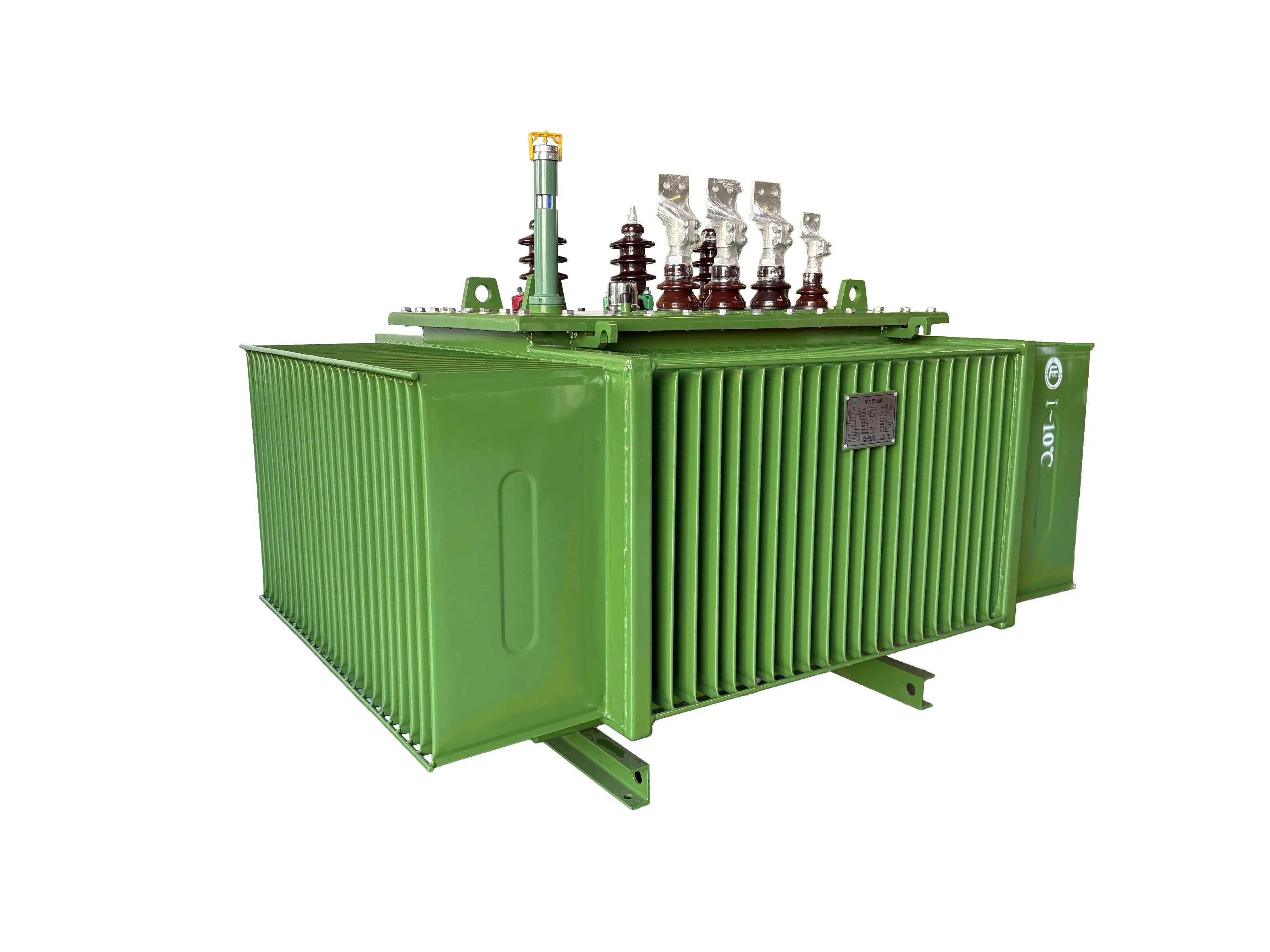

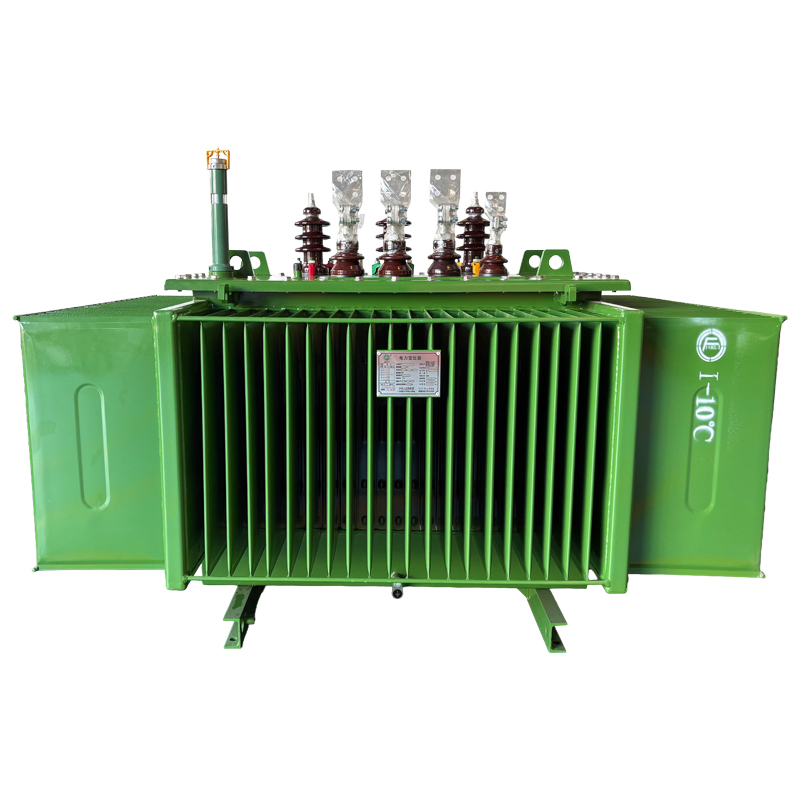

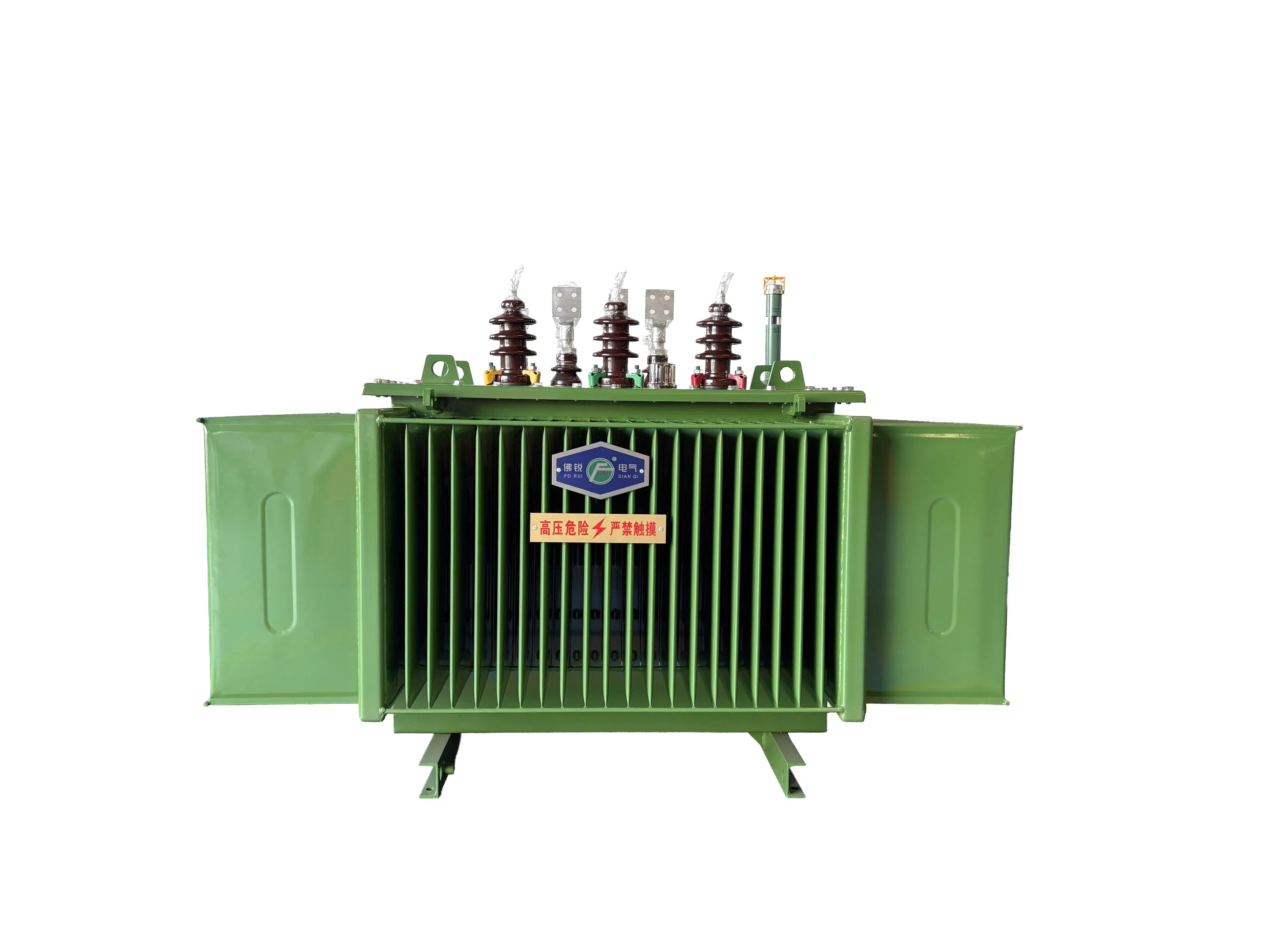

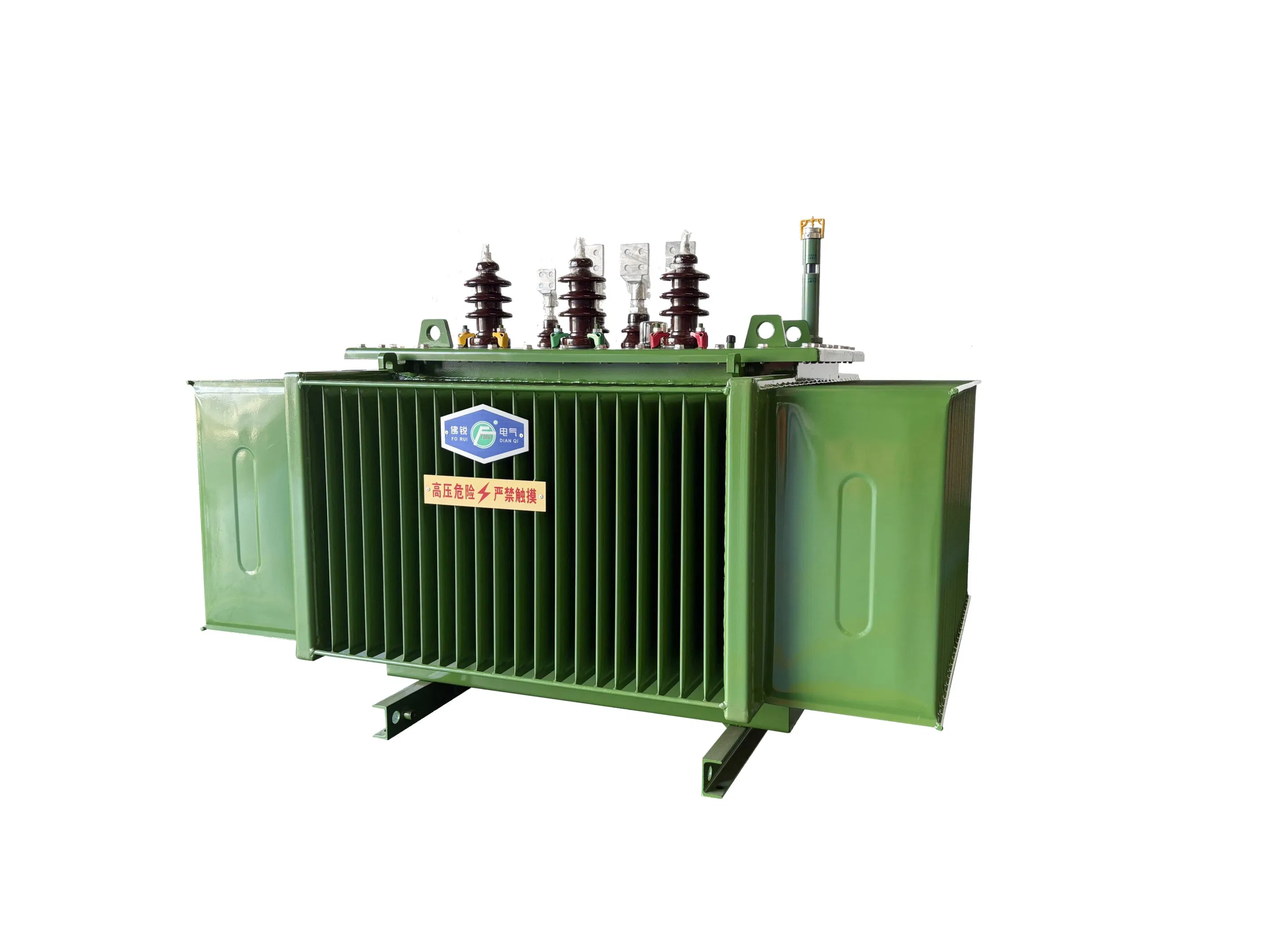

Transformer Overview
The S11 series is a high-performance product developed through extensive R&D. It features a compact structure, aesthetic appearance, and small volume. Engineered for efficiency, it offers low temperature rise and minimal noise, with strong load capacity. The no-load loss is reduced by more than 30% compared to the S9 series, and no-load current is decreased by 45%-80%.
S11 Series Detail
Transformer Features
✔
Eco-Friendly Design
Low no-load loss and small no-load current make it a green energy product.
✔
Space Saving
Without an oil conservator, it maintains a smaller footprint than similar models.
✔
Heat Dissipation
Corrugated oil tank provides excellent heat dissipation and compensates for oil volume changes.
✔
Safe Operation
Equipped with a new type oil level indicator to guarantee operational safety.

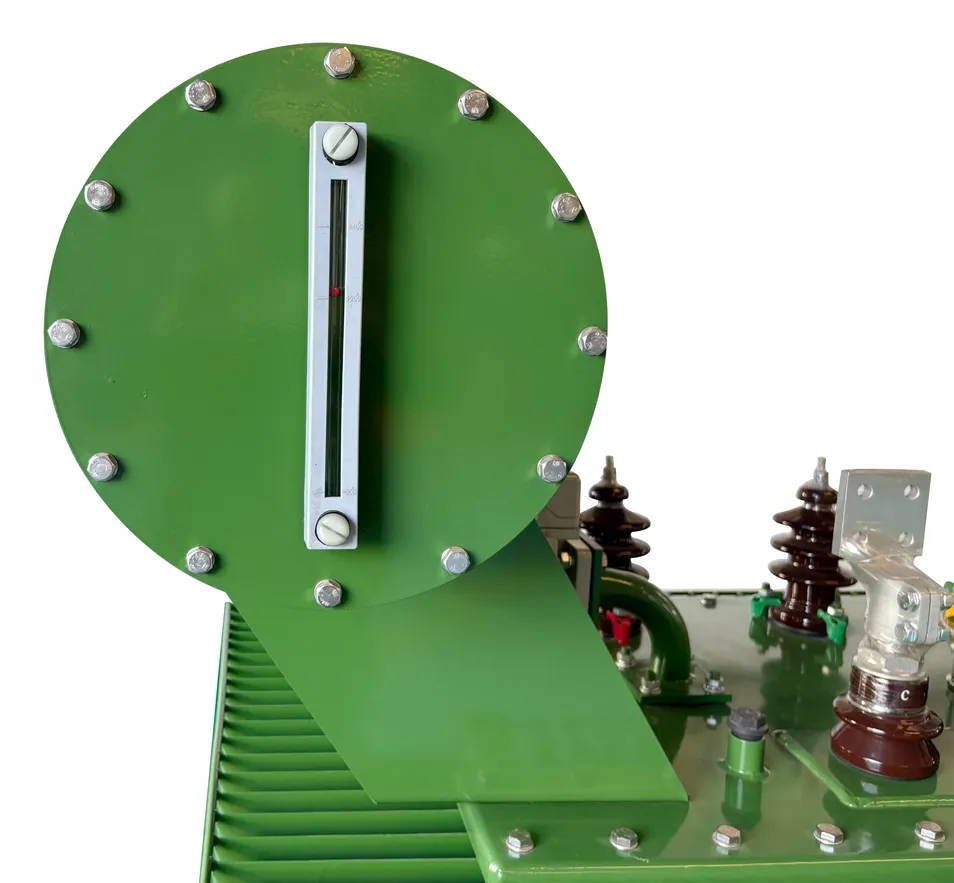

Transformer Structure
Standards: GB1094, GB/T6451, IEC60076 Insulated Level: LI75 AC35/AC5
Capacity Range: 30-20000kVA Insulated Grade: A
Tapping Range: ±2X2.5% Or ±5% Operation Condition: Temp ≤ 40℃, Altitude ≤ 1000m
Voltage Regulation: Non-Excitation Cooling Way: ONAN
📦 Main Products
Product Range
🏭 Company Profile

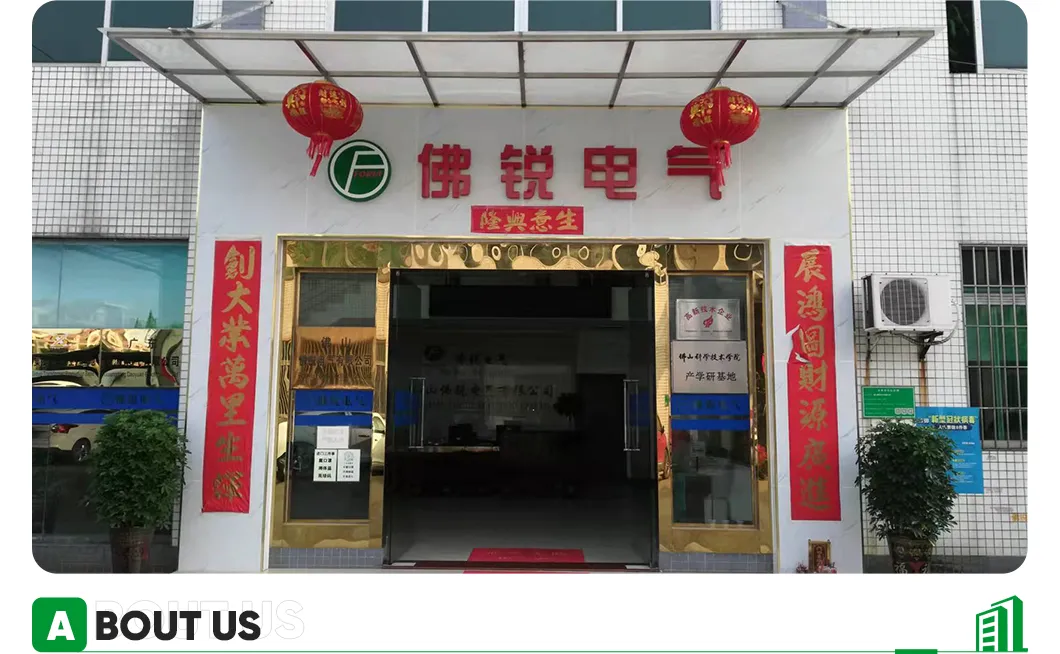

Factory Overview
Established in 2007, the company is a national high-tech enterprise specializing in research, development, production, and service. With an annual production capacity of 5 million KVA for dry-type and oil-immersed transformers, the product range includes underground transformers, rectifier transformers, prefabricated substations, and wind power/photovoltaic transformers. Our solutions have powered major national and municipal projects including international sports villages, airports, and large-scale real estate developments.

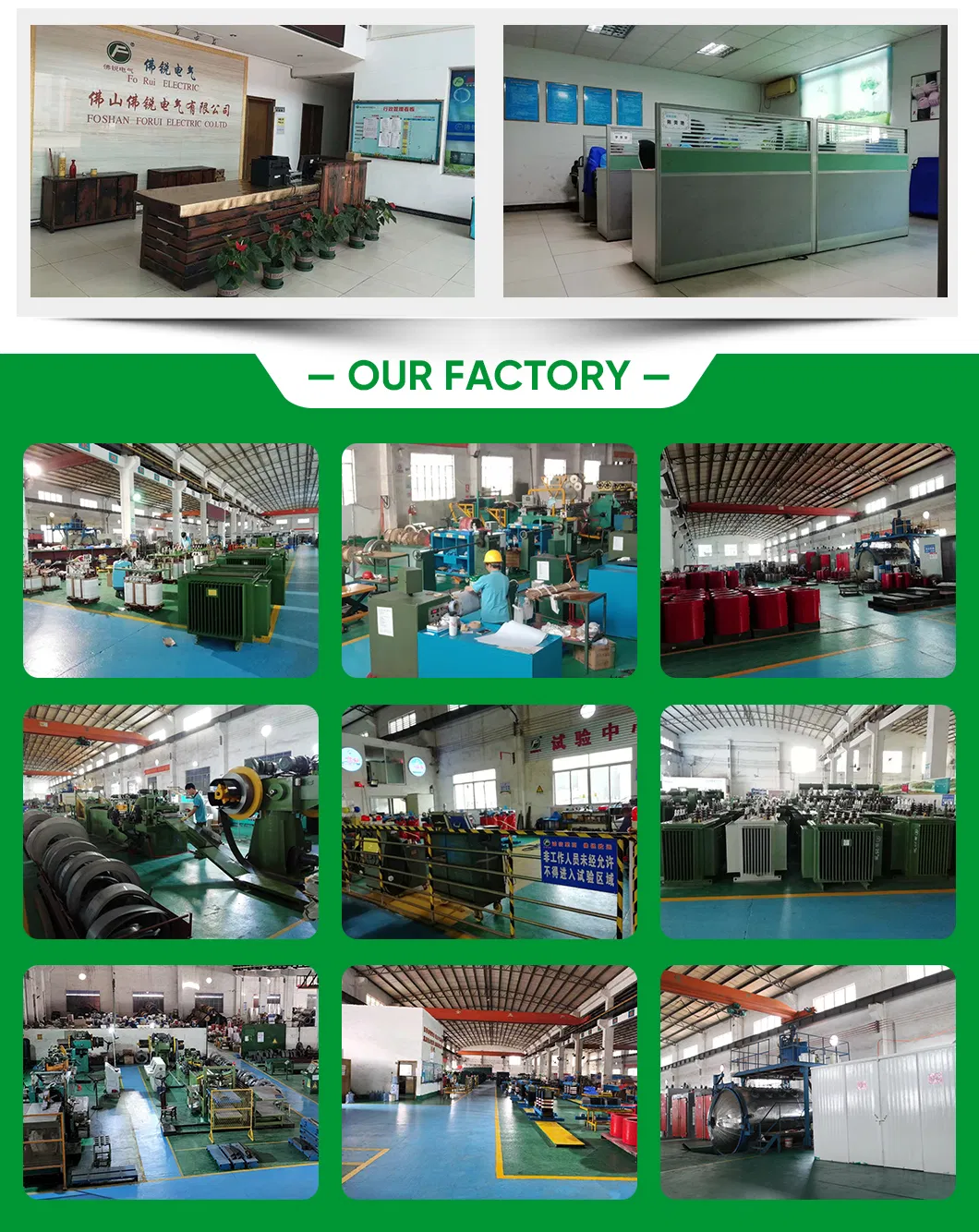

Production Line
🎖 Advantages & Certifications
Advantage
Certifications
🚢 Exhibition & Logistics
Exhibition
Packaging
❓ Frequently Asked Questions
💡 Are you a manufacturer or a trading company?
We are a professional manufacturer with over 10 years of experience in the research, development, and production of transformers.
💡 What is the typical production time for an order?
Production usually takes between 30 to 45 days, depending on the specific order requirements and technical specifications.
💡 What are your standard payment terms?
We accept T/T, L/C, or other terms through negotiation to ensure a smooth transaction.
💡 Do you keep products in stock?
Normally, we do not keep stock as all products are manufactured based on specific customer requirements and order quantities.
💡 What information is needed for a custom transformer quote?
Technical drawings and specification documents are ideal. Alternatively, you can provide key technical data such as capacity, voltage, and tapping range.
💡 What kind of warranty do you provide?
We offer a 1-year quality warranty on all products, provided they are used correctly according to technical guidelines.
