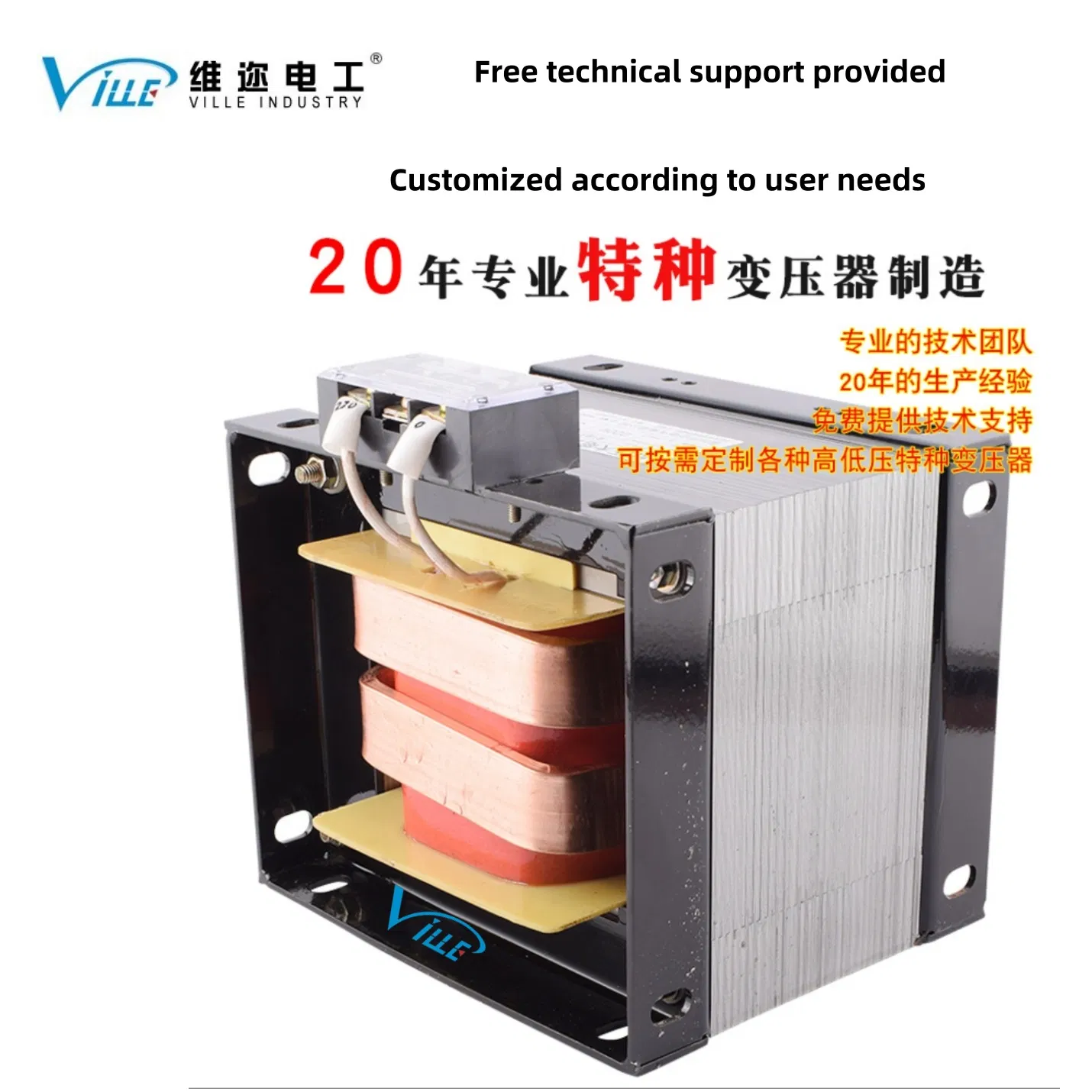

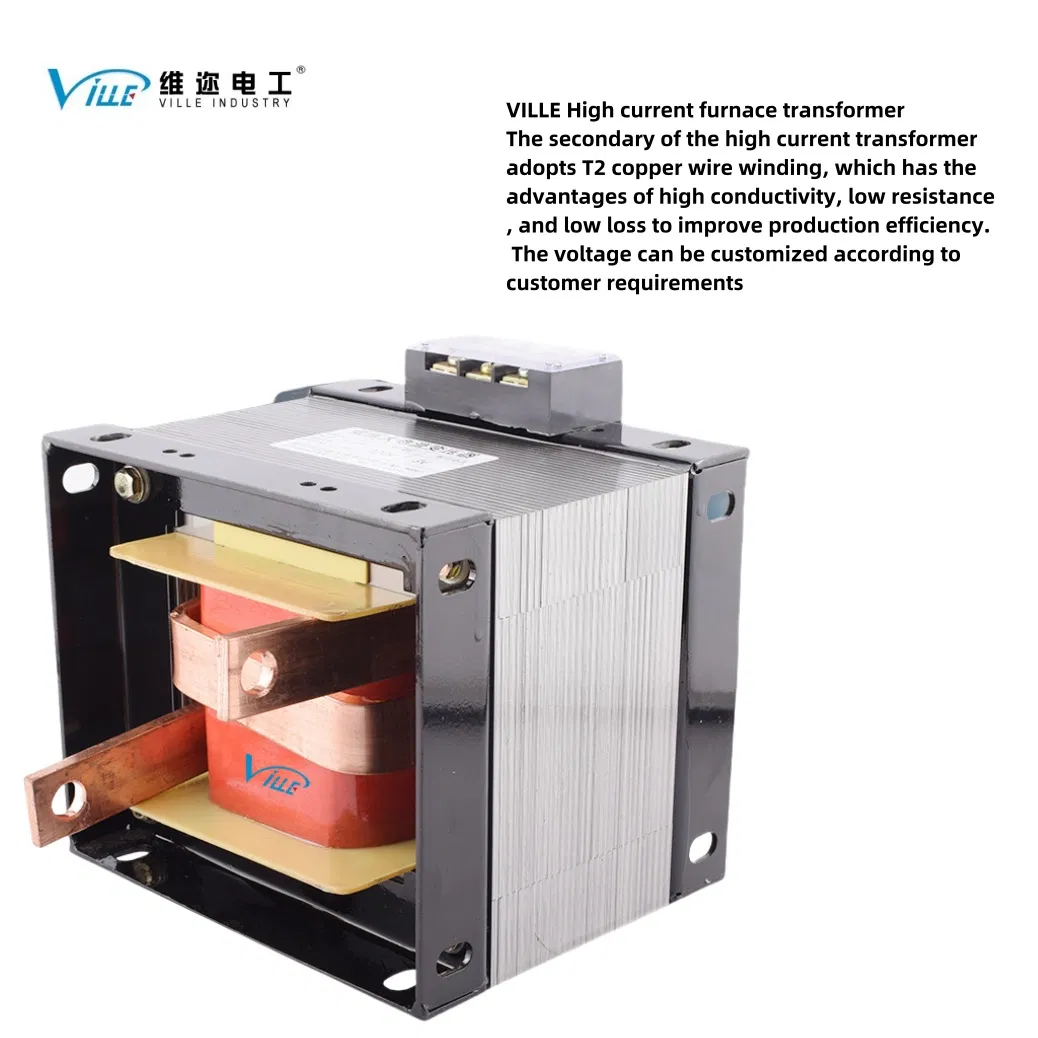

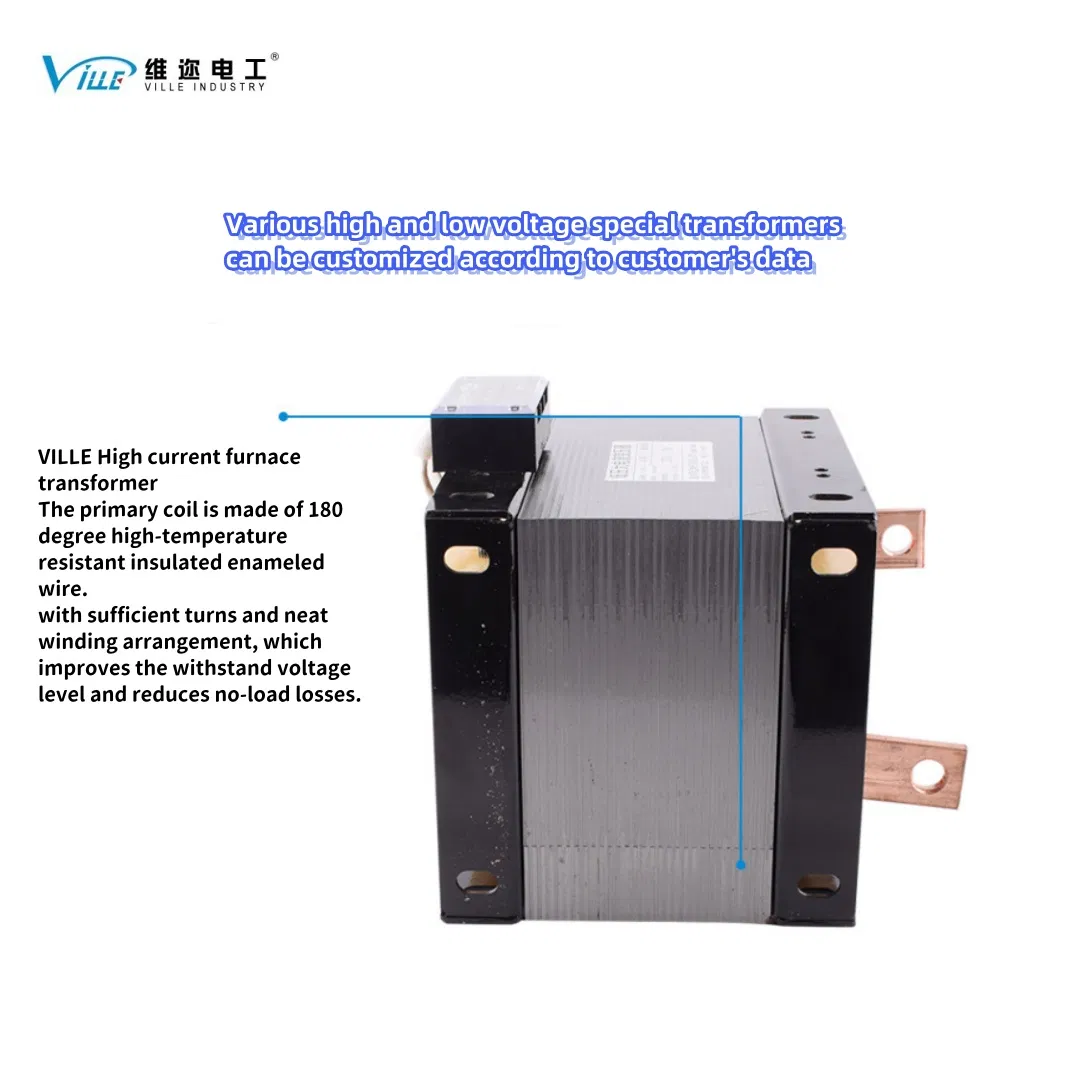

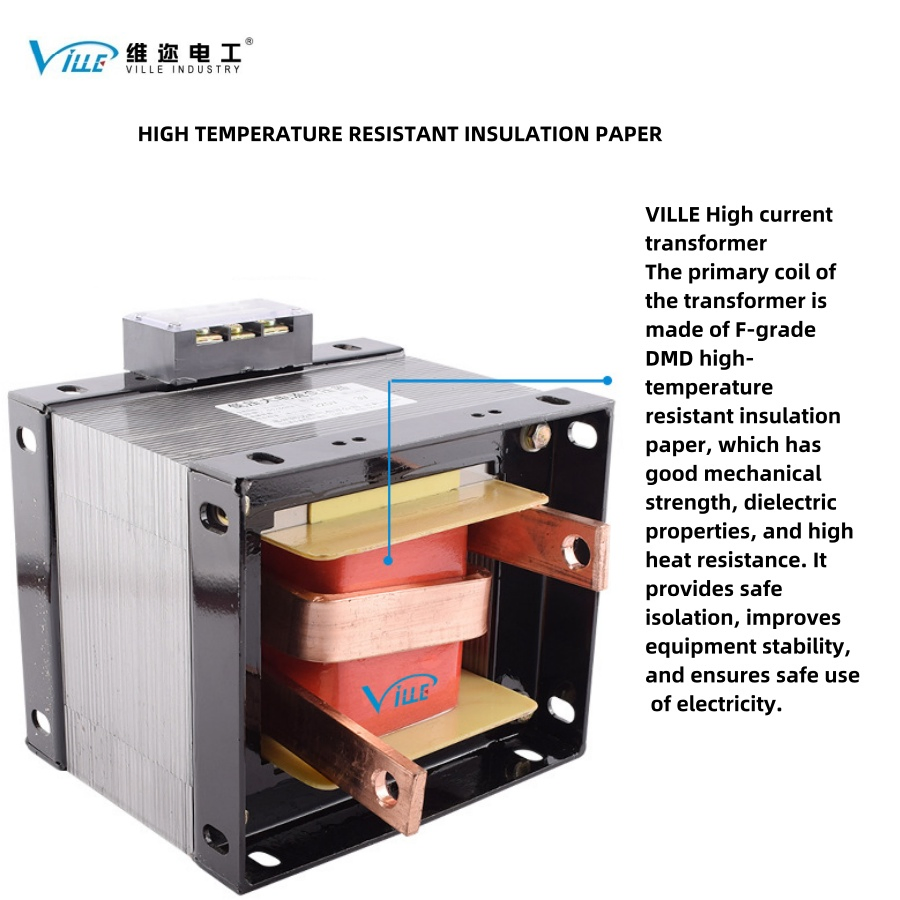

Silicon Molybdenum Rod Heating Transformer Dry Electric Furnace Transformer, 6kVA-3150kVA Voltage Customization
Silicon Molybdenum Rod Heating Transformer Dry Electric Furnace Transformer, 6kVA-3150kVA Voltage Customization
Silicon Molybdenum Rod Heating Transformer Dry Electric Furnace Transformer, 6kVA-3150kVA Voltage Customization
Silicon Molybdenum Rod Heating Transformer Dry Electric Furnace Transformer, 6kVA-3150kVA Voltage Customization
Silicon Molybdenum Rod Heating Transformer Dry Electric Furnace Transformer, 6kVA-3150kVA Voltage Customization
1 / 5
Silicon Molybdenum Rod Heating Transformer Dry Electric Furnace Transformer, 6kVA-3150kVA Voltage Customization
Silicon Molybdenum Rod Heating Transformer Dry Electric Furnace Transformer, 6kVA-3150kVA Voltage Customization
Silicon Molybdenum Rod Heating Transformer Dry Electric Furnace Transformer, 6kVA-3150kVA Voltage Customization
Silicon Molybdenum Rod Heating Transformer Dry Electric Furnace Transformer, 6kVA-3150kVA Voltage Customization
Silicon Molybdenum Rod Heating Transformer Dry Electric Furnace Transformer, 6kVA-3150kVA Voltage Customization

Silicon Molybdenum Rod Heating Transformer Dry Electric Furnace Transformer, 6kVA-3150kVA Voltage Customization

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋 Basic Information
Model NO.
Heating Transformer
Core
Core-type Transformer
Cooling Method
Dry-type Transformer
Winding Type
Two-winding Transformer
Certification
ISO9001-2000
Frequency
Power Frequency
Shape of Core
Ring
Type
Dry Type
Power Supply
1500V
HS Code
85
📦 Packaging & Delivery
Package Size
51.00cm * 39.00cm * 59.00cm
Gross Weight
33.000kg
Transport
Wooden Box
⚡ Product Description
Silicon molybdenum rod heating transformer, heating equipment transformer, dry electric furnace transformer, 6KVA-3150kva voltage support customization
Input rated voltage: single-phase 380V (customizable) Waveform distortion: No waveform distortion
Output rated voltage: 220V (customizable) High voltage test: 2500V without breakdown (1 min)
Working frequency: 50Hz-60Hz Insulation resistance: > 50MΩ
Efficiency: ≥95% Load performance: 2x rated current (1 min)
Allowable temp rise: 135° Design life: 20 years
📷 Detailed Photos

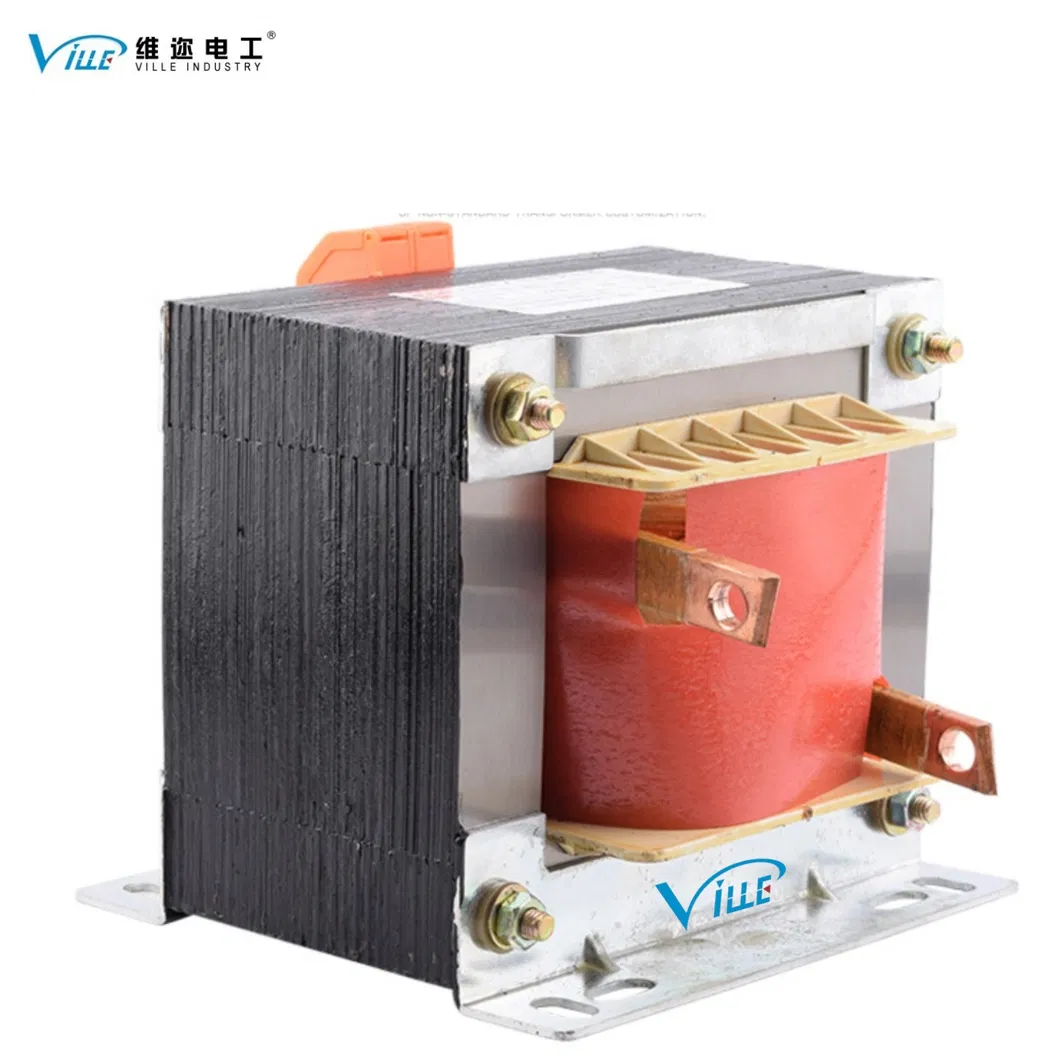

Heating Transformer 1
Heating Transformer 2
Heating Transformer 3
Heating Transformer 4

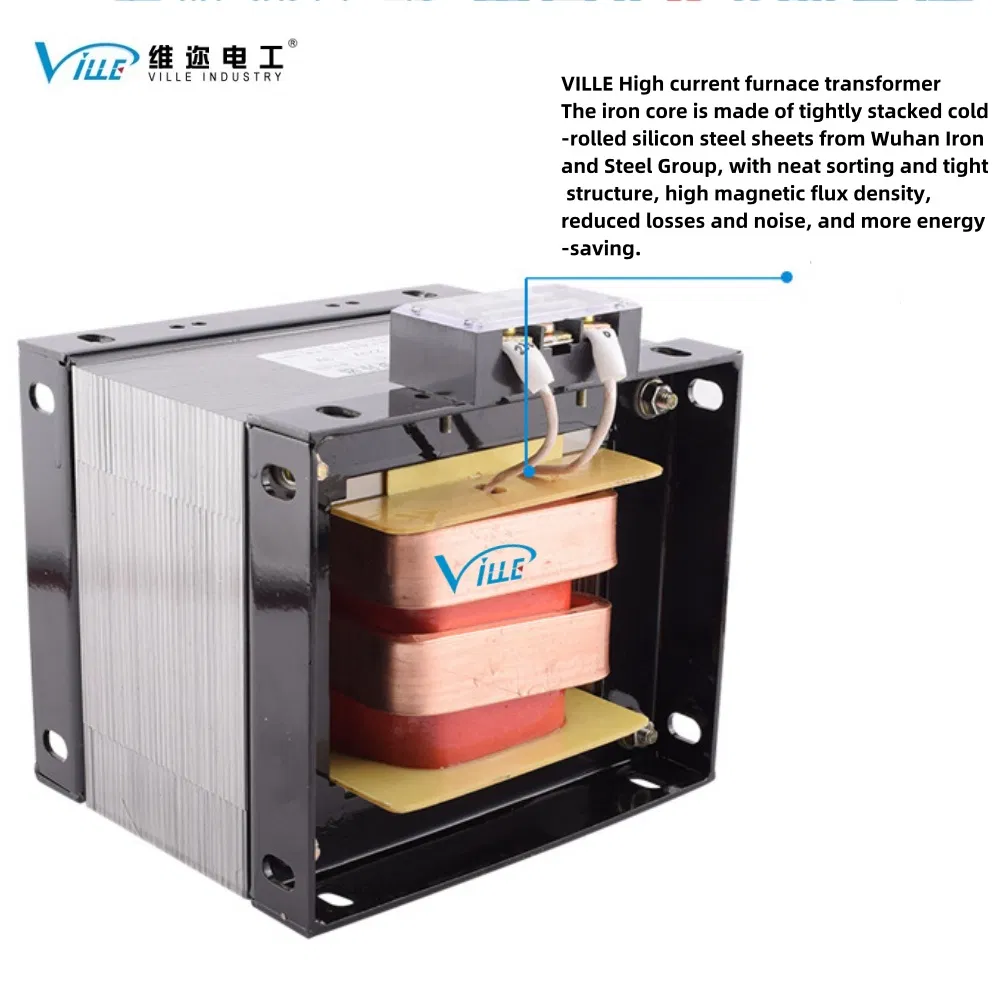

Heating Transformer 5
Heating Transformer 6
🛠️ Scope of Application
Low voltage high current transformers are widely used in various industries including:
✔ Chemical & Smelting
✔ Short-circuit current rise
✔ Heating & Annealing spot welding
✔ Temperature rise testing
✔ Electroplating & Coating
✔ Stainless steel wire drawing
⭐ Our Advantages
  • 🔹
    Premium Materials: New cold-rolled oriented silicon steel sheets and H-class 180° temperature-resistant enameled wire.
  • 🔹
    Advanced Process: Vacuum varnish and oven drying effectively reduce vibration and noise during operation.
  • 🔹
    Efficient Cooling: Primary secondary air duct design ensures smooth airflow and rapid temperature reduction.
  • 🔹
    Energy Saving: Incorporates high-temperature-resistant insulating materials for quieter, more efficient performance.

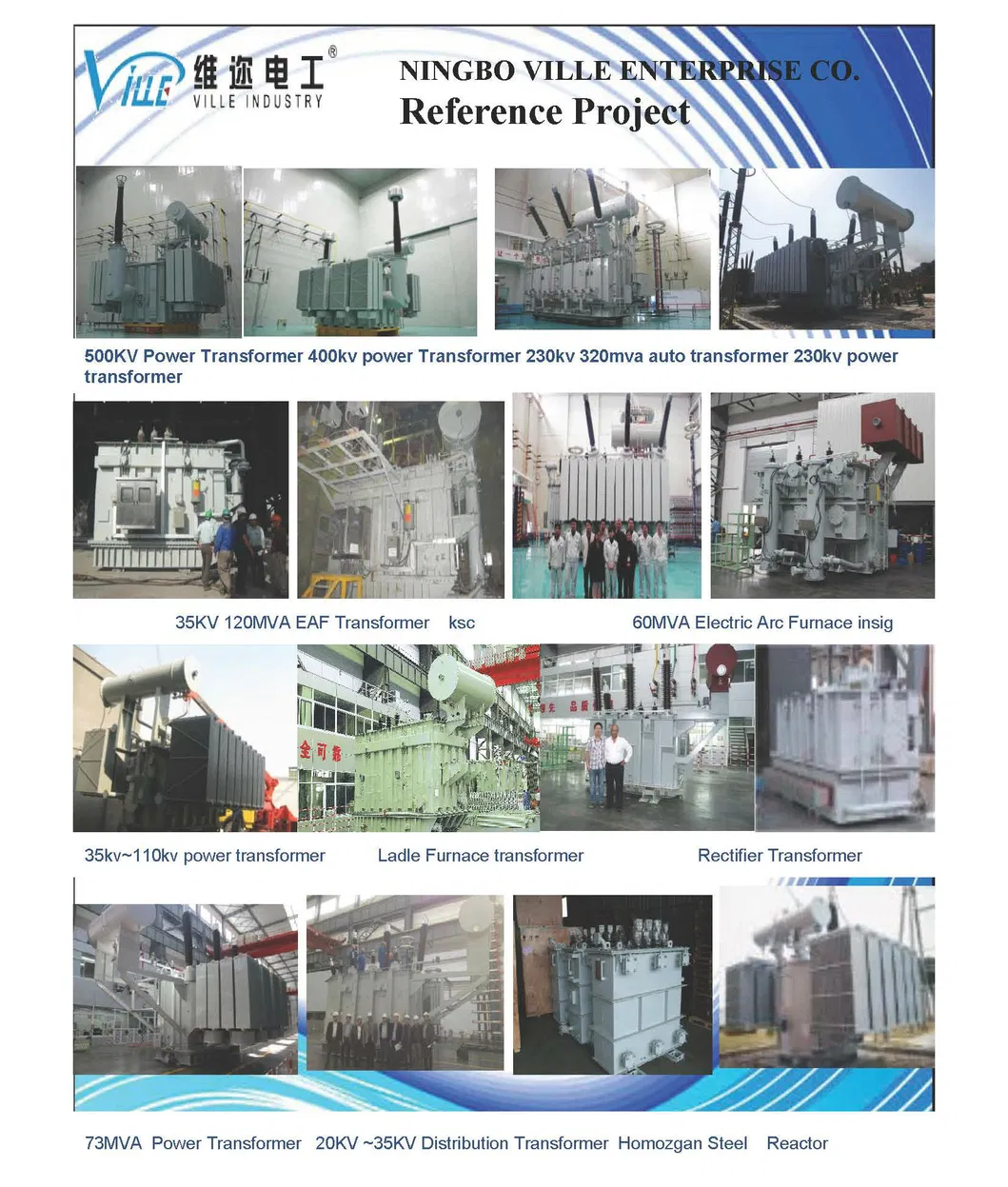

Processing Equipment
Production Line
Testing Center
❓ Frequently Asked Questions
What is the power range available for these transformers?
We provide a wide range of power capacities from 6KVA up to 3150KVA to suit various industrial heating requirements.
Can the input and output voltages be customized?
Yes, while standard input is single-phase 380V and output is 220V, we can customize various voltage specifications based on your specific needs.
What is the expected design life of the transformer?
Our transformers are engineered for durability with a design life of approximately 20 years under standard operating conditions.
How does the transformer handle temperature rise?
The unit uses H-class 180° temperature-resistant materials and features a specialized air duct design for efficient cooling, allowing for a temperature rise of up to 135°.
Are these transformers noisy during operation?
No, we use new cold-rolled oriented silicon steel and vacuum varnish processes to effectively minimize vibration and noise, ensuring a quiet working environment.
What certifications do your products hold?
Our production processes and products are certified under ISO9001-2000 quality management standards.
