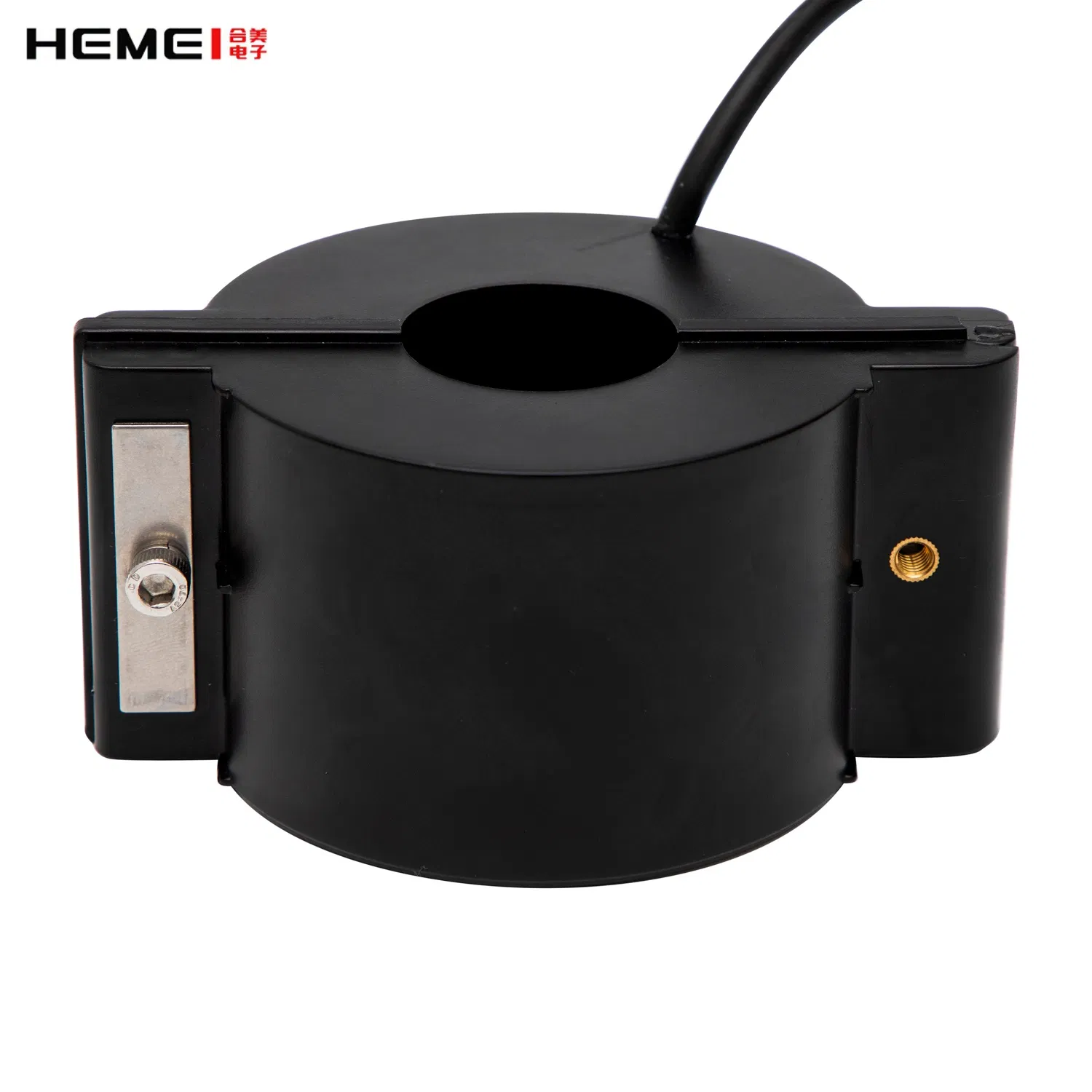

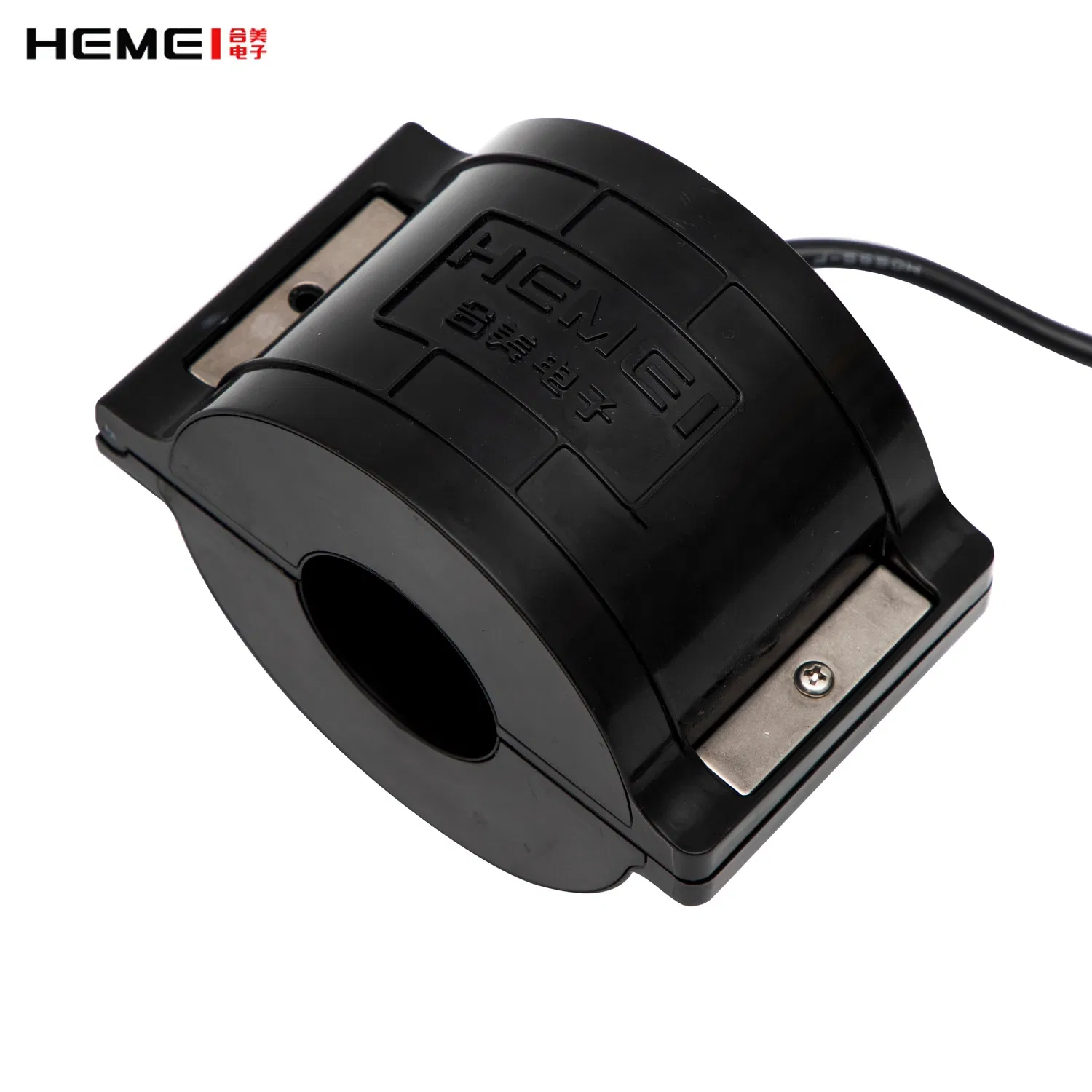

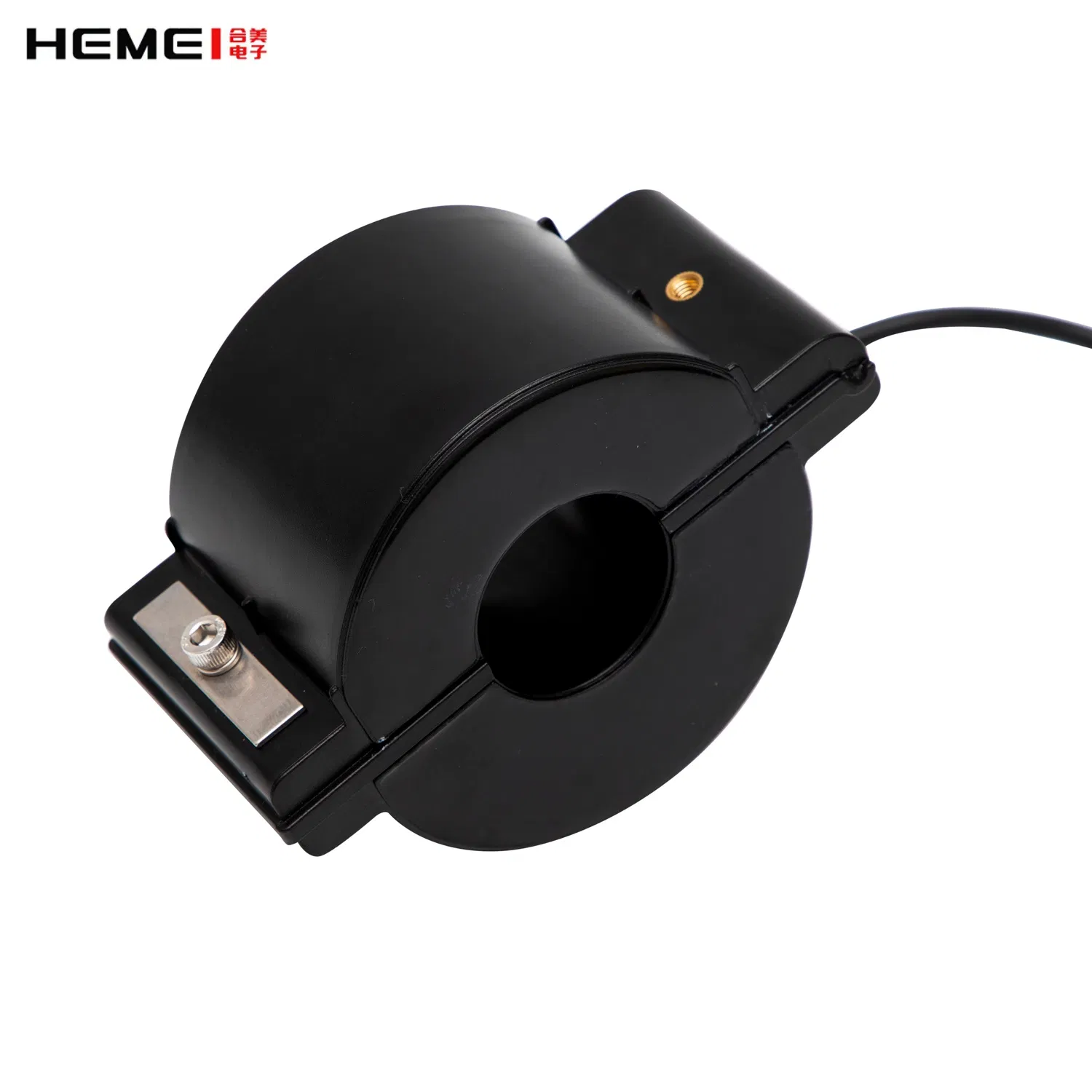

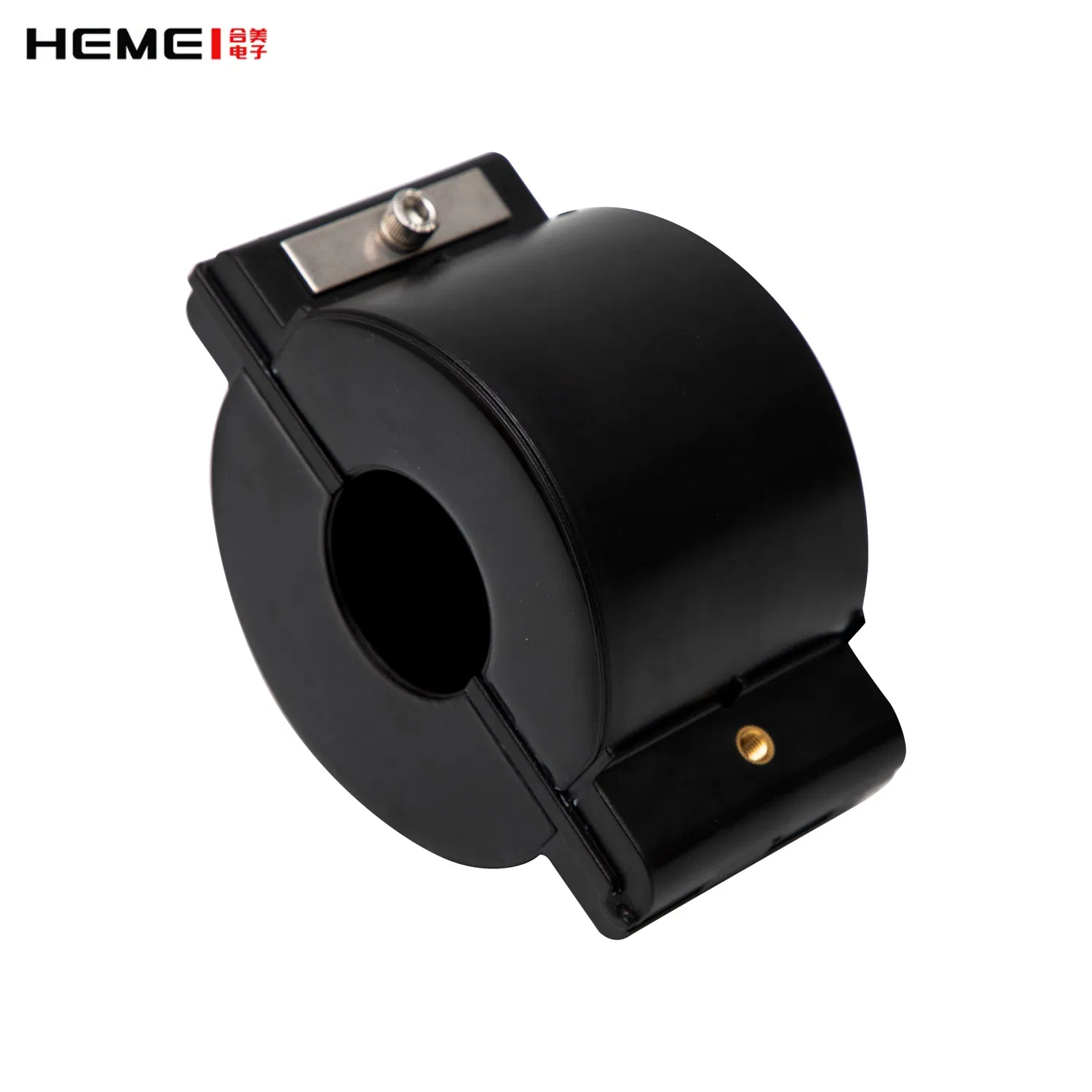

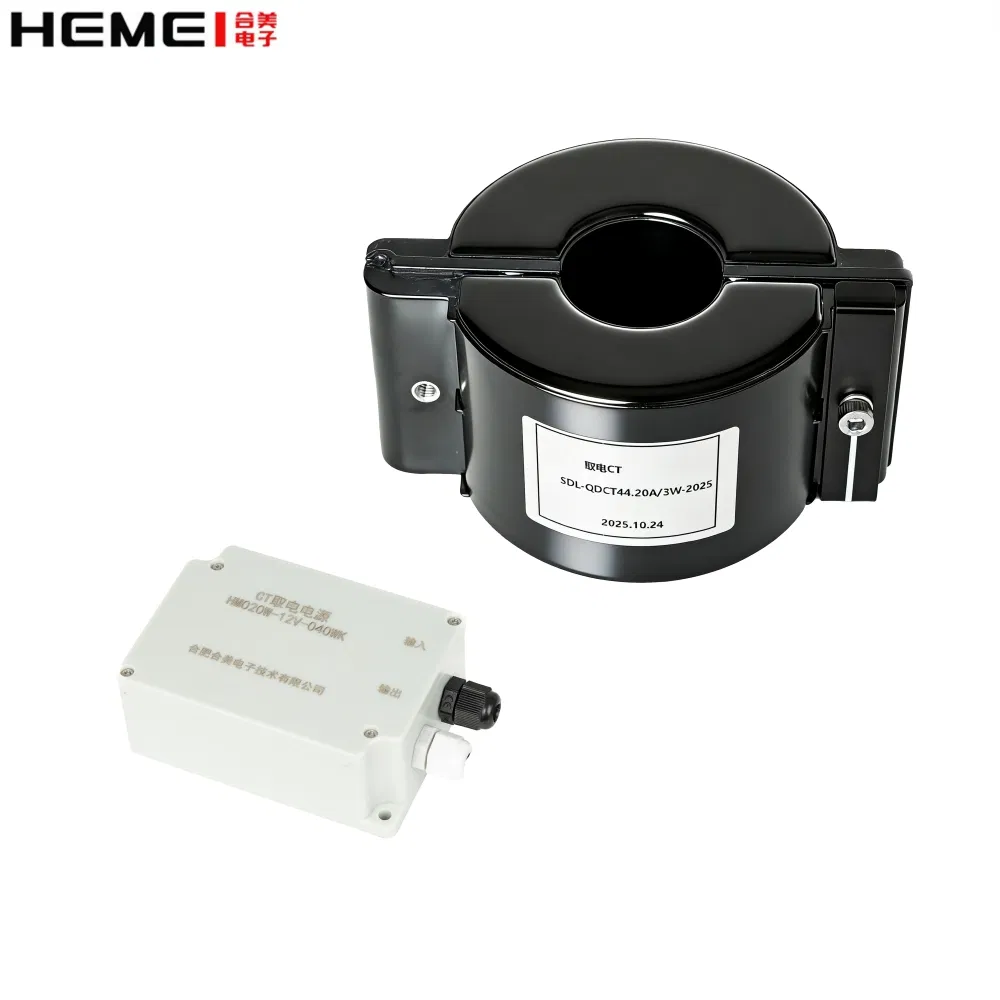

Split Core CT Silicon Steel Core Current Transformer Power Harvesting Device
Split Core CT Silicon Steel Core Current Transformer Power Harvesting Device
Split Core CT Silicon Steel Core Current Transformer Power Harvesting Device
Split Core CT Silicon Steel Core Current Transformer Power Harvesting Device
Split Core CT Silicon Steel Core Current Transformer Power Harvesting Device
1 / 5
Split Core CT Silicon Steel Core Current Transformer Power Harvesting Device
Split Core CT Silicon Steel Core Current Transformer Power Harvesting Device
Split Core CT Silicon Steel Core Current Transformer Power Harvesting Device
Split Core CT Silicon Steel Core Current Transformer Power Harvesting Device
Split Core CT Silicon Steel Core Current Transformer Power Harvesting Device

Split Core CT Silicon Steel Core Current Transformer Power Harvesting Device

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
HMGP45
Phase
Single
Operation Condition
Outdoor
Usage
Protection, Measurement, Supply Power
Winding Form
Single Layer & Tightly Wound Type
Insulating Medium
Epoxy Resin
Installation
Active Type
Magnetic Circuit Structure
Single Stage Type
Voltage Transformation
Electromagnetic Type
Core Material
Permalloy
Primary Input
30A
Output Power
5W
Turns Ratio
2000t
Voltage Range
5~550kv
Accuracy
0.2/0.5
Continuous Current
1250A
Product Description
Power Supply Current Transformer
The split harvesting energy current transformer is easy to install and replace, and can provide power to other components.

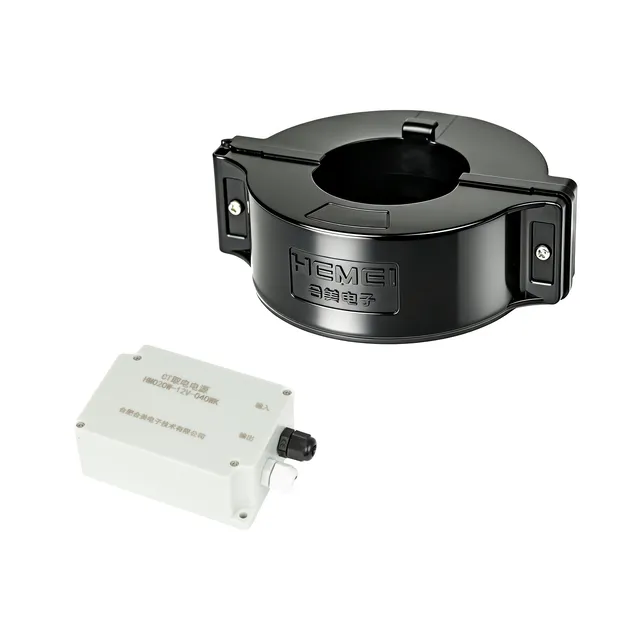

Split Core CT 1

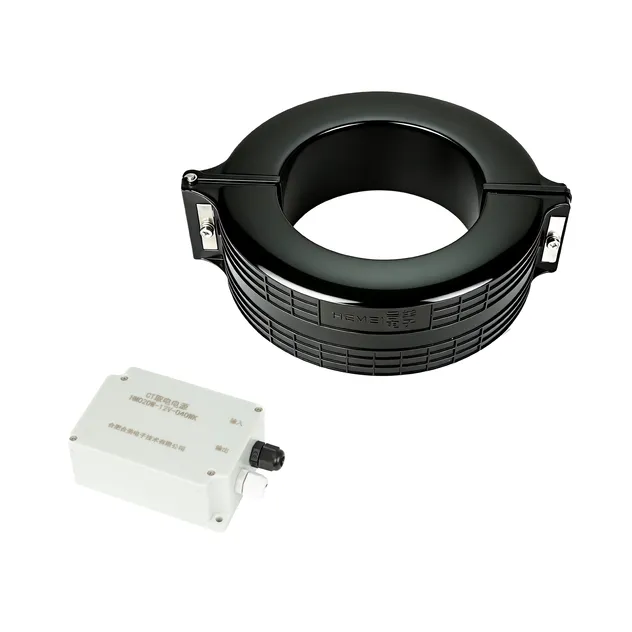

Split Core CT 2

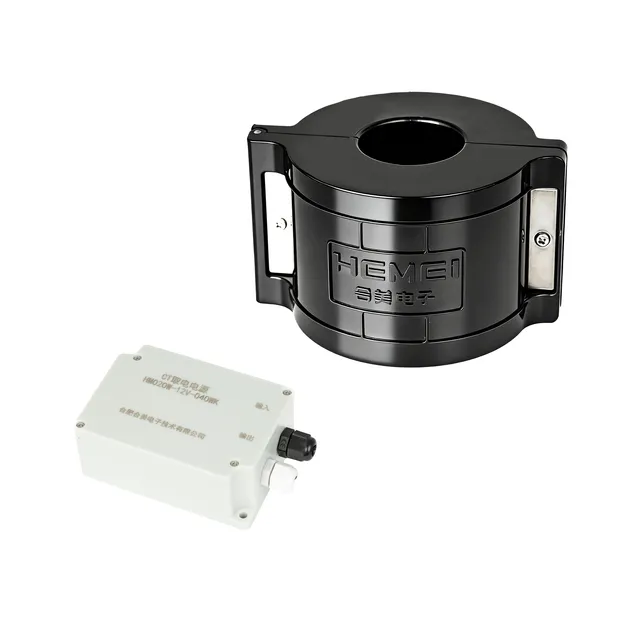

Split Core CT 3
Product Parameters
Harvesting Energy CT (Customizable)
Rated Output Power Rated Output Current Inner Diameter Max Work Current Max Current Waterproof Level Voltage
24mW5A26mm1000A25KA/2sIP675~550KV
100mW10A26mm1000A25KA/2sIP675~550KV
3W20A45mm1250A25KA/2sIP665~550KV
5W30A45mm1250A25KA/2sIP665~550KV
1W20A60mm1250A25KA/2sIP685~550KV
2W30A60mm1250A25KA/2sIP685~550KV
Energy Harvester With Silicon Steel Core
No Specification(mm) Sectional Area(mm²) Input Current(A) Output Power(W) No-load Voltage(V)
155*78*2832220 / 301.3 / 2.438.8 / 46.2
249*77*2535020 / 301.7 / 350.8 / 60
454*86*4064020 / 303.6 / 6.296.2 / 113.8
1053*130*60231020 / 5010 / 34126 / 162

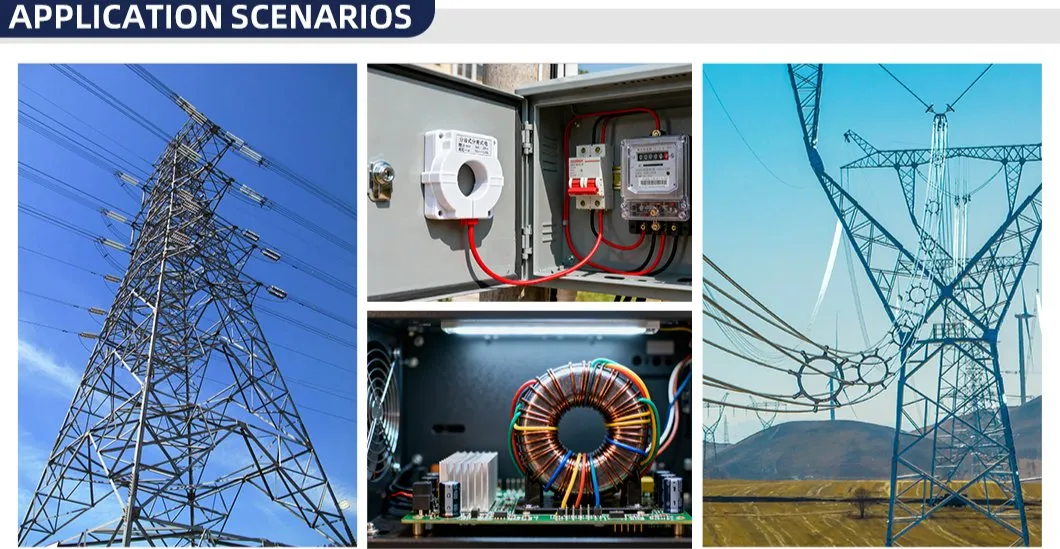

Application Scenarios
Application Scenarios
Main Products

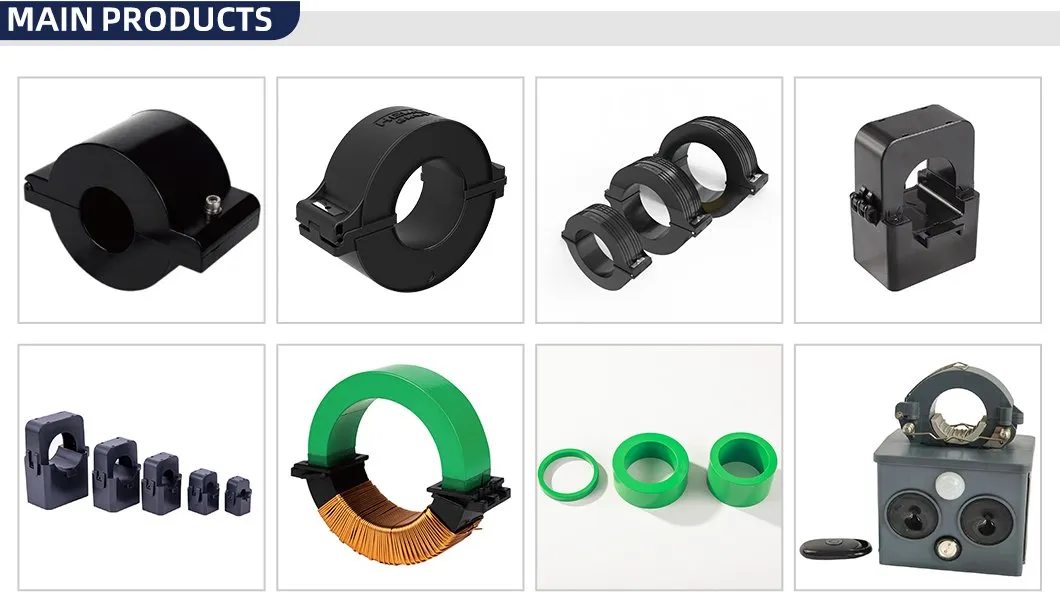

Main Products Range
Manufacturing & Quality
Factory Overview

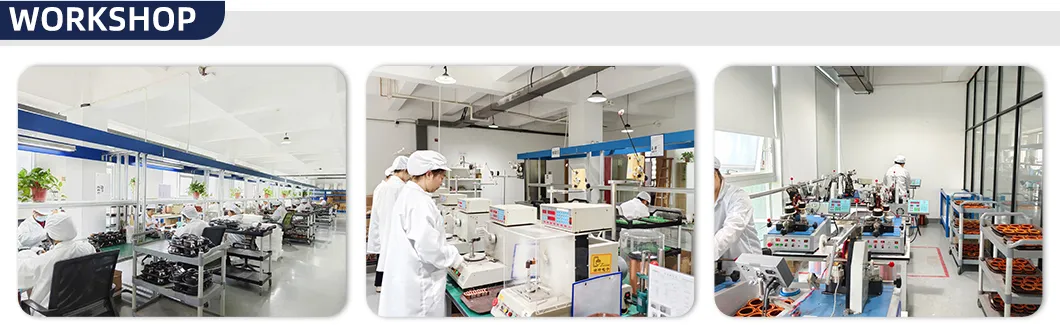

Production Line
Quality Control
Certifications
Certificates
Packaging & Shipping
Package Size
10.00cm * 10.00cm * 10.00cm
Gross Weight
2.000kg
Package Type
Standard Carton
Packaging Details
Frequently Asked Questions
1. Are you a trading company or a manufacturer?
We are a professional manufacturer specializing in current transformers and energy harvesting devices.
2. Can I have a sample order?
Yes, we welcome sample orders to test and check quality. Sample fees and freight costs apply.
3. Do you accept customized products?
Yes. Our R&D department has over 10 years of experience in the electric industry. We offer OEM, ODM, and OPM services to meet specific requirements.
4. What is the typical lead time for an order?
For customized products, the lead time is usually 10-15 working days, depending on the design complexity and quantity.
5. How do you ensure product quality?
Our production follows ISO9001 standards. We conduct performance tests during production and comprehensive quality inspections upon completion.
6. What is the production capacity?
Our facility has a production capacity of approximately 50,000,000 PCS per year.
