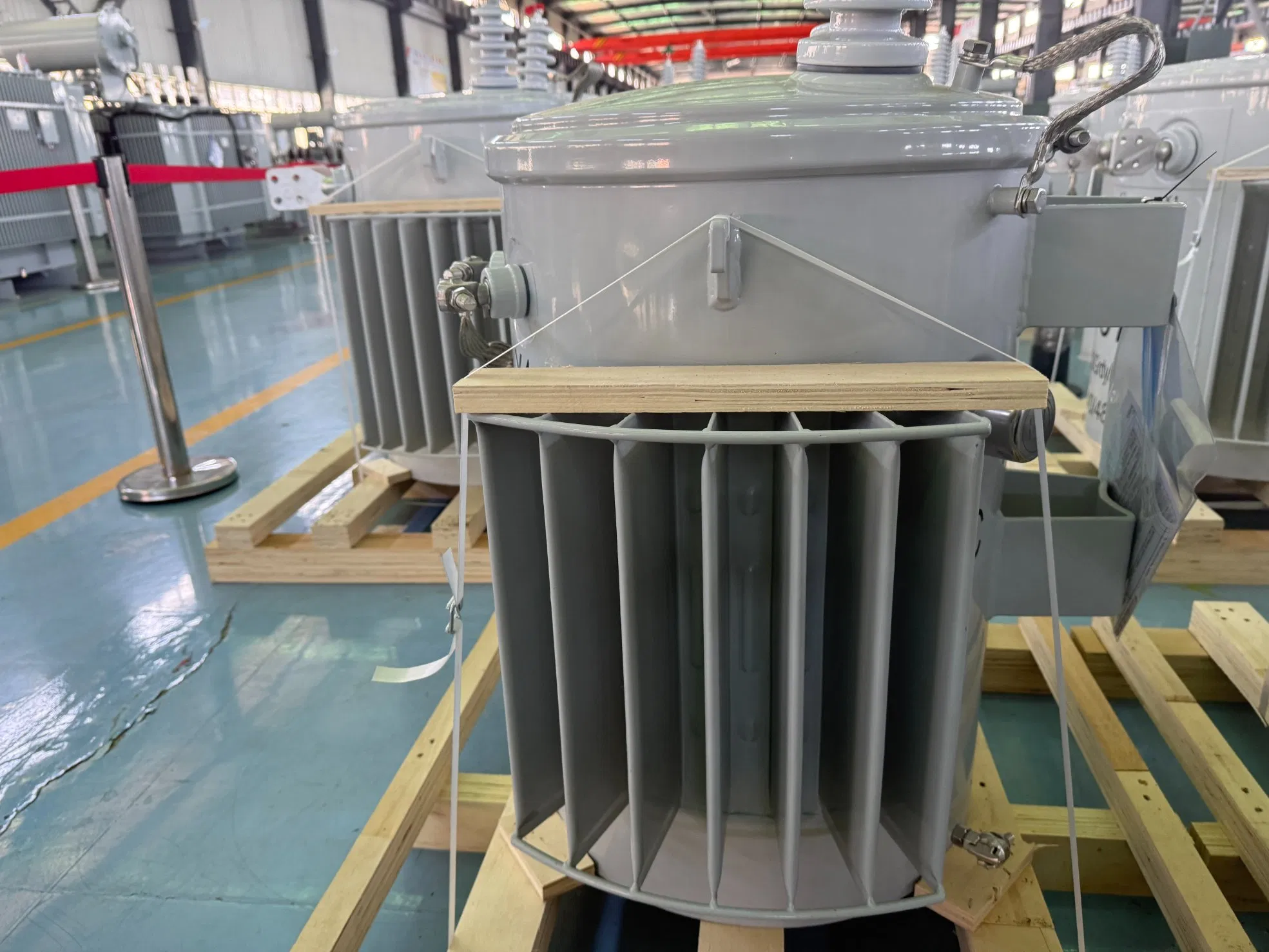

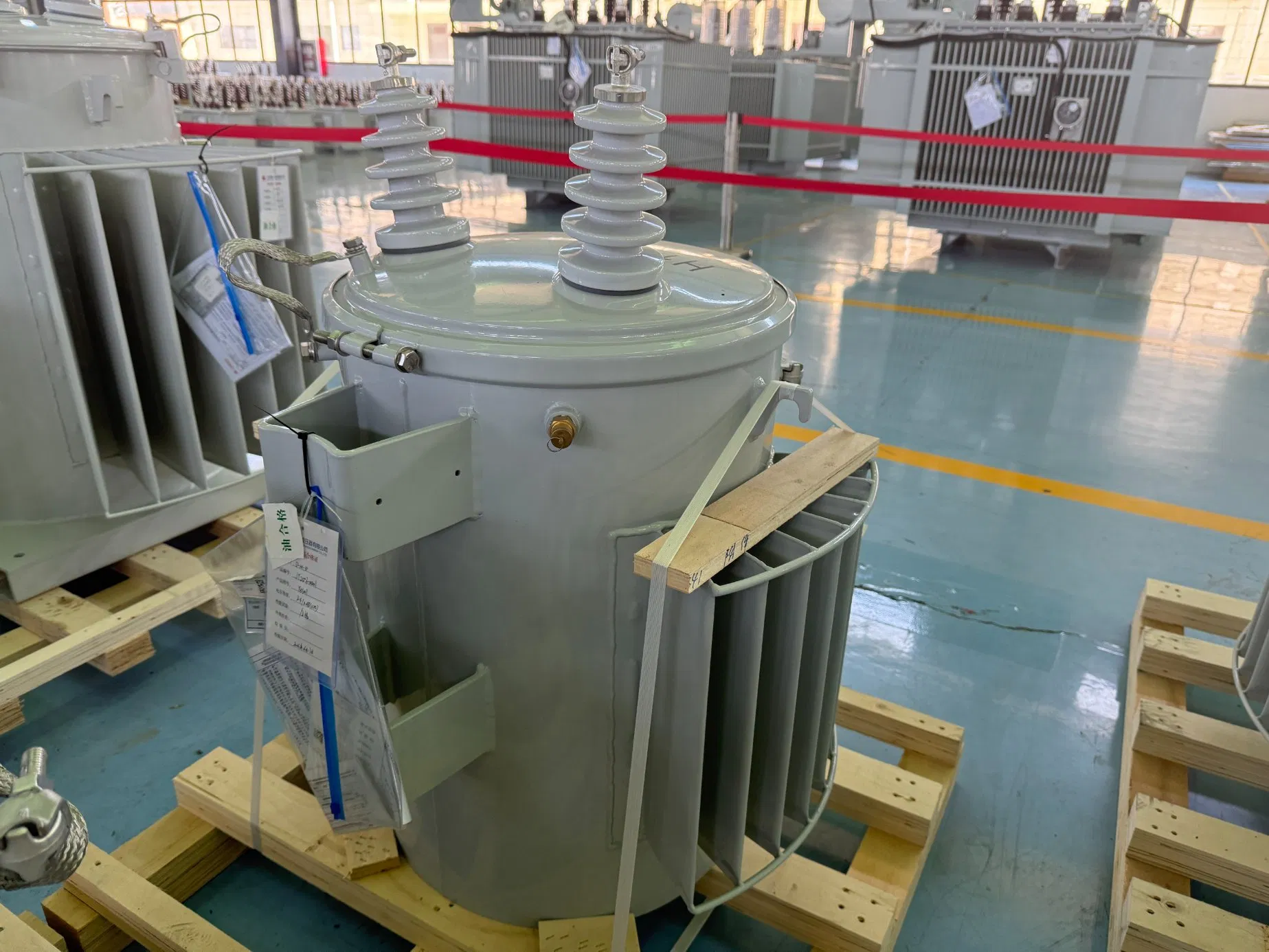

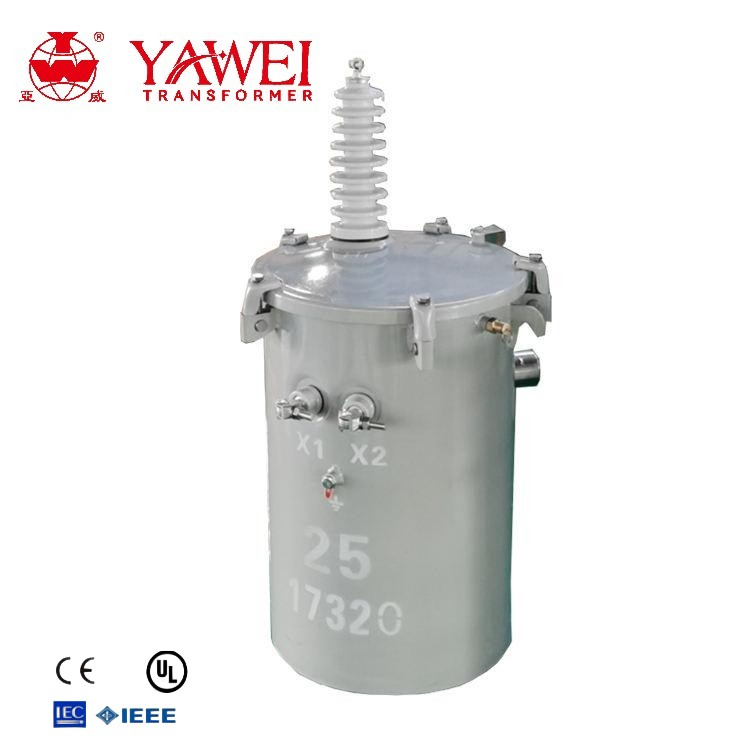

Yawei Customized ANSI 75kVA-50kVA Overhead Pole Mounted Transformer 12470/21600d -240/480y

1 / 5

Yawei Customized ANSI 75kVA-50kVA Overhead Pole Mounted Transformer 12470/21600d -240/480y

Customization:	Available
Application:	Power
Phase:	Single

Send Inquiry

Product Description

■ Basic Product Information

Model NO.

D11

Core

Core-type Transformer

Cooling Method

Oil-immersed Type

Winding Type

Two-winding Transformer

Certification

ISO9001, CCC

Usage

Single-phase, Power Distribution

Shape of Core

Ring

Input Voltage

13.8 / 13.2 kV

Output Voltage

110V-35kV Range

Rated Capacity

10kVA-333kVA

Warranty

2 Years

Winding Material

Copper/Aluminum

■ Product Overview & Description

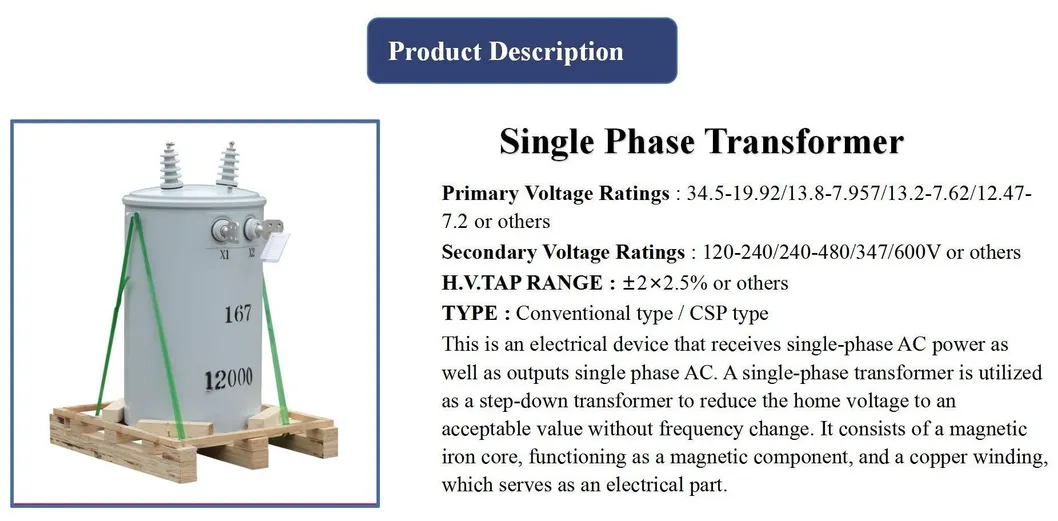

Types of Single-Phase Pole-Mounted Transformers

We provide a wide range of single-phase pole-mounted transformers, also referred to as overhead transformers. The product lineup includes both standard models and advanced Completely Self-Protected (CSP) transformers, designed for maximum efficiency and long-term reliability in power distribution networks.

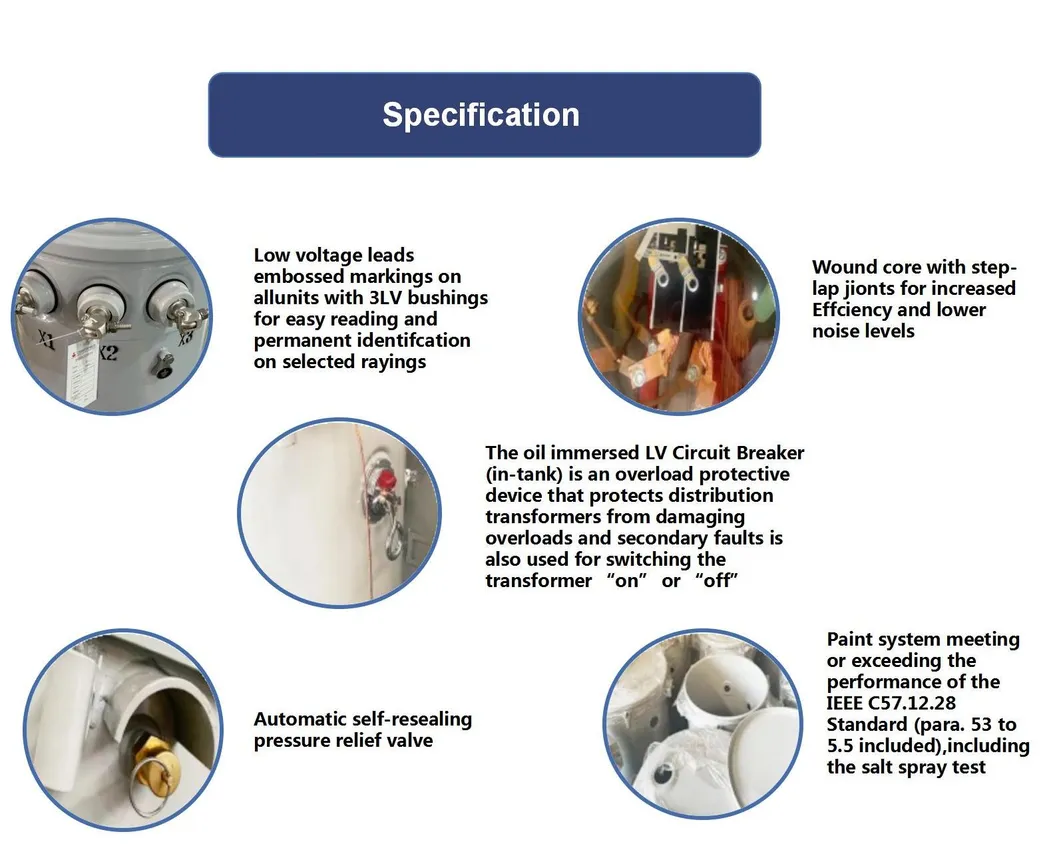

Key Features of the CSP Transformer System:

Built-in surge arrester: Located on the high-voltage side for superior lightning and overvoltage protection.
Integrated circuit breaker: Positioned on the low-voltage side to prevent damage from overloads and short circuits.
Internal protective fuse: Provides an additional layer of safety for the distribution system.

This all-in-one CSP design significantly reduces the need for external protection devices, lowering installation costs and simplifying field setup. It ensures safer operation, easier maintenance, and cost-effective performance for overhead power distribution systems.

■ Technical Parameters (Silicon Steel Core)

Model	Capacity (kVA)	H.V. (V)	L.V. (V)	No-load Loss (W)	On-load Loss (W)	Total Weight (kg)
D11-10	10	Up to 33000	120/240/480	36	120	150
D11-15	15	Up to 33000	120/240/480	50	195	210
D11-25	25	Up to 33000	120/240/480	80	290	258
D11-37.5	37.5	Up to 33000	120/240/480	105	360	340
D11-50	50	Up to 33000	120/240/480	135	500	395
D11-75	75	Up to 33000	120/240/480	190	650	480
D11-100	100	Up to 33000	120/240/480	210	850	530
D11-167	167	Up to 33000	120/240/480	350	1410	680
D11-250	250	Up to 33000	120/240/480	500	2000	990
D11-333	333	Up to 33000	120/240/480	650	2500	1160

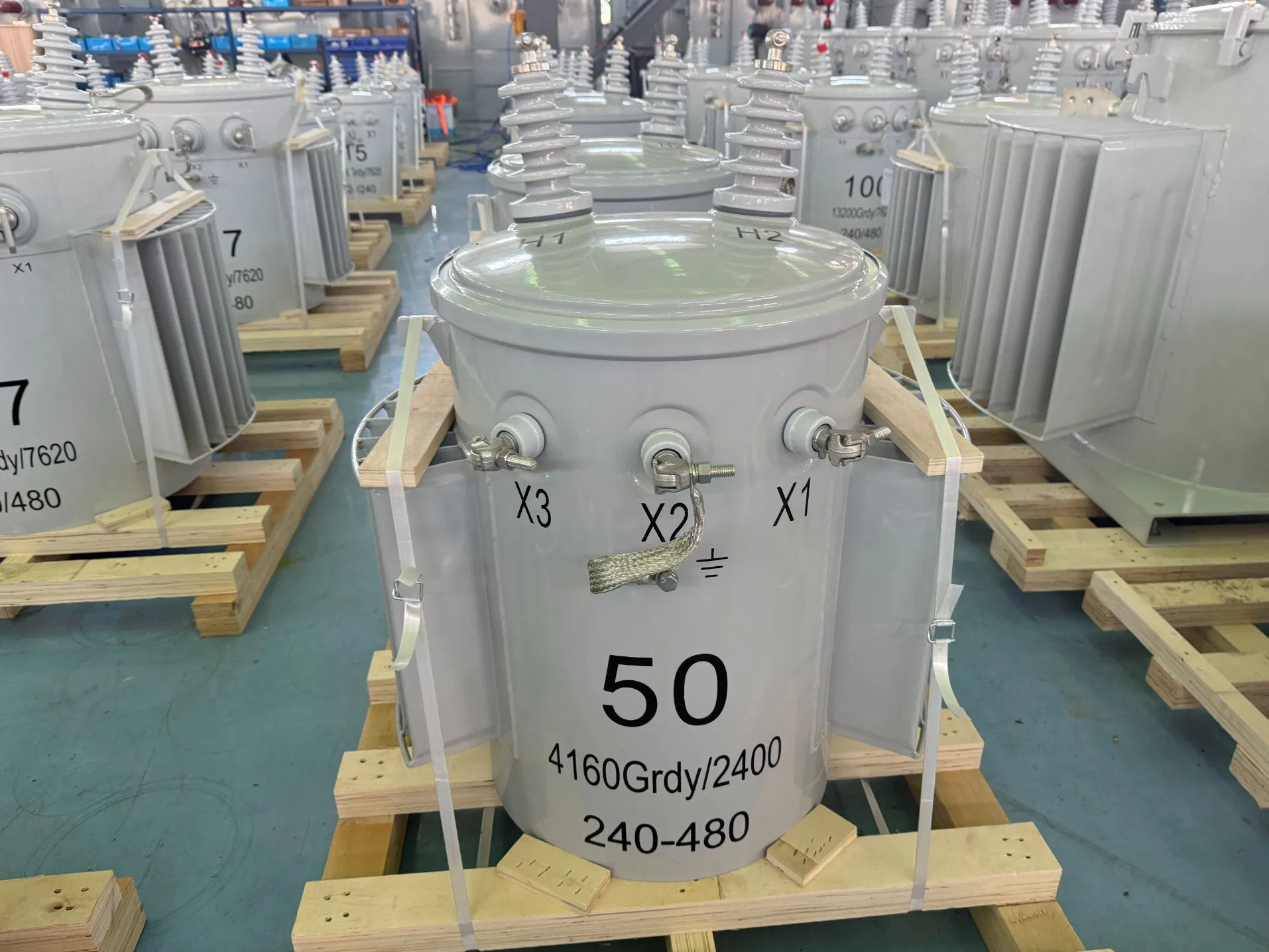

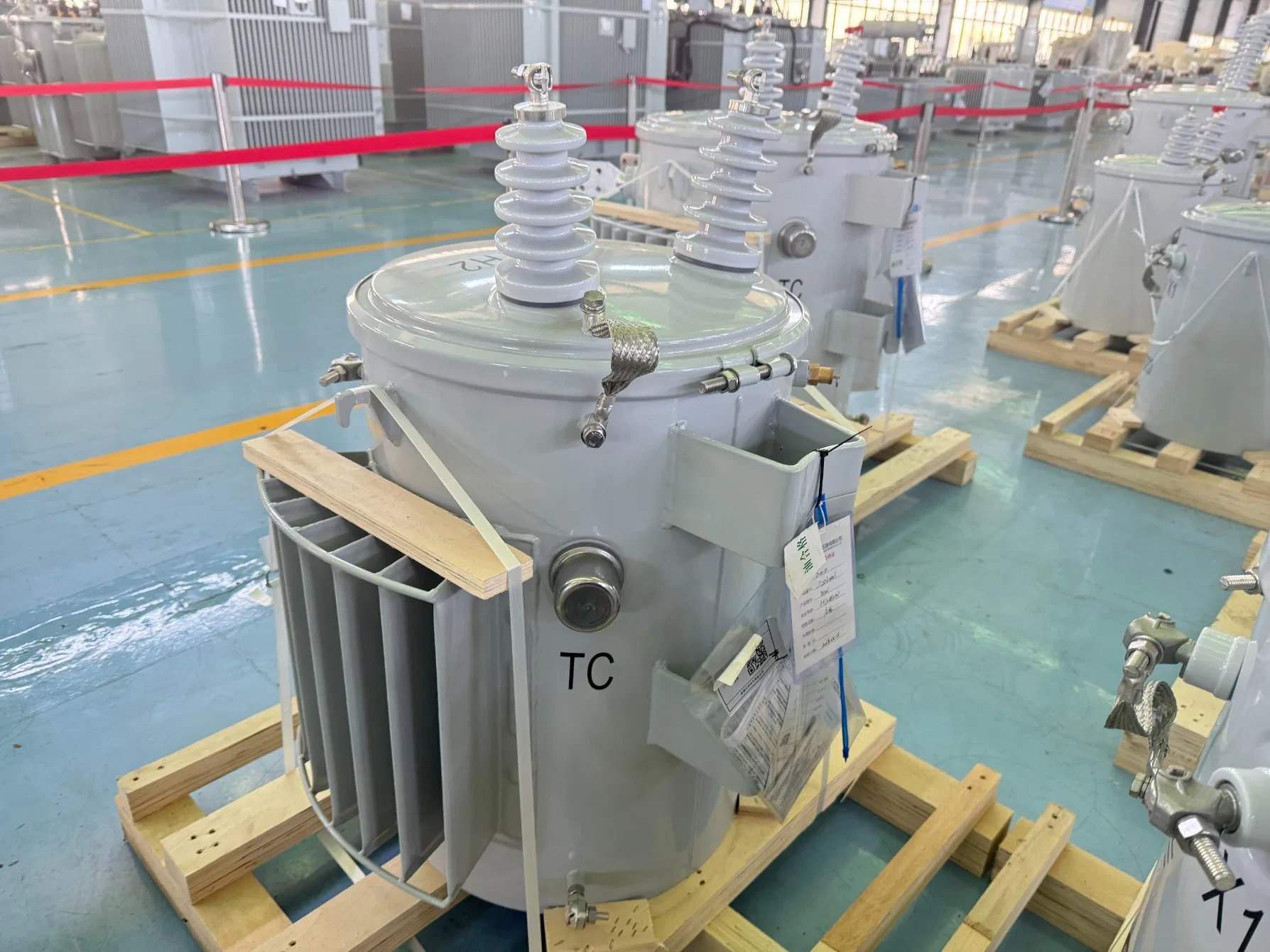

■ Gallery & Production Display

Frequently Asked Questions

1. What is a CSP (Completely Self-Protected) transformer?

A CSP transformer includes internal protective components like a surge arrester, a low-voltage circuit breaker, and an internal fuse, eliminating the need for external protective equipment and simplifying installation.

2. What are the available cooling methods for these units?

These transformers primarily use the ONAN (Oil Natural Air Natural) cooling method, which is highly effective for oil-immersed distribution transformers.

3. What winding materials are used in construction?

Depending on client requirements and efficiency standards, we utilize high-quality Copper or Aluminum for the windings.

4. What is the standard warranty period for your transformers?

We provide a 2-year warranty on our pole-mounted transformers, ensuring long-term peace of mind and performance reliability.

5. Can the input and output voltages be customized?

Yes, we support a wide range of input voltages (e.g., 13.8kV, 33kV) and various output configurations (120V to 35kV) as per specific project designs.

6. What certifications do these transformers hold?

Our products are manufactured under strict quality controls and hold certifications including ISO9001-2000, ISO9001, and CCC.
