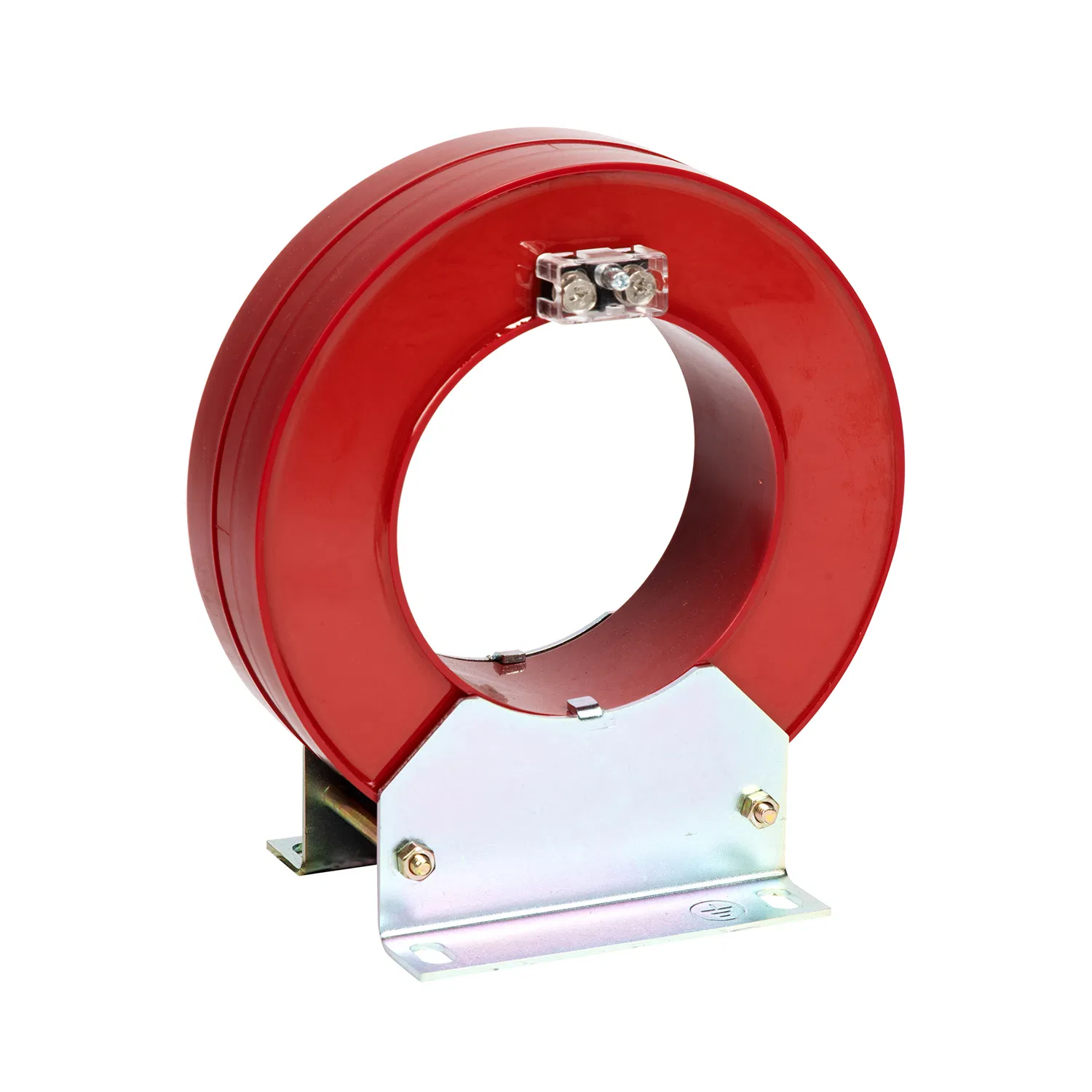

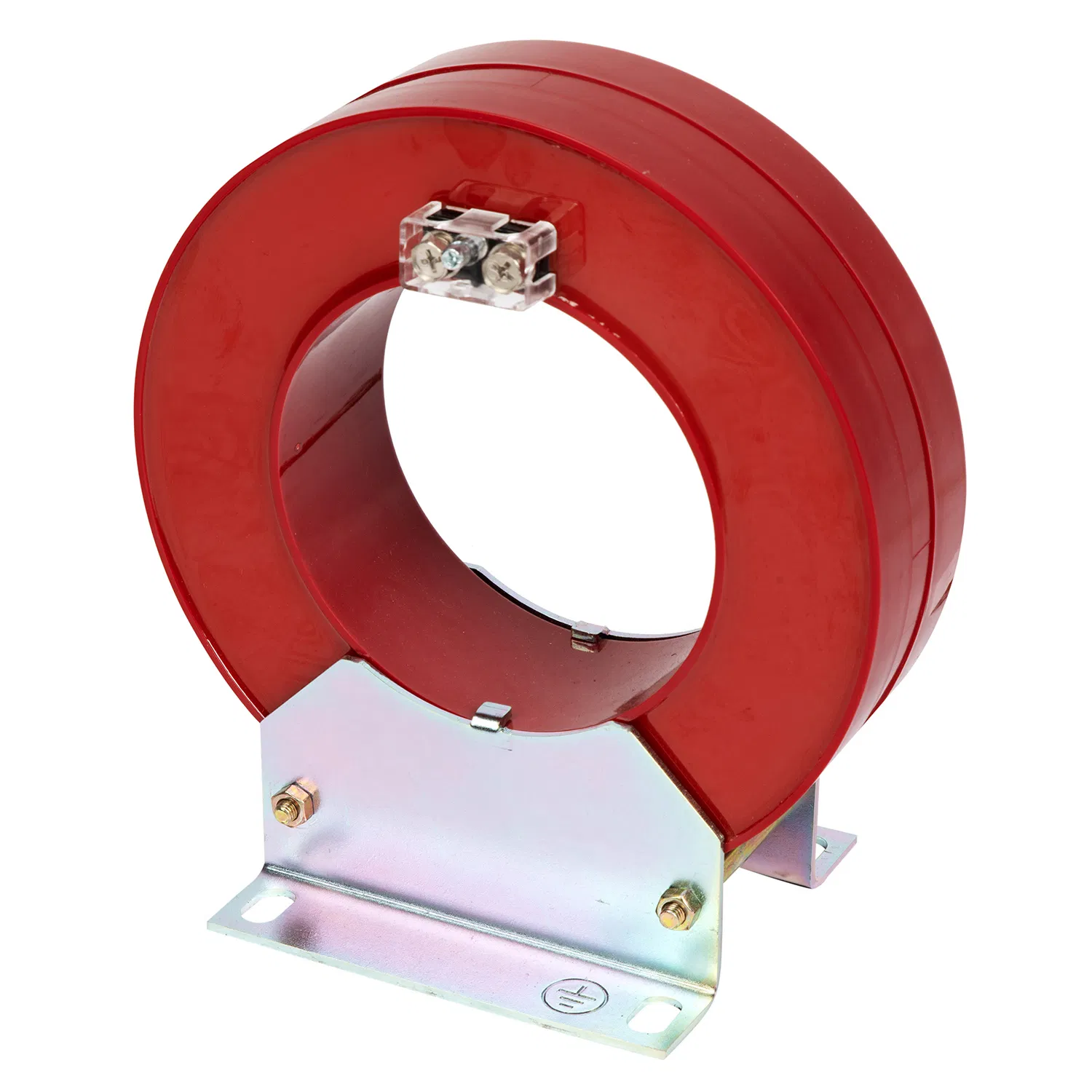

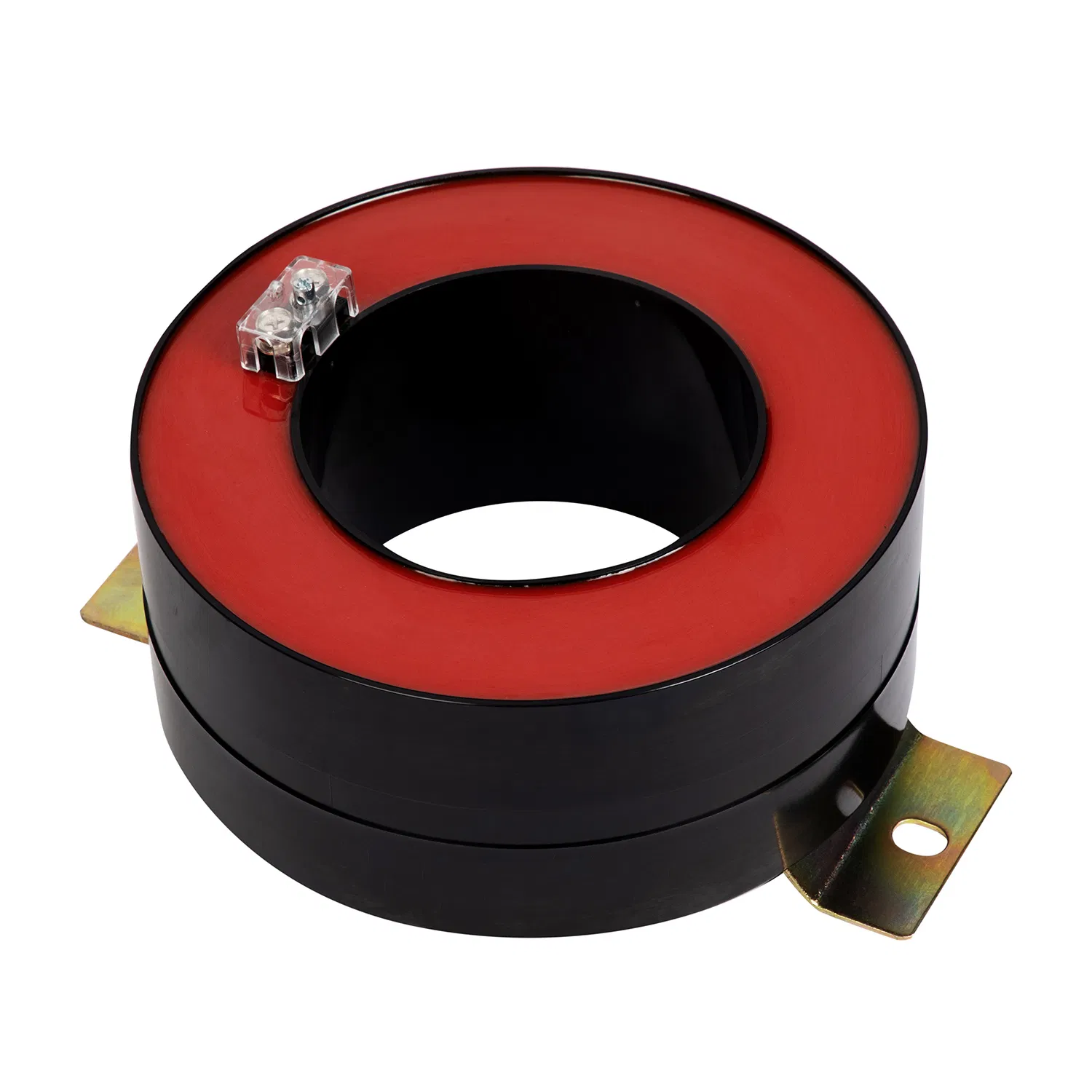

| Model NO. | LXK-80~300 |
| Phase | Single |
| Operation Condition | Indoor |
| Usage | Protection, Measurement |
| Winding Form | Multilayer Honeycomb Type |
| Insulating Medium | Epoxy Resin |
| Installation | Active Type |
| Magnetic Circuit Structure | Single Stage Type |
| Voltage Transformation Principle | Electromagnetic Type |
| Weight | 5kg |
| Rated Frequency | 50Hz or 60Hz |
| Insulation Level | 12/42/75kv, 7.2/30/60kv |
| Power Factor | Cosφ=0.8 |
| Rated Secondary Current | 5A or 1A |
| Ambient Temperature | -5℃~+40℃ |
| Transport Package | Wooden Box |
| Specification | 120*120*80mm |
| Production Capacity | 50000 Pieces/Year |
Technical Specifications:

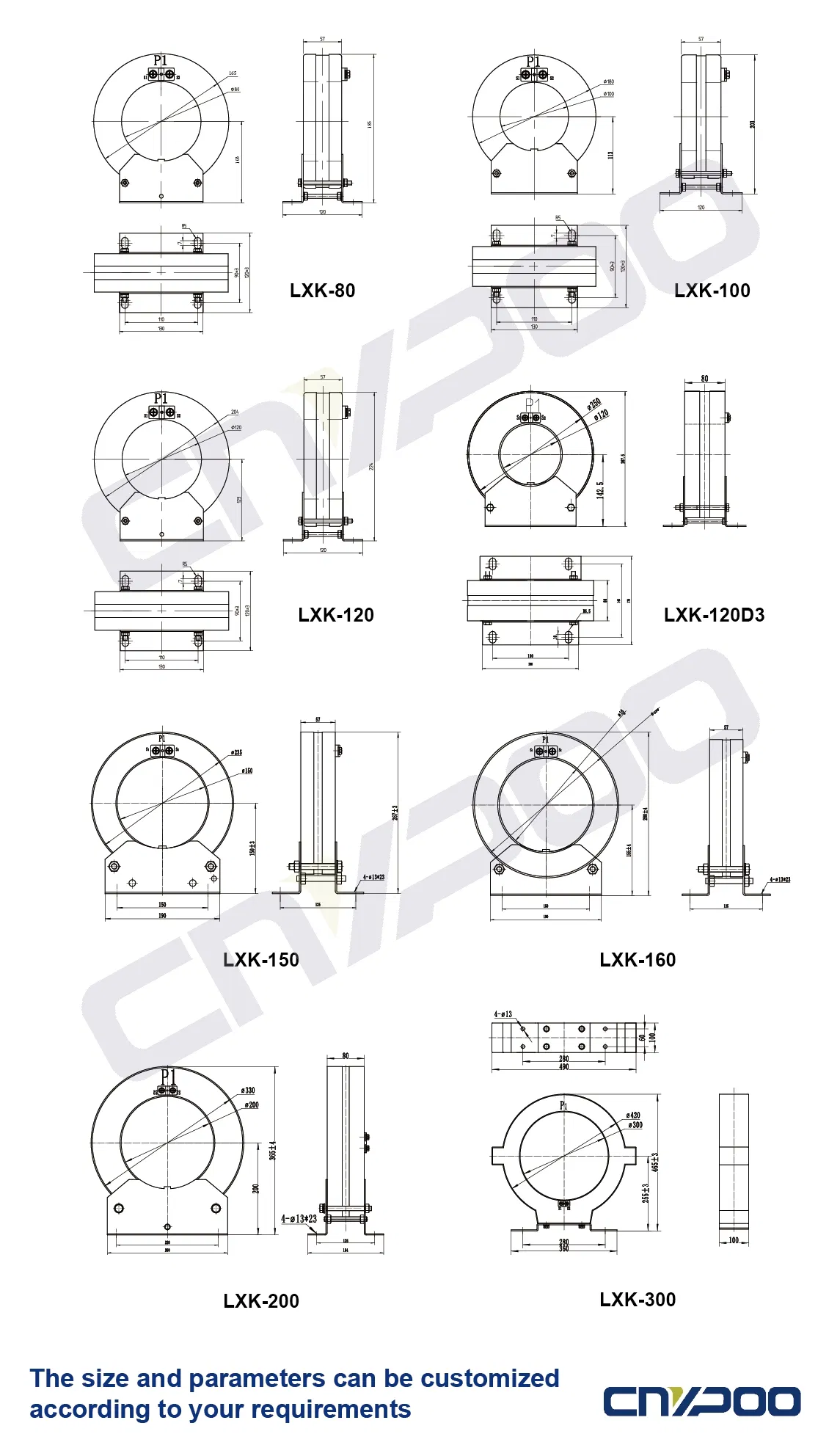

| Selection of Aperture | ||||
|---|---|---|---|---|
| LXK-80(80*165*57) | LXK-100(100*180*57) | LXK-100D(100*200*80) | LXK-120(120*204*57) | LXK-120B(120*210*65) |
| LXK-120D1(120*215*80) | LXK-120D2(120*250*80) | LXK-150(150*235*57) | LXK-150D(150*280*80) | LXK-160(160*250*57) |
| LXK-180(180*265*57) | LXK-180D(180*310*80) | LXK-200(200*330*57) | LXK-200D(200*330*80) | LXK-240(240*350*80) |
| LXK-260(260*370*80) | LXK-300(300*420*100) | The size and parameters can be customized according to your requirements | ||
Package Size: 12.00cm * 12.00cm * 8.00cm
Package Gross Weight: 5.000kg

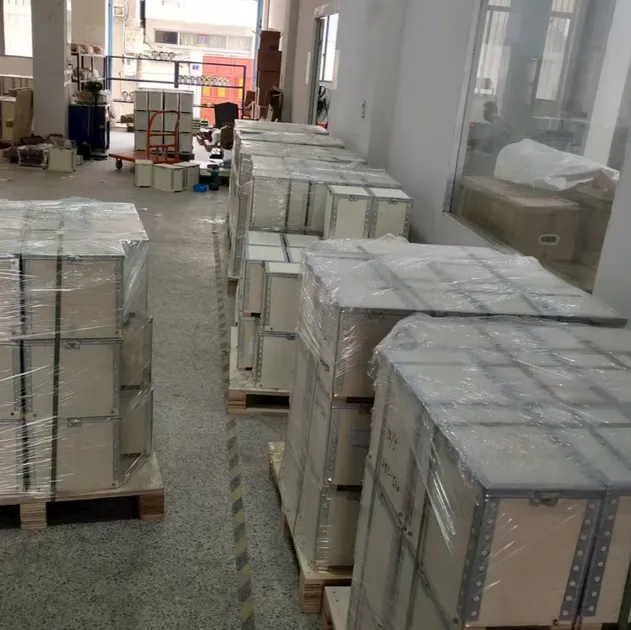

Transport Package: Wooden Box
A distinguished leader in the manufacturing of 0.5kV to 35kV current and voltage transformers. Driven by the principles of innovation and technology, we are committed to a people-centric management approach. We prioritize scientific development, align with market demands, and view product quality as our enterprise's backbone. Equipped with cutting-edge domestic production facilities and a robust management system, we ensure excellence in every product.

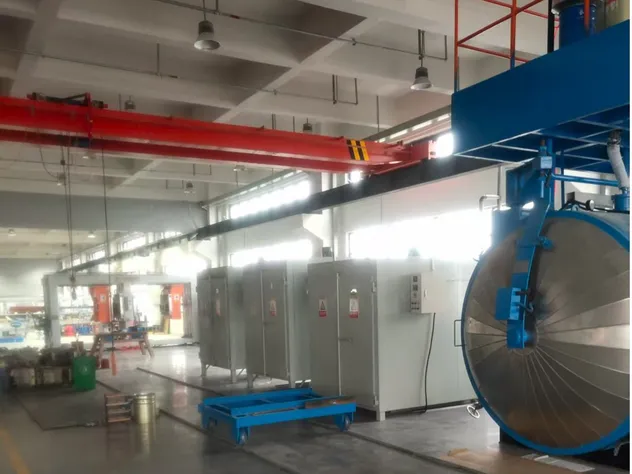

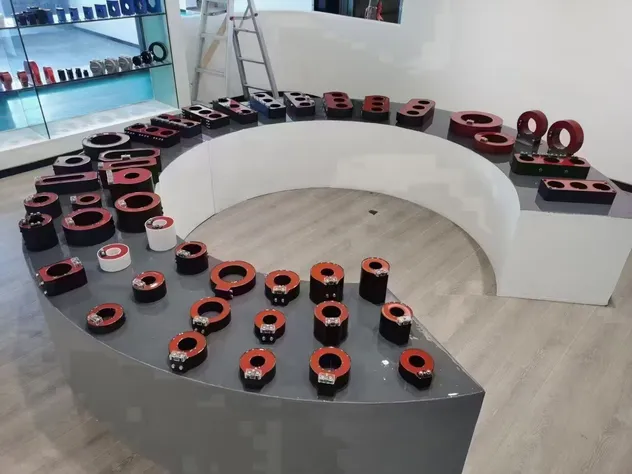

Our expansive 3000 square meter factory is home to 100 dedicated employees, including technical personnel and senior engineers, all passionately engaged in pioneering new product development. Our products come with a robust guarantee, fortified by the innovative use of new materials, structures, and technologies.
