| Model NO. | SZ11-63000/110 | Core | Core-type Transformer |
|---|---|---|---|
| Cooling Method | Oil-immersed Type | Winding Type | Two-winding Transformer |
| Certification | ISO9001, CCC | Usage | Power Transformer |
| Frequency | Power Frequency | Shape of Core | Ring |
| Rated Capacity | 6300kVA-180000kVA | HV Voltage | 110kv/132kv |
| LV Voltage | 6.3kv~20kv | Vector Group | Ynd11 |
| Origin | China | HS Code | 8504232100 |

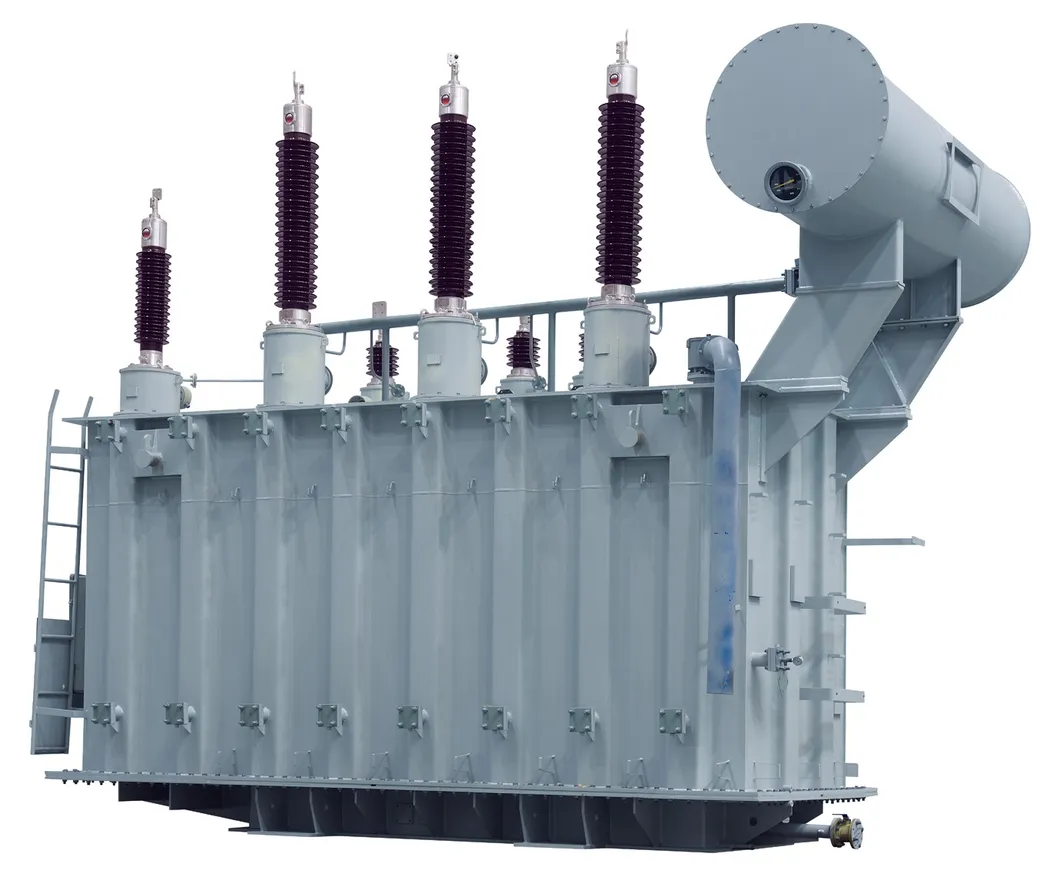

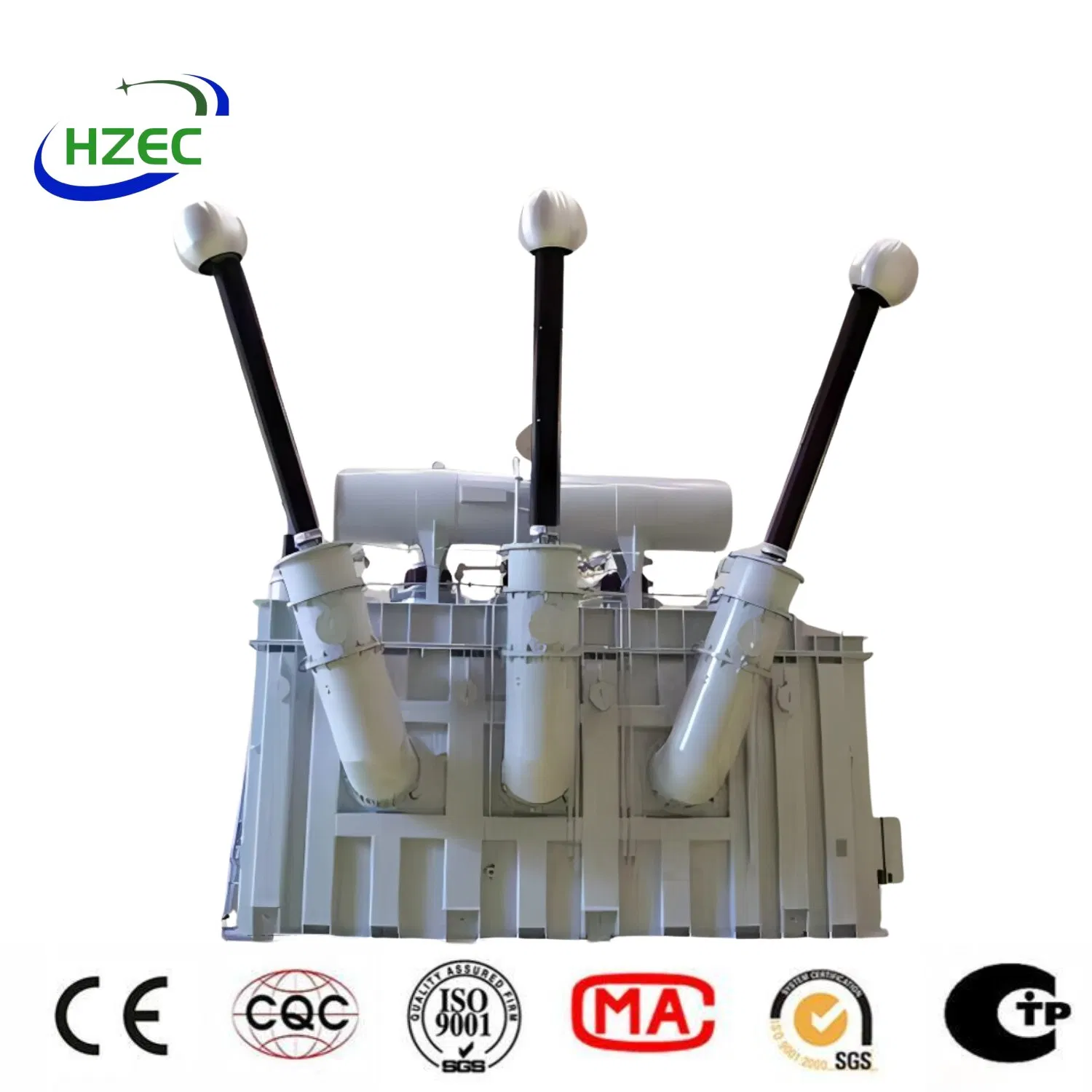

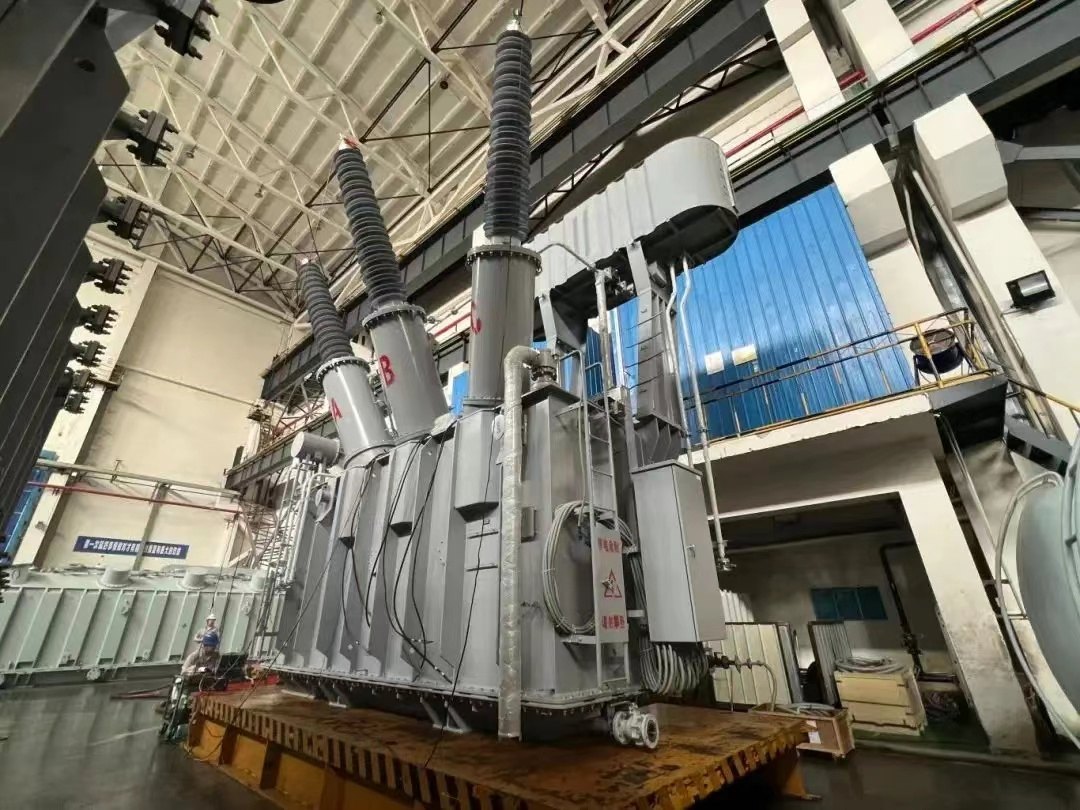

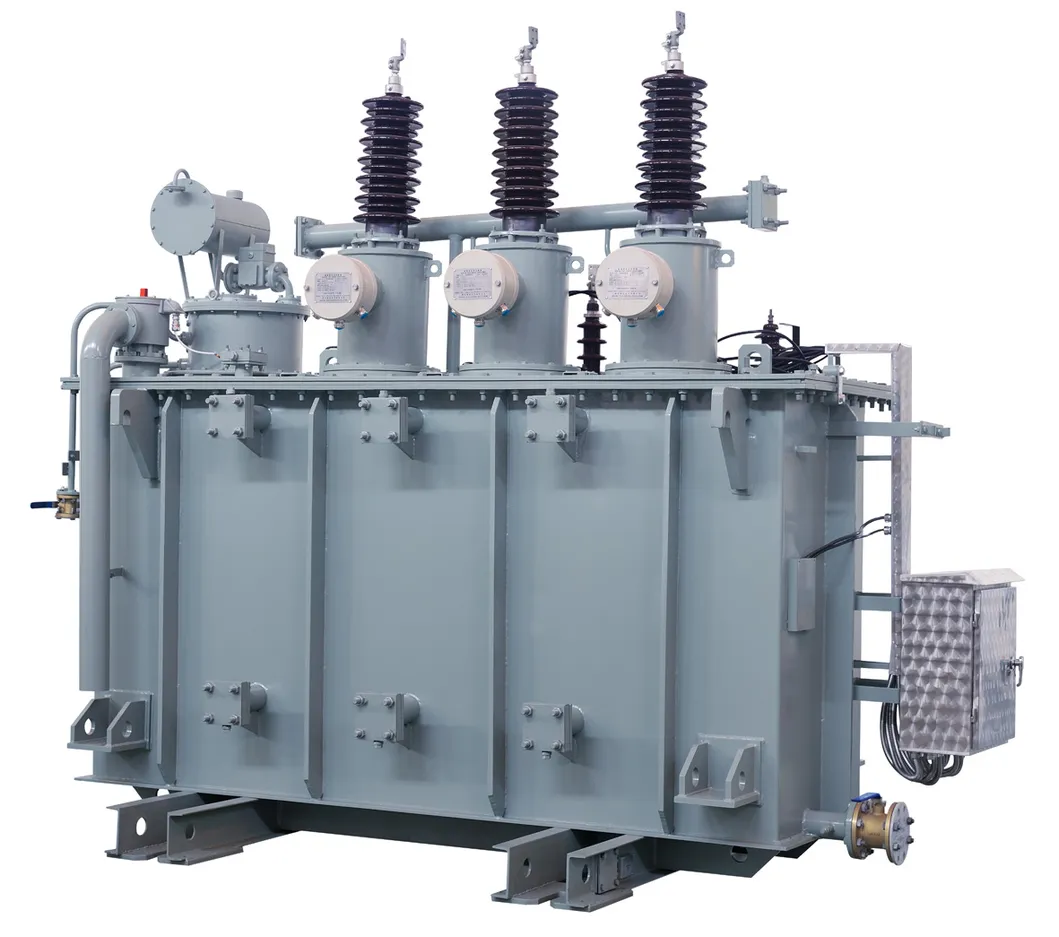

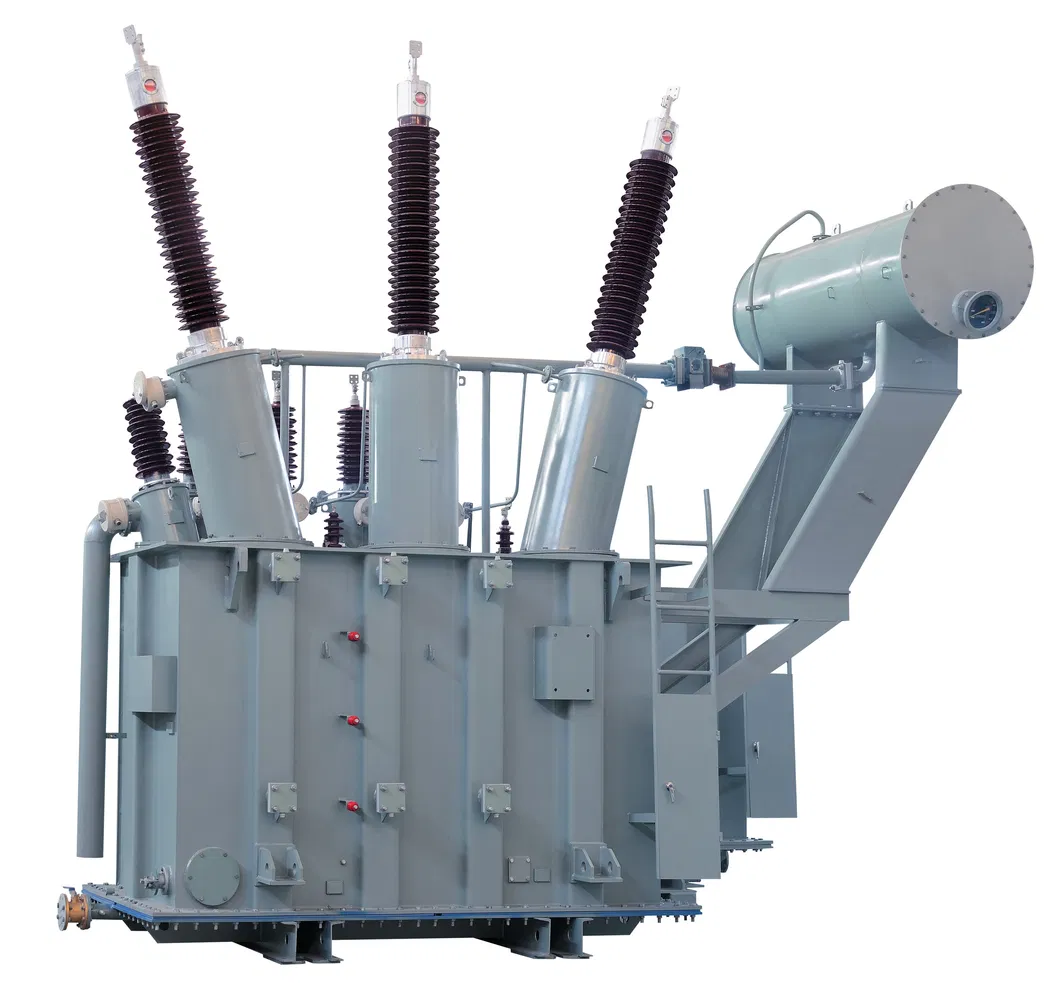

The 110kV transformer is a high-voltage oil-immersed transformer with a core-type structure. It is designed to meet international standards including IEC and IEEE. Our range includes single-phase and three-phase configurations, with options for on-load or no-load tap-changing, and various winding coupling methods such as double-winding, three-winding, and autotransformers.

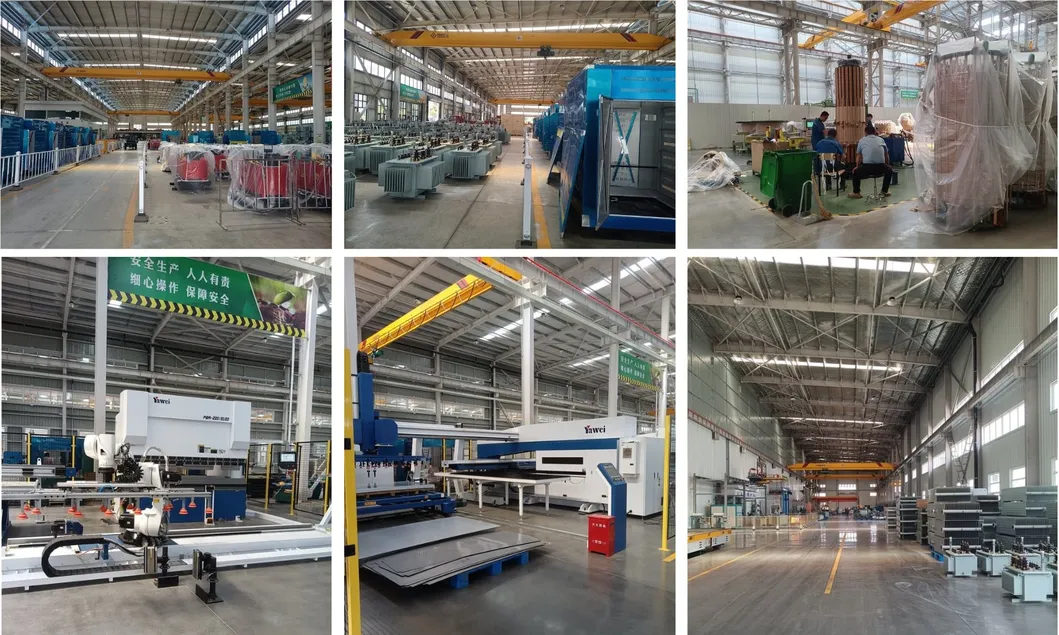

Established in 2011, we are a leading and reliable transformer manufacturer. Our core expertise lies in developing and producing oil-immersed transformers, dry-type transformers, and box-type substations. Our production process emphasizes energy saving, intelligence, and mechanization. With dozens of utility model and invention patents, our products are widely distributed across the Middle East, North America, South America, Europe, Southeast Asia, and Africa, covering more than 40 countries.
110kV Double-winding Power Transformers (Off-circuit Tap Changer)
| Rated Capacity (kVA) | HV Voltage (kV) | Tapping Range | LV Voltage (kV) | Connection | No-load Loss (kW) | Impedance (%) |
|---|---|---|---|---|---|---|
| 6300 | 110/121 | ±2×2.5% | 6.3-11 | YNd11 | 9.3 | 10.5 |
| 10000 | 110/121 | ±2×2.5% | 6.3-11 | YNd11 | 13.2 | 10.5 |
| 20000 | 110/121 | ±2×2.5% | 6.3-11 | YNd11 | 22 | 10.5 |
| 40000 | 110/121 | ±2×2.5% | 6.3-11 | YNd11 | 36.8 | 10.5 |
| 63000 | 110/121 | ±2×2.5% | 6.3-11 | YNd11 | 52 | 10.5 |
| 180000 | 110/121 | ±2×2.5% | 13.8-20 | YNd11 | 112.5 | 12-14 |
Service Environment:
| Device Type | Outdoor | Regulation | Off-circuit or On-load |
|---|---|---|---|
| Frequency | 50Hz / 60Hz | Phases | Three or Single |
| Altitude | ≤ 1000m | Ambient Temp | Max +40°C |

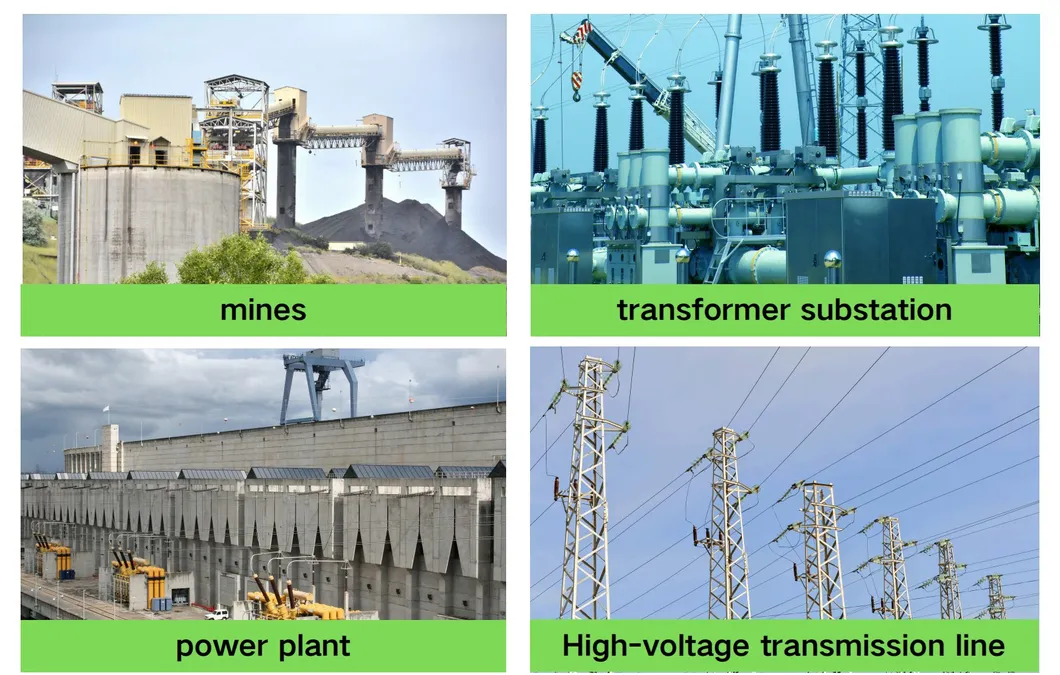

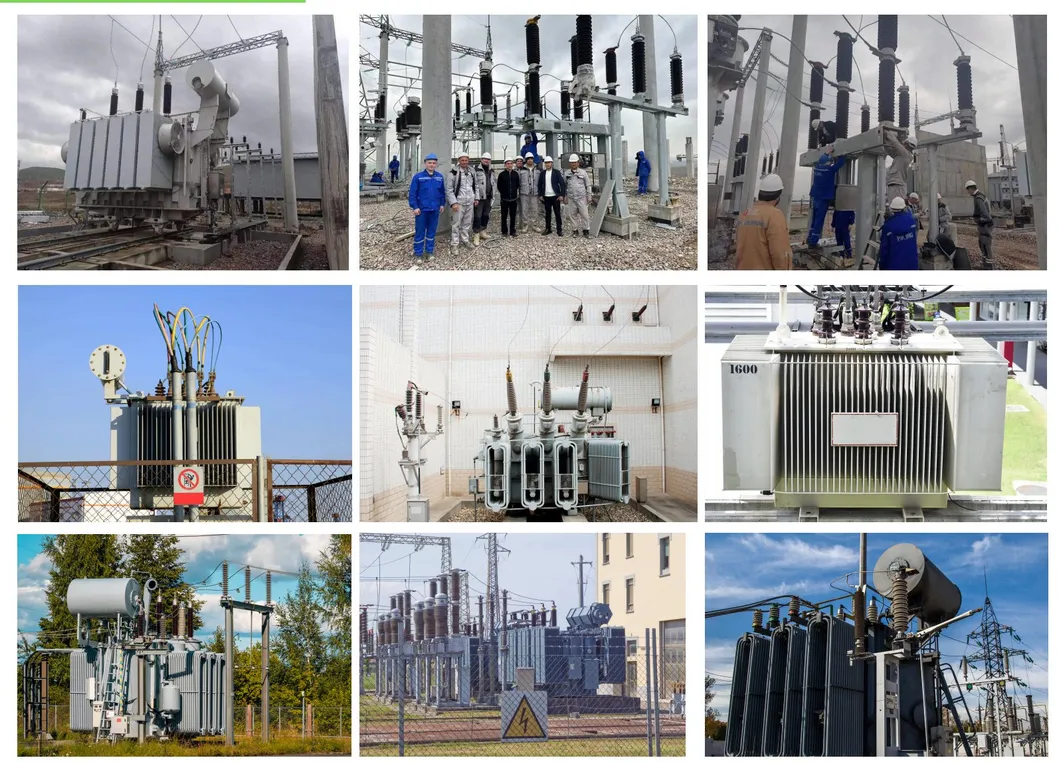

Our transformers are utilized to step up power generated at plants to 110kV for high-voltage, long-distance transmission. In substations, they effectively regulate voltage to provide stable electricity for industrial, commercial, and residential use, ensuring grid reliability.

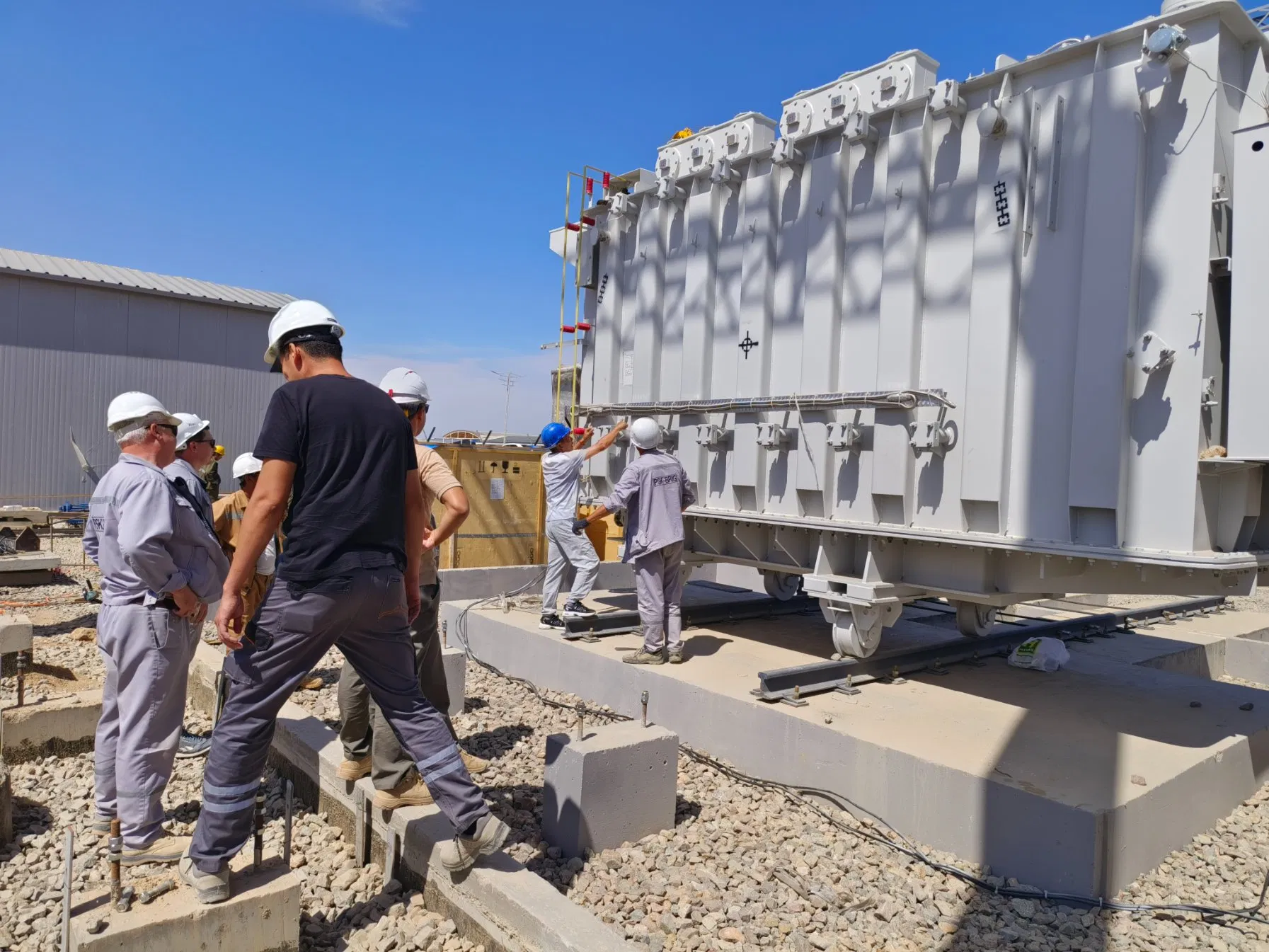

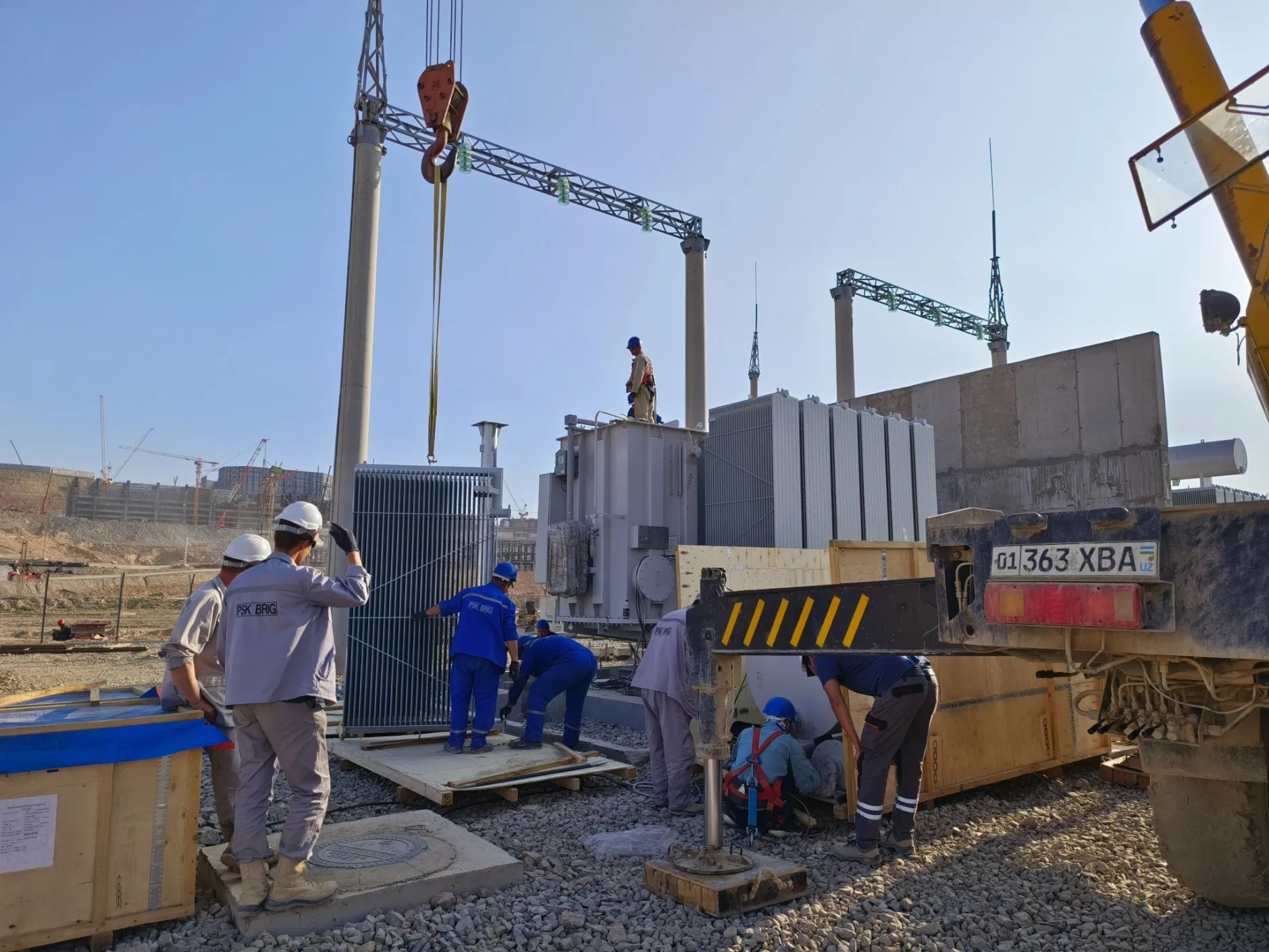

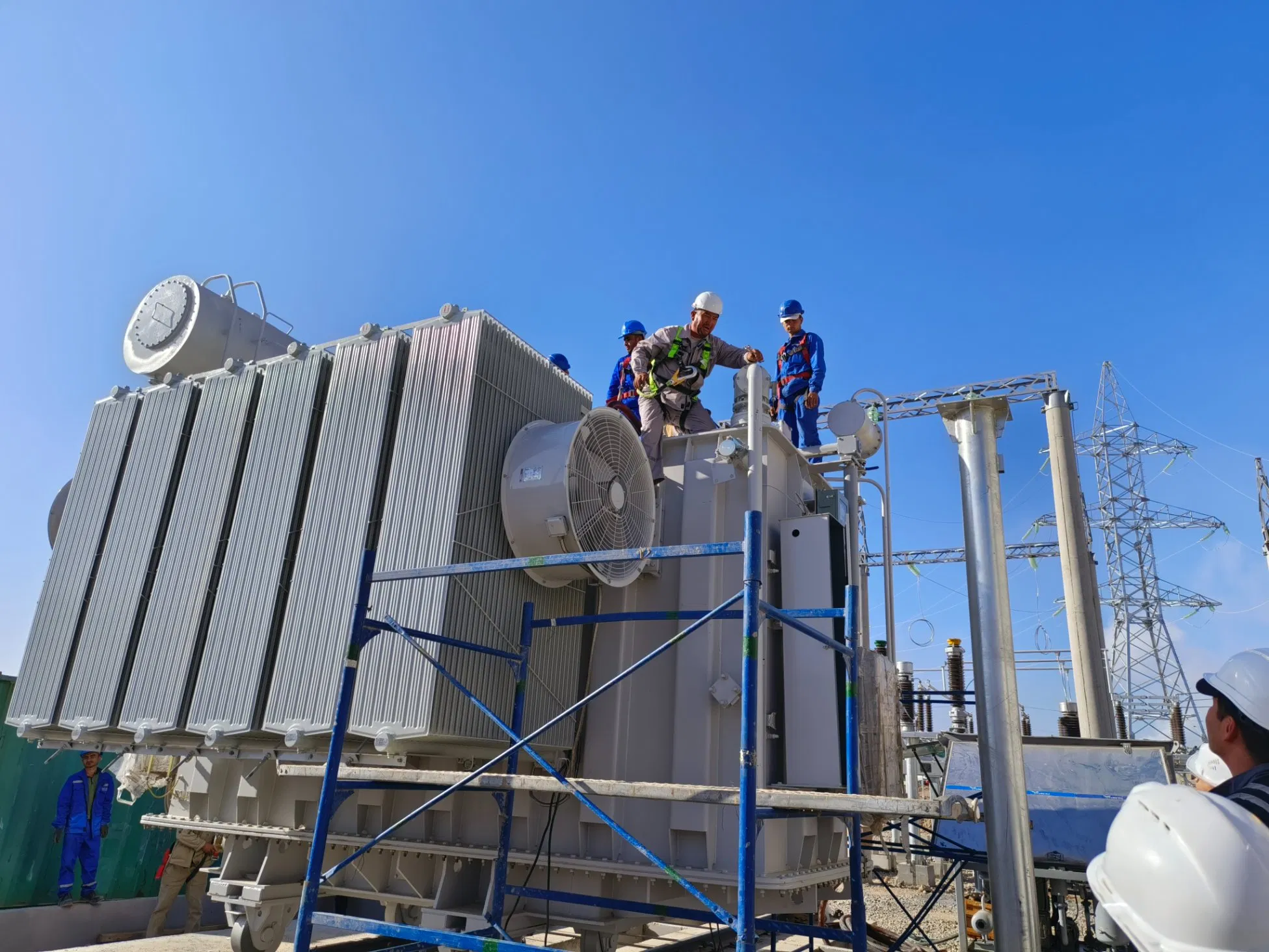

Support: We offer comprehensive project and process design, tailoring equipment to your purchase plan. We provide online assistance for installation, debugging, and lifelong technical support.
Quality Assurance: Manufactured under strict ISO9001:2000 standards using authentic materials to ensure excellence and seamless installation.
Certificates:
