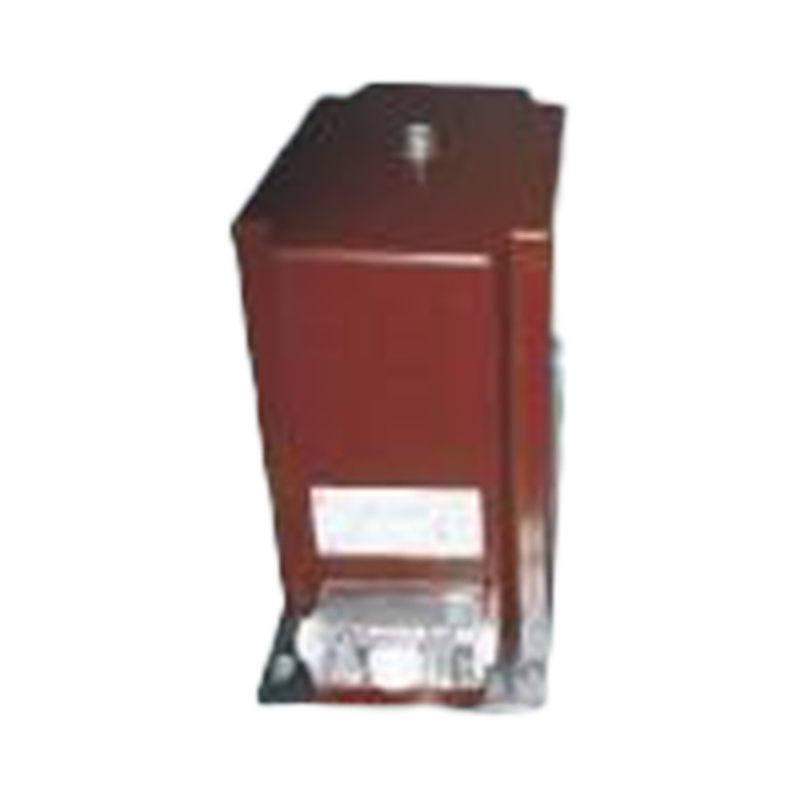

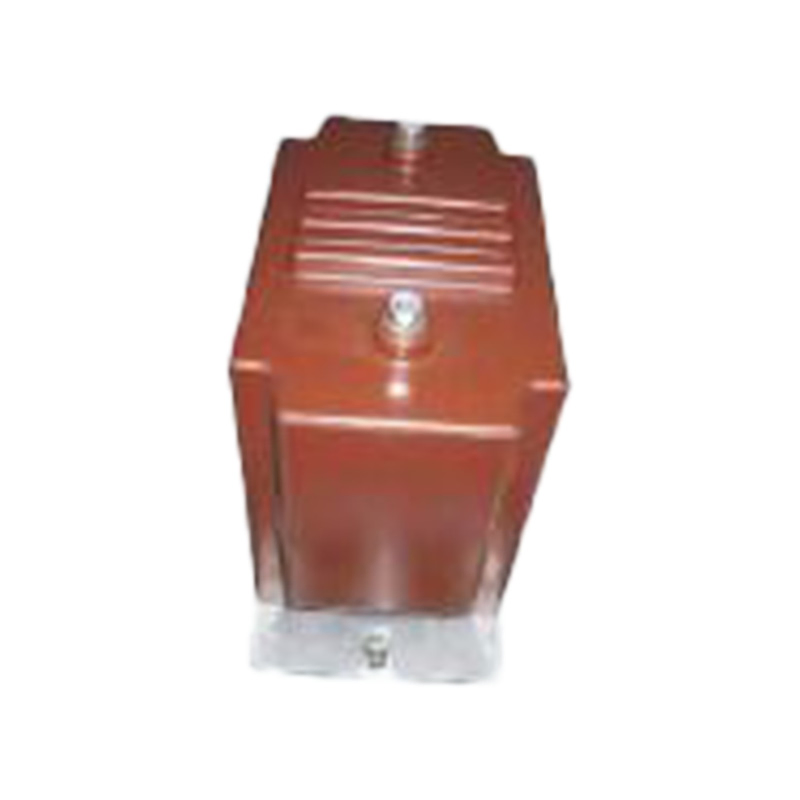

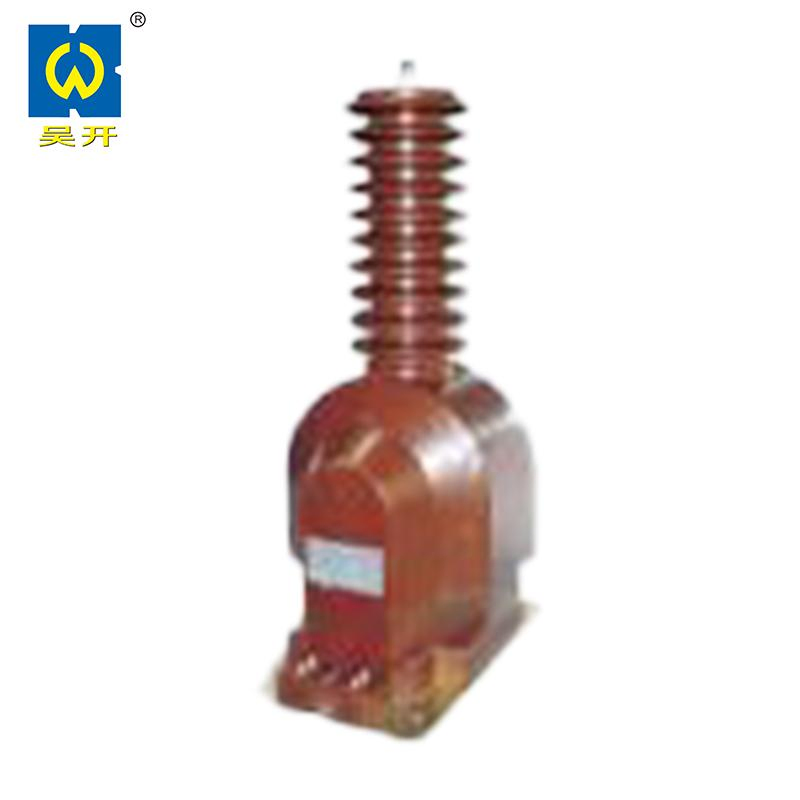

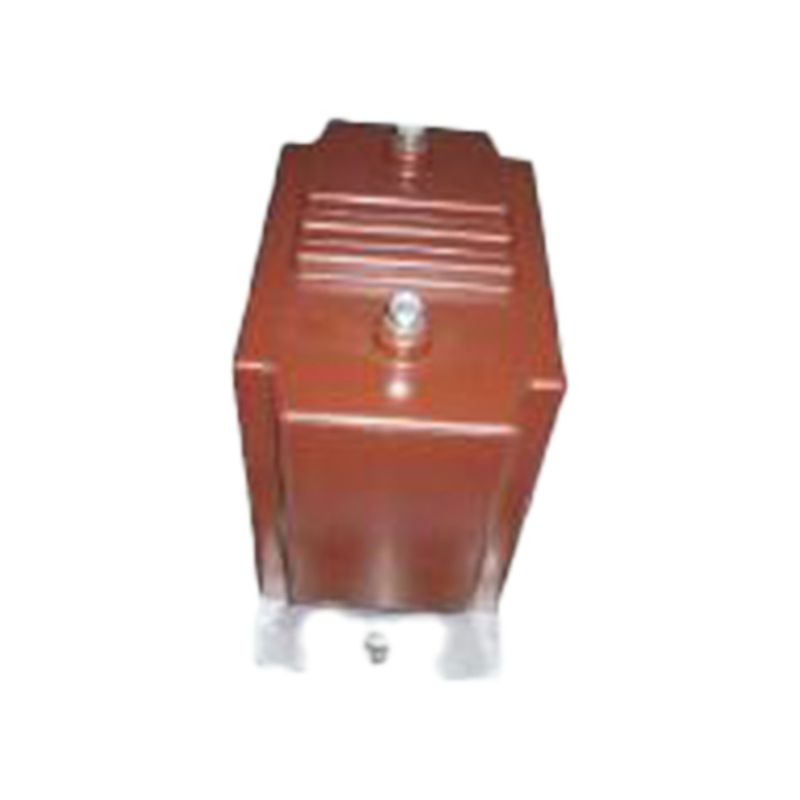

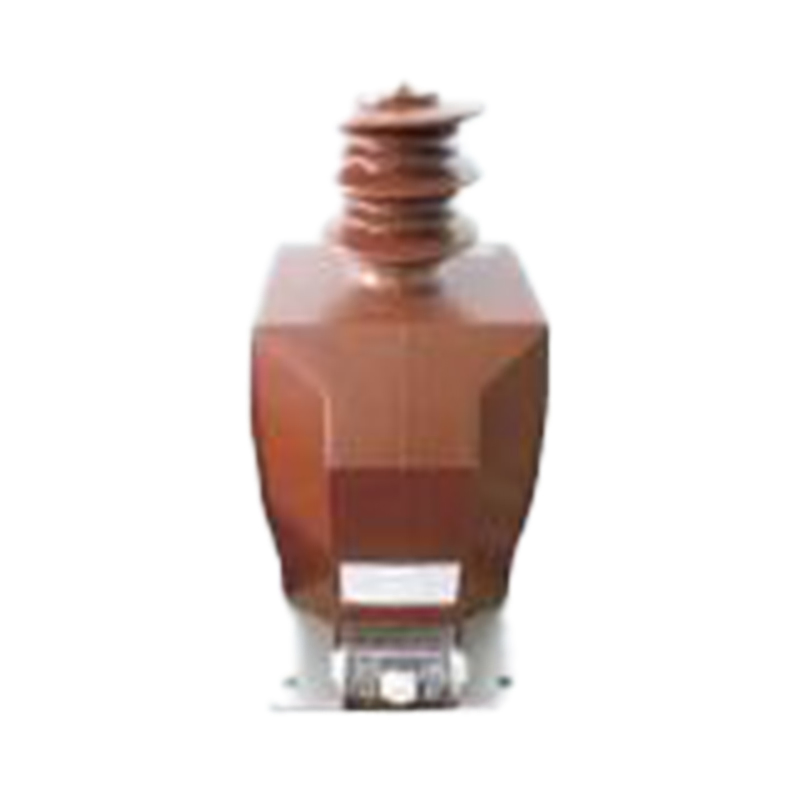

Advanced Voltage Transformer Vsrf2-40.5/255: Reliable Performance
Advanced Voltage Transformer Vsrf2-40.5/255: Reliable Performance
Advanced Voltage Transformer Vsrf2-40.5/255: Reliable Performance
Advanced Voltage Transformer Vsrf2-40.5/255: Reliable Performance
Advanced Voltage Transformer Vsrf2-40.5/255: Reliable Performance
1 / 5
Advanced Voltage Transformer Vsrf2-40.5/255: Reliable Performance
Advanced Voltage Transformer Vsrf2-40.5/255: Reliable Performance
Advanced Voltage Transformer Vsrf2-40.5/255: Reliable Performance
Advanced Voltage Transformer Vsrf2-40.5/255: Reliable Performance
Advanced Voltage Transformer Vsrf2-40.5/255: Reliable Performance

Advanced Voltage Transformer Vsrf2-40.5/255: Reliable Performance

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
VSRF2-40.5/255
Phase
Single-Phase or Three-Phase
Condition
Indoor
Insulating Medium
Epoxy Resin
Principle
Electromagnetic Type
Transport Package
Composite Wood Packaging
Origin
China
Product Description

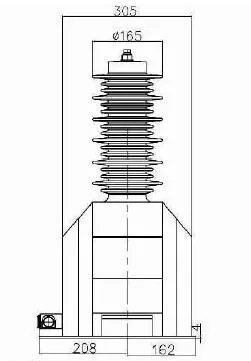

Voltage Transformer View 1
Voltage Transformer View 2

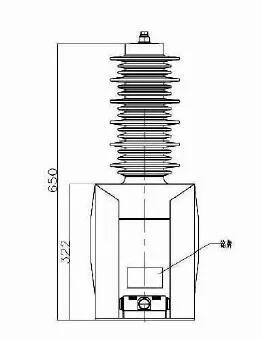

Voltage Transformer View 3
  • Conforms to GB1207-2006 and IEC60044-2 standards and specific requirements.
  • Operating ambient temperature: -15ºC to +40ºC.
  • Rated frequency: 50Hz or 60Hz.
Product Parameters
Model Voltage Ratio (kV) Rated Insulation Level (kV) Accuracy Class & Output (VA) Max. Output (VA)
VSRF2-40.5/255 35/√3/0.1/√3/0.1/3 40.5/95/185 0.2/3P; 50/100
0.5/3P; 120/100
1.0/3P; 200/100		 1000
(Note: Measurement levels correspond accordingly)
35/√3/0.11/√3/0.11/3 40.5/95/185
35/√3/0.1/√3/0.1//√3/0.1/3 40.5/95/185 0.2/0.5/3P; 30/30/100
0.2/0.5/6P; 30/30/100
35/√3/0.11/√3/0.11//√3/0.11/3 40.5/95/185
Technical Drawing 1 Technical Drawing 2 Technical Drawing 3 Technical Drawing 4 Technical Drawing 5 Technical Drawing 6
Frequently Asked Questions
What are your main products?
For over four decades, we have specialized in developing and producing on-load tap changers. The extensive product range caters to power transformers, furnace transformers, and specialized industrial transformers.
Are you a manufacturer?

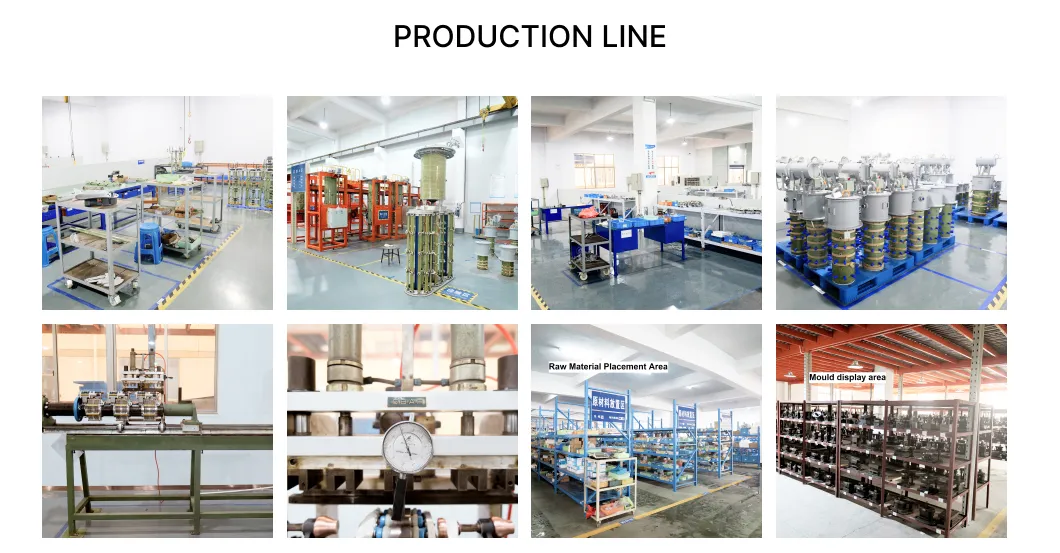

Yes. We operate a state-of-the-art factory spanning 20,000 square meters with over 100 employees. Our production lines have delivered nearly 100,000 units currently operational worldwide, offering comprehensive OEM and ODM services.
How do you control the quality of your products?
We implement a stringent quality control system throughout every production stage. Each product undergoes thorough testing by relevant standards, and a detailed factory inspection report accompanies all shipping documents.
What are your payment terms and packaging?
We accept various flexible payment terms including T/T and L/C. Products are securely packaged in robust composite wood crates to ensure safe international transportation.
What kind of credentials do you have?
We hold several prestigious credentials including a Quality Management System Certificate and a High-tech Enterprise Certificate, ensuring professional and reliable manufacturing standards.
Can I visit the factory?
Absolutely. We warmly welcome customers to visit our manufacturing facilities and witness our operations firsthand.
