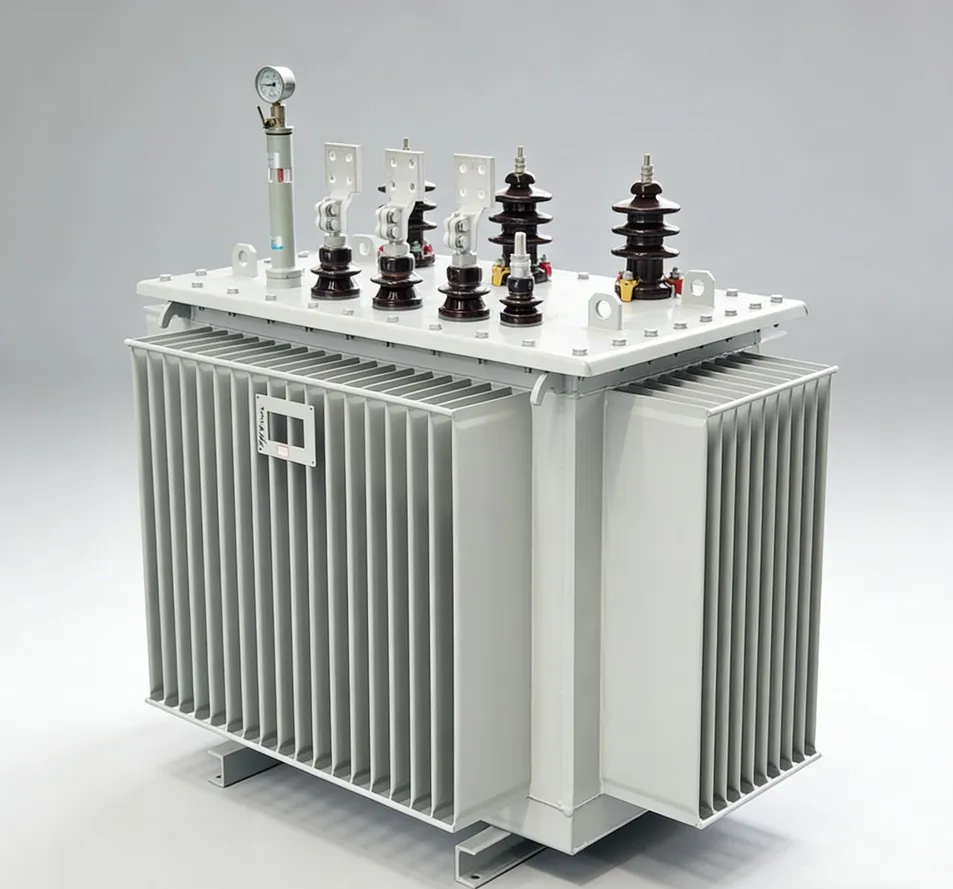

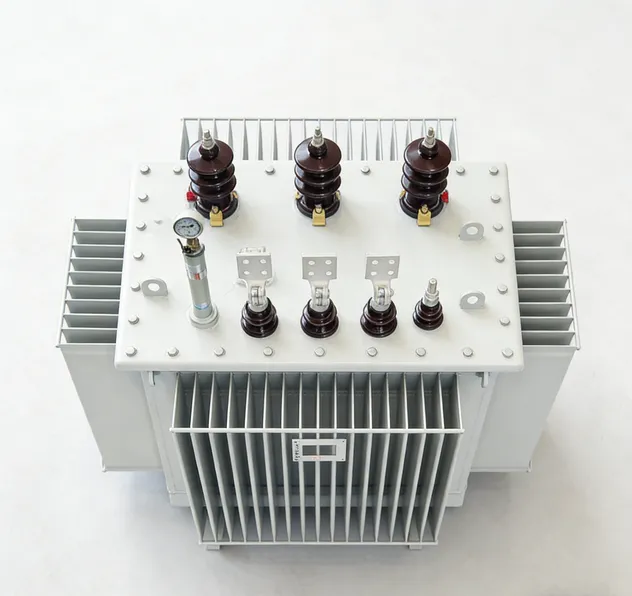

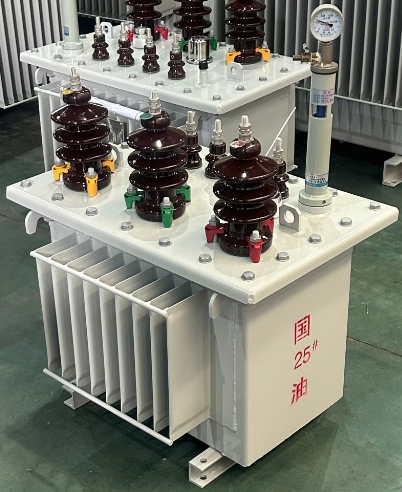

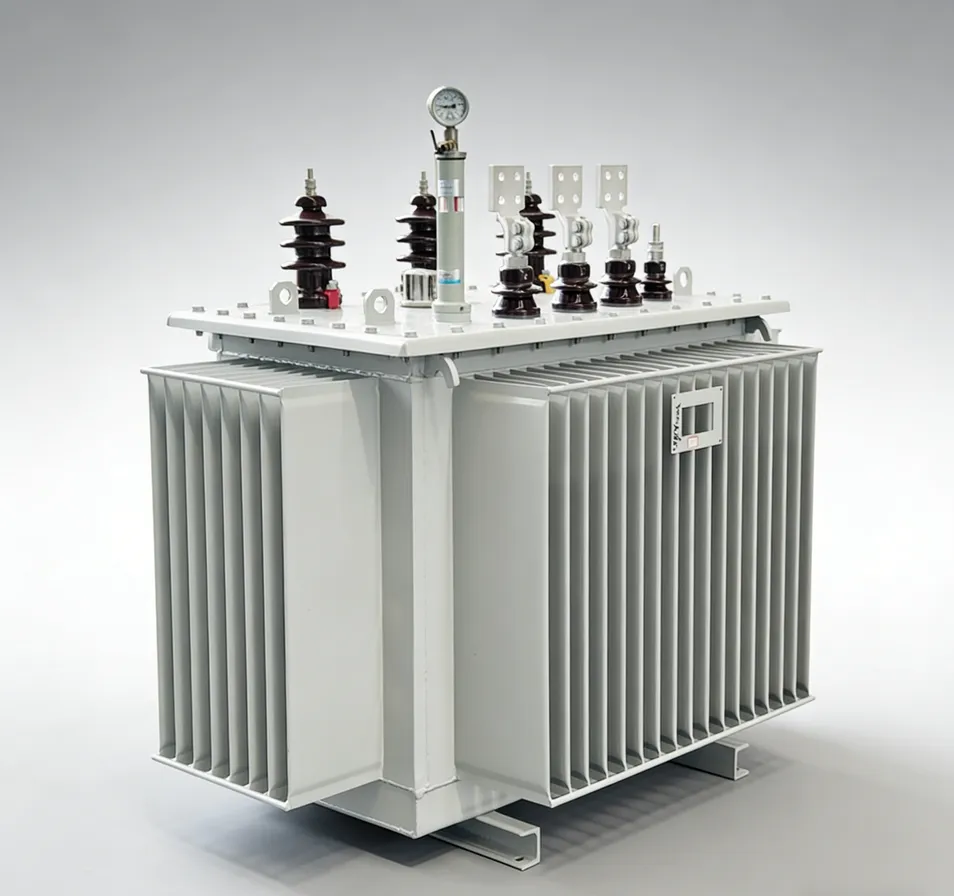

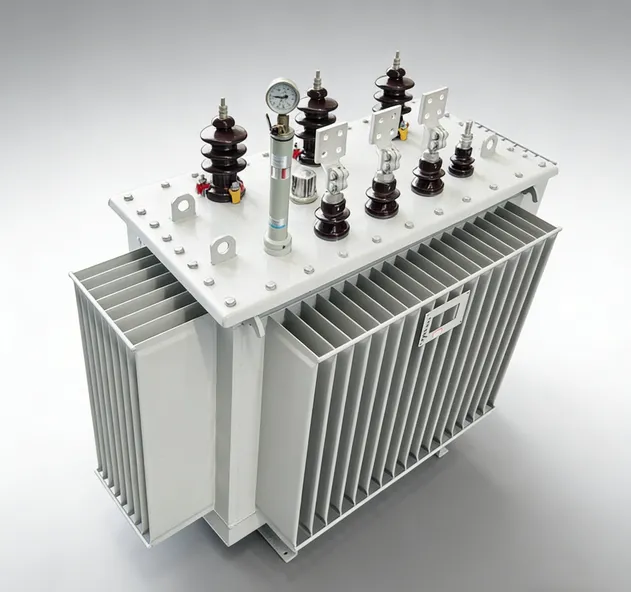

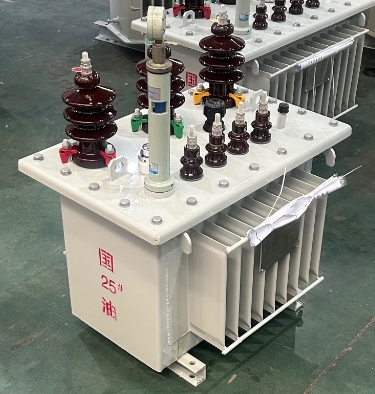

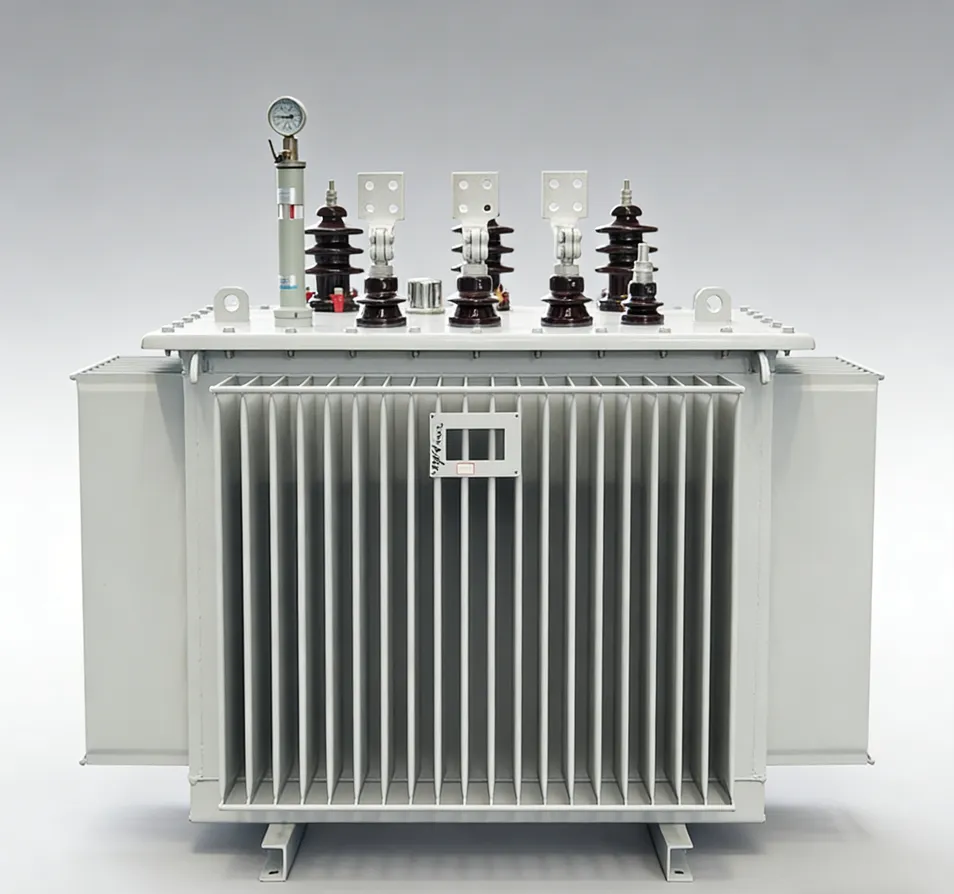

110kv Electronic/ Electrical Oil Immersed Industrial Threep Hase/Phase Distribution Power High Voltage Transformer Sealed Oil Filled Transformer

1 / 5

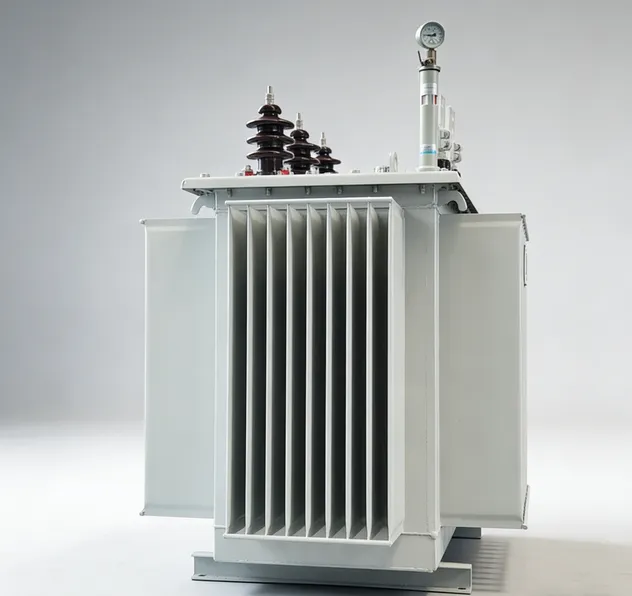

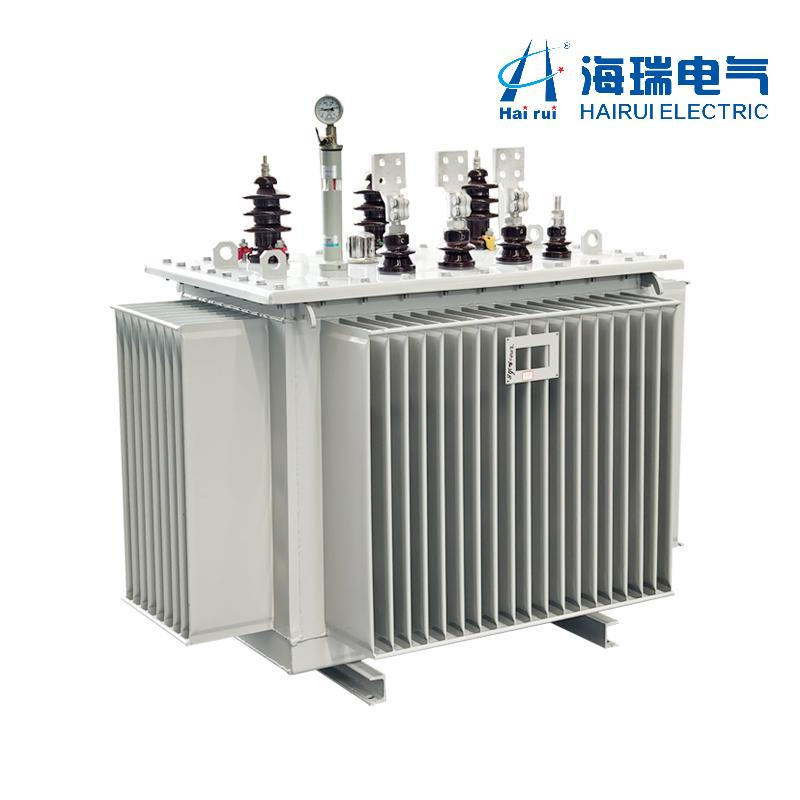

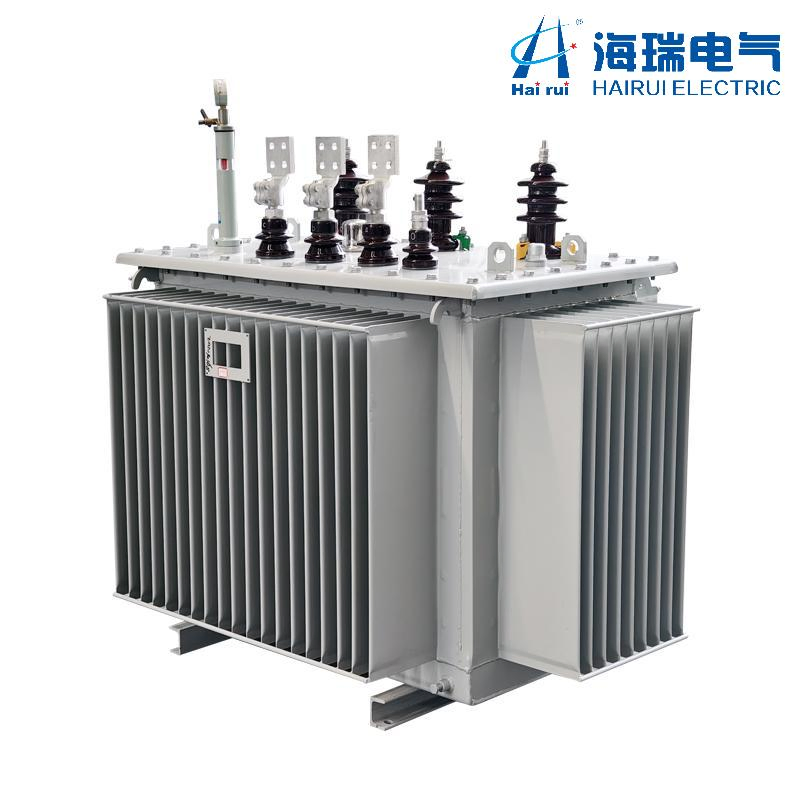

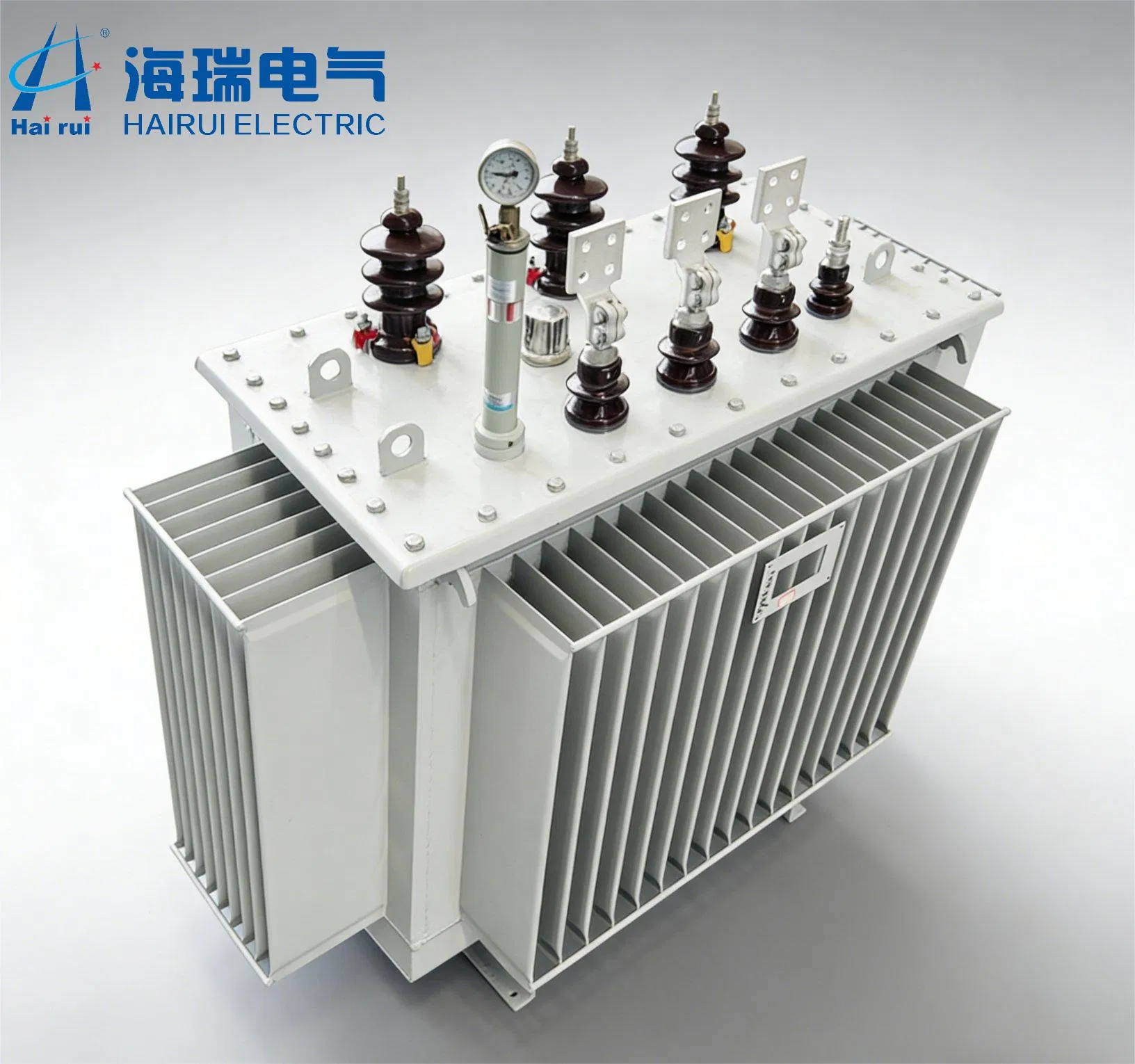

110kv Electronic/ Electrical Oil Immersed Industrial Threep Hase/Phase Distribution Power High Voltage Transformer Sealed Oil Filled Transformer

Customization:	Available
Application:	Power, Electronic
Phase:	Three

Send Inquiry

Product Description

Technical Specifications

Model NO.	S11
Core Type	Core-type Transformer
Cooling Method	Oil-immersed Type
Winding Type	Separated Winding
Certification	ISO9001
Usage	Power & Distribution Transformer
Frequency	50 Hz / 60 Hz
Service Voltage	0-35kv
Rated Capacity	30 — 10000kVA
Load Capacity	50kVA

Product Advantages

🛡️ Fully Sealed

Corrugated tank design isolates oil from air and moisture, ensuring maintenance-free operation.

⚡ High Efficiency

Meets GB 20052-2024 Level 1 standards; no-load losses reduced by over 30%.

🏗️ Robust Structure

Impact-resistant design suitable for harsh environments and long-distance transport.

⚙️ Short-circuit Resistance

Balanced winding ampere-turn distribution with high mechanical strength.

Stable transformation: Standard 10kV/0.4kV with Dyn11 connection.
Long service life: Design life exceeding 20 years via vacuum drying process.
Wide adaptability: Suitable for high altitude, humidity, and coastal areas.
Safety Protection: Integrated pressure relief valves and gas relays.

Information & Performance

Rated Capacity	10000kVA	Connection Group	Yd11
No-load Loss	7.70kW	Load Loss (75℃)	47.7kW
No-load Current	0.55%	Impedance Voltage	5.5%
Overall Dimensions	2850×2880×3265mm

Applications & Value

Broad Applications

Urban and rural power grid transformation.
Industrial, mining, and petrochemical infrastructure.
New energy: Wind and solar power grid connection.
Core components for prefabricated substations.

Customer Benefits

Reduced TCO through ultra-high energy efficiency.
Maintenance-free design lowering operating expenses.
Flexible customization of voltage, capacity, and size.
Compliance with international standards (GB/T 1094, etc).

Manufacturing & Logistics

Package Size	1880.00cm * 1250.00cm * 1880.00cm
Gross Weight	4600.000kg
Transport Package	Standard Wooden Crate for Export

Frequently Asked Questions

Does it support OEM/ODM customization?

Yes, we support comprehensive customization including power parameters, input/output voltage, IP protection levels, and specialized working environments (explosion-proof or high-temperature resistance).

What technical documentation is provided?

All goods are shipped with English manuals, product certificates, test reports, and wiring diagrams to assist with installation and customs clearance.

How are the transformers protected during long-distance shipping?

We use standard export-grade wooden crate packaging. The structural design of the transformer itself includes special fastening to resist impact during transit.

What is the typical energy saving compared to standard models?

Our Level 1 energy efficiency units reduce no-load losses by over 30% and load losses by over 20%, significantly reducing the Total Cost of Ownership (TCO).

Is the oil-immersed transformer suitable for coastal environments?

Yes, the fully sealed corrugated tank and optional corrosion-resistant coatings make it ideal for high humidity, high pollution, and coastal environmental conditions.

What is the expected service life of these units?

Thanks to the vacuum drying and advanced oil filling processes which slow down insulation aging, our transformers have a design life exceeding 20 years.
