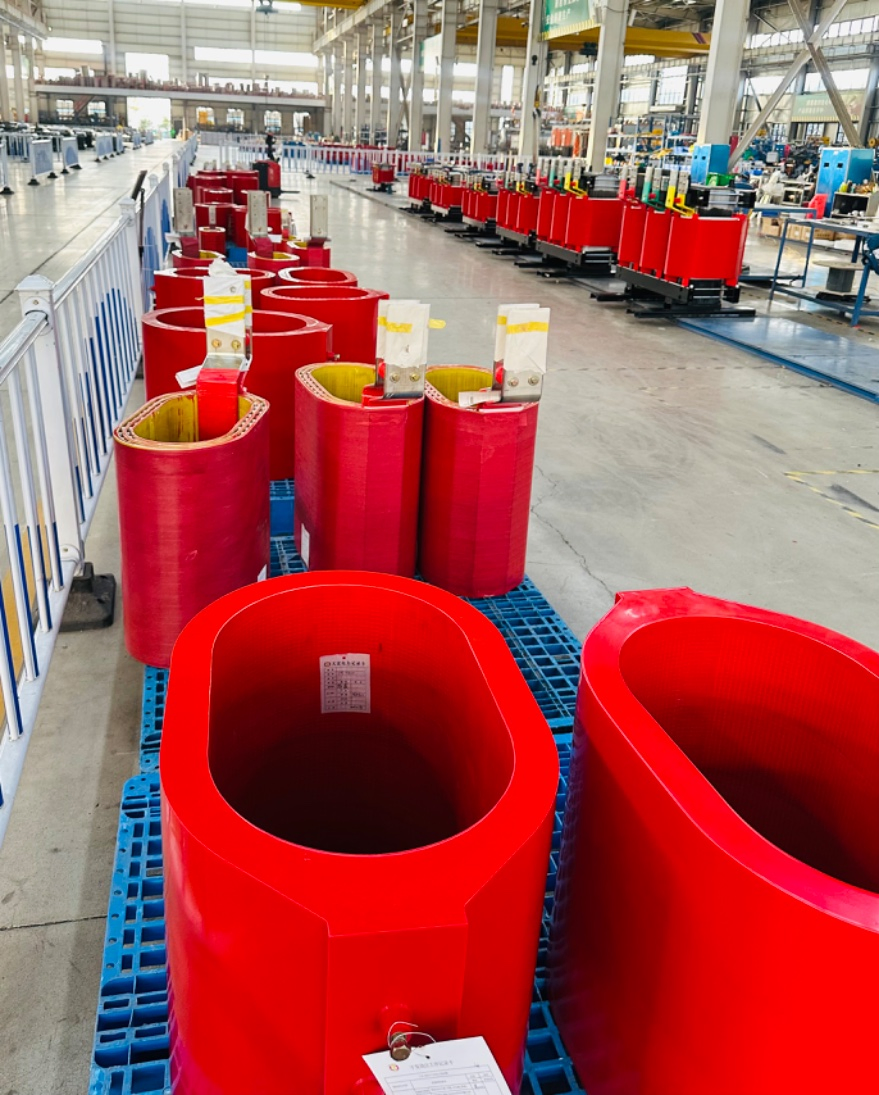

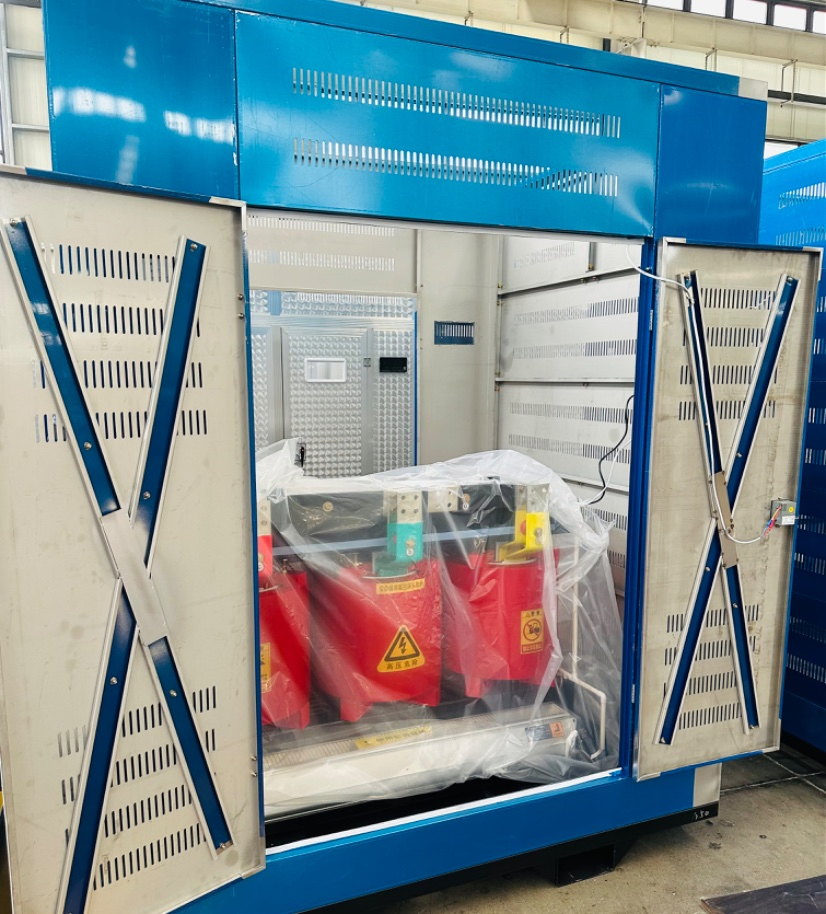

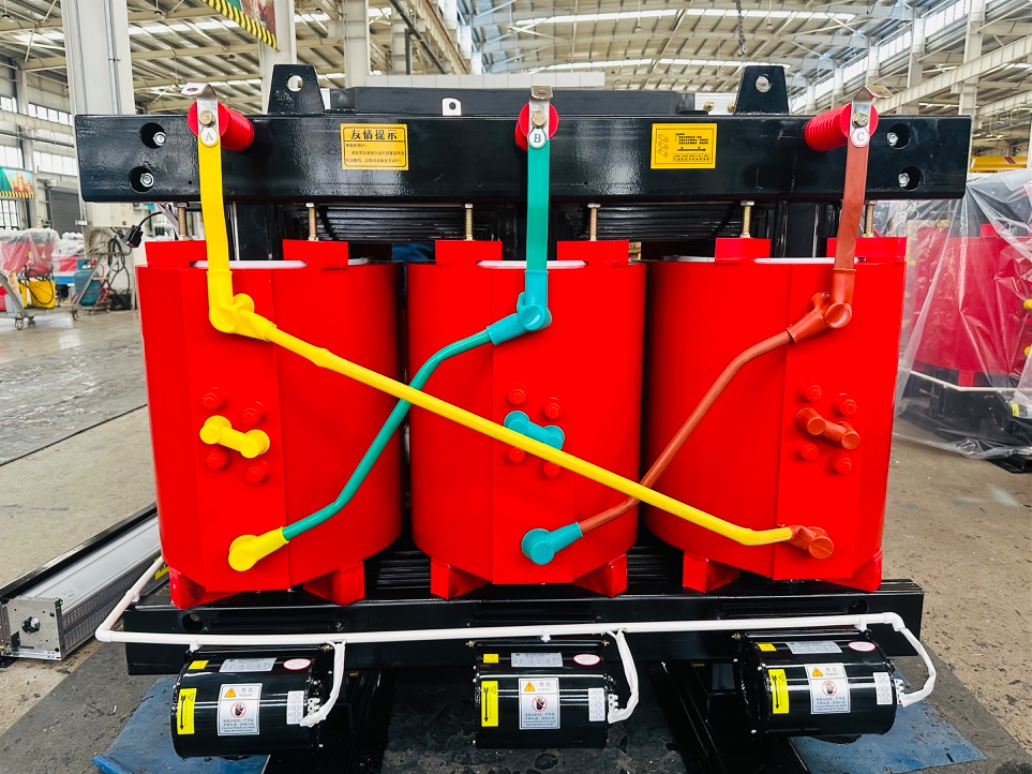

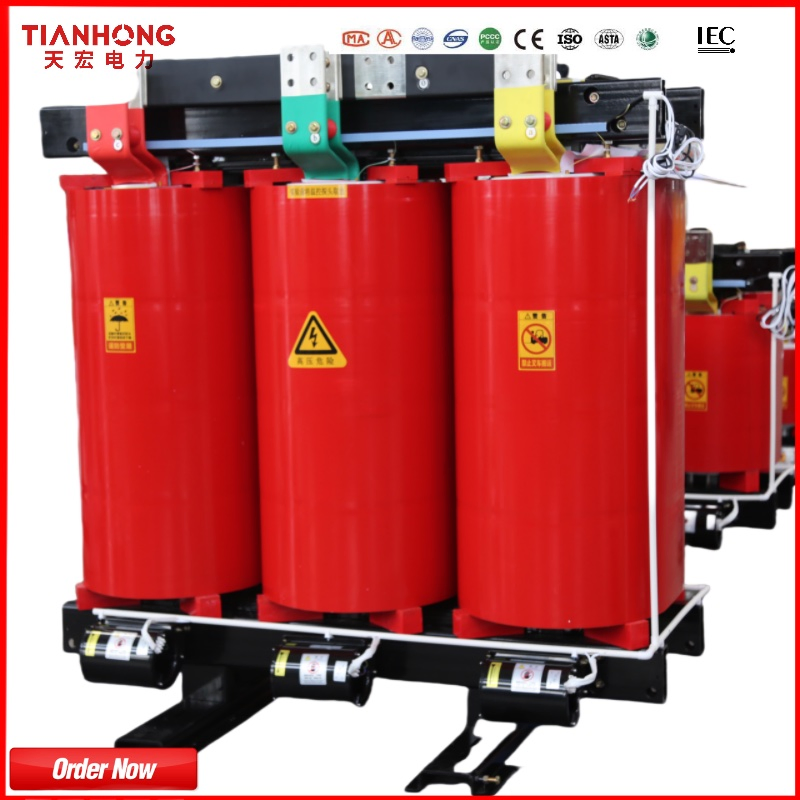

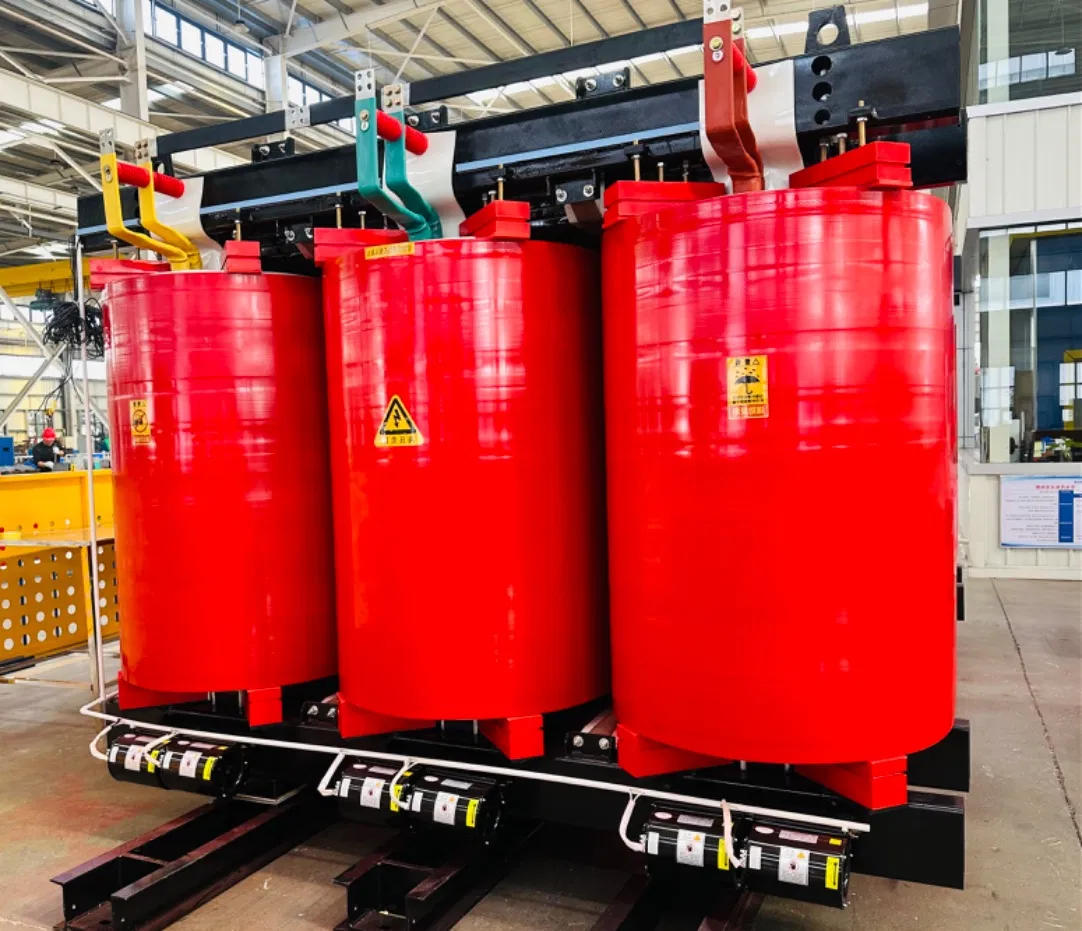

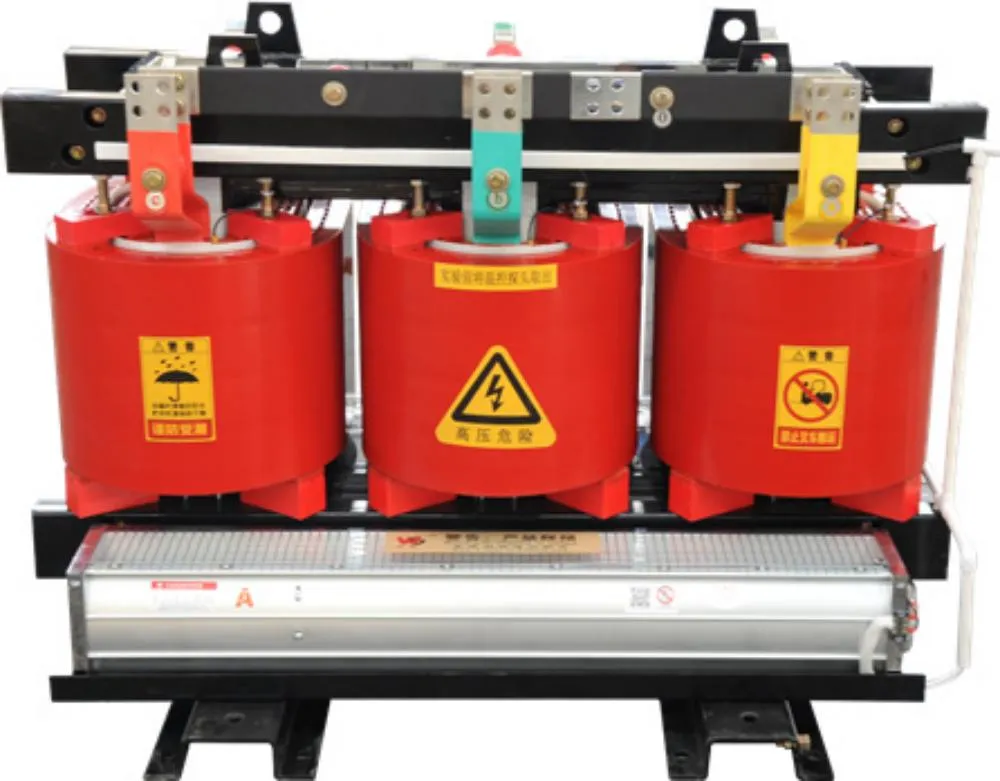

Premium Series 30 50 80 125 160 200 315 400 630 750 1250 2000 3000 kVA 10/0.4Kv IEC60076 Three-phase high voltage dry distribution transformer. These transformers are designed to provide unmatched reliability and efficiency and are the epitome of innovation in power distribution. Adhering to the strict IEC60076 standard, our transformers ensure superior performance and safety in high voltage applications.
Dry-type power transformers adopt special European process technology to ensure fire prevention, waterproof, and environmental protection. By optimizing the high-voltage coil structure, the series improves voltage and capacitance distribution to withstand atmospheric and operating overvoltage effectively.

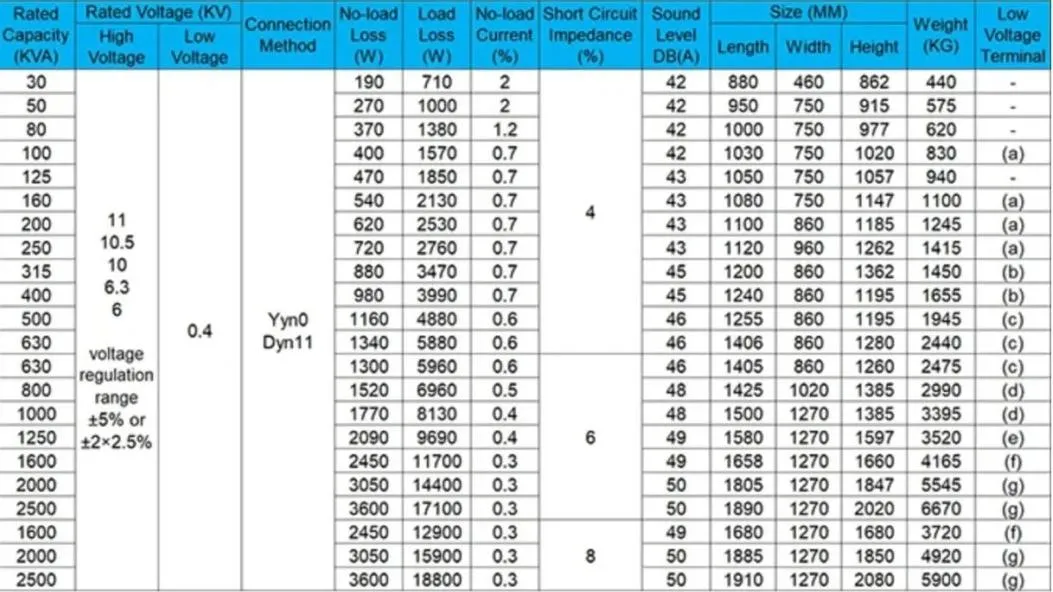

| Transformer Type | Resin Cast Dry Type |
| Number of Phase | Three Phase |
| Winding Material | Aluminum/Copper |
| Rated Capacity | 30kVA (Customizable) |
| High Voltage | 10/11kV |
| Low Voltage | 0.4kV |
| Frequency | 50/60Hz |
| Insulation Class | F |
| Protection Level | IP00/IP20/IP30 |
| Cooling Method | ANAF |
Uses great material and new technology to achieve H-grade insulation, reliably used in ambient temperatures up to 180ºC and can sustain up to 220ºC.
Flame retardant and moisture-proof materials. Combustible material is only 10% of epoxy resin transformers. No poisonous fumes at 800ºC.

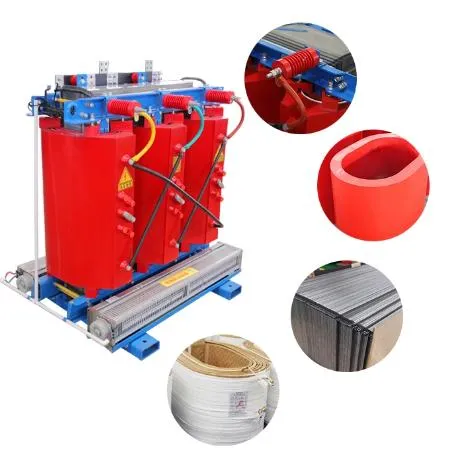

Special coil design achieves moisture-proof, mould proof, and flame proofing. Sustains high thermal shock without partial discharge.
Sustains 120% rated capacity. Can run long-term under IP23 without forced air cooling.

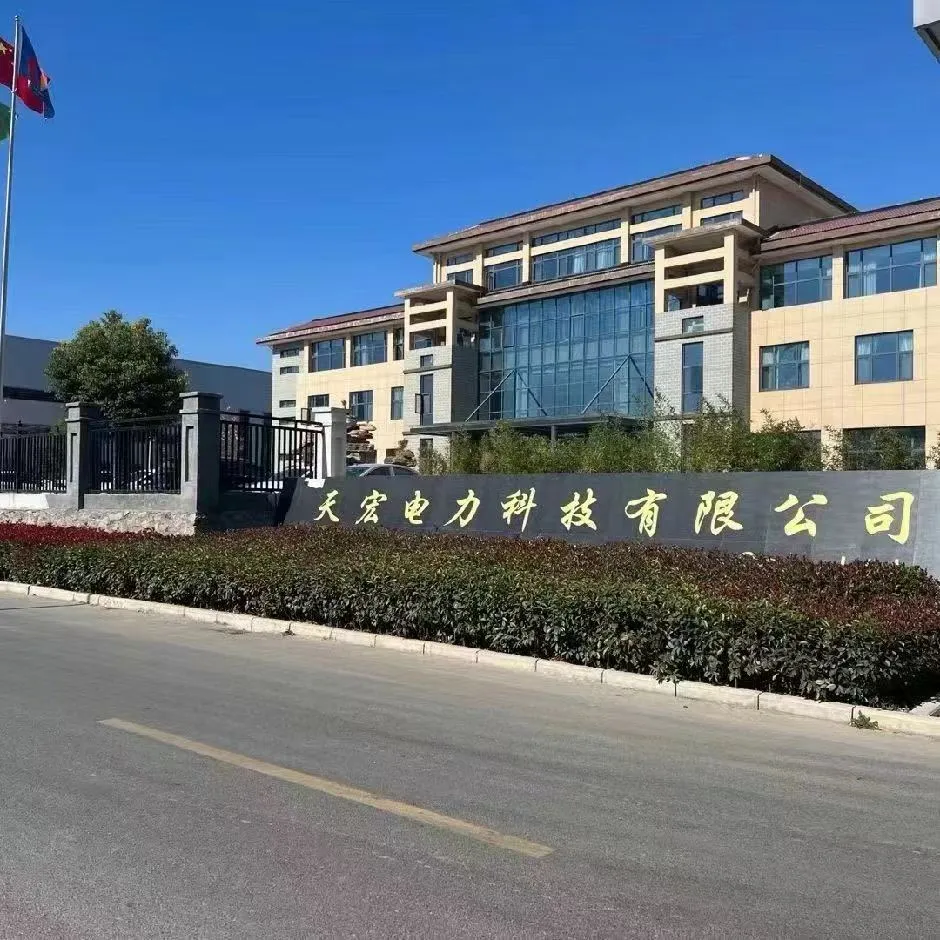

Founded in 2019, we are a digital management enterprise integrating research and development, production, and sales of power equipment. Products cover 6kv, 11kv, 22kv, 35kv power transformers, distribution transformers, substations, and switchgear. Our products are exported to the Middle East, North America, South America, Europe, Southeast Asia, and Africa, covering more than 40 countries.

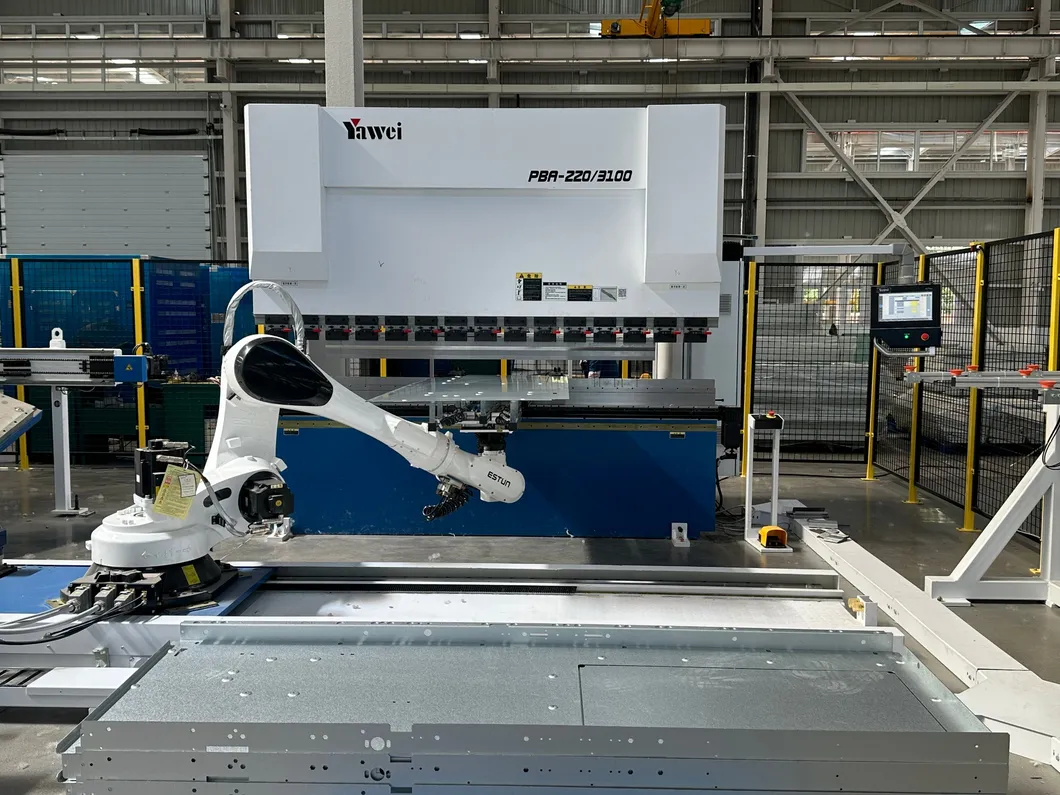

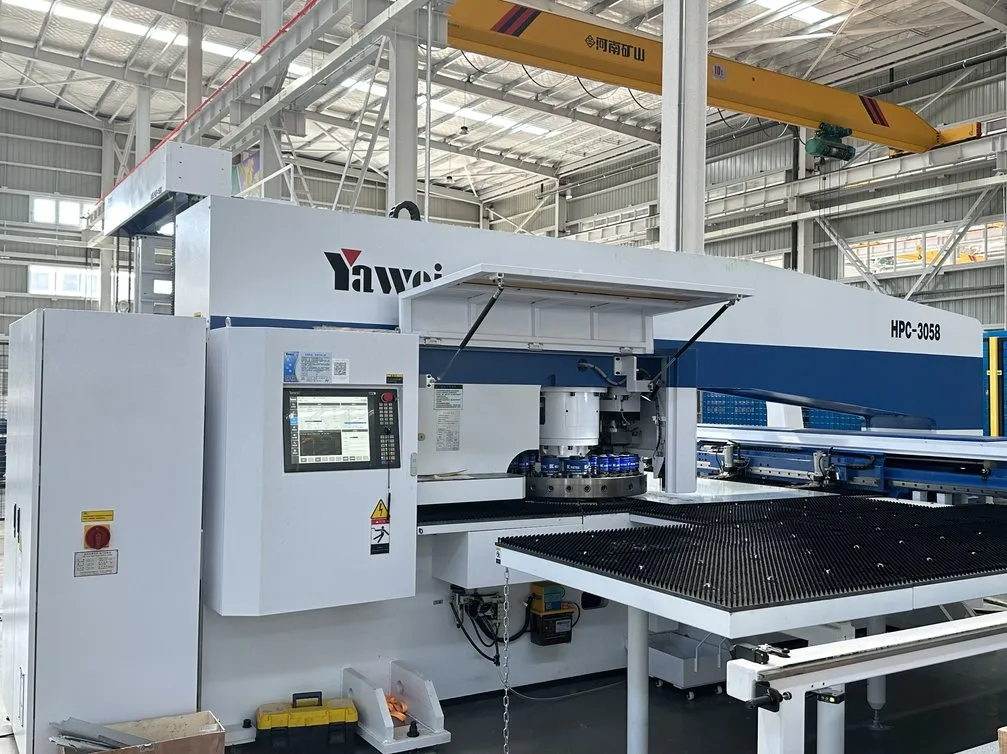

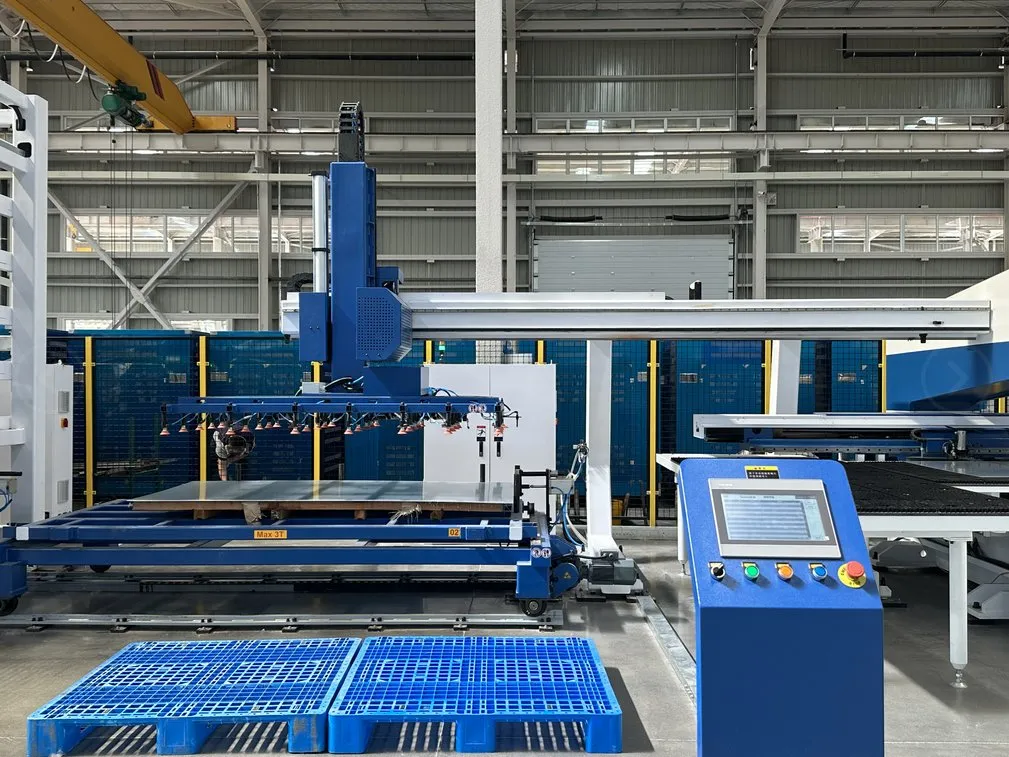

With three plant areas including dry and oil transformer workshops across 250,000 square meters, we hold 128 patents. All products meet international standards through IEC, SGS, intertek, CCC, and CE certifications.
