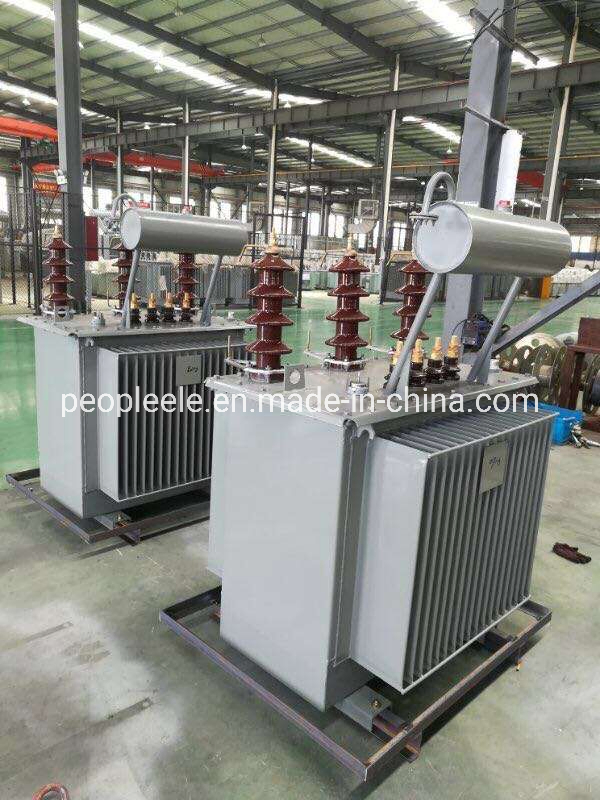

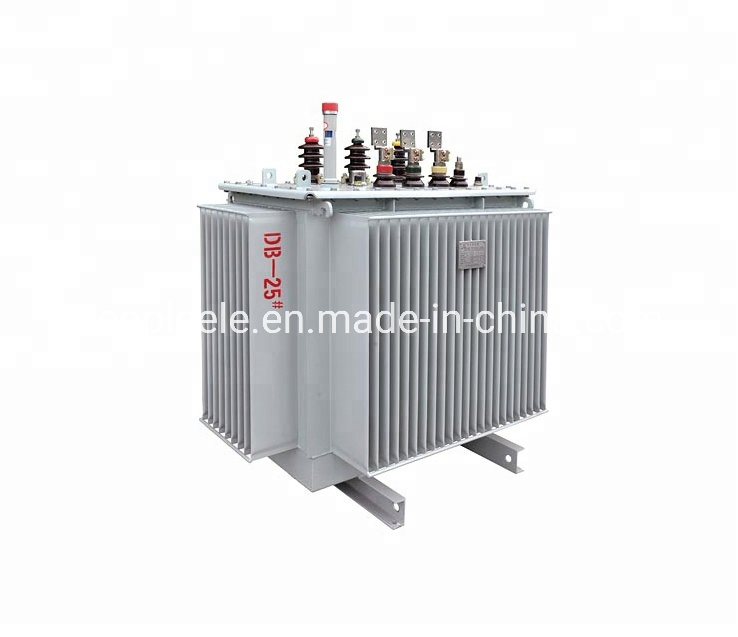

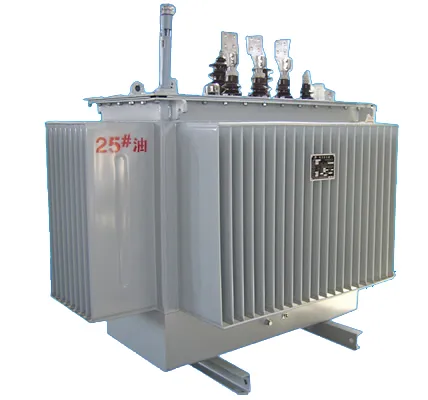

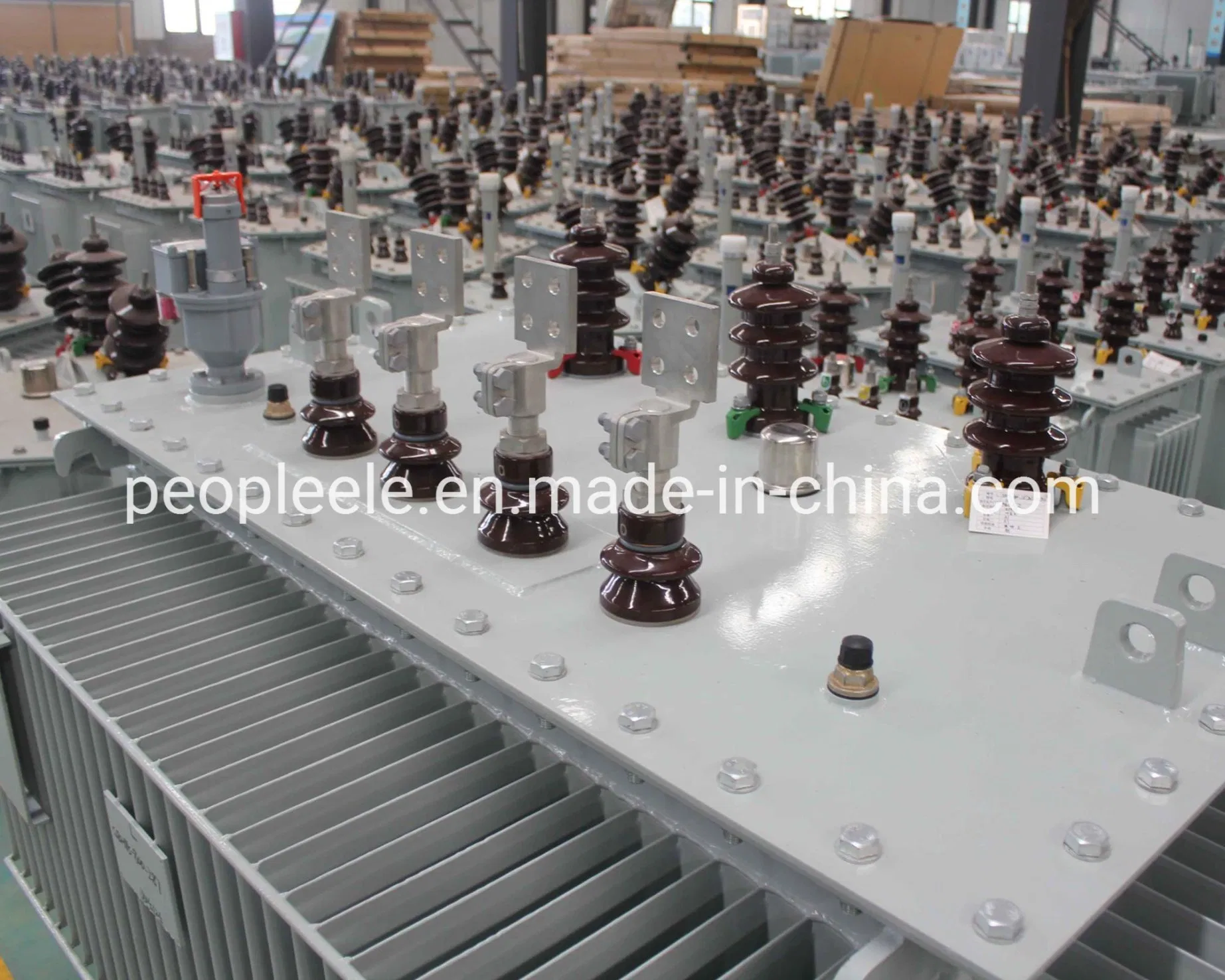

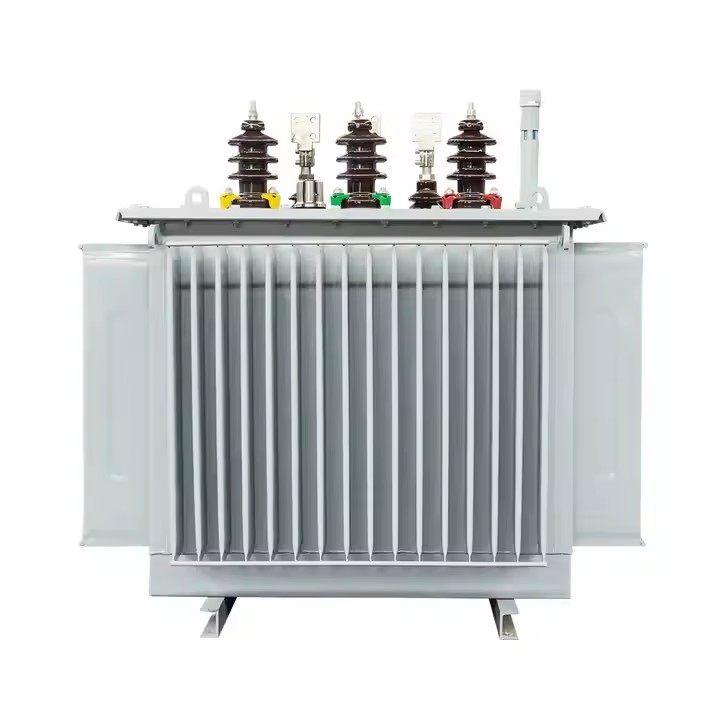

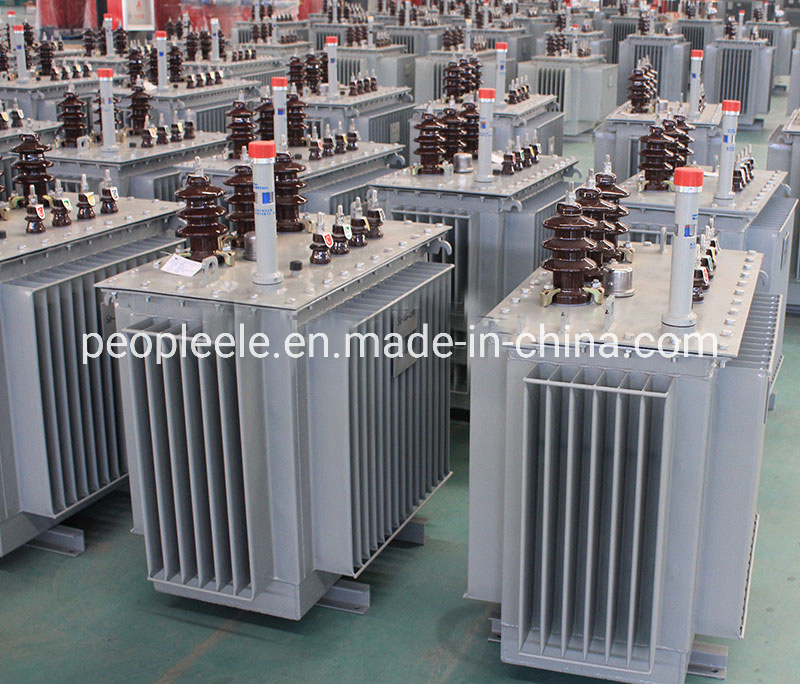

The three-phase oil Immersed distribution transformer applies new type insulating structure and make the short-circuit resistance strong. The Iron core is made of high quality cold rolled silicon steel plate. High -voltage winding groups is made up of high quality oxygen free copper lines and it adopts multi drum type structure.
With the fundament of traditional frames and proved techniques our company made a great improvement. We employ spiral loops with longitudinal oil path to produce a better cooling effect. We improve the effectual support of the loop's terminal face to strengthen the anti-short circuit electricity capability.
We use Oxygen free cooper lines of lower resistivity, which will become smoother and burr free after series of additional treatment so the load loss of our transformer is lower and the electric performance is better. We also use high quality silicon steel plate and high quality wooden laminating insulation pieces, thoroughly filtrated transformer oil and high quality rubber sealing material. All raw materials have passed the quality testing with national standard ISO9000 inspection.
Compared with previous products, S9 and above series reduces the no load loss by 10%, and load loss by 24%, and no load electric current by 46%. As a result, the operating cost will drop by 19%.
| Rated Capacity (KVA) | Voltage Ratio | Connection Group | Impedance | Losses (kW) | No Load Current (%) | Weight (kg) | Dimension (LXBXH) | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| High Voltage | Low Voltage | No Load | Load | Active Part | Oil | Gross | |||||
| 5 | 11 / 10.5 / 10 / 6.3 / 6 | 0.4 / 0.69 | Yyn0 / Dyn11 | 4% | 0.07 | 0.35 | 4 | 50 | 45 | 145 | 550*450*800 |
| 50 | 4% | 0.17 | 0.91/0.87 | 2.0 | 195 | 80 | 365 | 740*600*930 | |||
| 100 | 4% | 0.29 | 1.58/1.5 | 1.8 | 300 | 95 | 510 | 820*710*970 | |||
| 200 | 4% | 0.48 | 2.73/2.6 | 1.5 | 490 | 150 | 810 | 1160*760*1090 | |||
| 500 | 11 | 0.4 | Yyn0 | 4% | 0.96 | 5.41/5.15 | 1.2 | 935 | 235 | 1505 | 1410*970*1290 |
| 1000 | 11 | 0.4 | Dyn11 | 4.5% | 1.70 | 10.3 | 1.0 | 1455 | 475 | 2555 | 1855*1255*1490 |
| 2500 | 11 | 0.4 | Dyn11 | 4.5% | 3.30 | 23.0 | 0.7 | 2920 | 830 | 5100 | 2250*1800*2100 |
A1: The S9 series offers significantly improved energy efficiency, reducing no-load loss by 10% and load loss by 24% compared to previous models. It also features a strong short-circuit resistance due to its new insulating structure.
A2: High-quality oxygen-free copper lines are used for the windings. These provide lower resistivity and better electric performance, contributing to reduced load loss.
A3: These are oil-immersed transformers that utilize spiral loops with longitudinal oil paths to create an enhanced cooling effect, ensuring stable operation even under load.
A4: The S9 series distribution transformers are available in a wide range of capacities, starting from 5kVA up to 2500kVA, suitable for various power distribution needs.
A5: Yes, the products are manufactured using materials that pass ISO9000 quality inspections and hold certifications such as ISO9001-2000, ISO9001, and CCC.
A6: Depending on the specific requirements, these transformers can be equipped with either Off-Load or On-Load tapping changers for effective voltage ratio adjustment.
