Dgg 11kv 35kv CT/PT Indoor Single Phase Instrument Current/Voltage/ Potential Transformer

1 / 5

Dgg 11kv 35kv CT/PT Indoor Single Phase Instrument Current/Voltage/ Potential Transformer

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.LZZB11-10

PhaseSingle

Operation ConditionIndoor

UsageProtection, Measurement

Winding FormSingle Layer & Tightly Wound Type

Insulating MediumEpoxy Resin

Insulation Level12/42/75kv

Rated Secondary Current5A or 1A

Rated Frequency50Hz or 60Hz

AltitudeShould Not Exceed 1000m

HS Code8504311000

Production Capacity100000PCS/Year

Integrated Power Transmission & Distribution Specialist

Providing 11kV-123kV solutions with more than 15 years of experience in high-standard utility supply. Get reliable factory pricing and expert support for your power system projects.

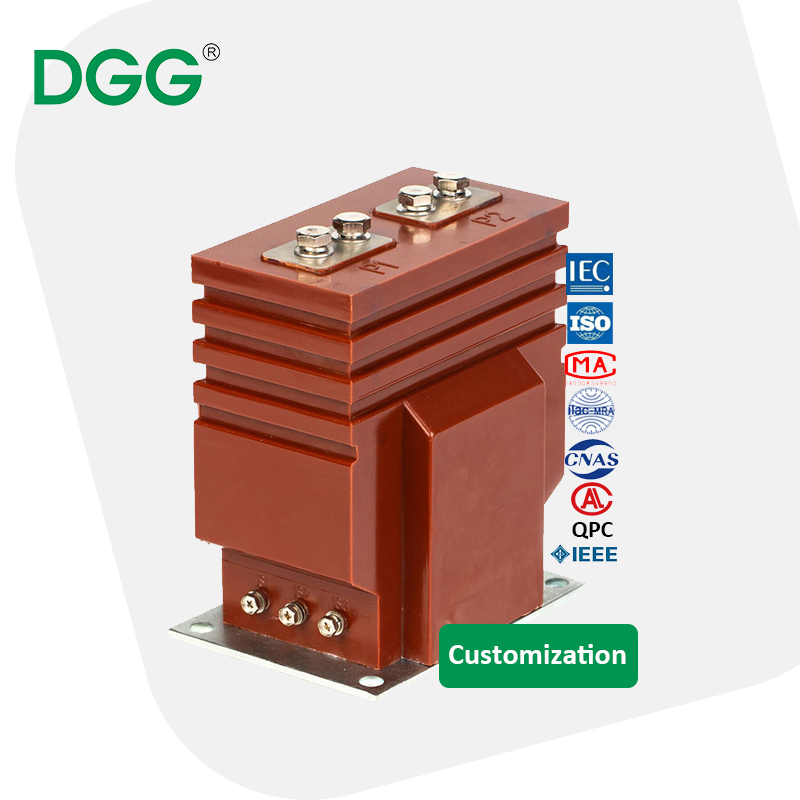

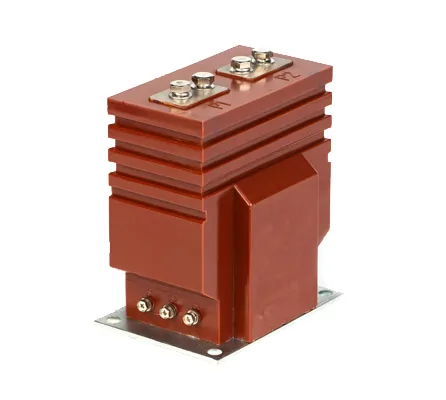

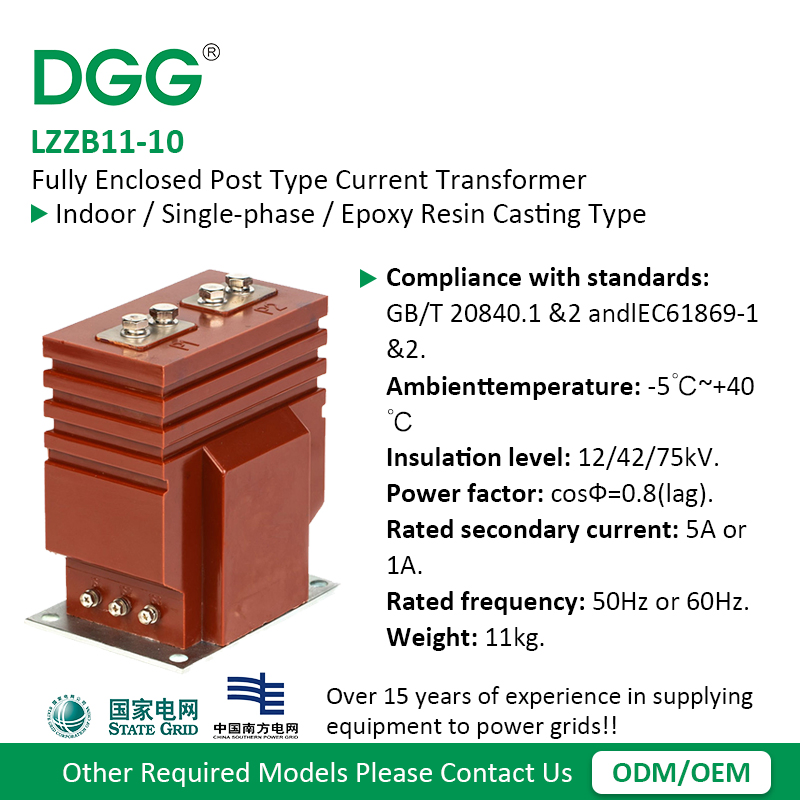

LZZB11-10 Current Transformer

This post-type current transformer is fully enclosed in epoxy resin casting, designed for indoor single-phase applications. It meets stringent international standards for power system protection and measurement.

Technical Parameters

Rated Primary Current (A)	Accuracy Class	Rated Output (VA)	Rated Short-time Thermal Current(kA/S)	Rated Insulation Level(kA)
5 - 150	0.2S	10	0.36 - 10.8	0.9 - 27
200 - 300			14.4 - 21.6
400			28.8
500			36

*Note: Parameters beyond this scope can be customized upon consultation.

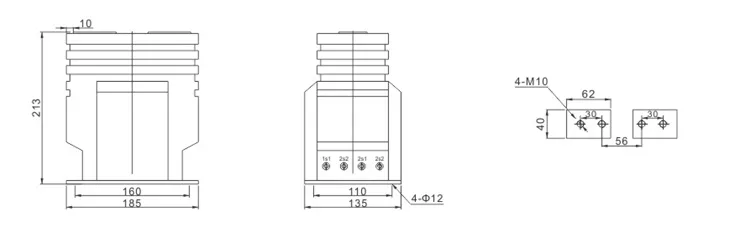

Outline & Installation

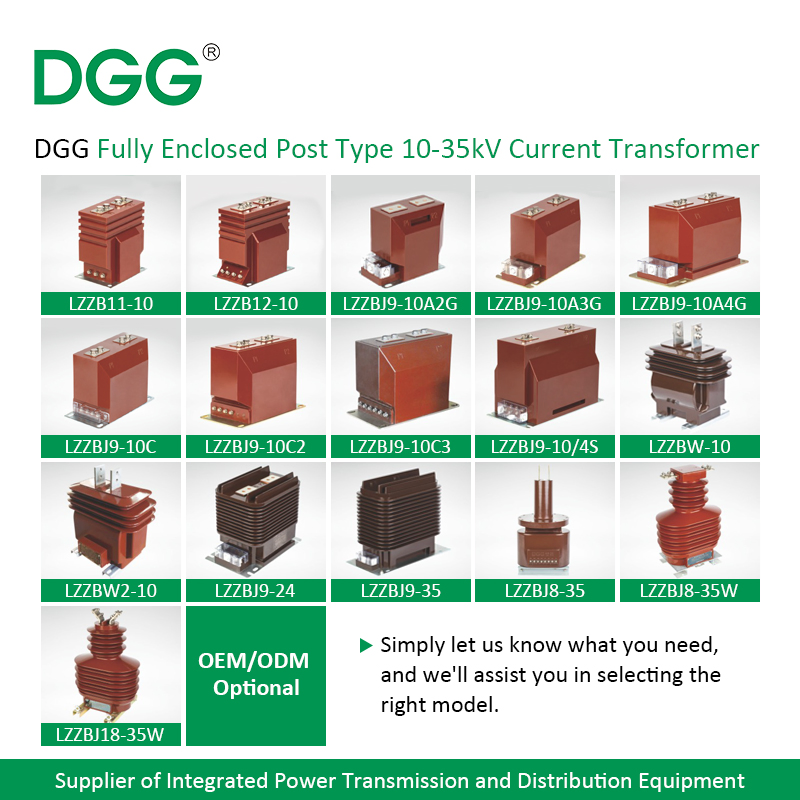

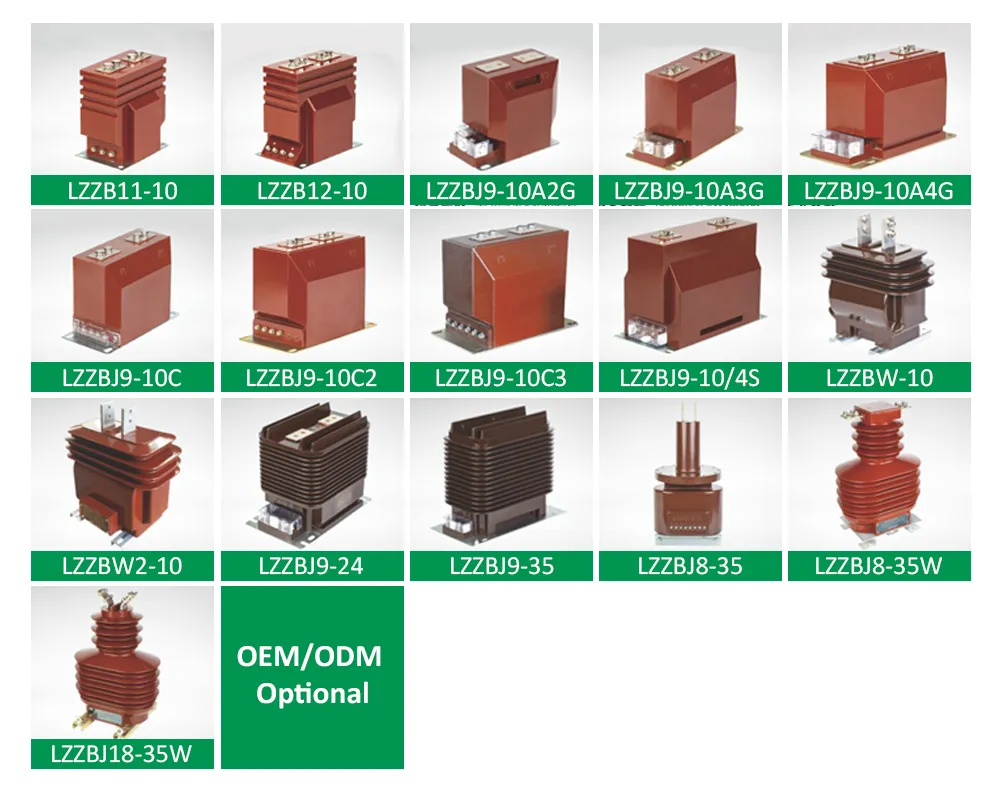

10-35kV Current Transformer Series

Why Partner With Us

30+ Years Experience: Decades of resolving complex technology challenges.
Global Standards: Certified by IEC, KEMA, TUV, and CNAS laboratories.

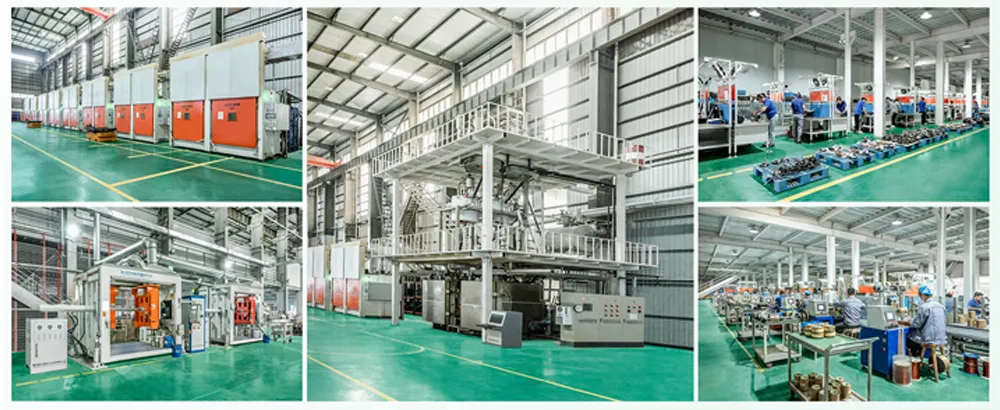

Massive Capacity: 40,000 sqm production base with 2,000+ mold sets.
Cost-Effective: Direct factory sales providing significant savings for agents and buyers.

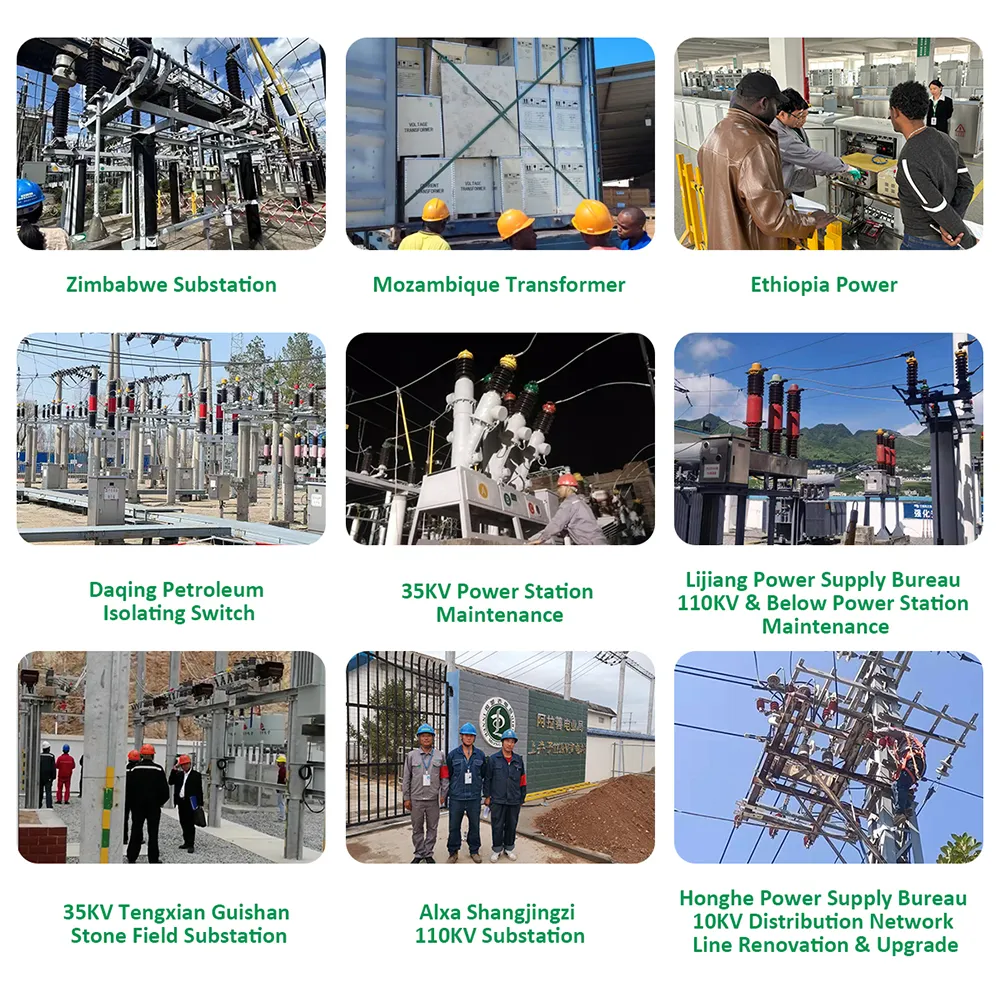

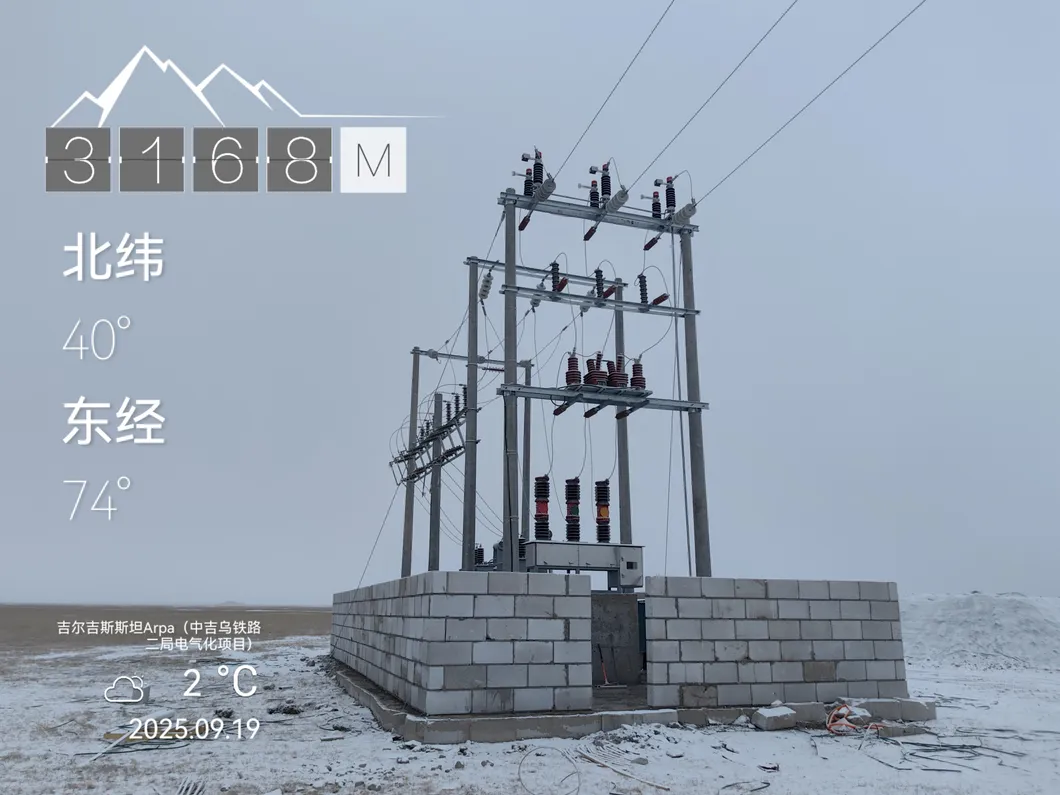

Global Footprint

Simplified Project Support

Follow our 3-step process: Tell us your needs (drawings/reference pics) -> Receive a quotation within 24 hours -> Approve for mass production.

Trusted supplier for major power grids for over 15 years.

Frequently Asked Questions

Q1: What voltage range do your products cover? A: Our products cover medium and high voltage levels from 11kV up to 123kV, suitable for various substation and grid applications.

Q2: Are the products compliant with international standards? A: Yes, our equipment is designed and tested to meet IEC61869-1 & 2 standards, ensuring global reliability and safety.

Q3: Do you support OEM and ODM customization? A: Absolutely. We offer full OEM and ODM services based on your technical drawings, project specifications, and specific tender requirements.

Q4: What is the insulation medium used in your current transformers? A: We primarily use high-quality epoxy resin casting, which provides excellent insulation and durability for indoor environments.

Q5: What is your annual production capacity? A: We have a robust manufacturing capability of approximately 100,000 units per year across our four specialized production bases.

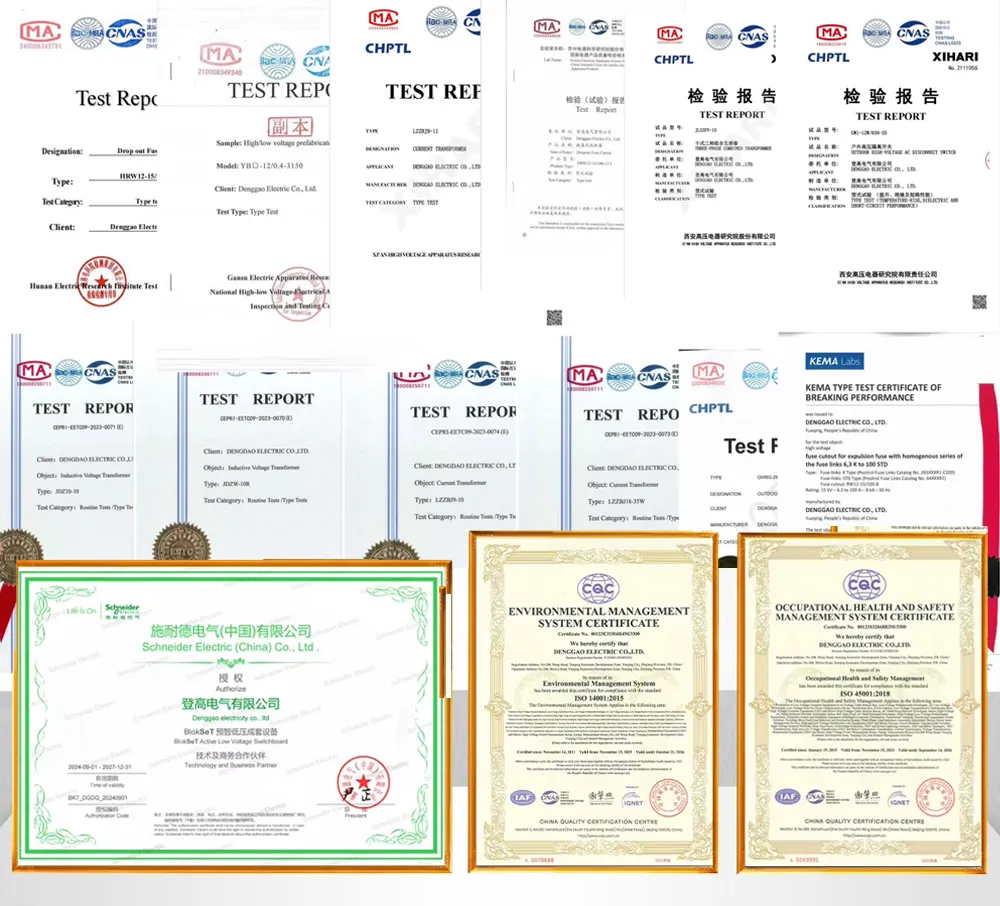

Q6: What certifications are available for these products? A: We provide complete type test reports, including certifications from IEC, KEMA, TUV, and other recognized international bodies.
