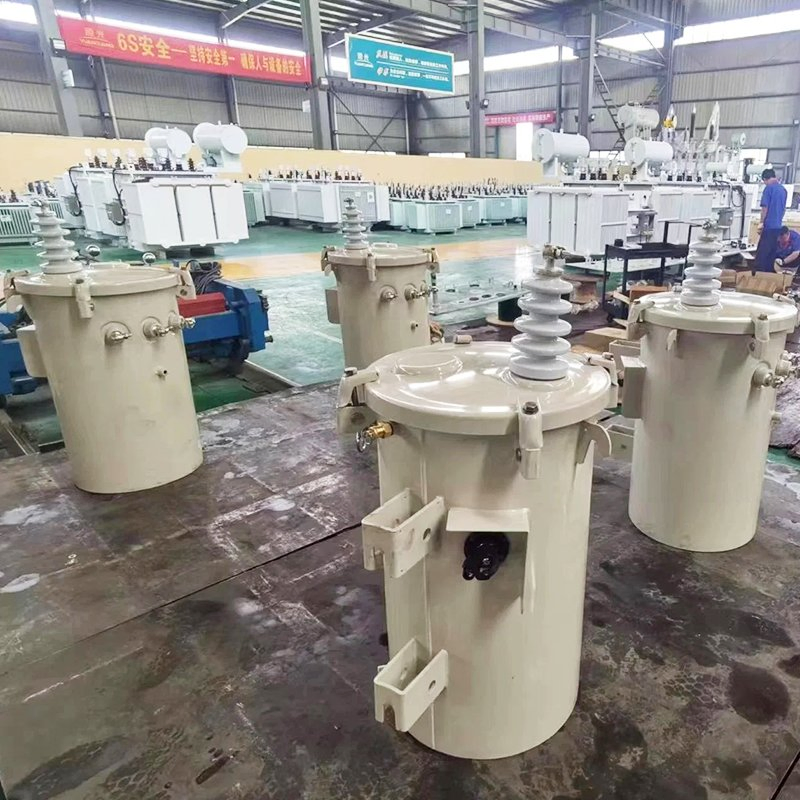

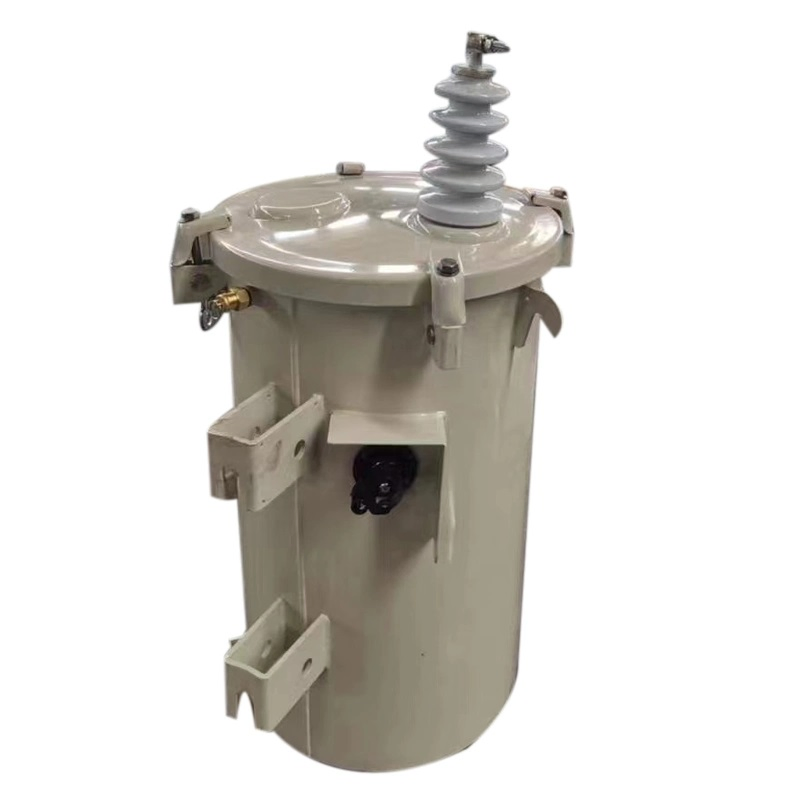

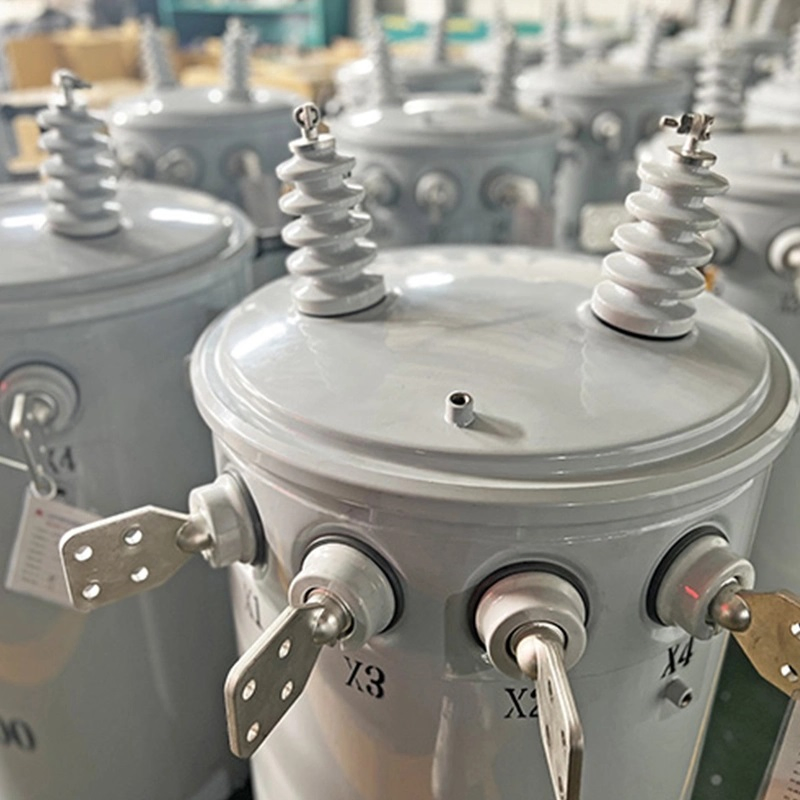

Overhead Installation Single Phase 34.5kv 500kv Pole Mounted Transformer
Overhead Installation Single Phase 34.5kv 500kv Pole Mounted Transformer
Overhead Installation Single Phase 34.5kv 500kv Pole Mounted Transformer
Overhead Installation Single Phase 34.5kv 500kv Pole Mounted Transformer
Overhead Installation Single Phase 34.5kv 500kv Pole Mounted Transformer
1 / 5
Overhead Installation Single Phase 34.5kv 500kv Pole Mounted Transformer
Overhead Installation Single Phase 34.5kv 500kv Pole Mounted Transformer
Overhead Installation Single Phase 34.5kv 500kv Pole Mounted Transformer
Overhead Installation Single Phase 34.5kv 500kv Pole Mounted Transformer
Overhead Installation Single Phase 34.5kv 500kv Pole Mounted Transformer

Overhead Installation Single Phase 34.5kv 500kv Pole Mounted Transformer

Customization: Available
Application: Power, Electronic
Phase: Single
Send Inquiry

Product Description

Basic Specifications
Model NO.
NB
Core
Core-type Transformer
Cooling Method
Oil-immersed Type
Winding Type
Two-winding
Certification
ISO9001-2000, ISO9001
Usage
Single-phase, Power, Distribution
Frequency
High Frequency / 60Hz
Rated H.V.
34.5/13.2/13.8/12.47/14.4/15/7.62/7.2kv
Low Voltage
0.4kVA
Winding Material
Copper/Aluminum
Enclosure
IP20/IP23
Capacity
5000PCS/Year
Product Overview

Overhead Installation 10kv 15kv Single Phase Pole Mounted Transformer (100kva - 37.5kva)

Single phase pole-mounted transformers are manufactured with power ratings up to 333 kVA and high voltage capabilities up to 34.5 kV. Designed and tested in accordance with international standards including ANSI/CSA, IEEE c.57, and IEC60076.

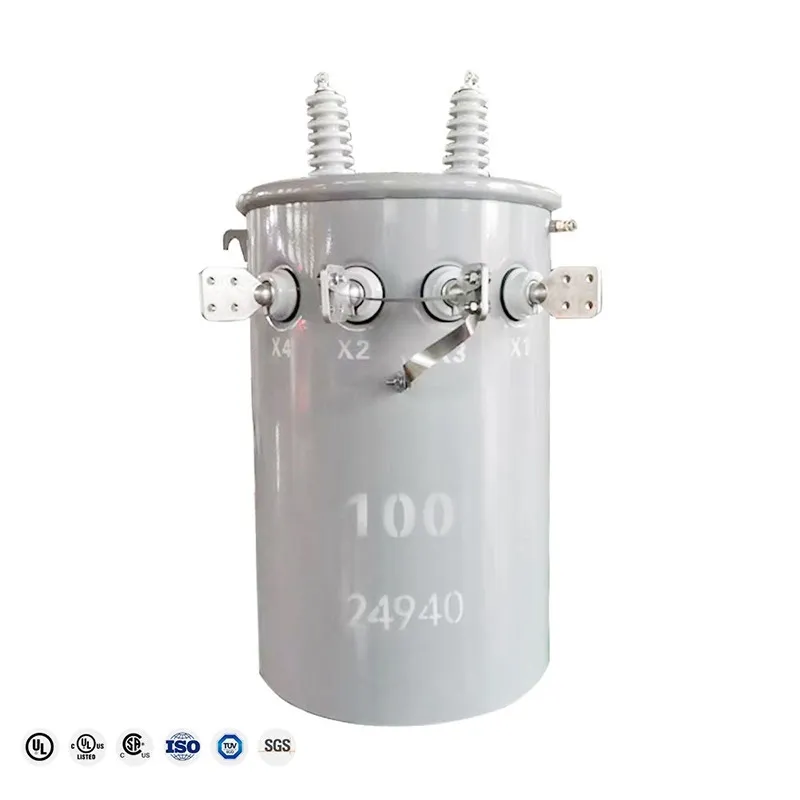

Single Phase Pole Mounted Transformer

These units are typically mounted directly on wooden or concrete poles for various applications such as residential overhead distribution and light commercial loads. Available in both conventional and CSP types.

  • Fully sealed and insulated for maximum safety and reliability.
  • Low loss, low noise, and strong overload capacity.
  • Customizable with load switches, bayonet fuses, current limiting fuses, and pressure relief valves.
Technical Parameters
Rated Power (KVA) High Voltage (KV) Low Voltage (V) No-load Loss (W) On-load Loss (W)
10KVA24.94/14.4kV
12.47/7.2kV
34.5KV
13.8KV
13.2KV		120/240V
480Y/277V
600Y/347V		36120
15KVA50195
25KVA80290
37.5KVA105360
50KVA135500
75KVA190650
100KVA210850
Product Display & Workshop

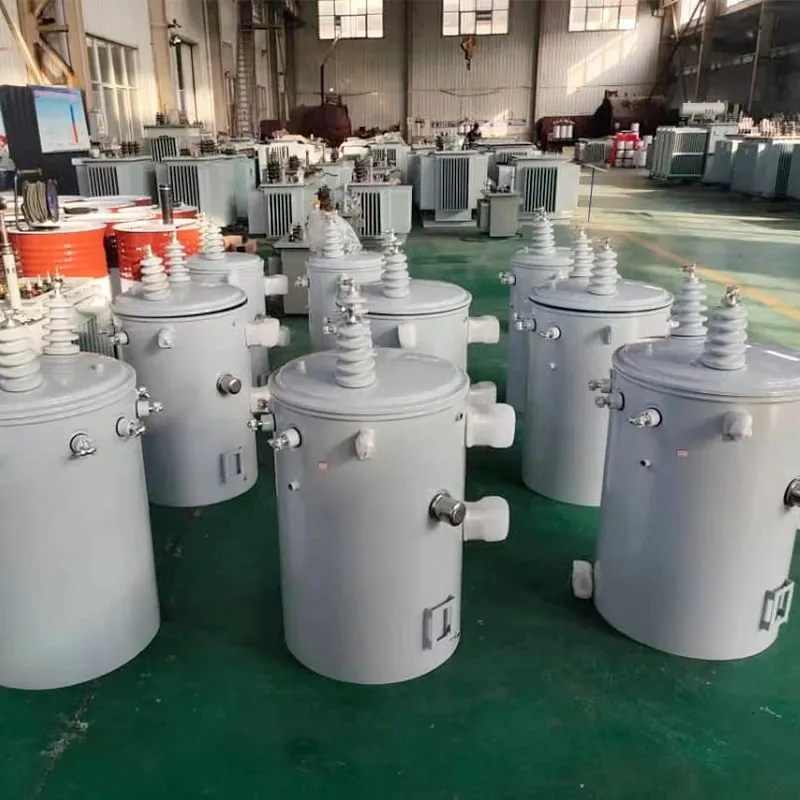

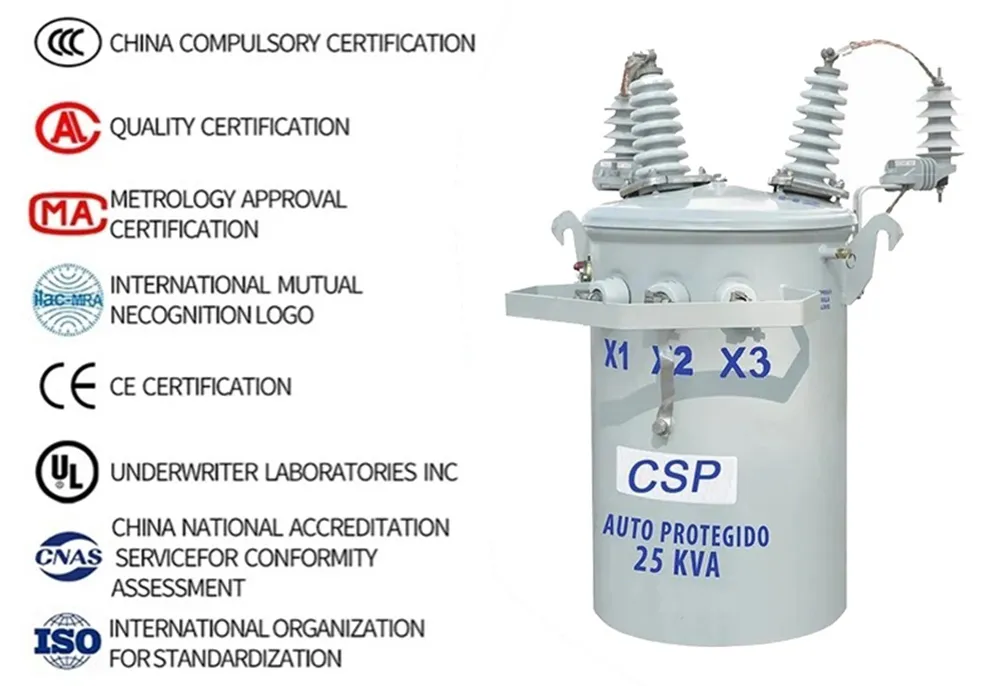

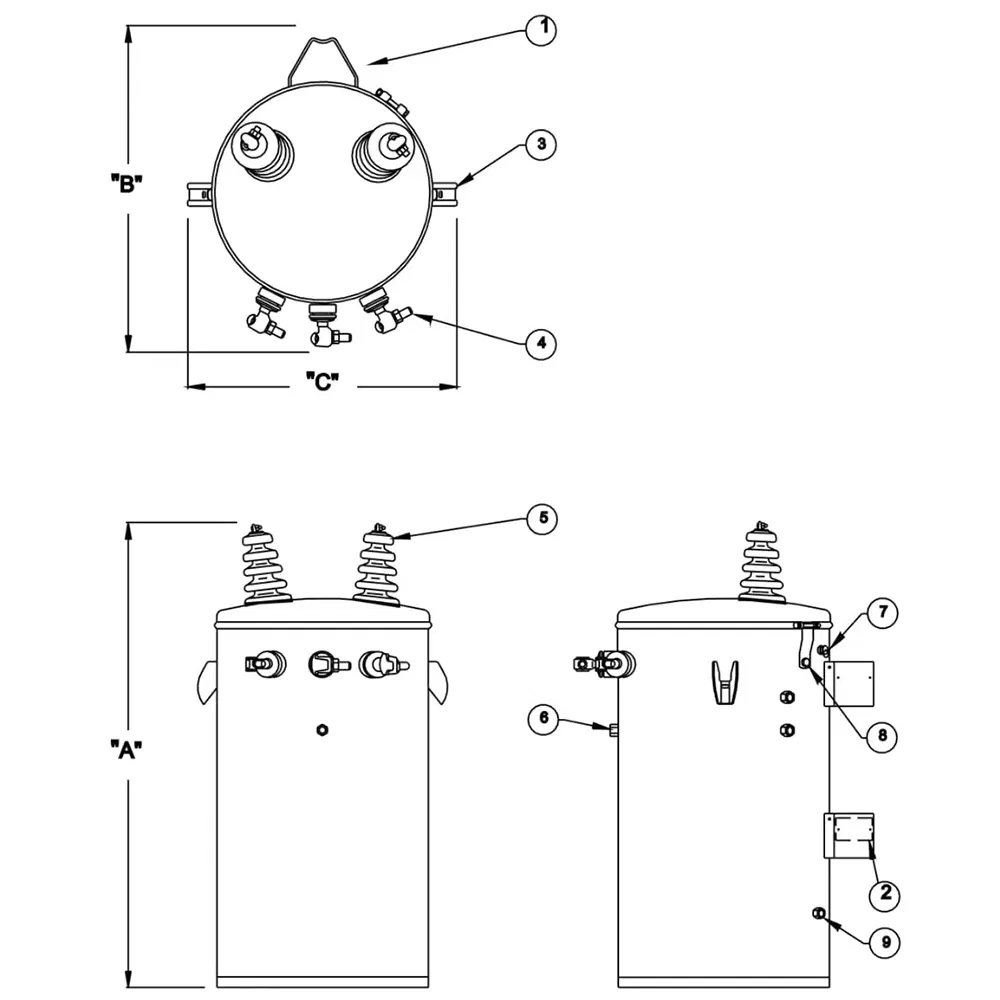

Transformer View 1 Transformer View 2 Transformer View 3

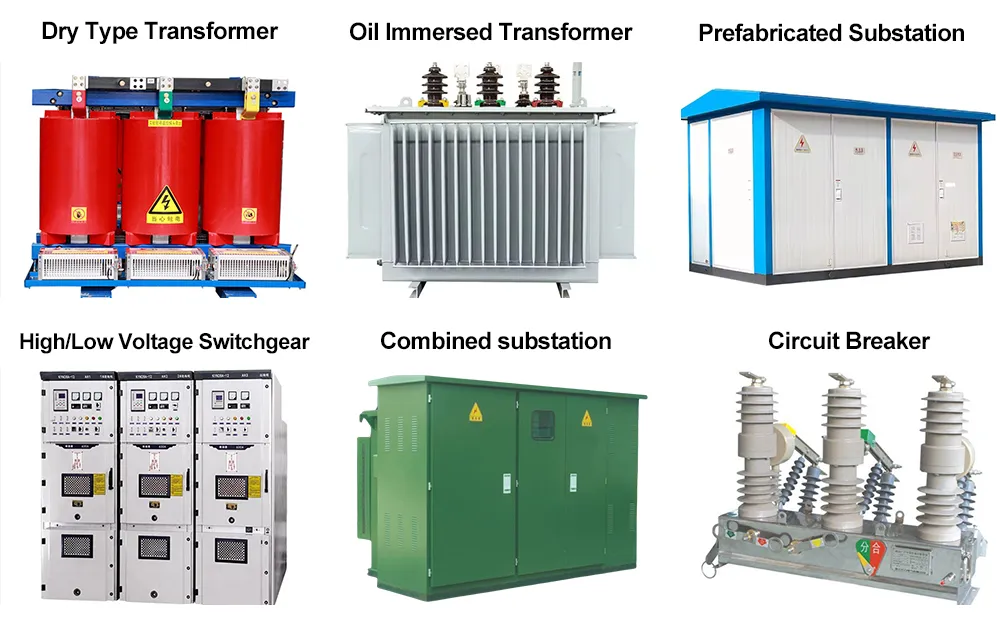

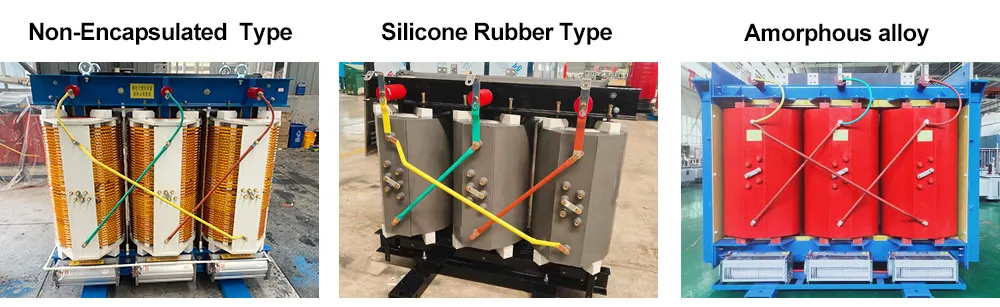

Transformer View 4 Transformer View 5 Transformer View 6
Installation & Workshop

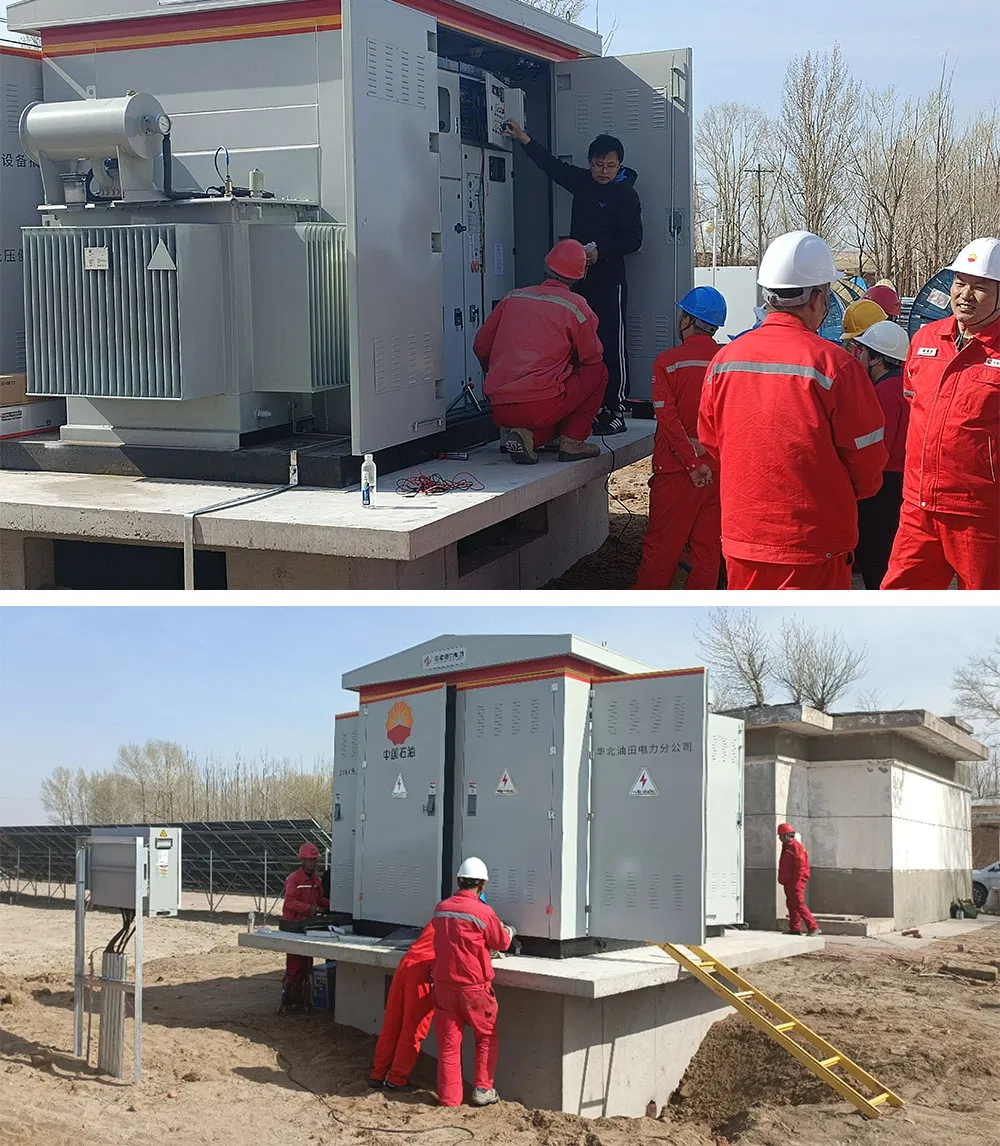

On-site Installation

Our intelligent technology enterprise specializes in the R&D, manufacturing, and sales of power transformers, high/low voltage switch cabinets, and box-type substations. The facility spans nearly 100,000 square meters, equipped with domestic advanced production and testing equipment.

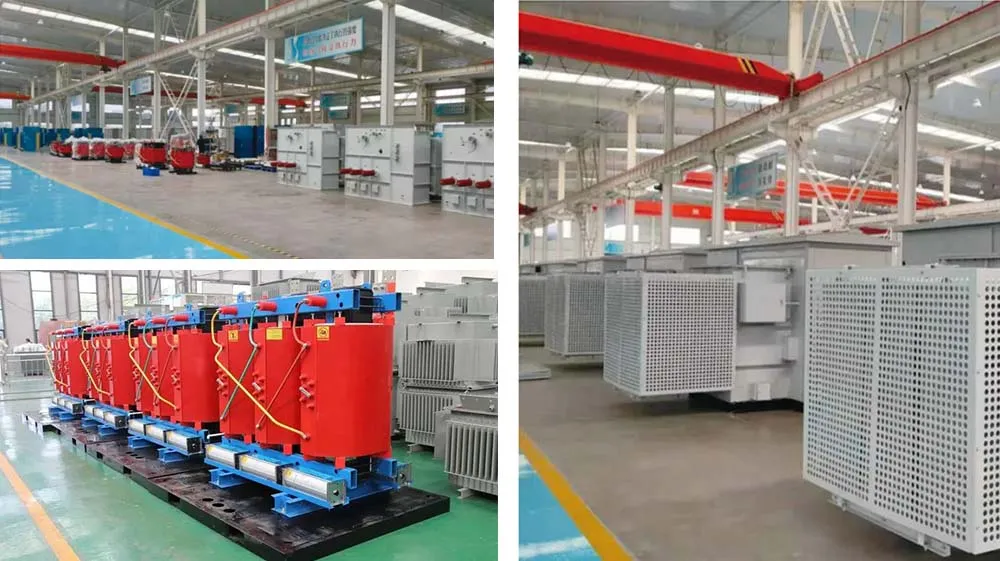

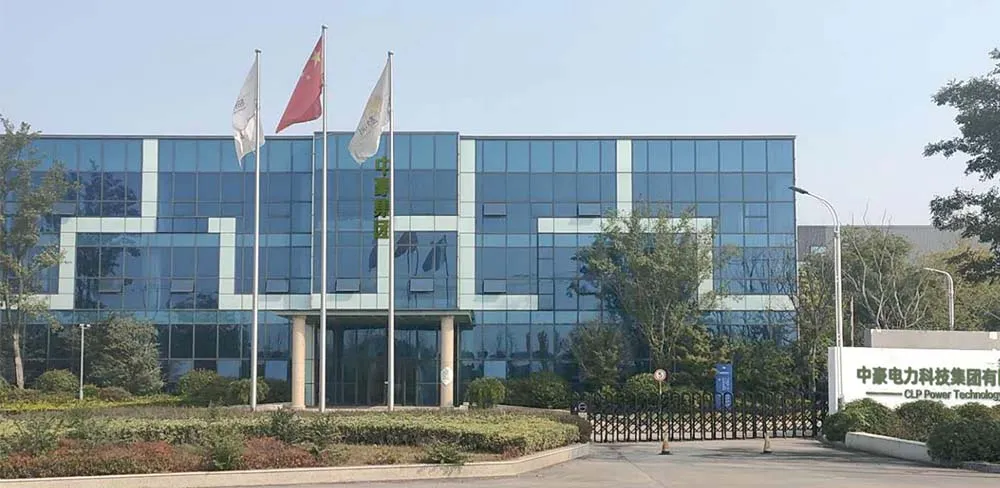

Workshop 1 Workshop 2

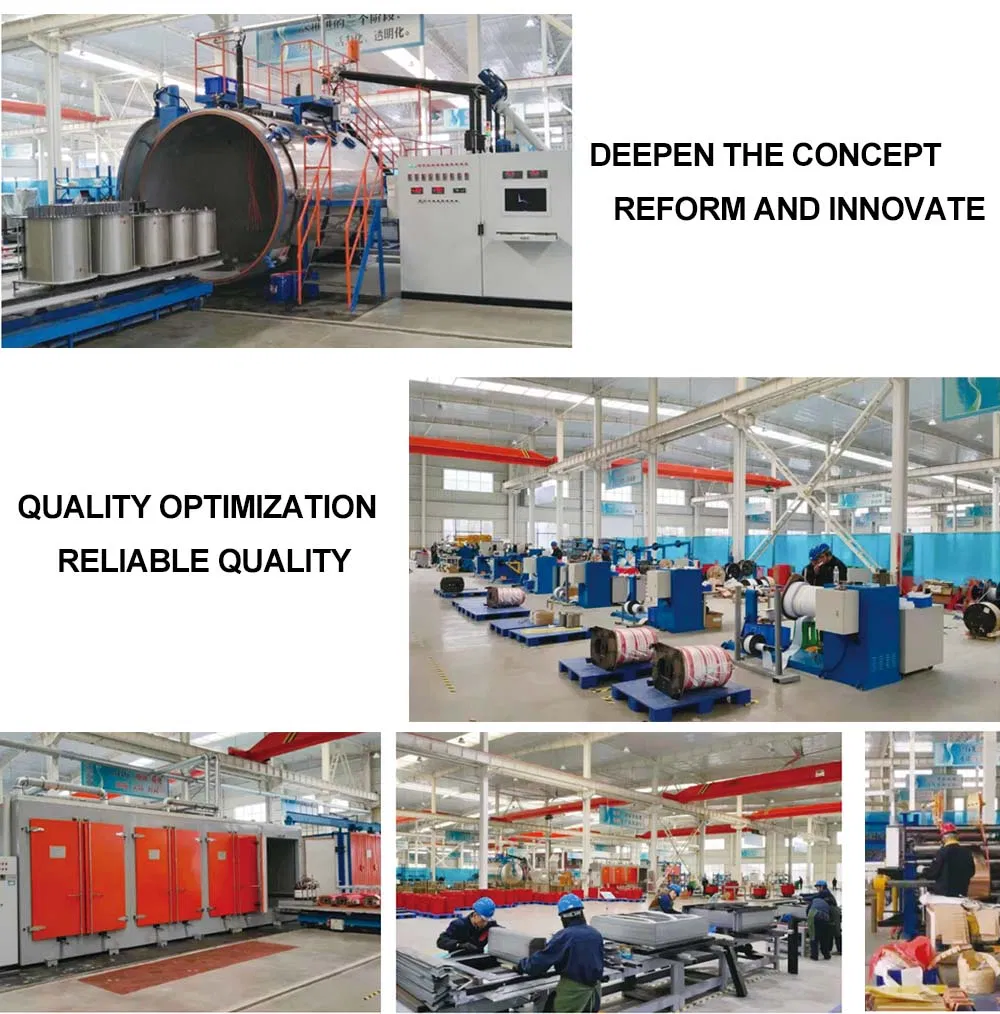

Full Workshop View
Frequently Asked Questions
What are your terms of packing?
Generally, we pack our goods in neutral white boxes and brown cartons. Customized branded packaging is available upon legal authorization.
What are your terms of payment?
T/T 30% as deposit, and 70% before delivery. We provide photos of the products and packages before you pay the balance.
What are your terms of delivery?
We support multiple delivery terms including EXW, FOB, CFR, CIF, and DDU.
How about your delivery time?
Generally, it takes 3 to 10 days after receiving your advance payment, depending on the items and order quantity.
Can you produce according to the samples?
Yes, we can produce based on your samples or technical drawings. We can also build the necessary molds and fixtures.
Do you test all your goods before delivery?
Yes, we conduct 100% testing on all products before delivery to ensure quality and safety.
