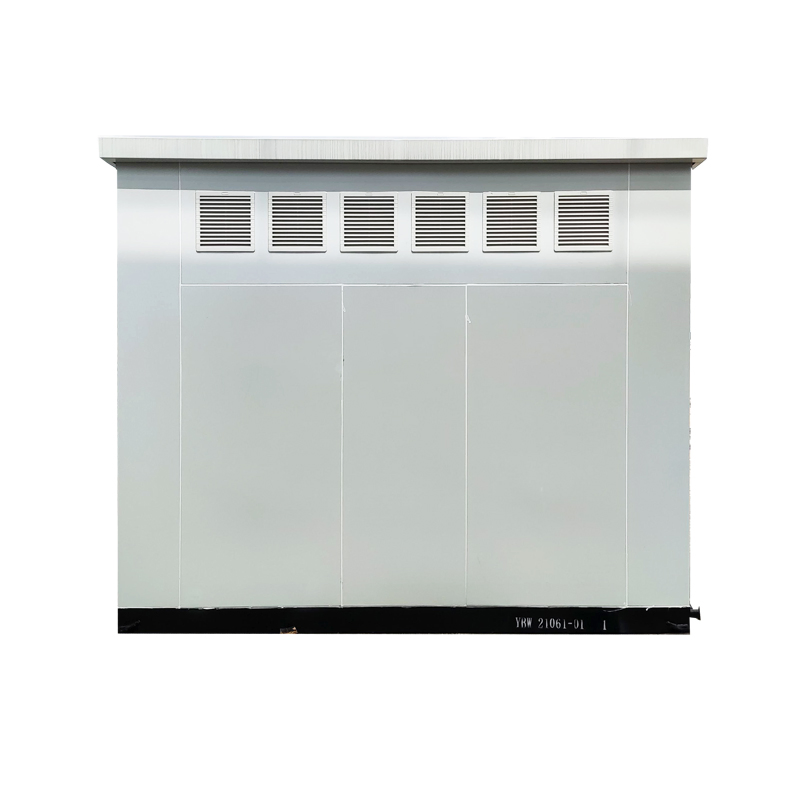

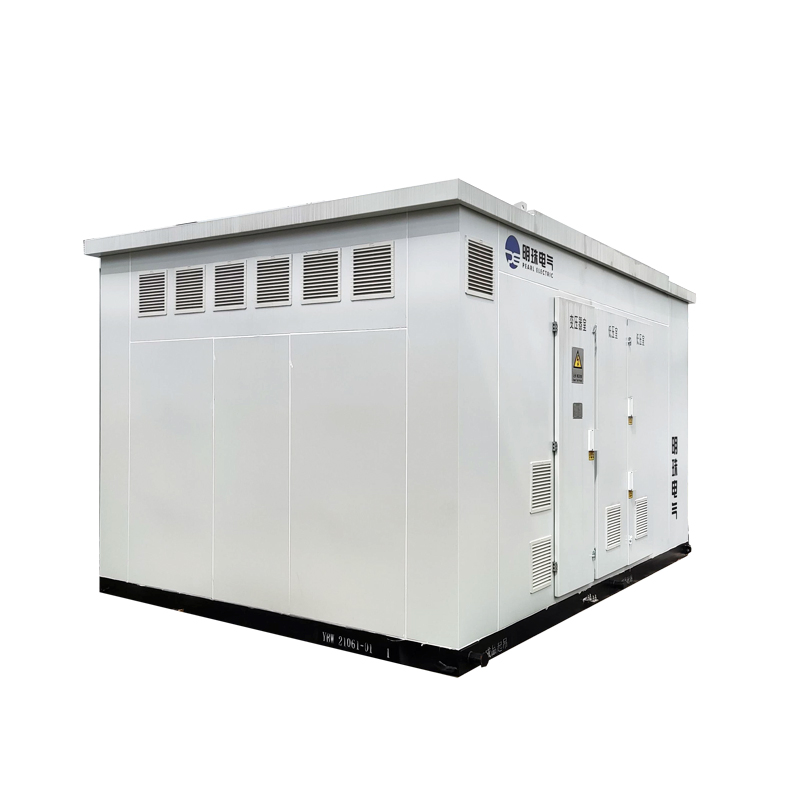

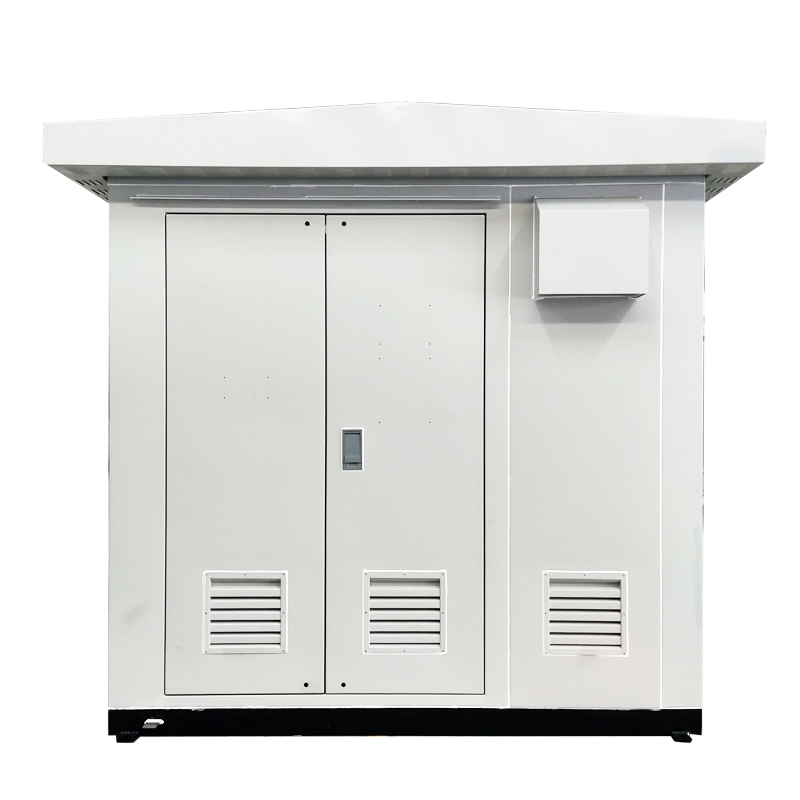

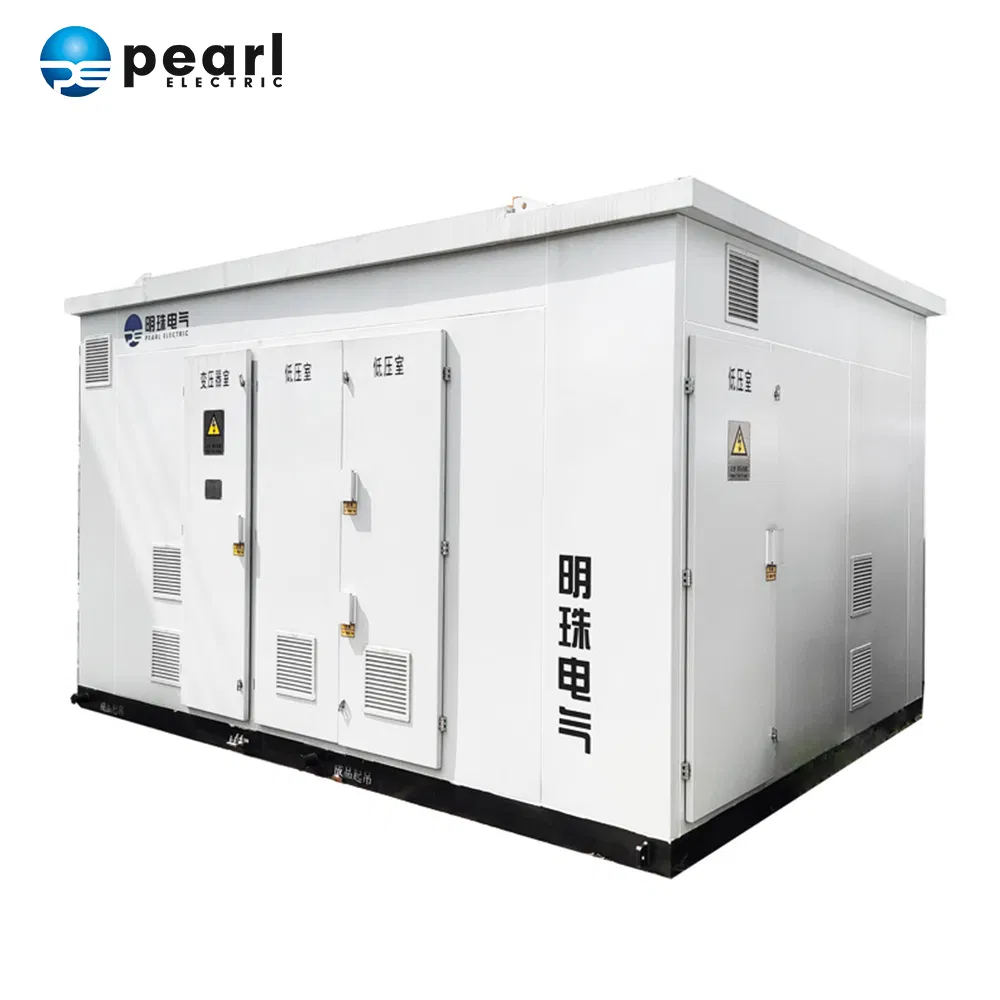

2000kVA High Voltage Prefabricated Substation Distribution Transformer for Solar Energy Power Ganeration

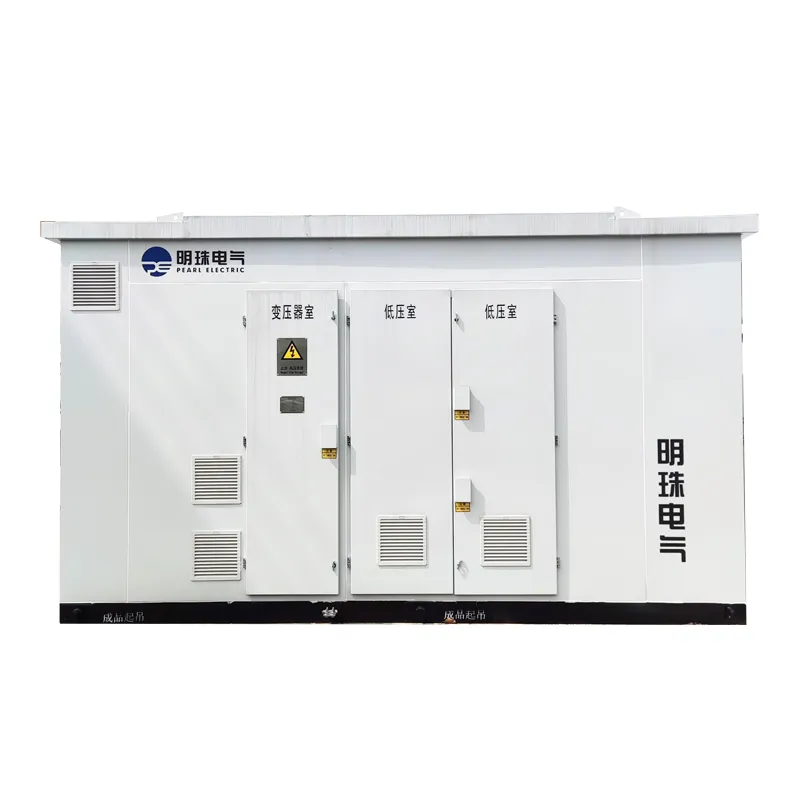

High-voltage/LV-voltage prefabricated substation, also known as "European Type Substation Transformer", is a complete set of power distribution equipment. It integrates HV switchgear, power distribution transformer, LV switchgear, electricity metering devices, reactive compensation devices, and connection sub-assemblies within one or several prefabricated housings. This system efficiently transmits power from HV systems to LV systems.

Designed with the latest technology, this new generation of prefabricated substation features a compact structure, reduced footprint, high safety, and simple installation. It is ideal for infrastructure projects, oil fields, ports, high-rise buildings, highways, metros, airports, and residential areas.

• Ambient temperature: Max +40ºC; Min -25ºC (outdoor).
• Relative humidity: Max 95% (daily average) at 25ºC.
• Altitude: Below 1000 meters.
• Environment: No heavy pollution, explosive/corrosive gases, or severe vibration.

(Customized designs are available for special environmental conditions.)

Transformer Test Reports:

• KEMA Test Report for Oil immersed Transformer
• CE Test Report for Oil immersed Transformer
• CNCE / CEST / CTQC / CNAS Test Reports

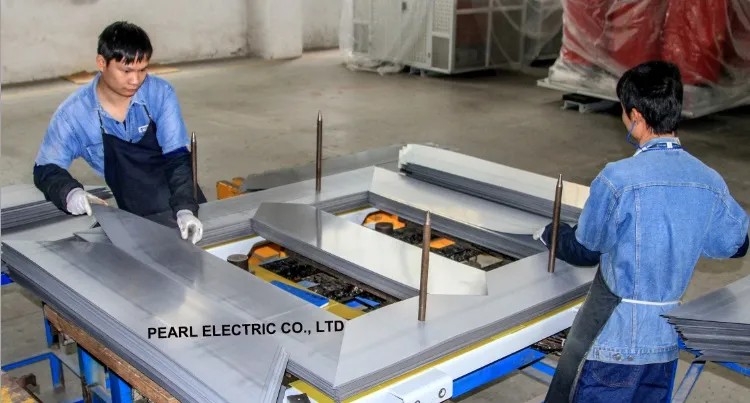

Transformer Core: Made of high-quality grain-oriented cold-rolled silicon steel with high magnetic conductivity. Uses a 45° five-stepping leaning lamination method to efficiently reduce no-load loss and current.

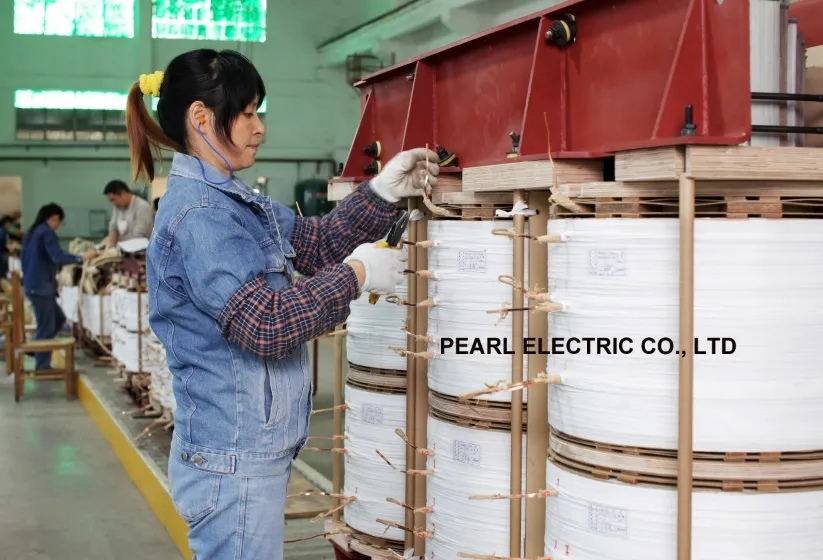

Transformer Windings:

• LV Windings: Manufactured with high-quality foil conductor or copper wire. Features scientific oil drains for heat dispersion to improve overload capacity.
• HV Windings: Excellent design structure improving electric field distribution and lightning impulse resistance.
