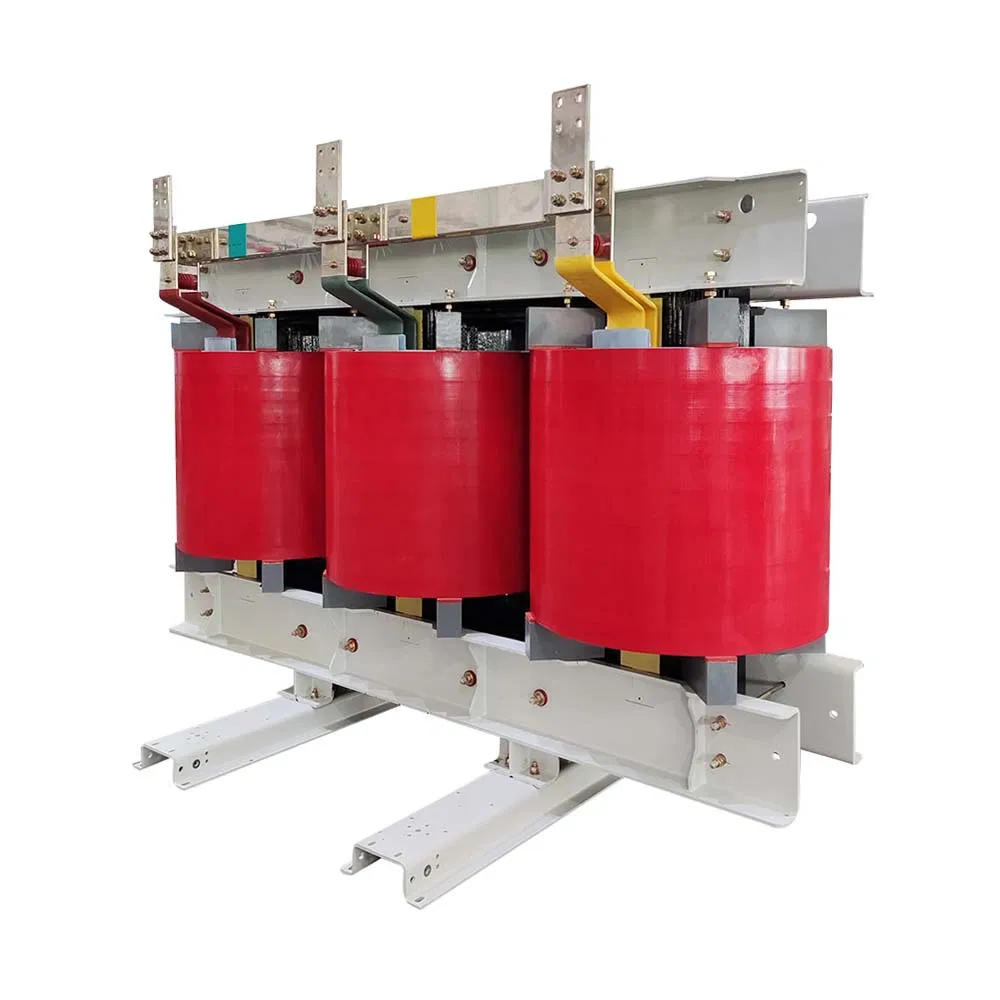

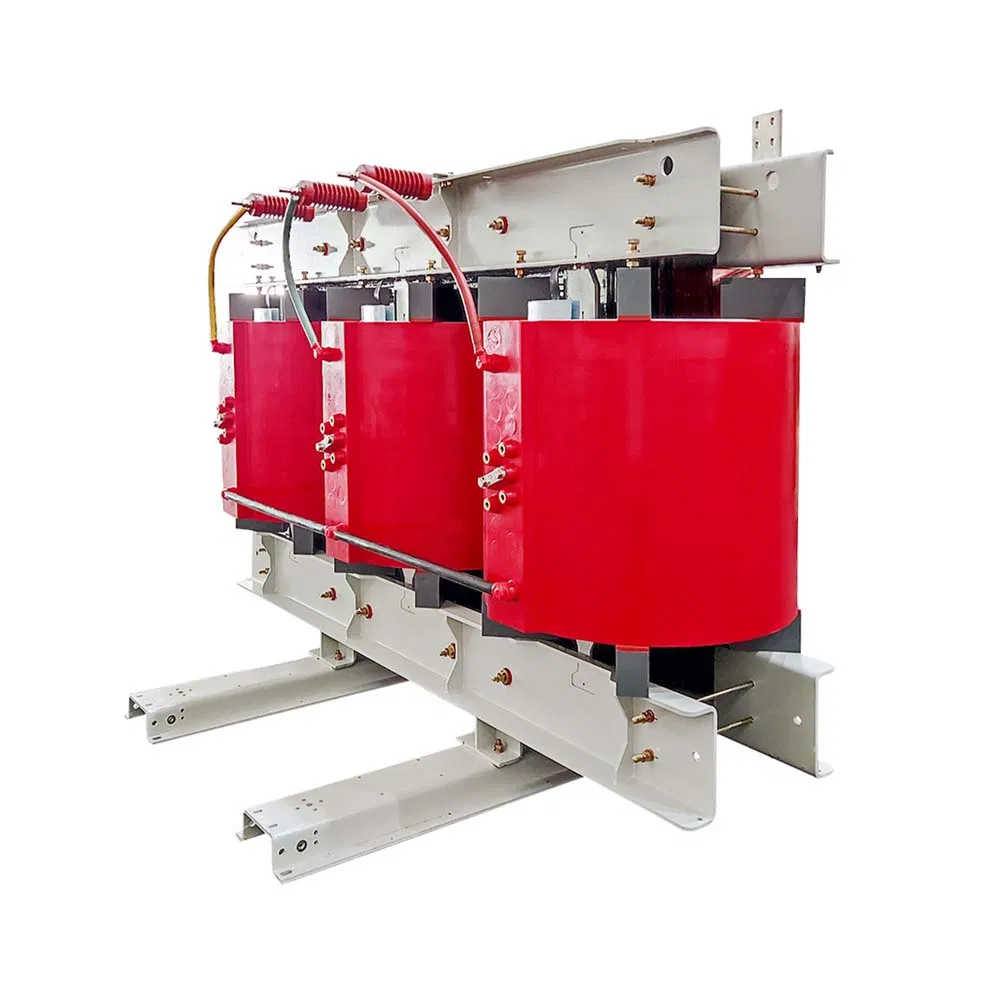

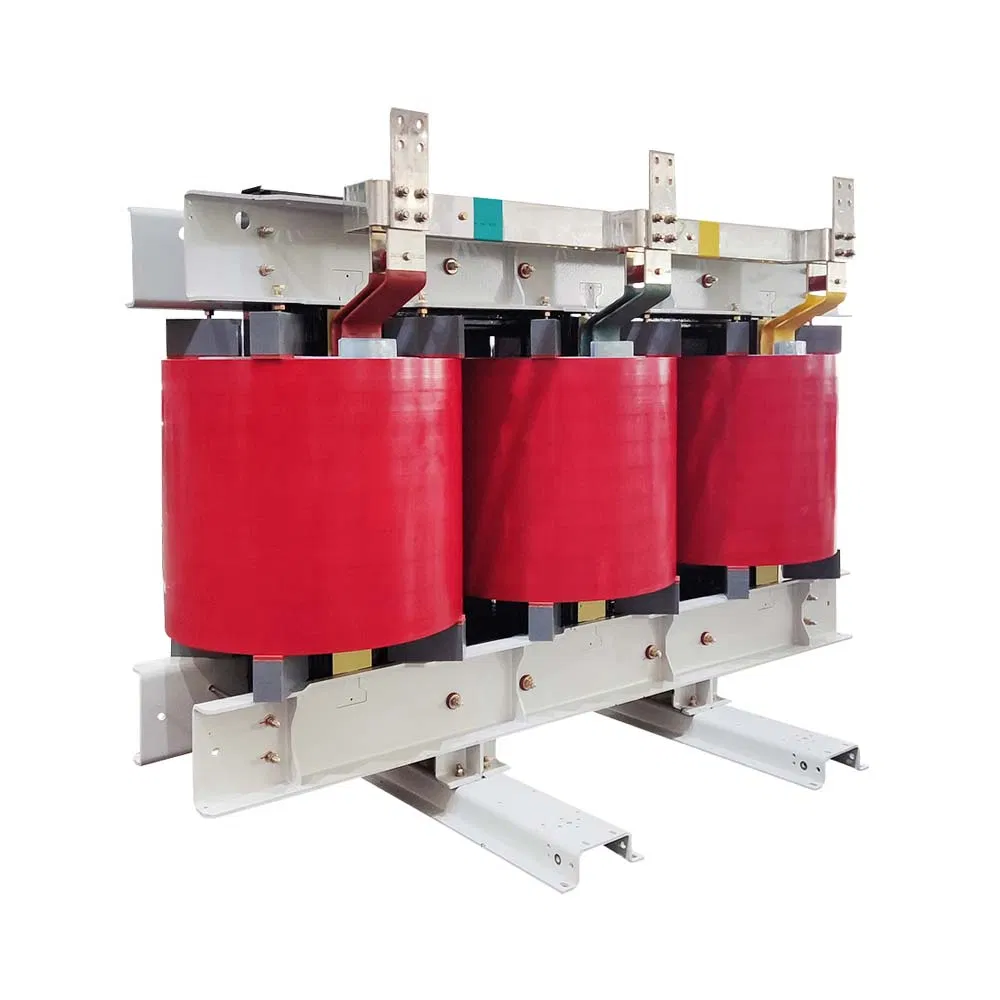

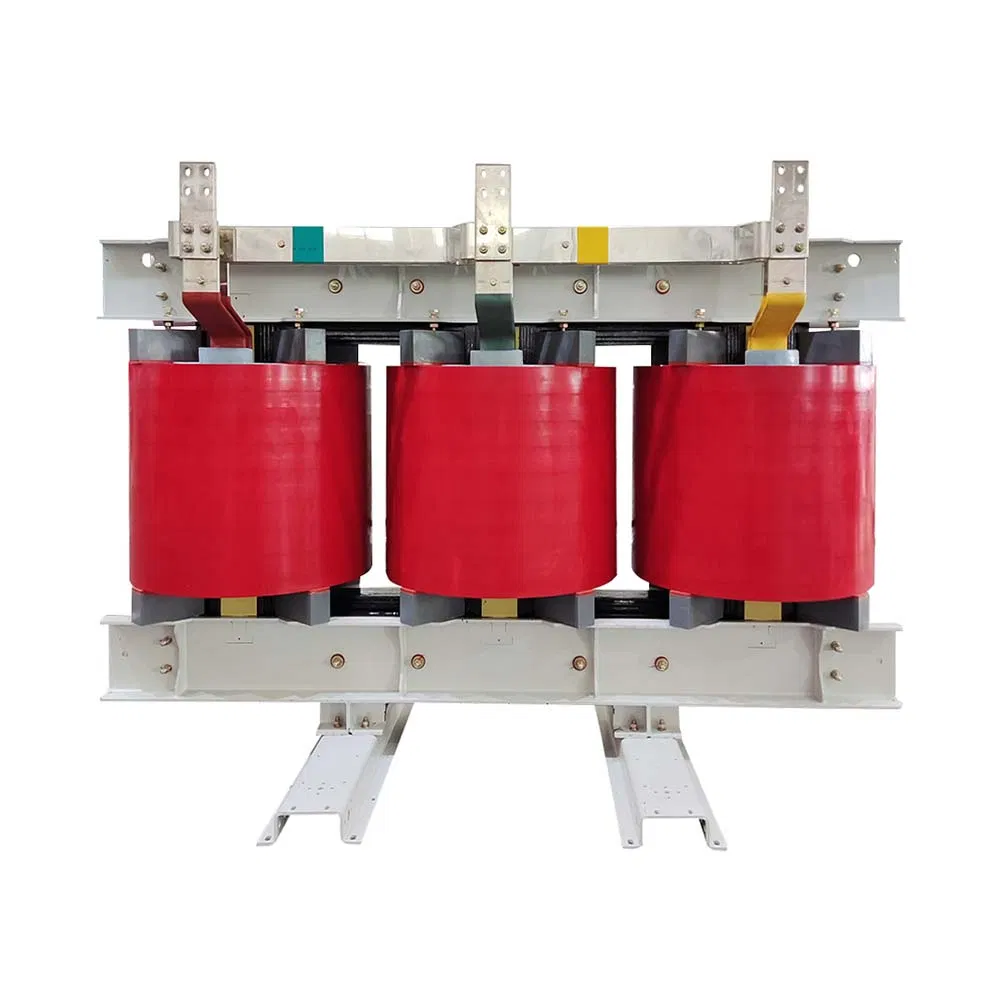

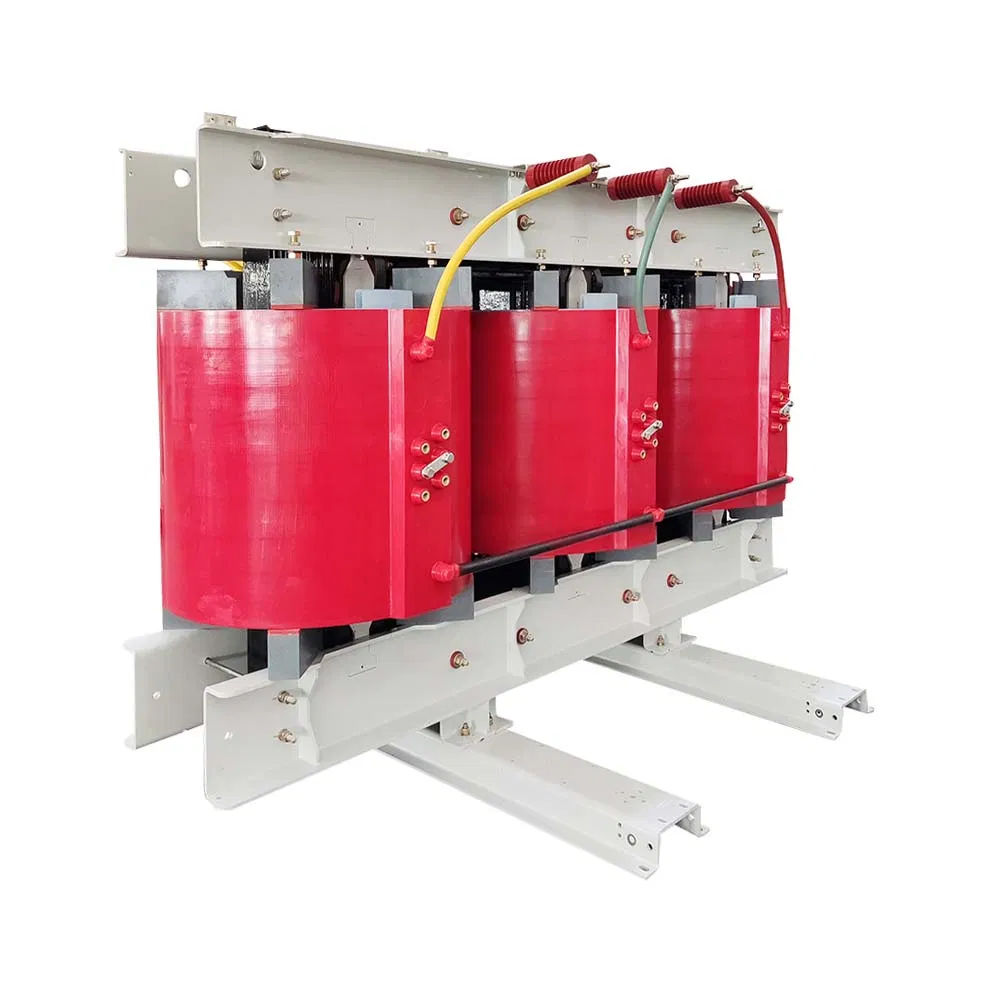

Three Phase 3150kVA 4000kVA Cast Resin Dry Type Power Transformer
Three Phase 3150kVA 4000kVA Cast Resin Dry Type Power Transformer
Three Phase 3150kVA 4000kVA Cast Resin Dry Type Power Transformer
Three Phase 3150kVA 4000kVA Cast Resin Dry Type Power Transformer
Three Phase 3150kVA 4000kVA Cast Resin Dry Type Power Transformer
1 / 5
Three Phase 3150kVA 4000kVA Cast Resin Dry Type Power Transformer
Three Phase 3150kVA 4000kVA Cast Resin Dry Type Power Transformer
Three Phase 3150kVA 4000kVA Cast Resin Dry Type Power Transformer
Three Phase 3150kVA 4000kVA Cast Resin Dry Type Power Transformer
Three Phase 3150kVA 4000kVA Cast Resin Dry Type Power Transformer

Three Phase 3150kVA 4000kVA Cast Resin Dry Type Power Transformer

Customization: Available
Application: Power, Electronic, Instrument, Lighting, Rectifier, Audio, Power Transmission
Phase: Three
Send Inquiry

Product Description

ℹ️

Basic Specifications

Model NO.
PEC-S-3150/34.5/0.415
Capacity
3150 kVA or Customized
Rated H. V.
34.5kV or Customized
Rated L. V.
0.415kV or Customized
Type
Dry Type Cast Resin Transformers
Cooling Method
Dry-type (AN/AF)
Winding Type
Two-winding Transformer
Insulation Class
H-Class or Customized
Certification
ISO9001, CCC, KEMA, CE
Core Material
Silicon Steel
🛠️

Product Overview

3150kVA 34.5KV Cast Resin Dry Type Power Transformer

A dry type transformer, also known as an air-cooled transformer, utilizes air or gas instead of liquid for insulation and cooling. This design does not immerse its core and windings in insulating oil, making it distinct from traditional oil-filled units. It is highly efficient for indoor applications and areas where fire safety is a priority.

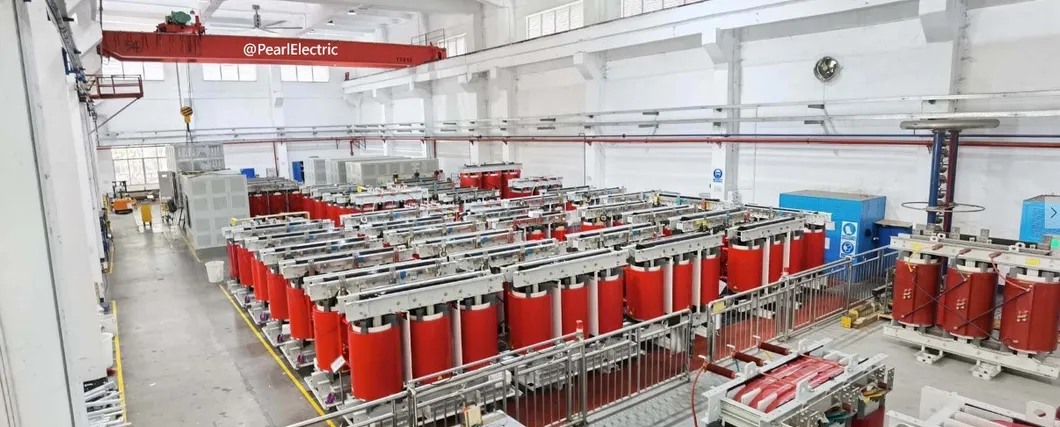

3150kVA Transformer

Types of Dry Type Transformers

1. Cast Resin Dry Type Transformer (CRT):

  • Uses epoxy resin to encapsulate windings, protecting against moisture, dust, and corrosion.
  • Ideal for high humidity, indoor installations, and fire-risk zones.
  • Ratings range from 25 kVA up to 12,500 kVA.

2. Vacuum Pressure Impregnated Transformer (VPI):

  • Impregnates windings with class H polyester resin under vacuum to eliminate air gaps.
  • Enhanced mechanical and dielectric strength.
  • Robust construction suitable for seismic events and extreme temperature fluctuations.
📊

Technical Datasheet

Items Specifications
Reference StandardsIEC 60076-11
Capacity3150KVA / Customized
Frequency50 / 60Hz
Voltage (HV)34.5KV / Customized
Voltage (LV)0.415KV / Customized
Impedance4% - 8%
Connections (Vector Group)Dyn11 / Customized
Tapping Range± 2 x 2.5%
Temperature Rise ClassH-class (125K)
Enclosure ProtectionIP20 / IP23
🏆

Certifications and Quality

Our power equipment meets stringent international standards, ensuring reliability and safety across global power networks.

  • ISO 9001:2015 Quality Management System
  • ISO 14001:2015 Environmental Management System
  • ISO 45001:2018 Occupational Health and Safety
  • CE Certifications for Dry Type and Oil-immersed Transformers
  • KEMA and DEKRA Type Test Reports
Certifications
🏢

Manufacturing Capabilities

With a foundation dating back to 1958, the production facility spans 100,000 square meters and employs over 600 professionals. Currently, over 200,000 transformers are in operation worldwide, serving Southeast Asia, Europe, and North America.

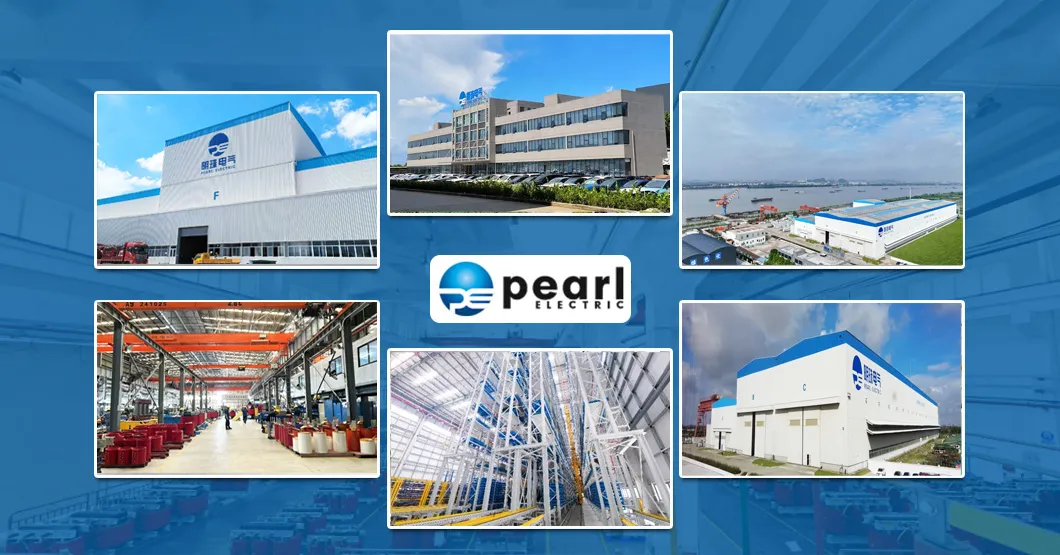

Factory Exterior Production Line

Product Range

  • Cast Resin Dry Type Transformer: Up to 30MVA, 66kV
  • Oil-immersed Power Transformer: Up to 150MVA, 220kV
  • Pad-mounted Transformer: Up to 10MVA, 40.5kV
  • Compact Substation: Up to 10MVA, 40.5kV
  • Specialty Reactors and Power Transmission Equipment
Product Showcase 1 Product Showcase 2 Product Showcase 3
❓

Frequently Asked Questions

QAre you a direct manufacturer?
Yes, we are a professional manufacturer specializing in power equipment since 1958.
QWhat international certificates do your products hold?
Our transformers have been awarded CE, UL, and KEMA certificates. We can also assist in applying for other specific regional certifications if required.
QWhat is the standard production lead time?
Generally, production takes 4 to 6 weeks depending on the specific model and customization requirements.
QWhich payment methods do you accept?
We accept payments via T/T (Telegraphic Transfer) and L/C (Letter of Credit).
QCan these transformers be customized for specific voltages?
Absolutely. Capacity, HV/LV voltage, and vector groups can all be customized according to your local grid requirements.
QWhat cooling methods are available?
We provide both AN (Air Natural) and AF (Air Forced) cooling methods. AF can increase the capacity of the transformer for short-term overloads.
