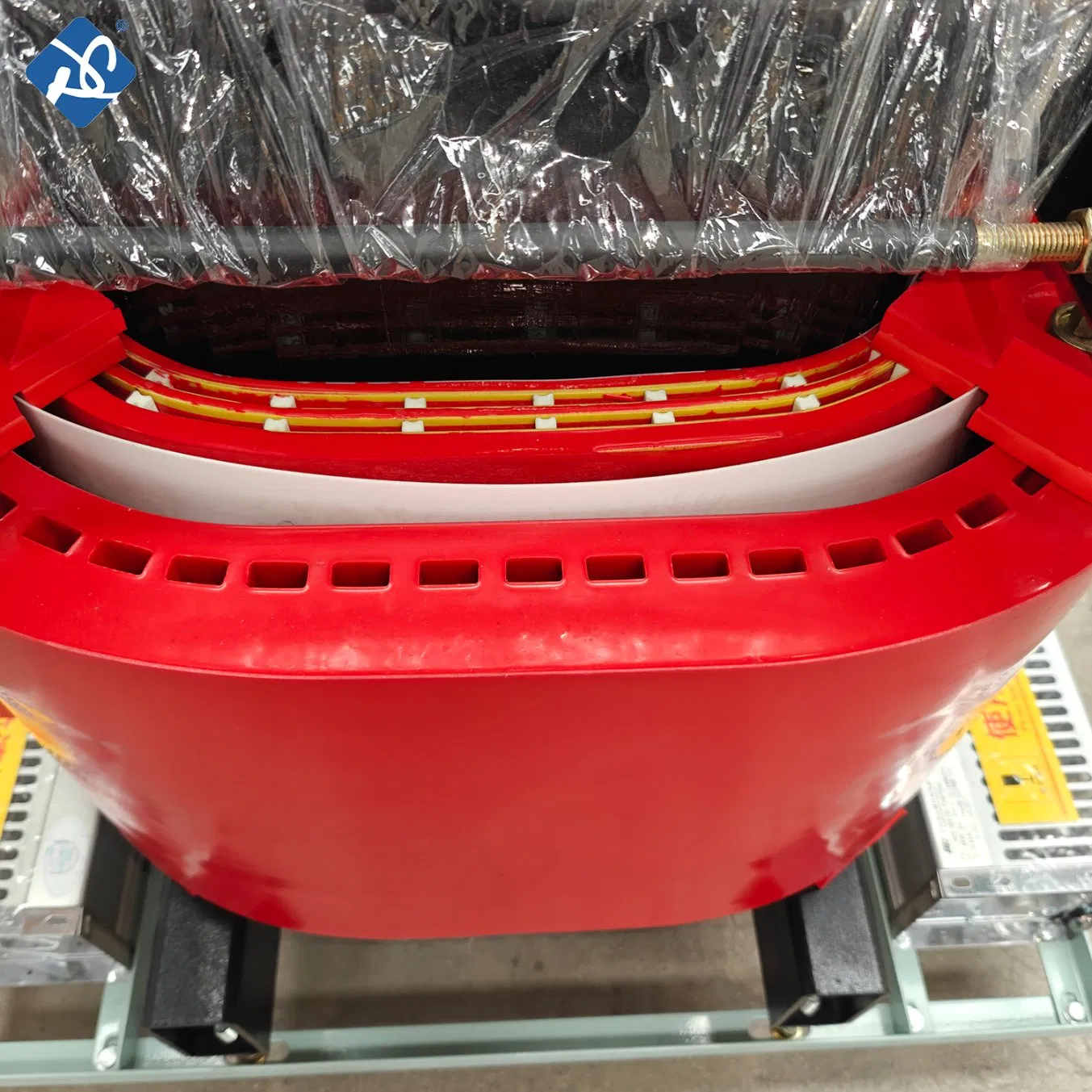

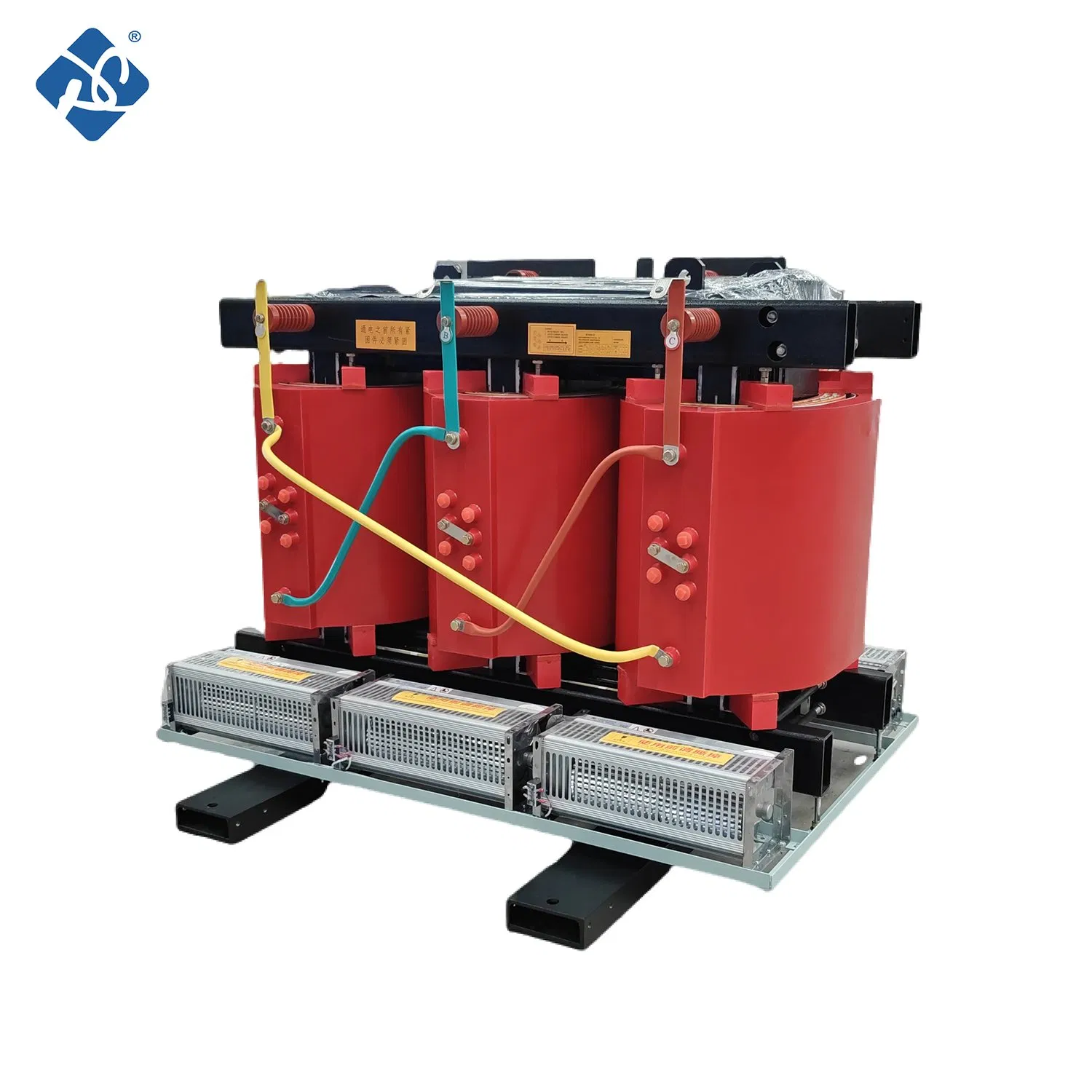

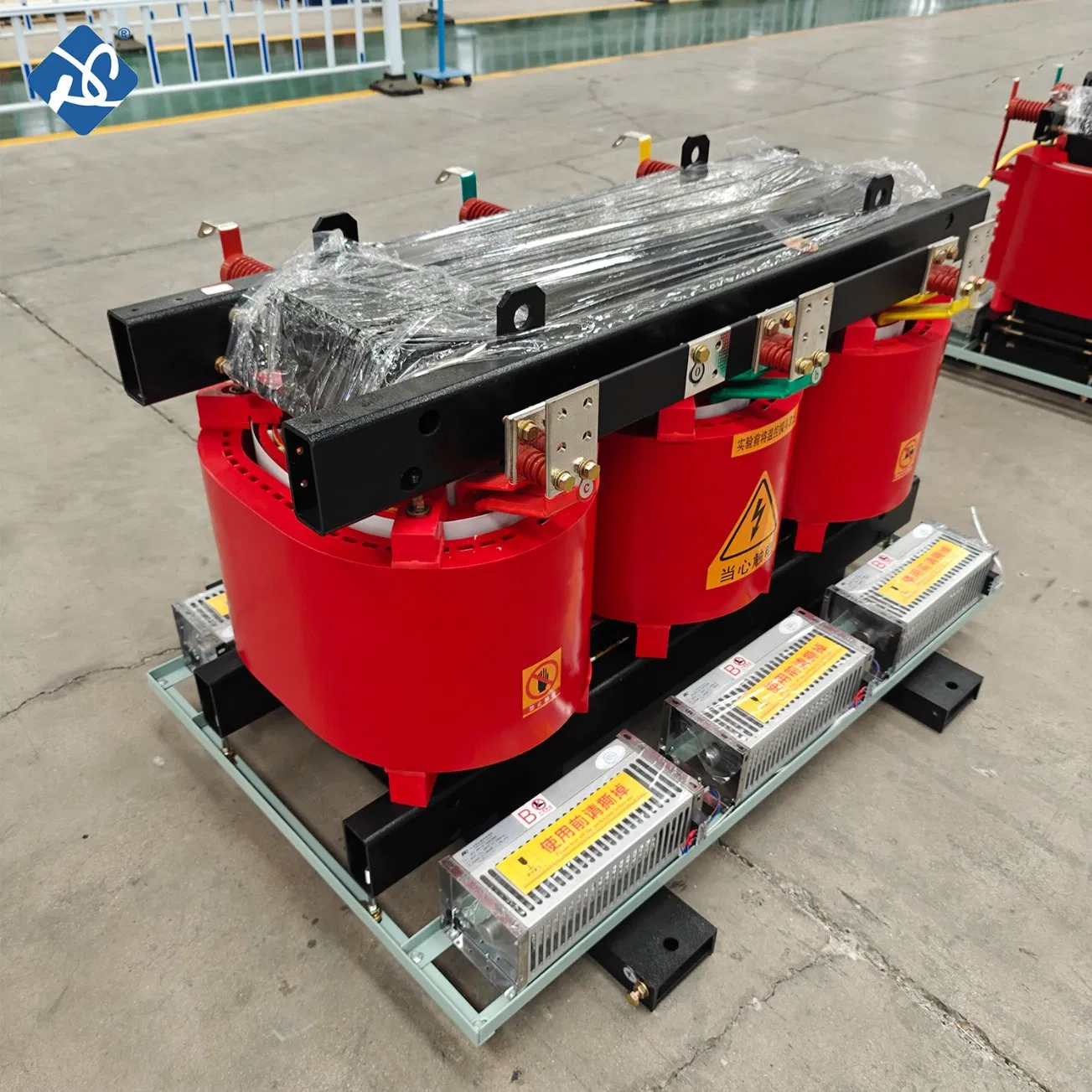

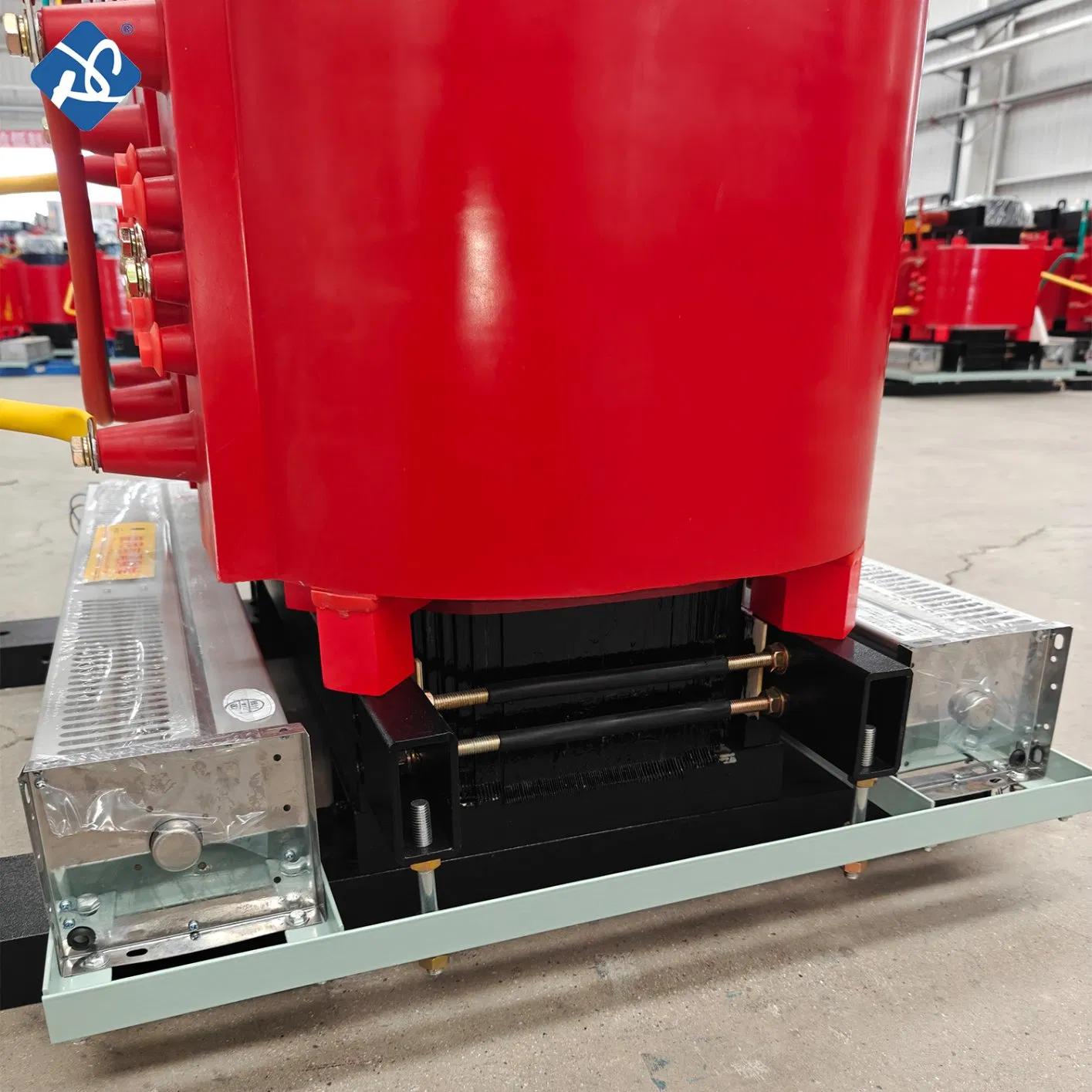

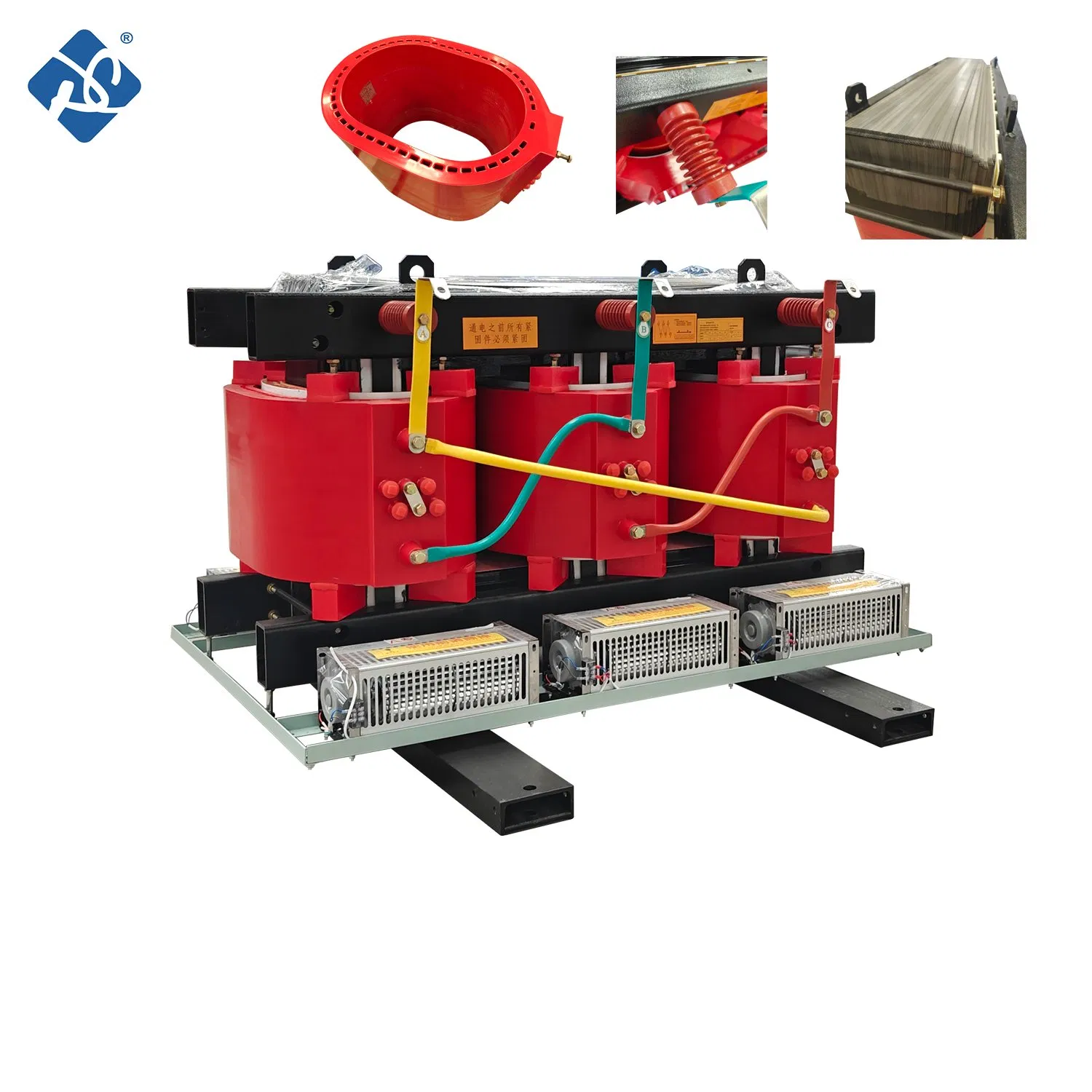

Low-Loss Epoxy Resin Pouring Dry-Type Power Voltage Transformer designed for power transmission and transformation systems. This series features a pollution-free operation and is optimized for high-efficiency energy distribution.
The dry type power transformer adopts advanced technology to ensure the product fully meets requirements for fireproof, waterproof, and environmental protection. The SC(B) 10 Series optimizes high-voltage coil structures, enhancing resistance to atmospheric overvoltage and electric field distribution.

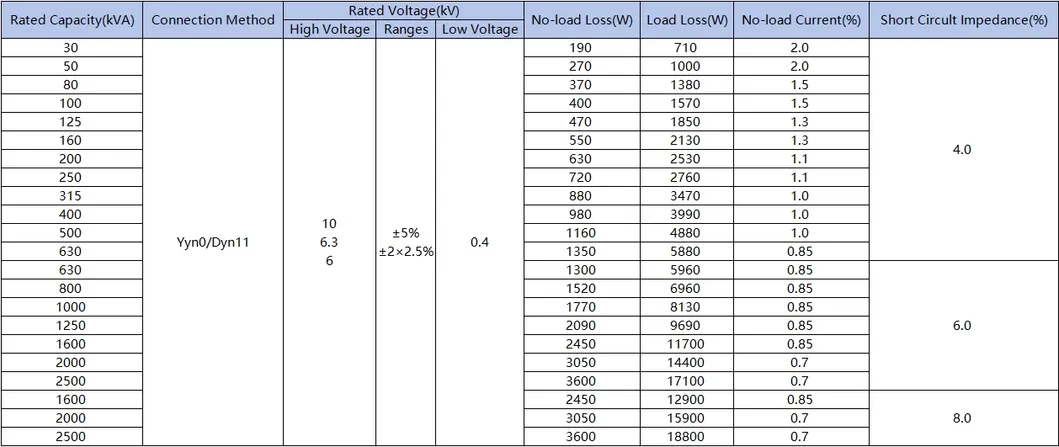

| Transformer Type | Resin Cast Dry Type |
|---|---|
| Model | SCB10-30 |
| Number of Phase | Three Phase |
| Rated Capacity | 30kVA |
| High Voltage | 11/10/10/6.6/6.3/6kV |
| Low Voltage | 0.4kV |
| Tapping Range | ±2×2.5% |
| Impedance Voltage | 4% |
| Frequency | 50Hz |
| Connection Group | Yyn0/Dyn11 |
| Insulation Class | F |
| Protection Level | IP00/IP20/IP23 |
F-Grade Insulation: Reliable use in ambient temperatures up to 180ºC; main parts sustain up to 220ºC.
Safety & Reliability: Uses flame retardant materials. No poisonous fumes during burning. Special coil design ensures moisture-proof and partial discharge resistance.
Strong Over-load Ability: Capable of sustaining 120% rated capacity for long durations under IP23 protection without forced air cooling.
