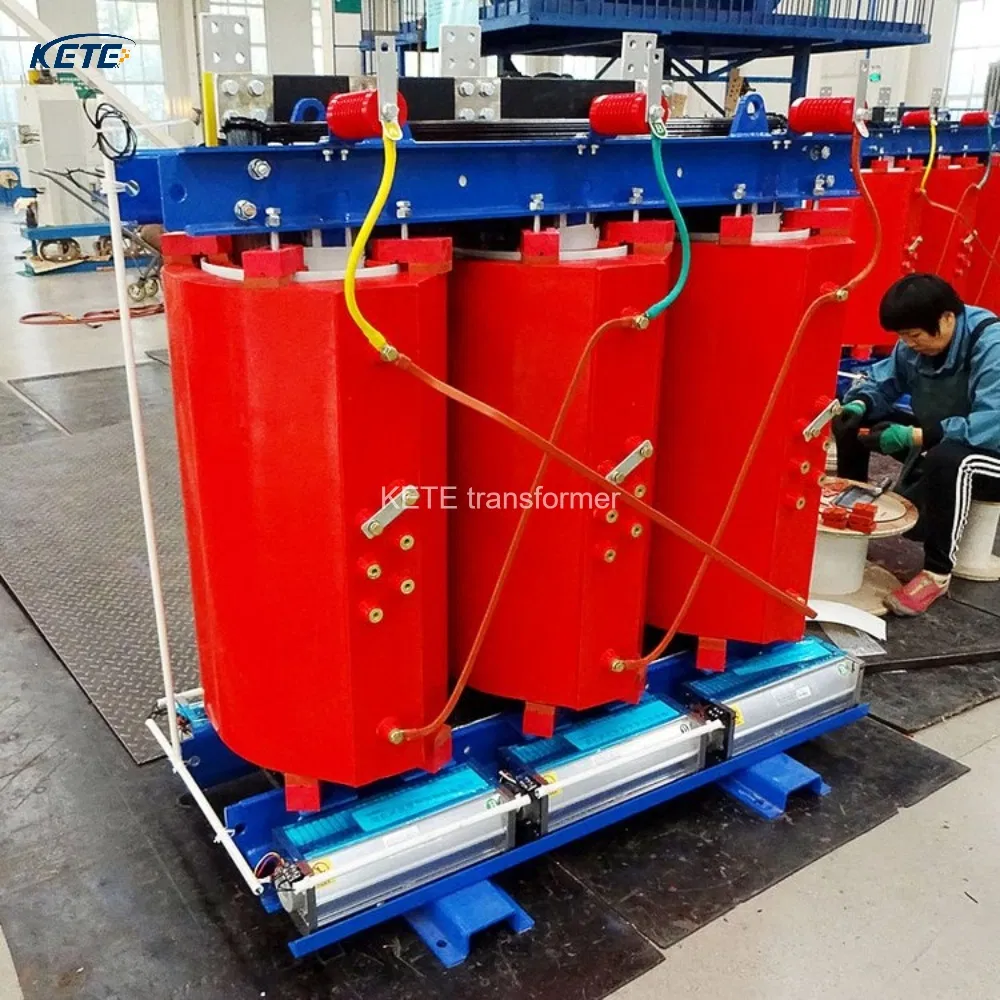

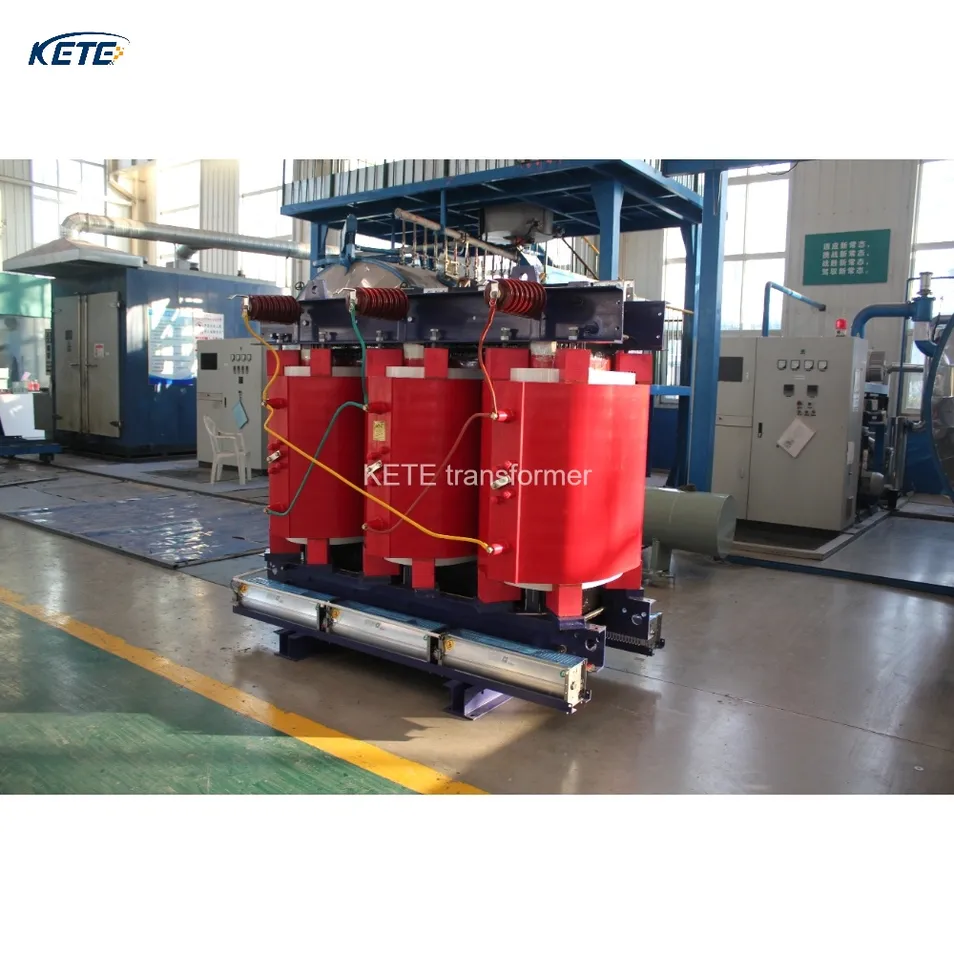

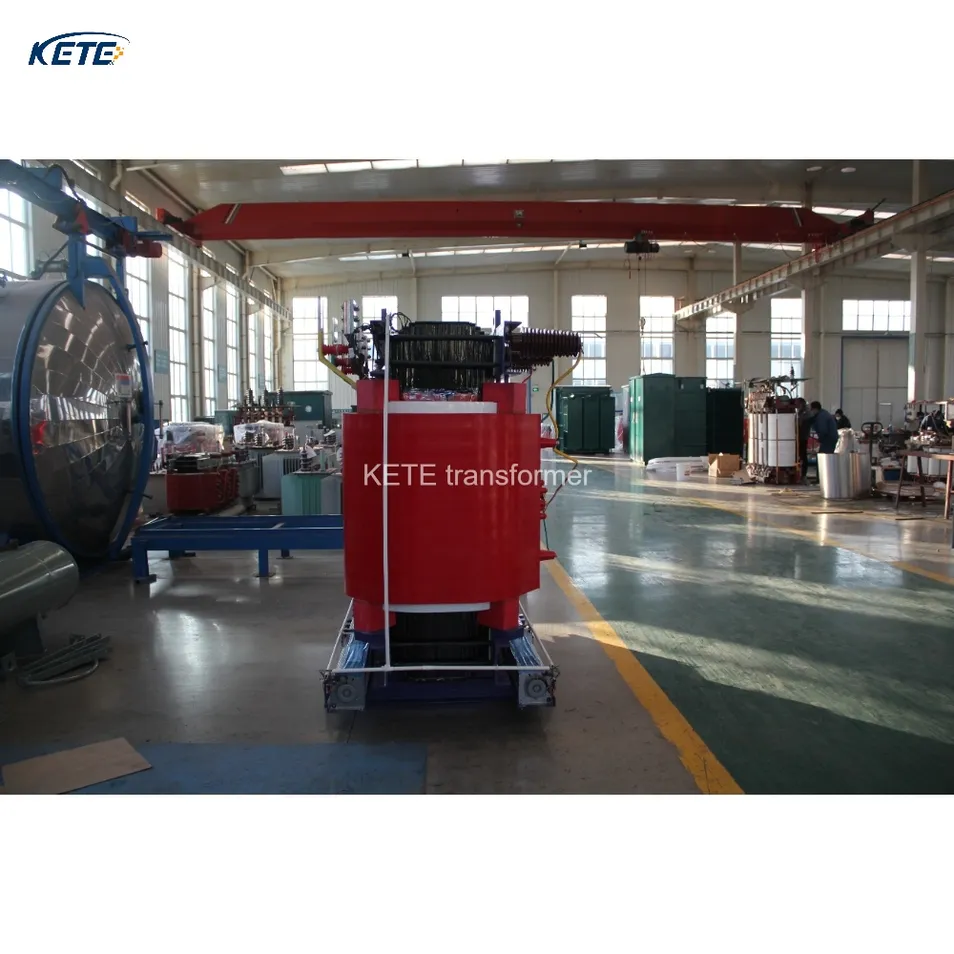

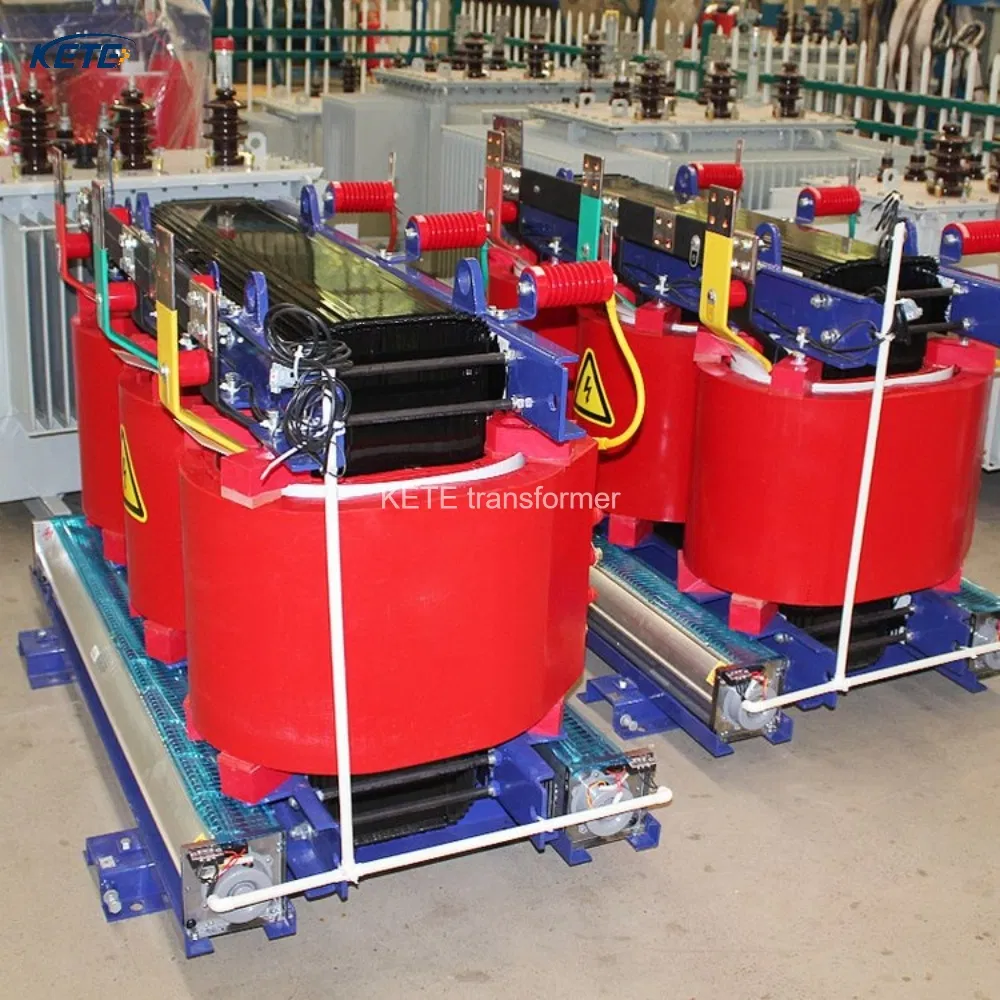

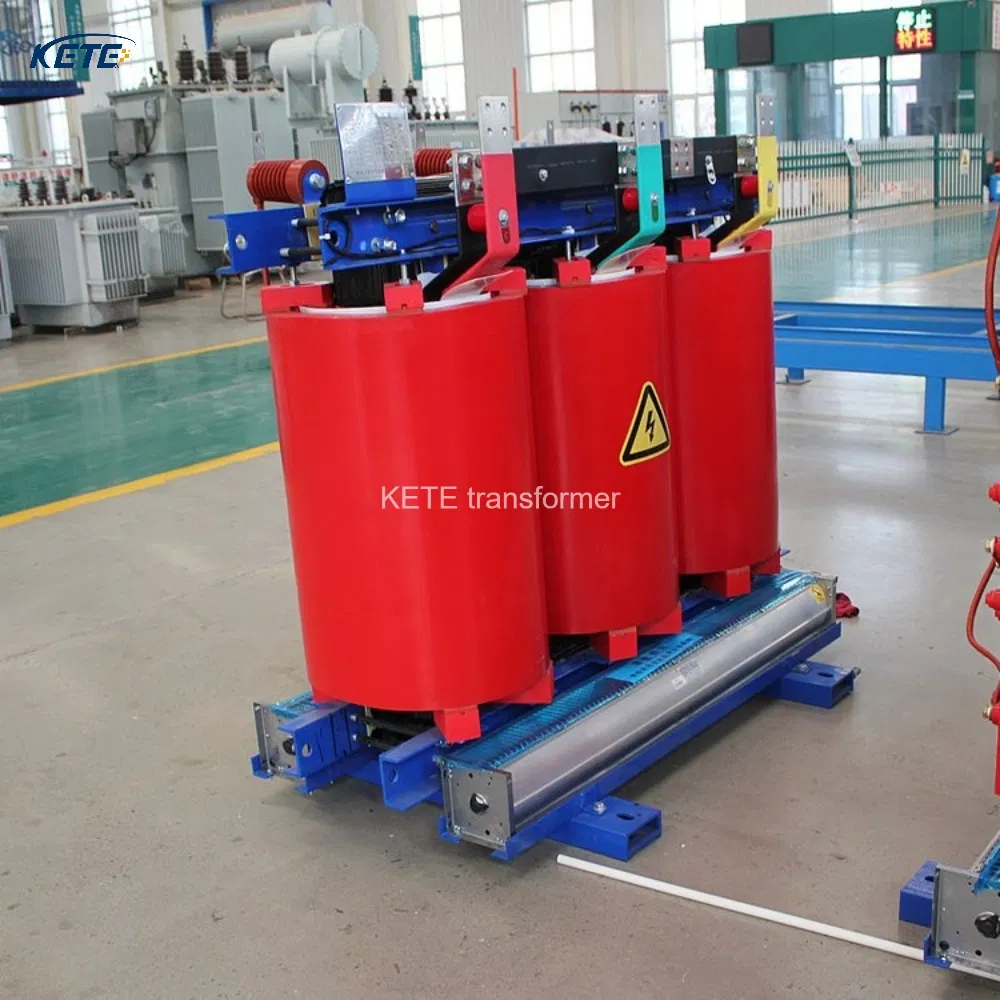

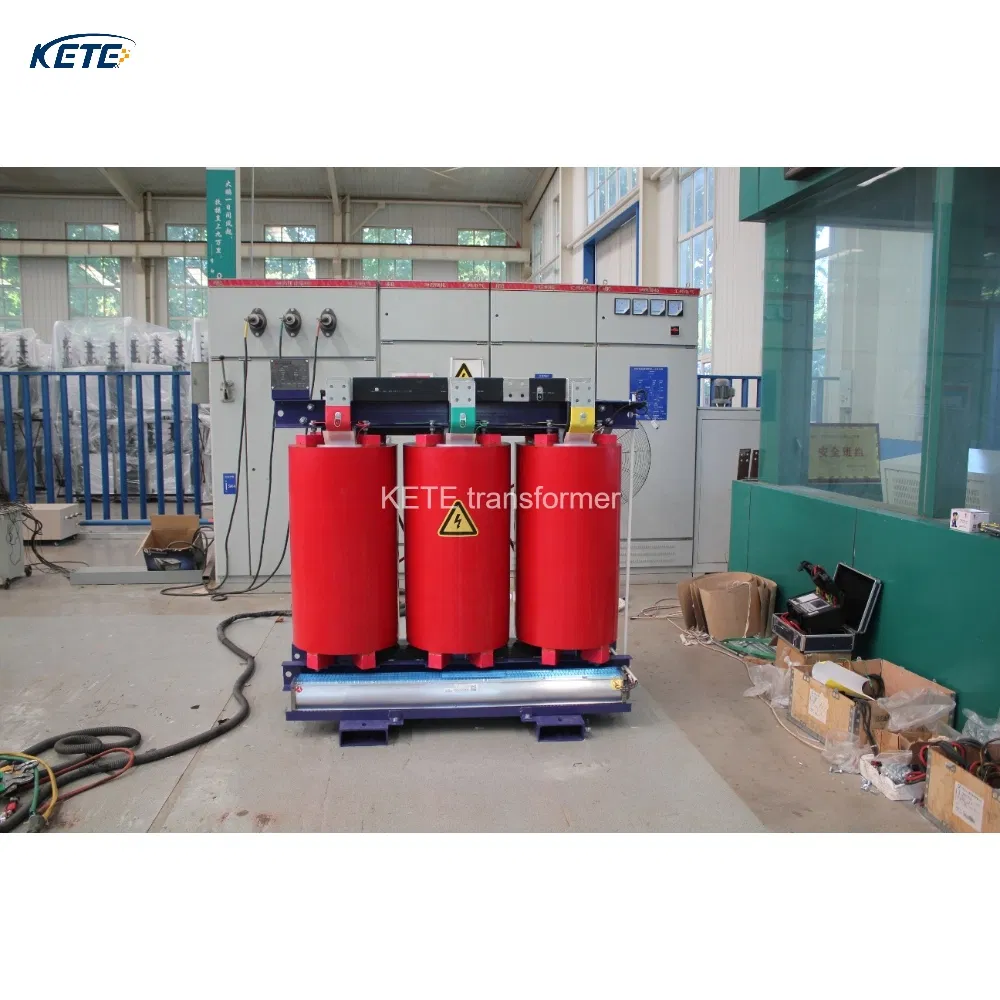

The 10kV dry-type transformer is a safe, reliable, and environmentally friendly power distribution solution. Utilizing advanced epoxy resin casting technology and high-quality silicon steel core, it offers excellent fire resistance, strong overload capacity, and maintenance-free operation.
No flammable materials, excellent fire resistance, suitable for indoor installation and high-density load areas.
Advanced silicon steel and optimized design ensure low no-load and load losses.
No oil testing or replacement required, significantly reducing long-term operational costs.
| Capacity (KVA) | H.V (KV) | Connection | No-load loss (KW) | On-load loss (KW) | ||||
|---|---|---|---|---|---|---|---|---|
| SCB10 | SCB11 | SCB13 | SCB10 | SCB11 | SCB13 | |||
| 100 | 6-11 | Dyn11 | 0.400 | 0.360 | 0.290 | 1.570 | 1.570 | 1.410 |
| 400 | 6-11 | Dyn11 | 0.980 | 0.880 | 0.705 | 3.990 | 3.990 | 3.590 |
| 1000 | 6-11 | Dyn11 | 1.770 | 1.590 | 1.270 | 8.130 | 8.130 | 7.310 |
| 2500 | 6-11 | Dyn11 | 3.600 | 3.240 | 2.590 | 17.100 | 17.100 | 15.400 |

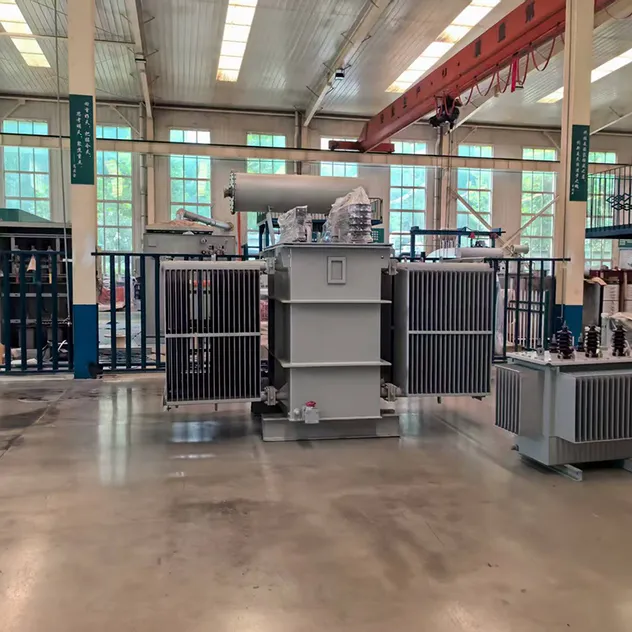

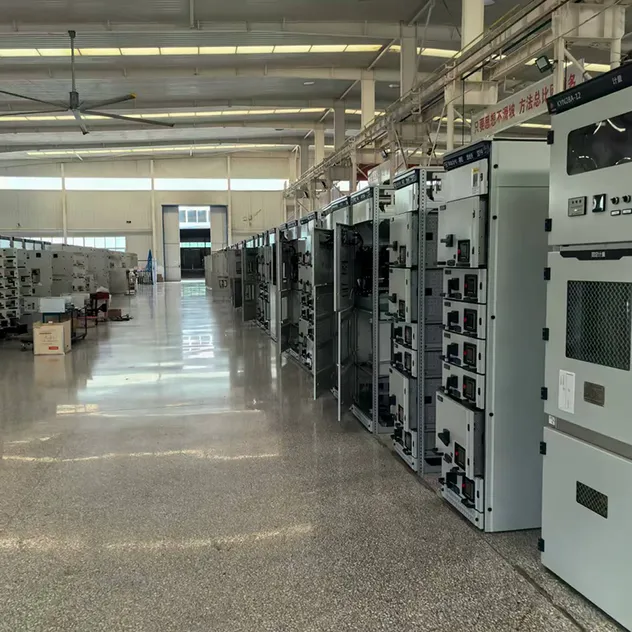

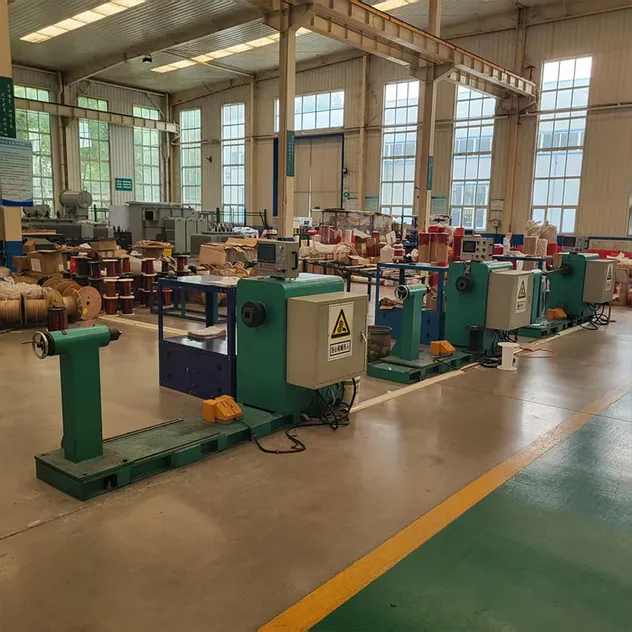

Our manufacturing base covers over 260,000m² and is a recognized High-Tech Enterprise. We specialize in high/low-voltage switchgear, distribution transformers, and renewable energy equipment with rigorous ISO quality control.

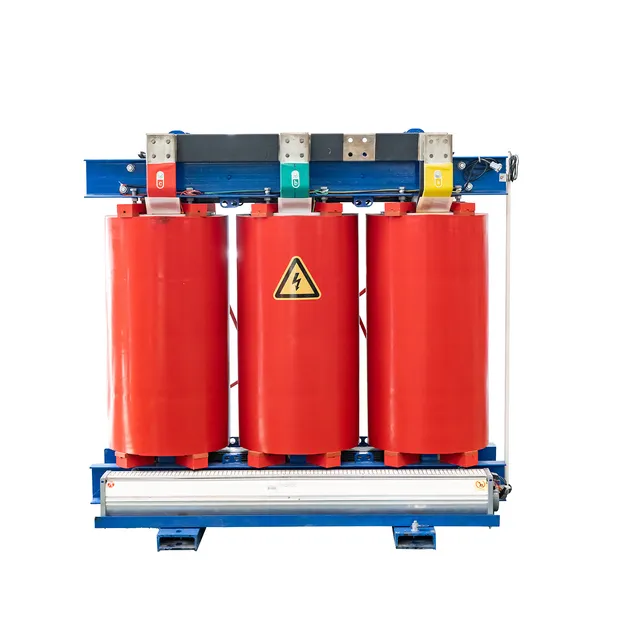

Dry Type Transformer

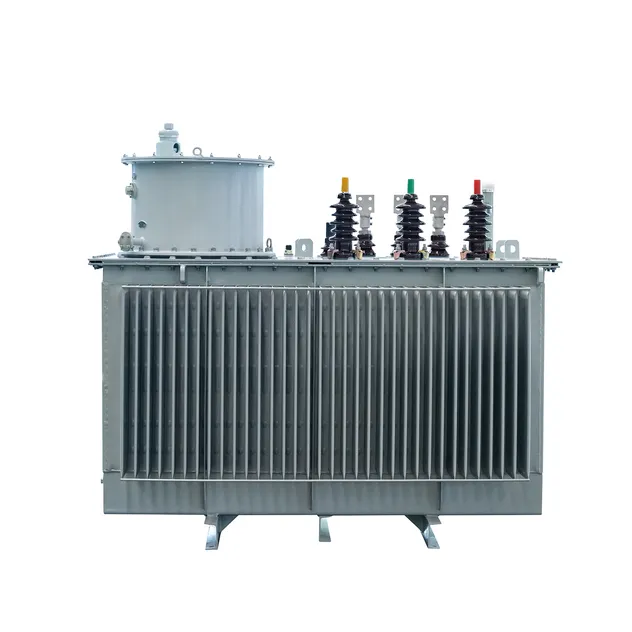

Oil Immersed Transformer

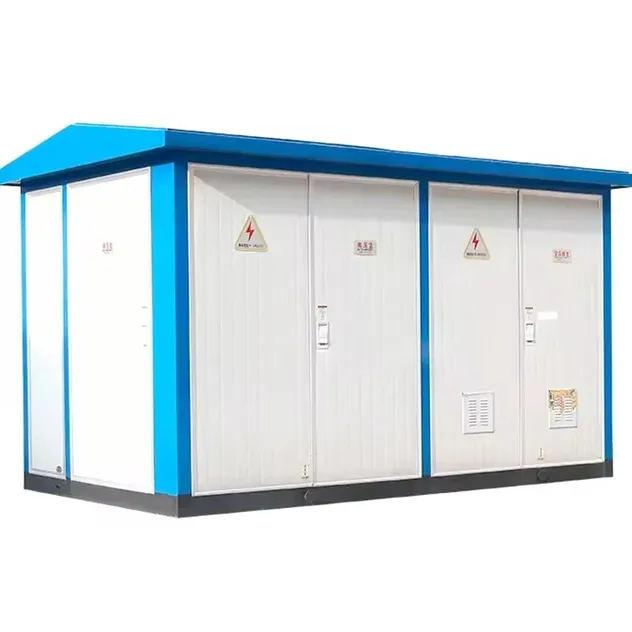

Prefabricated Substation
Warranty: Coverage includes performance failures caused by material defects or manufacturing issues.
Response Time: 24/7 technical support hotline, ensuring a fault assessment within ≤ 2 hours.
Maintenance: During the warranty period, regular visits are conducted to provide operation status testing.
