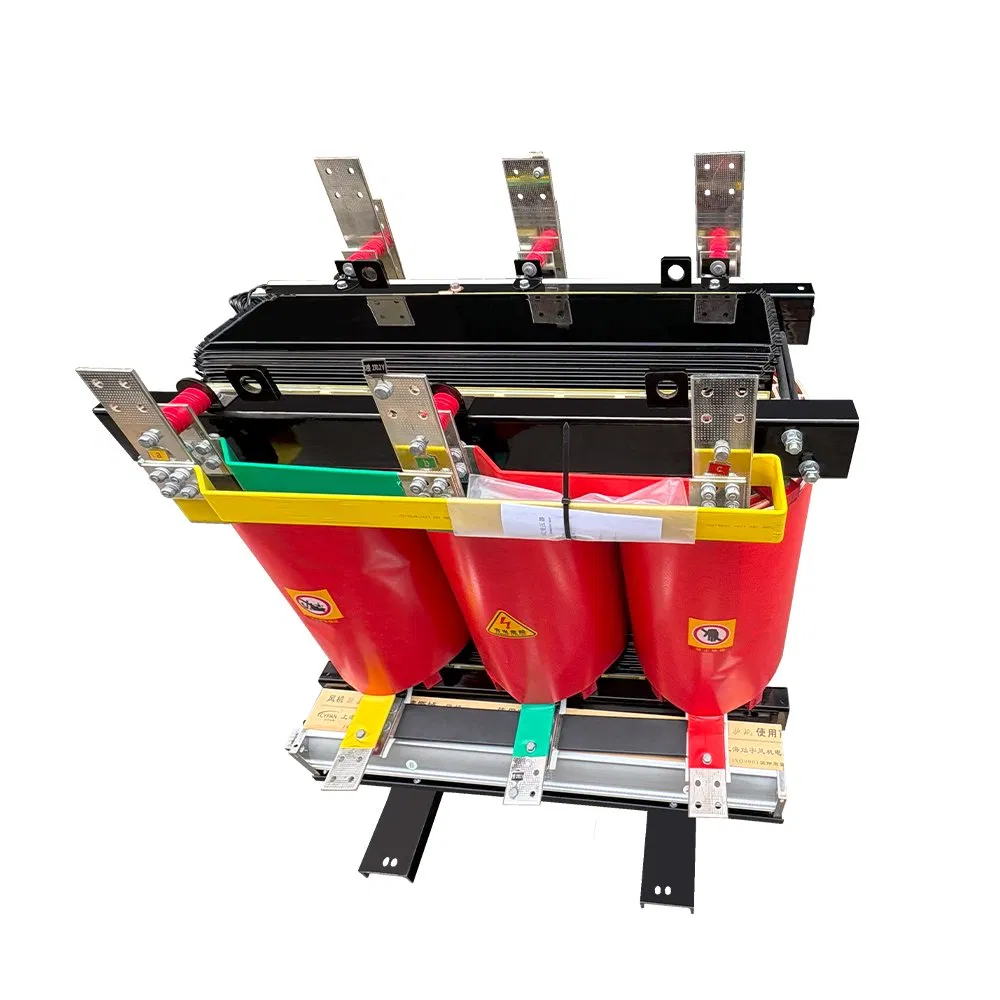

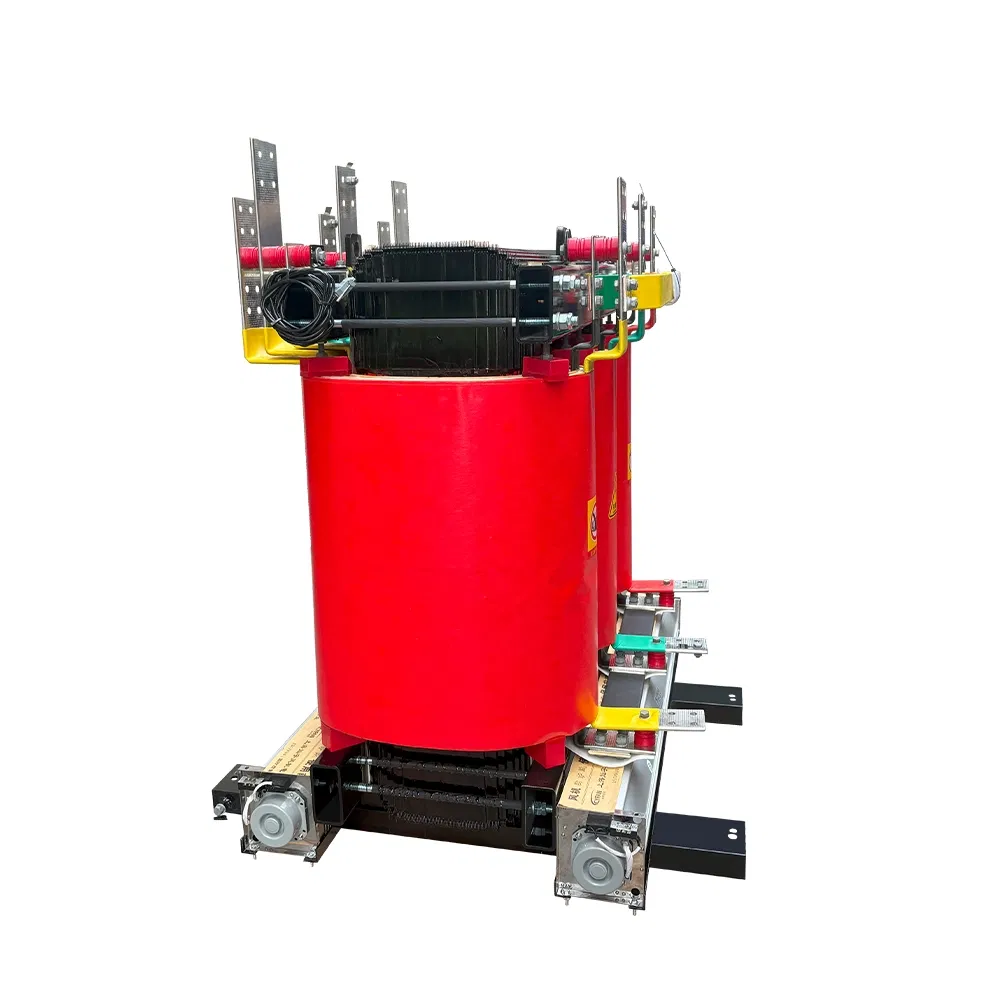

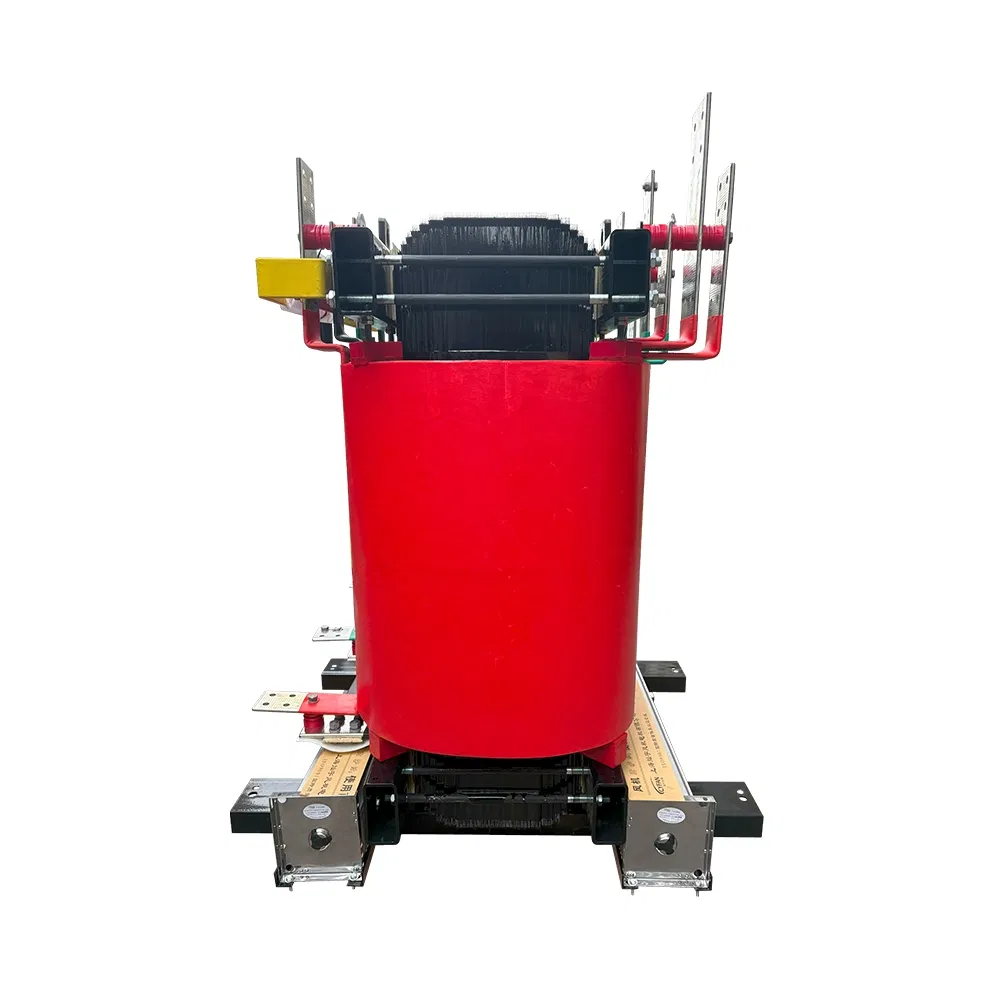

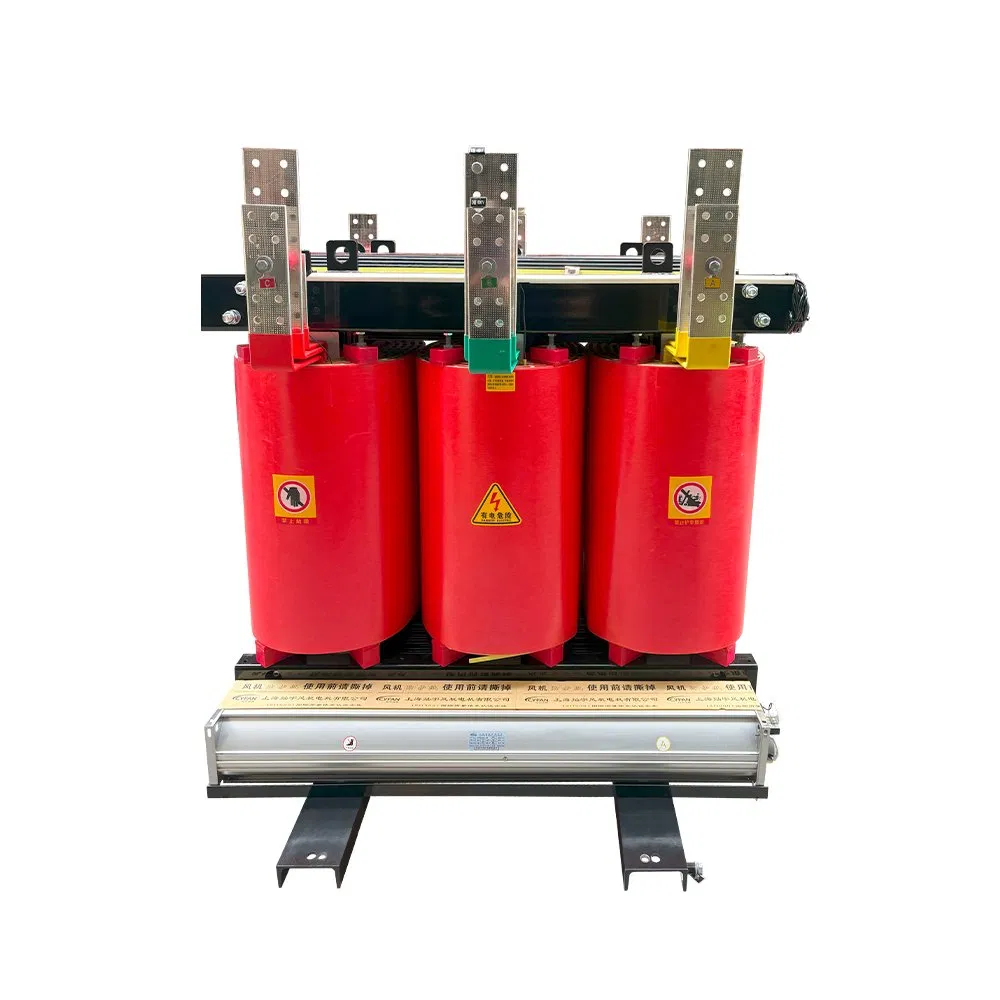

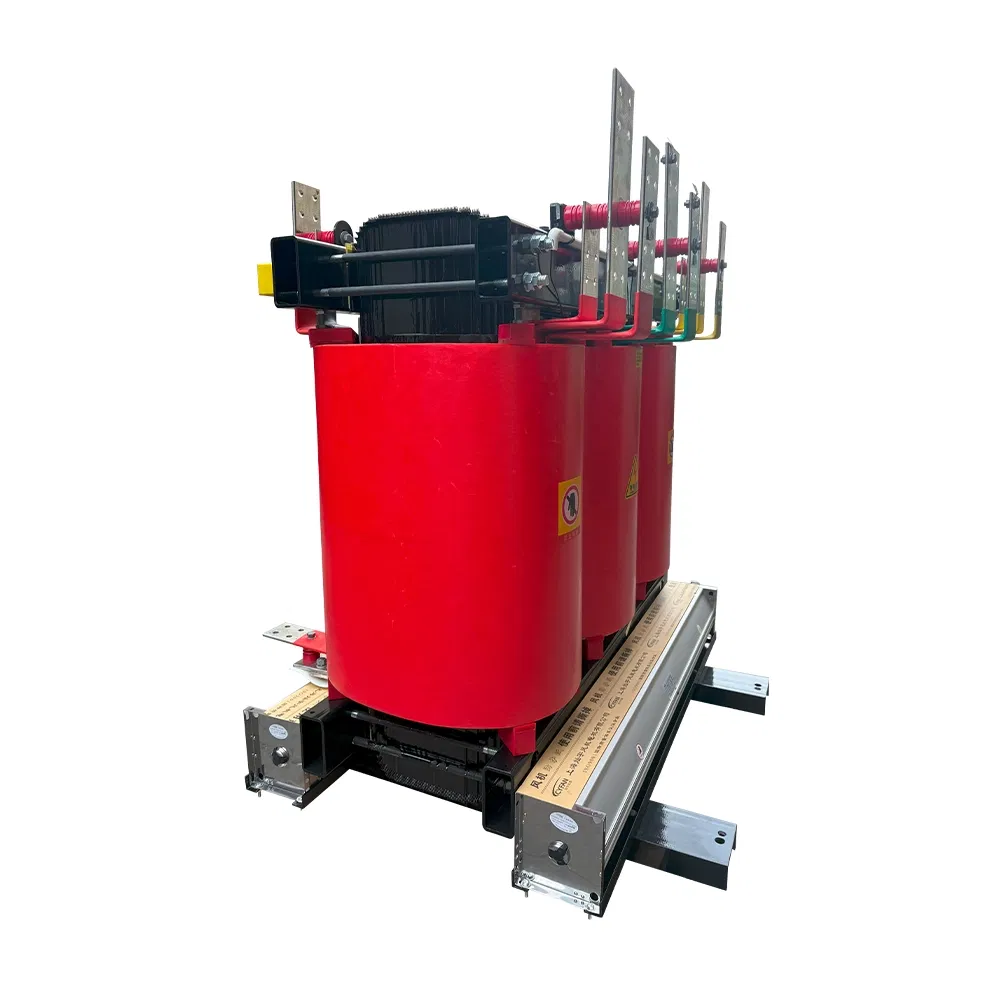

Safe Durable 1000 kVA Dry Type Power Transformer 1000kVA 1250kVA 1500kVA
Safe Durable 1000 kVA Dry Type Power Transformer 1000kVA 1250kVA 1500kVA
Safe Durable 1000 kVA Dry Type Power Transformer 1000kVA 1250kVA 1500kVA
Safe Durable 1000 kVA Dry Type Power Transformer 1000kVA 1250kVA 1500kVA
Safe Durable 1000 kVA Dry Type Power Transformer 1000kVA 1250kVA 1500kVA
1 / 5
Safe Durable 1000 kVA Dry Type Power Transformer 1000kVA 1250kVA 1500kVA
Safe Durable 1000 kVA Dry Type Power Transformer 1000kVA 1250kVA 1500kVA
Safe Durable 1000 kVA Dry Type Power Transformer 1000kVA 1250kVA 1500kVA
Safe Durable 1000 kVA Dry Type Power Transformer 1000kVA 1250kVA 1500kVA
Safe Durable 1000 kVA Dry Type Power Transformer 1000kVA 1250kVA 1500kVA

Safe Durable 1000 kVA Dry Type Power Transformer 1000kVA 1250kVA 1500kVA

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Core
Core-type Transformer
Cooling Method
Dry-type Transformer
Winding Type
Separated Winding Transformer
Certification
ISO9001-2000, CE, RoHS
Usage
Rectifier Transformer, Power Transformer
Frequency
Power Frequency
Shape of Core
U
Operating Temp
-10°C to 45°C
Input Voltage
208V (Customized)
Output Voltage
380V (Customized)
Insulation Level
H
Winding Material
Aluminum or Copper Optional
Warranty
2 Years
HS Code
8504339000
Dry Type Power Transformer Banner
Why Choose Our Transformers
✔ 2 Years comprehensive warranty on all voltage transformers.
✔ Premium Class H insulation level as standard.
✔ 200°C high-temperature resistance core materials.
✔ Full certification: CE, ROHS, ISO:9001.
✔ 12-hour rigorous age testing before every delivery.
✔ Exceptional overload: 300% for 10s, 150% for 120s.
✔ Optimized Power Factor of 0.85.

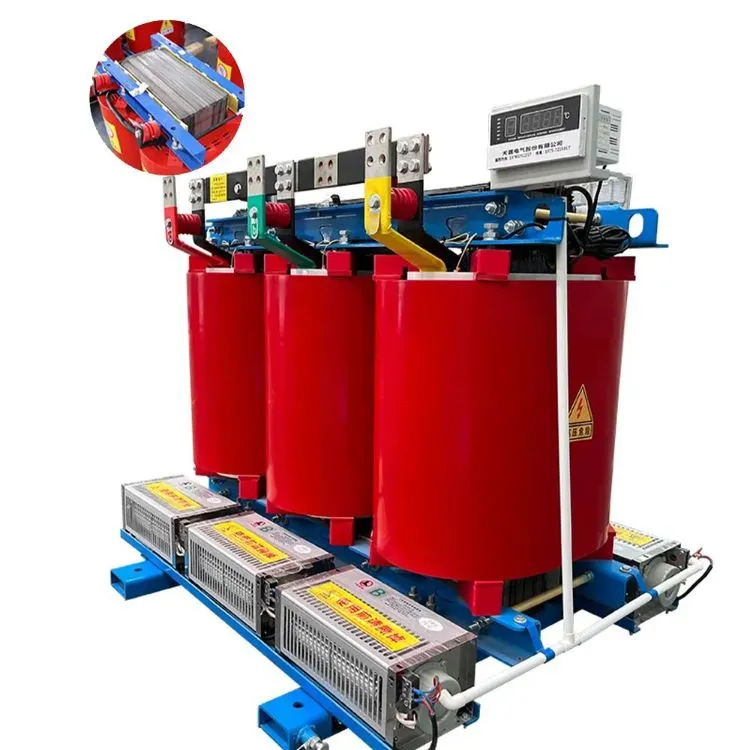

Transformer Detail 1

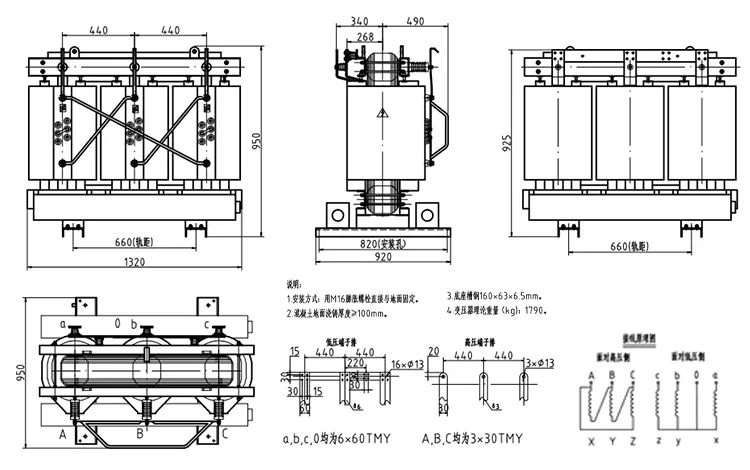

Transformer Detail 2
Product Overview

Our dry-type cast resin power transformers utilize advanced international technology. The windings are sealed with epoxy resin, making them flame-retardant, explosion-proof, and maintenance-free. Designed for high-density load centers, these units offer low partial discharge, minimal noise, and superior heat dissipation.

Equipped with intelligent controllers, the system provides fault alarms, temperature monitoring, and "black box" functionality. Remote monitoring is supported via RS485 serial interface integration.

Key Applications: Hotels, Airports, Power Plants, Hospitals, Shopping Centers, Subways, Offshore Platforms, and Industrial Smelting facilities.
Technical Features
  • Core Construction: High-quality silicon steel sheets with a stepped five-step full oblique seam process for reduced loss.
  • Coil Design: Segmented layered high-voltage coils and automatic foil-wound low-voltage coils for superior short-circuit resistance.
  • Insulation: Prepreg DMD interlayer insulation provides excellent moisture resistance.
  • Vacuum Casting: Computer-controlled mirror surface self-leveling vacuum casting ensures mechanical strength and rigidity.
Production 1
Production 2
Production 3
Quality Control 1
Quality Control 2
Final Product 1
Final Product 2
Frequently Asked Questions
What are the available payment terms?
We accept TT, PayPal, or Western Union for your convenience.
What is the typical delivery time?
Sample orders typically require 7 days. For bulk production orders, the lead time is usually between 10 to 25 days.
What packaging is used for international shipping?
We use heavy-duty, export-standard wooden cases to ensure maximum protection during transit.
Can you provide customized products or OEM services?
Yes, we welcome customization. Simply send us your requirements, and our engineering team will provide technical drawings for your approval.
What materials are used in the windings?
We offer both 100% copper and copper-aluminum hybrid options depending on your specific requirements and budget. Copper offers longer life, while both perform reliably under normal conditions.
Which quality certifications do your products hold?
Our products are fully certified with CE, ISO9001, ROHS, and SGS, along with various design and technical patents.
