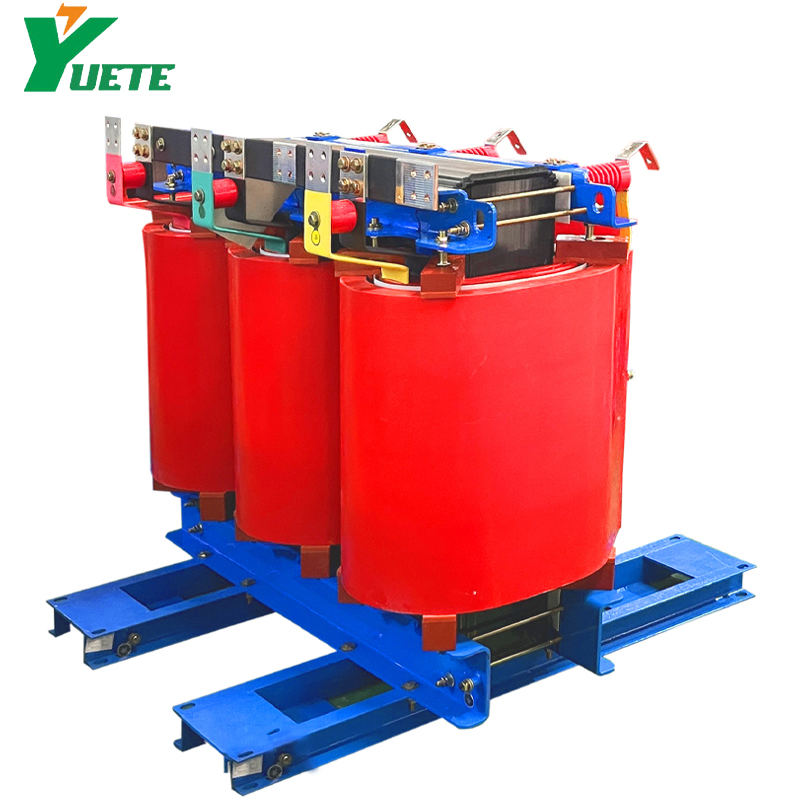

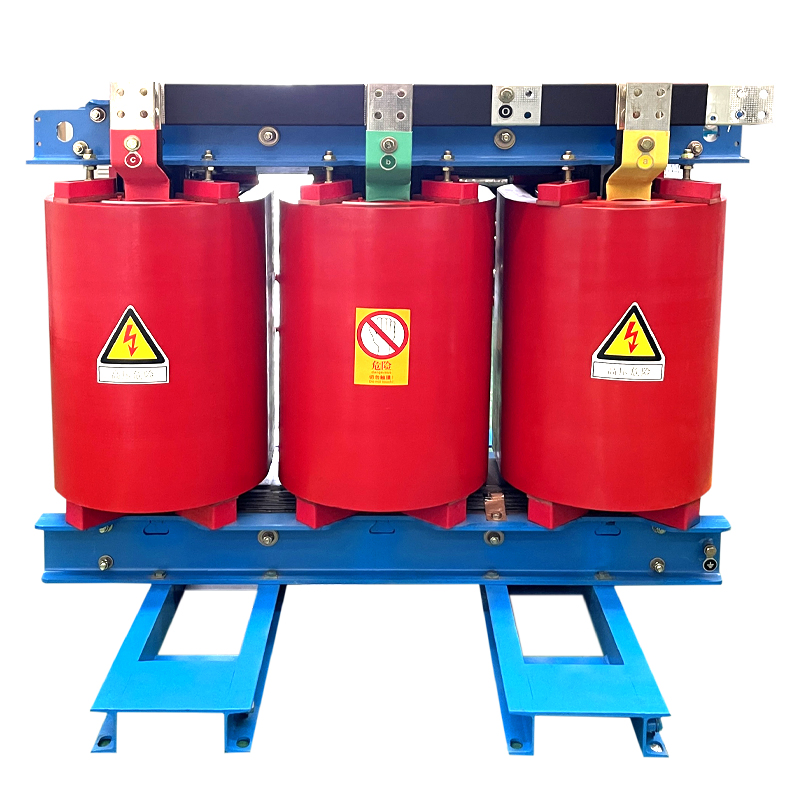

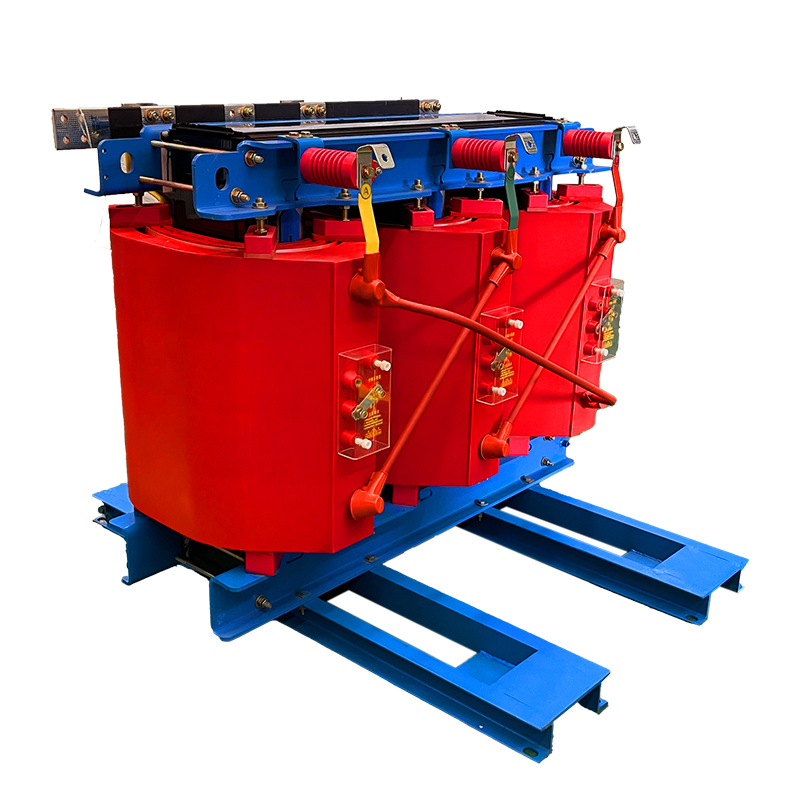

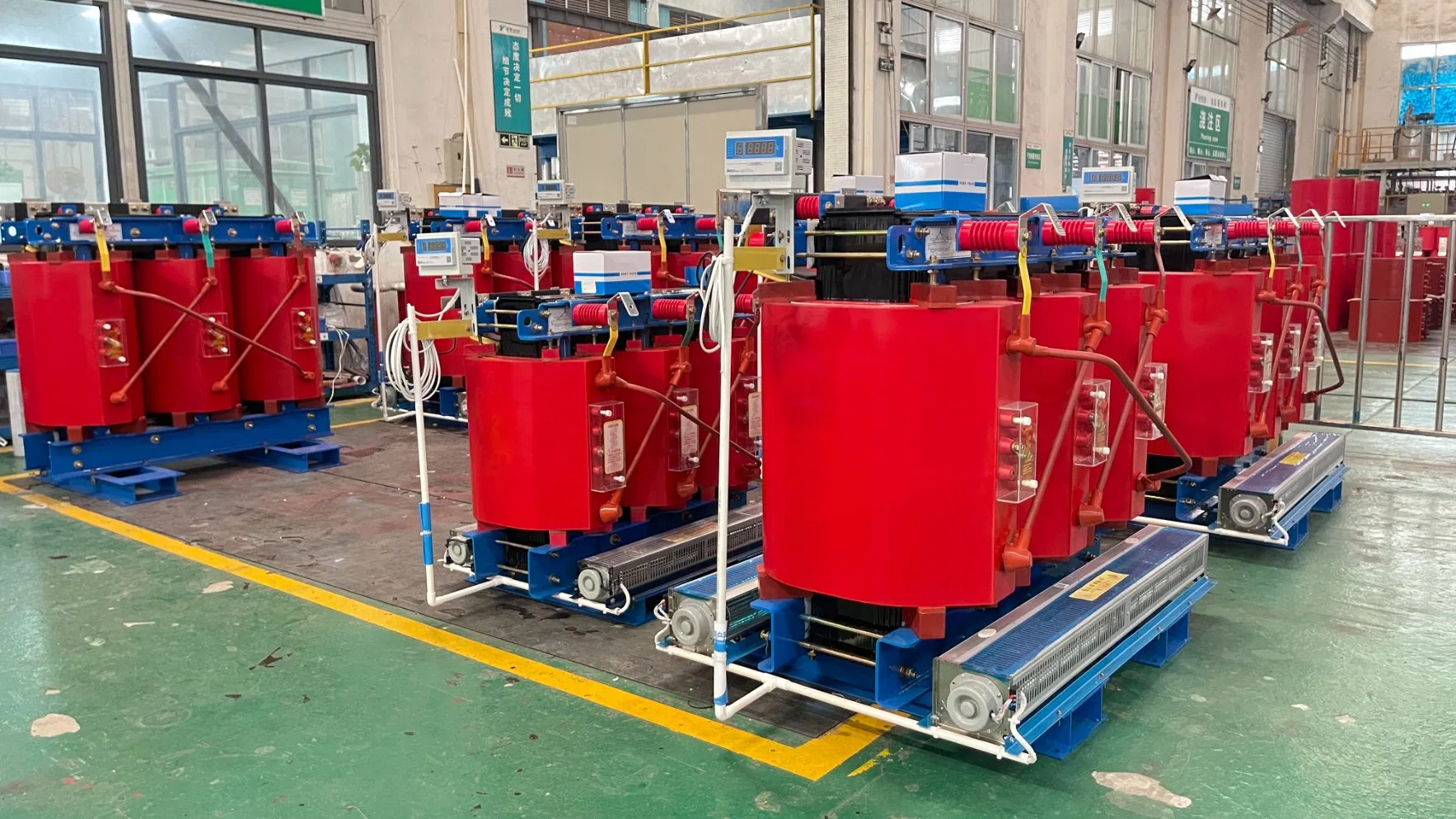

33kv to 400V 415V 433V 3 Phase Cast Resin Dry Type Transformer
33kv to 400V 415V 433V 3 Phase Cast Resin Dry Type Transformer
33kv to 400V 415V 433V 3 Phase Cast Resin Dry Type Transformer
33kv to 400V 415V 433V 3 Phase Cast Resin Dry Type Transformer
33kv to 400V 415V 433V 3 Phase Cast Resin Dry Type Transformer
1 / 5
33kv to 400V 415V 433V 3 Phase Cast Resin Dry Type Transformer
33kv to 400V 415V 433V 3 Phase Cast Resin Dry Type Transformer
33kv to 400V 415V 433V 3 Phase Cast Resin Dry Type Transformer
33kv to 400V 415V 433V 3 Phase Cast Resin Dry Type Transformer
33kv to 400V 415V 433V 3 Phase Cast Resin Dry Type Transformer

33kv to 400V 415V 433V 3 Phase Cast Resin Dry Type Transformer

Customization: Available
Application: Power, Power Transmission
Phase: Three
Send Inquiry

Product Description

Basic Information
Model NO.
SCB11
Core
Core-type Transformer
Cooling Method
Dry-type Transformer
Winding Type
Two-winding Transformer
Certification
ISO9001, CCC
Usage
Power Transformer, Distribution Transformer
Frequency
50/60Hz
Rated H.V.
33/34.5/35/38kv
Winding Material
Copper/Aluminium
Vector Group
Dyn11/Yyn0/Yzn11/Dyn5
Product Description

Three Phase 33/34.5/35/38kV Dry Type Transformer

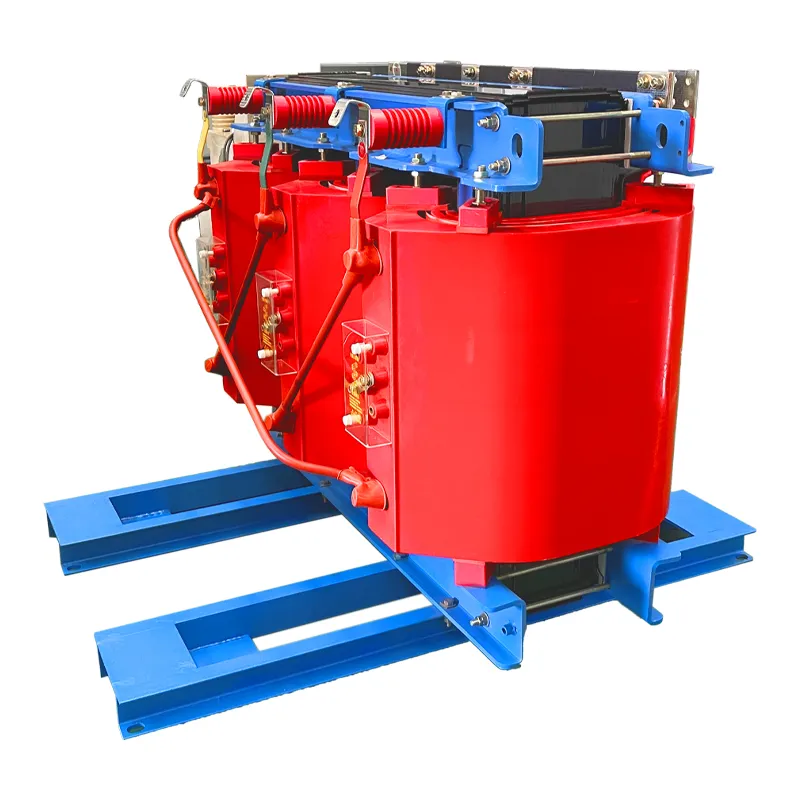

Dry Type Transformer
Product Features
✔ Safe, inflammable, fireproof, no pollution, can be directly installed in the load center.
✔ Maintenance free, easy installation, low overall operation cost.
✔ Good moisture-proof performance, can operate normally under 100% humidity.
✔ Low loss, low partial discharge, low noise, strong heat dissipation capacity.
✔ Equipped with perfect temperature protection and control system.
✔ High reliability reaching international advanced levels.

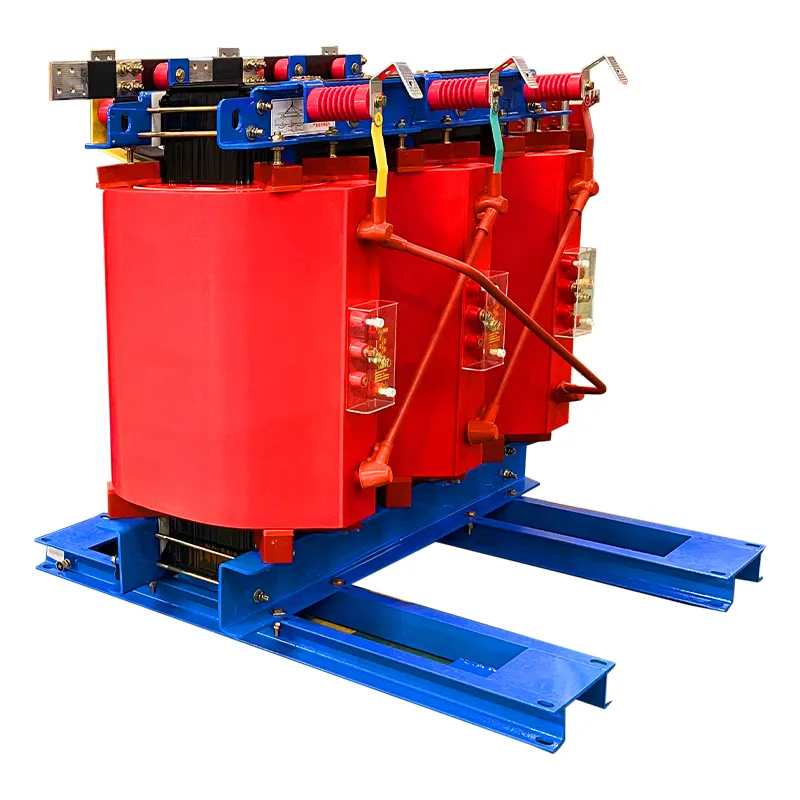

Transformer Detail 1

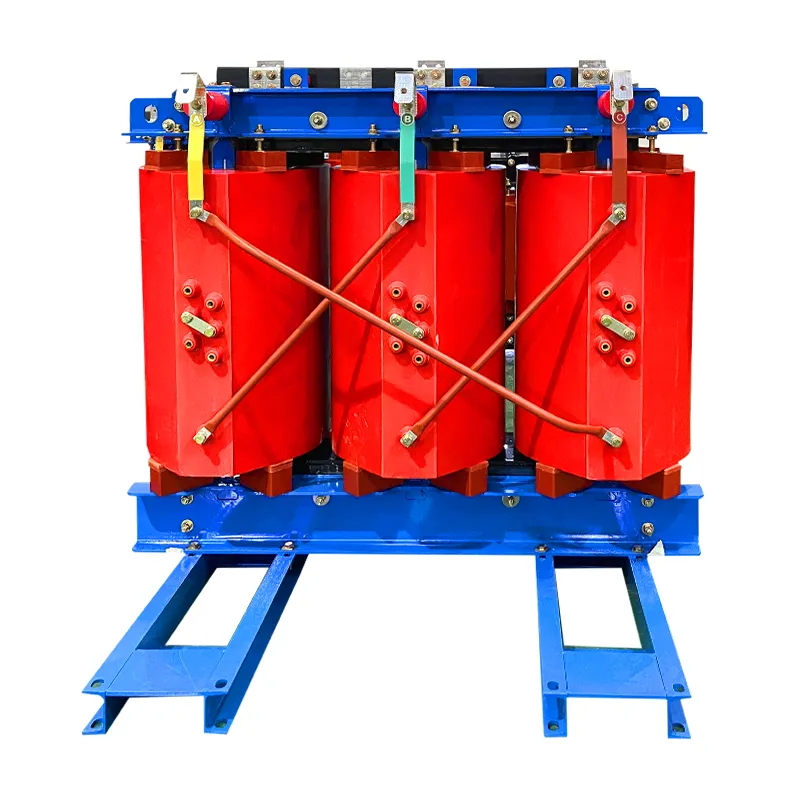

Transformer Detail 2

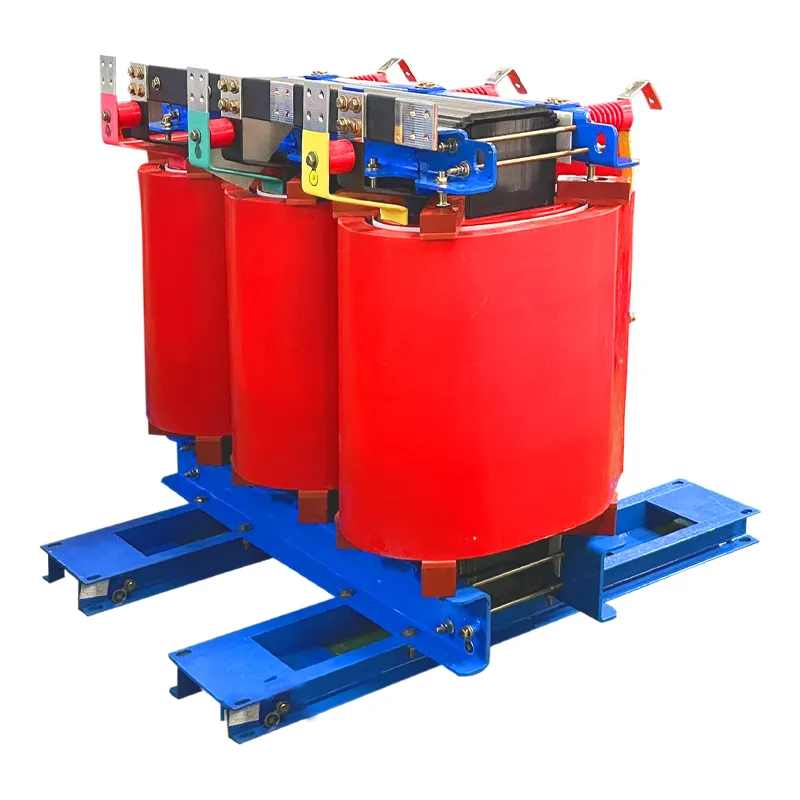

Transformer Detail 3
Technical Specifications
Rated Power (kVA) Rated Voltage (kV) Vector Group No-load loss (W) Load loss (W) Impedance (%)
HV LV
10033/35/380.4/0.415/0.433Dyn1163020906
315Dyn11117045106
630Dyn11186076906
1000Dyn112430104006
2500Dyn114450218006
Product Details

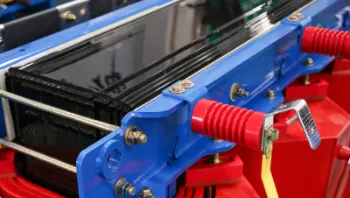

Core
Clamp

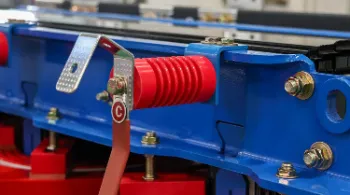

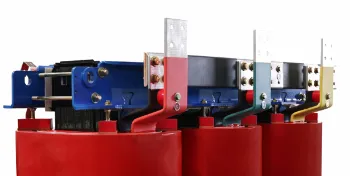

HV Terminations

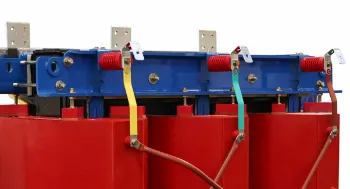

LV Terminations

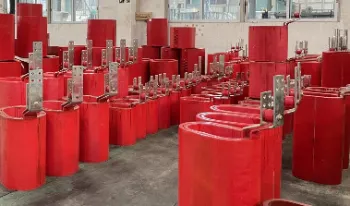

HV Winding
LV Winding

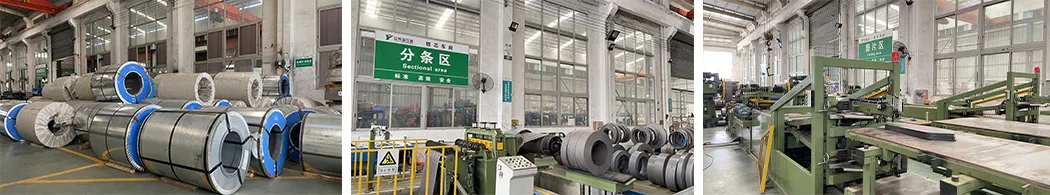

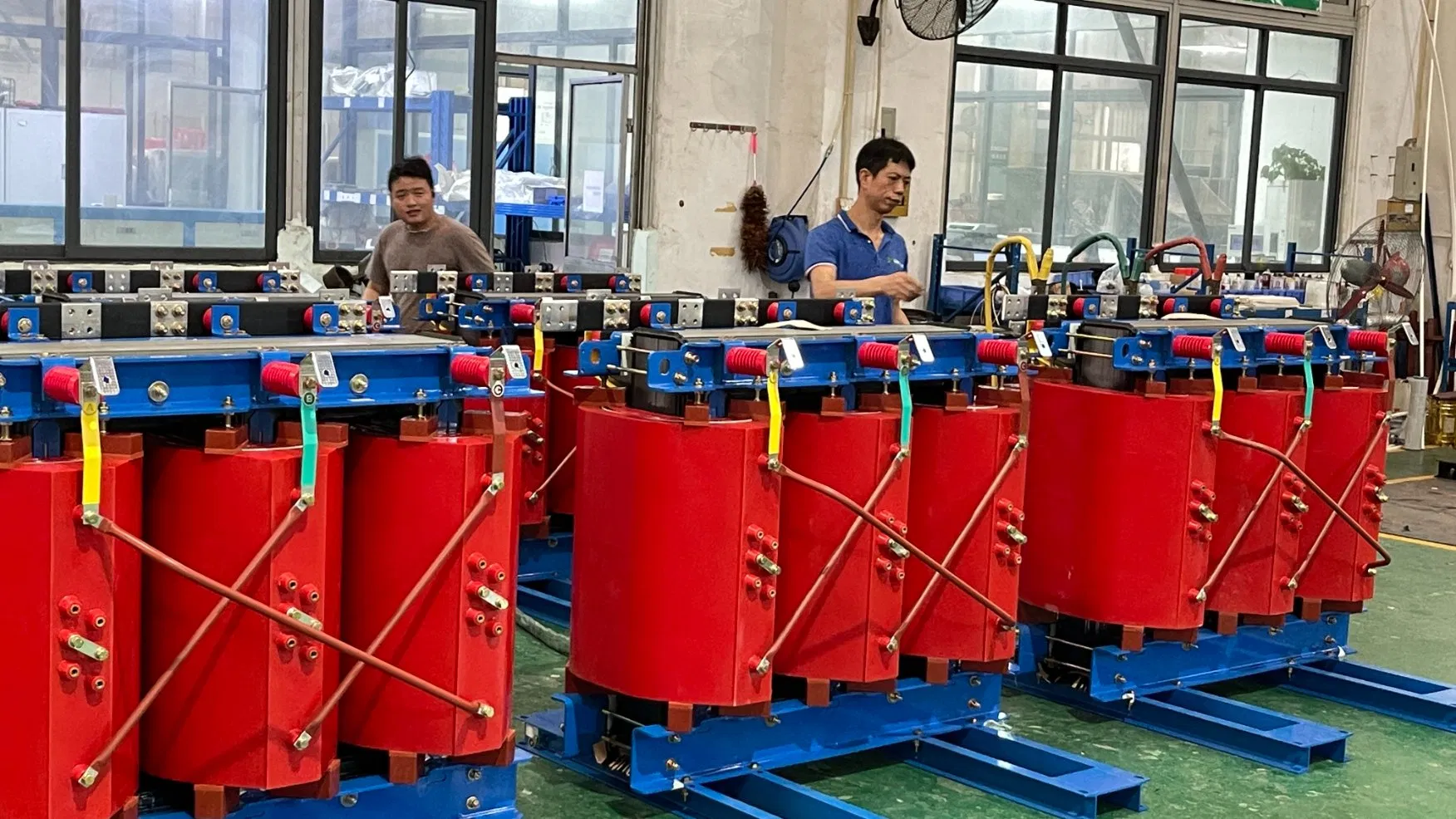

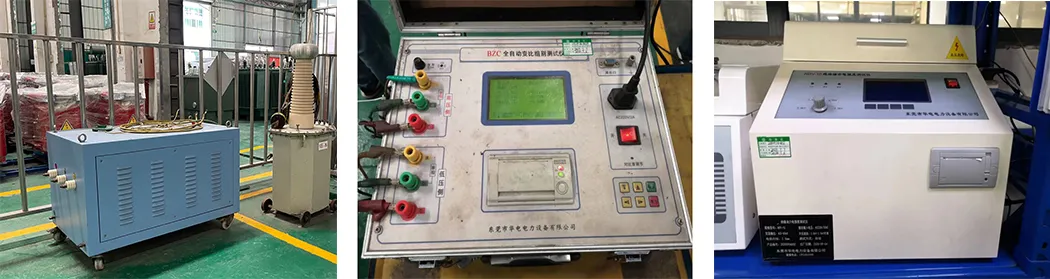

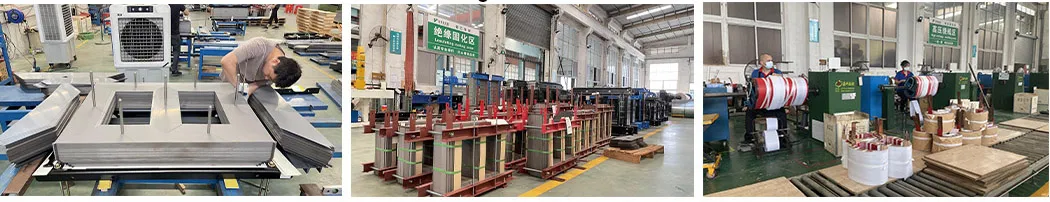

Production & Test Equipment
Certificates
Certificates
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a professional manufacturer specializing in Oil immersed transformers, Dry type transformers, Amorphous alloy transformers, and various switchgears for over 14 years.
What is the Minimum Order Quantity (MOQ)?
We accept OEM/ODM projects. The MOQ is 1 unit. Providing technical drawings and specifications helps us serve you better.
What is the standard production time?
Production typically takes about 25-30 days depending on the specific order requirements.
What are your payment terms?
We accept T/T, L/C, or Cash payments.
How long is the product guarantee?
We offer a 12-month (1 year) guarantee on our products.
How is the quality controlled?
Our products are strictly based on IEC, IEEE, and ANSI standards. We hold ISO, CE, CCC, and CQC certifications, along with comprehensive type test reports.
