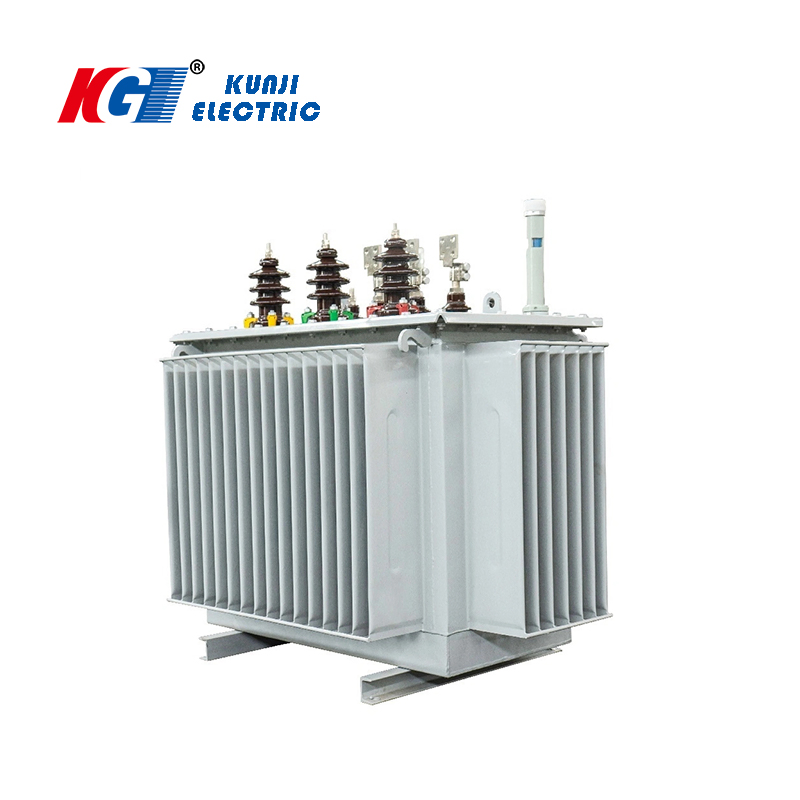

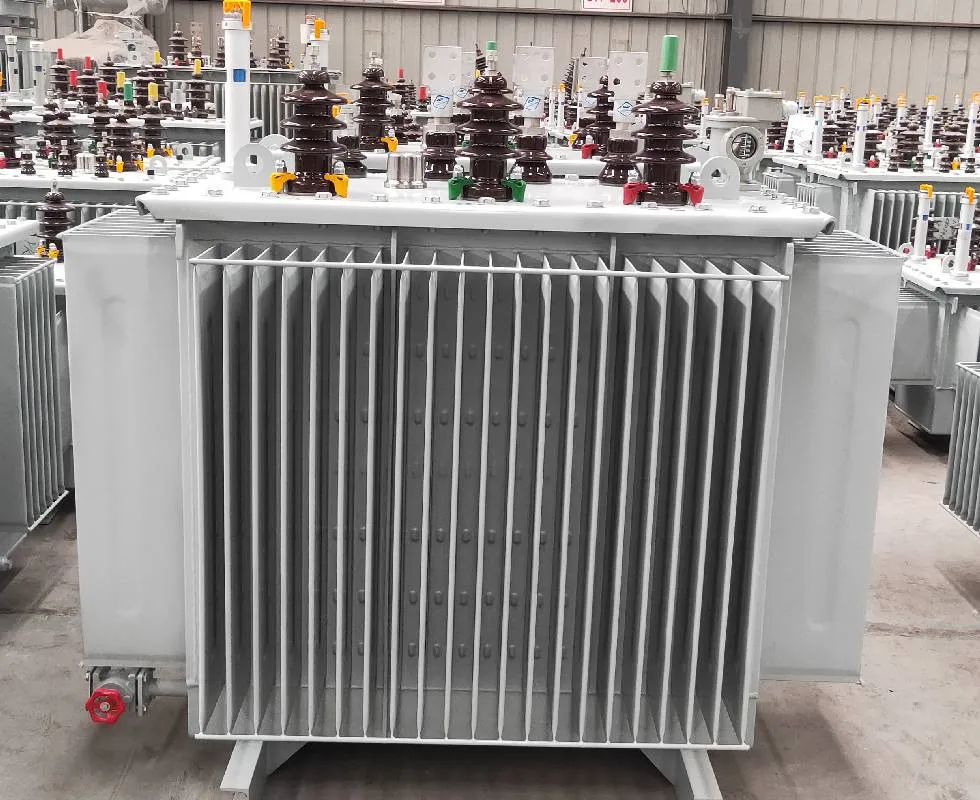

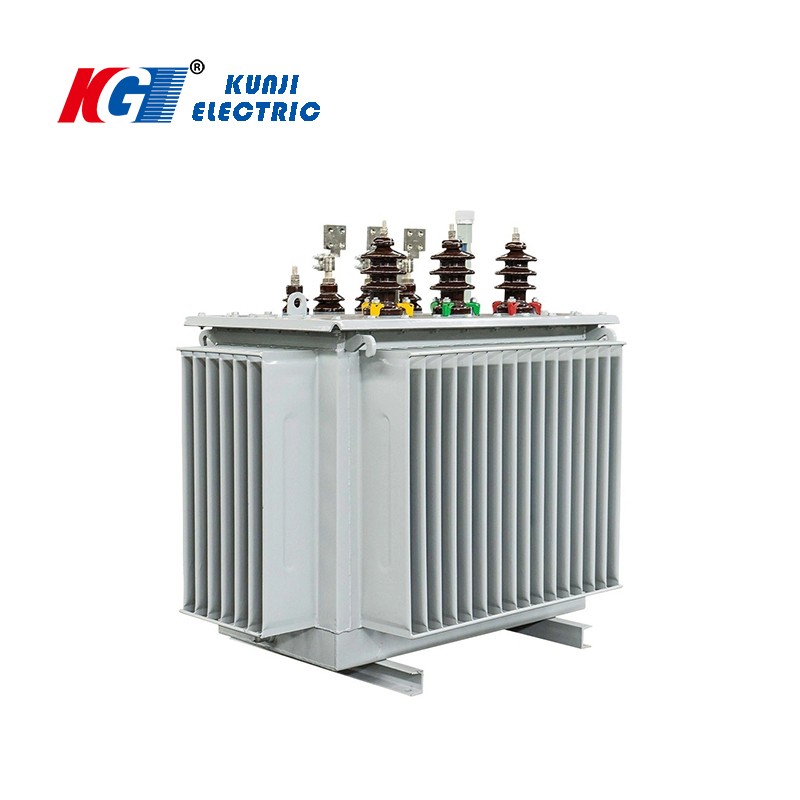

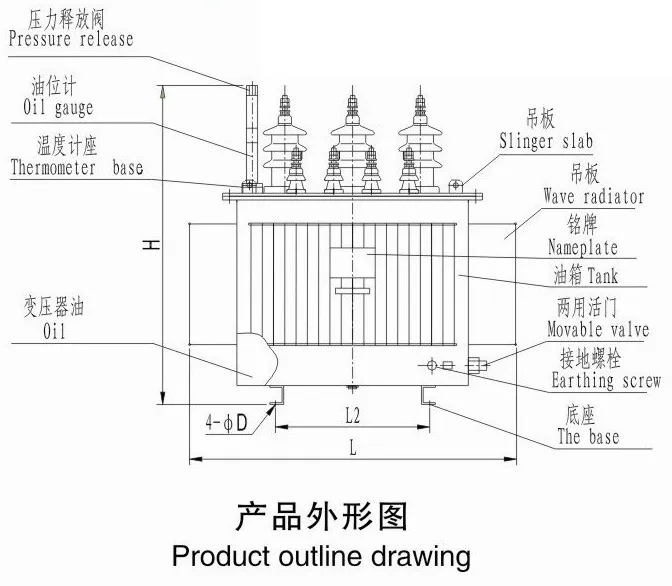

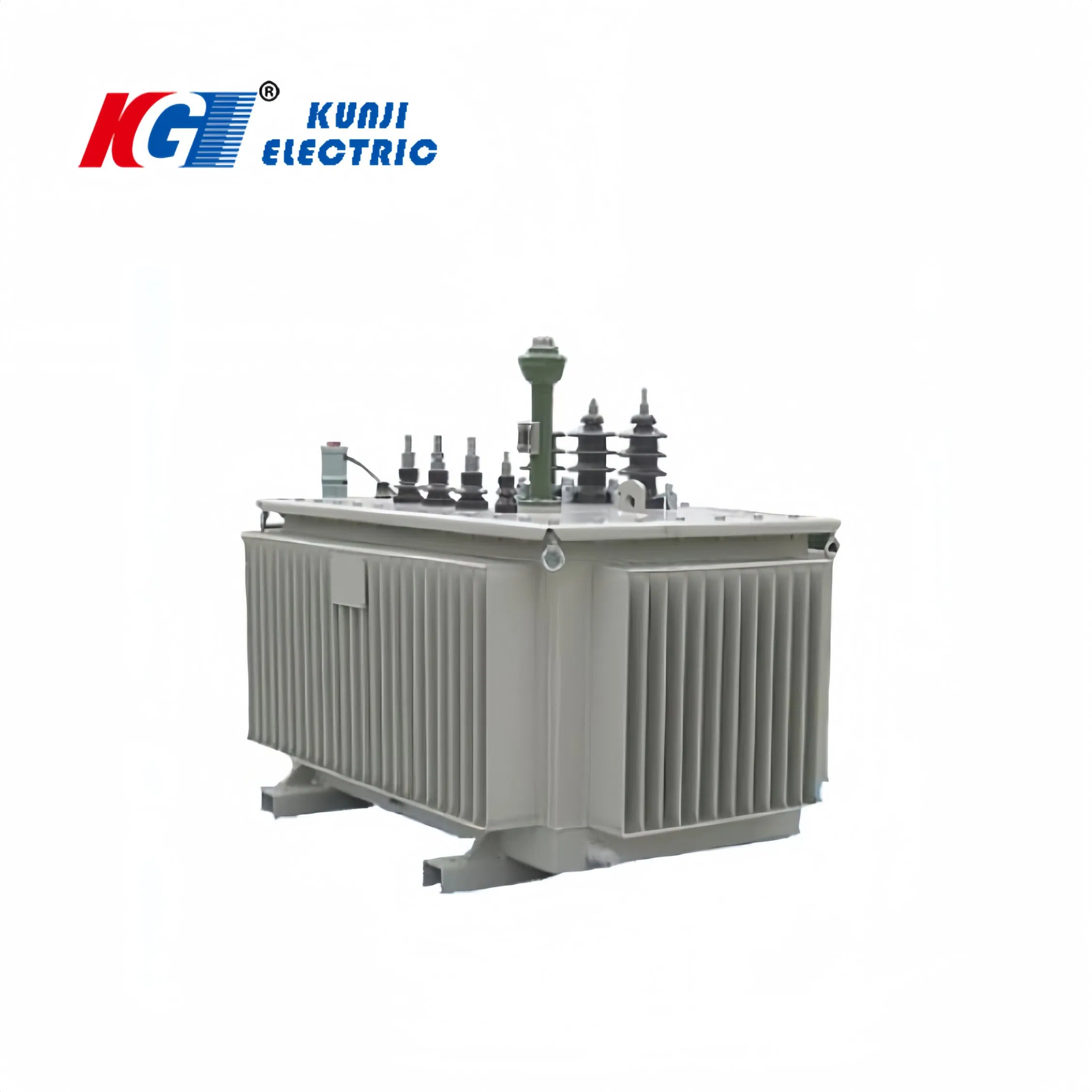

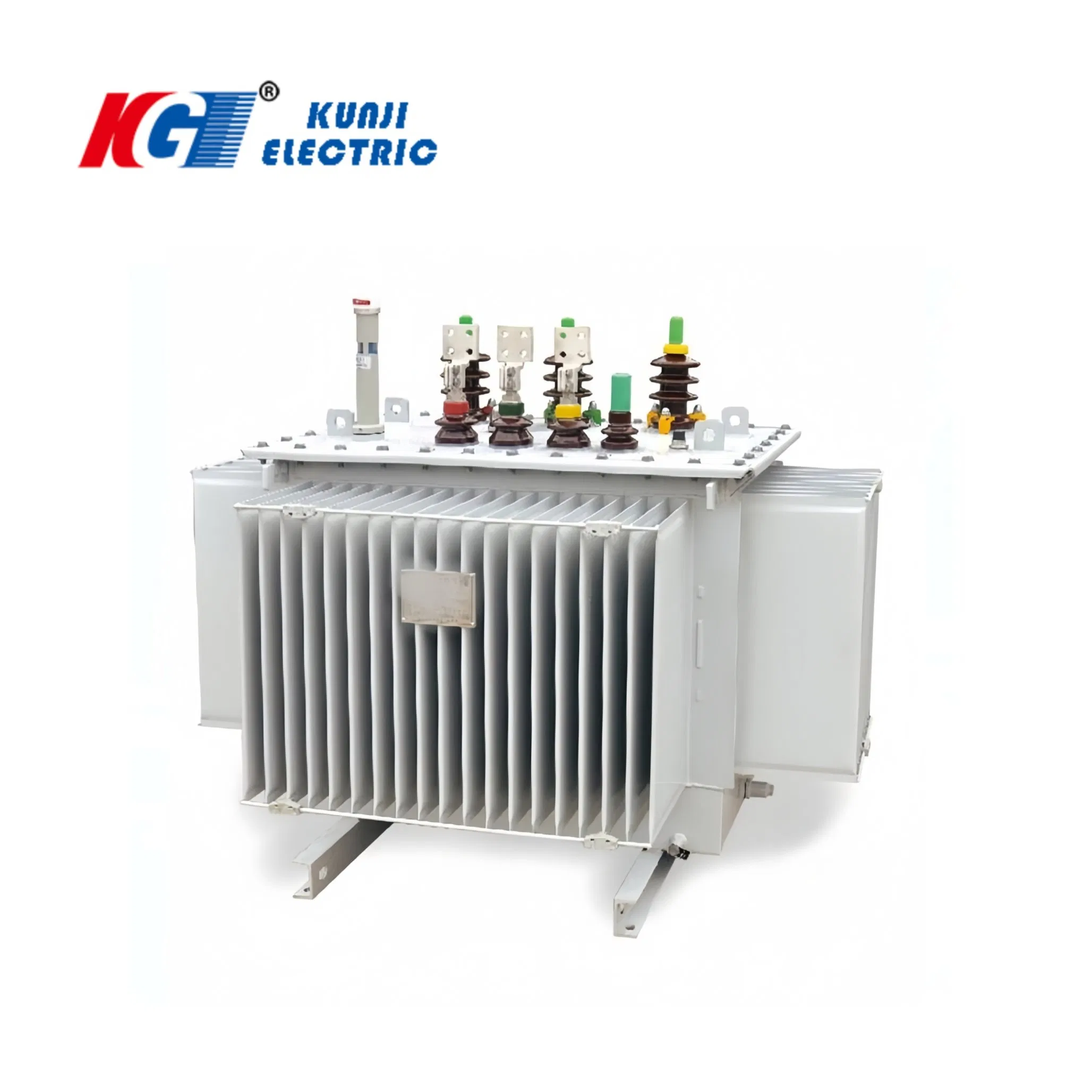

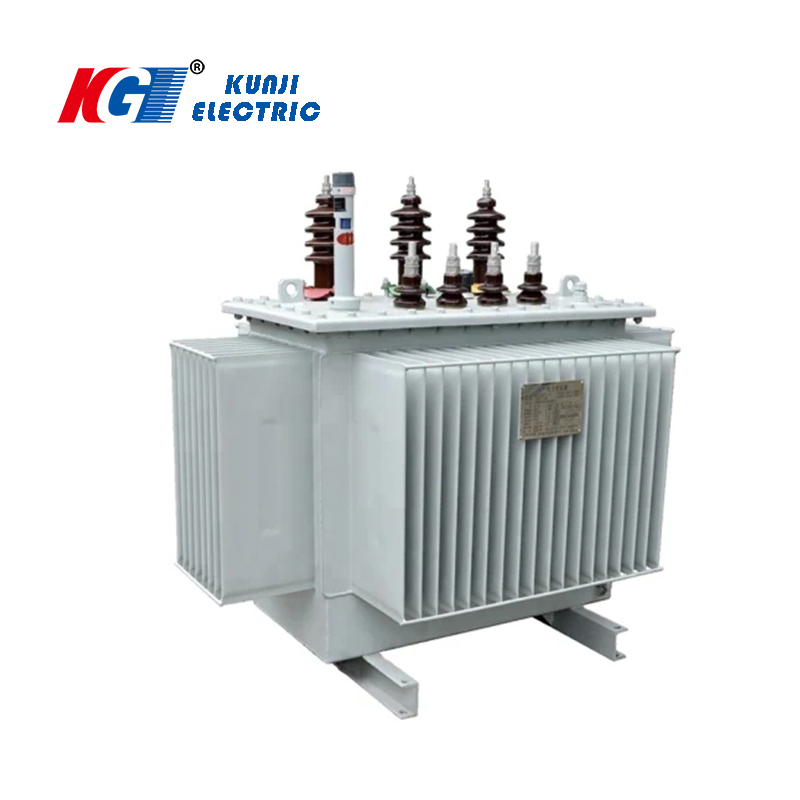

The S13 series whole sealing oil-immersed power transformer offers low loss, low noise, and high efficiency, achieving excellent energy-saving effects and reduced pollution. Compared to ordinary transformers, its totally enclosed design eliminates the need for an oil storage tank. The oil volume adjusts automatically through the corrugated tank's elastic chips. This isolates the transformer from the air, slowing oil deterioration and insulation aging to enhance reliability.
| Type | Rated capacity (KVA) | Voltage combination (KV) | No-load losses(W) | Load losses(W) | No-load current (%) | Weight (kg) | Dimensions LxWxH | ||
|---|---|---|---|---|---|---|---|---|---|
| H.V | Range | L.V | |||||||
| S13 | 30 | 10 | ±5% | 0.4 | 100 | 600 | 2.3 | 340 | 730X780X930 |
| S13 | 50 | 10 | ±5% | 0.4 | 130 | 870 | 2.0 | 440 | 800X750X965 |
| S13 | 100 | 10 | ±5% | 0.4 | 200 | 1500 | 1.8 | 660 | 850X840X1010 |
| S13 | 500 | 10 | ±5% | 0.4 | 680 | 5100 | 1.2 | 1710 | 1520X1000X1330 |
| S13 | 1000 | 10 | ±5% | 0.4 | 1150 | 10300 | 1.0 | 3680 | 1750X1240X1460 |
Installation: Suitable for indoor and outdoor locations without fire, explosion danger, chemical corrosion, or violent vibration.

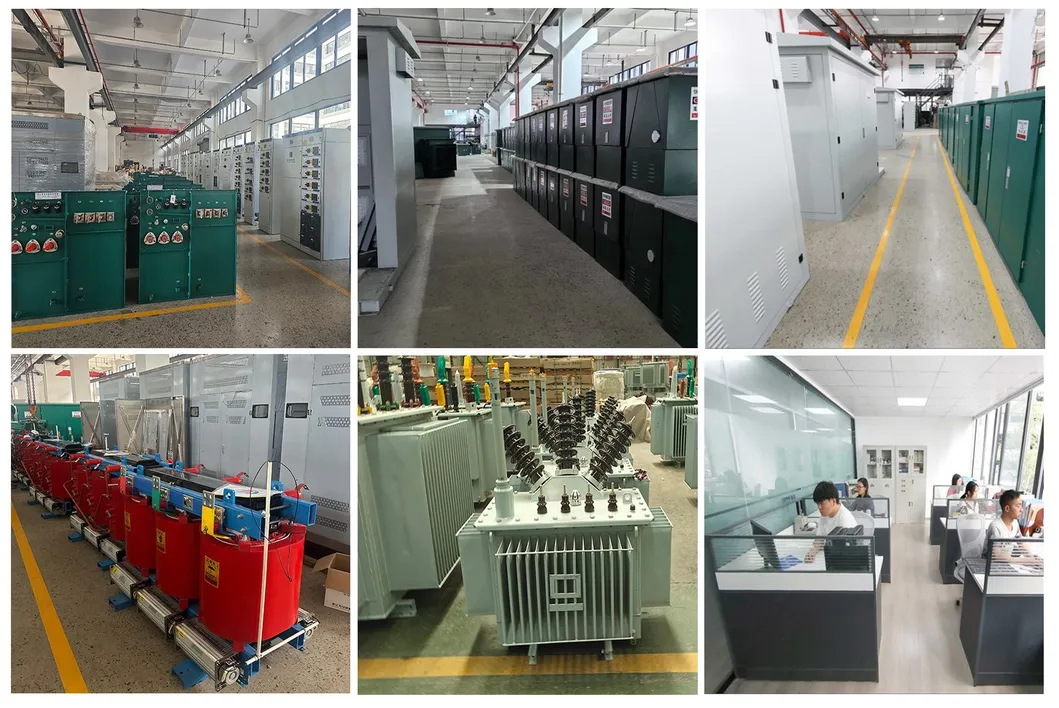

Specializing in producing, developing, and marketing power transmission and distribution products. Main product lines include switchgear, ring main units, transformers, and substations. All products meet ISO9001 and CE standards. A professional technical team provides full design solutions and technical support.
