5250kVA Energy Storage Transformer Oil-Immersed Transformer for Power Conversion and Boosting with 37/0.69kv Rati

Oil-immersed transformer and booster unit

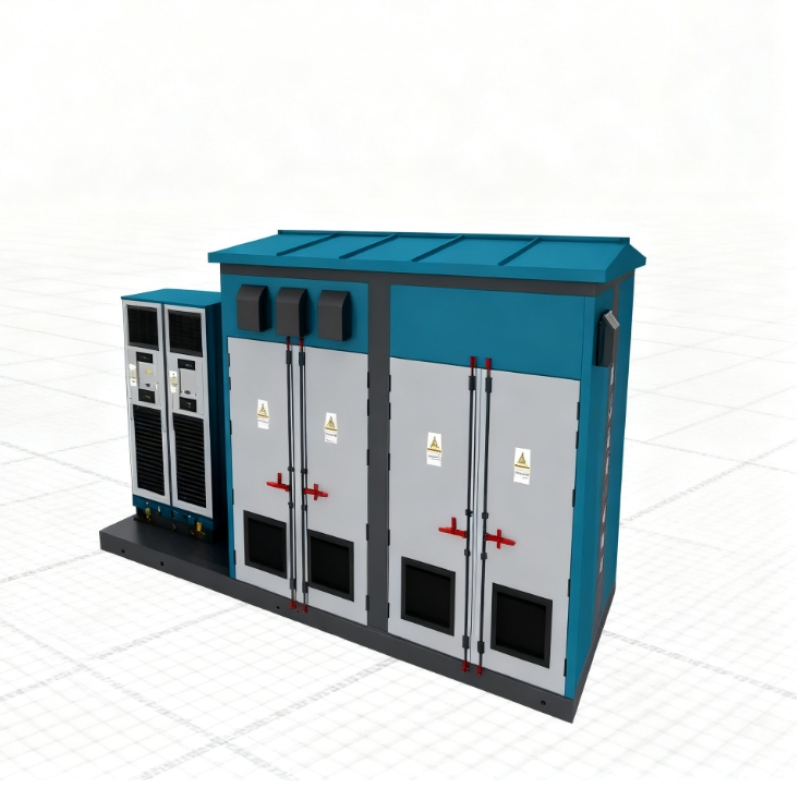

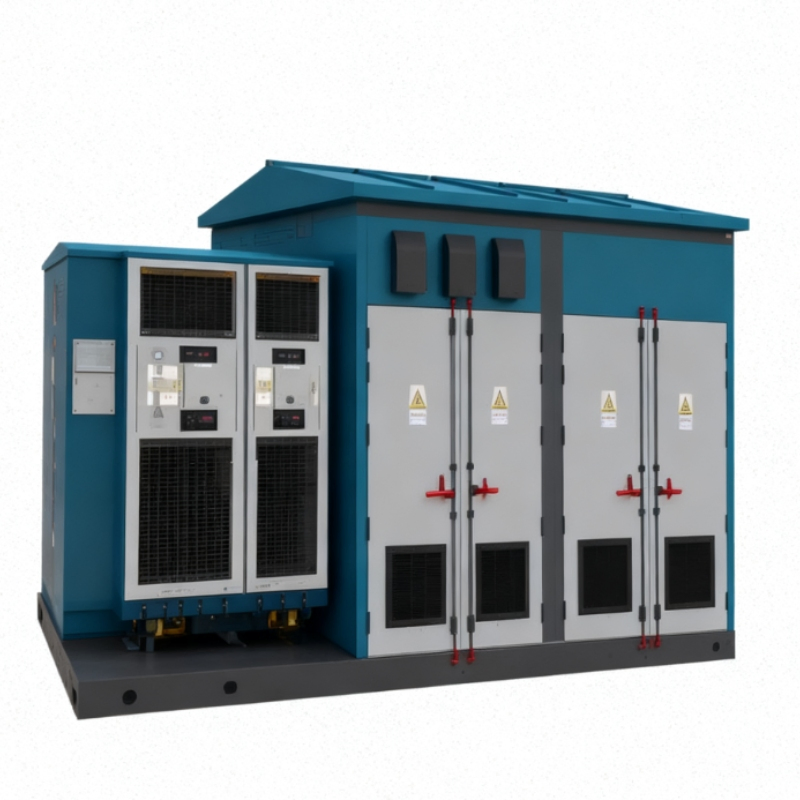

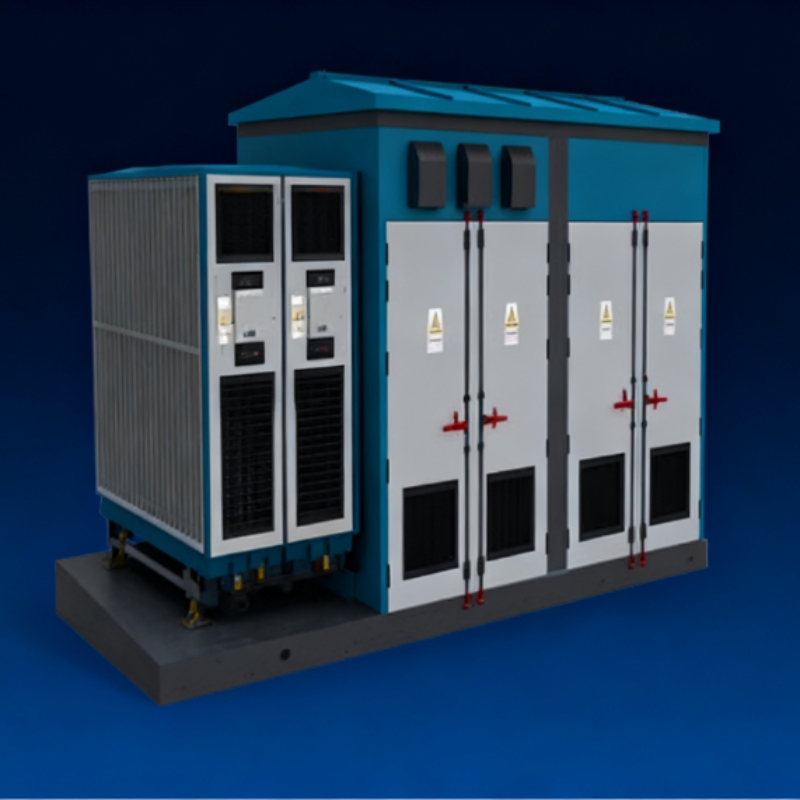

The SCB14-5250-37/0.69 Oil-immersed Converter-Transformer Integrated Unit is an innovative and compact solution for energy storage systems that combines the transformer and converter within a single, highly integrated enclosure. This system operates on the principle of power conversion and voltage transformation – the converter section first rectifies and controls the input power using advanced power electronics, then the integrated transformer efficiently steps up the voltage to grid connection levels through electromagnetic induction.

This "conversion and boosting" integration eliminates separate components and external cabling, significantly reducing system footprint (6880×3300×3096 mm), weight (23t), and installation time while improving overall economy and transportability. Featuring low partial discharge, excellent anti-cracking capability, and F-class insulation with AN/AF cooling, it ensures reliable performance across 1.5MVA to 4MVA capacity ranges. The unit supports intelligent monitoring and maintenance for enhanced safety and operational efficiency, making it an ideal, rapidly deployable solution for modern energy storage applications with shorter production lead times.

With over six decades of experience, the manufacturer has been engaged in the research, development, and manufacturing of motors and transformers since 1961. The enterprise has emerged as a leading supplier in China, achieving extensive cooperation with numerous international companies globally.

The facility employs more than 3,000 personnel and maintains a workshop area exceeding 1 million square meters. Housing over 3,500 sets of equipment, it boasts an annual production capacity of 20,000 sets of motors and 2,000 sets of transformers. Products are deployed in 40 countries and regions including Australia, Spain, Singapore, Malaysia, and South Africa.
