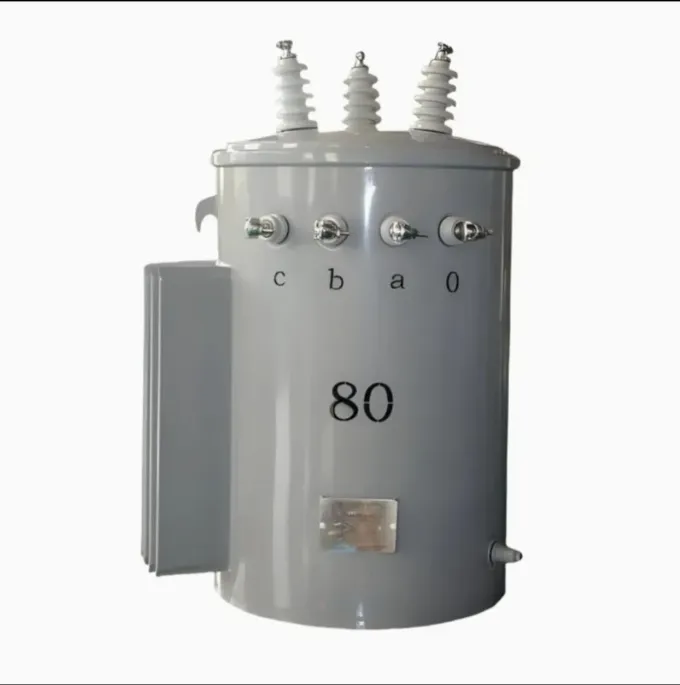

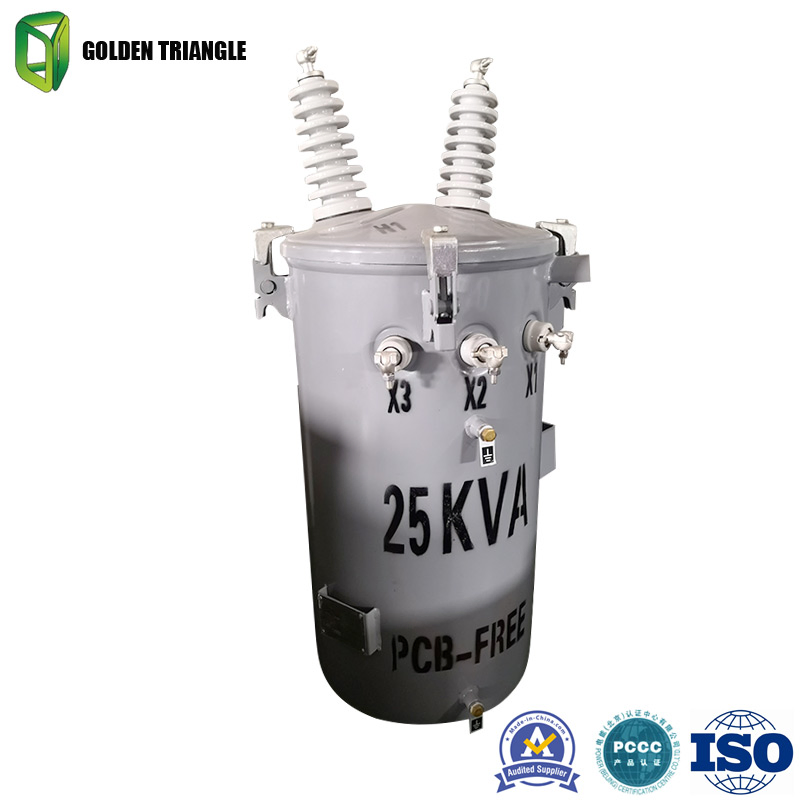

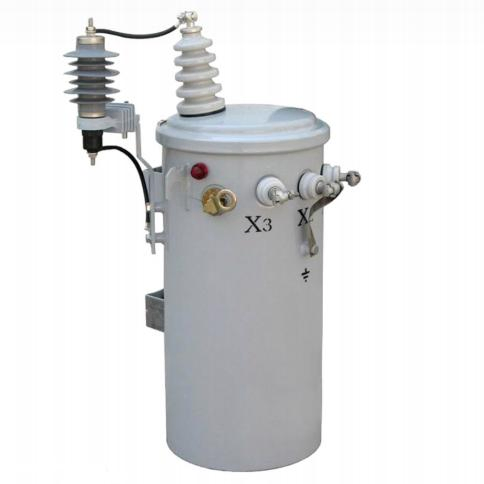

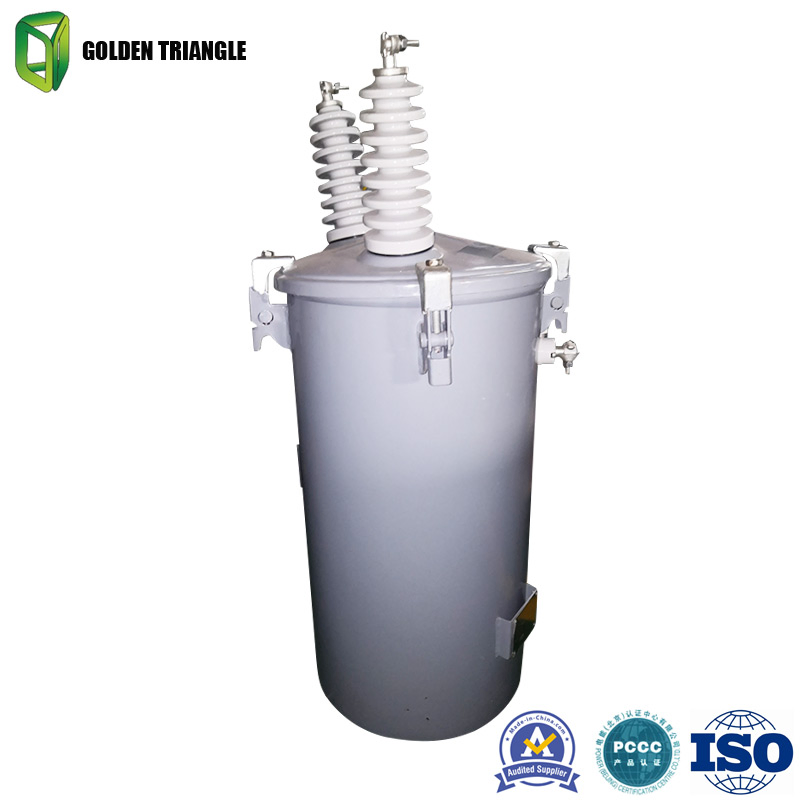

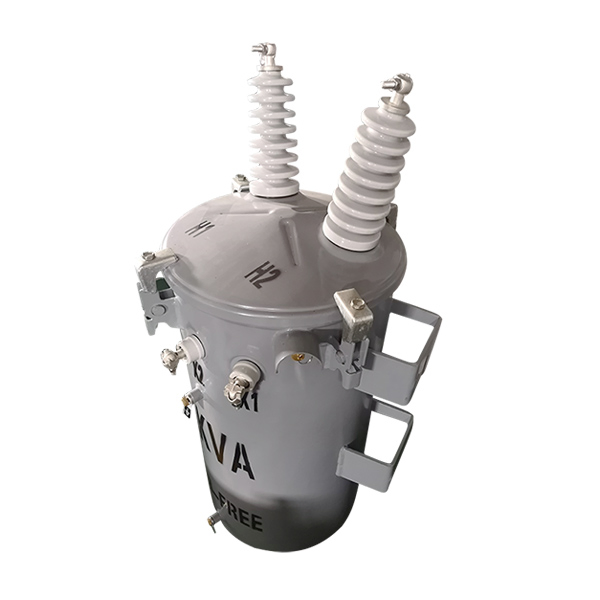

The D11 series high-efficiency, low-loss single-phase transformer is ideal for agricultural production, lighting, and power consumption in rural grids and remote areas. It can be installed directly on platforms or wire poles. The low voltage current is only half compared to ordinary single-phase transformers, resulting in line losses of only 1/4 (P=I²R).
Key Feature: Oil-immersed transformers use oil as the main insulation and cooling medium. This design ensures low noise due to the buffer effect of the oil on silicon steel sheets.
| Rated Capacity (kVA) | High Voltage (kV) | Tap Range | Low Voltage (kV) | Group Label | No-load Loss (W) | Load Loss (75ºC) | No-load Current (%) |
|---|---|---|---|---|---|---|---|
| 30 | 6, 10, 11 | ±2*2.5 / ±5 | 0.4 | Dyn11 / Yyn0 | 80 | 630 | 1.5 |
| 50 | 100 | 910 | 1.3 | ||||
| 100 | 150 | 1580 | 1.1 | ||||
| 160 | 200 | 2310 | 1.0 | ||||
| 250 | 290 | 3200 | 0.9 | ||||
| 500 | 10 | ±5 | 0.4 | Dyn11 | 480 | 5410 | 0.8 |
| 1000 | 10 | ±5 | 0.4 | Dyn11 | 830 | 10300 | 0.6 |
Established in 2009, we specialize in the research, development, and production of power products including three-dimensional coil core transformers, amorphous alloy core transformers, and intelligent substations. Our enterprise integrates construction EPC and serves fields such as national grids, railways, mines, and infrastructure.
We hold certifications including ISO9001:2015, ISO14001:2015, and ISO45001. Our products are recognized for energy efficiency and are recorded in national promotion catalogs for green energy technology.
