📊 Product Overview
Core
Core-type Transformer
Cooling Method
Dry-type Transformer
Winding Type
Two-winding Transformer
Certification
ISO9001, CCC
Usage
Power Transformer, Distribution Transformer
Frequency
50Hz / Power Frequency
Rated Capacity
30kVA - 2500kVA
⚡ Product Description

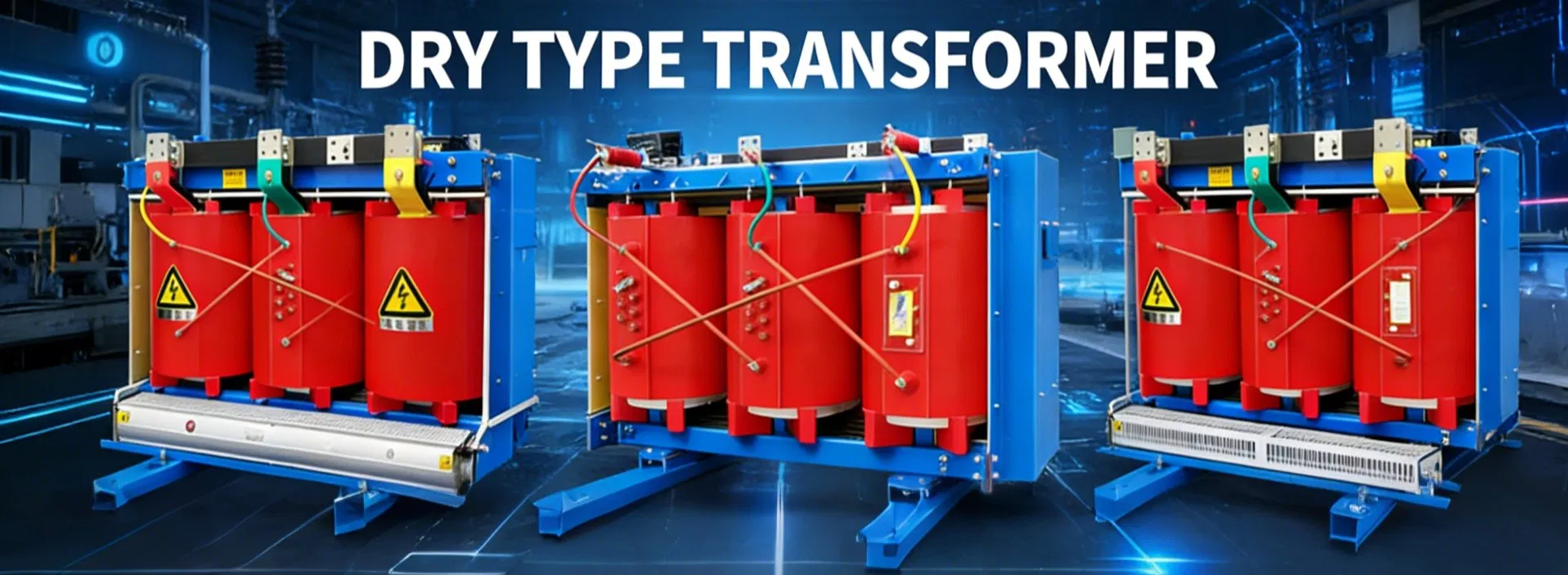

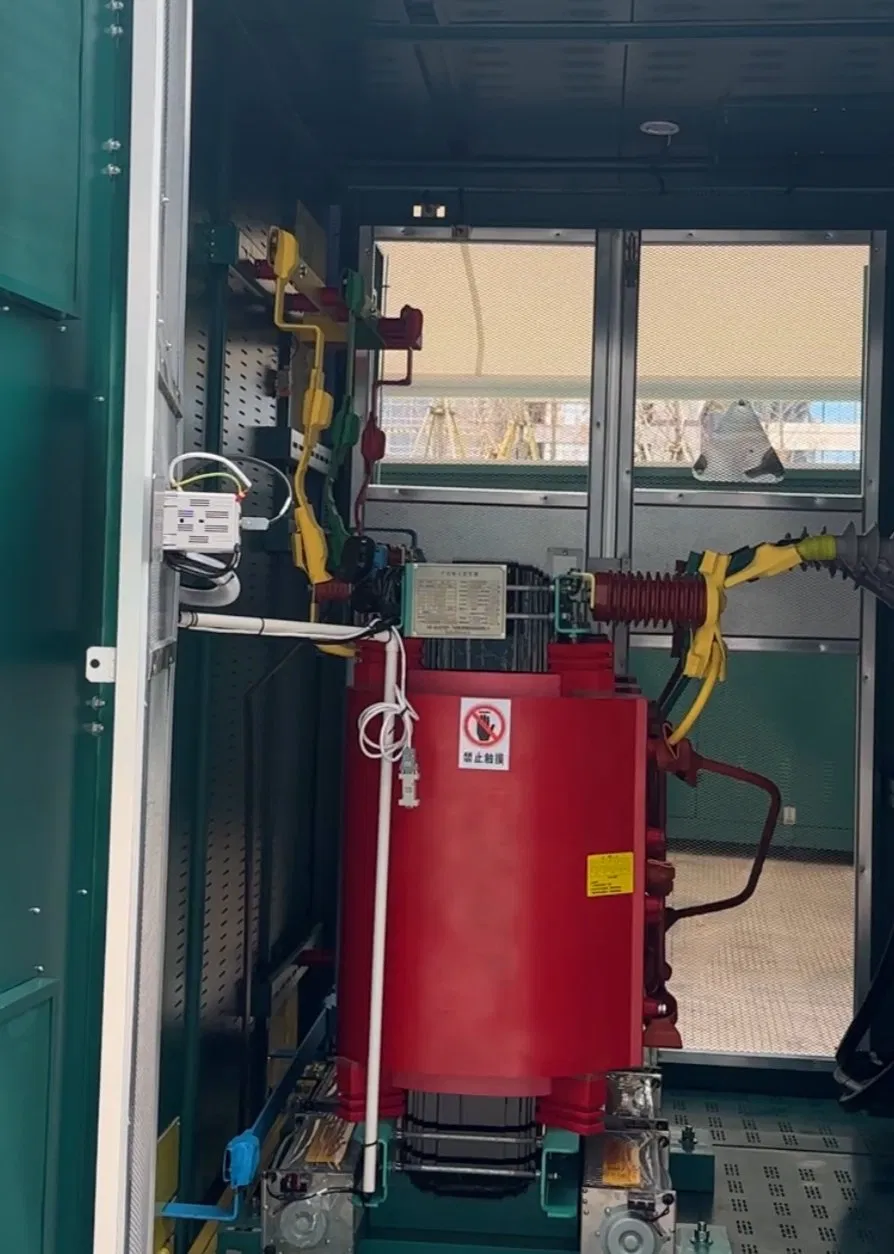

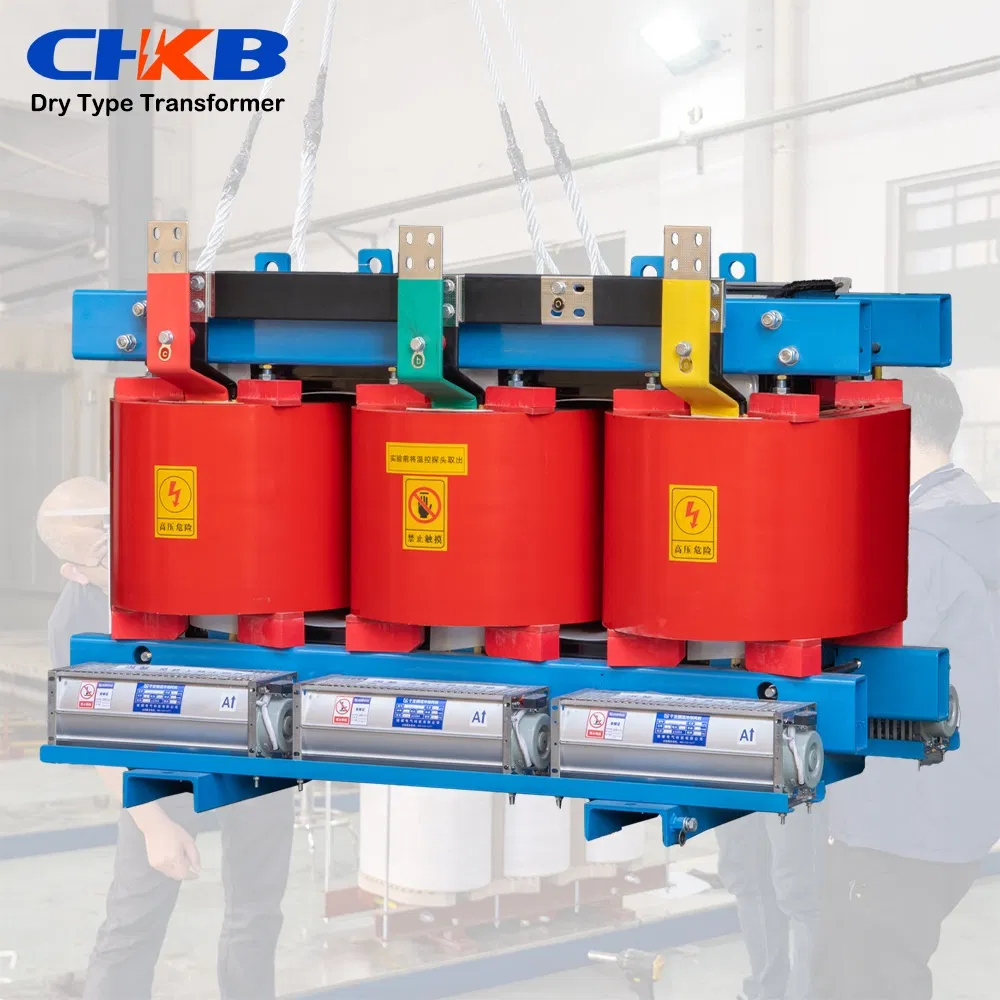

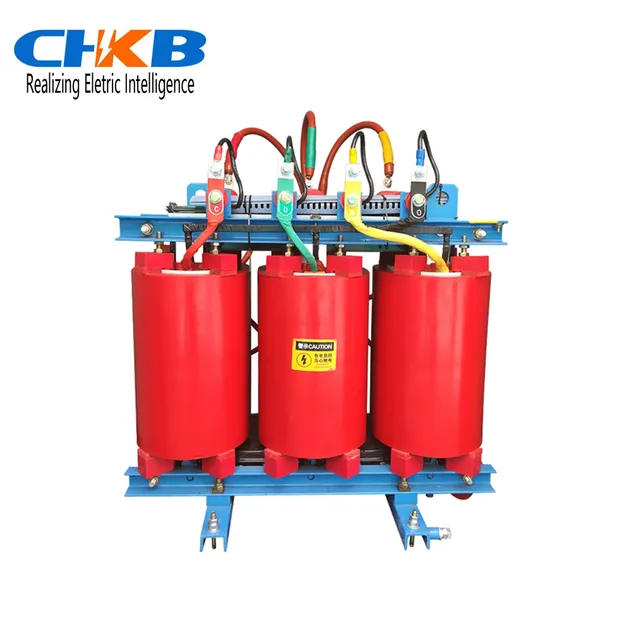

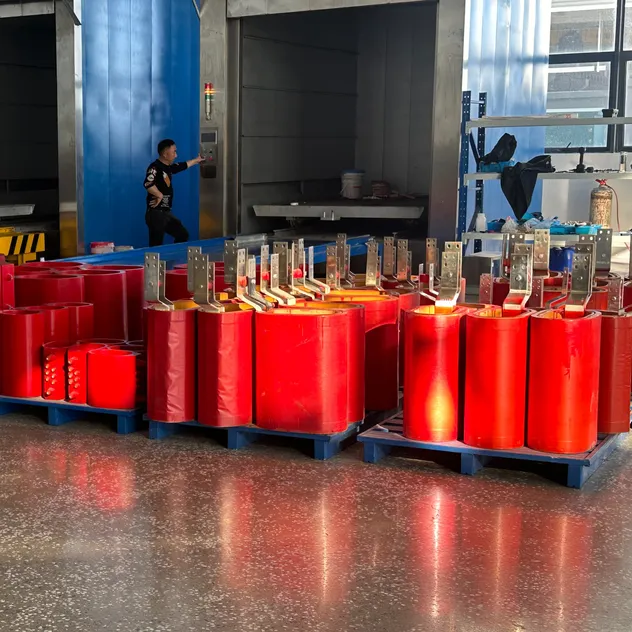

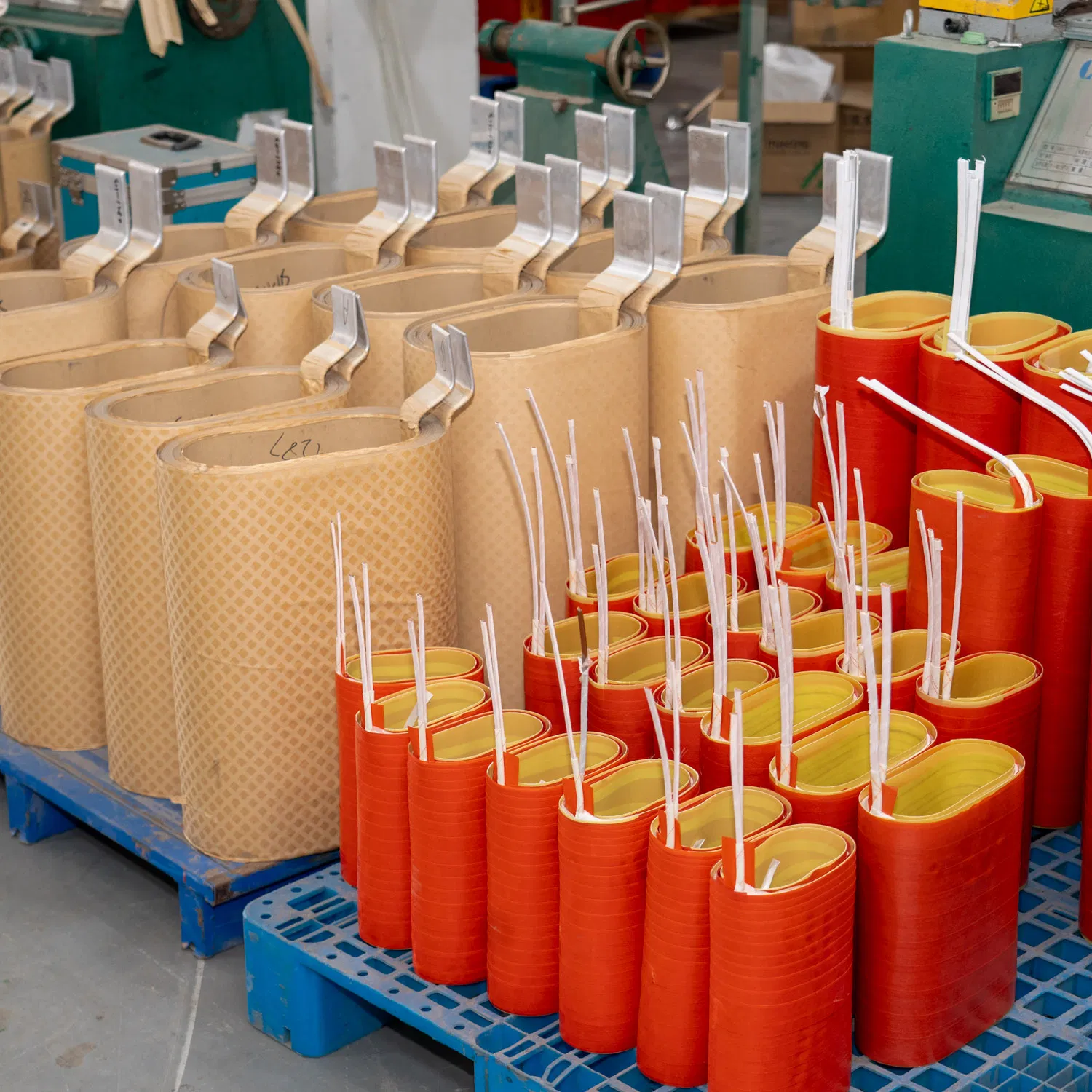

The dry-type transformer uses epoxy resin casting technology and features fire resistance, environmental protection, low loss, and low noise. It can be installed close to the load center and is widely used in high-rise buildings, commercial complexes, hospitals, schools, data centers, industrial plants, and urban grid upgrades. It is an ideal, safe, and energy-efficient solution for modern power distribution systems.
Hot-selling Models:
10kV / 6kV SCB10 Series, 20kV / 35kV SCB10 / SCB11 Series, SCZB10 Series.
⭐ Key Advantages
- Fire-safe Design: Epoxy-resin cast and oil-free design eliminate leakage and fire risks. Flame-retardant and moisture-proof.
- Low Loss & Low Noise: High-grade silicon steel and optimized magnetic circuits reduce operational costs.
- Strong Short-circuit Withstand: Vacuum casting ensures strong mechanical strength for harsh environments.
- Low Partial Discharge: Advanced insulation ensures 20–30+ years of reliable service life.
- Maintenance-free: Compact design with multiple protection levels (IP00/20/23), reducing installation and cable costs.
- Fully Customizable: Available in 6–35kV with SCB10/11/12 models tailored to project needs.
📋 Technical Specification
| Product Model |
Voltage Class |
Vector Group |
Capacitance Range |
Insulation Level |
No-load Loss (W) |
Load loss(W) 120℃ |
| 35kV Power Transformer |
35kV (36.5kV, 38.5kV) |
Dyn11, Yd11, etc. |
800~25000kVA |
LI170 AC70 |
2250~27100 |
9400~101000 |
| 35kV/20kV Distribution |
35kV, 20kV |
Dyn11, Yd11 |
800~25000kVA |
LI170 AC70 |
450~4450 |
1420~21850 |
| 10kV/6kV Distribution |
10kV, 6kV |
Yyn0, Dyn11 |
30~2500kVA |
LI75 AC35 |
890~3560 |
3600~18140 |
| Amorphous Alloy Type |
10kV, 6kV |
Yyn0, Dyn11 |
200~2500kVA |
LI75 AC35 |
200~1200 |
2530~17170 |
🛠️ Fully Customizable Options
Voltage
6kV to 35kV (HV); 0.4kV to 0.48kV (LV)
Frequency
50 Hz / 60 Hz Global Compatibility
Material
Copper (Standard) or Aluminum (Optional)
Efficiency
S11, S13, SH15 (Amorphous Alloy)
Insulation
Class F (100K) or Class H (120K)

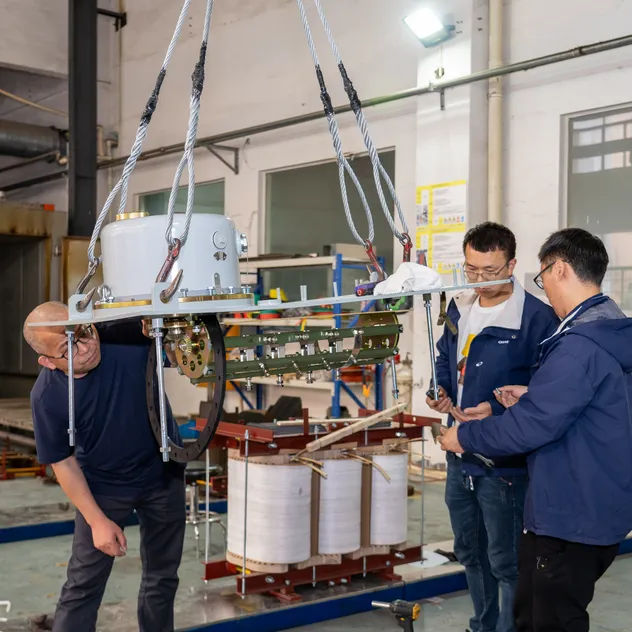

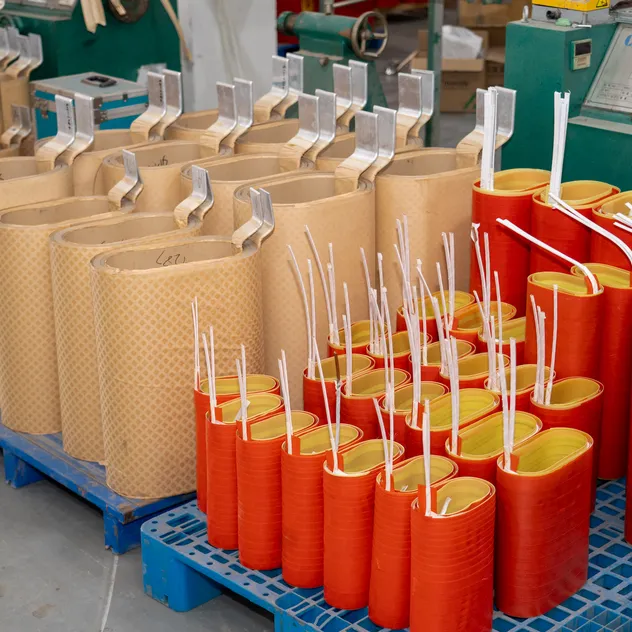

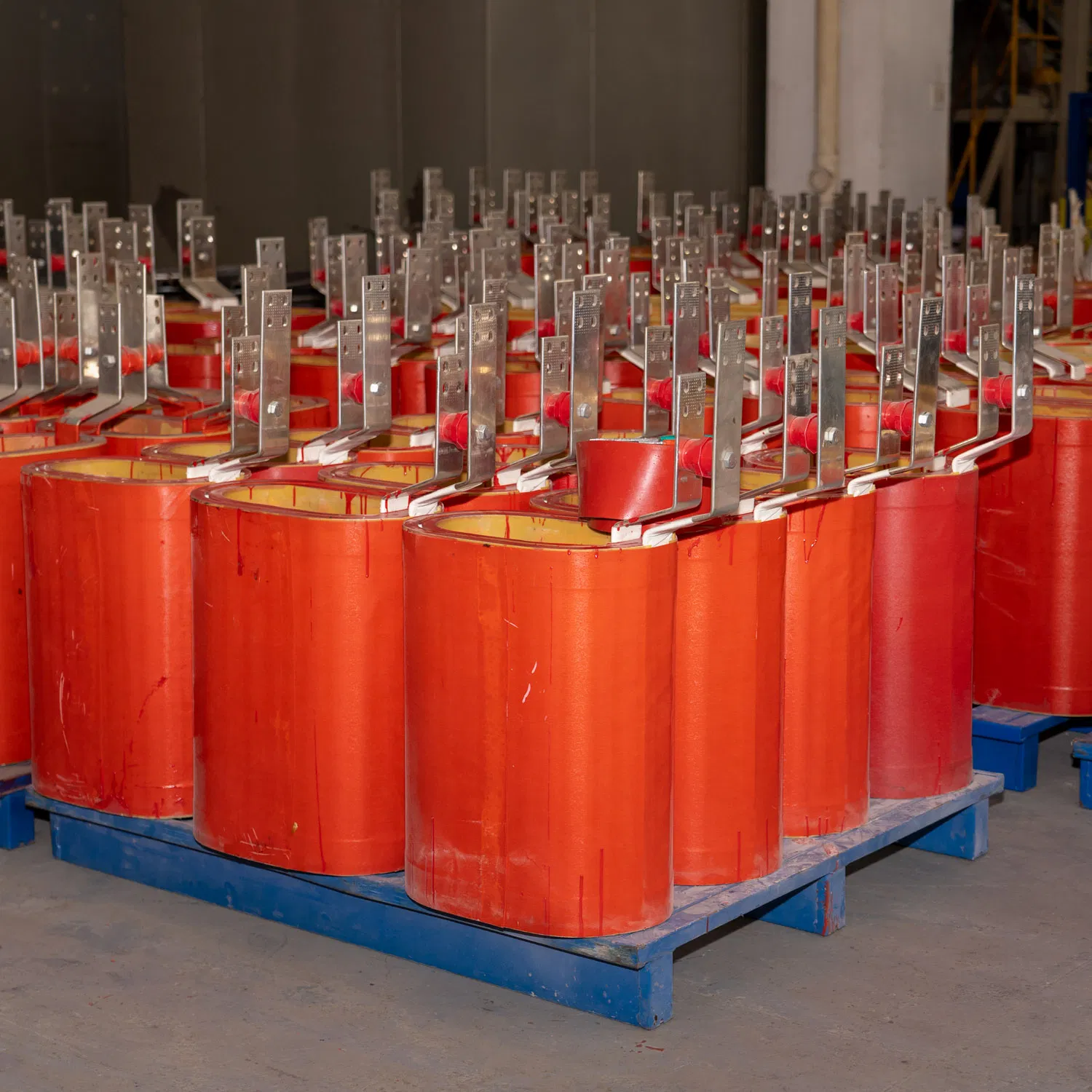

🏭 Professional Manufacturing

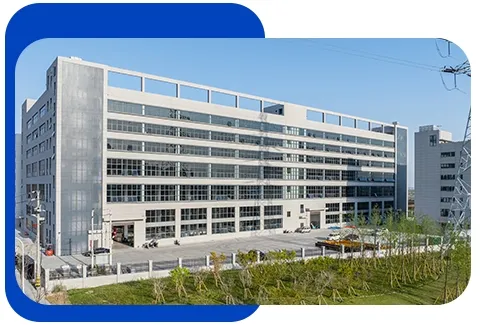

Operating from a 5,500 m² manufacturing base, the facility integrates R&D, production, and service for high-reliability power transmission and distribution products. With certifications including ISO9001, ISO14001, and ISO45001, strict quality control is maintained throughout the production cycle.
Global Reach:
Equipment has been successfully deployed in various international markets, including Europe (Hungary, Poland), Middle East (Saudi Arabia, Iraq), Africa (Ethiopia, South Africa), Southeast Asia, and Latin America.

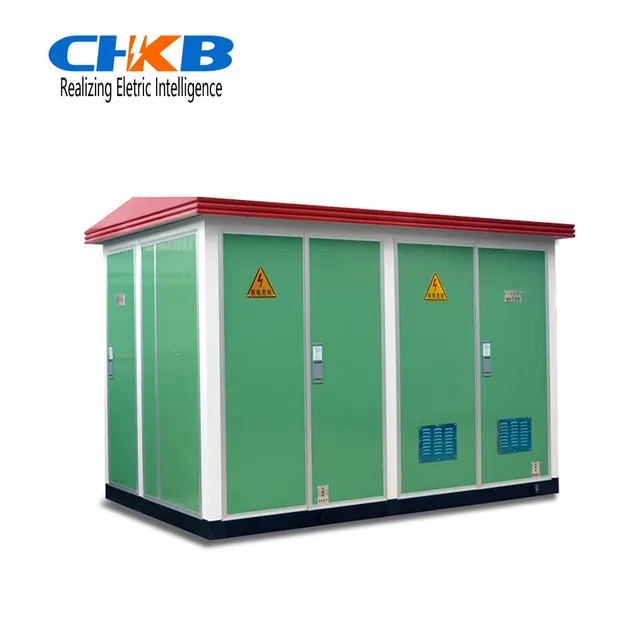

Main Product Categories:
Frequently Asked Questions
What is the typical lead time for orders?
Standard models generally ship within 15–30 days, while fully customized units require approximately 30–45 days depending on specifications.
Do you support OEM and ODM customization?
Yes, we provide full customization for voltage levels, rated capacity, winding materials (Copper/Aluminum), and specific loss levels to meet local grid requirements.
What insulation classes are available for dry-type transformers?
We offer Class F (100K) as standard and Class H (120K) for heavy-load or high-temperature environments. Lower temperature rise options are also available.
What certifications do your products hold for international export?
Our products are manufactured under ISO9001, ISO14001, and ISO45001 systems and hold necessary certifications such as CCC and relevant test reports for global markets.
How are the transformers protected during international shipping?

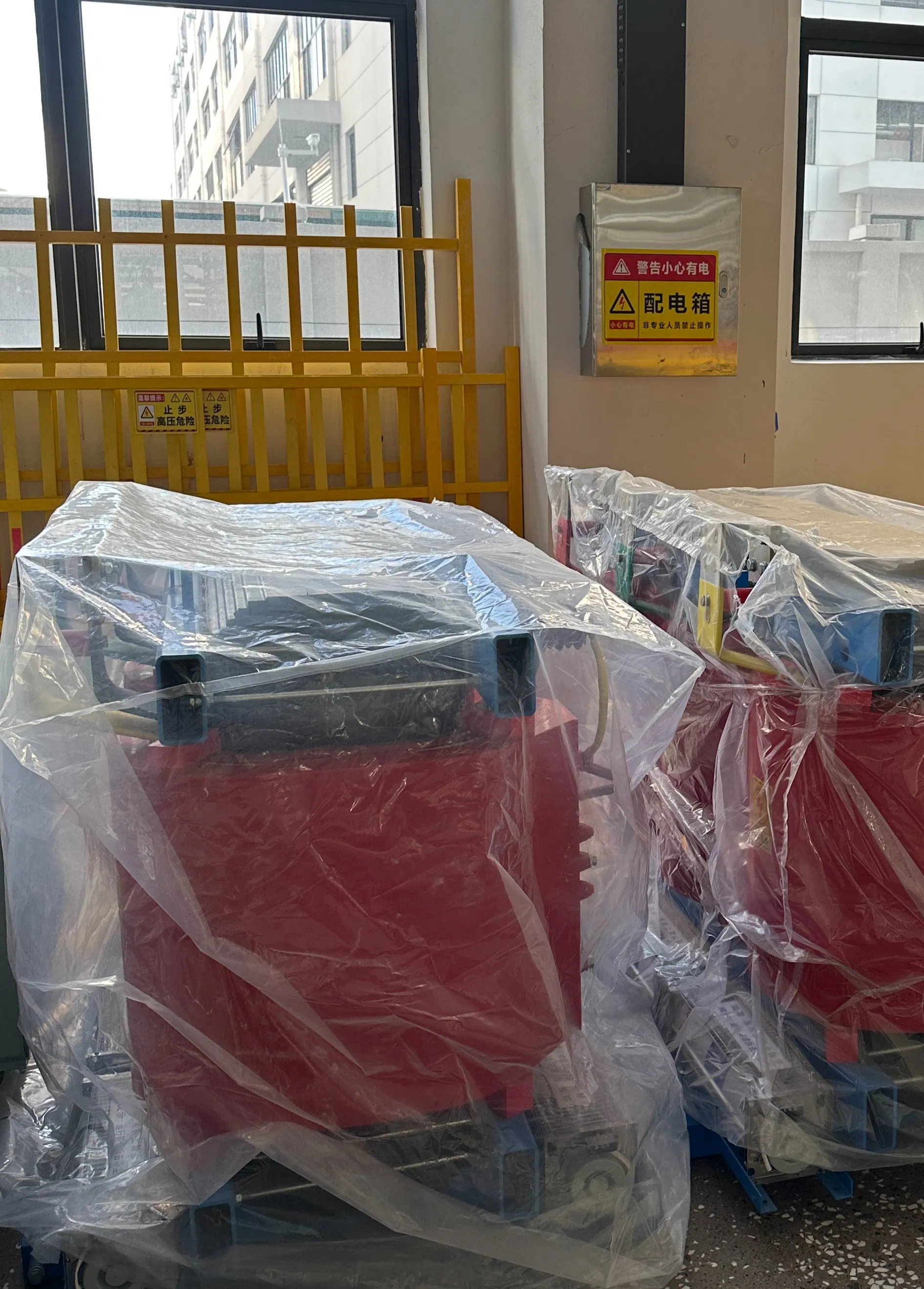

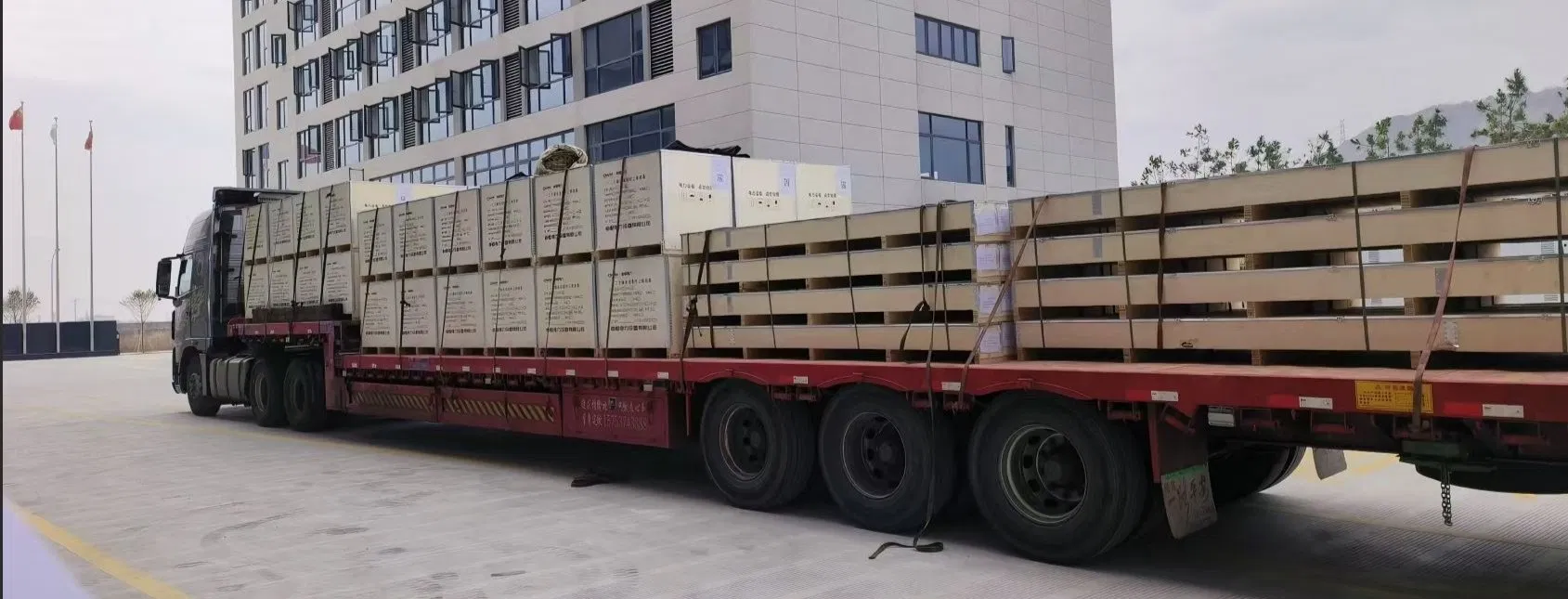

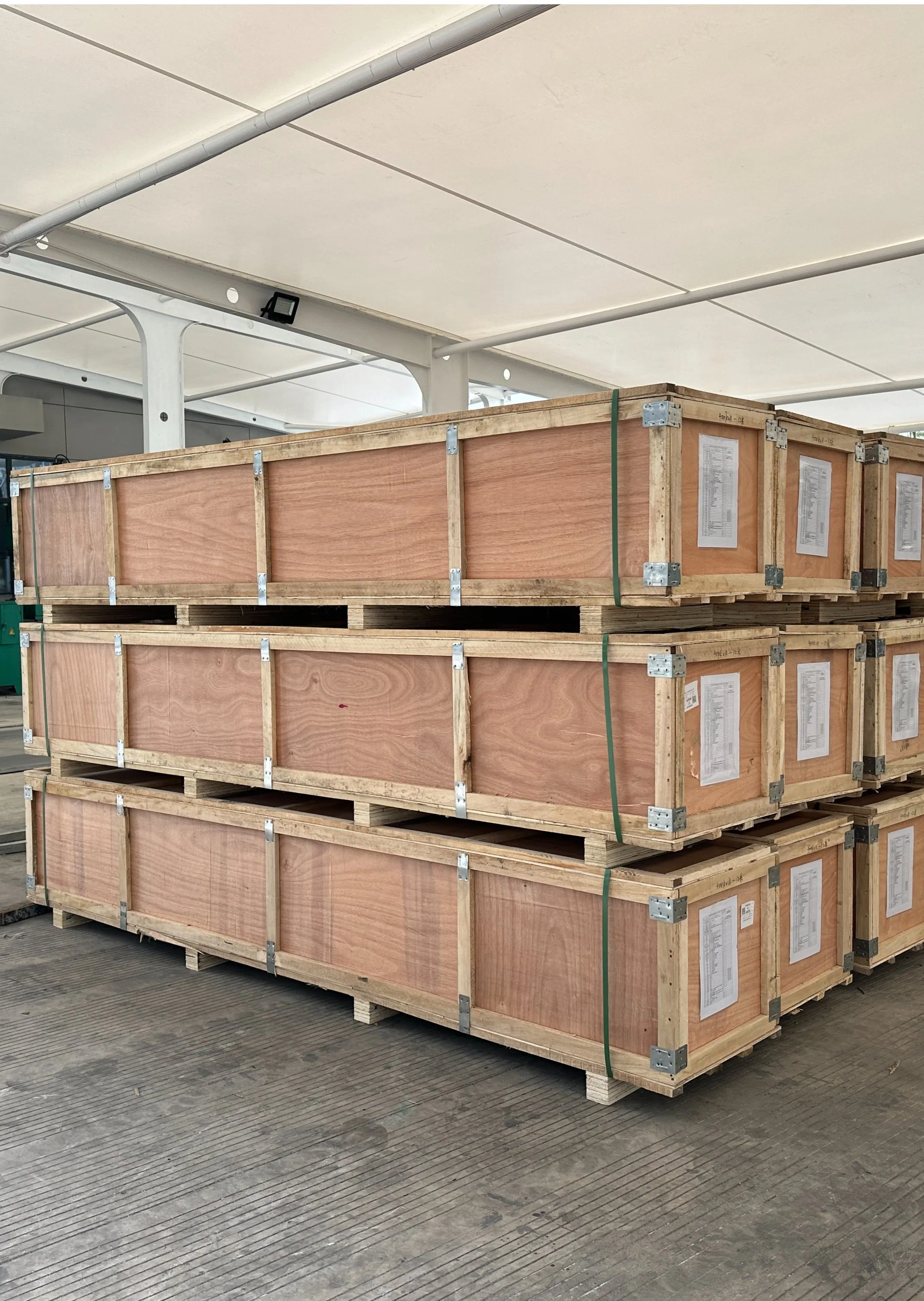

We use export-standard reinforced wooden cases designed to withstand long-distance maritime and land transport, ensuring the equipment arrives in perfect condition.
What maintenance is required for dry-type transformers?
Our dry-type transformers are virtually maintenance-free due to the oil-free, epoxy resin cast design, which eliminates leakage risks and reduces operational overhead.
