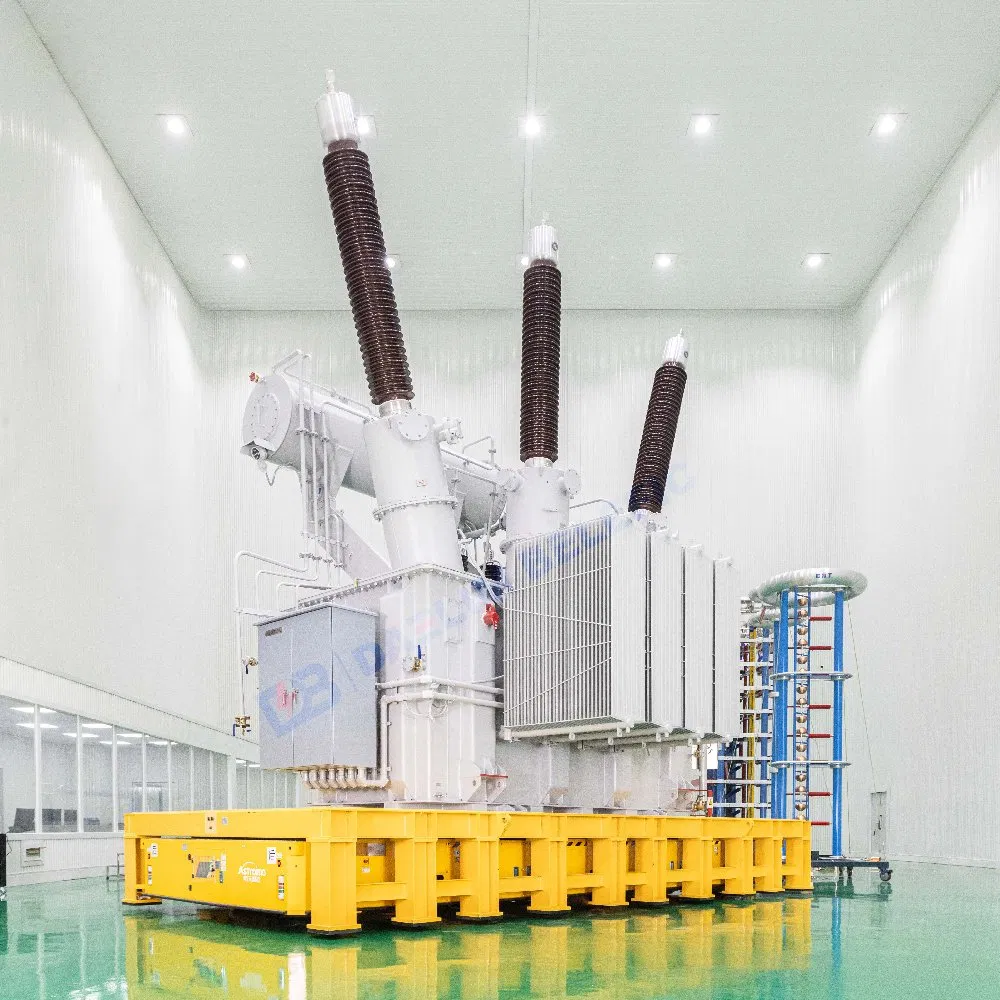

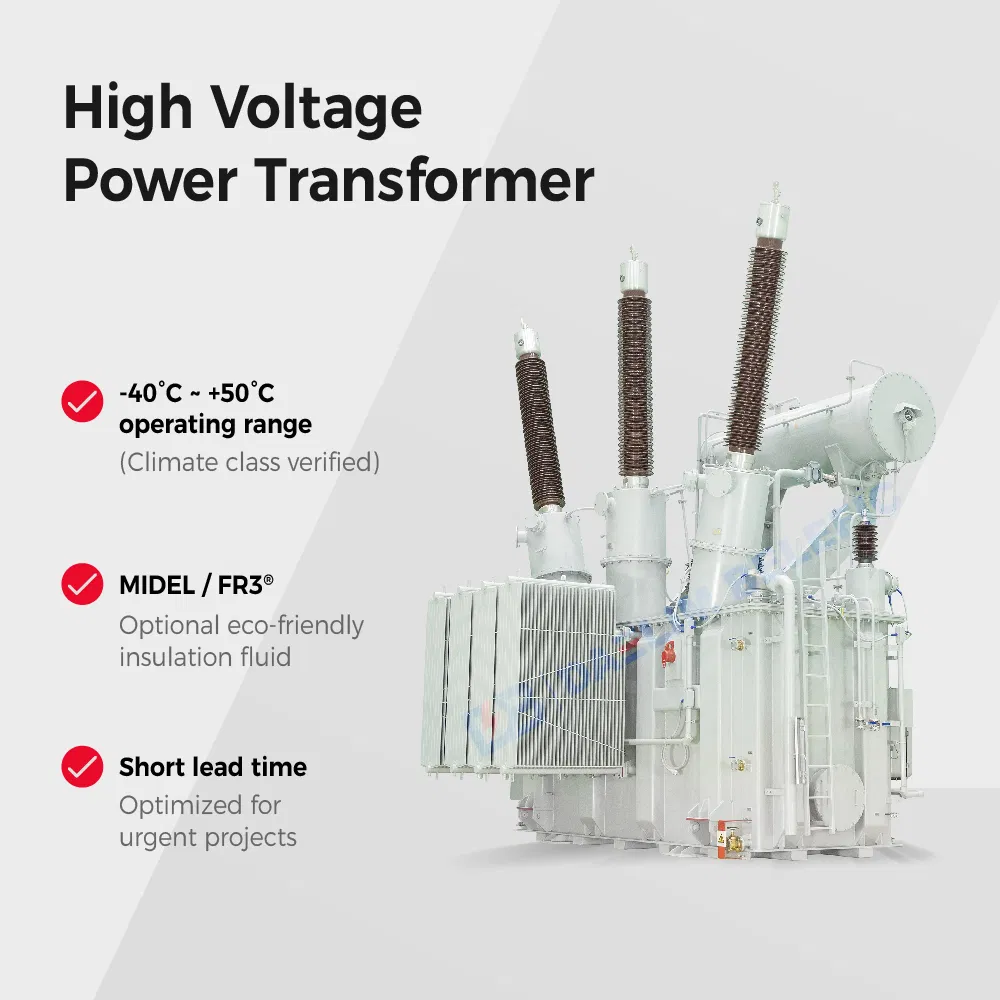

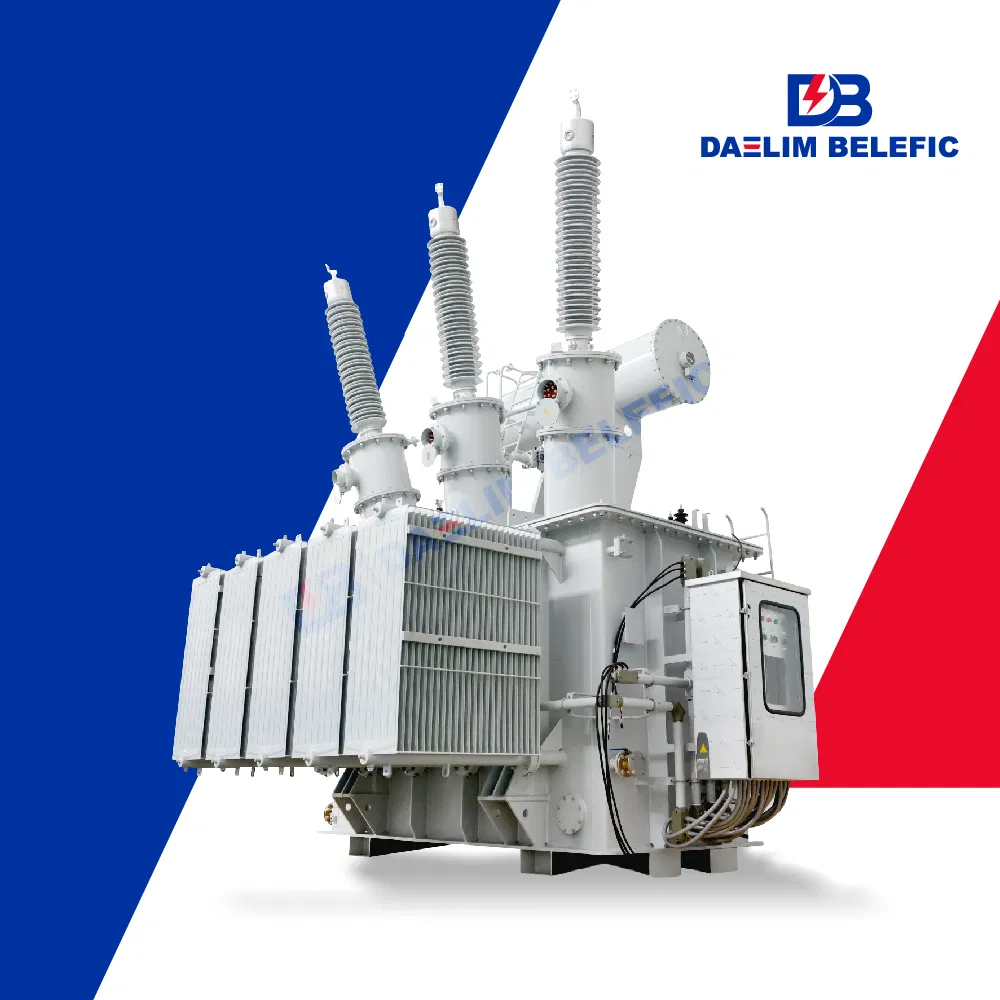

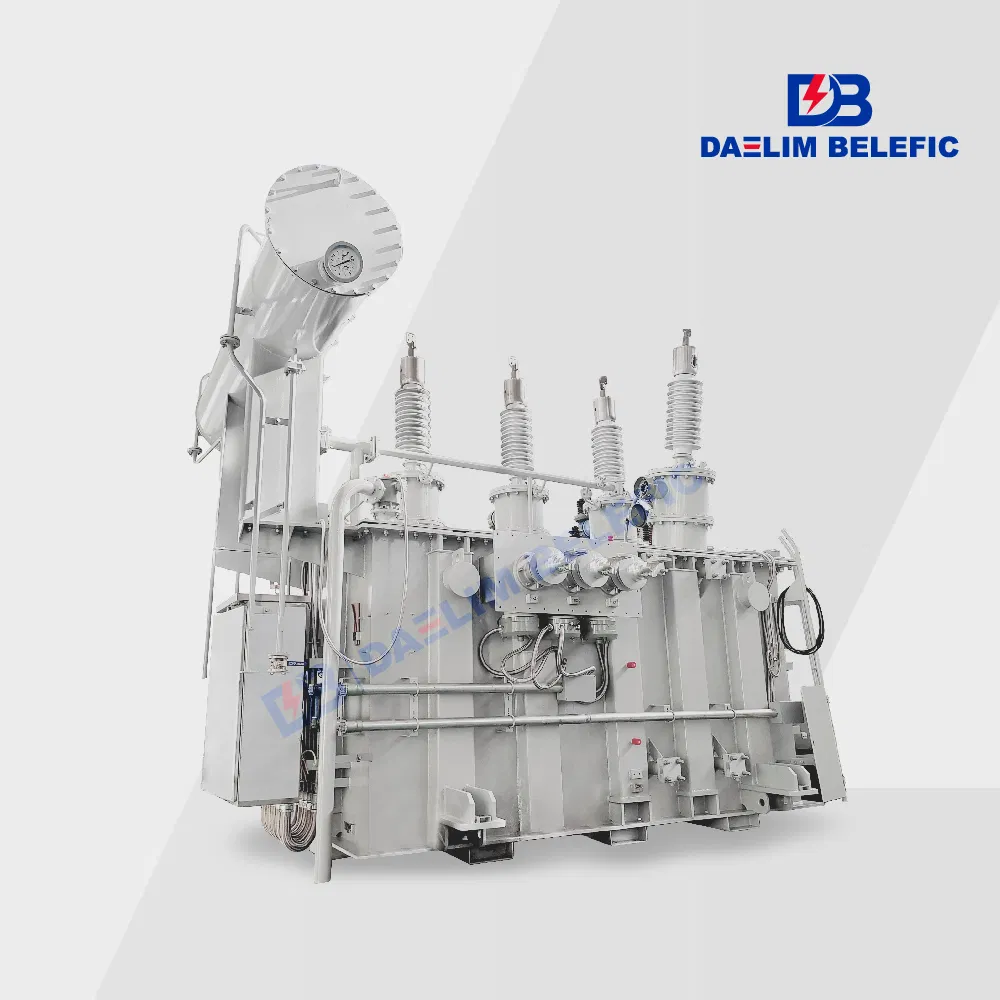

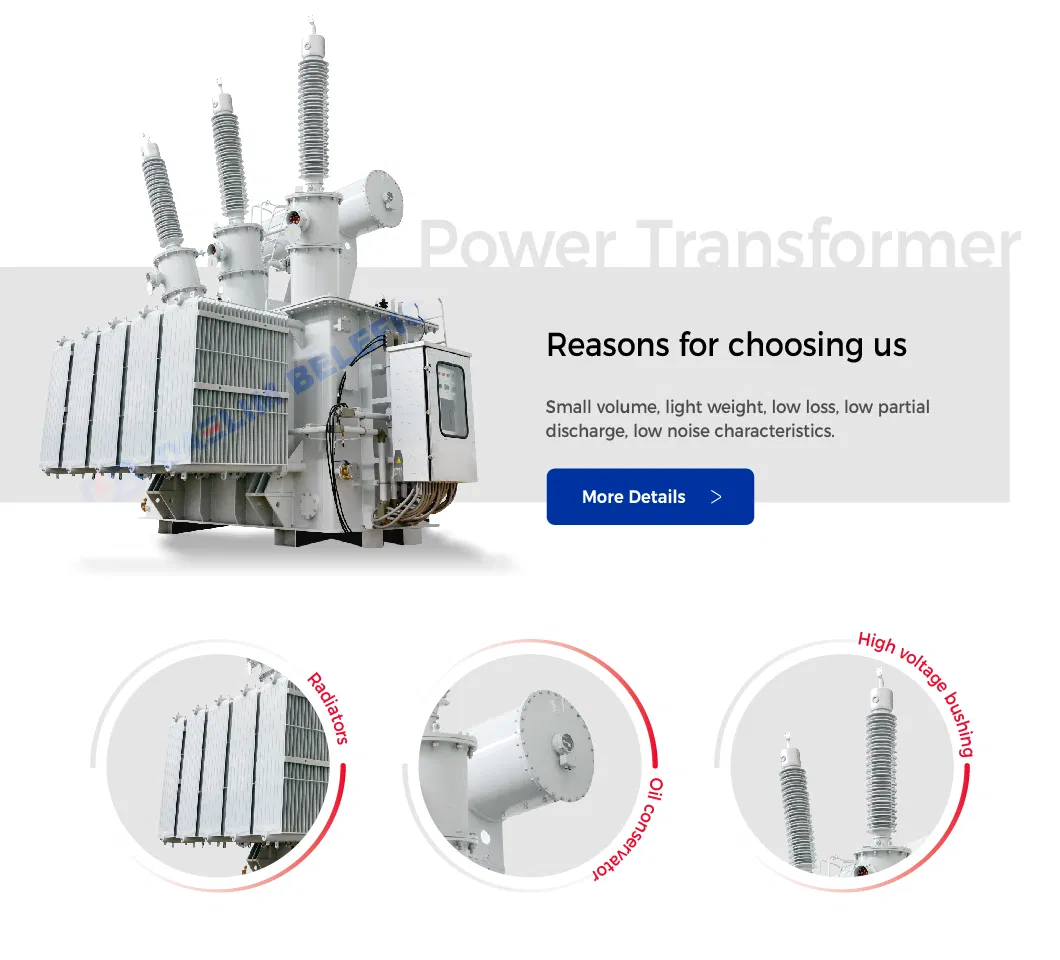

High voltage power transformers are core components of transmission systems, designed to deliver power efficiently and reliably. Utilizing advanced analysis software, the core, winding, and tank designs are optimized to ensure small volume, light weight, low loss, and low noise characteristics.

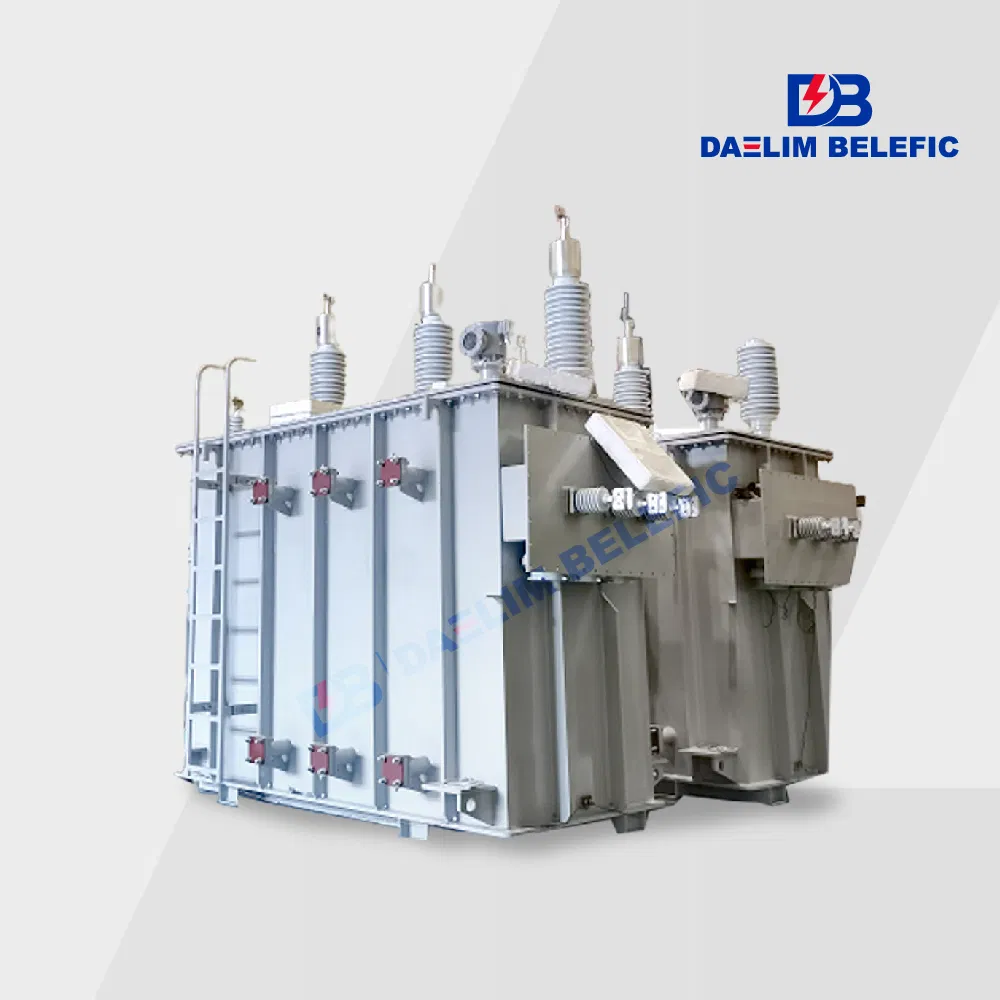

69KV Class Three Phase Two Winding OLTC Power Transformer
| Rated Power (KVA) | High Voltage (KV) | Low Voltage (KV) | Connection | Impedance (%) | No-Load Loss (KW) | On-Load Loss (KW) |
|---|---|---|---|---|---|---|
| 10000 | 66 / 69 | 6.3 / 6.6 / 10.5 / 11 | YNd11 | 9 | 11.6 | 47.6 |
| 20000 | YNd11 | 9 | 19.2 | 84.2 | ||
| 37500 | YNd11 | 9 | 31.9 | 140.3 | ||
| 60000 | YNd11 | 9 | 44.4 | 210 |
230KV Class Three Phase Two Winding OLTC Power Transformer
| Rated Power (KVA) | High Voltage (KV) | Low Voltage (KV) | Connection | Impedance (%) | No-Load Loss (KW) | On-Load Loss (KW) |
|---|---|---|---|---|---|---|
| 31500 | 220 / 230 / 242 | 10.5 / 11 / 34.5 / 35 / 66 | YNd11 | 12-14 | 30 | 128 |
| 63000 | YNd11 | 12-14 | 50 | 209 | ||
| 120000 | YNd11 | 12-14 | 79 | 329 | ||
| 180000 | YNd11 | 12-14 | 108 | 445 |

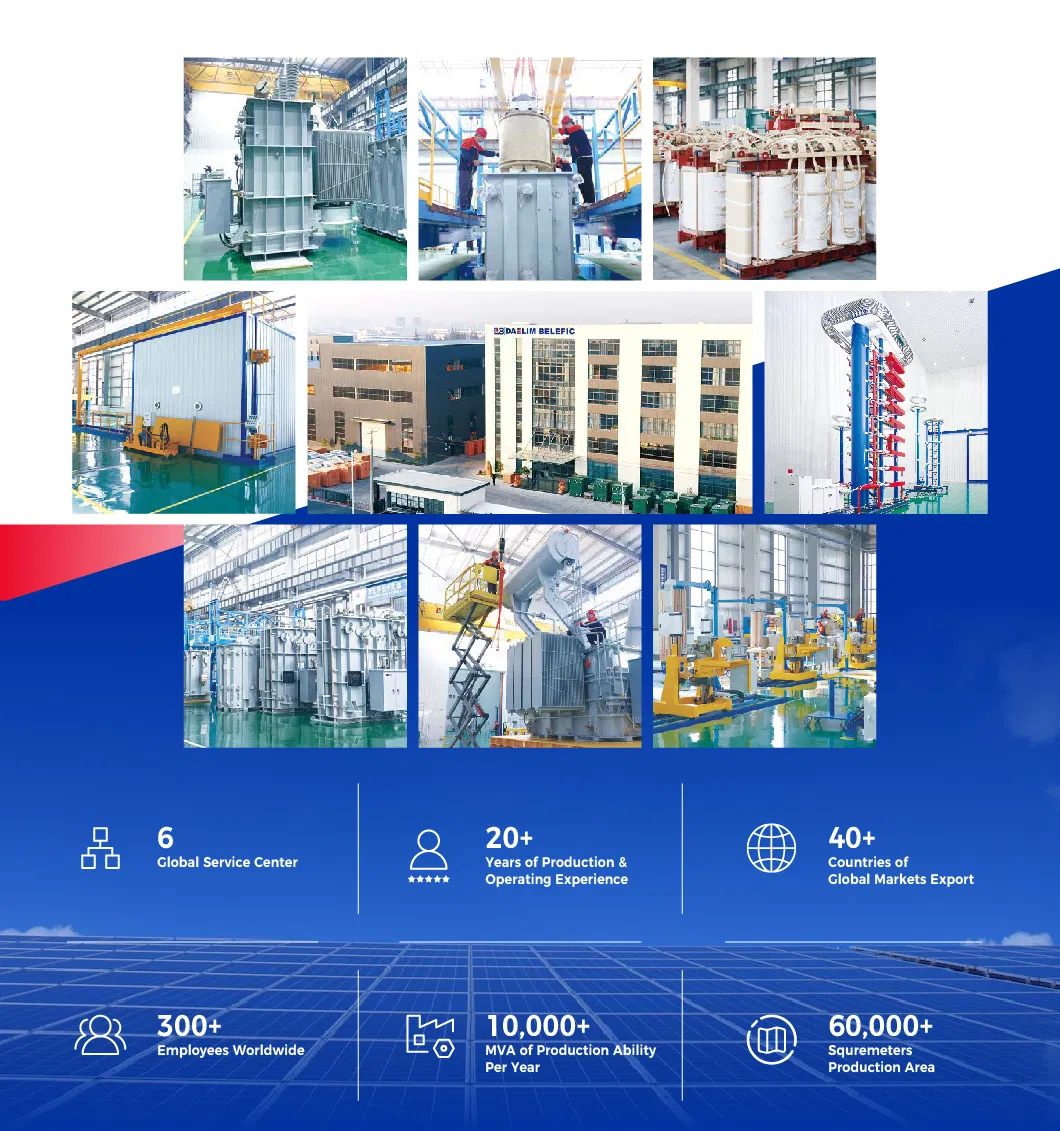

A leading force in the transformer industry, integrating research and development, manufacturing, and technical services. We specialize in providing tailored solutions to meet unique requirements, producing high-quality power and distribution transformers that meet international standards. Our commitment to innovation and reliability contributes to a cleaner, more sustainable energy future.
