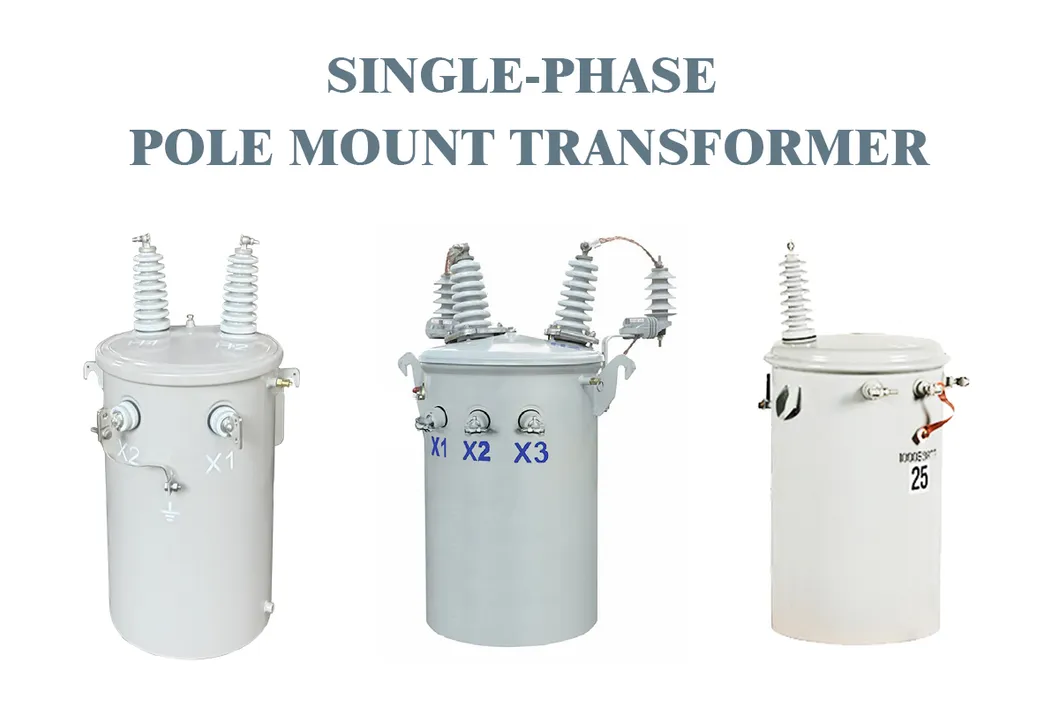

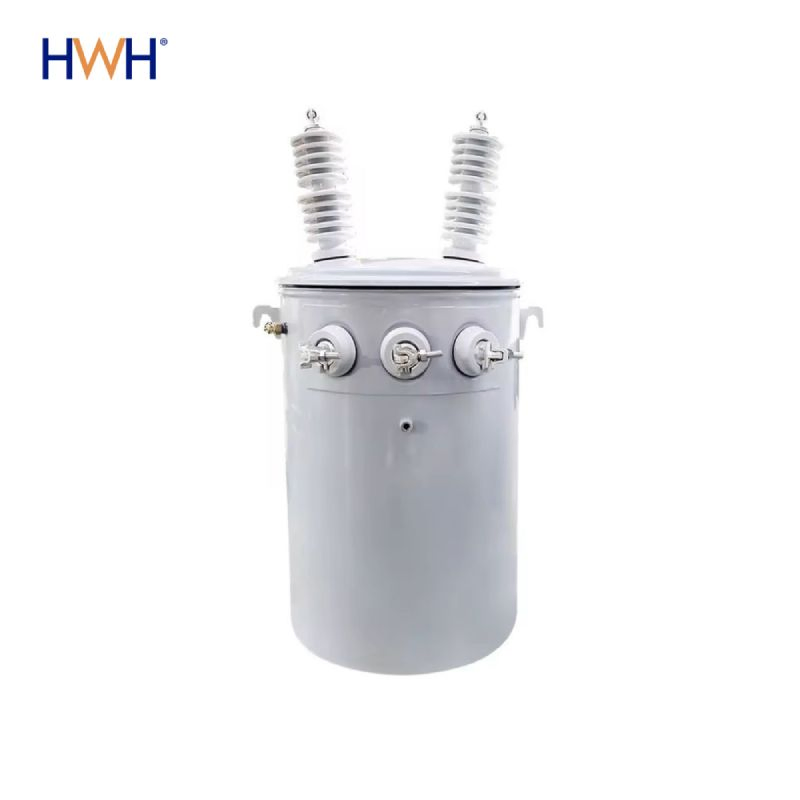

Product Description

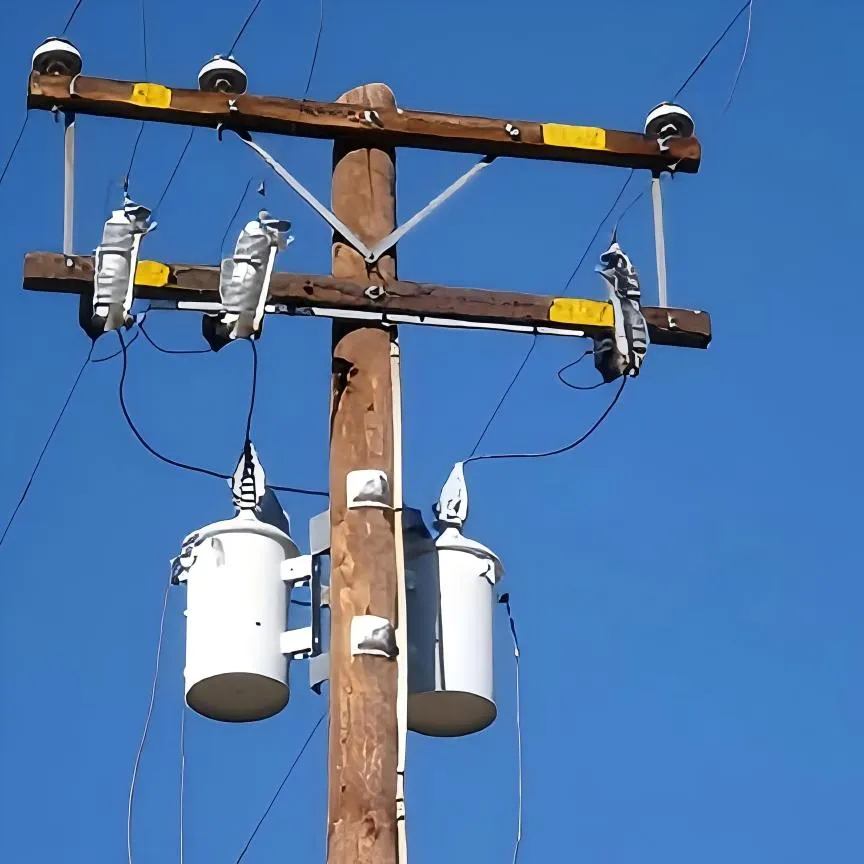

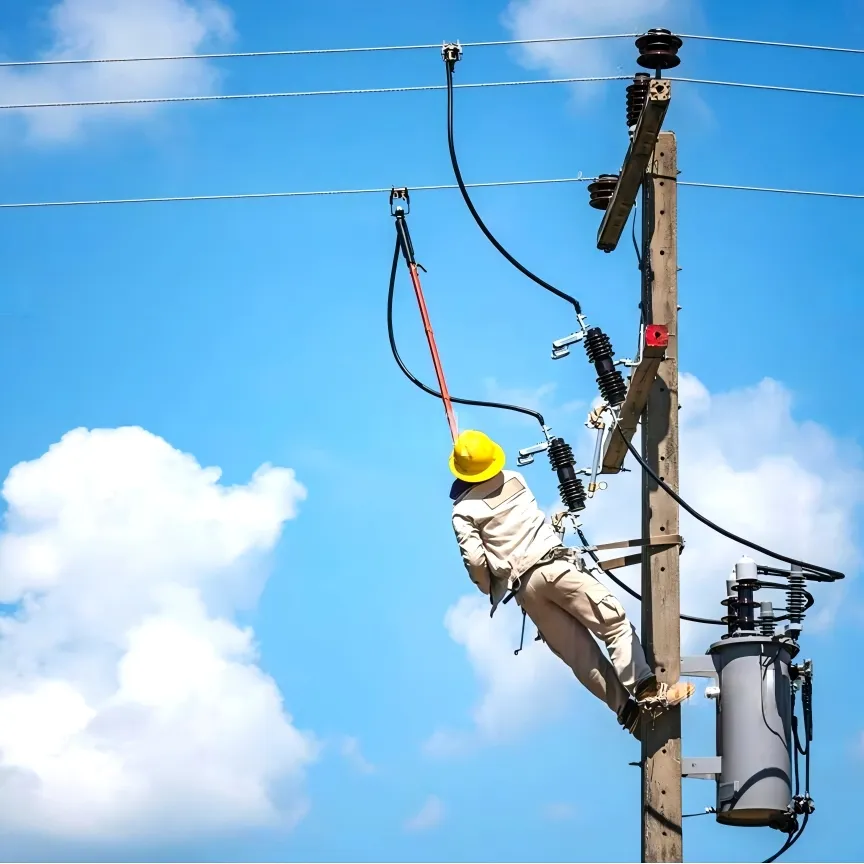

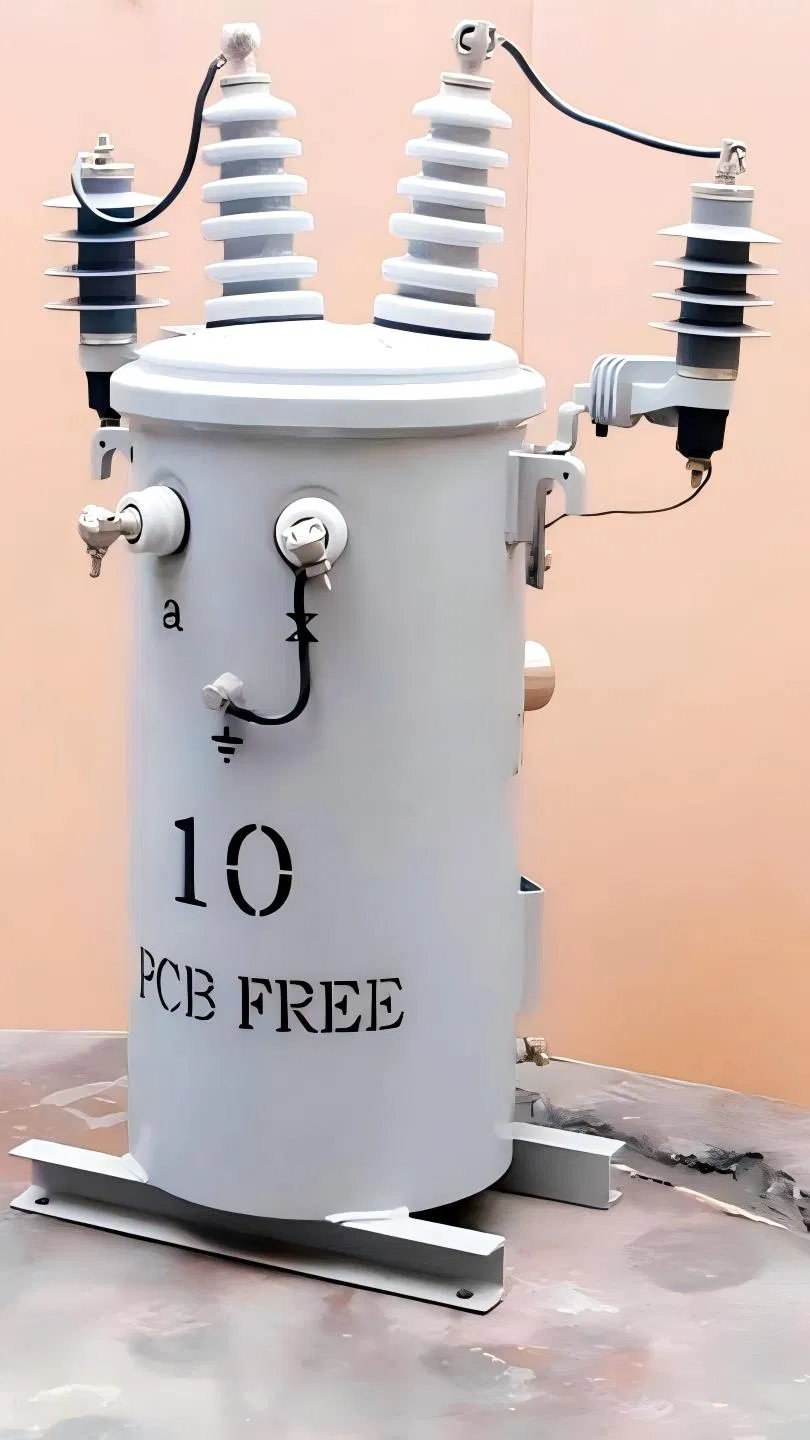

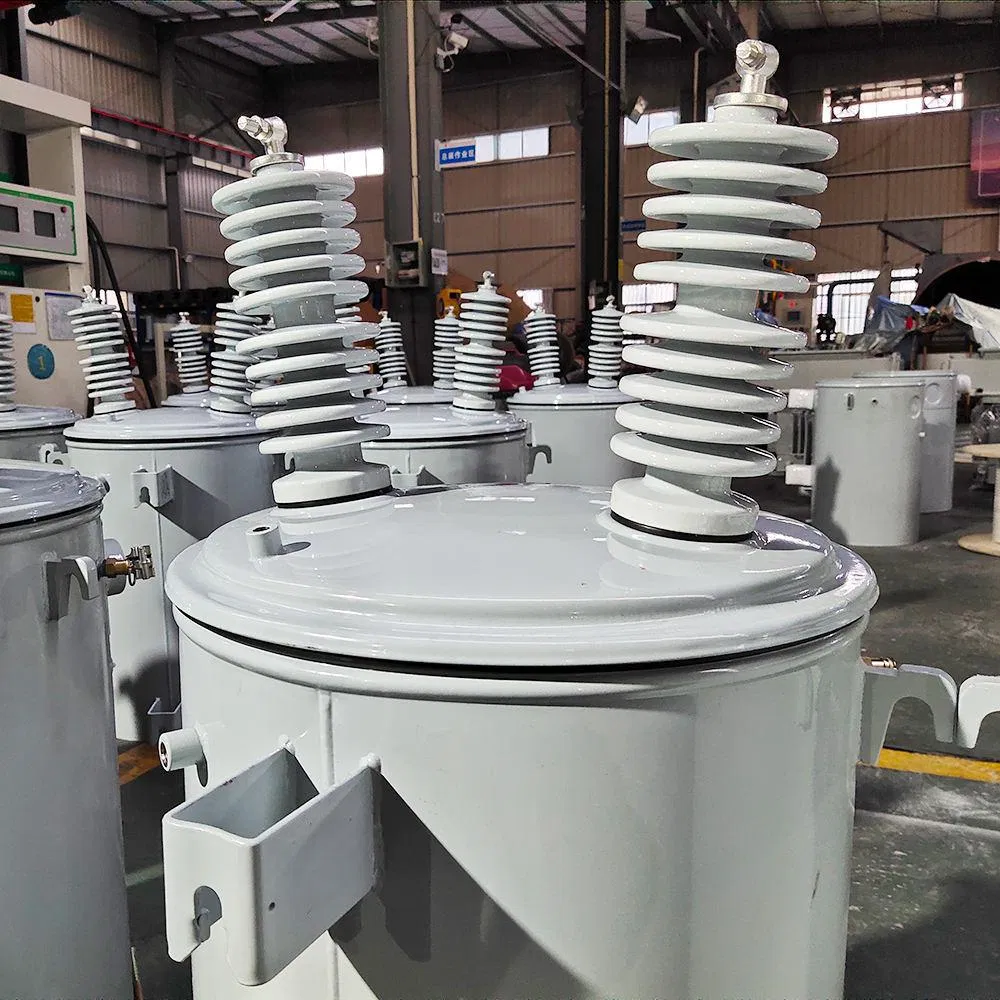

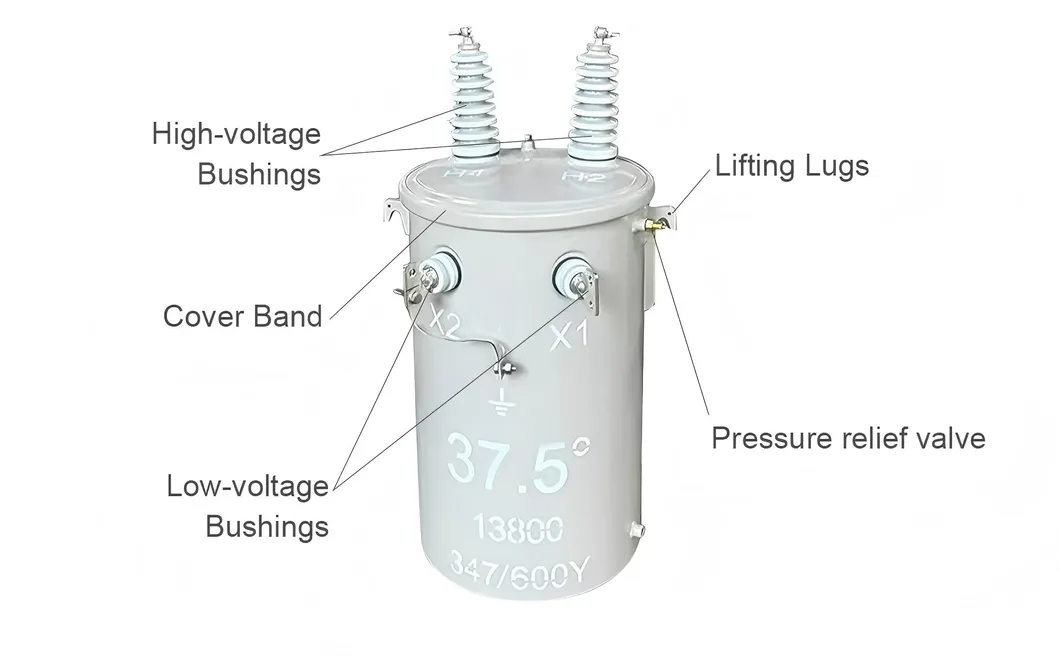

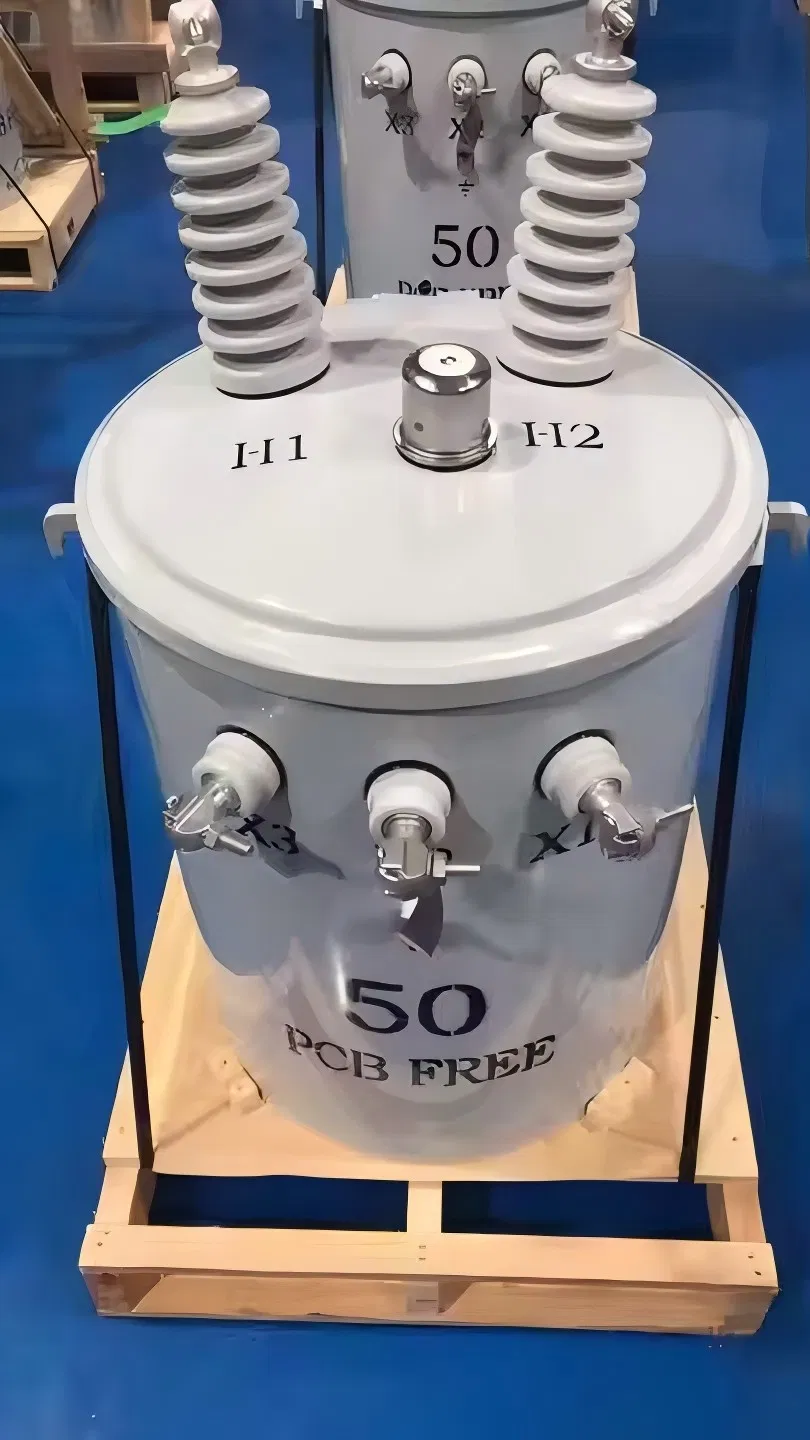

The overhead single-phase electrical transformer is ubiquitous in diverse locations, including rural areas, remote regions, and scattered villages, where it serves as a reliable source of high-quality power for daily lighting, agricultural operations, and industrial facilities.
- Designed for single-pole mounting
- Reduces installation footprint
- Offers small capacity
- Features a limited low-voltage power supply radius
- Boasts low line losses and superior power supply quality
- Provides high overload capability
Features & Advantages:
- Compact Design: Ideal for limited spaces.
- Easy Installation: Quick setup on utility poles.
- Outdoor Durability: Resilient in harsh weather.
- High Efficiency: Minimizes energy losses.
- Reliable Performance: Reduces electrical faults.
- Versatile Applications: Residential, commercial, and industrial.
Product Parameters
When placing order, please provide the technical parameters including substation type, transformer model/capacity, wiring schemes, special component requirements, shell color, and spare parts quantities.
| Rated Power (KVA) |
High Voltage (KV) |
Low Voltage (V) |
Dimension (mm) |
Weight (KG) |
| W | D | H |
Oil | Total |
| 5KVA | 24.94/14.4kV
12.47/7.2kV
34.5KV
13.8KV | 120/240V
480Y/277V
600Y/347V | 465 | 485 | 855 | 15 | 92 |
| 10KVA | 500 | 525 | 885 | 22 | 150 |
| 25KVA | 560 | 590 | 935 | 45 | 258 |
| 50KVA | 635 | 675 | 1035 | 62 | 395 |
| 100KVA | 770 | 965 | 1035 | 94 | 530 |
| 333KVA | 1012 | 1015 | 1035 | 172 | 850 |
FAQ
Are you a trading company or manufacturer?

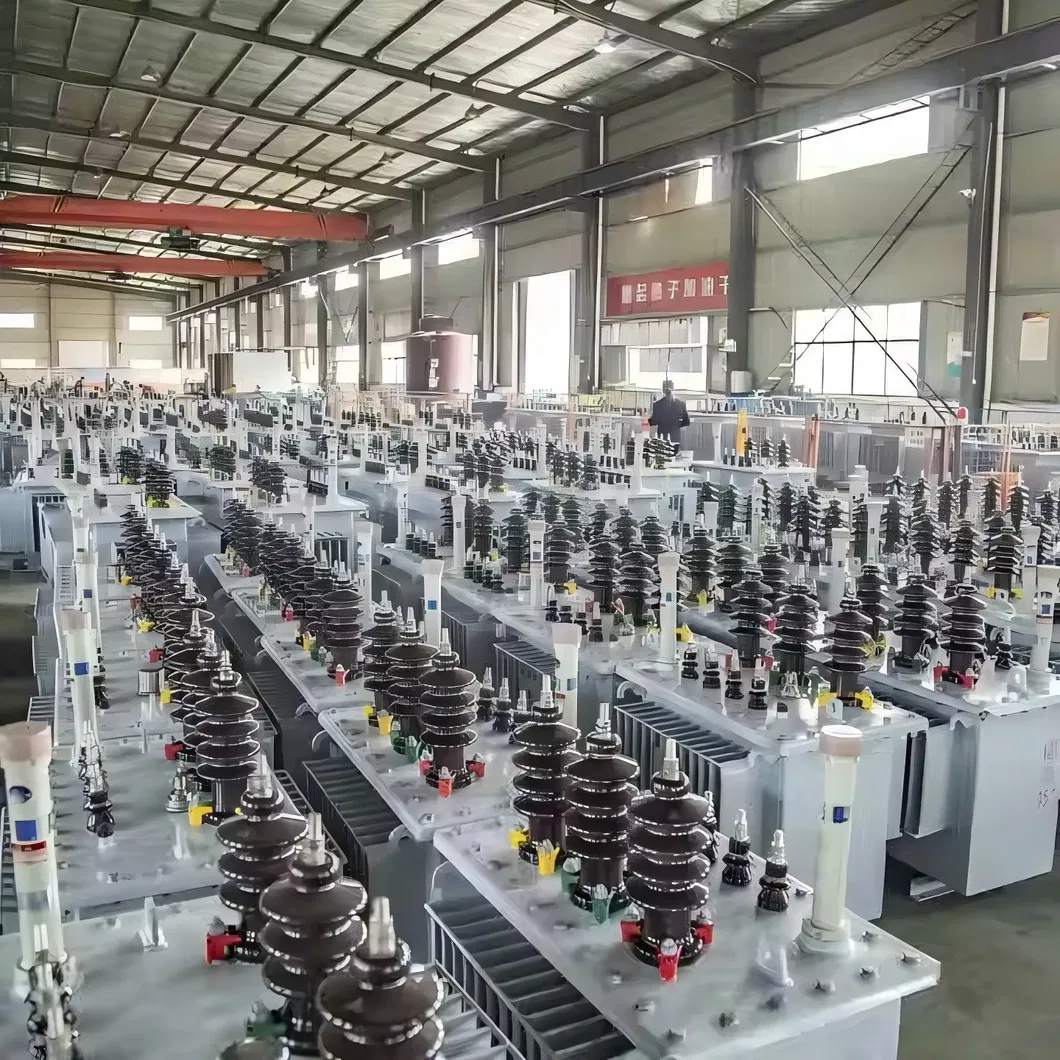

We are a factory with more than 10 years of experience. OEM and ODM services are available.
Do you have a product catalogue?
Yes, we have a comprehensive product catalog. Please contact us online to request a digital copy.
What is the typical production lead time?
In general, it takes about 25 working days for production, depending on the specific model and capacity required.
Do you have these products in stock?

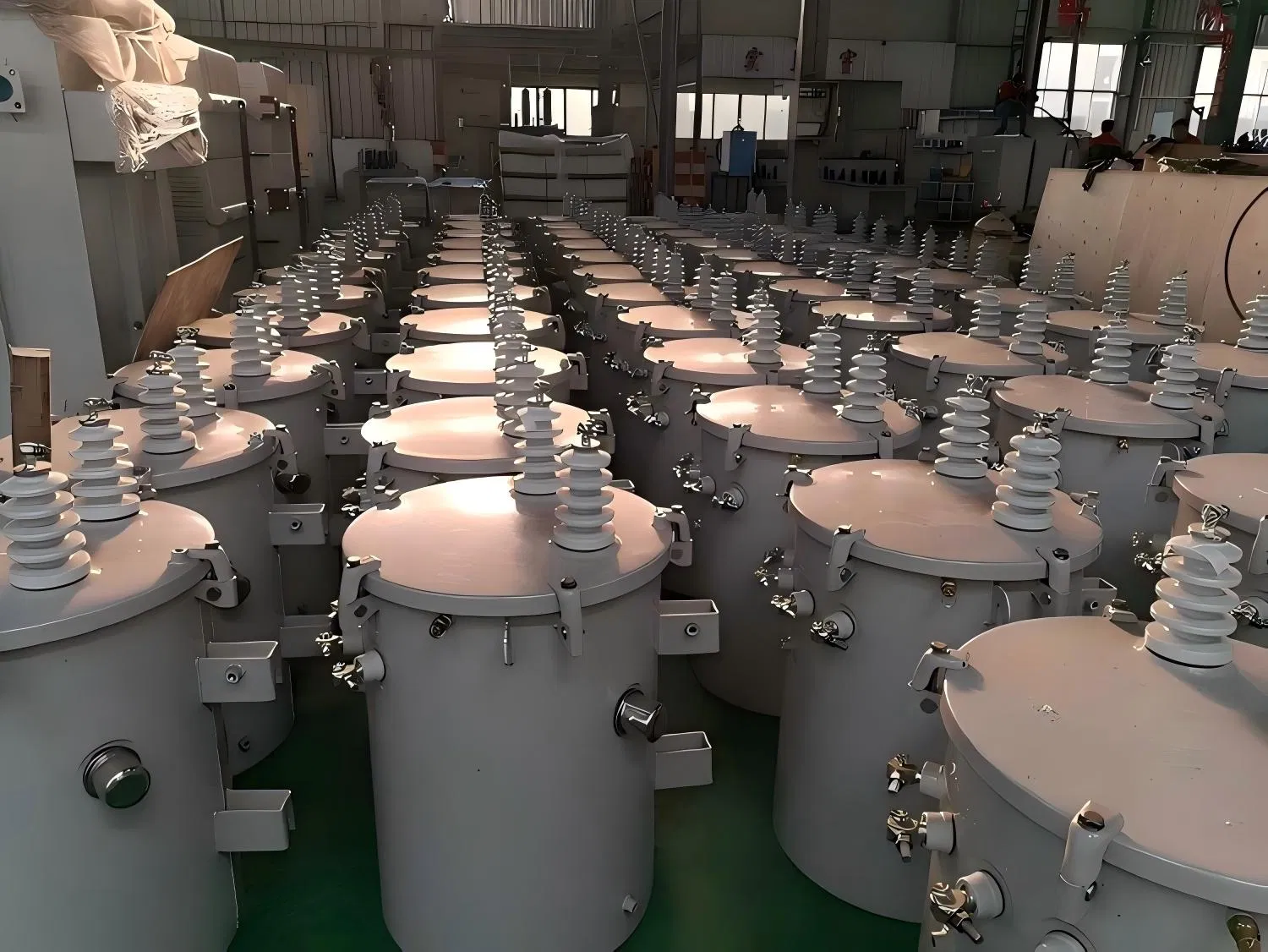

Depending on your request, we maintain a stock of standard models for immediate delivery.
What are your accepted payment methods?
We accept payments via T/T (Telegraphic Transfer) and L/C (Letter of Credit).
What is your product warranty policy?
Every product comes with a 1-year quality warranty. In case of quality issues, please provide detailed photos; our technical department will provide a solution within 2 days.
