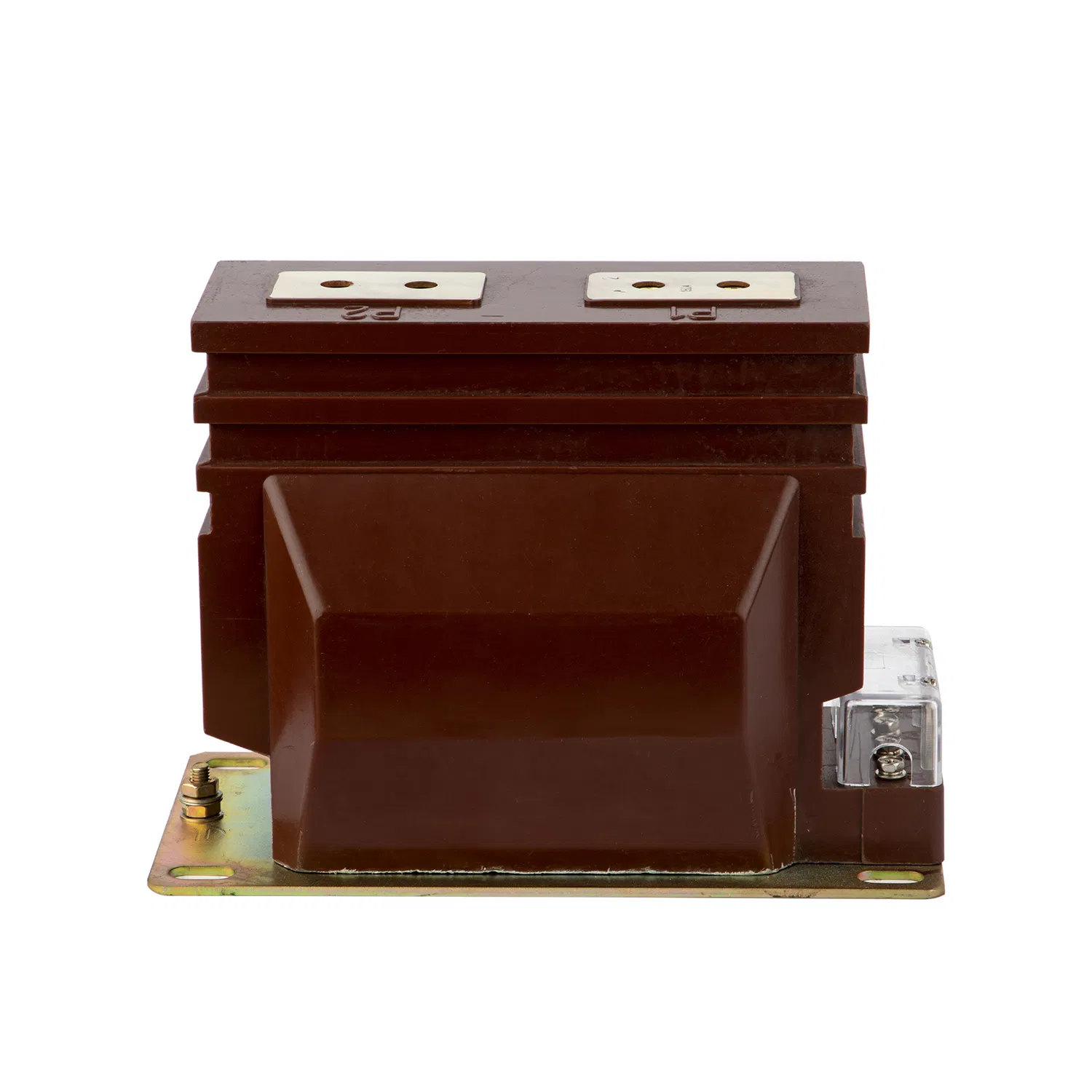

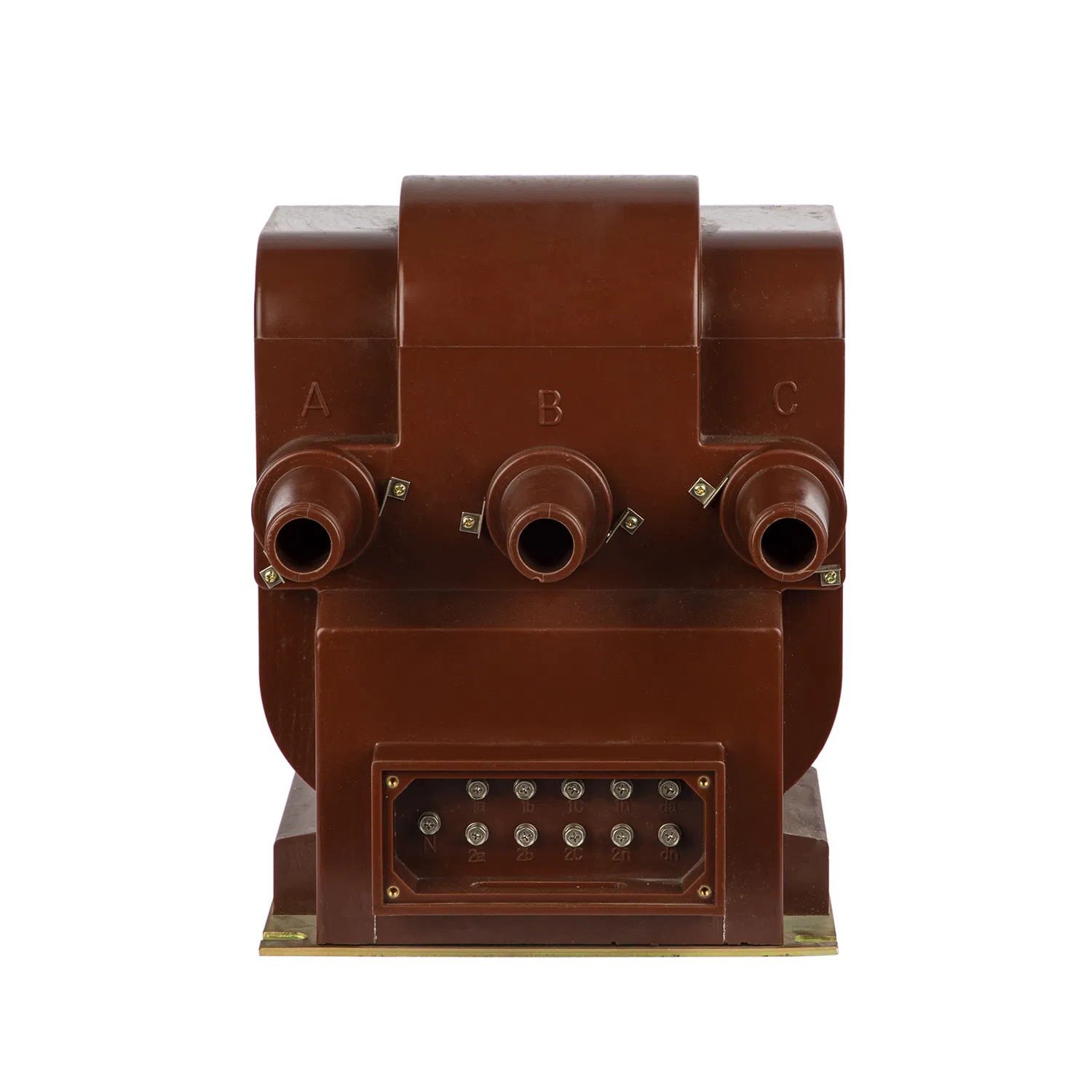

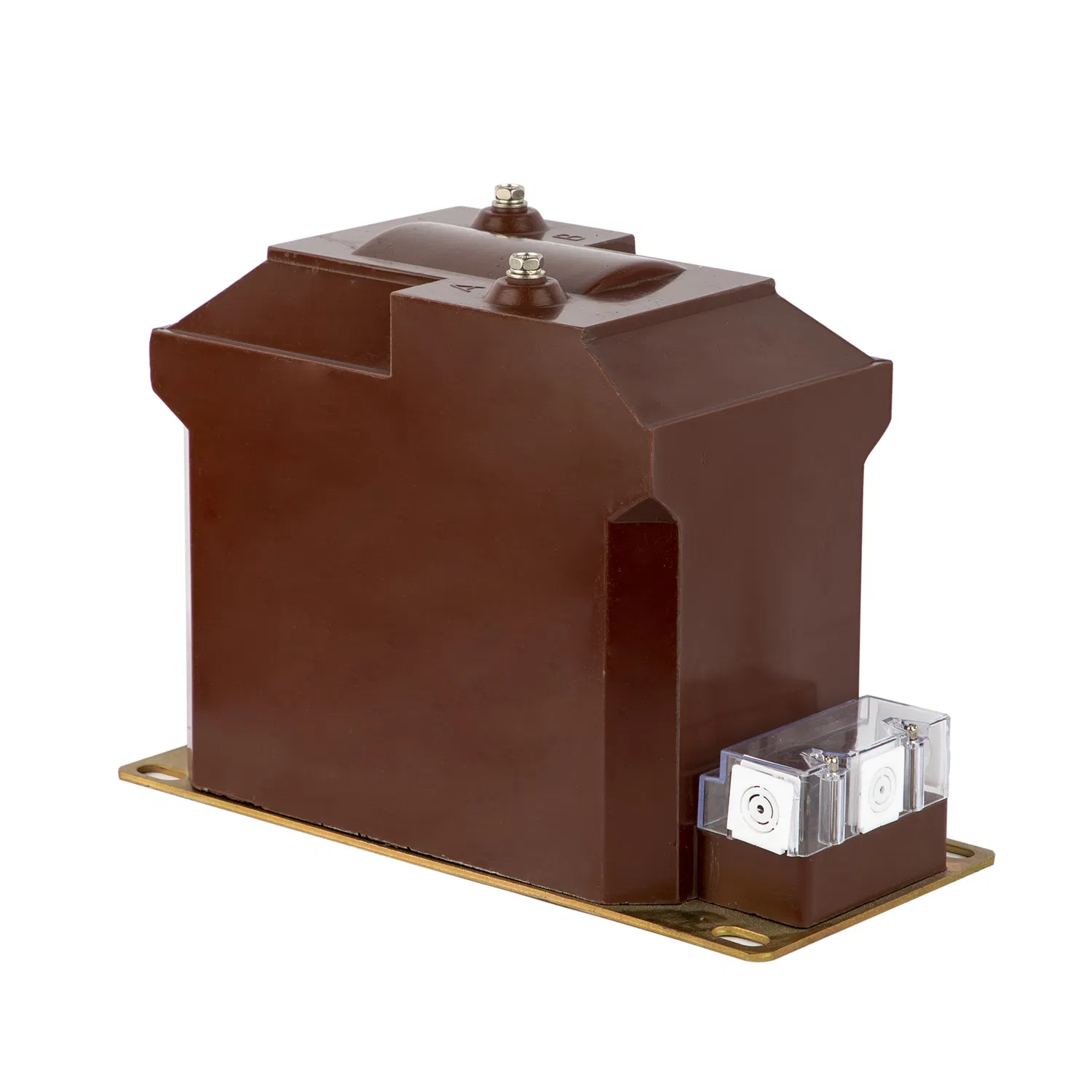

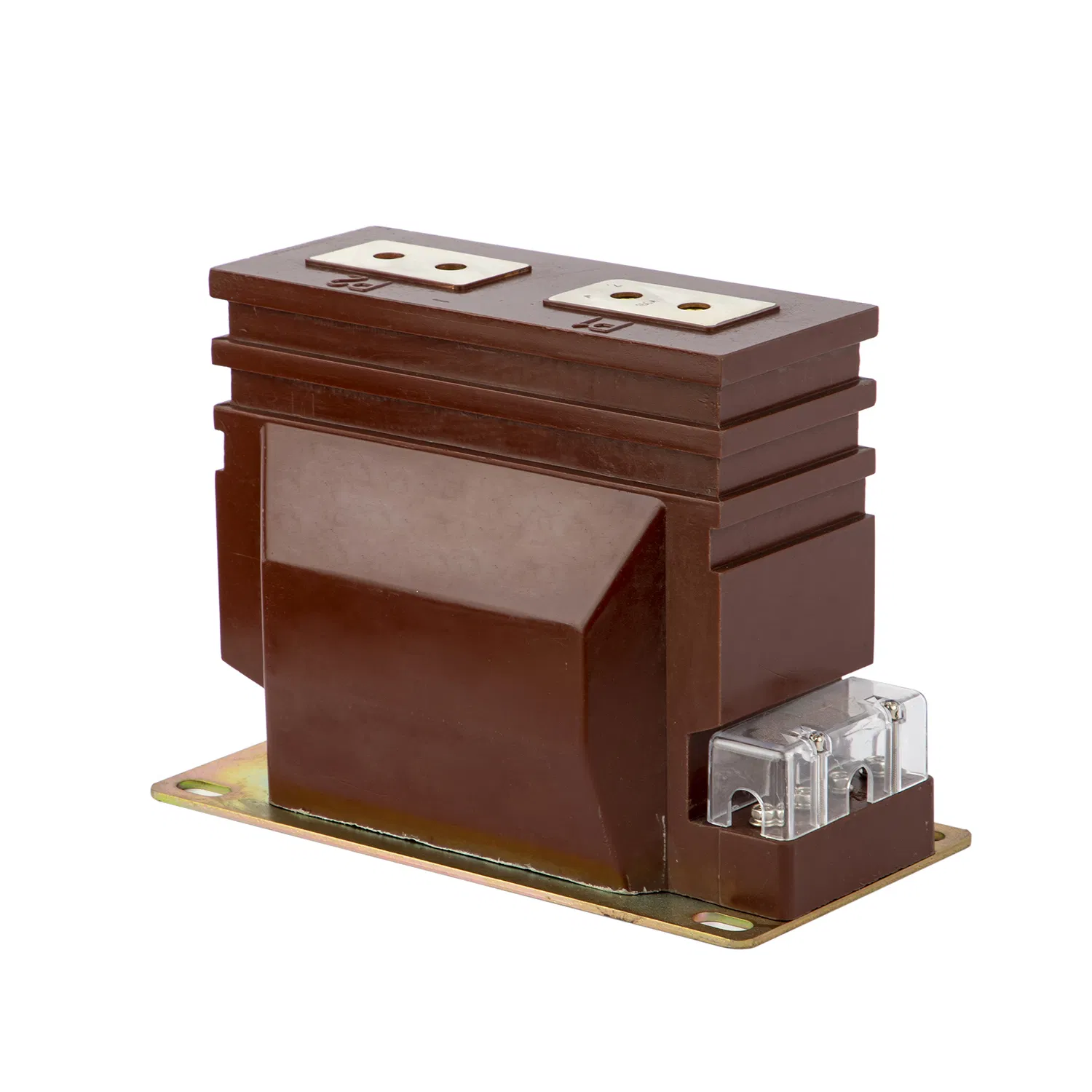

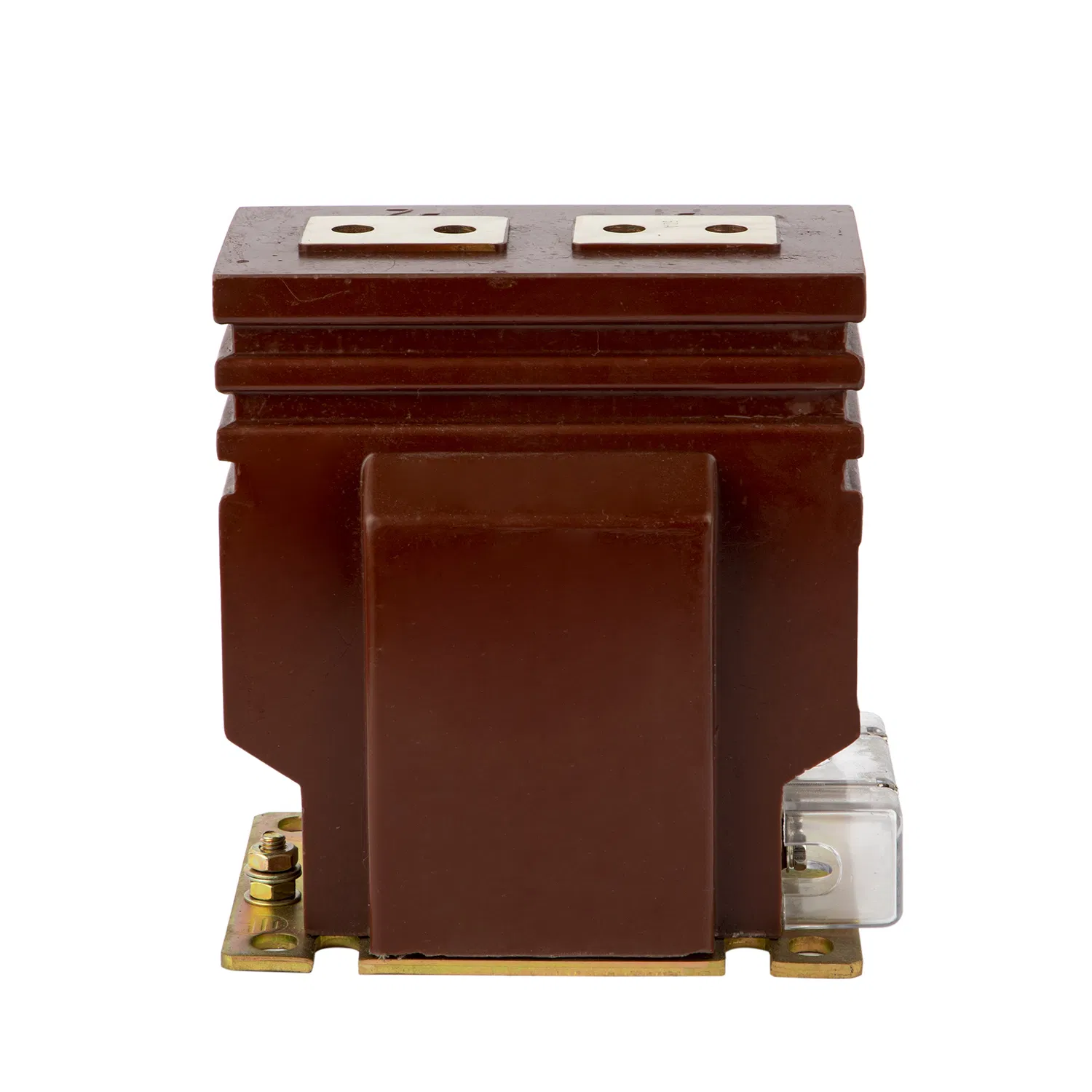

Lzzb11 11kv Single Phase Sequence Split Core Instrument CT Voltage/Potential Current Transformer with 50Hz Frequency for Indoor
Lzzb11 11kv Single Phase Sequence Split Core Instrument CT Voltage/Potential Current Transformer with 50Hz Frequency for Indoor
Lzzb11 11kv Single Phase Sequence Split Core Instrument CT Voltage/Potential Current Transformer with 50Hz Frequency for Indoor
Lzzb11 11kv Single Phase Sequence Split Core Instrument CT Voltage/Potential Current Transformer with 50Hz Frequency for Indoor
Lzzb11 11kv Single Phase Sequence Split Core Instrument CT Voltage/Potential Current Transformer with 50Hz Frequency for Indoor
1 / 5
Lzzb11 11kv Single Phase Sequence Split Core Instrument CT Voltage/Potential Current Transformer with 50Hz Frequency for Indoor
Lzzb11 11kv Single Phase Sequence Split Core Instrument CT Voltage/Potential Current Transformer with 50Hz Frequency for Indoor
Lzzb11 11kv Single Phase Sequence Split Core Instrument CT Voltage/Potential Current Transformer with 50Hz Frequency for Indoor
Lzzb11 11kv Single Phase Sequence Split Core Instrument CT Voltage/Potential Current Transformer with 50Hz Frequency for Indoor
Lzzb11 11kv Single Phase Sequence Split Core Instrument CT Voltage/Potential Current Transformer with 50Hz Frequency for Indoor

Lzzb11 11kv Single Phase Sequence Split Core Instrument CT Voltage/Potential Current Transformer with 50Hz Frequency for Indoor

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Info.
Model NO.
LZZB11
Phase
Single
Operation Condition
Indoor
Usage
Protection, Measurement
Winding Form
Single Layer & Tightly Wound Type
Insulating Medium
Epoxy Resin
Installation
Extension Type
Magnetic Circuit Structure
Single Stage Type
Voltage Transformation Principle
Electromagnetic Type
Customize
Yes
Rated Frequency
50/60Hz
Rated Secondary Current
5A or 1A
Cooling Method
Natural Wind Cooling
Transport Package
Wooden
Origin
China
HS Code
850431100
Product Description
LZZB11-10 HIGH VOLTAGE CURRENT TRANSFORMER

This type of current transformer adopts epoxy-resin vacuum casting and fully enclosed post structure. It is applicable for power systems of rated frequency 50Hz or 60Hz and rated voltage up to and including 10kV. Used for electric energy metering, current measurement, and relay protection, it can be an arbitrary combination of classes 0.2S, 0.2, 0.5, and 10P.

It complies with standards: GB20840.1-2010, GB 20840.2-2014, and JJG 313-2010.

🚀 Use Environment
  • ➤ Altitude: Should not exceed 1000m
  • ➤ Ambient temperature: -5ºC to +40ºC
  • ➤ Air relative site: Indoor application
Product Parameters

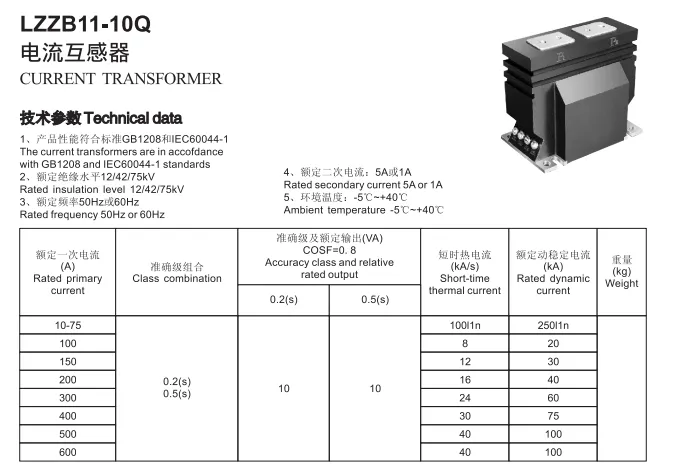

Product Parameters 1

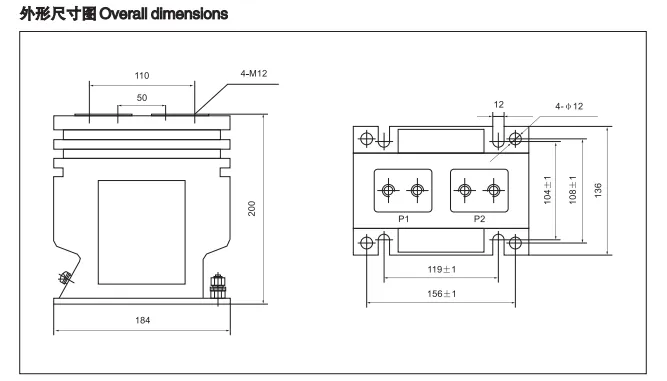

Product Parameters 2
Company Profile
Factory Overview

Our company is specialized in producing, developing and marketing VOLTAGE TRANSFORMER, CURRENT TRANSFORMER, TRANSFORMER, AC CONTACTOR and distribution products. The company was established in 1999.

Our products have passed ISO9001 and CE certification. We have a professional technical team which can provide you with full design solutions and technical support.

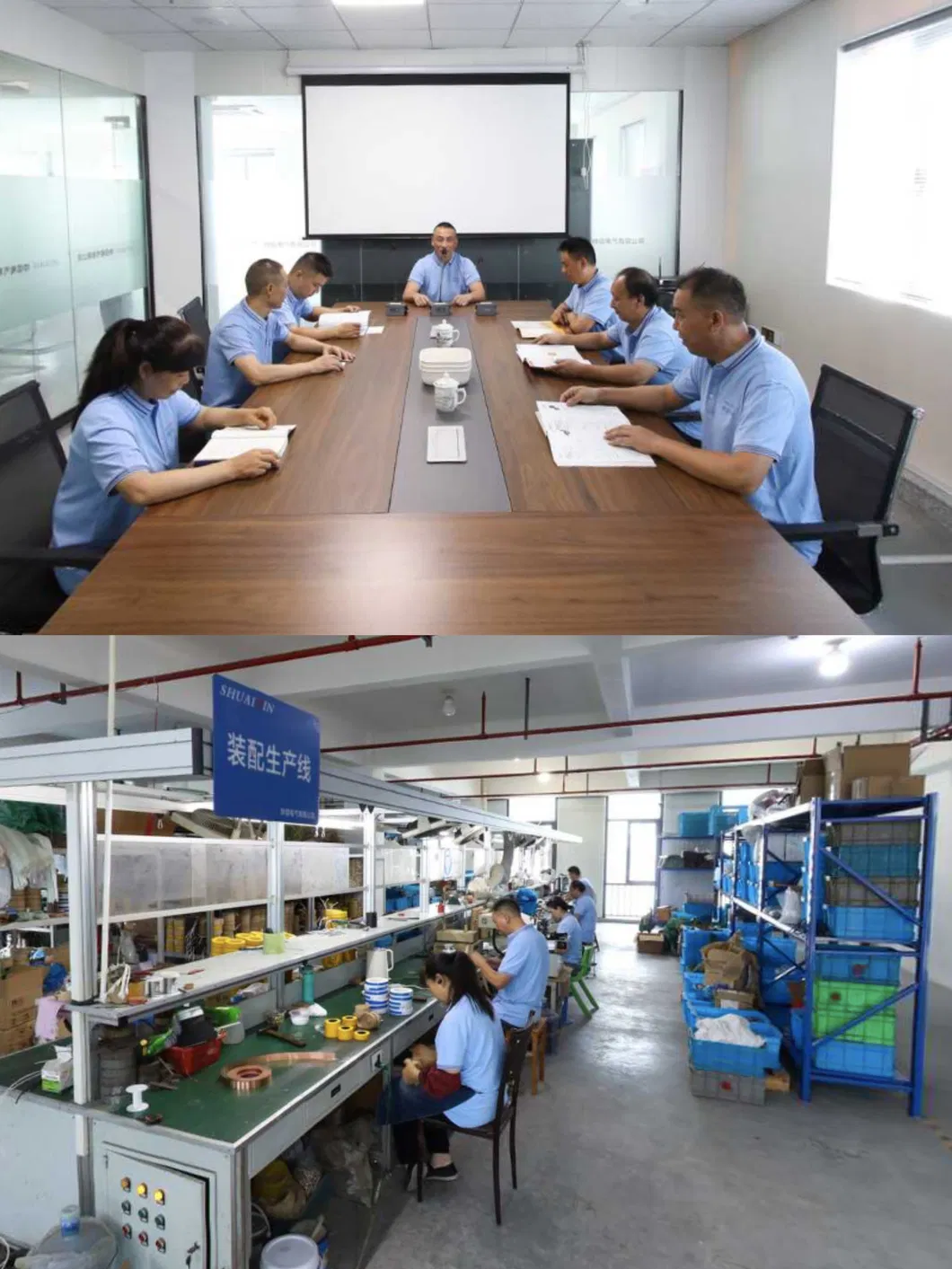

⚙️ WORKSHOP Workshop
📜 CERTIFICATE Certificate
📦 PACKING & SHIPPING

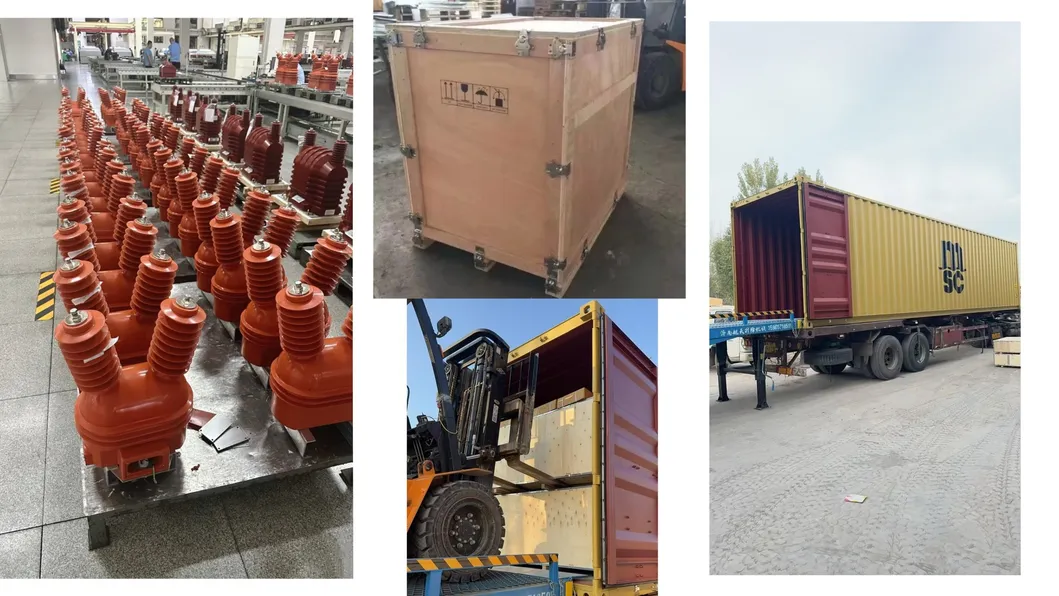

Packing 1
Packing 2
FAQ
Are you a trading company or manufacturer?
We are a professional factory with 26 years of experience in the field of High voltage transformers, current transformers, and various electrical equipment. We are an excellent supplier for major power corporations.
Do you accept customized service?
Yes, we offer OEM/ODM services and can print your logo on products. Our technical team can provide projects based on your drawings and parameters.
What is your Minimum Order Quantity (MOQ)?
Our MOQ is 1 piece, allowing for flexible ordering based on your needs.
How long is your delivery lead time?
It depends on your product requirements and quantity. Generally, delivery is available within 5 to 10 working days.
How do you handle quality problems?
If quality issues arise, please provide detailed photos. Our technical and quality testing departments will analyze the issue and provide a satisfactory solution within 2 days.
What are your payment terms?
We typically require 30% T/T in advance and 70% before shipment. Western Union and L/C are also acceptable.
