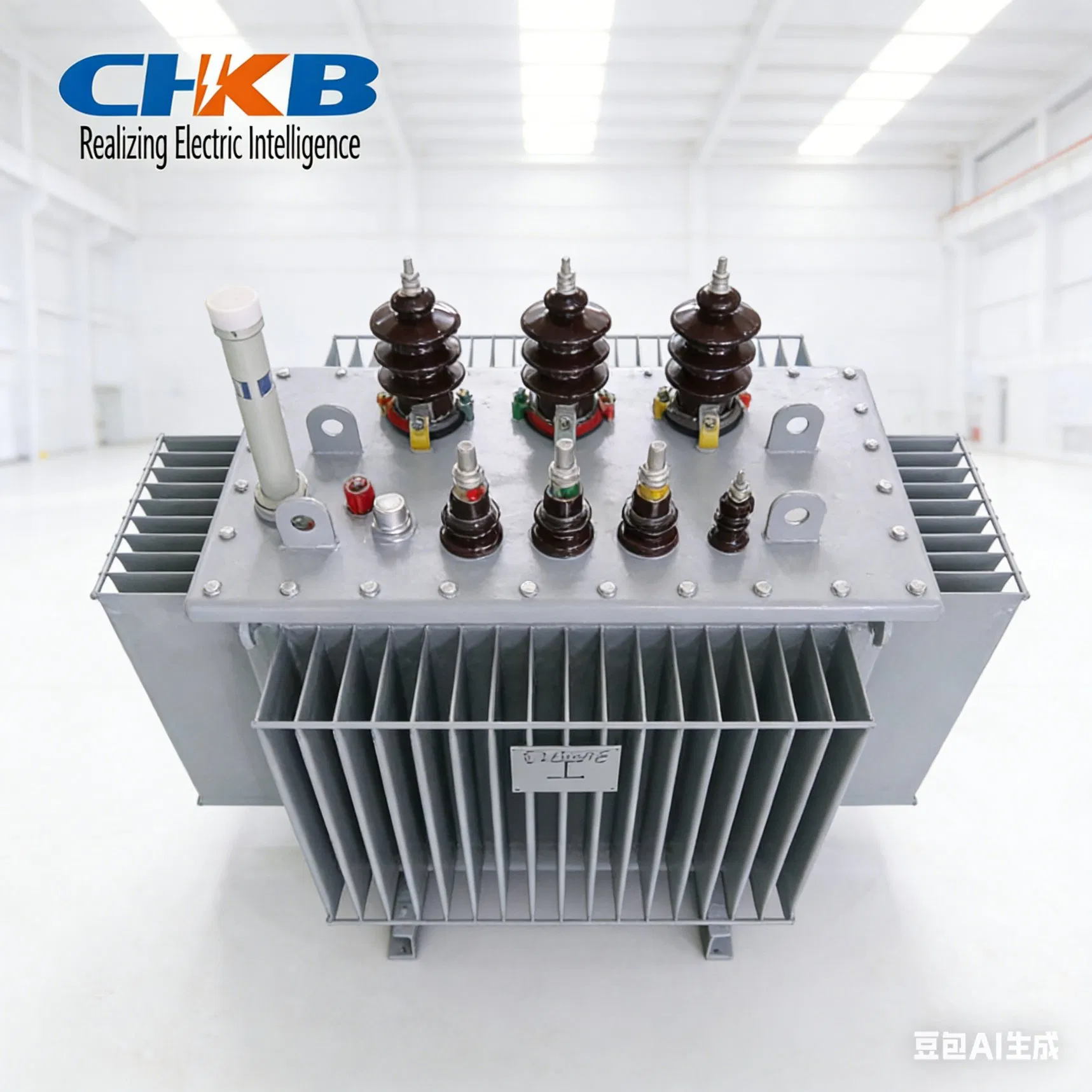

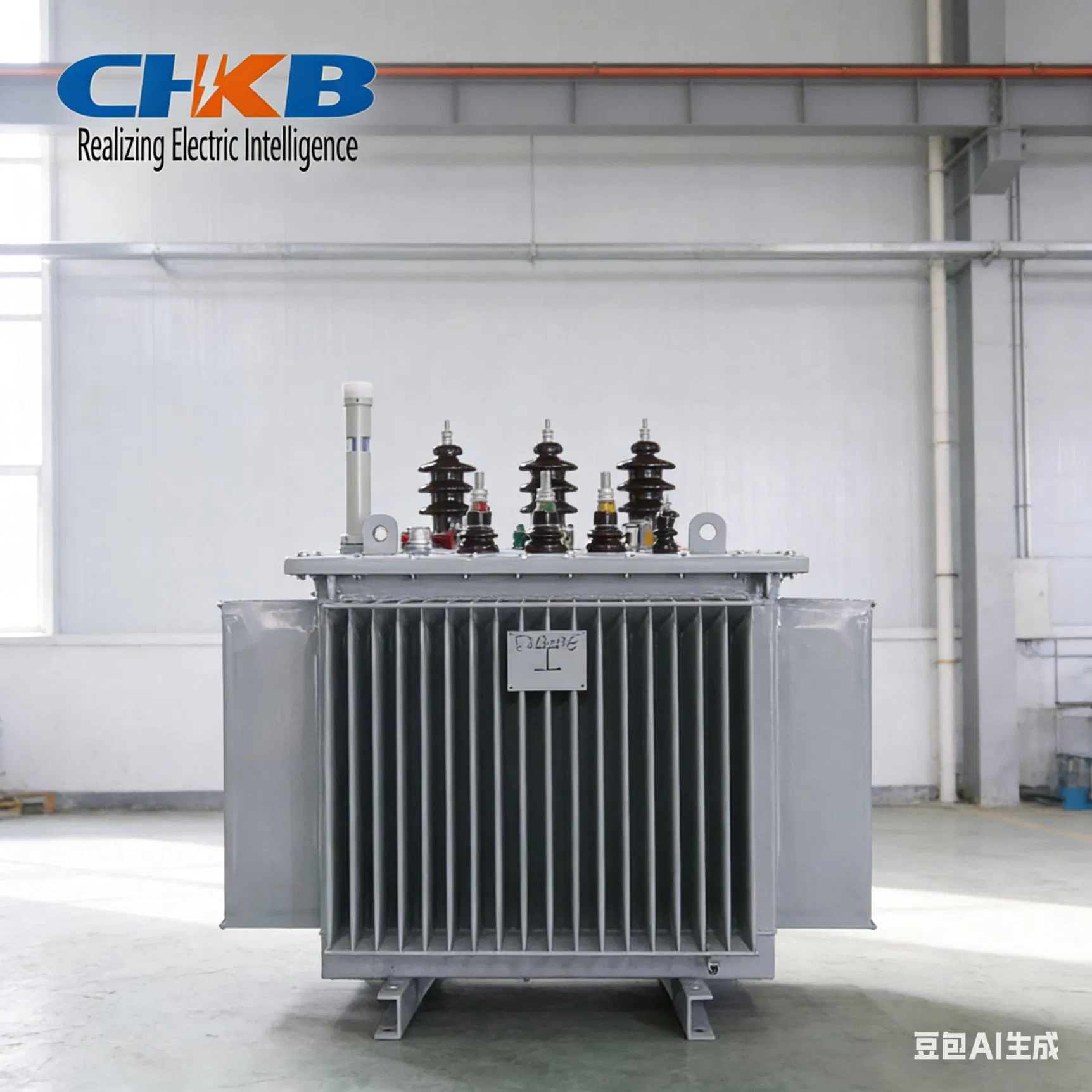

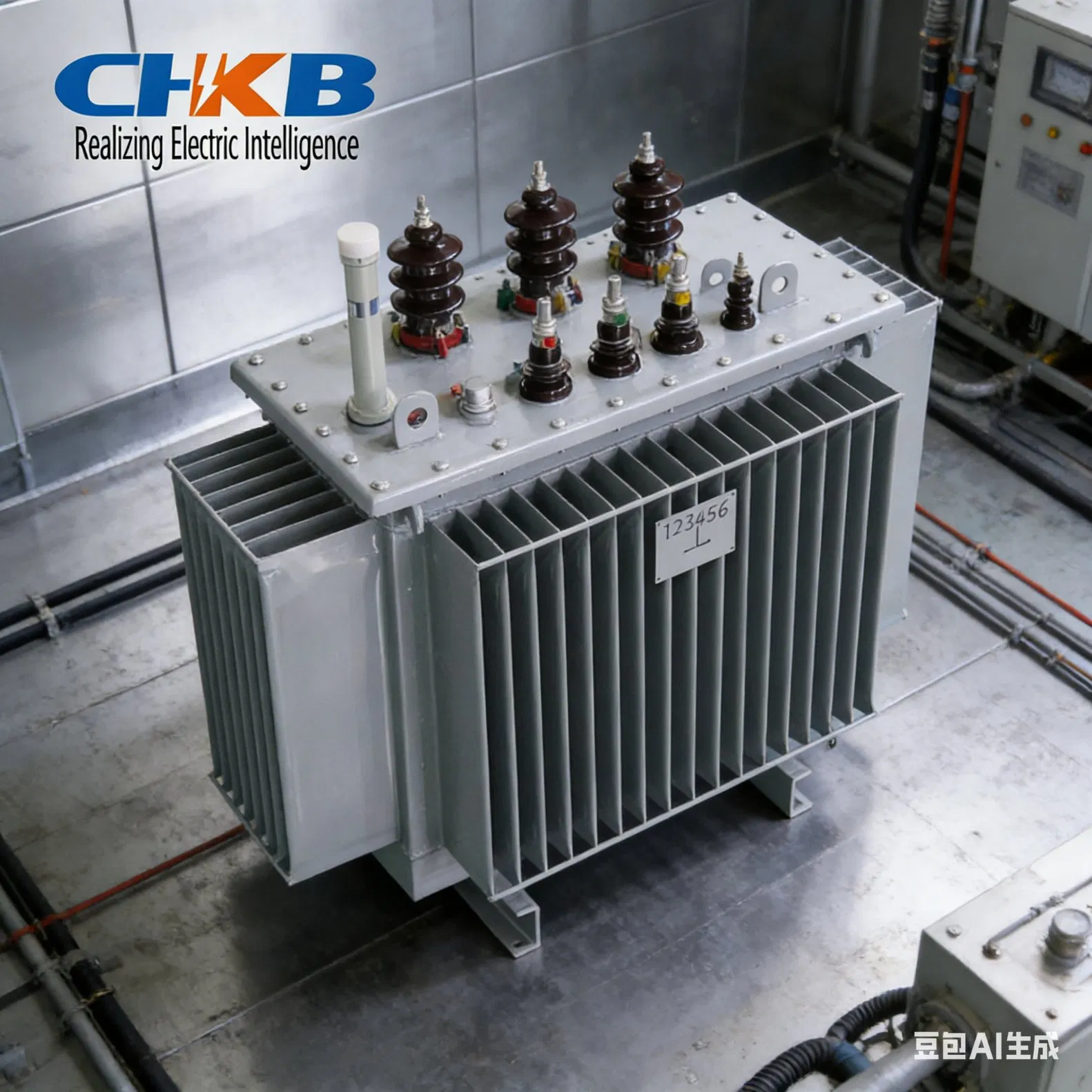

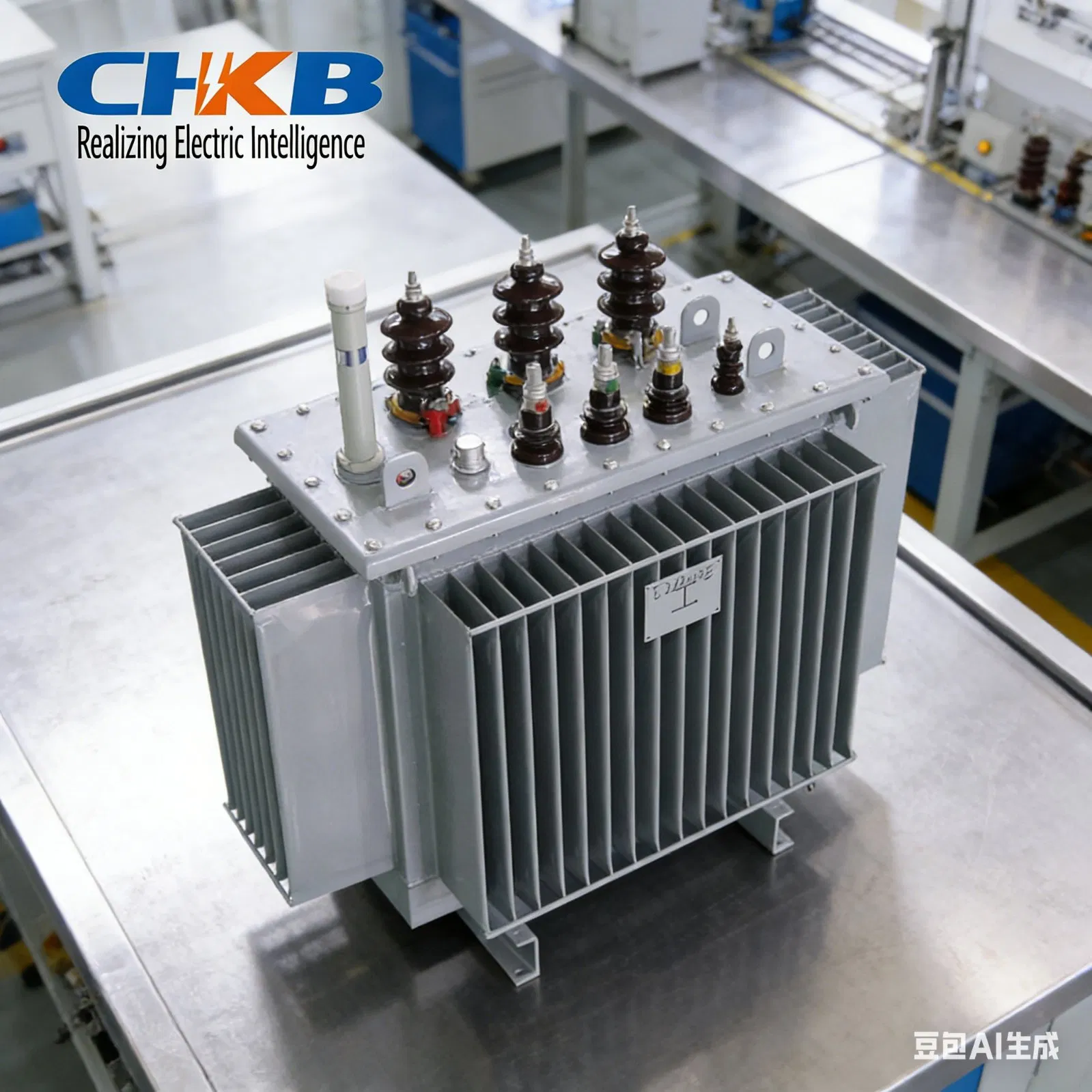

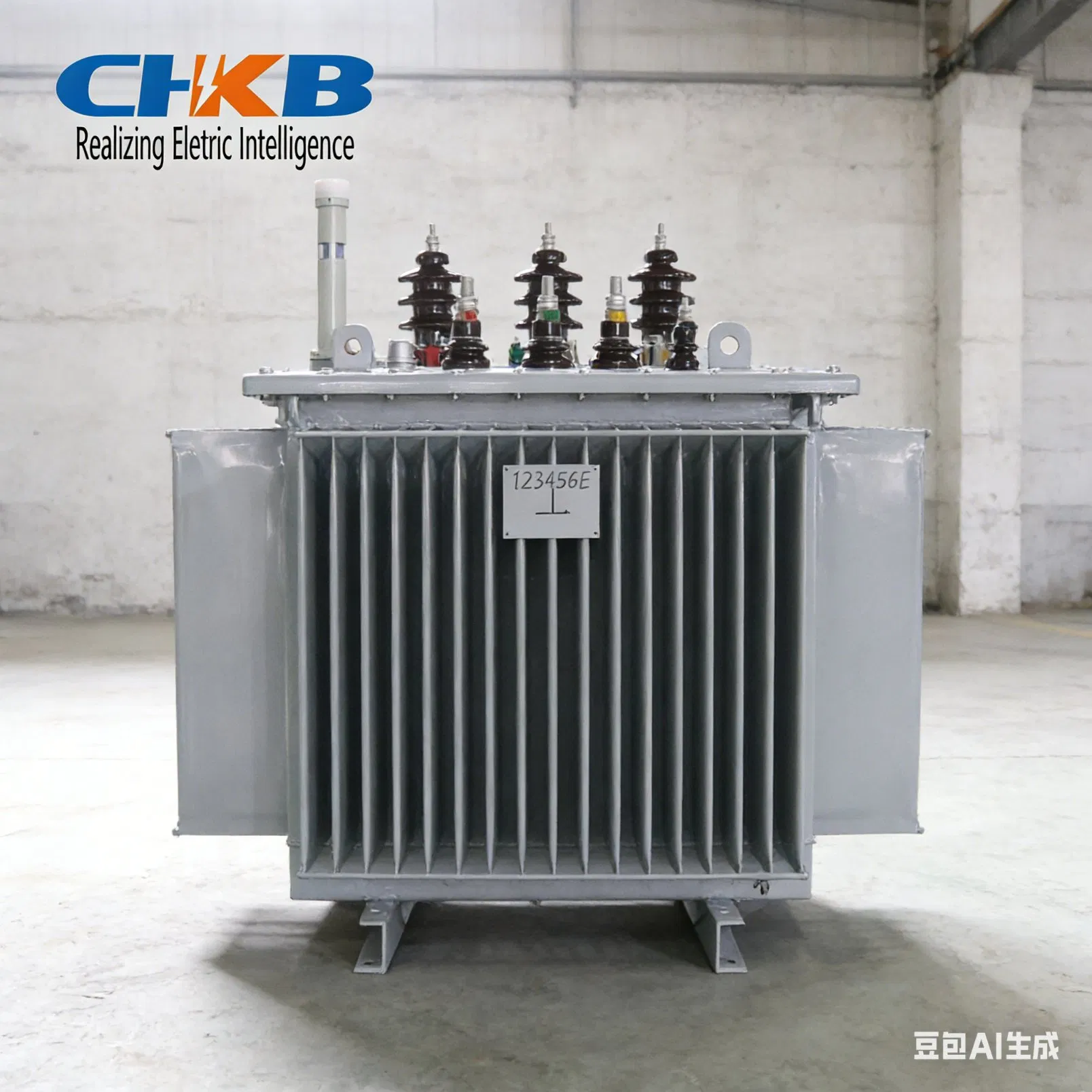

OEM Supplier 100 kVA Oil Immersion Dry Type Transformer Power Transformer 5000 kVA Large Power Transformer
OEM Supplier 100 kVA Oil Immersion Dry Type Transformer Power Transformer 5000 kVA Large Power Transformer
OEM Supplier 100 kVA Oil Immersion Dry Type Transformer Power Transformer 5000 kVA Large Power Transformer
OEM Supplier 100 kVA Oil Immersion Dry Type Transformer Power Transformer 5000 kVA Large Power Transformer
OEM Supplier 100 kVA Oil Immersion Dry Type Transformer Power Transformer 5000 kVA Large Power Transformer
1 / 5
OEM Supplier 100 kVA Oil Immersion Dry Type Transformer Power Transformer 5000 kVA Large Power Transformer
OEM Supplier 100 kVA Oil Immersion Dry Type Transformer Power Transformer 5000 kVA Large Power Transformer
OEM Supplier 100 kVA Oil Immersion Dry Type Transformer Power Transformer 5000 kVA Large Power Transformer
OEM Supplier 100 kVA Oil Immersion Dry Type Transformer Power Transformer 5000 kVA Large Power Transformer
OEM Supplier 100 kVA Oil Immersion Dry Type Transformer Power Transformer 5000 kVA Large Power Transformer

OEM Supplier 100 kVA Oil Immersion Dry Type Transformer Power Transformer 5000 kVA Large Power Transformer

Customization: Available
Application: Power, Electronic, Instrument, Lighting, Rectifier, Audio
Phase: Three
Send Inquiry

Product Description

📋 Basic Information
Core
Core-type Transformer
Cooling Method
Oil-immersed Type
Winding Type
Two-winding Transformer
Certification
ISO, CE
Usage
Power/Distribution Transformer
Frequency
50Hz / Low Frequency
Rated Capacity
30kVA ~ 2500kVA
Standard
IEC60076
⚙️ Product Description

Our oil-immersed transformers are widely used in residential communities, commercial complexes, industrial and mining enterprises, power stations, public facilities, and urban/rural power grid upgrading projects. They are suitable for 10kV / 20kV / 35kV distribution and transmission systems with stable performance in various load fluctuation conditions and harsh environments.

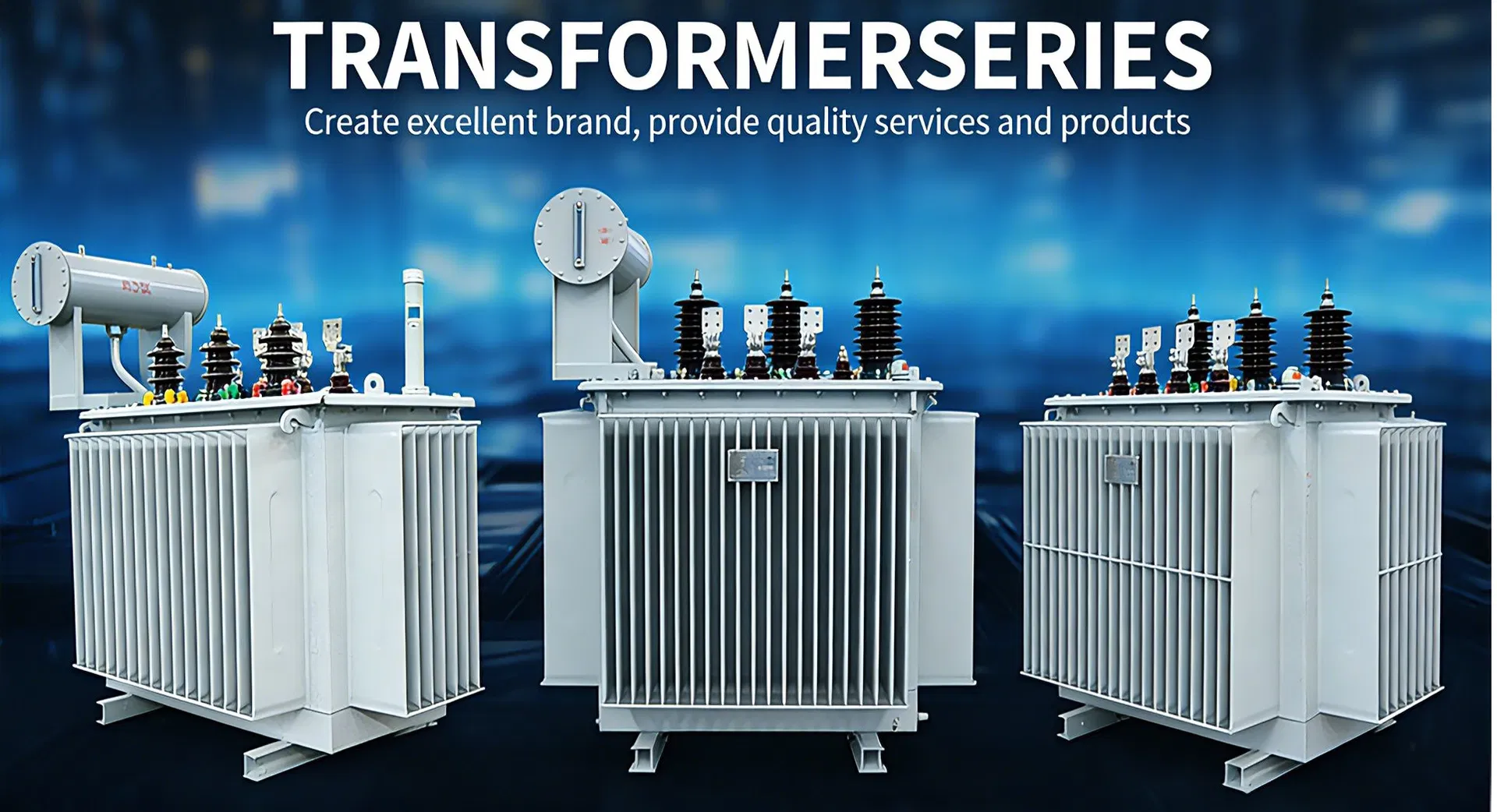

Oil Immersion Power Transformer

Key Technical Advantages

01
High-quality Silicon-steel Core: 45° multi-seam lamination ensures low no-load loss and minimal operational noise.
02
Fully-sealed Corrugated Tank: Prevents oxidation and moisture ingress, resulting in a maintenance-free extended service life.
03
Short-circuit Withstand: Reinforced structure provides excellent short-circuit tolerance and consistent quality.
04
High Overload Performance: Supports up to 2.0x rated capacity for 1 hour, ideal for peak season surges.
🖼️ Product Display
Transformer detail 1

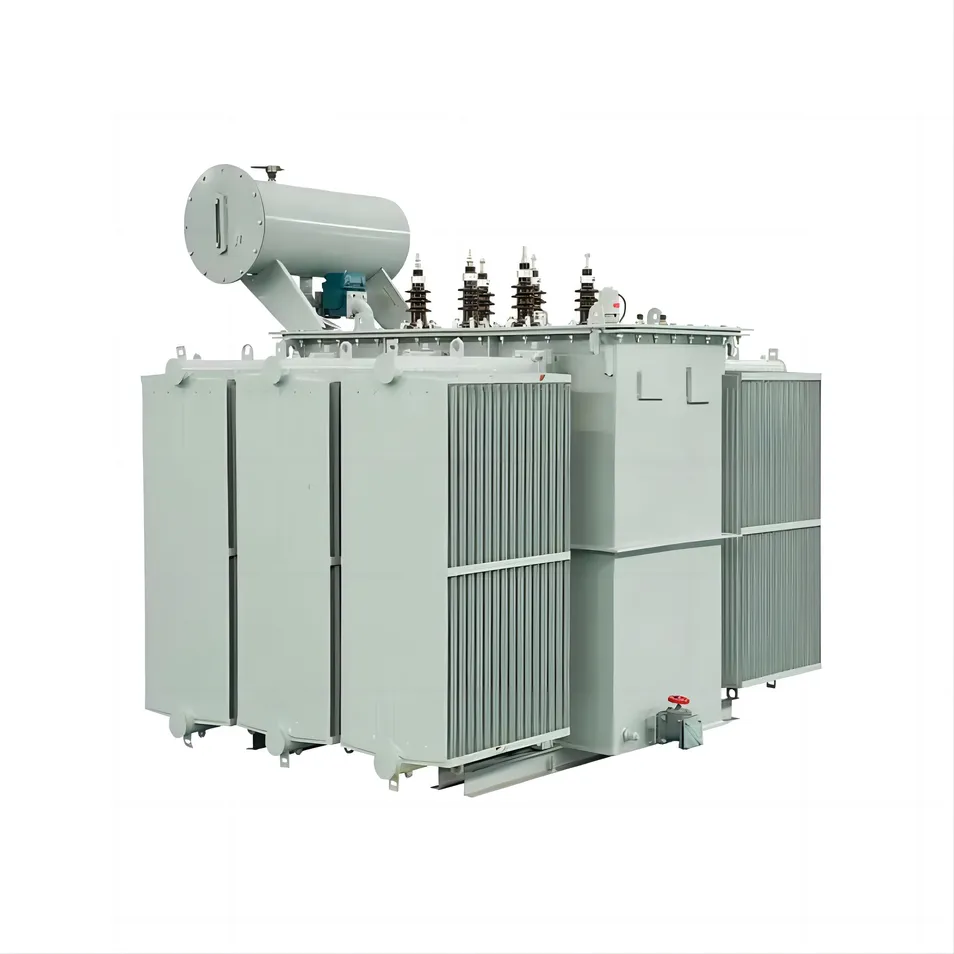

Transformer detail 2
Technical Layout
📊 Specifications
Product Model Voltage Class Vector Group Capacitance Range Voltage Regulating Mode
35kV Power Transformer 35kV Yyn0, Dyn11 800~25000kVA On-load / No-excitation
20kV Distribution Transformer 20kV Yyn0, Dyn11 30~2500kVA No-excitation
10kV Distribution Transformer 10kV, 6kV Yyn0, Dyn11 30~3150kVA No-excitation
Amorphous Alloy Type 10kV, 6kV Yyn0, Dyn11 50, 100, 200kVA High Overload Support
🛠️ Customizable Options (OEM / ODM)

Our transformers can be tailored to meet global grid standards and specific project requirements:

  • 🔹 Voltage: 6kV to 35kV
  • 🔹 Frequency: 50Hz / 60Hz
  • 🔹 Material: Copper / Aluminum
  • 🔹 Efficiency: S11, S13, SH15
  • 🔹 Capacity: 30kVA to 25000kVA
  • 🔹 Tank Color: Grey, Green, Custom
📦 Packing & Delivery

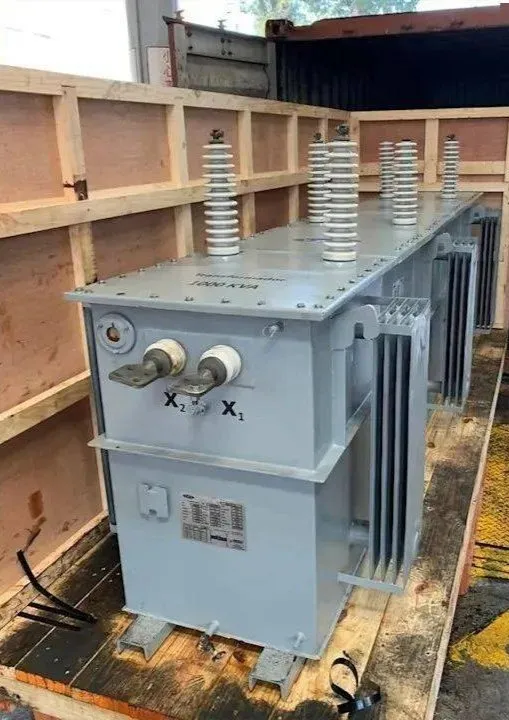

Packing 1

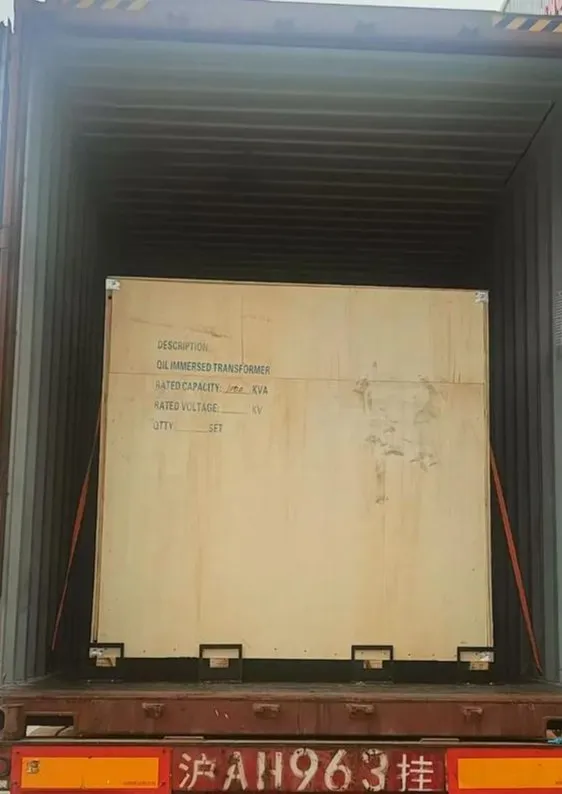

Packing 2
Packing 3
Delivery Process
Frequently Asked Questions
Q: What is the typical lead time for an order?
A: Standard models usually ship within 15–30 days, while fully customized units require 30–45 days depending on the specifications.
Q: Do the transformers comply with international standards?
A: Yes, our products are designed and manufactured in accordance with IEC60076 standards and have passed ISO9001 and CE certifications.
Q: Can I customize the winding material?
A: Absolutely. We offer high-conductivity copper as standard, but aluminum windings are available as a cost-effective option for specific engineering projects.
Q: What are the benefits of the fully-sealed corrugated tank?
A: The sealed design isolates the oil from air, preventing oxidation and moisture. This makes the transformer virtually maintenance-free and significantly extends its operational life.
Q: How do you handle export documentation?
A: We provide a comprehensive export package including Commercial Invoices, Packing Lists, Bill of Lading, and Certificates of Conformity (COC).
Q: What cooling methods are used?
A: We primarily utilize Oil Natural Air Natural (ONAN) cooling for our oil-immersed distribution transformers to ensure reliable heat dissipation.
