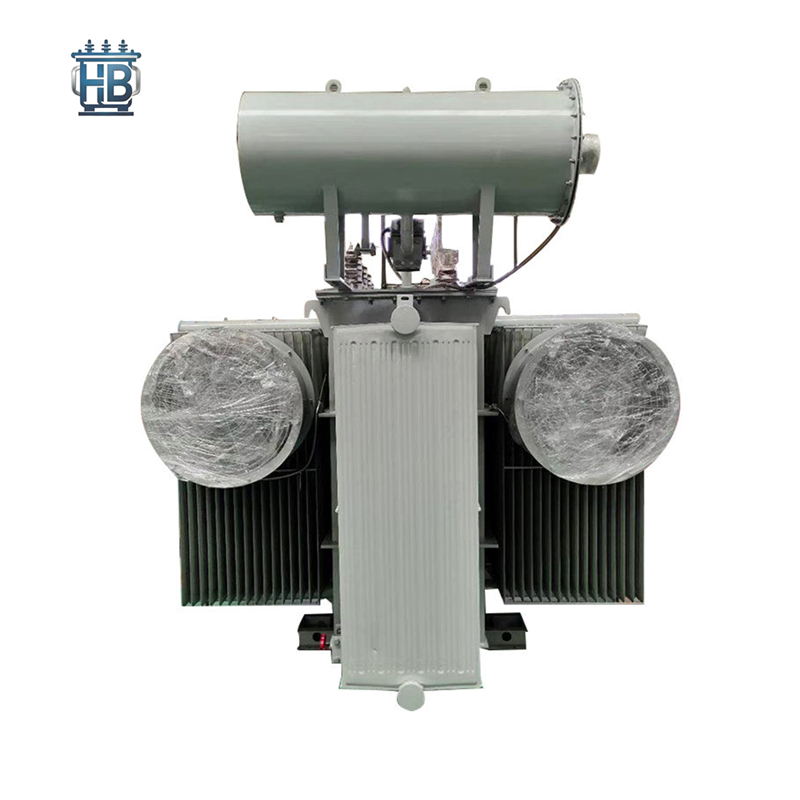

| Model NO. | zs10 | Core | Core-type Transformer |
| Cooling Method | Oil-immersed Type Transformer | Winding Type | Two-winding Transformer |
| Certification | ISO9001-2000, ISO9001, CCC | Usage | Rectifier, Combined, Power, Distribution |
| Frequency Characteristics | High Frequency | Shape of Core | Ring |
| Rated Capacity | 80~10000kVA | Winding Material | Copper/Aluminum |
| Transport Package | Wooden Box | HS Code | 8504210000 |
| Rated capacity (kVA) | Voltage Combination (kV) | Vector Group | Gauge (mm) | Loss (w) | Impedance Voltage (%) | No-load current (%) | ||
| HV | LV | No-load | Load | |||||
| 160 | 3~10 | 0.4~2 | Yyo / Yd11 / Dy11 | 400 | 378 | 2622 | 4.5 | 1.5 |
| 315 | 550 | 628 | 4357 | 4.5 | 1.2 | |||
| 630 | 660 | 1057 | 7329 | 5~6 | 1 | |||
| 1000 | 820 | 1494 | 10365 | 5~6 | 0.9 | |||
| 2000 | 1070 | 2513 | 17552 | 5~6 | 0.7 | |||
* Note: Customizable voltage regulating ranges of 5% or 2x2.5% available upon request.

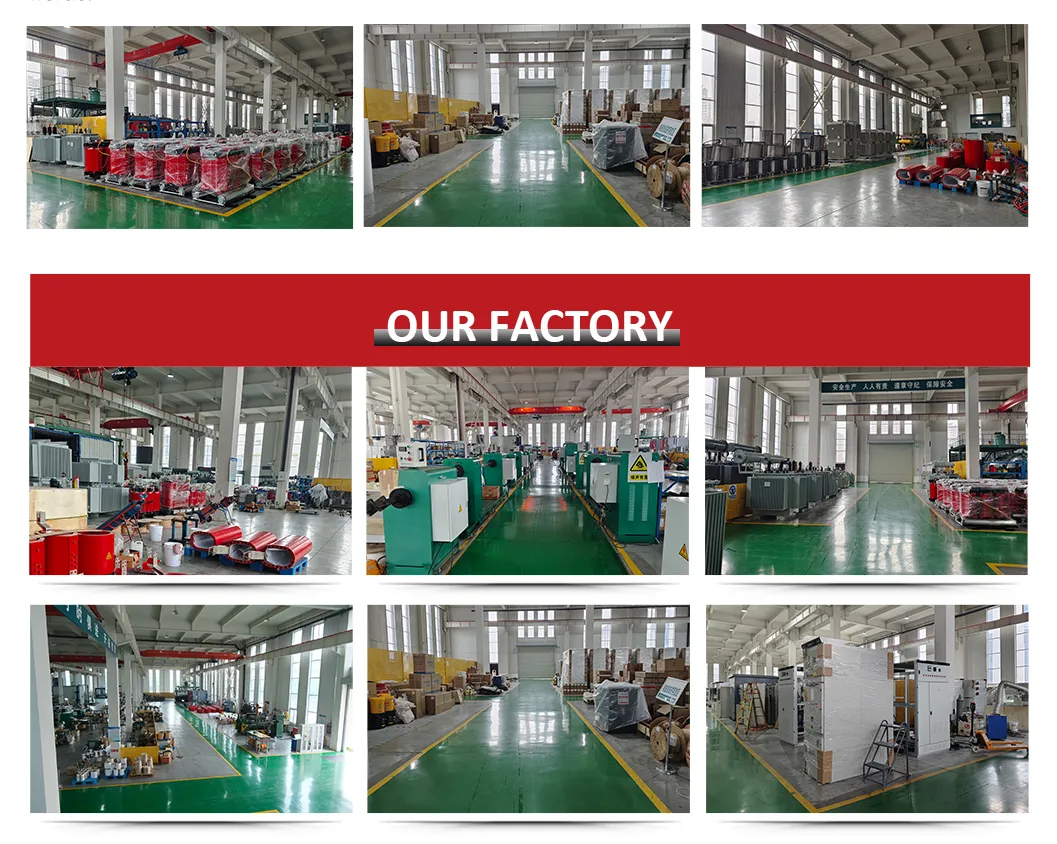

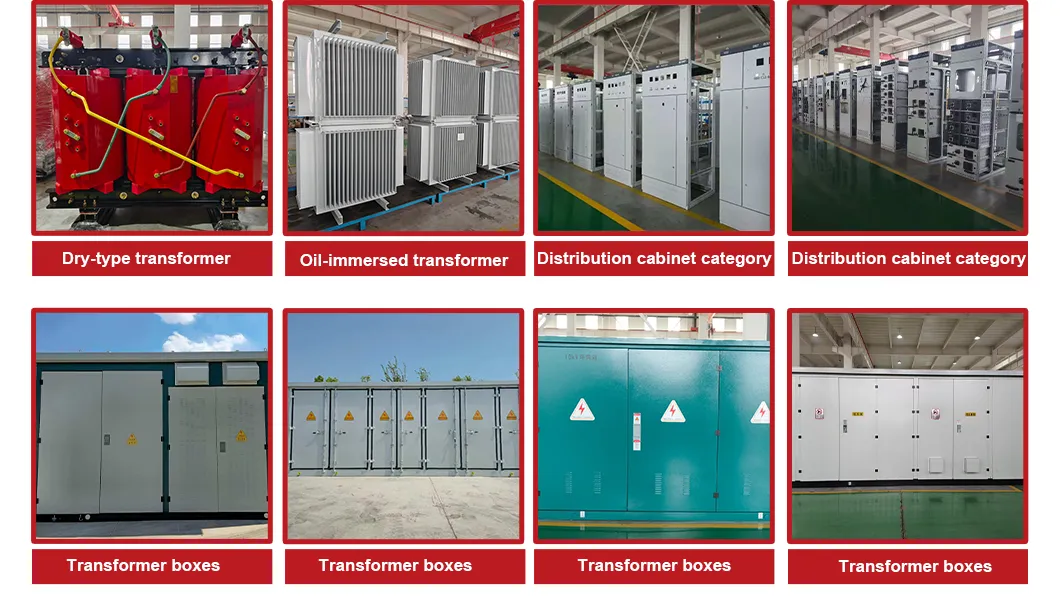

We are a professional manufacturer of power equipment, specializing in the development and production of oil-immersed power transformers, dry-type transformers, and complete sets of high and low voltage electrical equipment. With complete production equipment and advanced testing levels, we supply solutions for power grids, metallurgy, chemical industries, and new energy fields worldwide.
