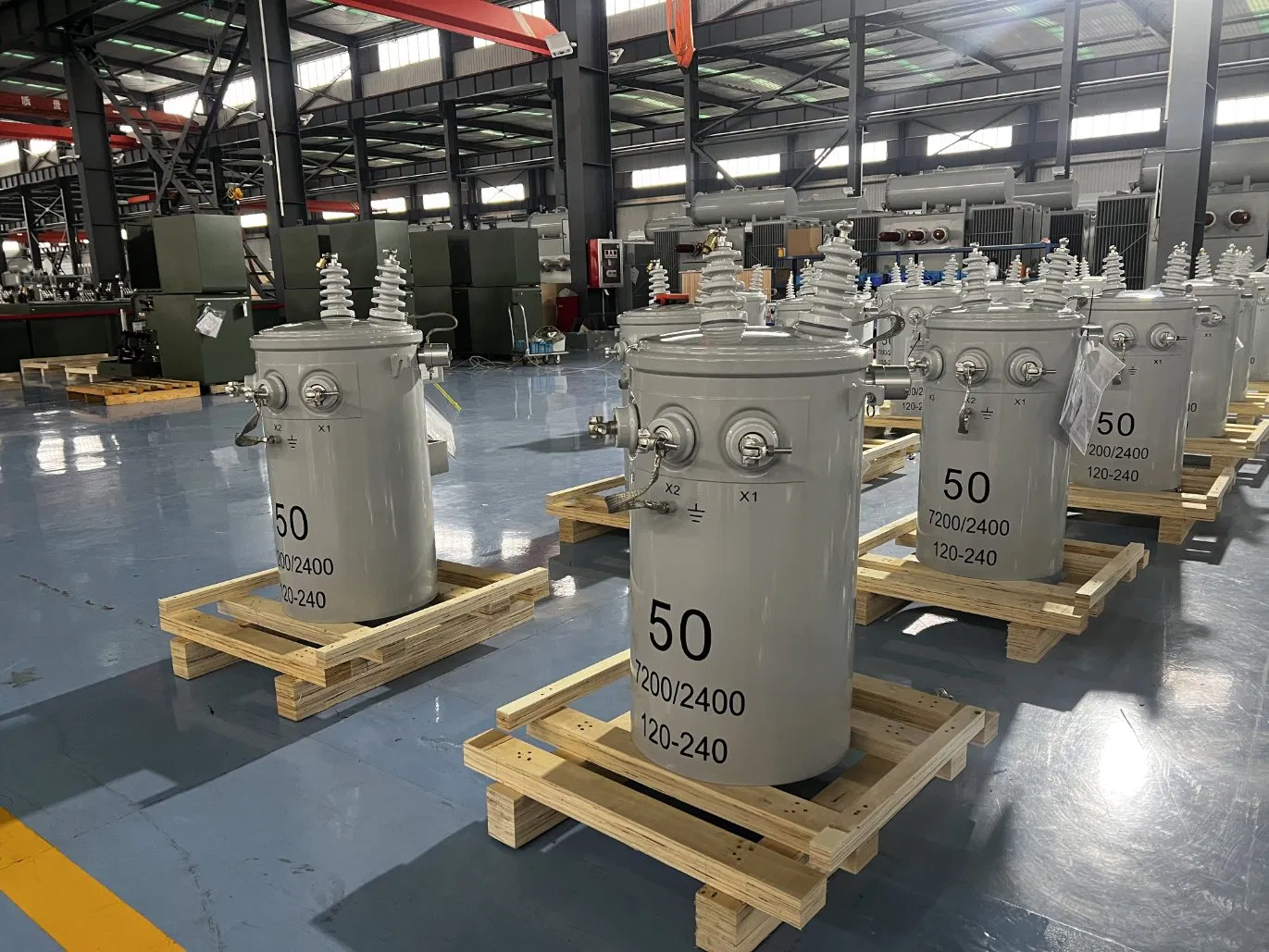

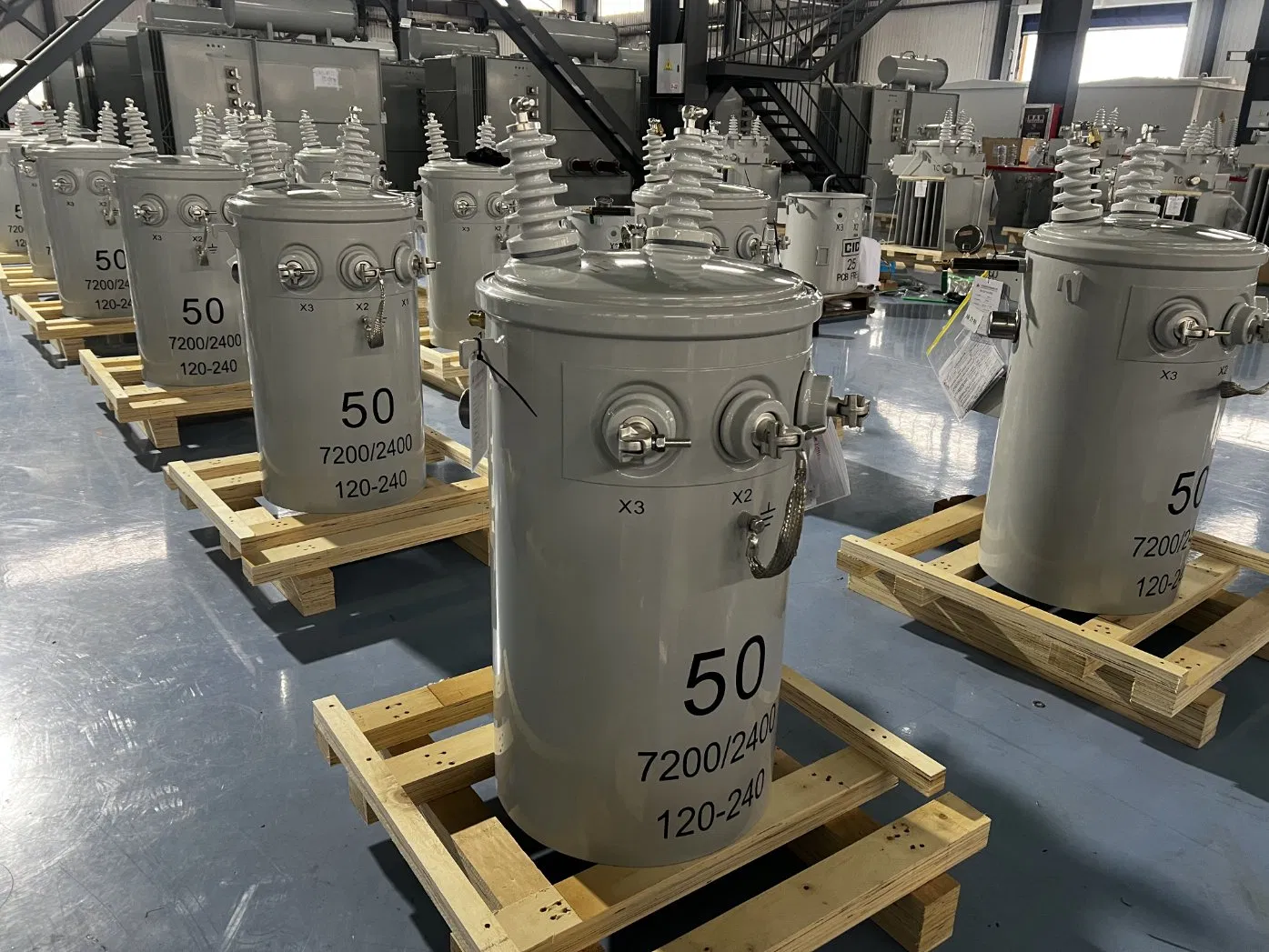

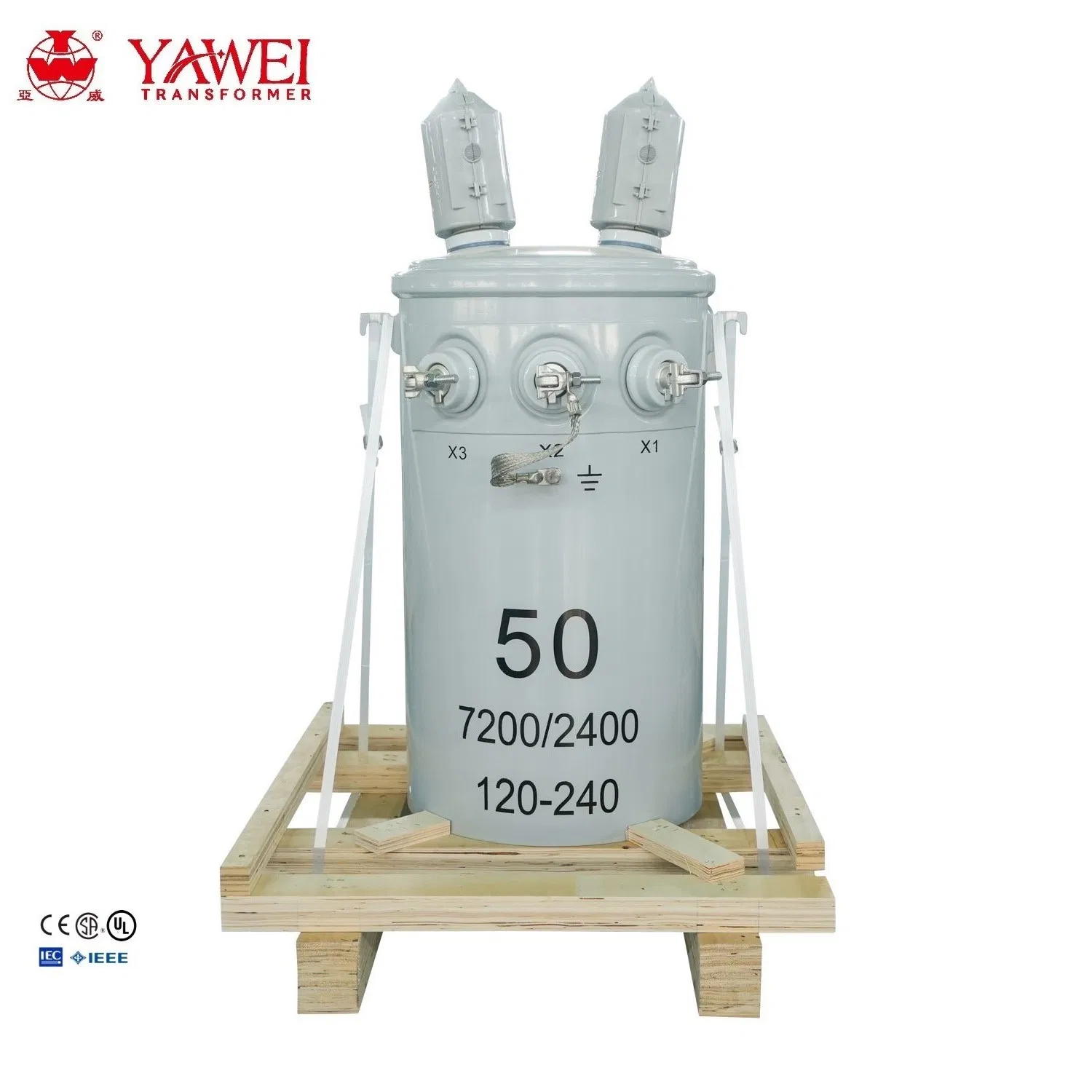

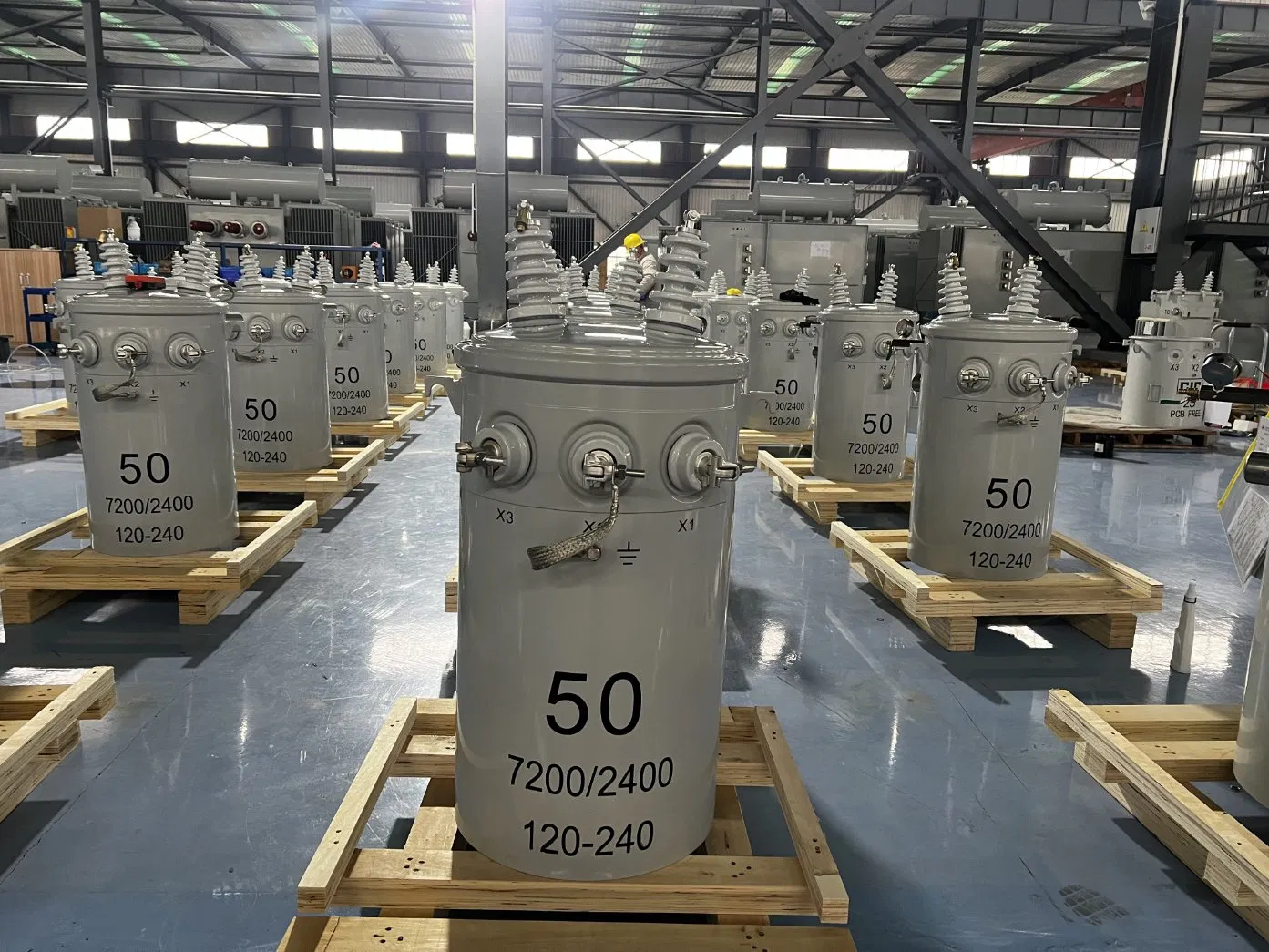

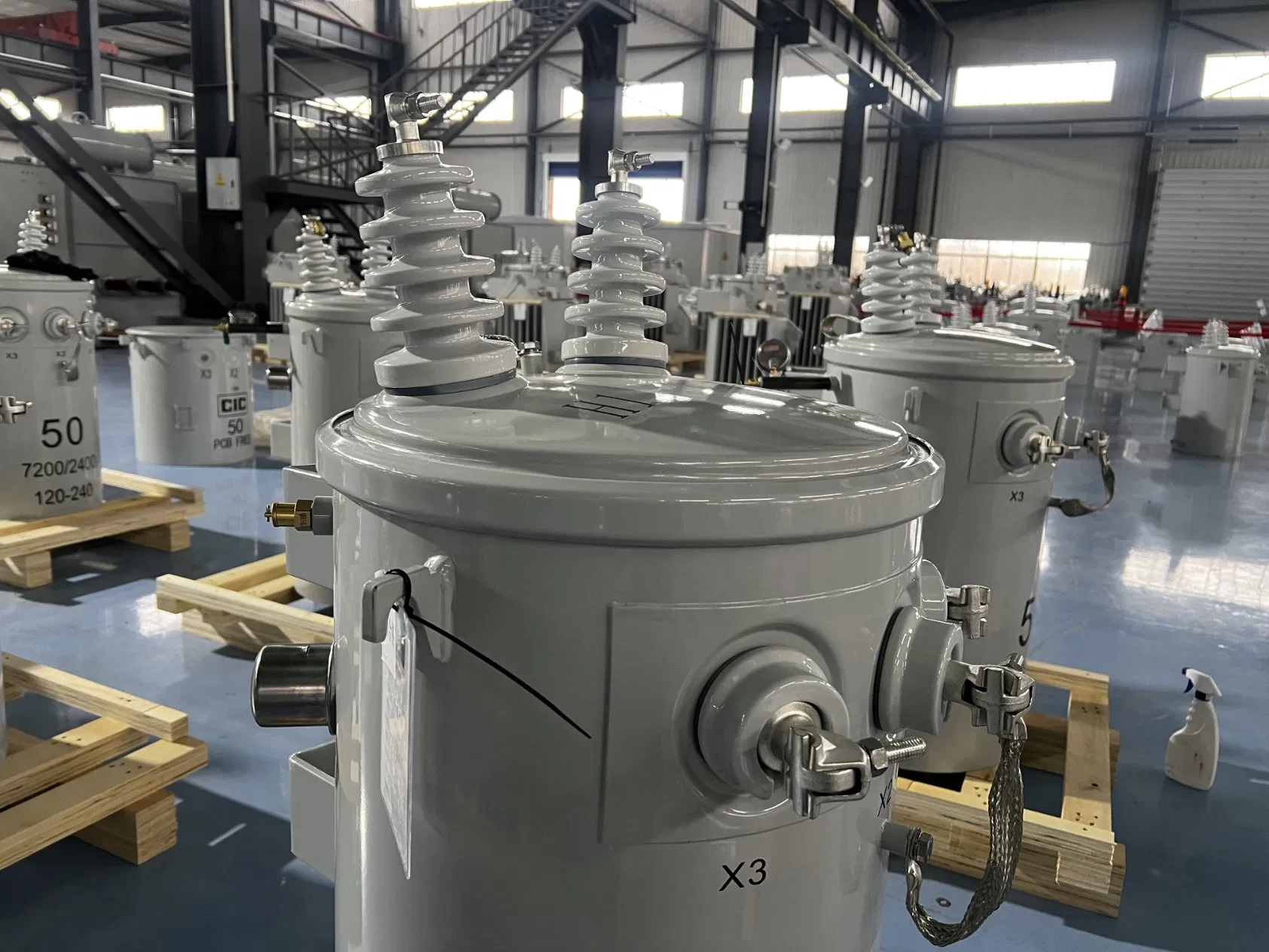

Yawei Hot Sales Customized Single-Phase Oil-Immersed Power Transformer 5kVA~500kVA Pole Mounted Transformer
Yawei Hot Sales Customized Single-Phase Oil-Immersed Power Transformer 5kVA~500kVA Pole Mounted Transformer
Yawei Hot Sales Customized Single-Phase Oil-Immersed Power Transformer 5kVA~500kVA Pole Mounted Transformer
Yawei Hot Sales Customized Single-Phase Oil-Immersed Power Transformer 5kVA~500kVA Pole Mounted Transformer
Yawei Hot Sales Customized Single-Phase Oil-Immersed Power Transformer 5kVA~500kVA Pole Mounted Transformer
1 / 5
Yawei Hot Sales Customized Single-Phase Oil-Immersed Power Transformer 5kVA~500kVA Pole Mounted Transformer
Yawei Hot Sales Customized Single-Phase Oil-Immersed Power Transformer 5kVA~500kVA Pole Mounted Transformer
Yawei Hot Sales Customized Single-Phase Oil-Immersed Power Transformer 5kVA~500kVA Pole Mounted Transformer
Yawei Hot Sales Customized Single-Phase Oil-Immersed Power Transformer 5kVA~500kVA Pole Mounted Transformer
Yawei Hot Sales Customized Single-Phase Oil-Immersed Power Transformer 5kVA~500kVA Pole Mounted Transformer

Yawei Hot Sales Customized Single-Phase Oil-Immersed Power Transformer 5kVA~500kVA Pole Mounted Transformer

Customization: Available
Application: Power
Phase: Single
Send Inquiry

Product Description

🔹 Overview & Basic Specifications
Model NO.
D11-14
Core
Core-type Transformer
Cooling Method
Oil-immersed Type
Winding Type
Two-winding
Certification
ISO9001, CCC
Usage
Single-phase, Power Transformer
Rated Capacity
10-750kVA
Input Voltage
13800V or Others
Output Voltage
120V or Others
Winding Material
Copper / Aluminum
Warranty
2 Years
Origin
China
📦 Packaging & Delivery
Package Size
1220.00cm * 1200.00cm * 1200.00cm
Gross Weight
1000.000kg
Transport Package
Wooden Case
Production Capacity
1200 Sets Per Month
⚙️ Product Description

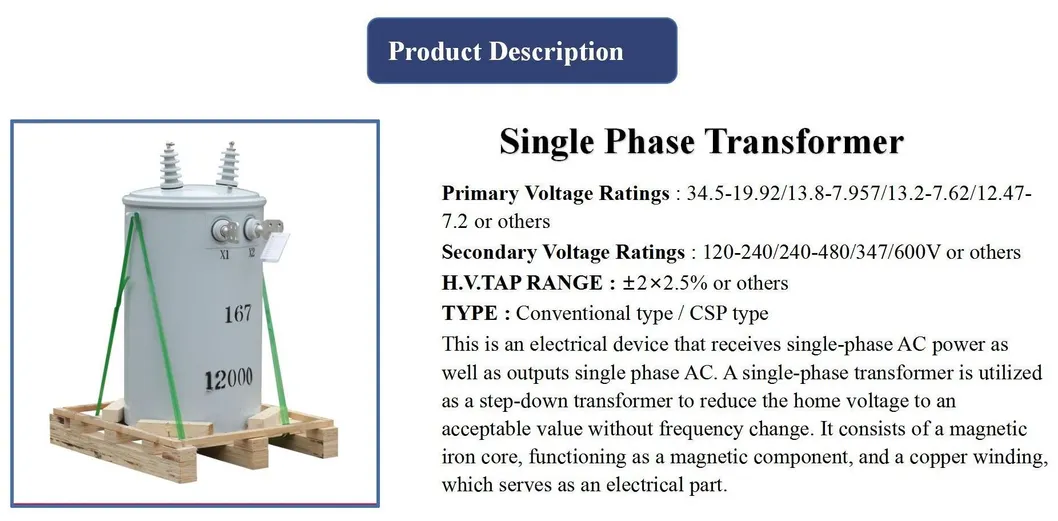

Single-Phase Oil-Immersed Power Transformer

Types of Single-Phase Pole-Mounted Transformers

Our product range includes standard models and advanced Completely Self-Protected (CSP) transformers, engineered for maximum efficiency and reliability in overhead power distribution systems.

Key Features of CSP Transformers:

  • Built-in surge arrester: High-voltage side protection against lightning and overvoltage.
  • Integrated circuit breaker: Low-voltage side protection to prevent overloads and short circuits.
  • Internal protective fuse: Enhanced safety and system isolation.

The all-in-one CSP design significantly reduces the need for external protection devices, simplifying installation and lowering maintenance costs.

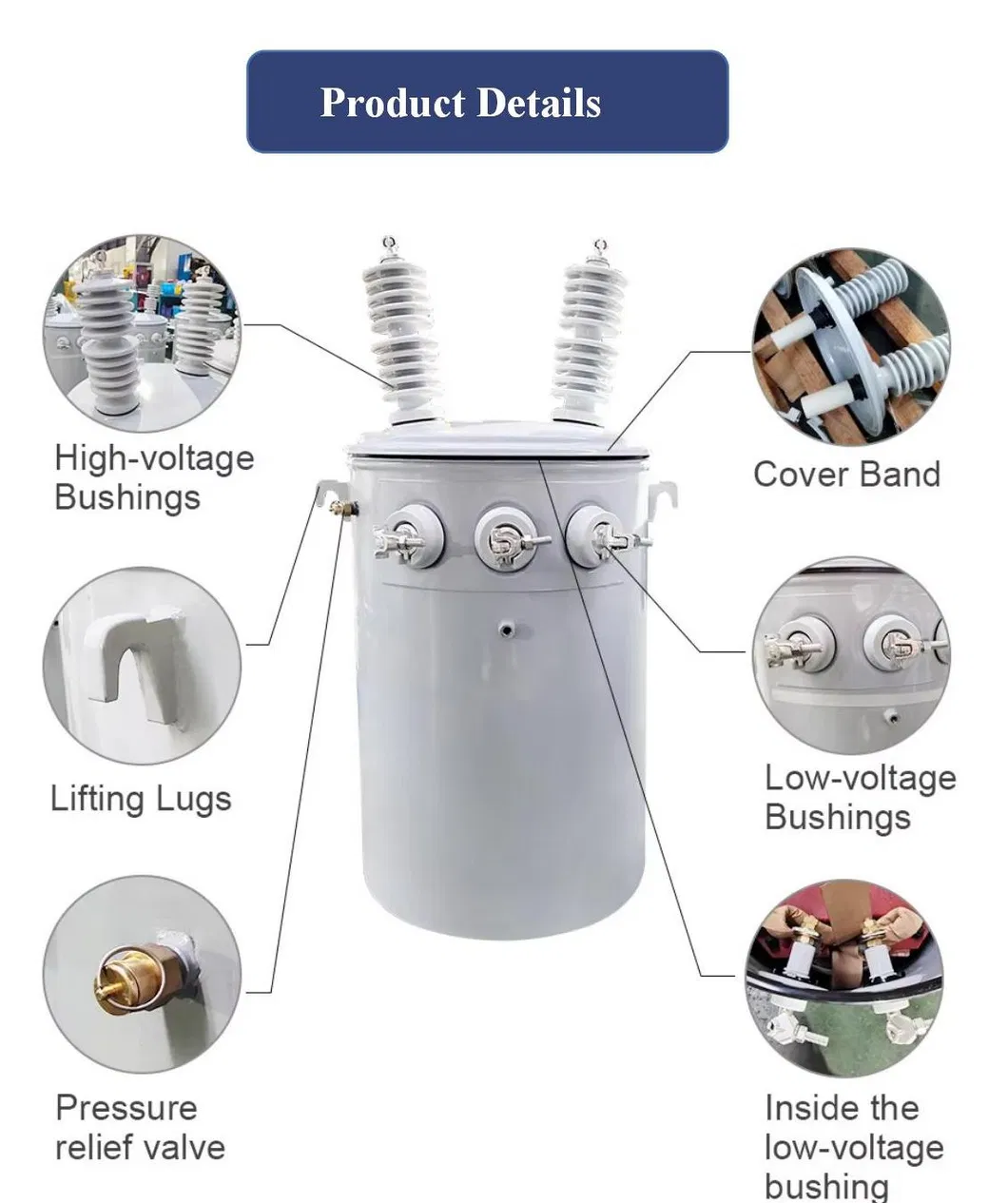

Transformer Details

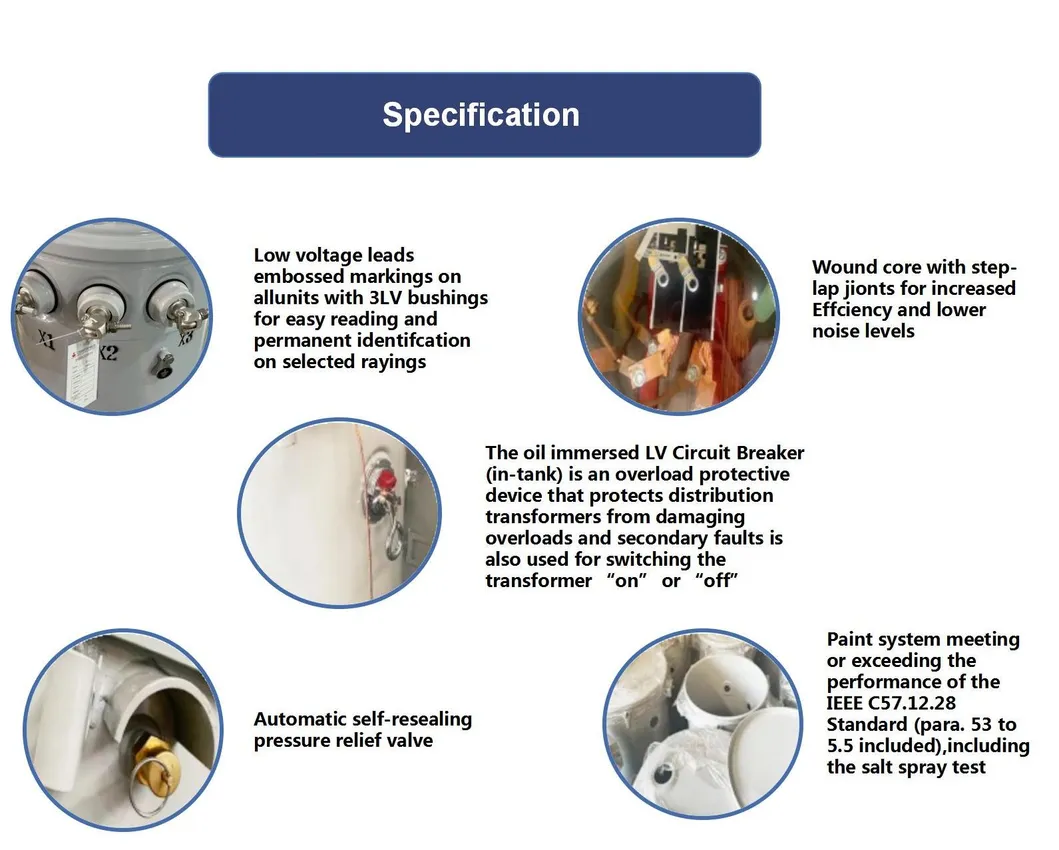

Transformer Structure
Parameters of Single Phase Pole Mounted Distribution Transformer
Model Rated Capacity(kVA) Voltage(V) Loss(W) Dimensions(mm) Weight(kg)
H.V. Tap Range L.V. No-load On-load A B C D Oil Total
D11-10 10 33000
13800
or others		 ±2×2.5% 120/240
or others		 36 120 910 470 550 380 22 150
D11-25 25 80 290 1025 550 630 450 45 258
D11-50 50 135 500 1235 630 680 520 62 395
D11-100 100 210 850 1350 780 810 610 94 530

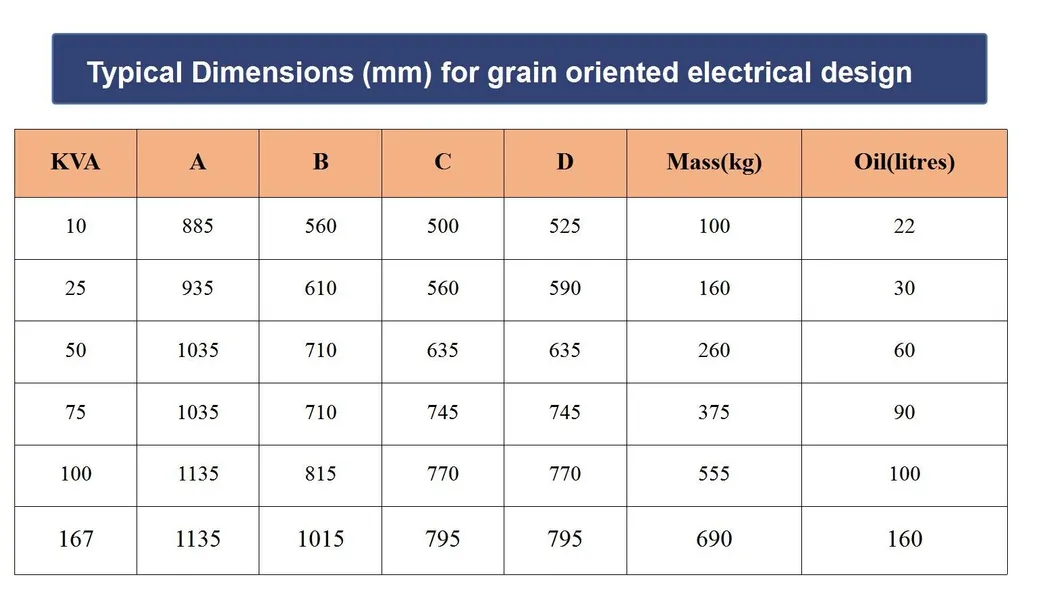

Transformer Component
Quality Control
🏭 Manufacturing & Facility
Factory Overview
Production Line
Testing Area
Ready for Shipment
Storage Yard
❓ Frequently Asked Questions
What is a Completely Self-Protected (CSP) transformer?
A CSP transformer integrates internal protection components including a surge arrester, a low-voltage circuit breaker, and a protective fuse. This design eliminates the need for many external protective devices.
What are the primary applications for pole-mounted transformers?
They are primarily used in overhead power distribution systems to step down high voltage to residential or commercial usable levels (e.g., 120V/240V).
What winding materials are available?
Depending on the customer's requirements for efficiency and cost, both copper and aluminum winding materials are available.
How are the transformers protected against environmental factors?
These units are oil-immersed for effective cooling and insulation, and the tanks are sealed to withstand outdoor weather conditions in overhead installations.
What is the standard warranty period for these transformers?
The standard warranty is 2 years, ensuring long-term reliability and performance for power distribution networks.
Are custom voltage ratings available?
Yes, while standard high voltages include 13800V and 33000V, custom input and output voltage configurations can be manufactured upon request.
